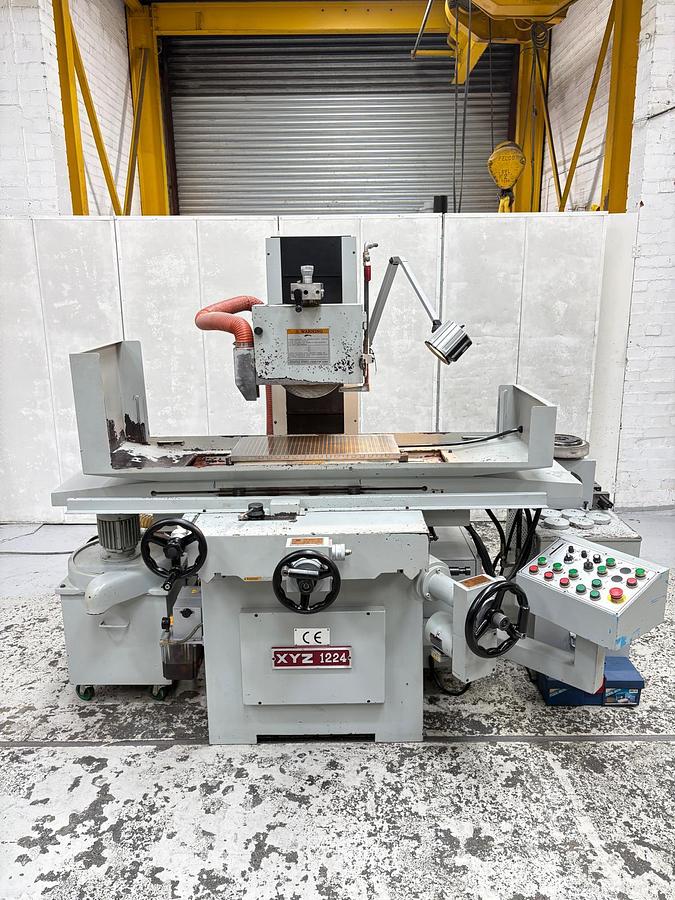

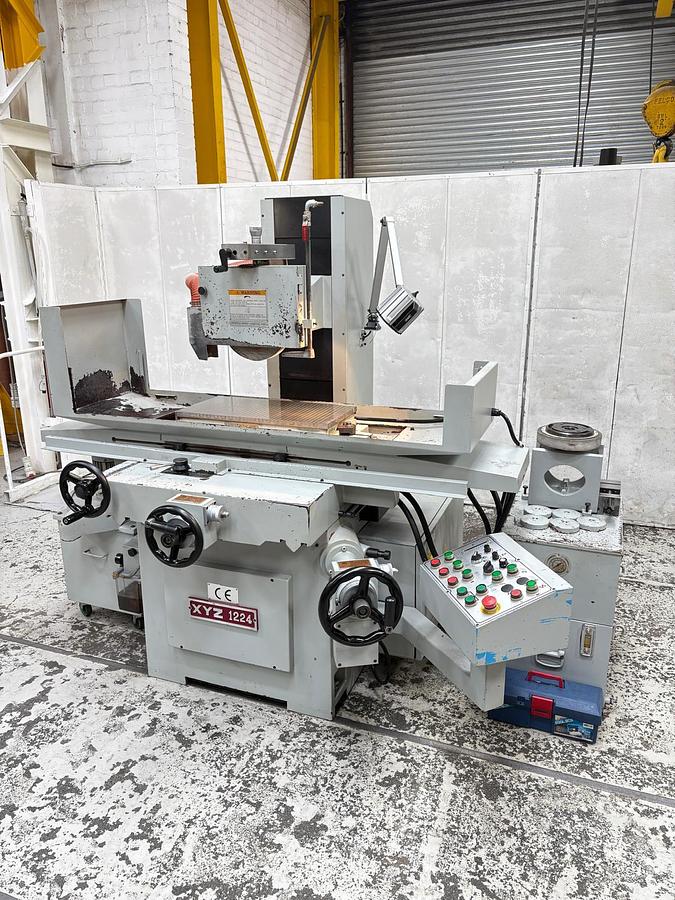

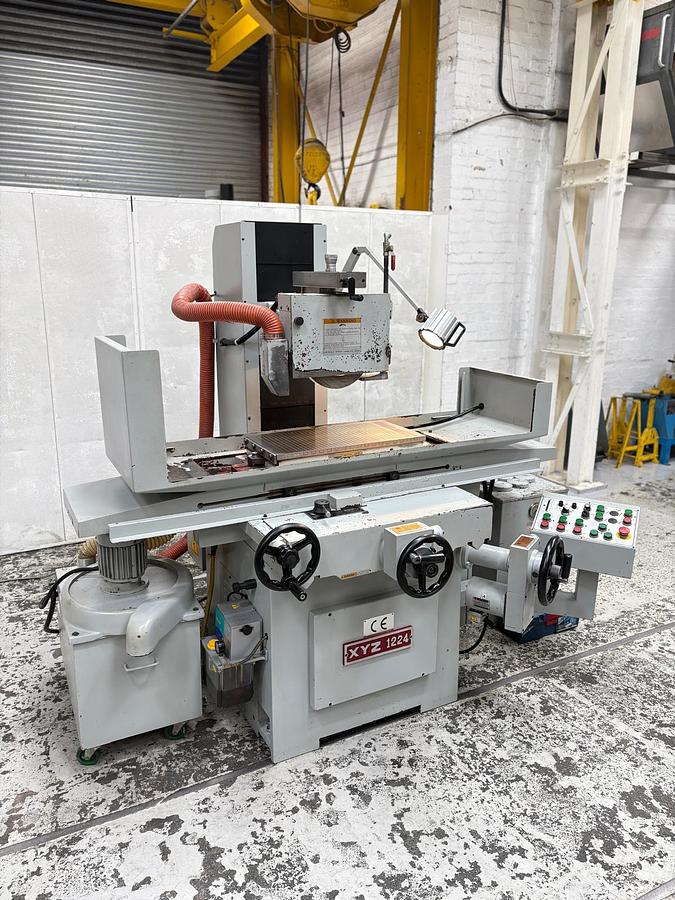

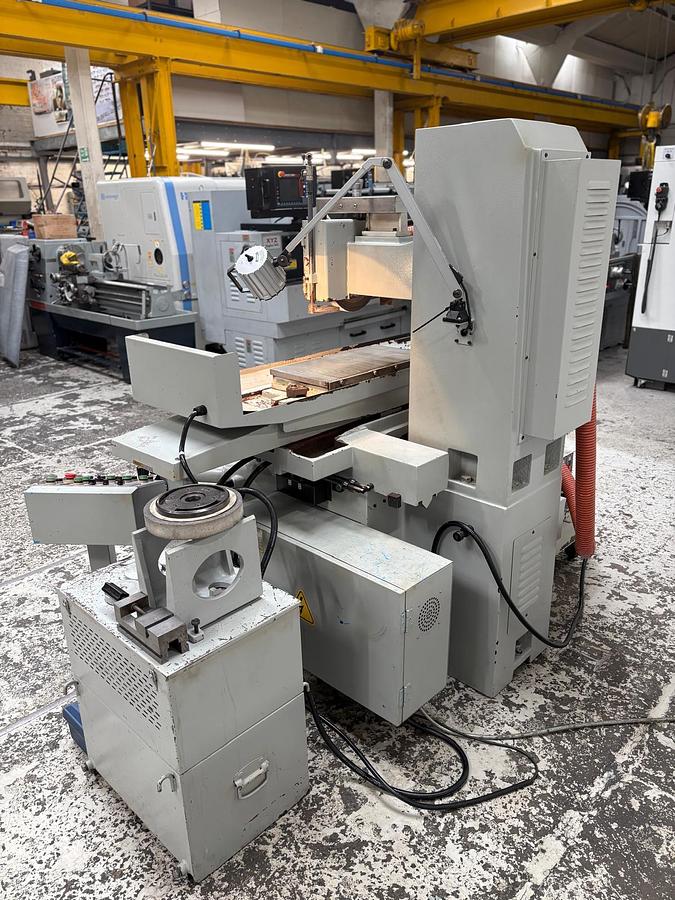

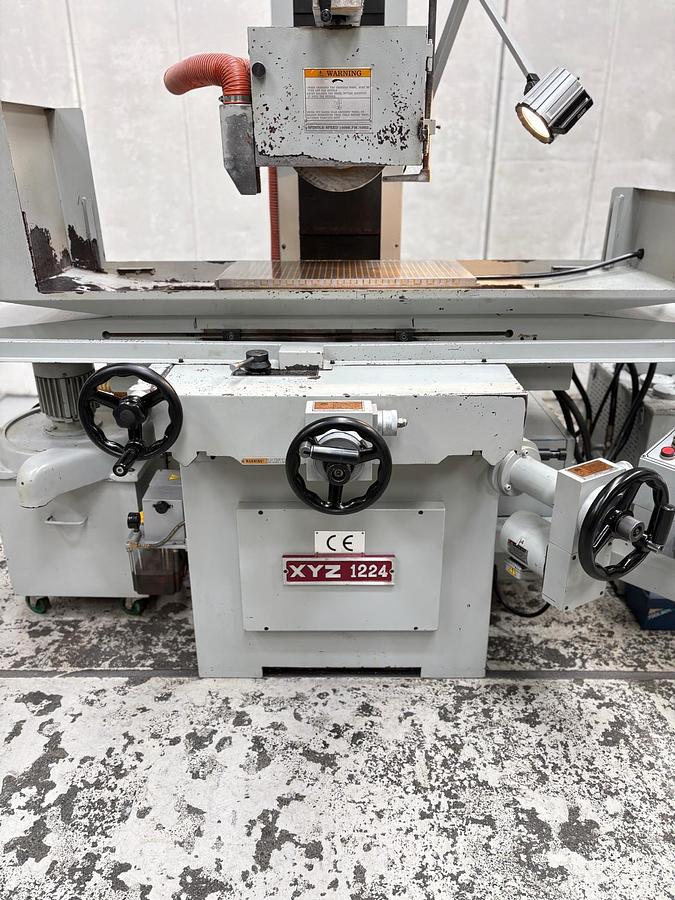

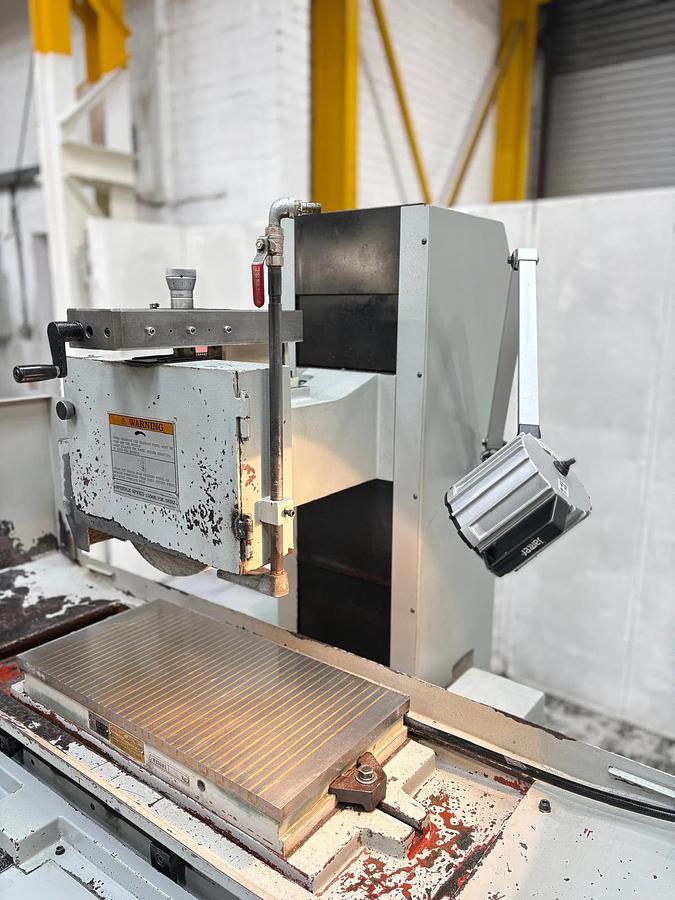

2001 XYZ 1224

Model                                                                               1224

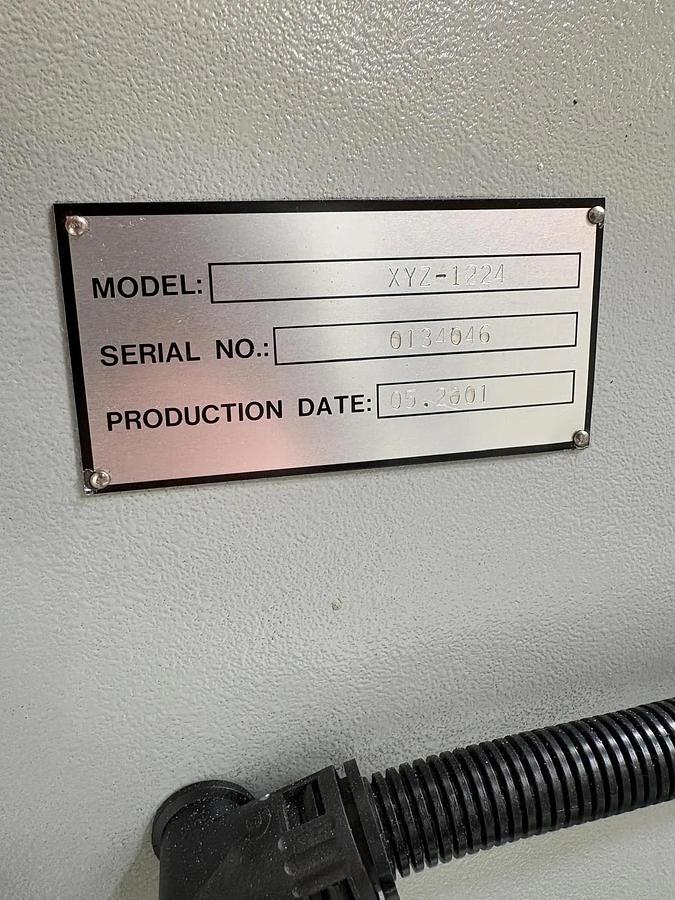

Serial number                                                                   0134046

Year                                                                                  2001

Table size                                                                          304 x 609 mm

Max. grinding length                                                          609 mm

Max. grinding width                                                           304 mm

Max. distance table surface to spindle centre                 508 mm

Longitudinal travel                                                             660 mm

Magnetic chuck size                                                          304 x 609 mm

Table speed                                                                       5 – 25 m/min

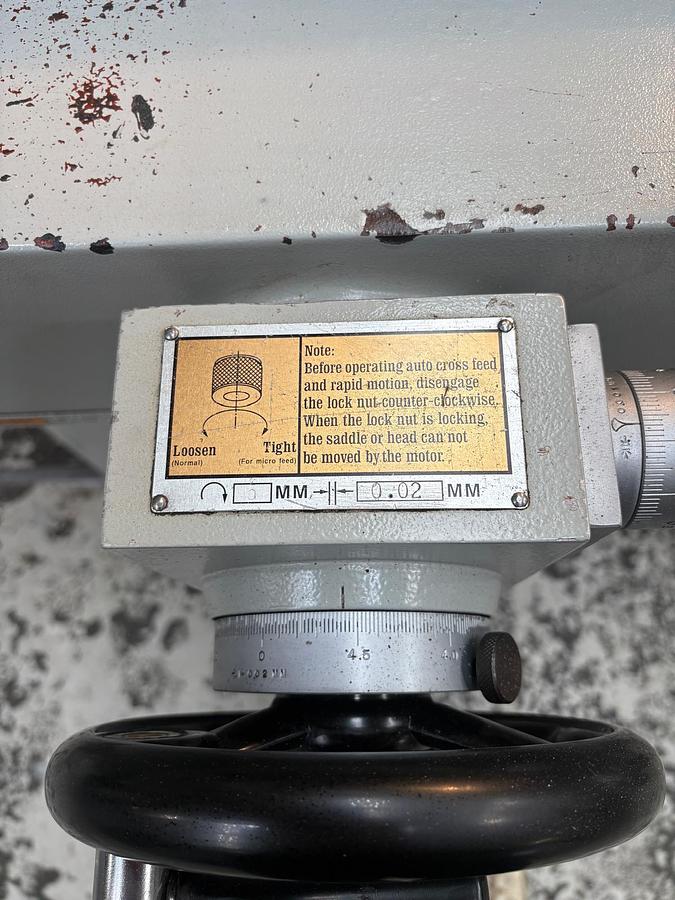

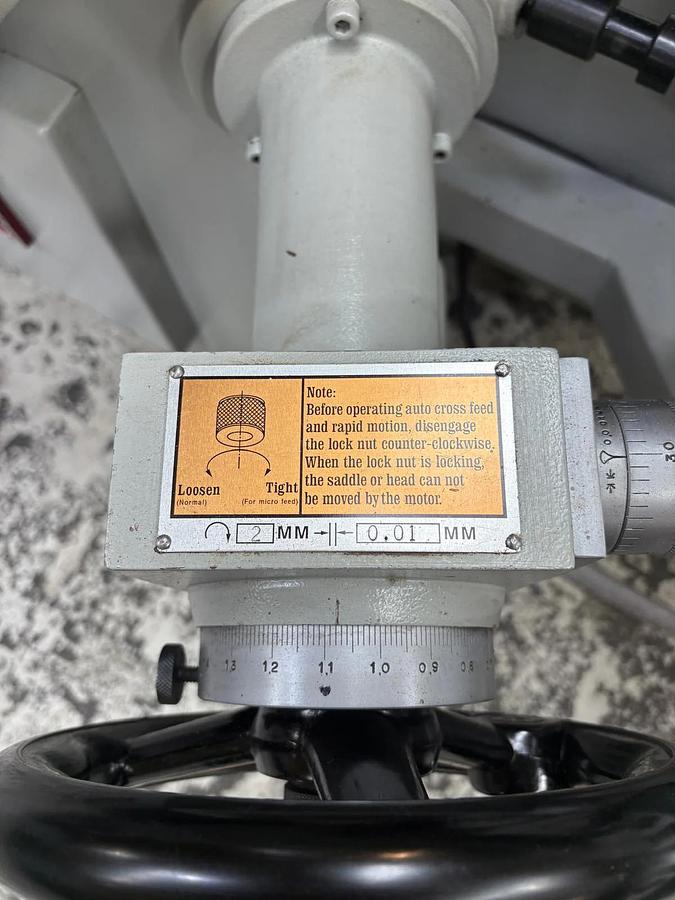

Auto cross feed increment                                                0.1-10 mm

Spindle motor speed                                                         3000 rpm

Spindle motor                                                                    5 HP (3.7 kW)

Grinding wheel size                                                           355 x 38 x 127 mm

Floor space required                                                         3550 x 2550 mm

Machine weight                                                                 1700 kg

Machine complete with :-

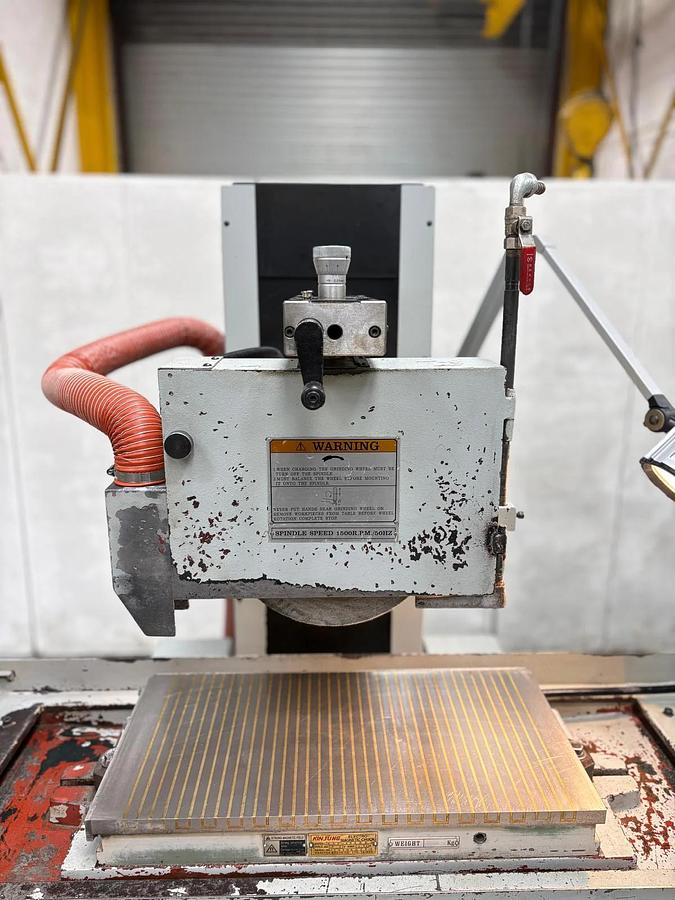

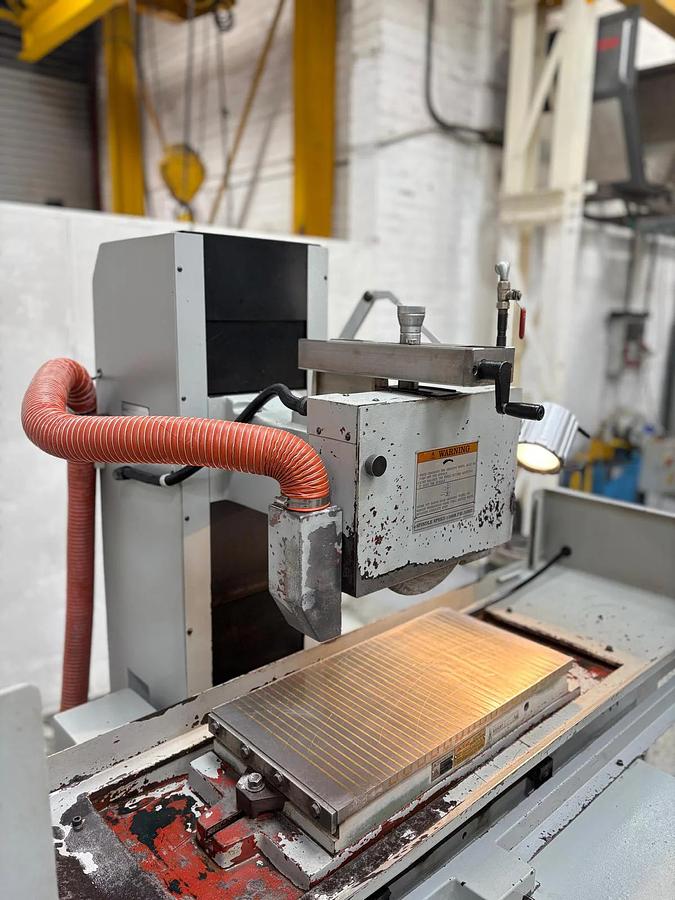

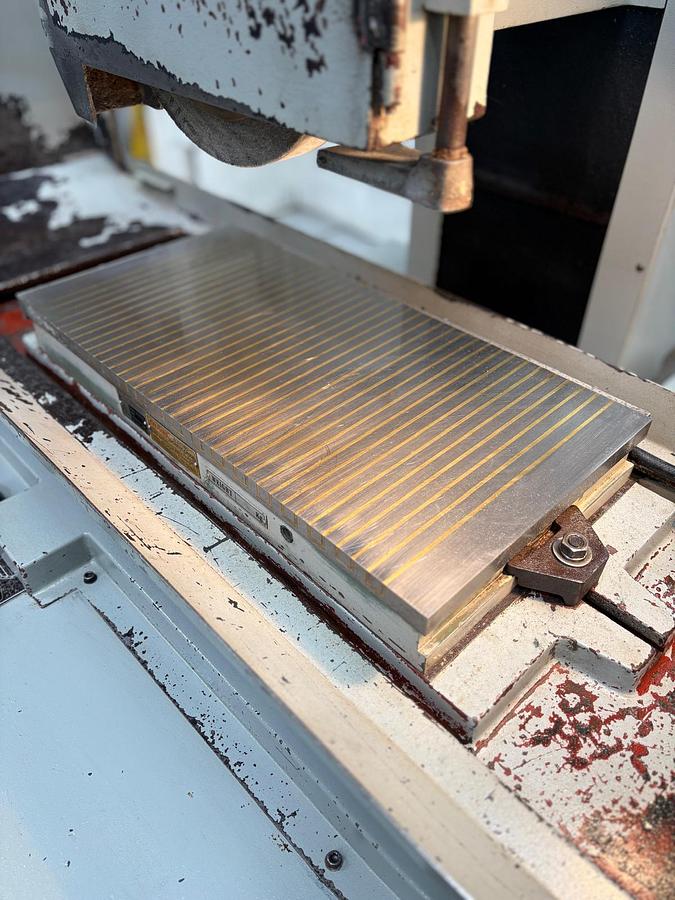

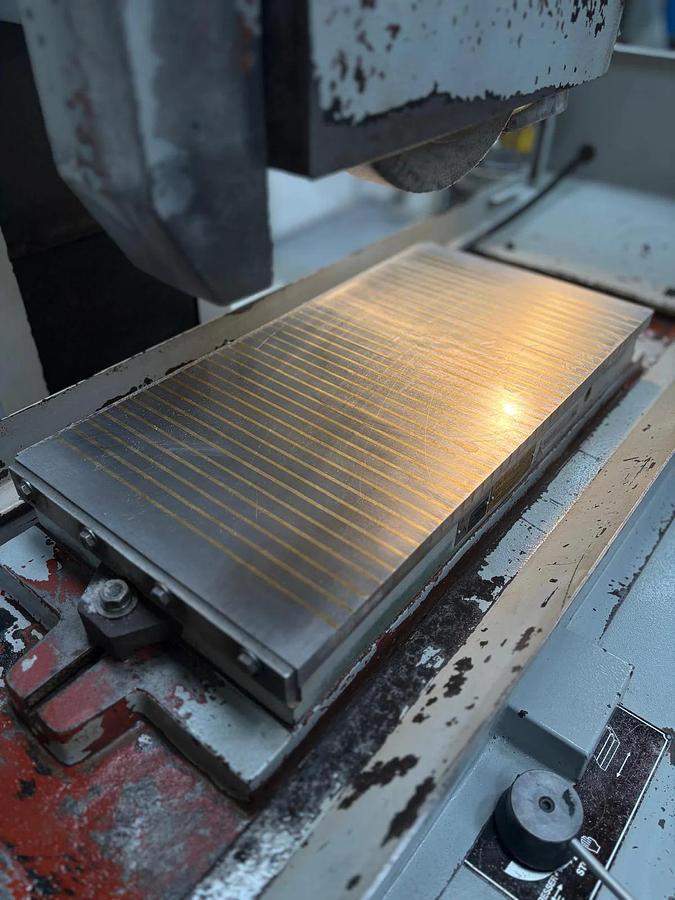

609 x 304mm electro magnetic chuck.

2 Grinding wheels with flanges.

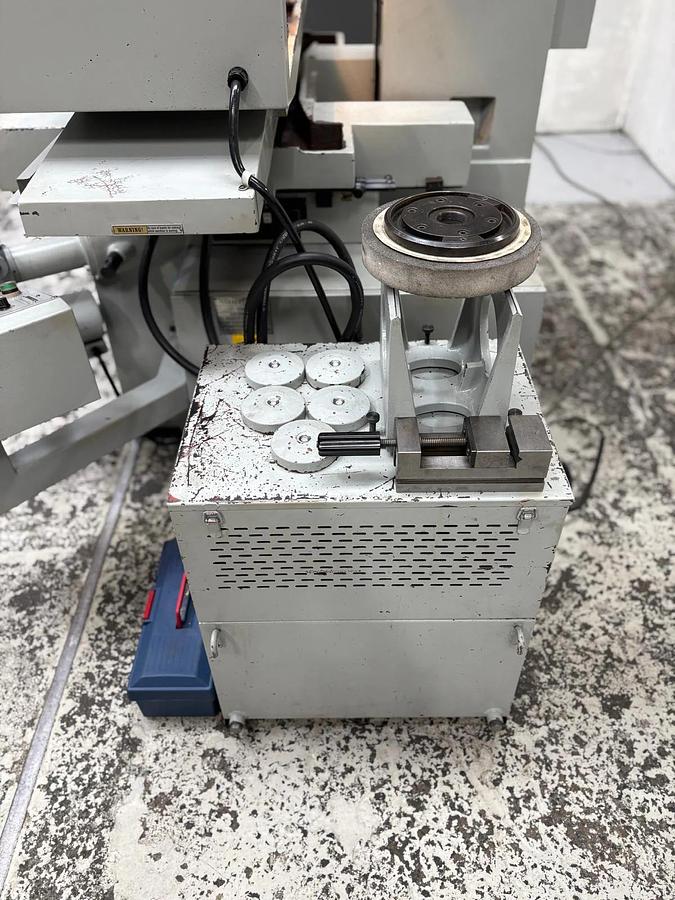

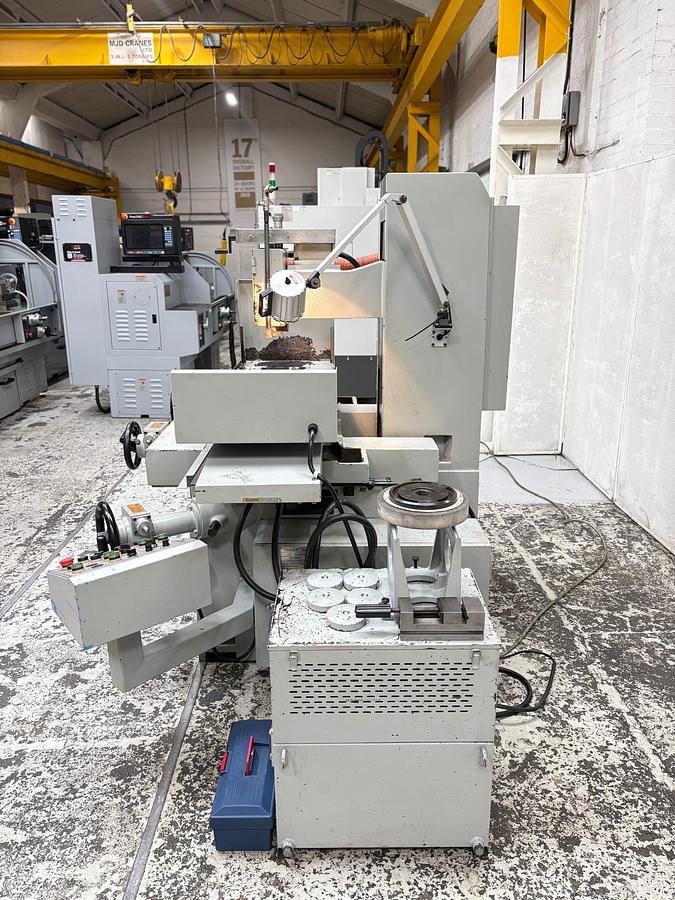

Wheel balancer stand.

Overhead wheel dresser.

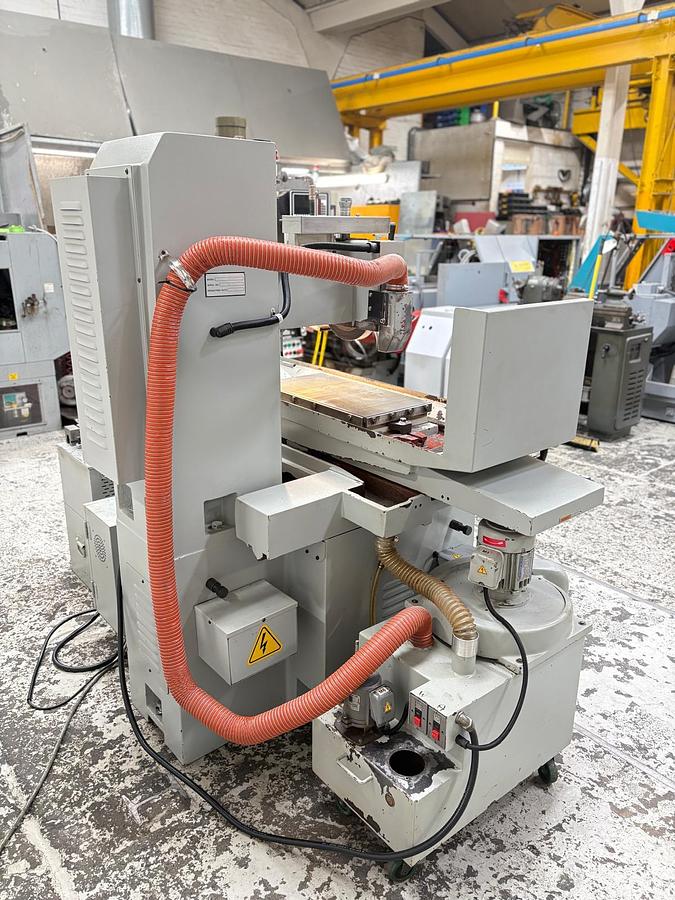

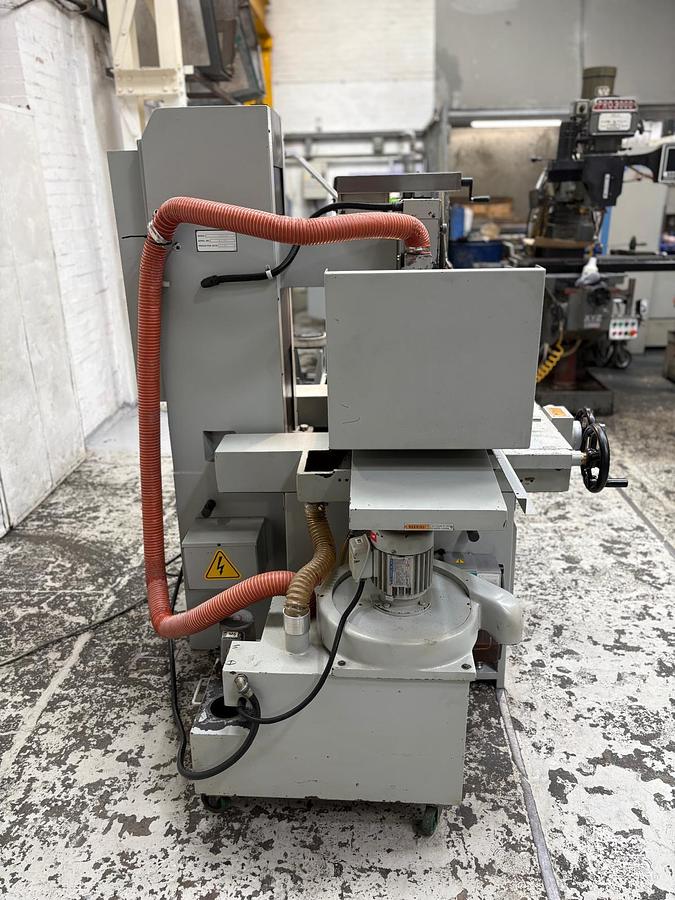

Coolant & Dust extraction.

Toolbox.

Machine Pads & Levelling Bolts

Low volt light.
