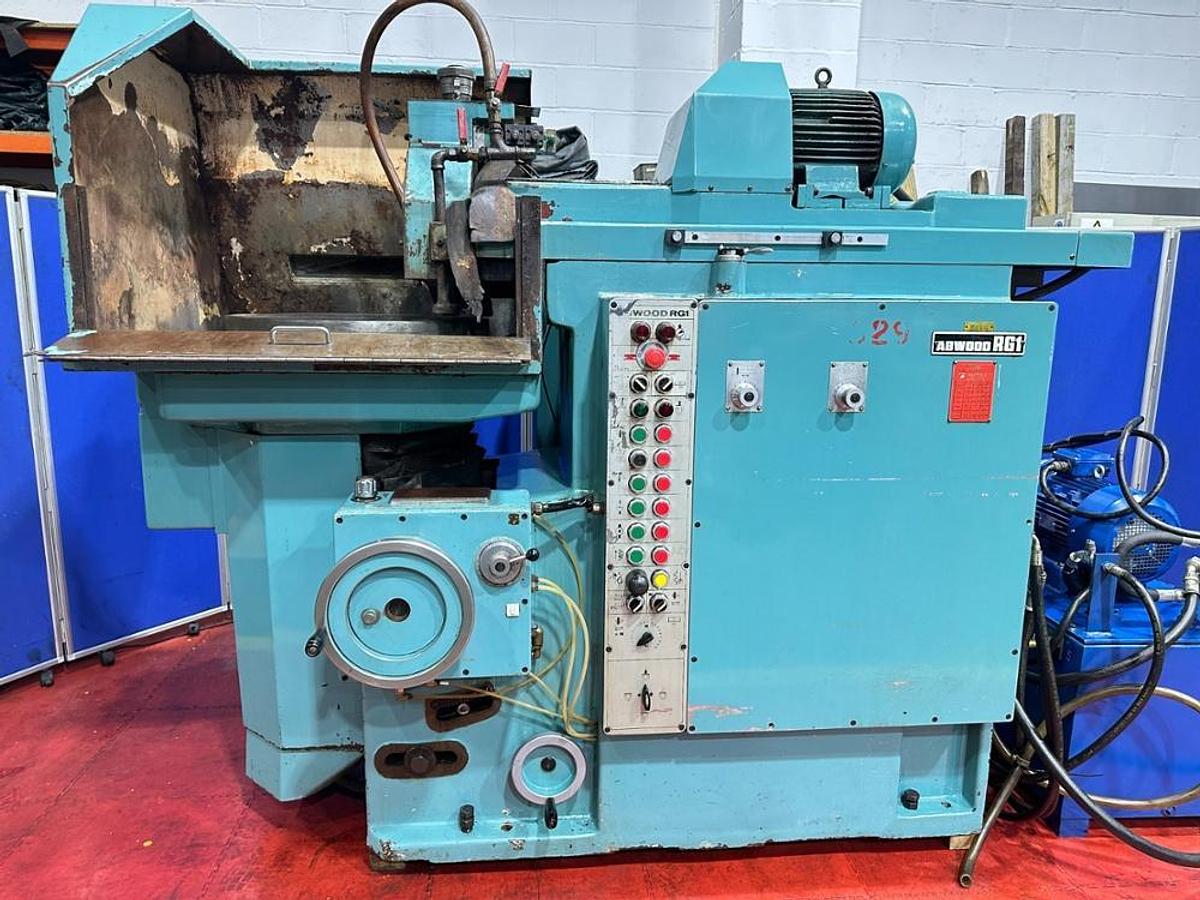

ABWOOD RG1-24 HORIZONTAL SPINDLE ROTARY TABLE ‘RING’ SURFACE GRINDING MACHINE
Description
Machine complete with :-
600 diameter electro-magnetic chuck.

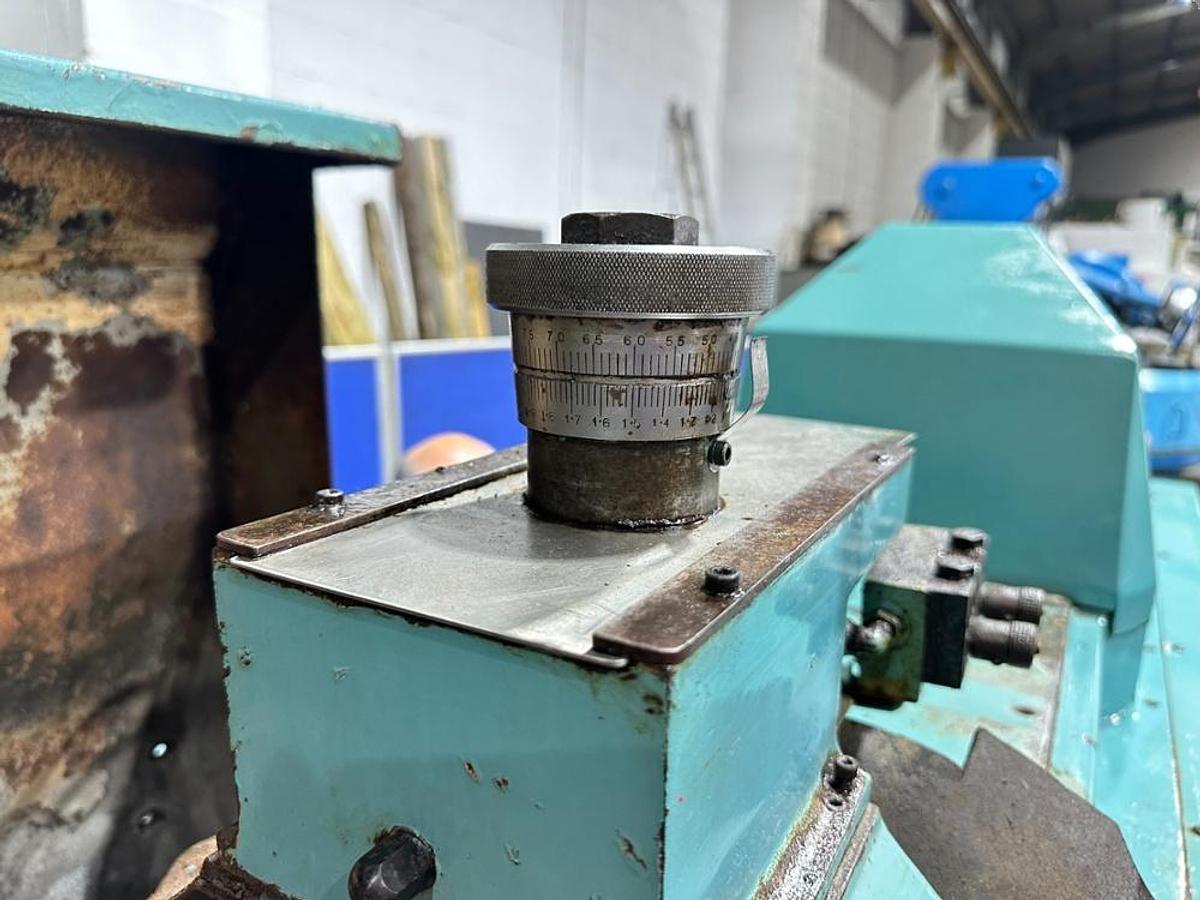

Overhead diamond wheel dresser.
Electronic spark-out control.

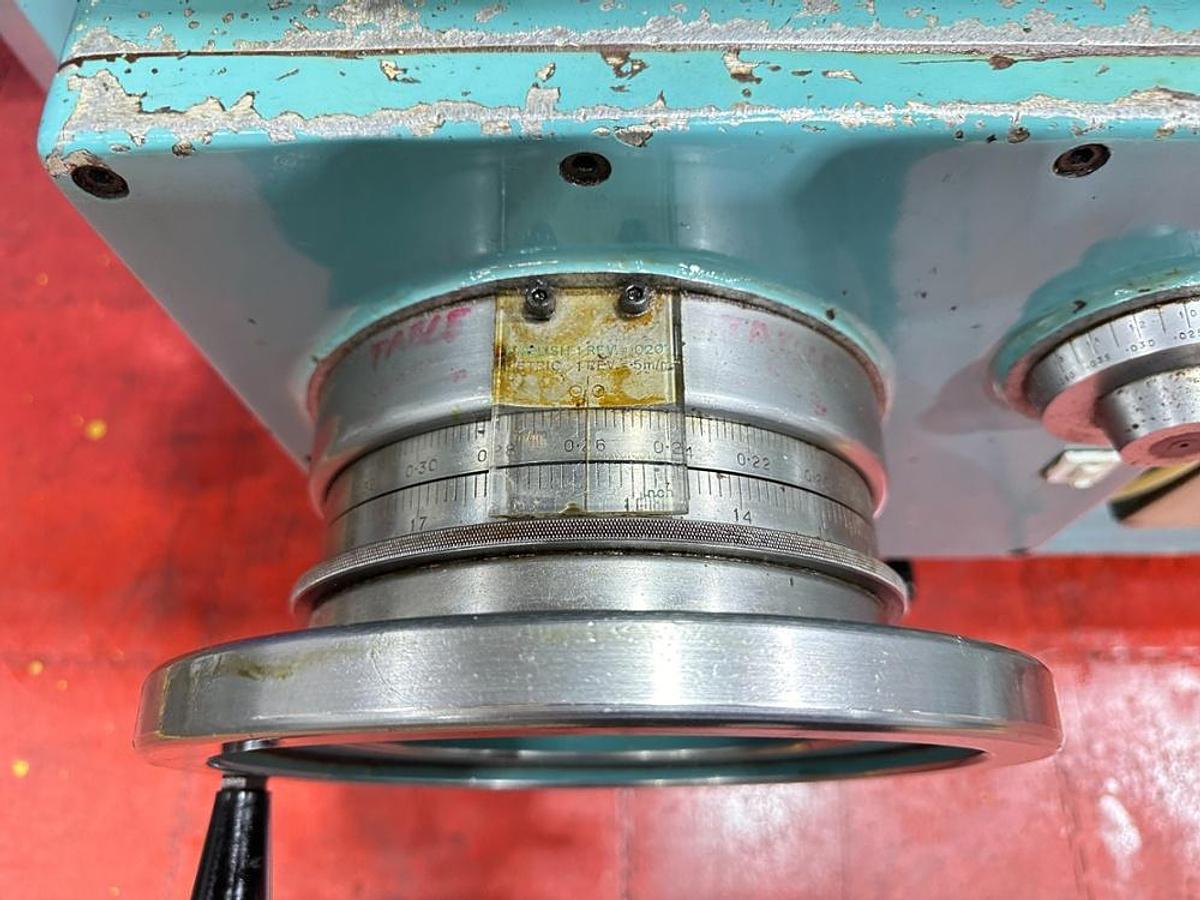

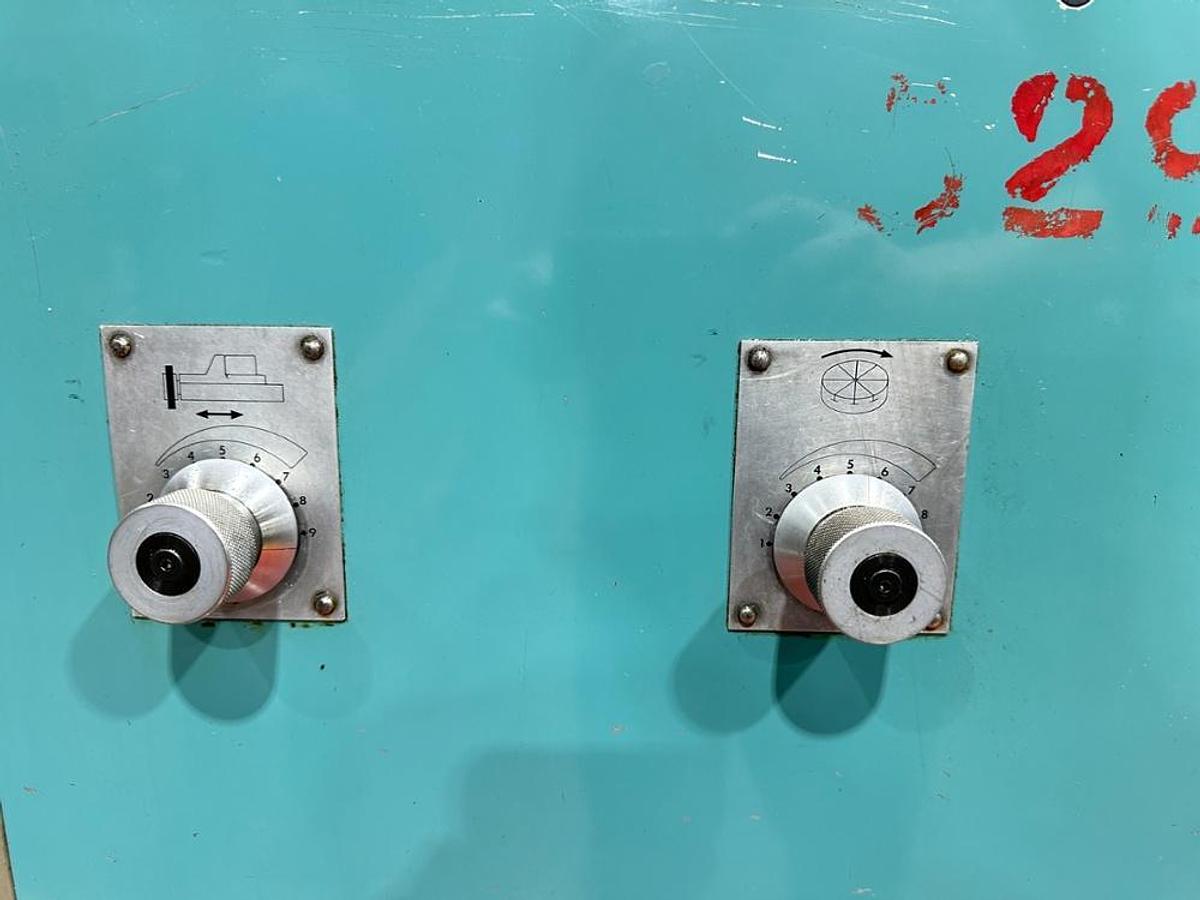

Dual dials.

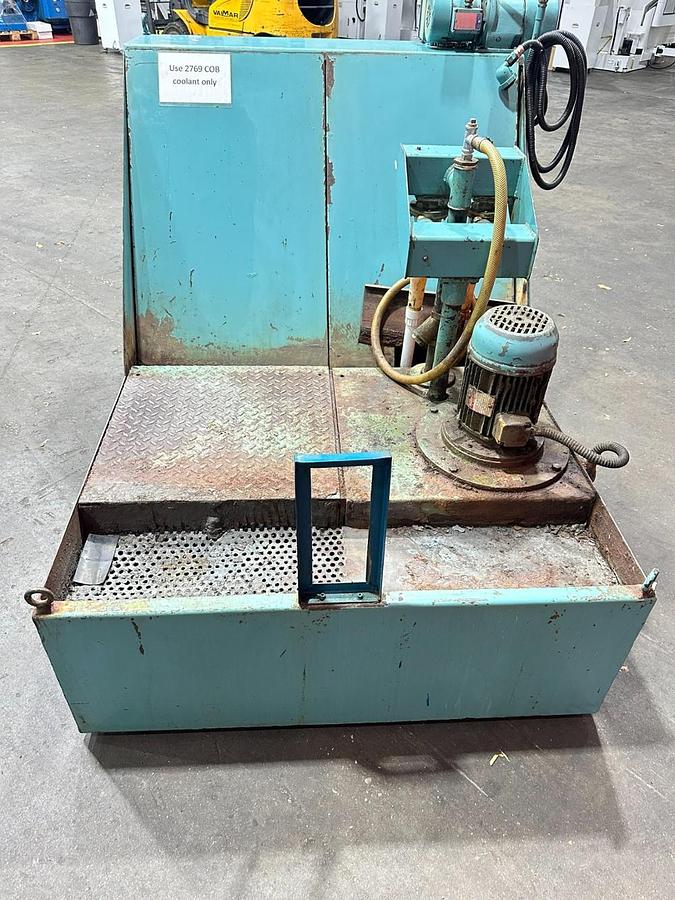

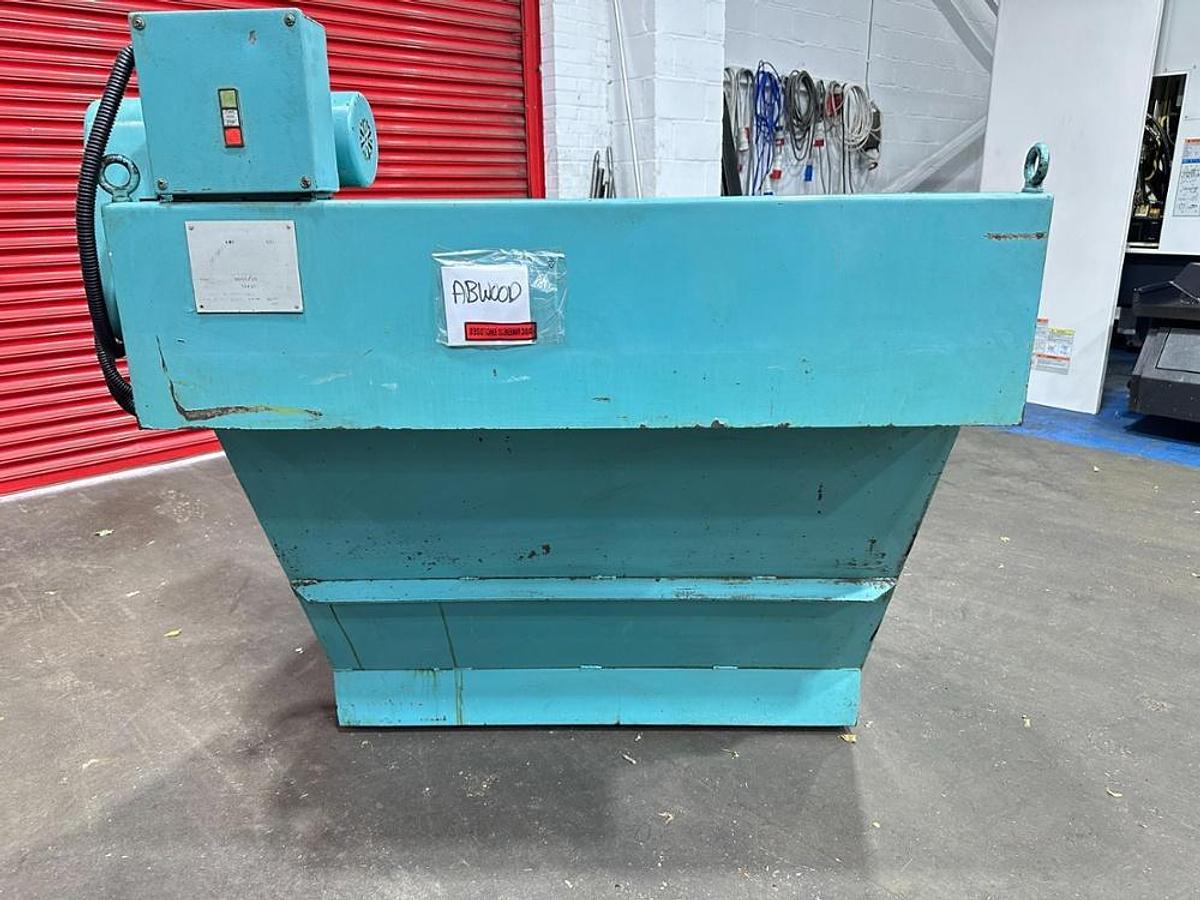

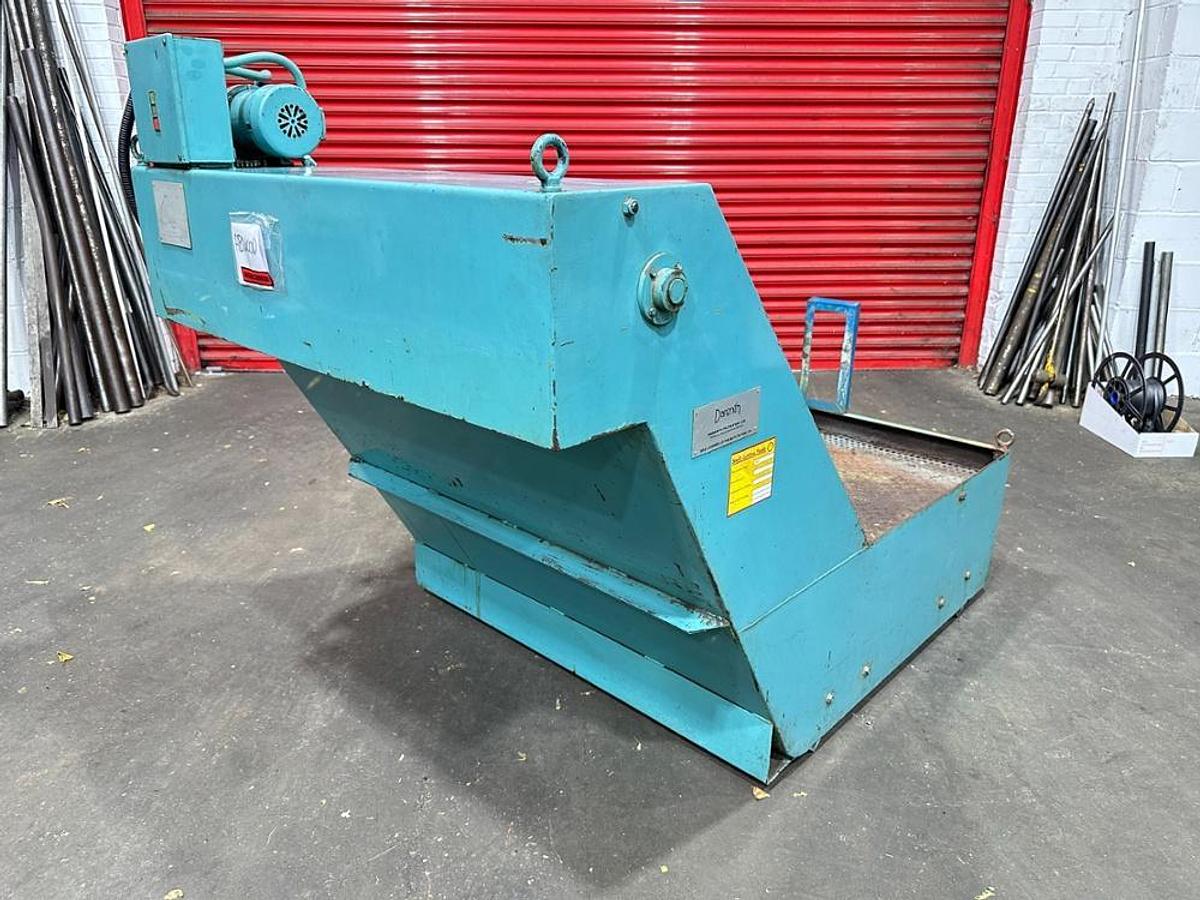

Darenth coolant filtration.
Price on Application.
Specifications
| Model | RG1-24 |
| Condition | Used |
| Serial Number | 192B |
| Nominal size of machine | 600 x 150 mm |
| Diameter of magnetic chuck | 600 mm |
| Maximum height admitted between grinding wheel and magnetic chuck | 150 mm |
| Angular adjustment of table | + / – 1.5 degrees |
| Grinding wheel size | 355 x 50 x 127 mm |
| Chuck rotation speeds | 10 to 160 rpm |
| Automatic vertical-feed movement | 0.02 – 0.5 mm (0.02 Steps) |
| Wheelhead traverse speeds (inf. variable) | 0.3 – 3 m/min |
| Motor for grinding wheel spindle | 7.46 kW |

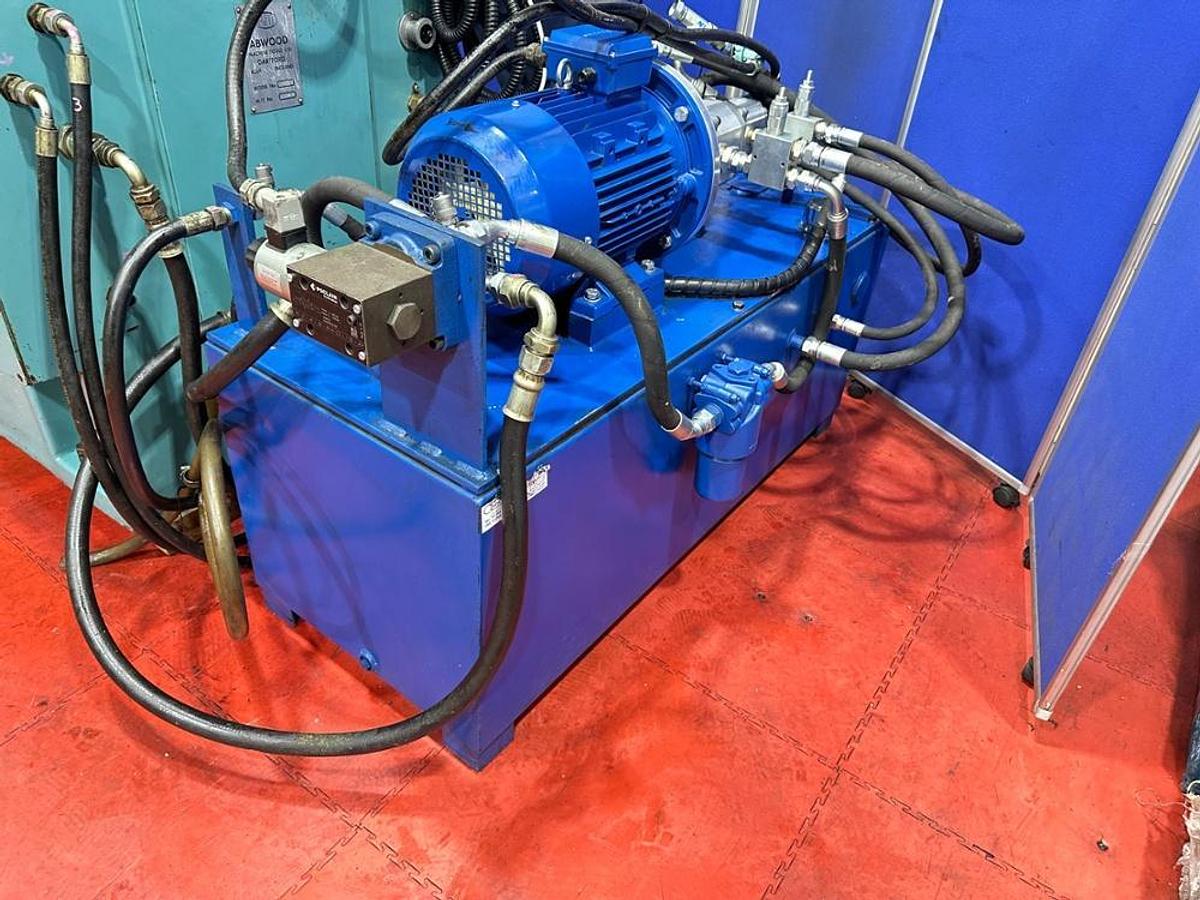

| Hydraulic pump | 5.5 kW |
| Approximate total weight of machine | 4250 kg |
| Approximate overall size | 2600 x 1300 mm |
