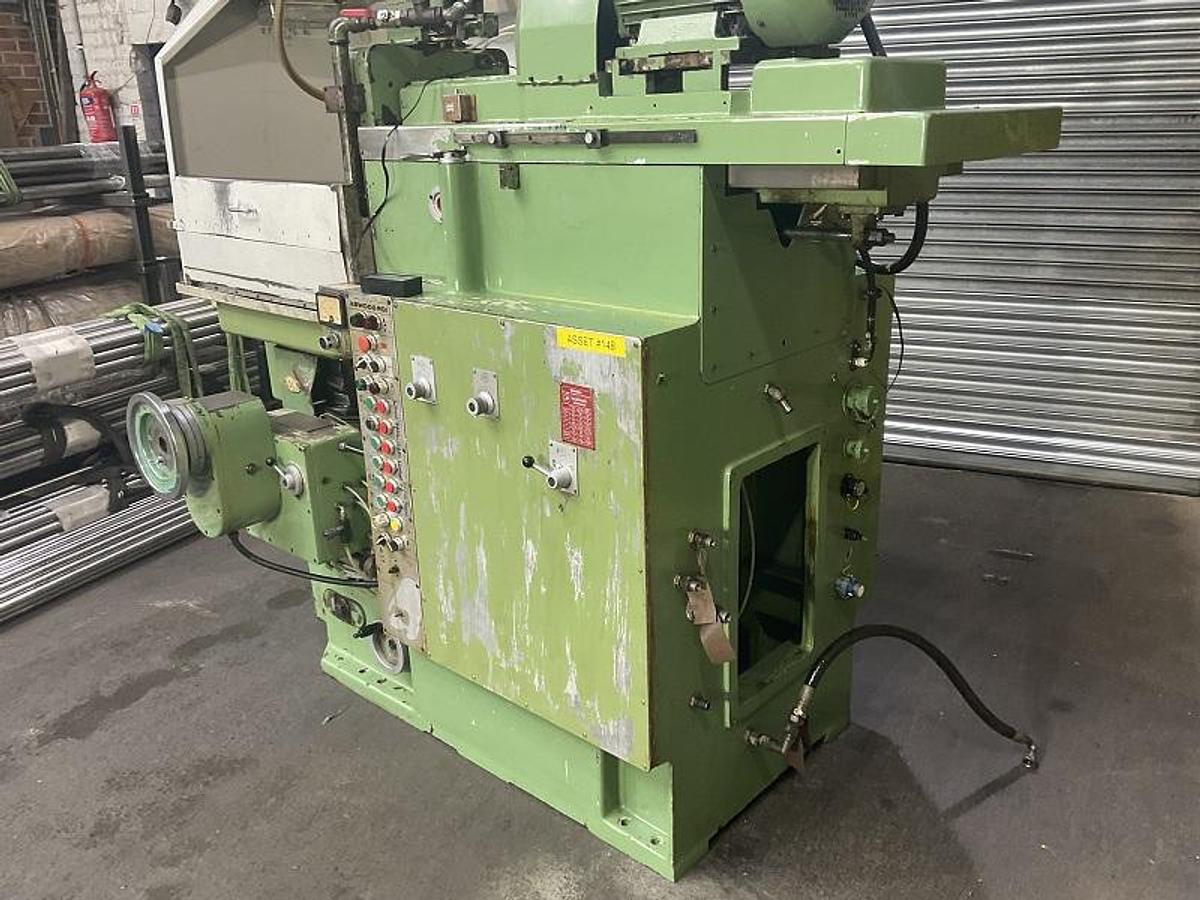

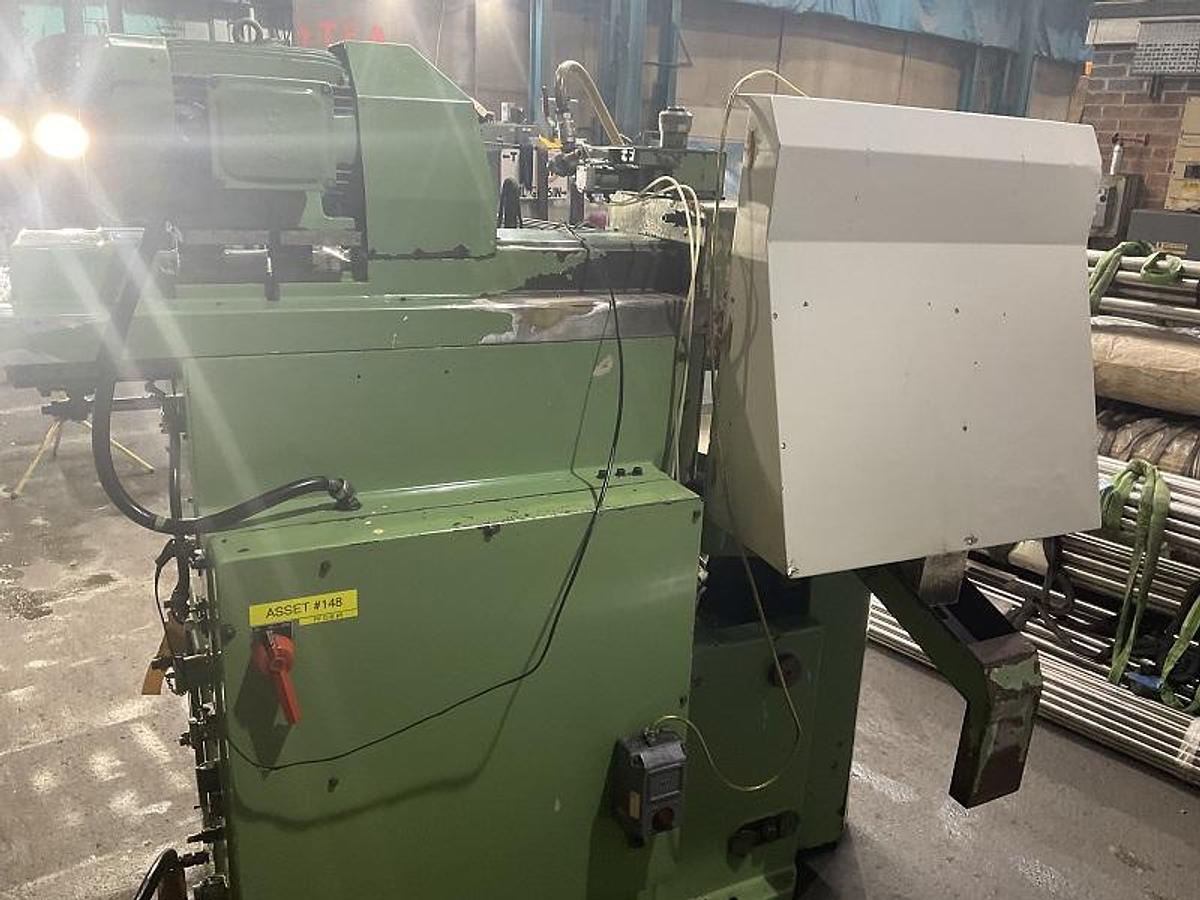

ABWOOD RG1-24 HORIZONTAL SPINDLE ROTARY TABLE ‘RING’ SURFACE GRINDING MACHINE WITH INCREASED HEIGHT

Model RG1-24 - Increased Height

Nominal size of machine                                             600 x 184 mm

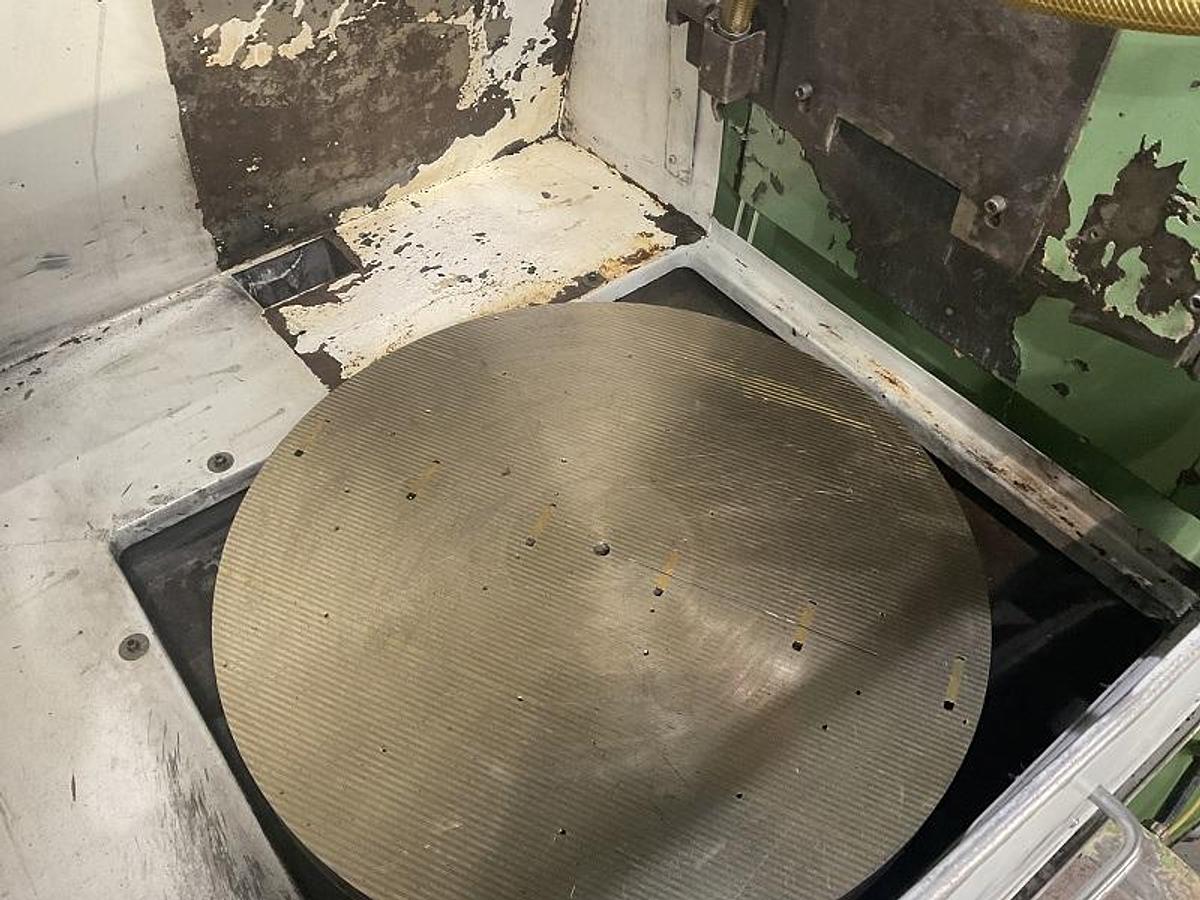

Diameter of magnetic chuck                                        600 mm

Maximum height admitted between grinding

wheel and magnetic chuck            184   mm

Angular adjustment of table                                         + / - 1.5 degrees

Grinding wheel size                                                     355 x 50 x 127 mm

Chuck rotation speeds                                                 10 to 160 rpm

Automatic vertical-feed movement                               0.02 - 0.5 mm (0.02 Steps)

Wheelhead traverse speeds (inf. variable)                   0.3 -  3 m/min

Motor for grinding wheel spindle                                  7.46 kW

Hydraulic pump                                                            5.5 kW

Approximate total weight of machine                          4250 kg

Approximate overall size                                             2600 x 1300 mm

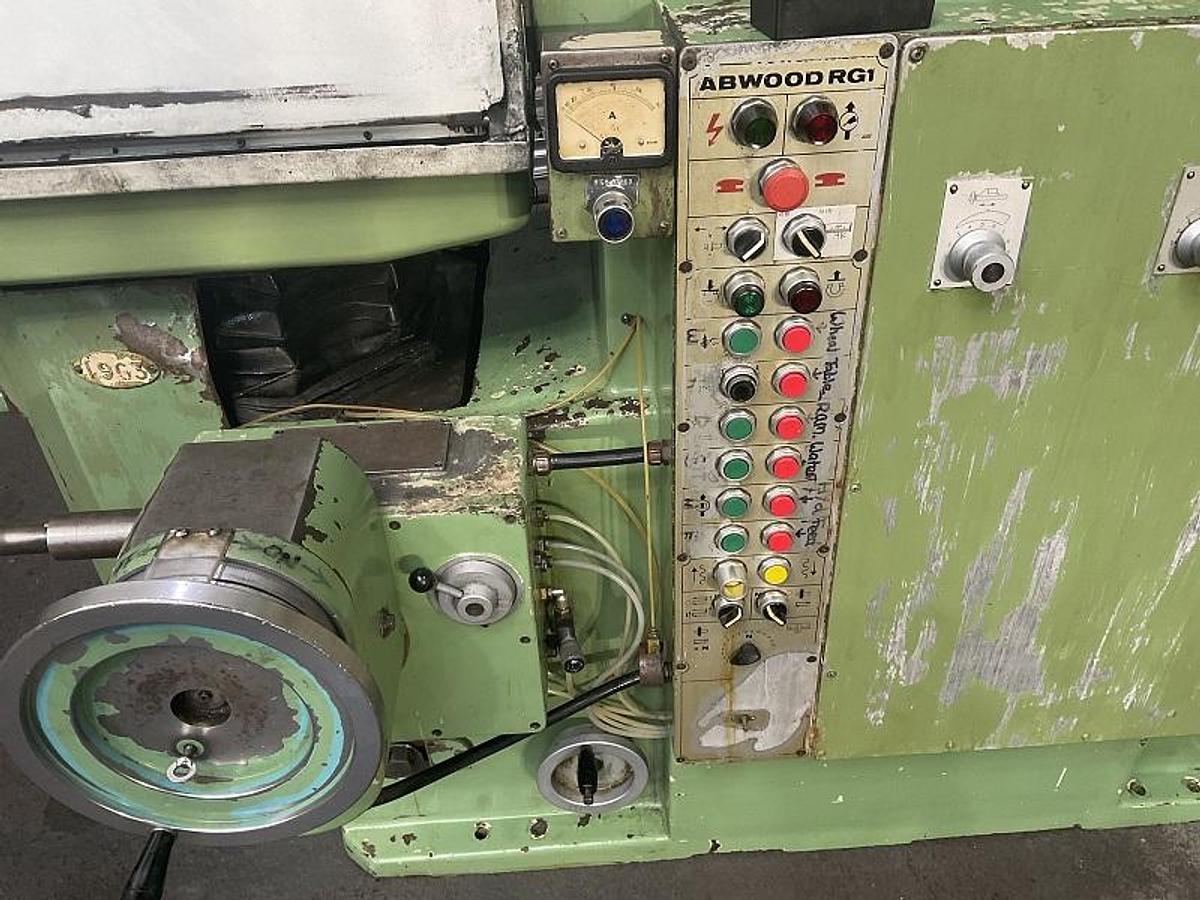

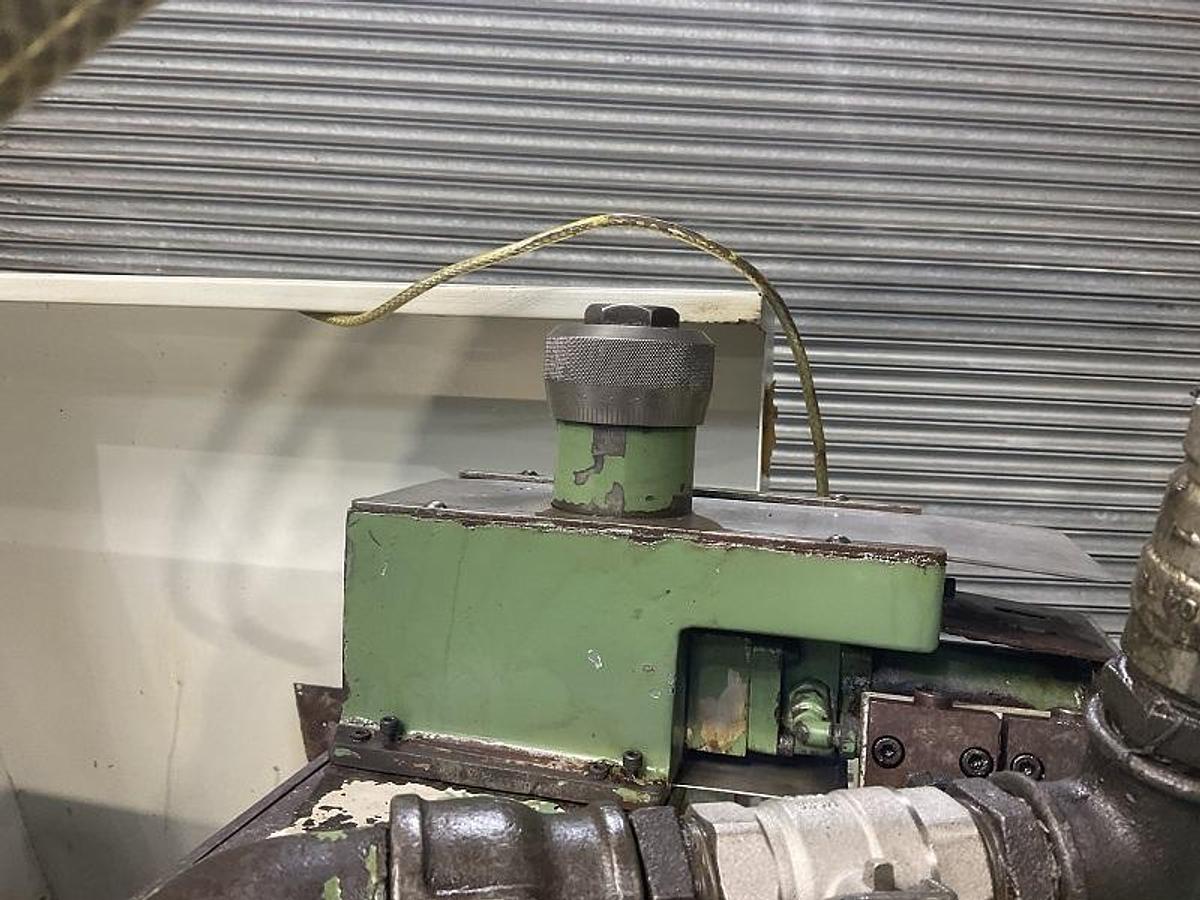

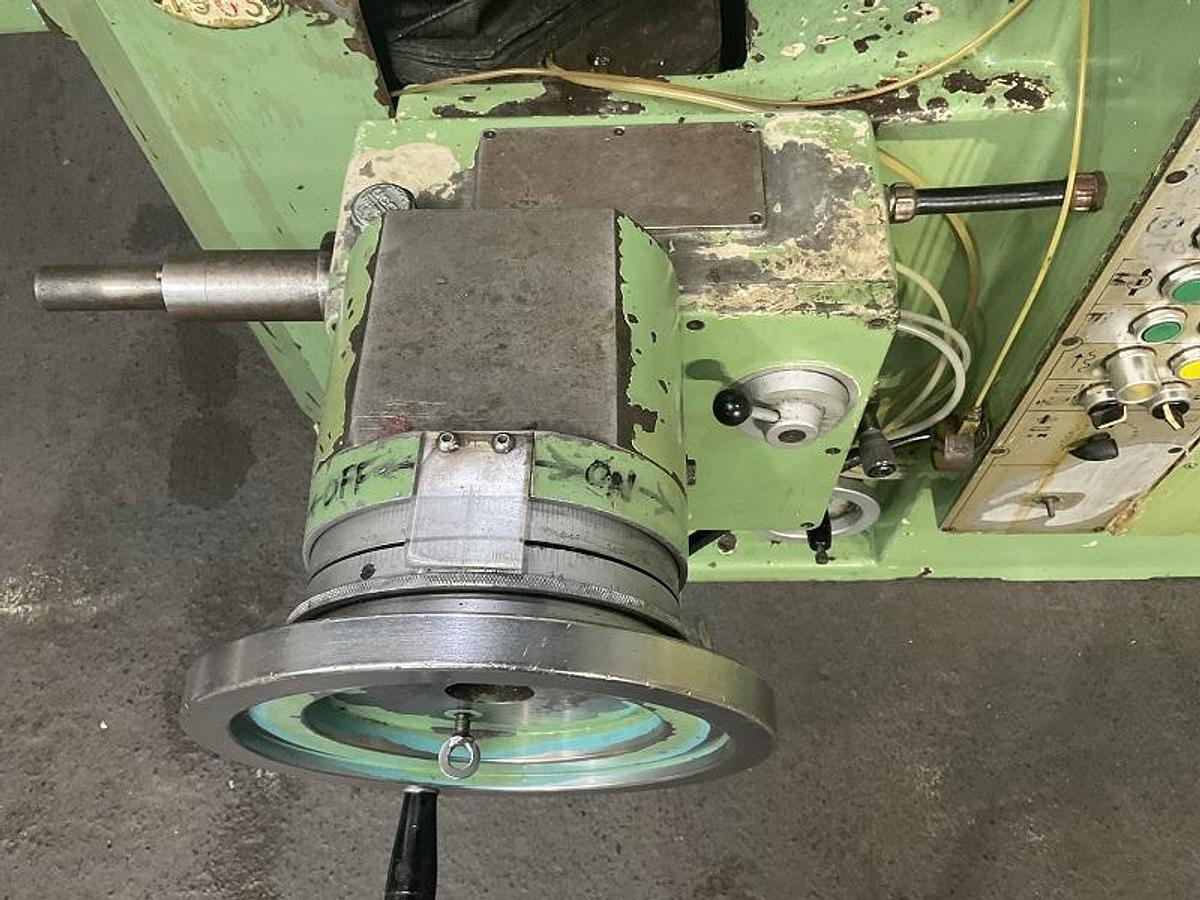

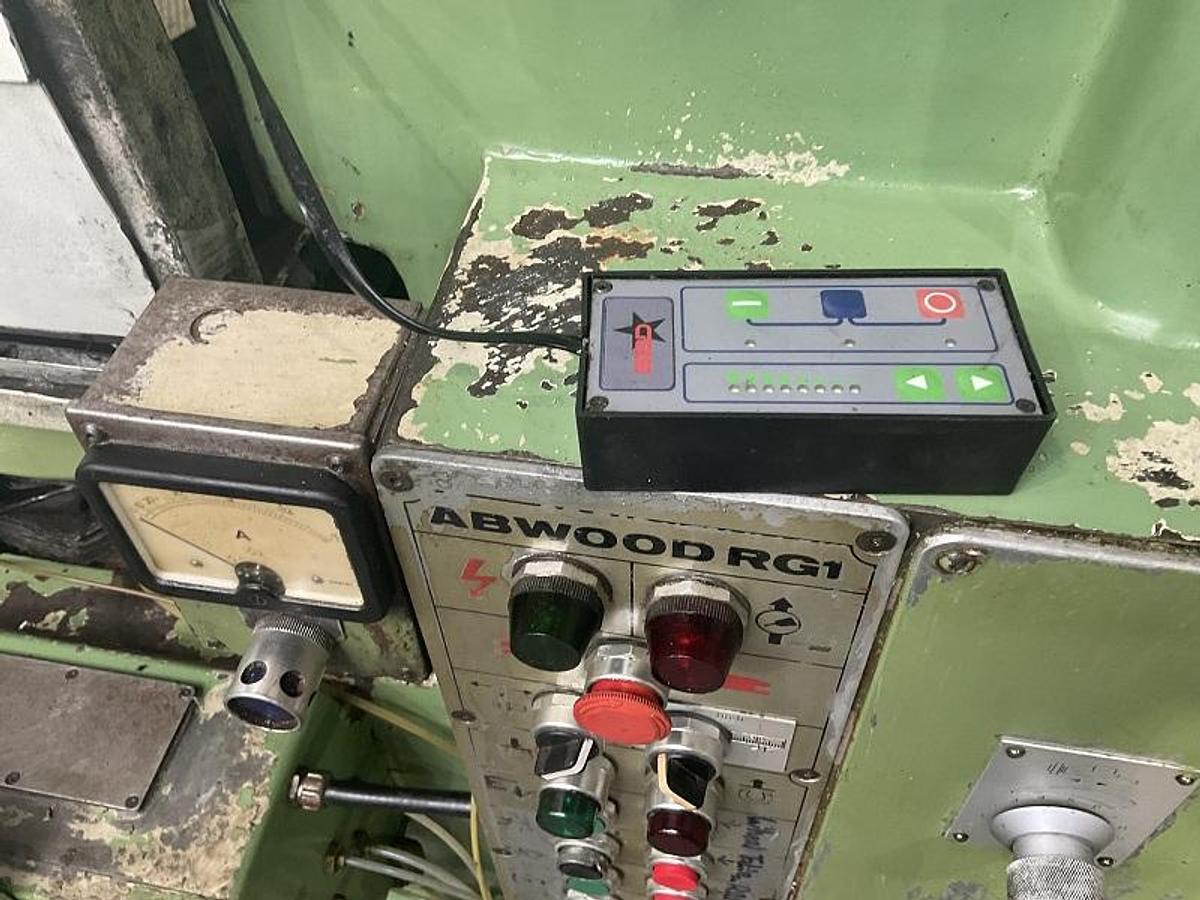

Machine complete with :- Increased workpiece height. 600 diameter electro-magnetic chuck. Overhead diamond wheel dresser. Dual dials. Electronic spark-out control. Coolant. Price on Application.
