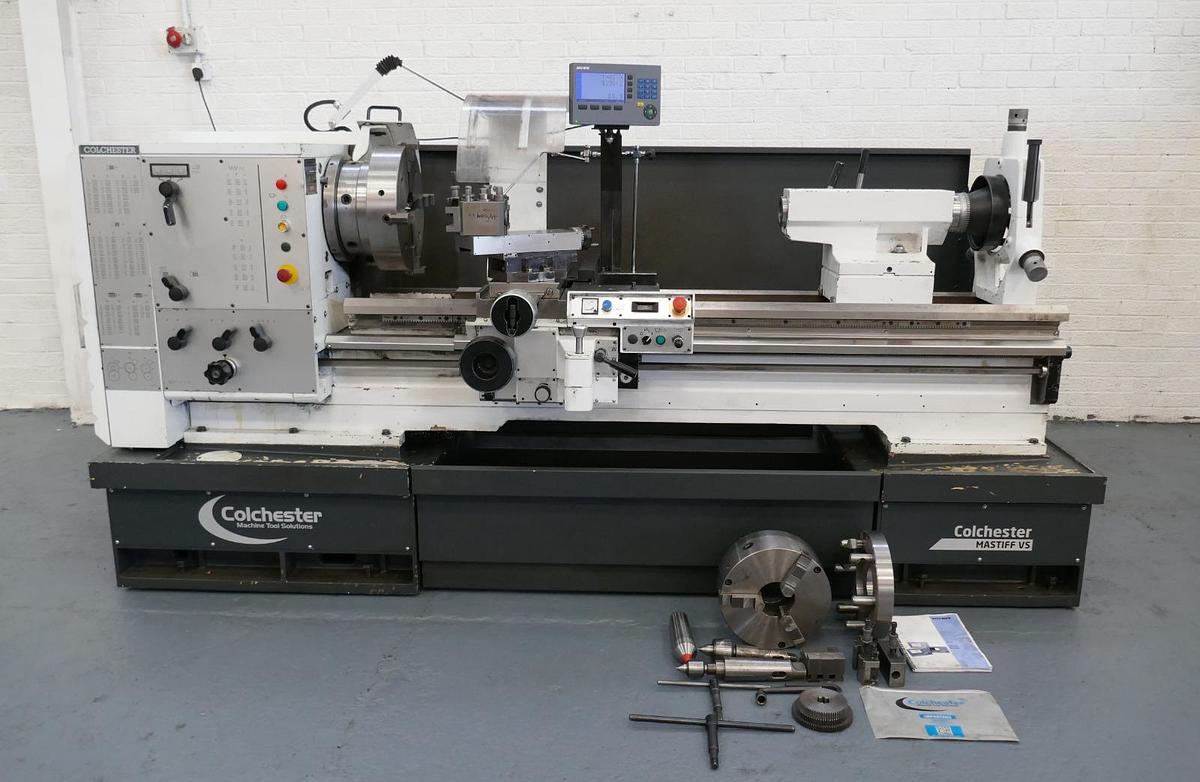

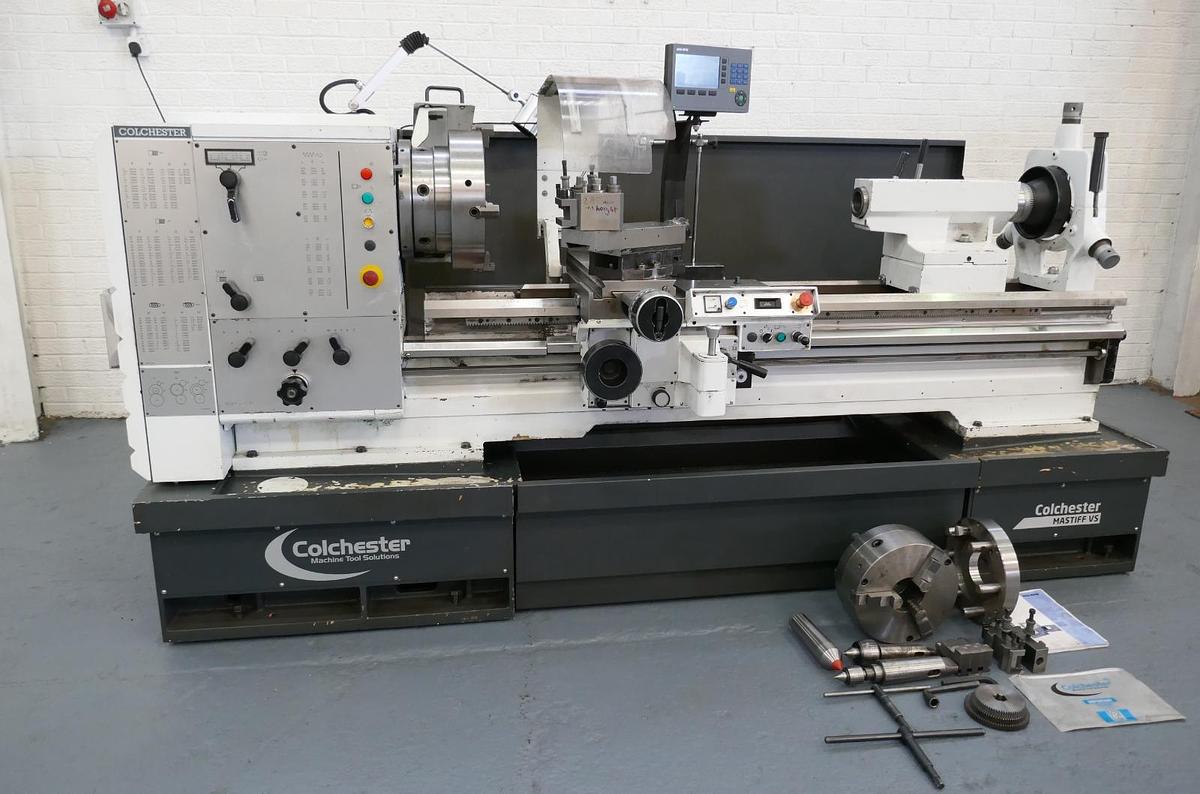

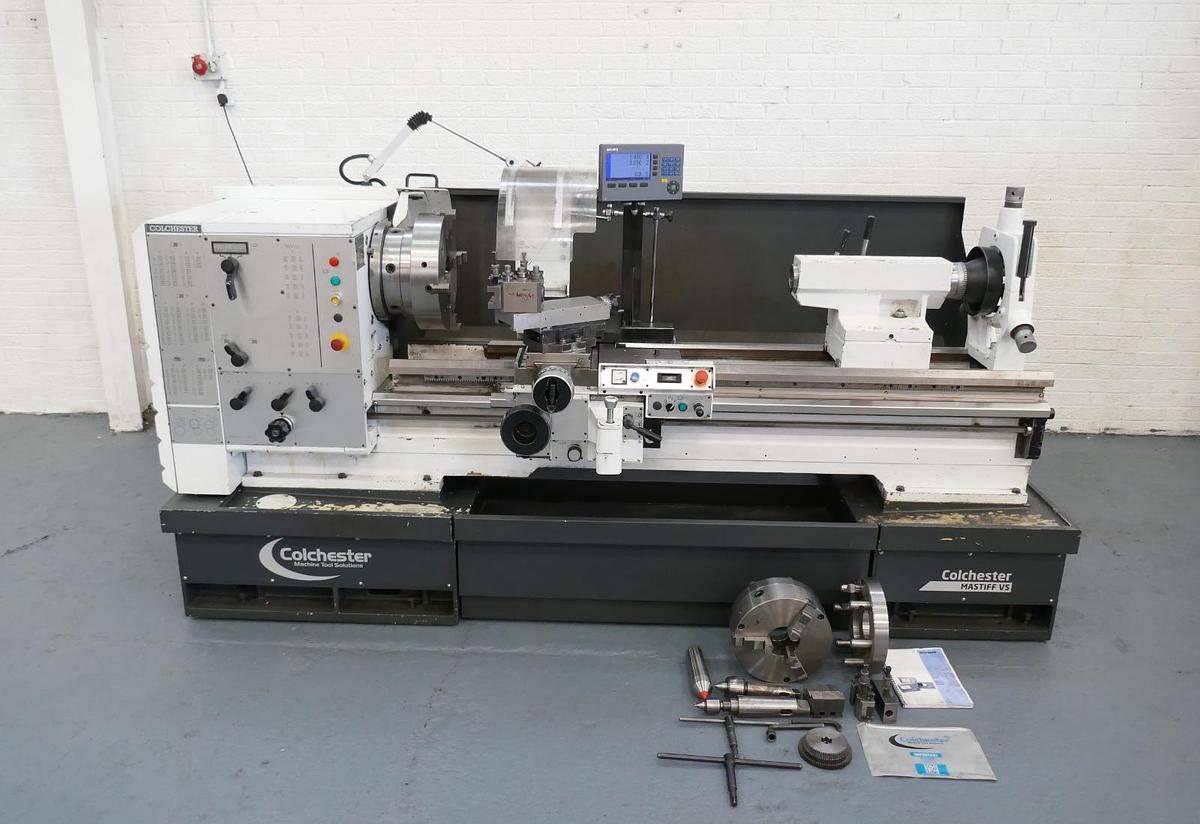

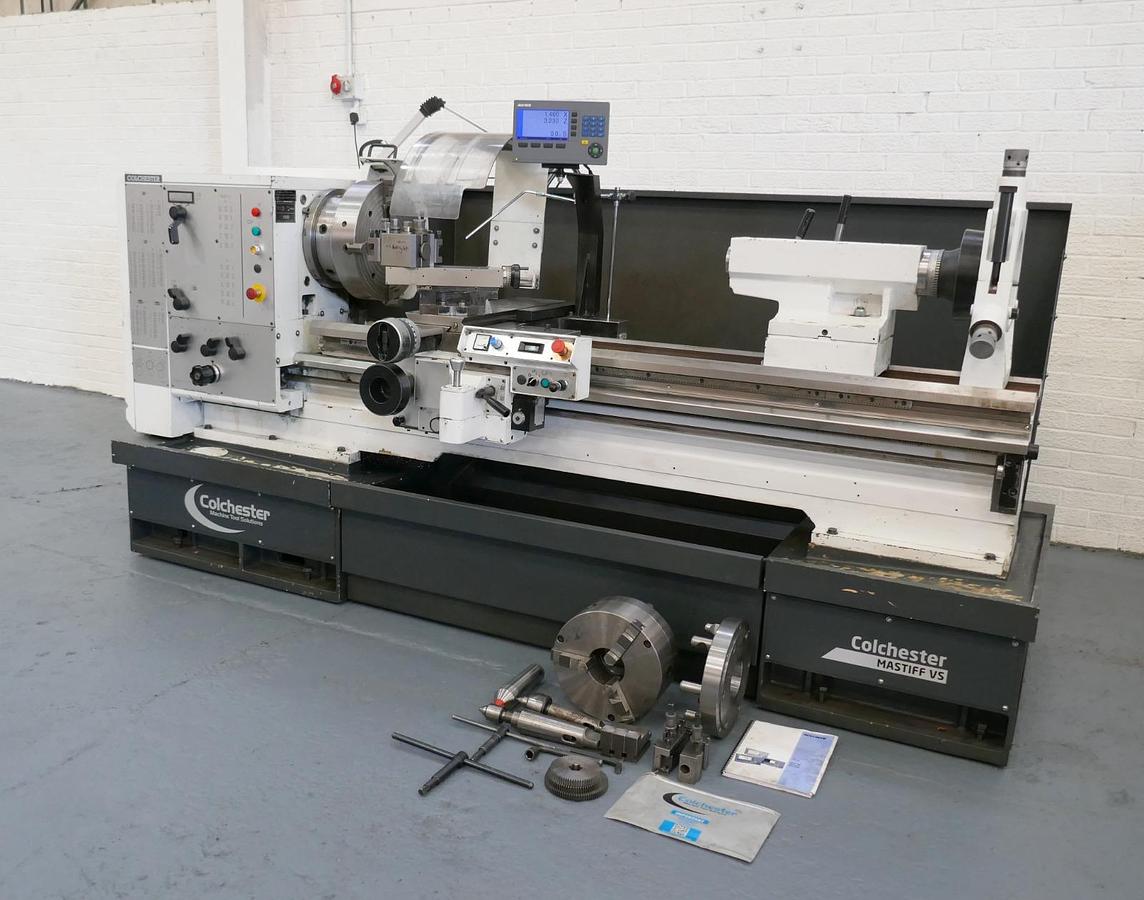

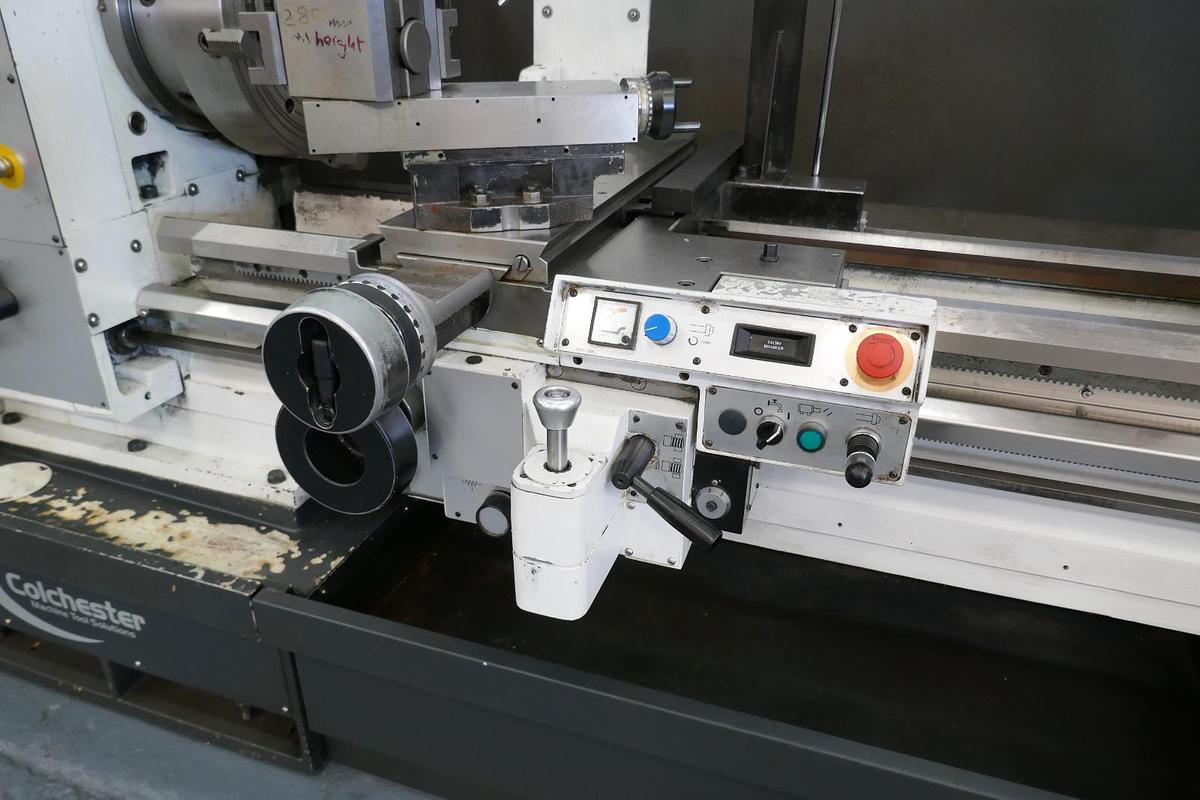

2024 COLCHESTER VS1800 x 1500mm VARIABLE SPEED GAP BED CENTRE LATHE
Description
COLCHESTER VARIABLE SPEED GAP BED CENTRE LATHE
Model VS1800 x 1500

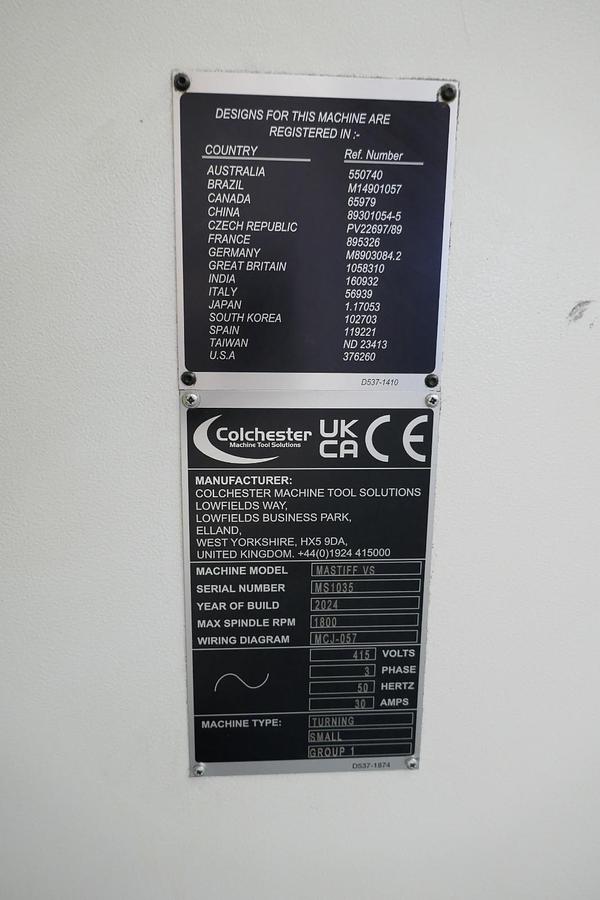

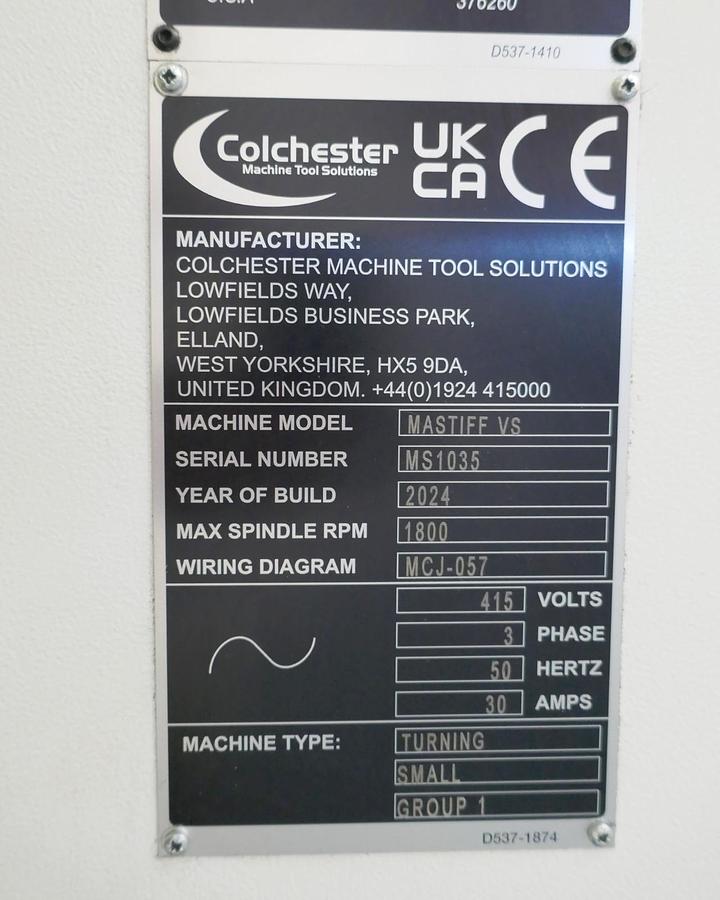

Serial number MS1305
Year 2024
CAPACITY
Distance between centres 1500 mm
Swing over bed 554 mm
Swing over cross slide 370 mm
Swing in gap 830 mm
UNIVERSAL GEARBOX
Longitudinal feeds per rev 0.04 – 2.8 mm
Cross feeds 0.02 – 1.4 mm
English pitches (73) 2 - 84 tpi
Metric pitches (51) 0.2 - 14 mm
Diametrical pitches (27) 8 – 72 DP
Module pitches (20) 0.2 – 3.5 mod.

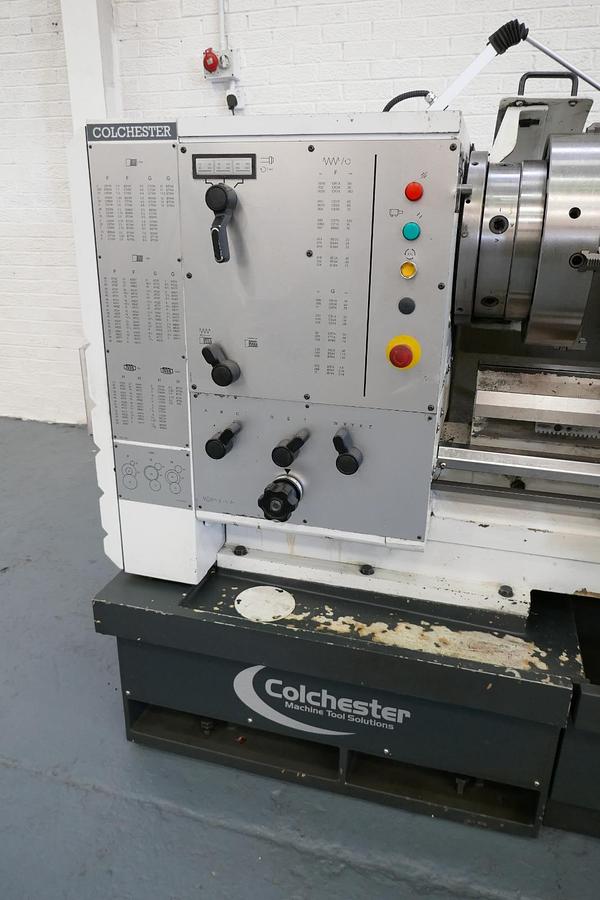

HEADSTOCK

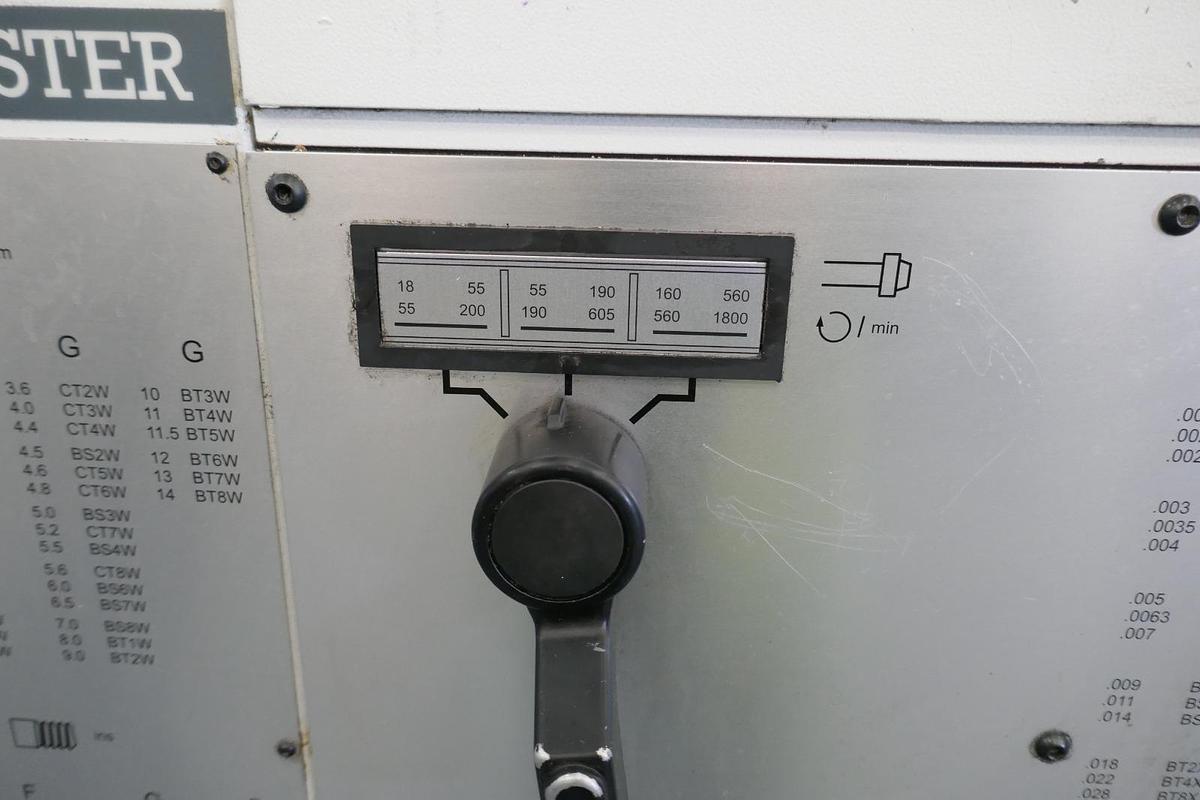

Spindle speeds (3 infinitely variable ranges) 18 - 1800 rpm
Main motor 11 kW, 15 HP
Spindle nose 11” D.1 Camlock
Bore through spindle 104 mm

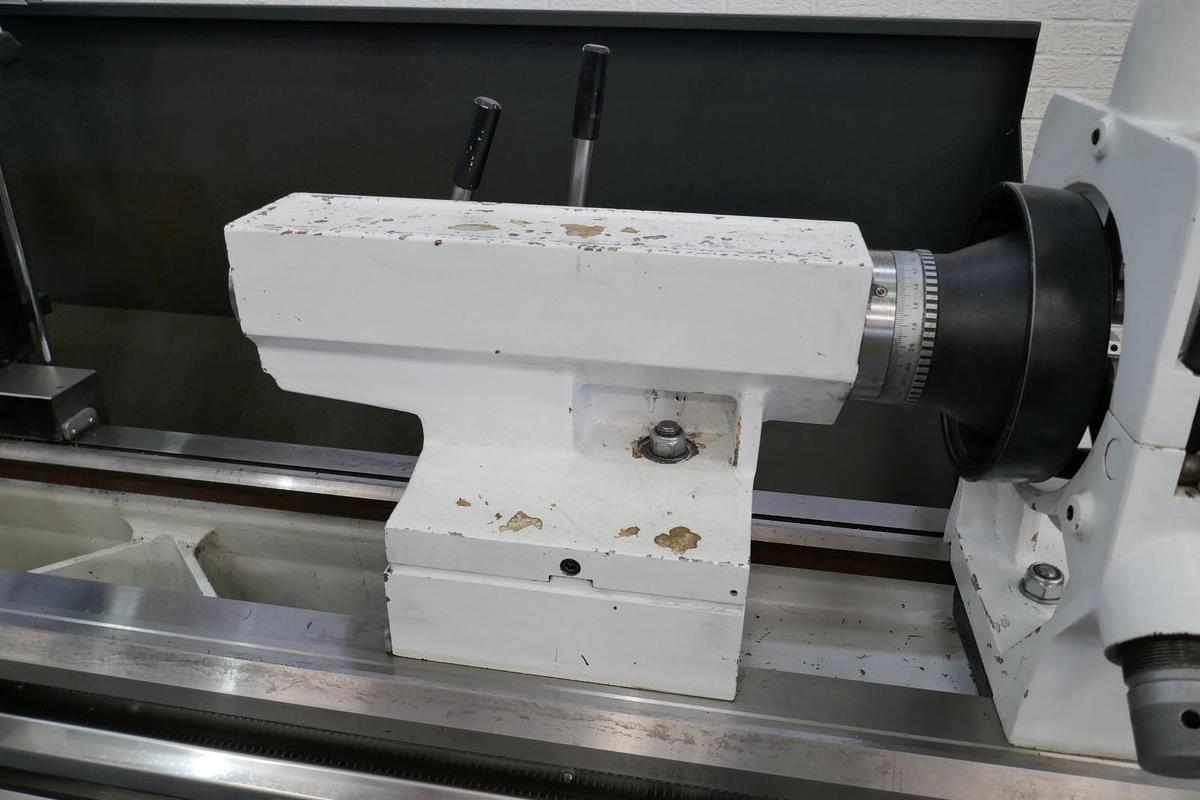

TAILSTOCK
Spindle diameter 95 mm
Spindle travel 178 mm
Taper of centre No. 6 Morse
CONDITION :- EXCELLENT.
Specifications
| Manufacturer | COLCHESTER |
| Model | VS1800 x 1500mm VARIABLE SPEED GAP BED CENTRE LATHE |
| Year | 2024 |
| Condition | Used |
| Serial Number | MS1305 |
| Stock Number | 19630 |
| CONDITION | - EXCELLENT. |

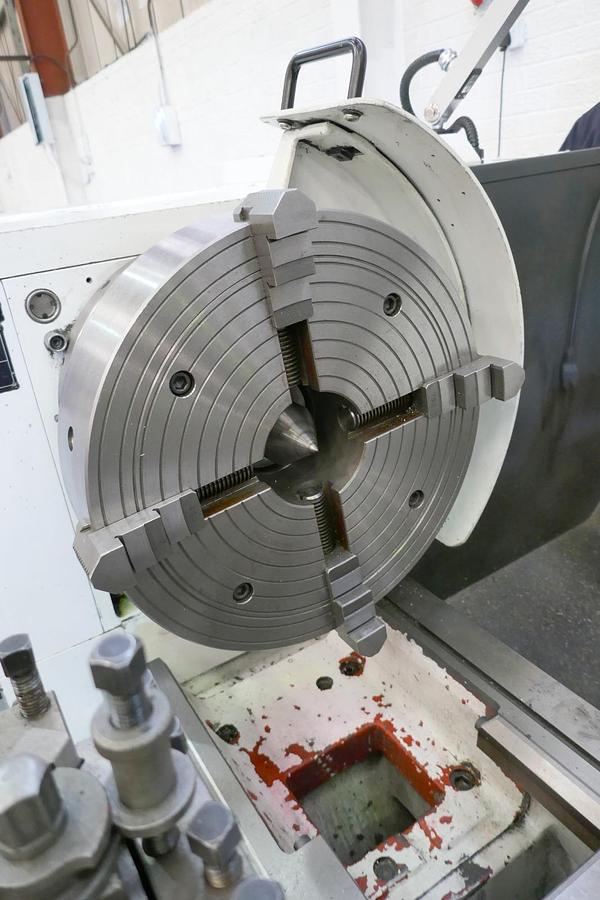

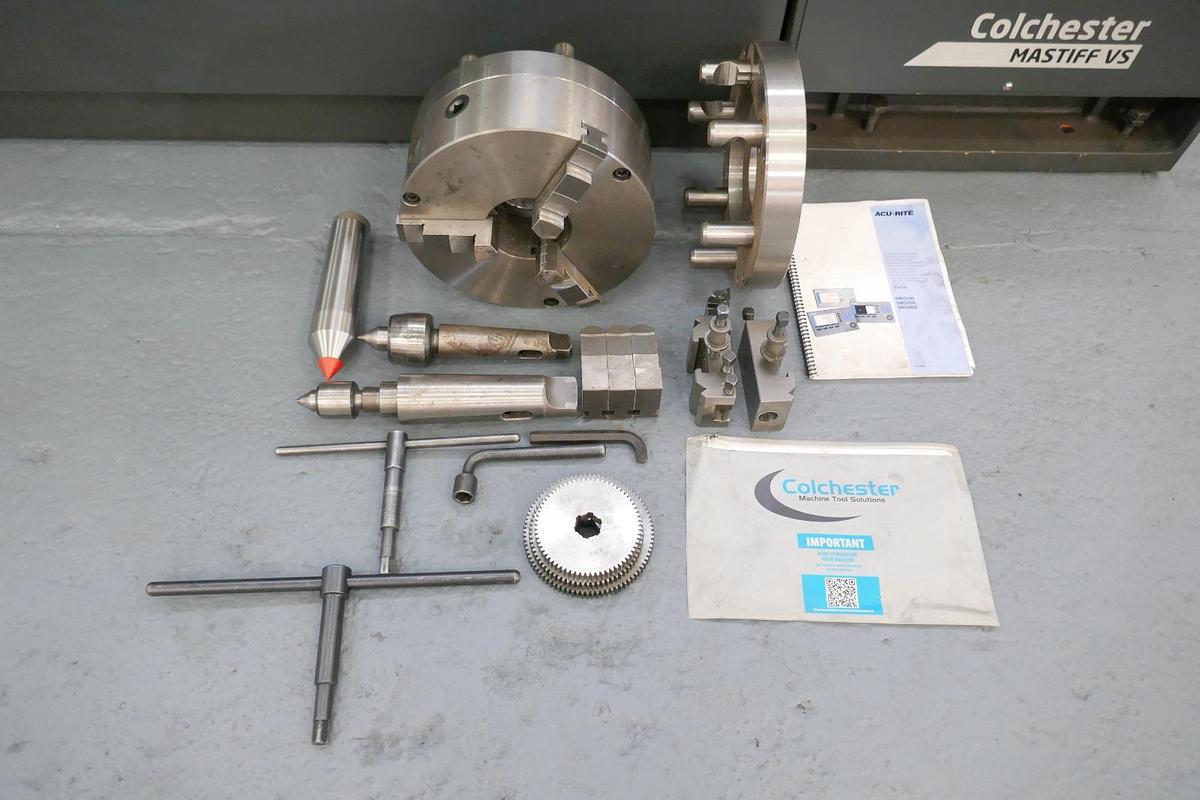

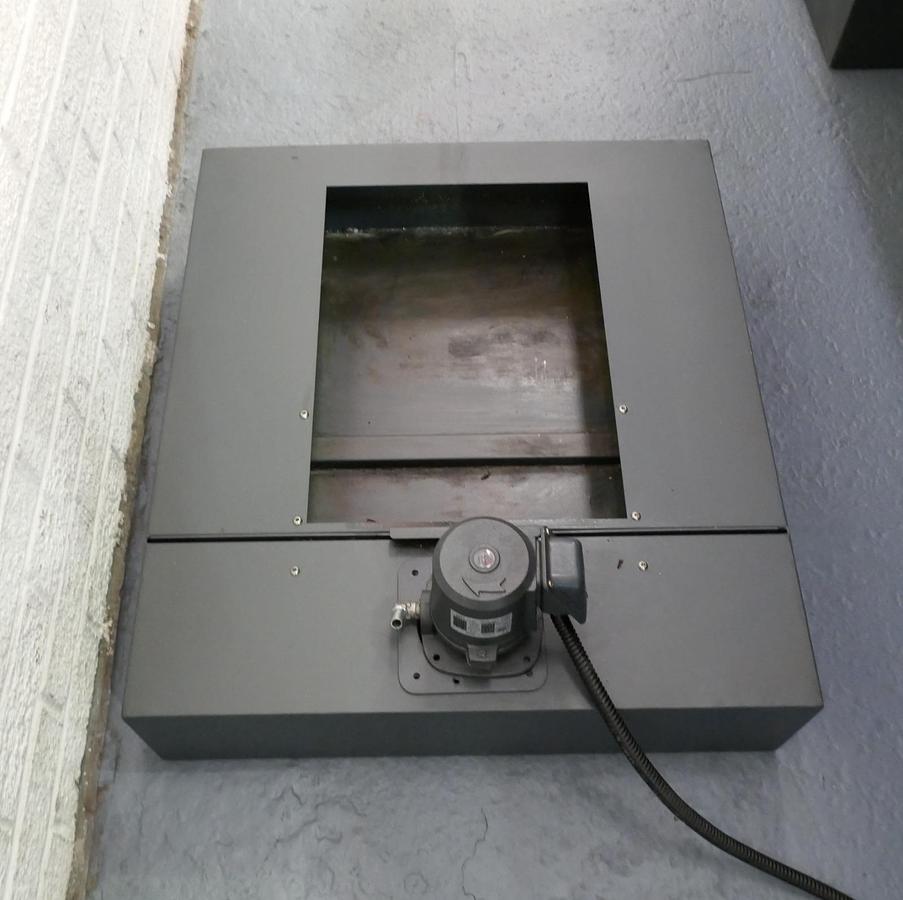

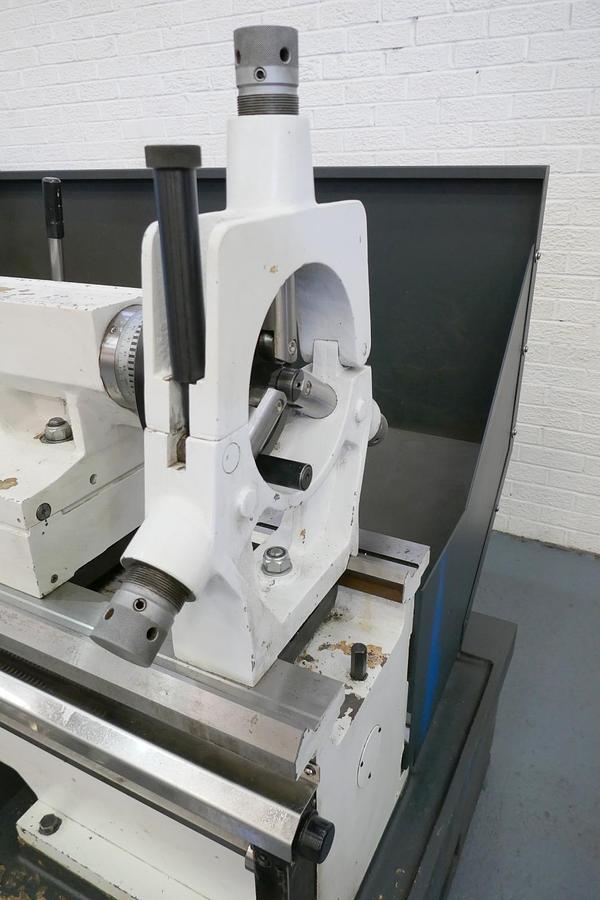

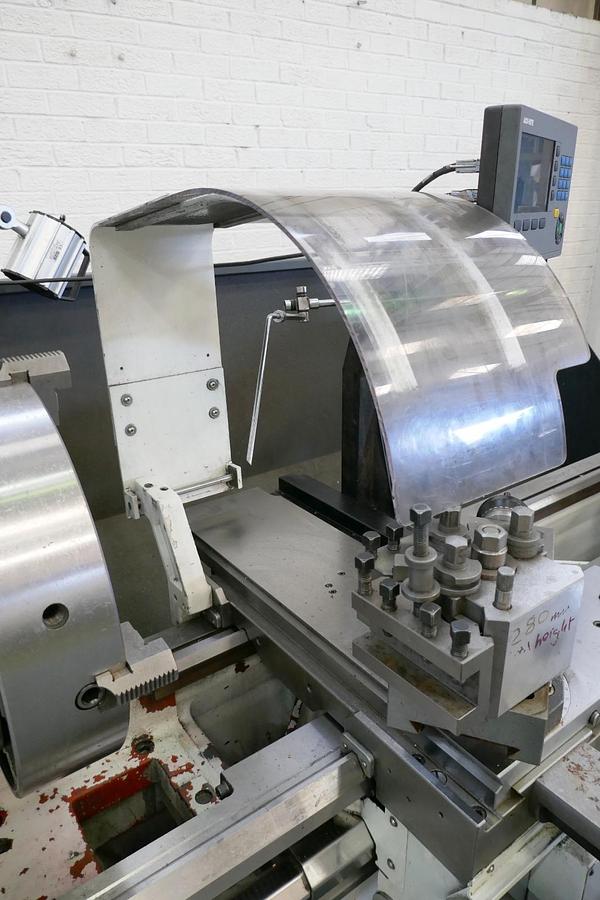

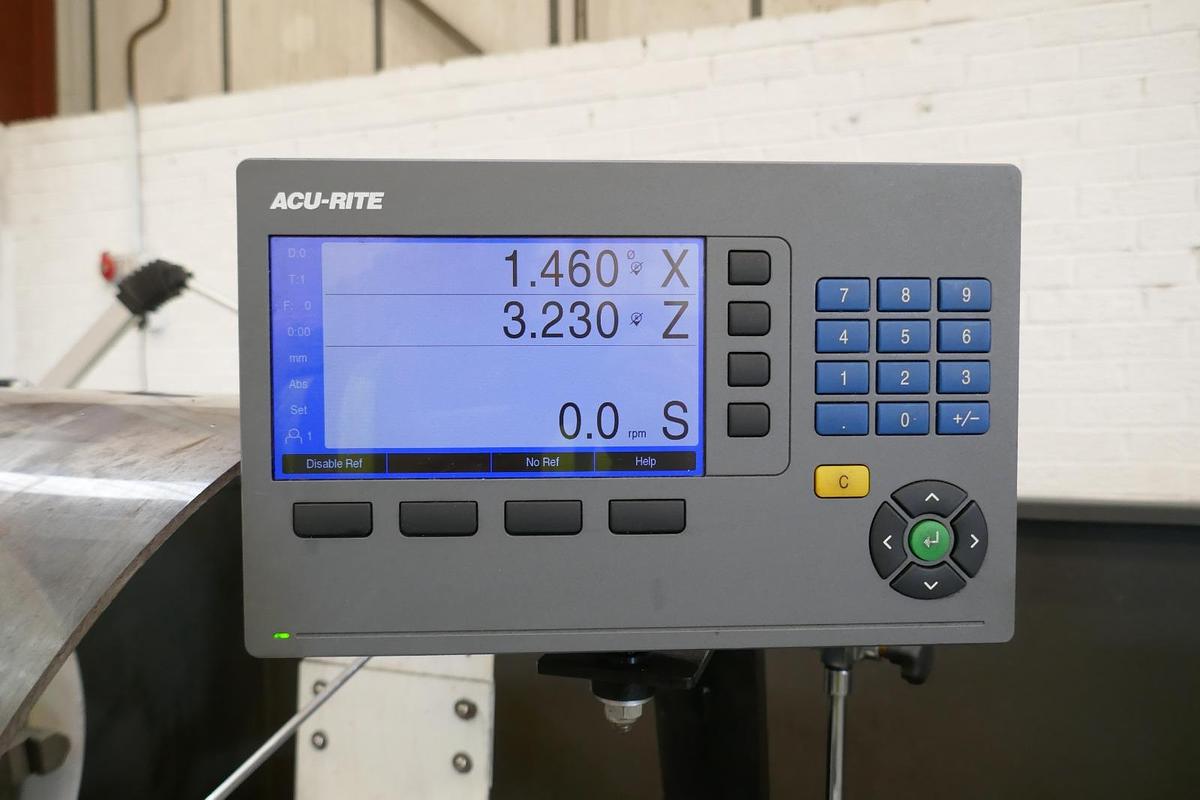

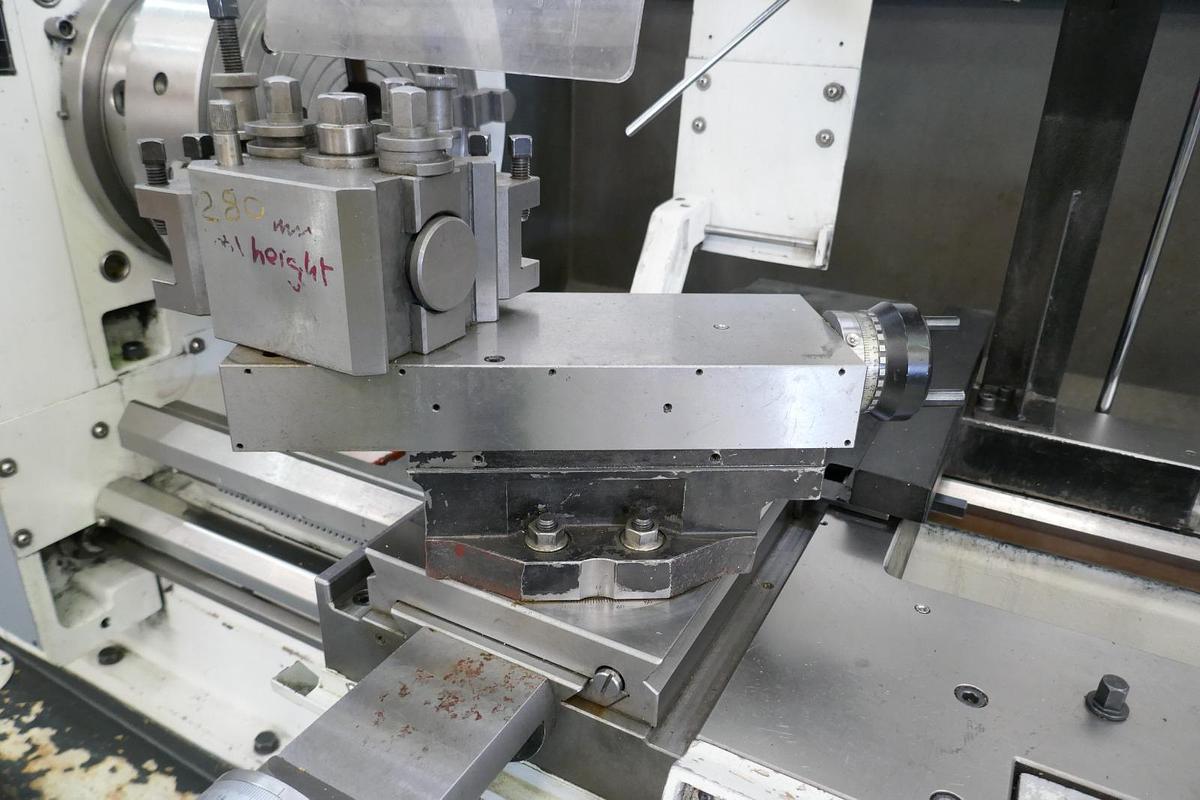

| Machine complete with | ACU-RITE D.R.O. with RPM, 315mm 3-jaw chuck, 405mm 4- jaw chuck, 3 Point Roller Steady, Quick change toolpost, Rapid cross & longitudinal travel, Interlocked chuck guard, Coolant. |
