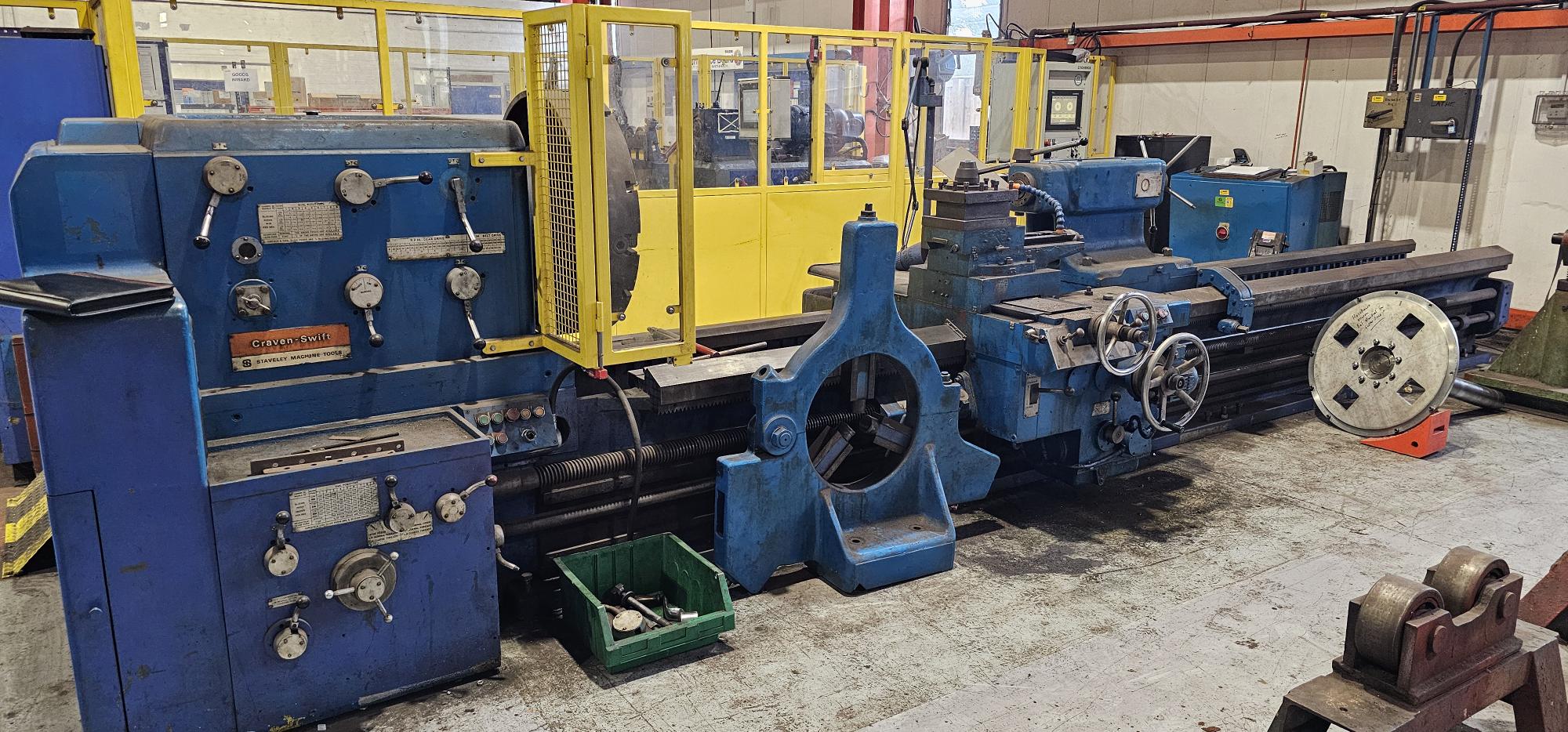

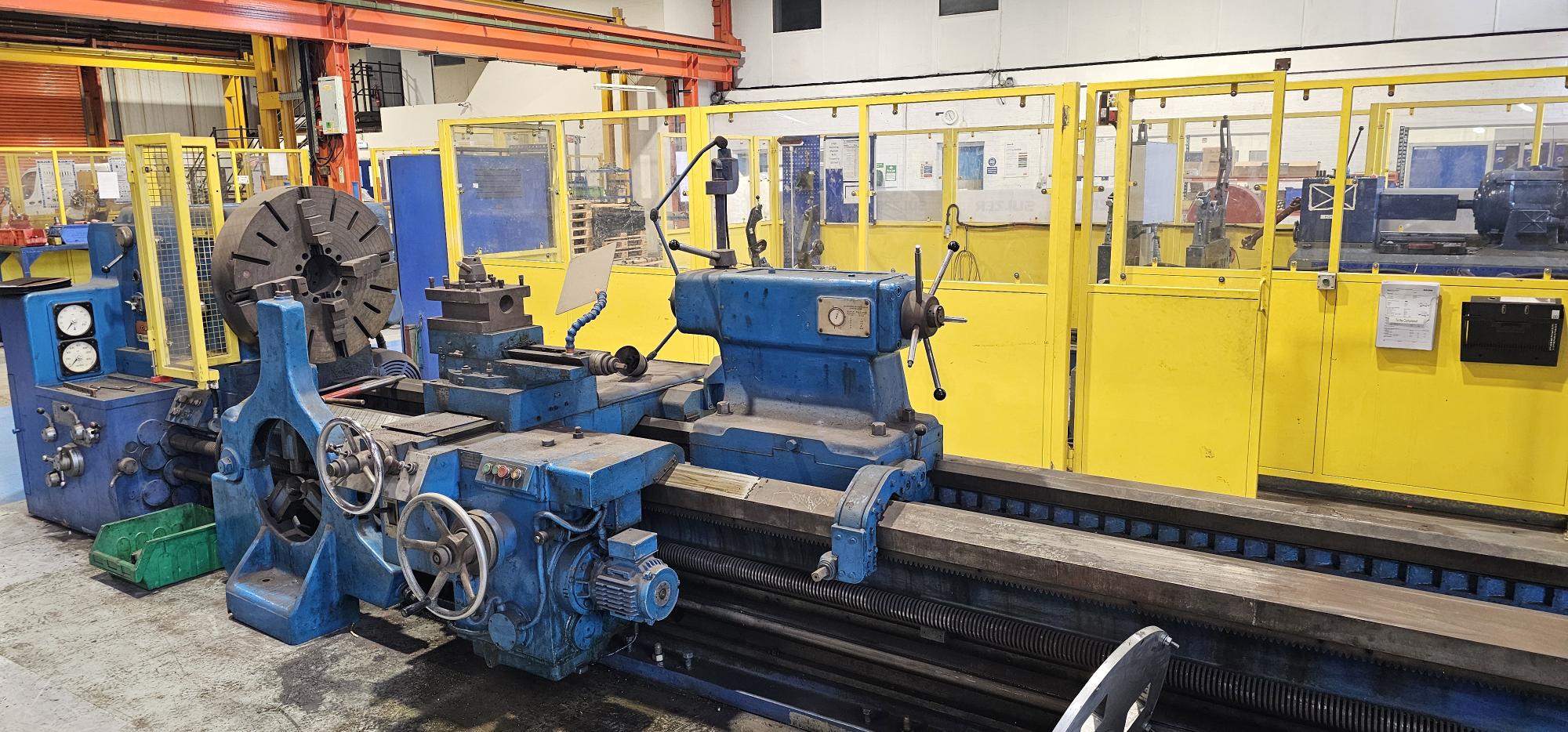

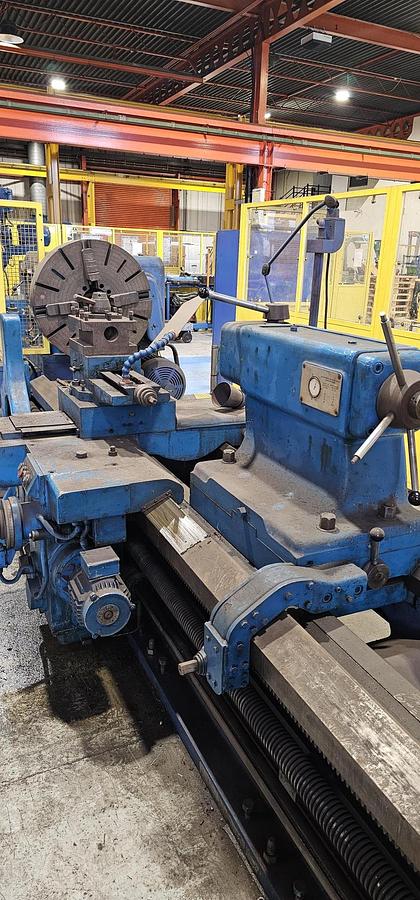

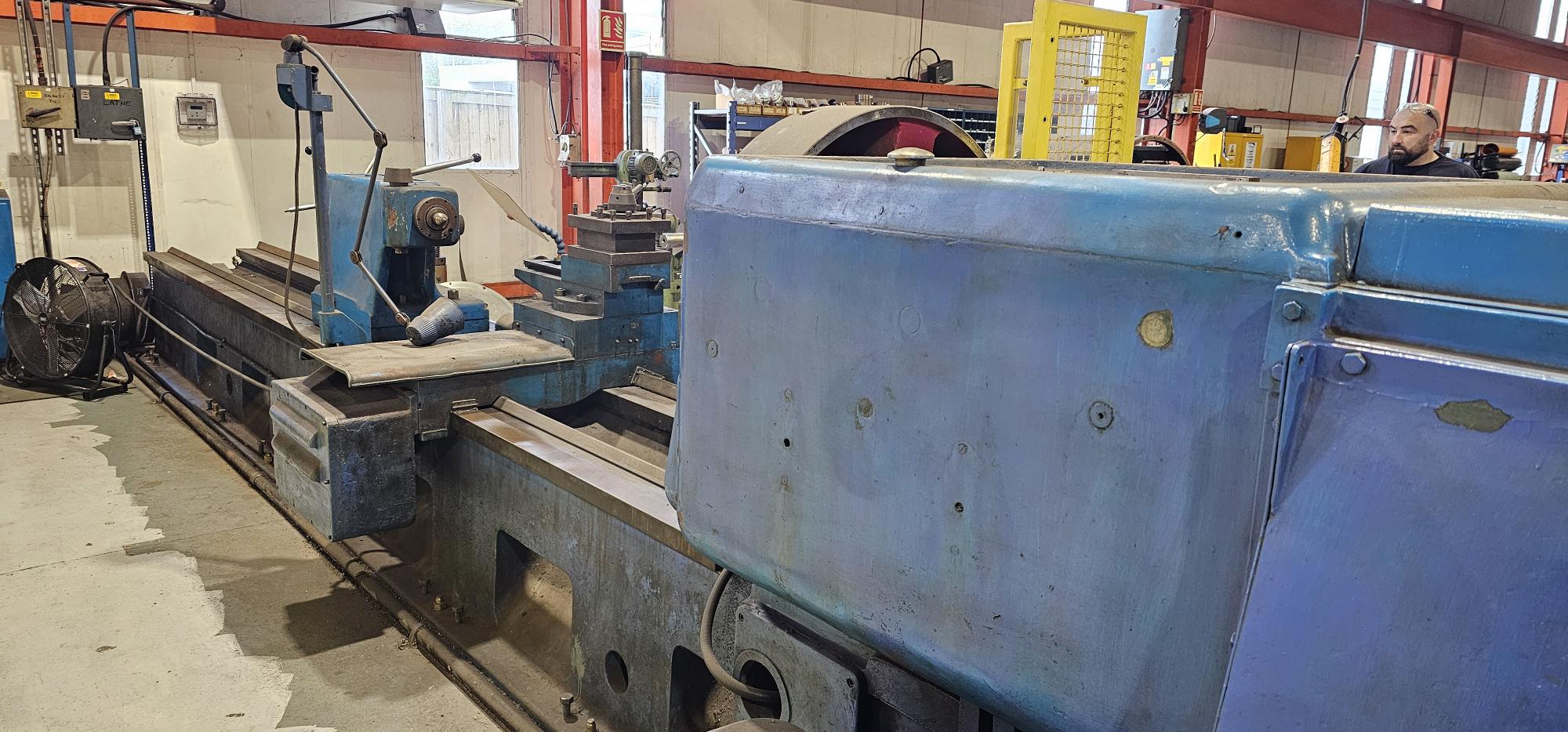

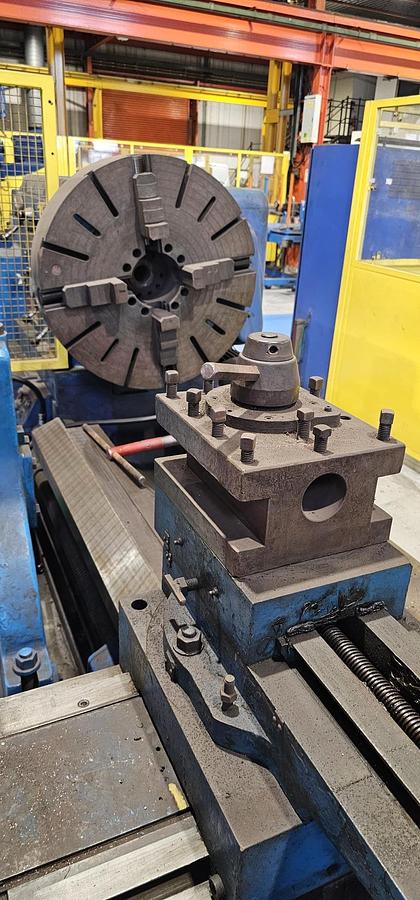

CRAVEN SWIFT 19C SERIES 60 HEAVY DUTY CENTRE LATHE
Description
Type 19C SERIES 60
CAPACITY
Distance between centres 5029 mm 16’ 6”
Swing over bed 991 mm 39”
Swing over saddle 711 mm 28”
Bed width 686 mm 27”

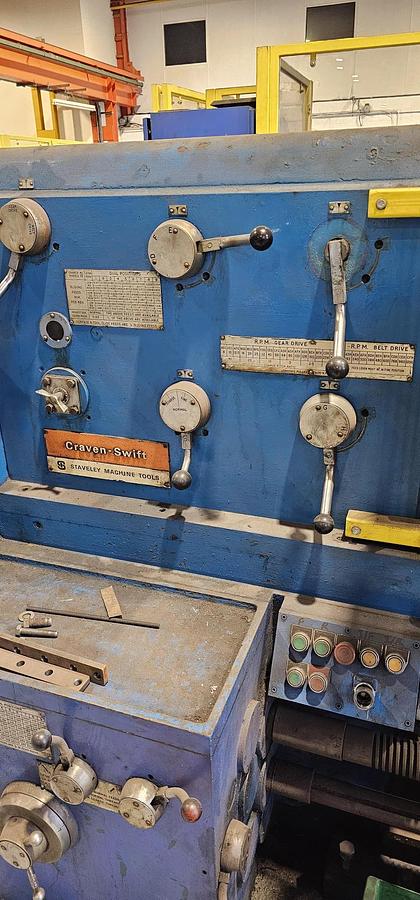

HEADSTOCK
Spindle speeds (Gear) (18) 8 - 400 rpm
Spindle speeds (Belt) (9) 192 – 1200 rpm
Spindle bore 105 mm 4.125”

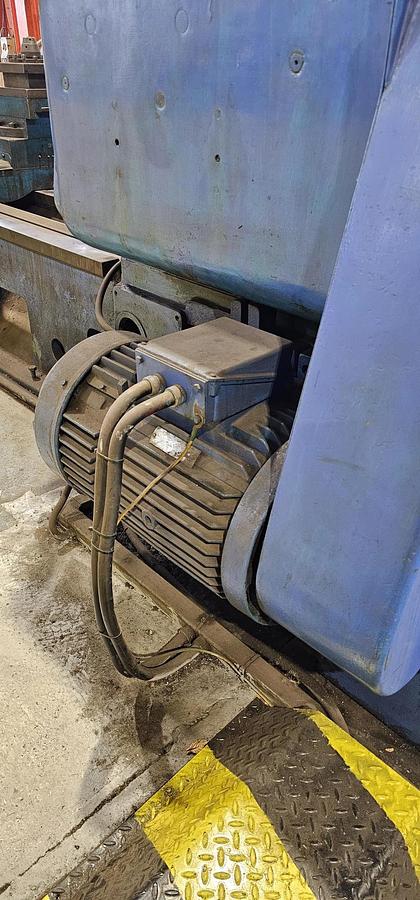

Main motor 30 kW 40 HP (To be confirmed)

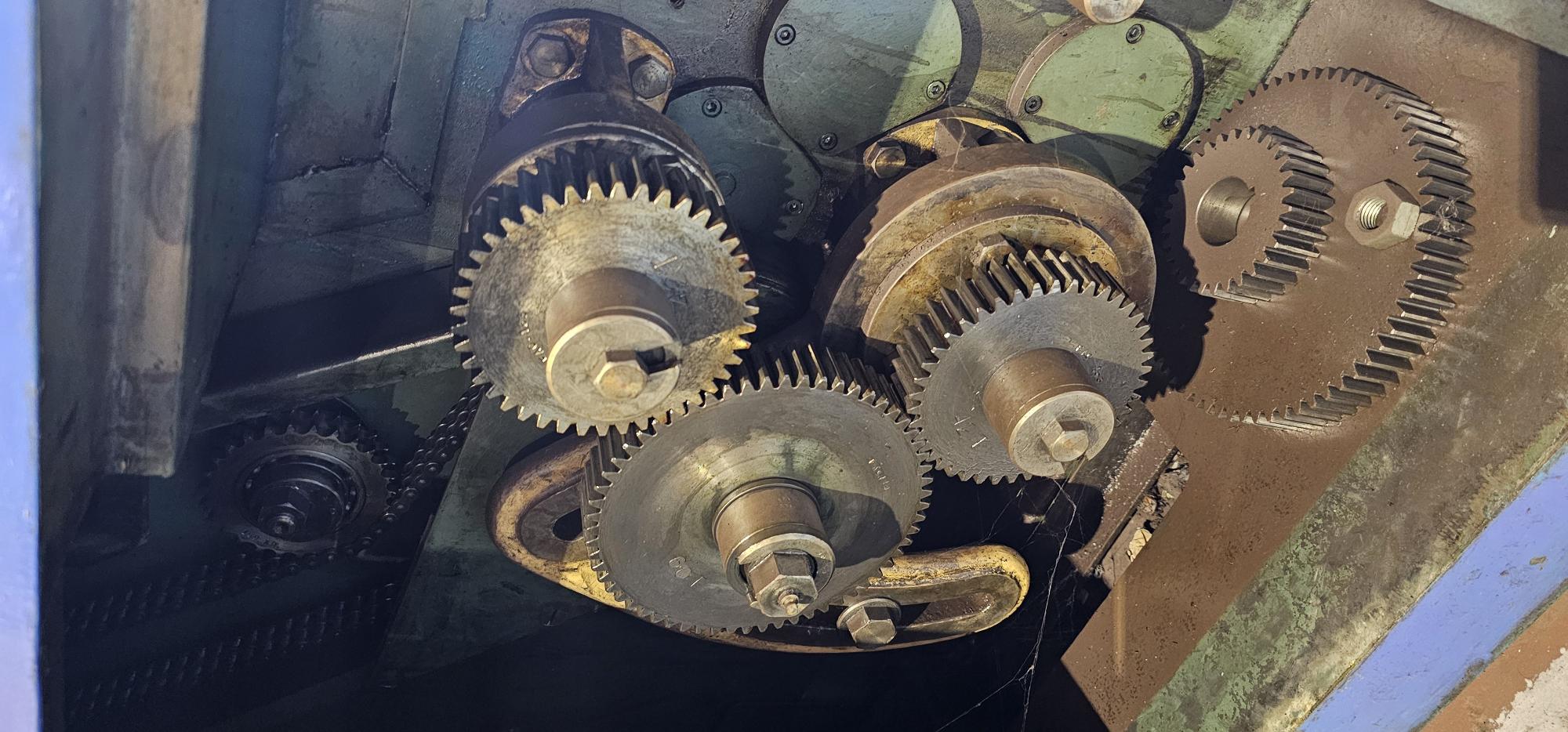

FEEDS & THREADS
Sliding feeds per/rev. (30) 0.1 – 2.54 mm 0.005” – 0.100”
Surfacing feeds per/rev. (30) 0.05-1.27 mm 0.0025” – 0.05”
Threads per inch (28) 2 - 14 tpi
DP (20) 4 to 28
Metric pitches (28) 1.6 – 14
Module (18) 0 1 - 7

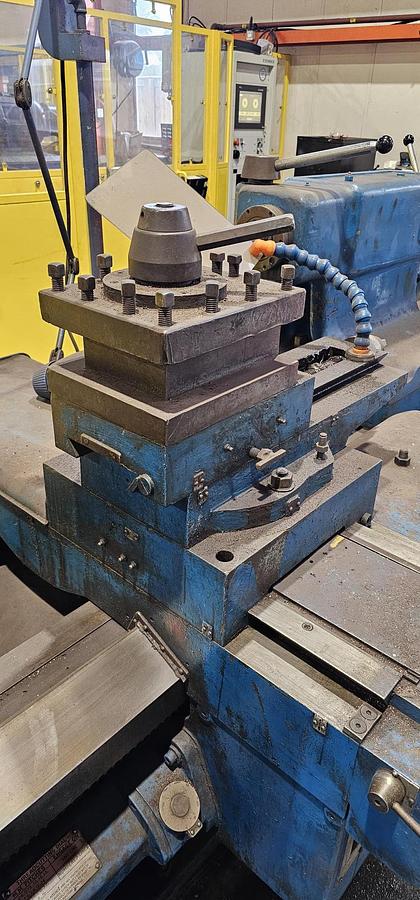

SADDLE & TOPSLIDE
Cross slide travel 863 mm 34”
Top slide travel 305 mm 12”

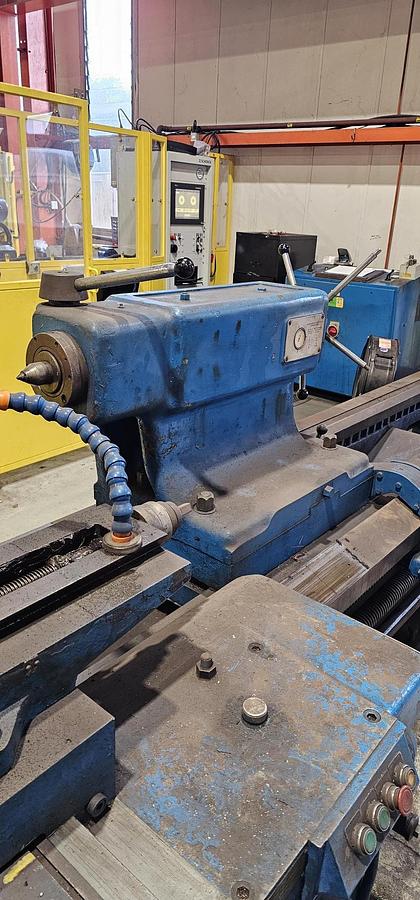

TAILSTOCK
Spindle taper 6 MT
Weight approx. 15 to 18 Ton.
Machine complete with :-

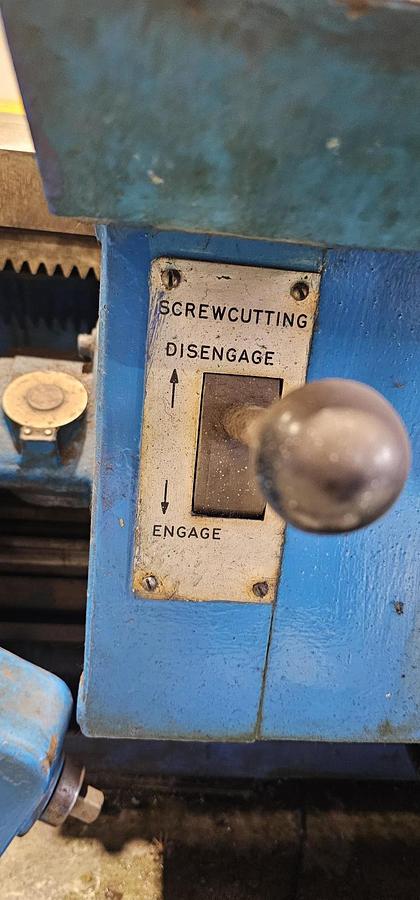

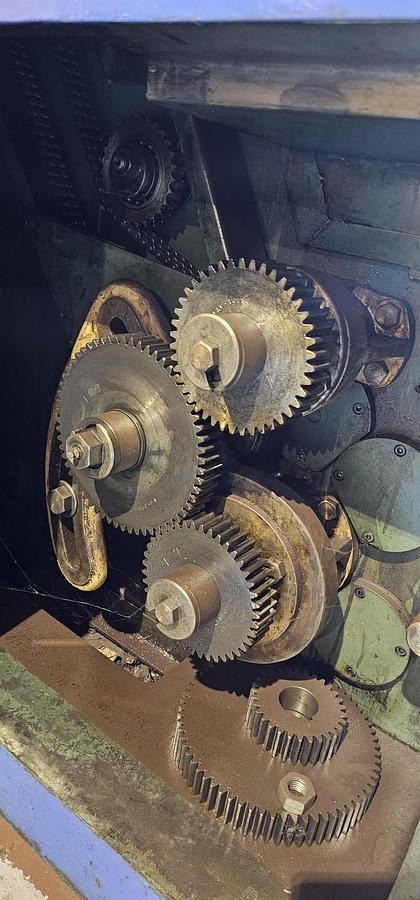

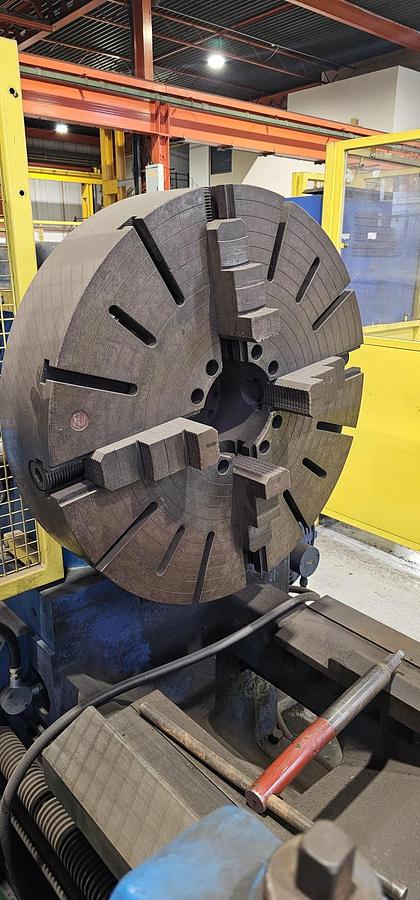

32” Pratt Steel 4 Jaw chuck, 19” 3 Point steady, Optional Multi Change Screwcutting Feed Box.

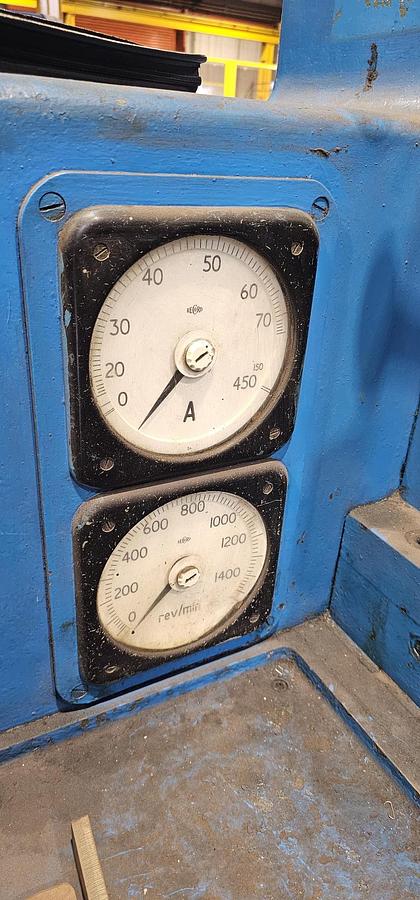

Ammeter and Tachometer.
Specifications
| Manufacturer | CRAVEN SWIFT |
| Model | 19C SERIES 60 HEAVY DUTY CENTRE LATHE |
| Condition | Used |
| Stock Number | 8526 |
