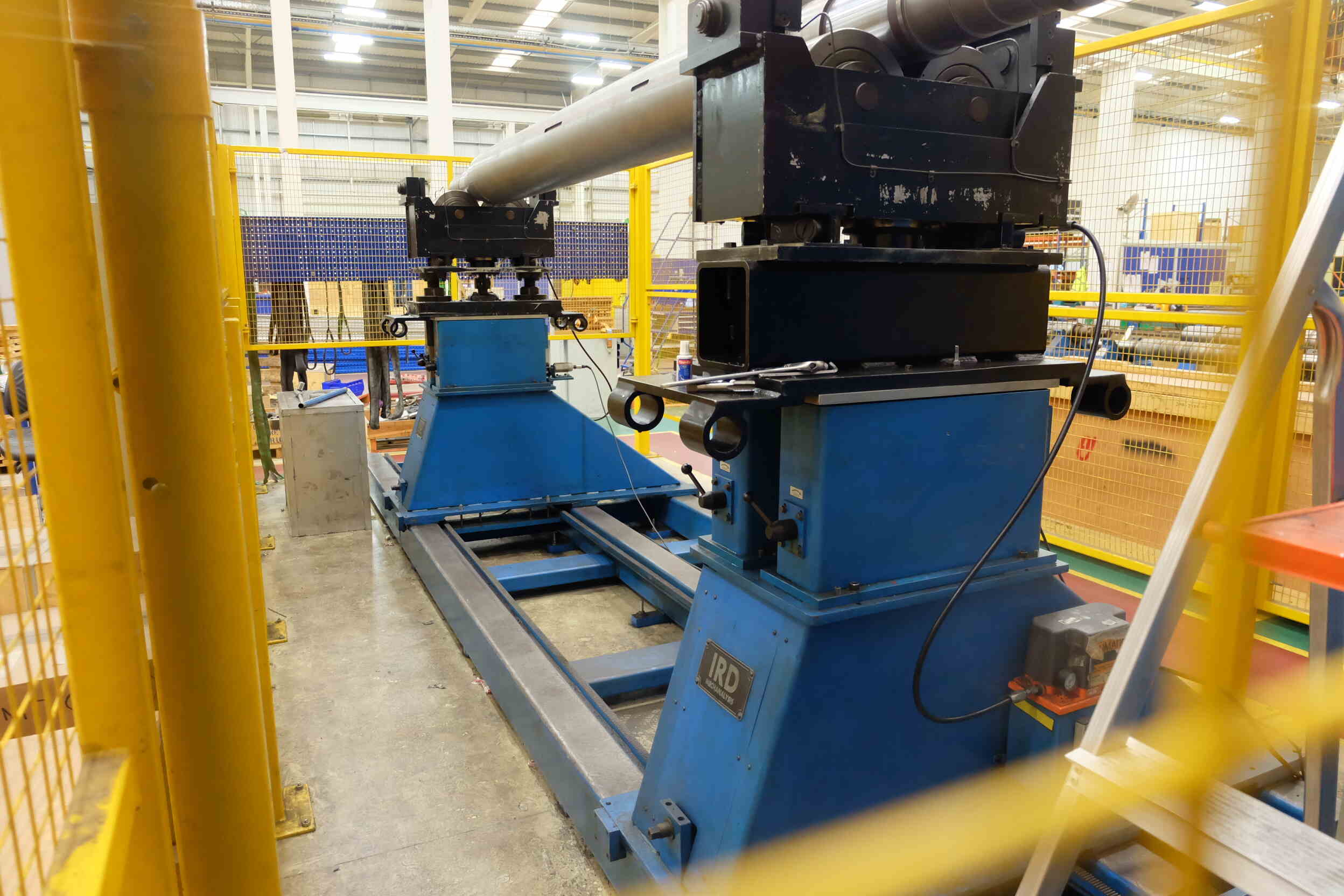

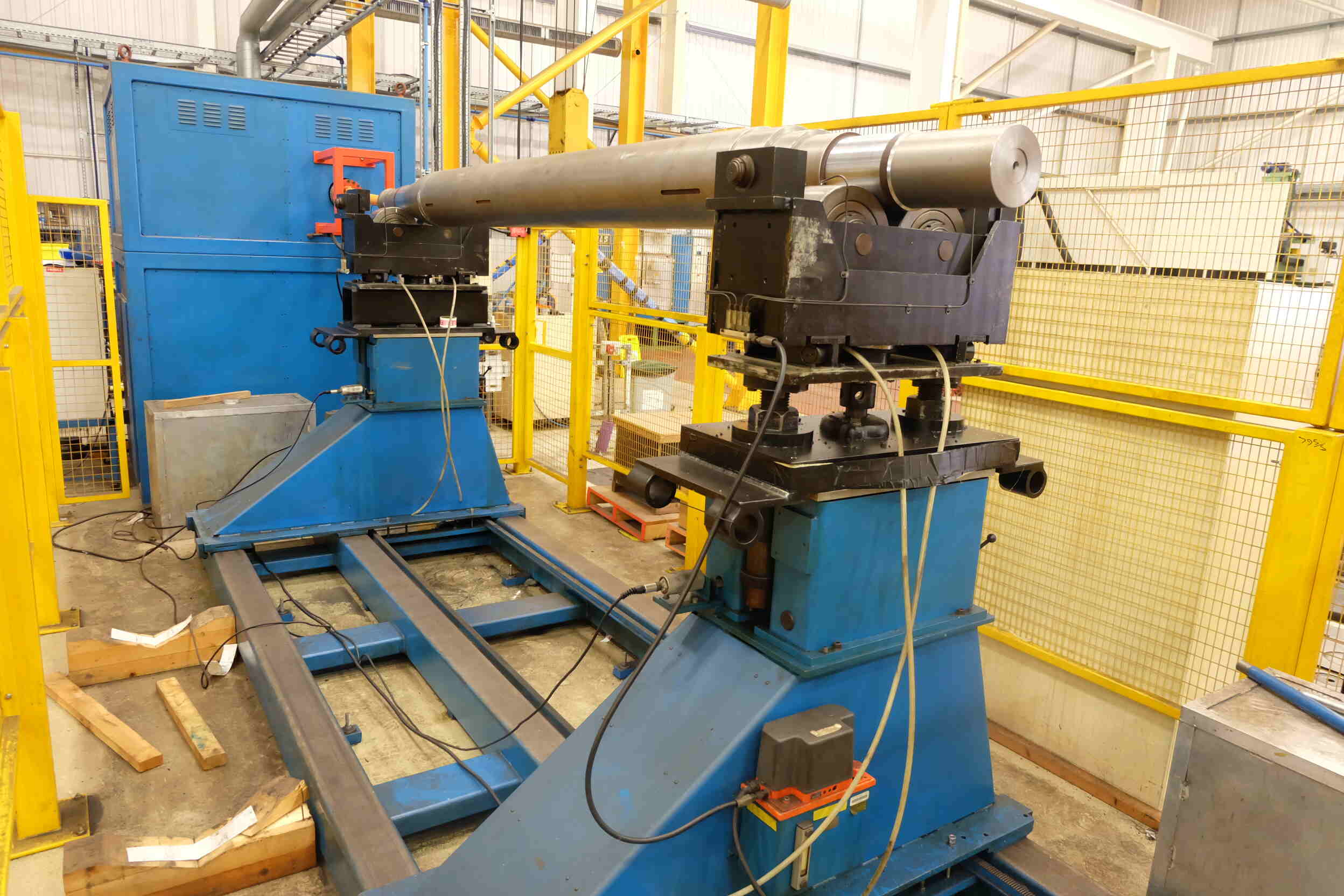

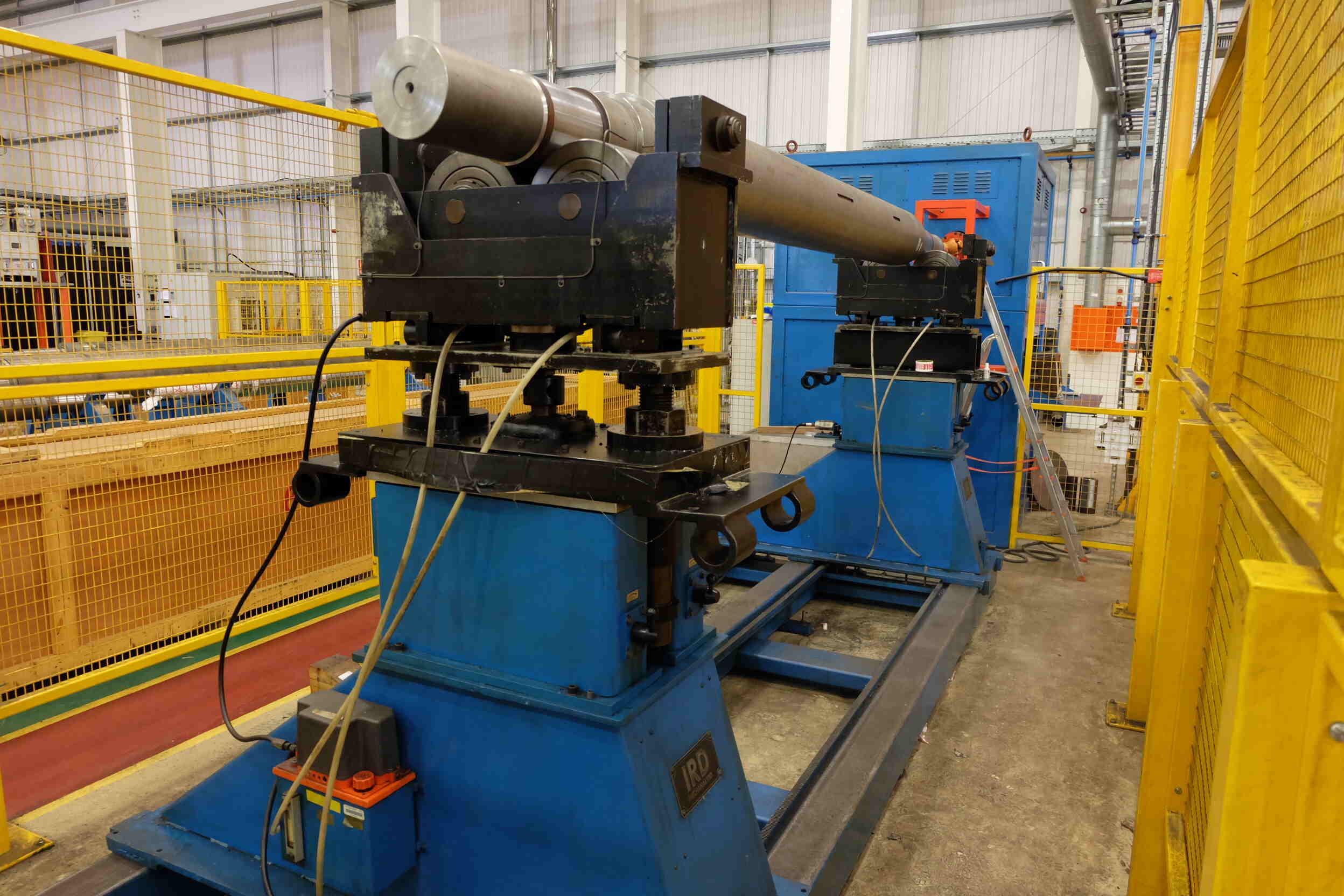

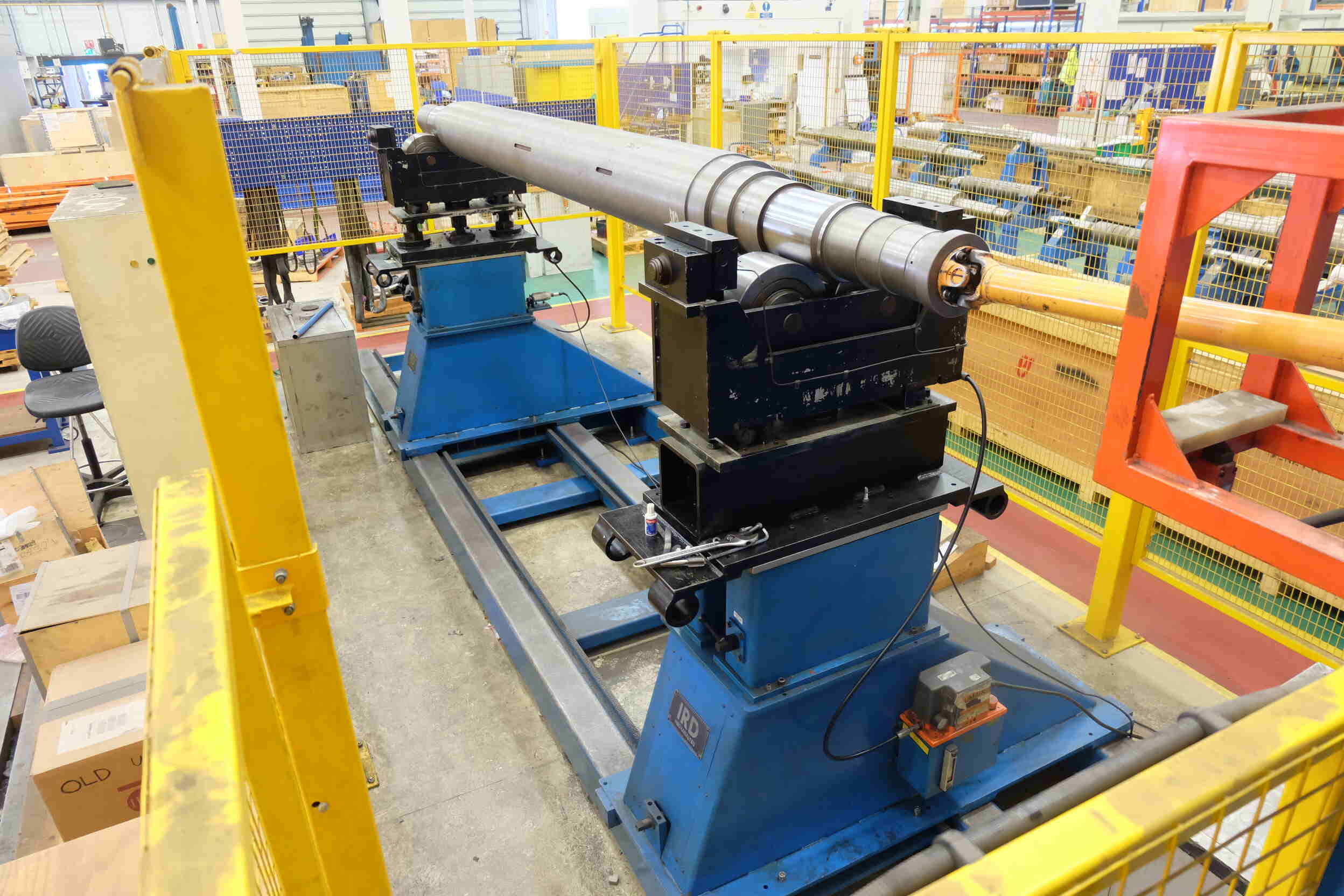

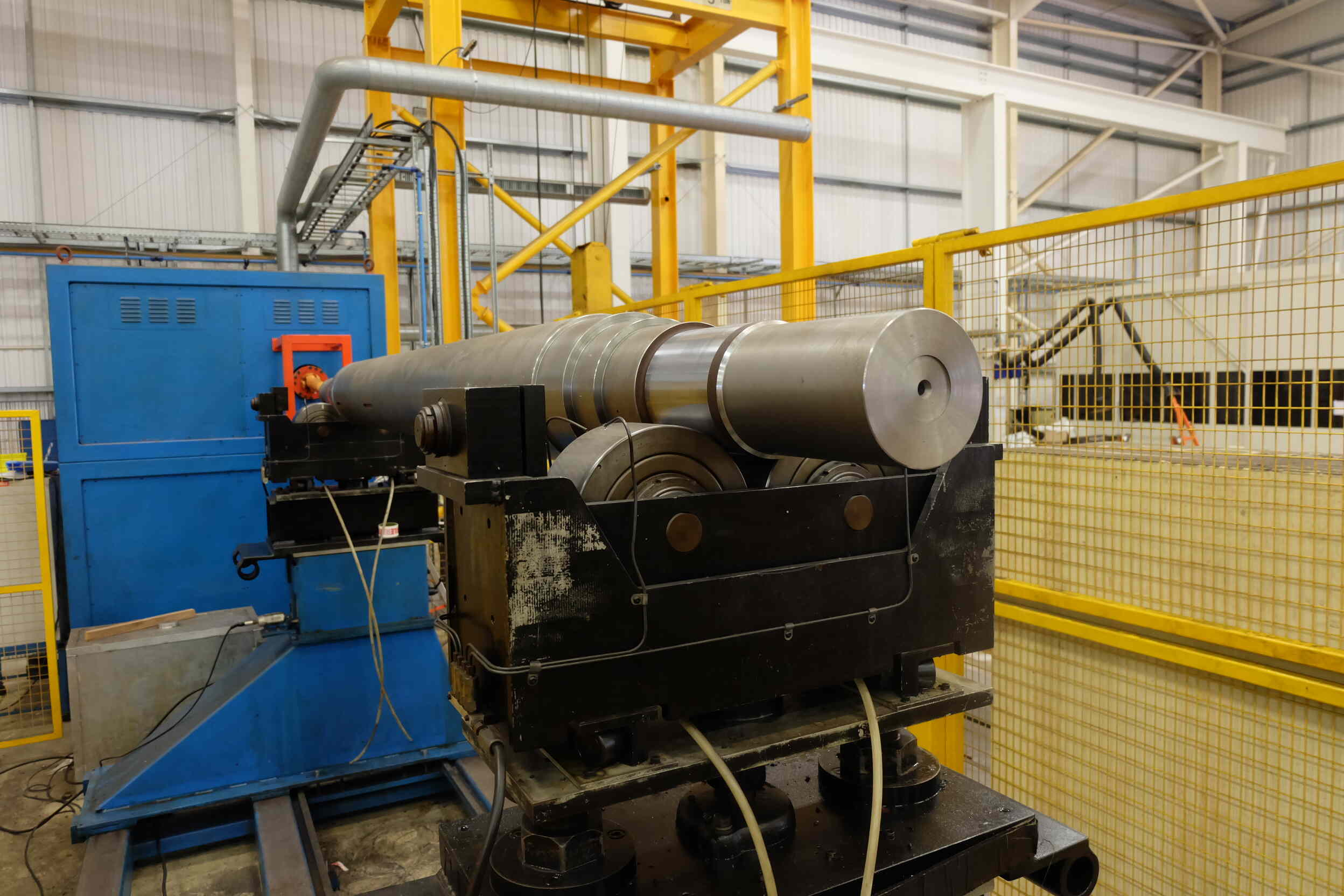

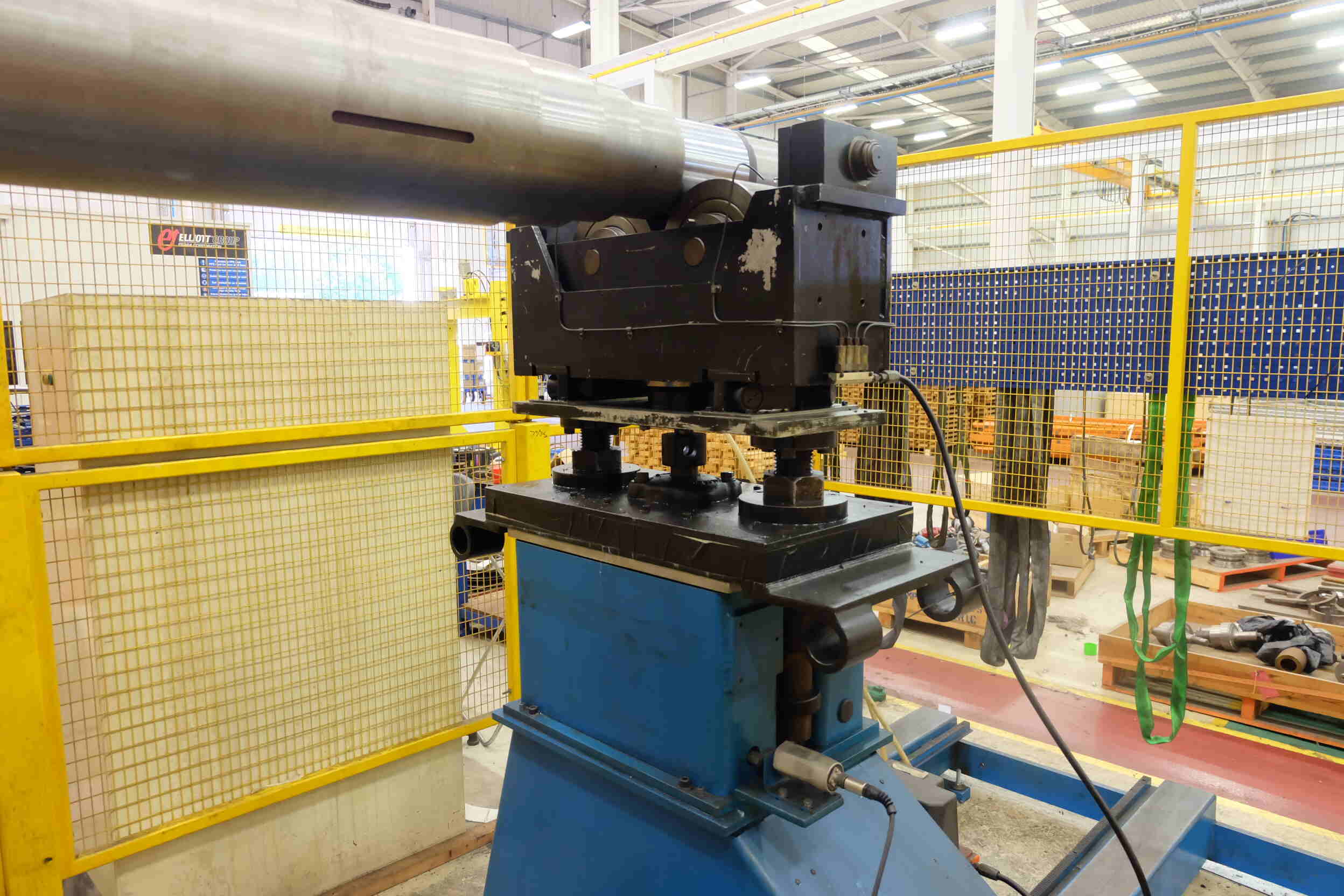

IRD B750RR SERIES SOFT BEARING HORIZONTAL DYNAMIC BALANCING MACHINE

Model                                                                               B750RR

Weight capacity                                                               34 000 kg

Maximum Rotor diameter                                                3302 mm

Max. balance length approx.                                           6000 mm

Machine base                                                                  5800 x 1750 mm

Journal diameter range                                                   51 – 508 mm with interchangeable rollers

Journal to Journal separation                                          140 – 2030 mm

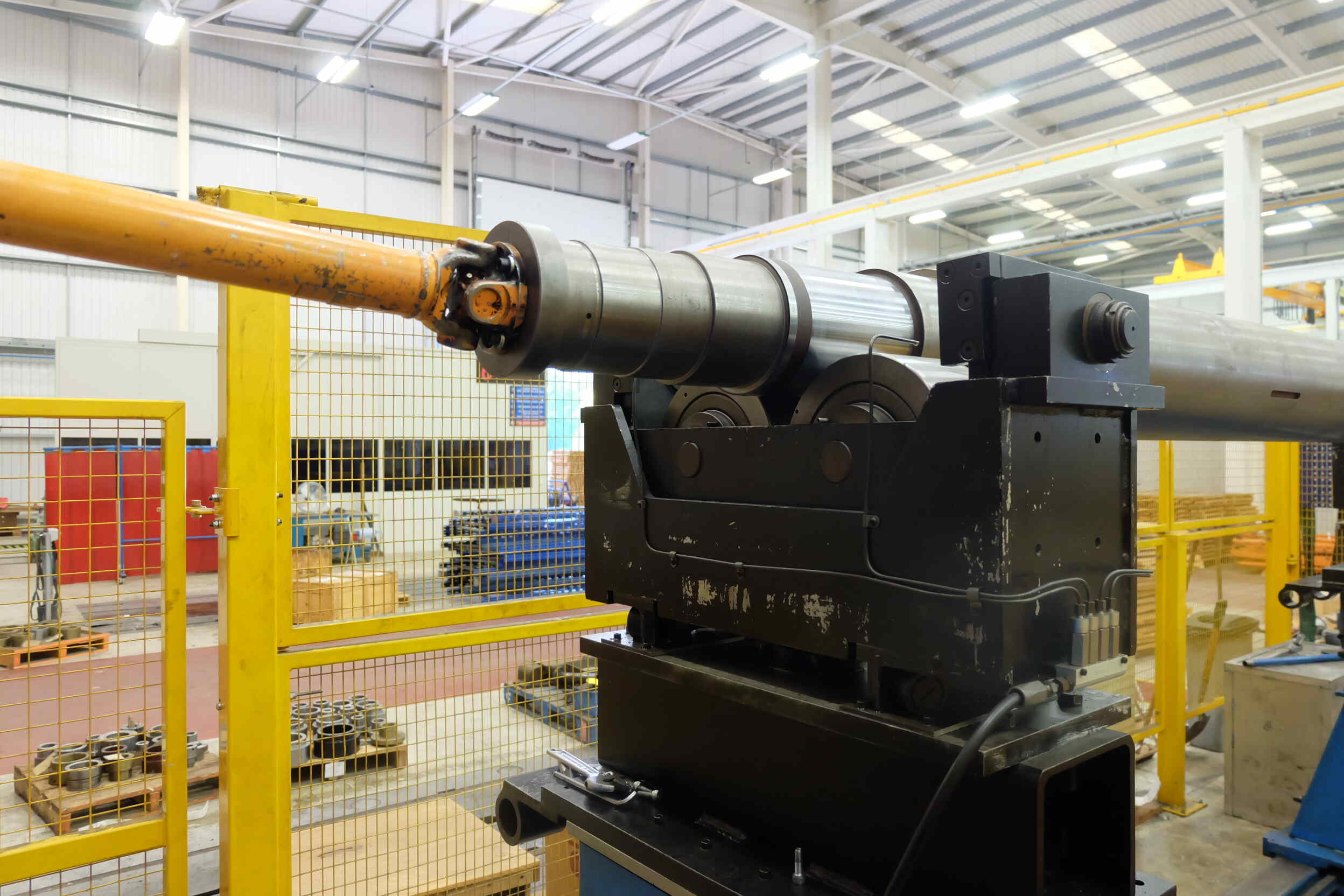

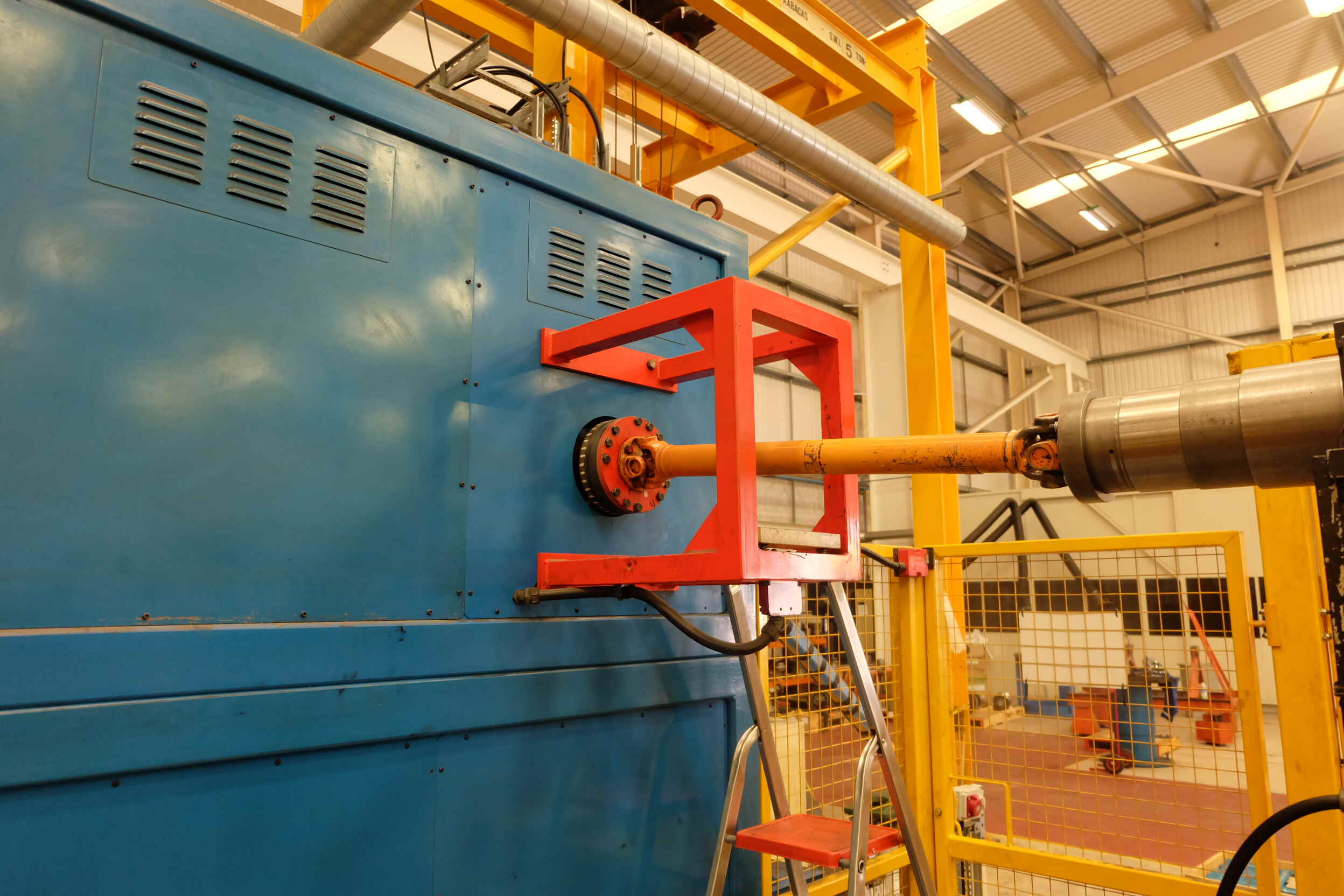

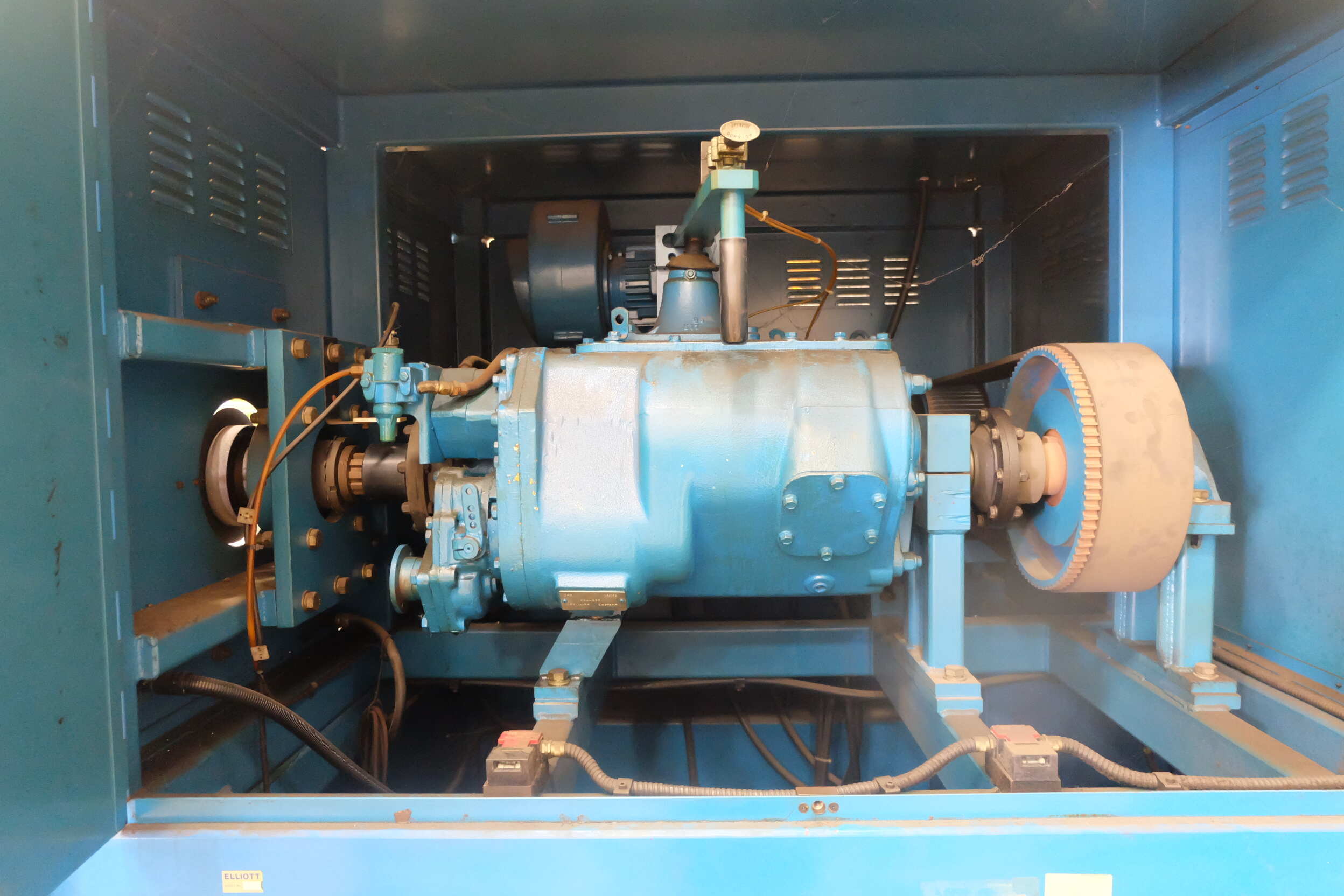

Drive type                                                                        Cardan Shaft.

Drive motor                                                                      45 kW DC Variable speed motor (to be confirmed)

Balancing speed range                                                    5.4 – 1438 rpm

Overall size with enclosure approx.                                3250 x 7100 mm

Complete with :-

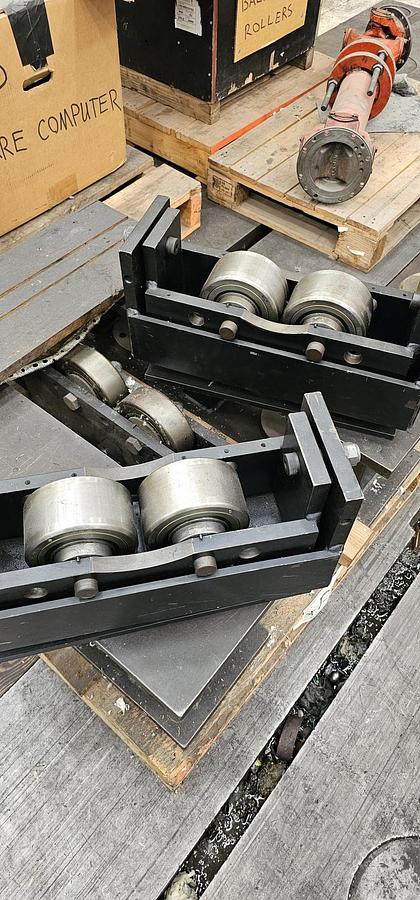

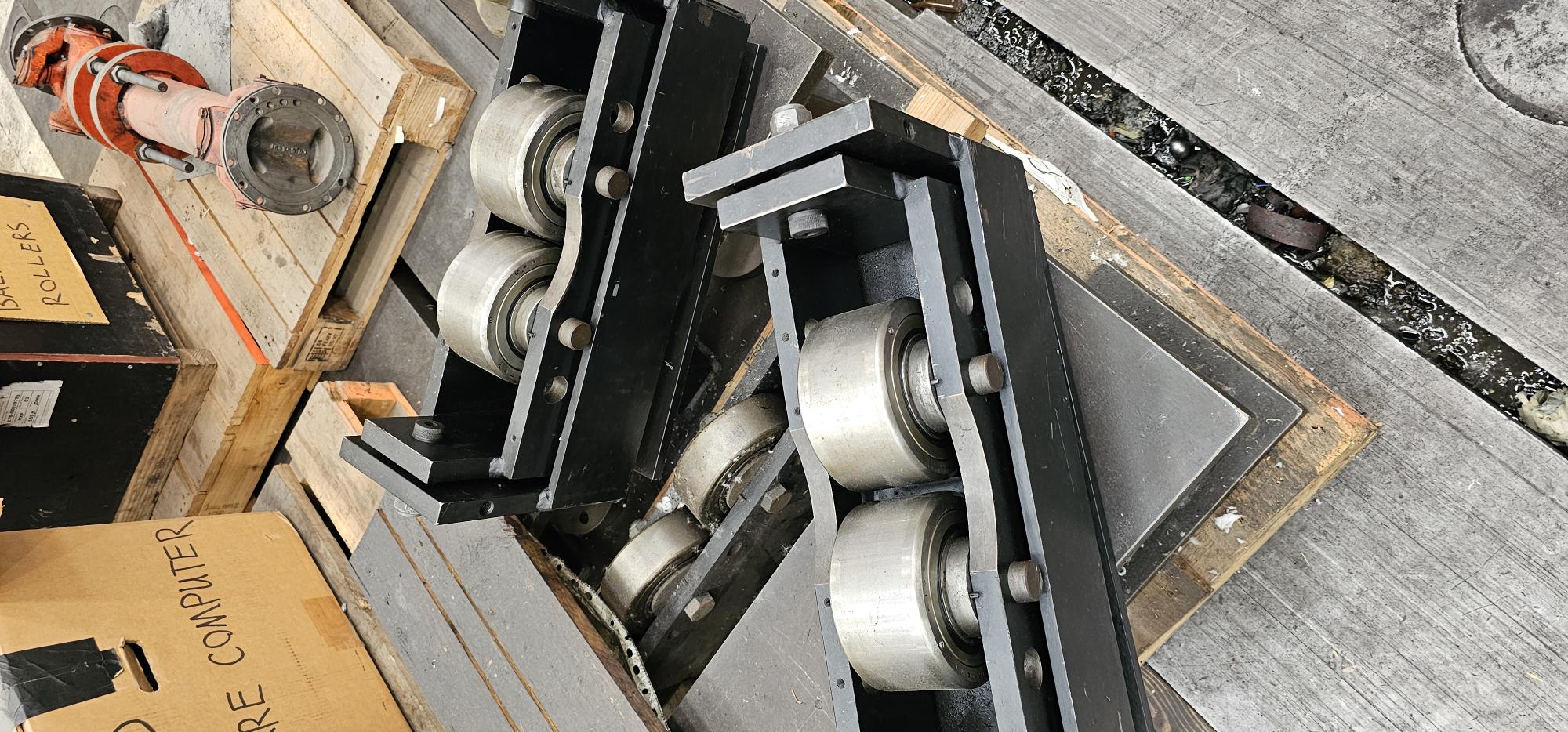

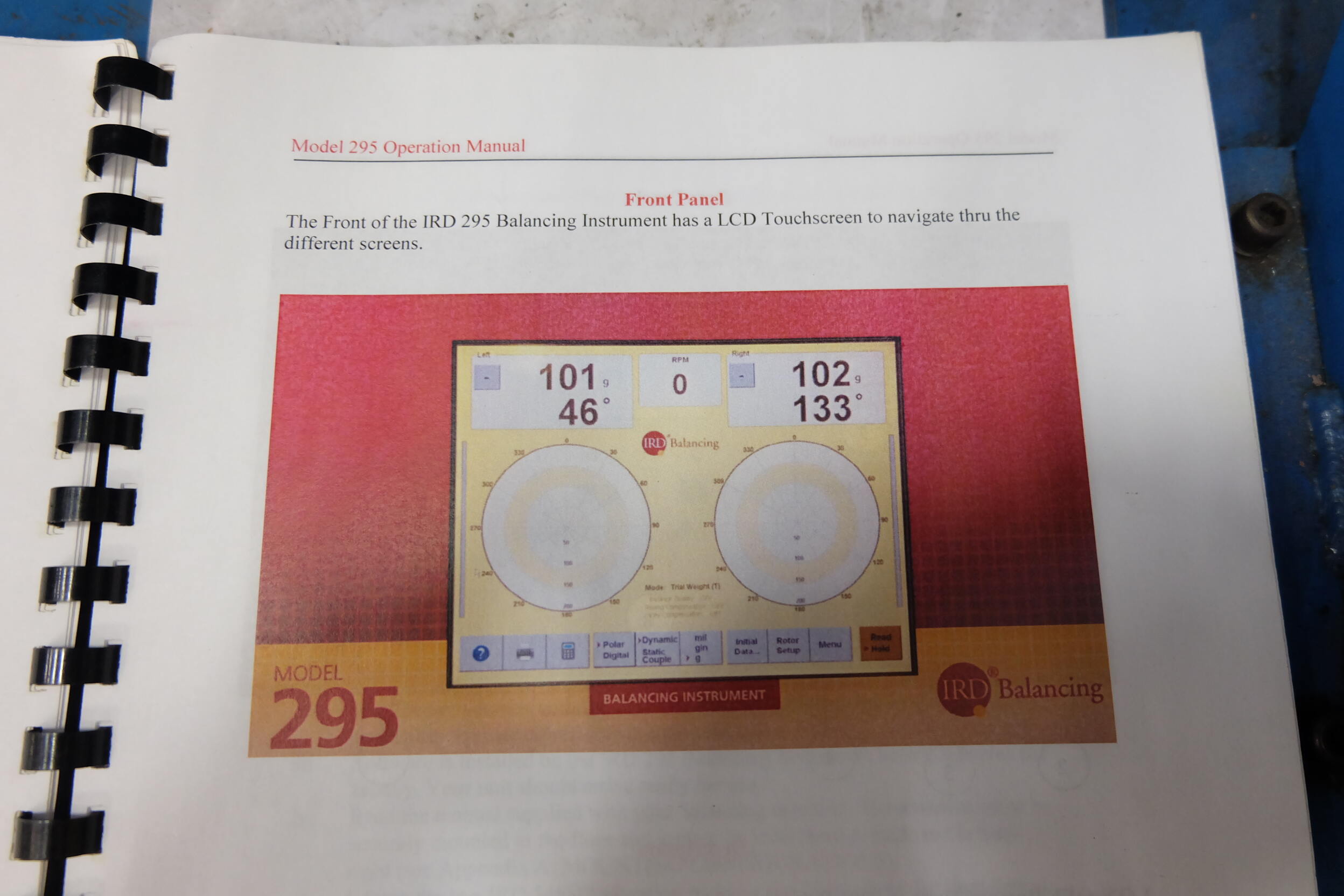

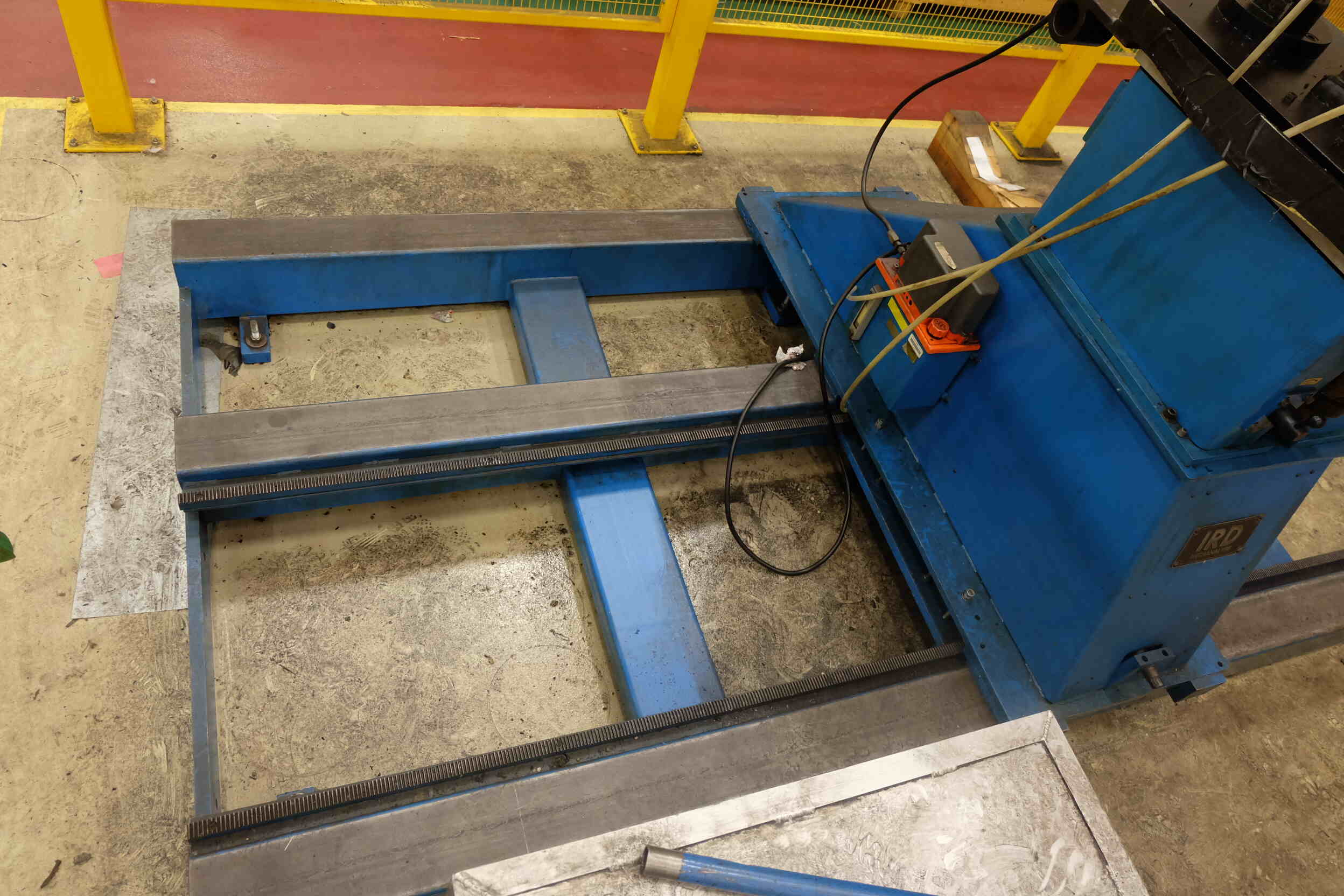

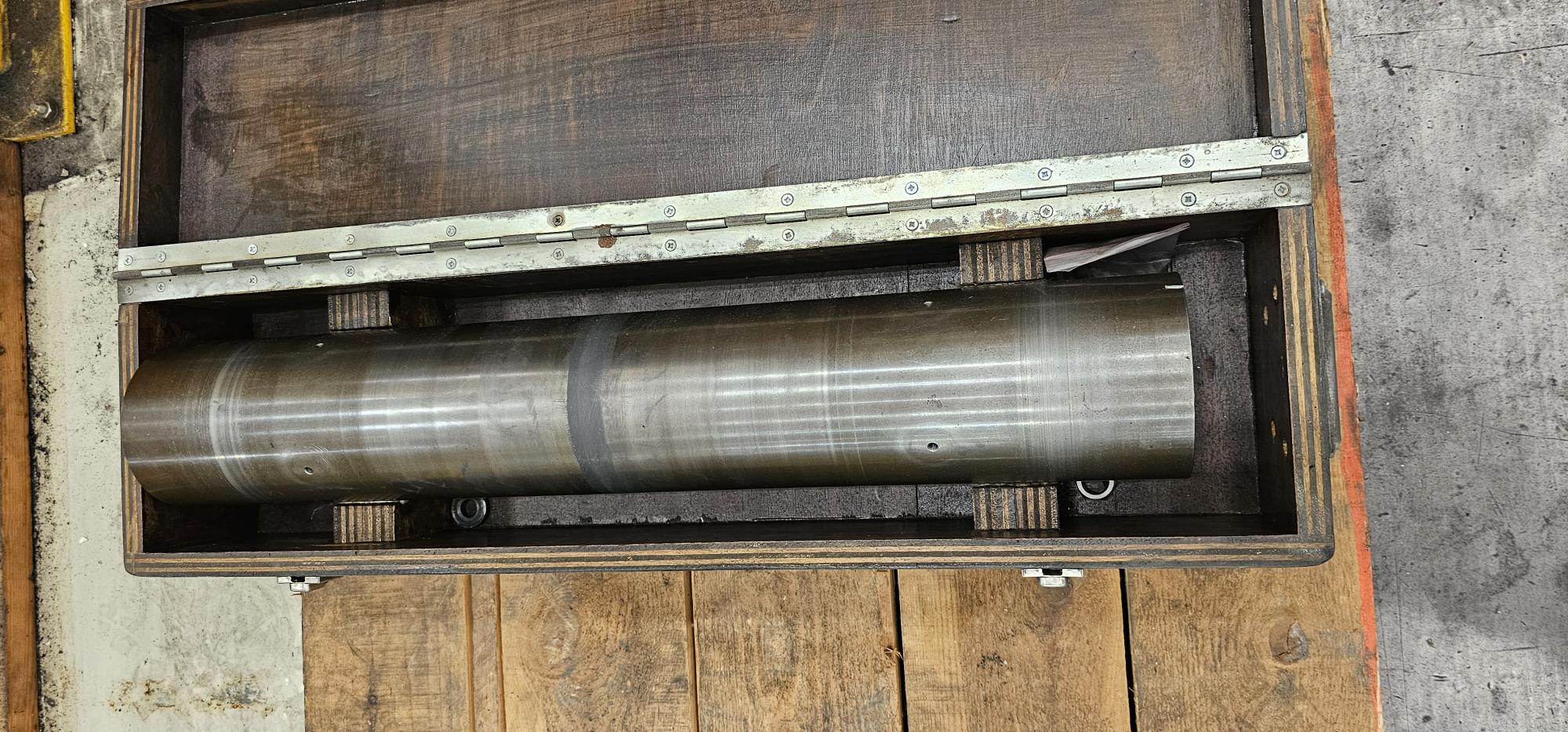

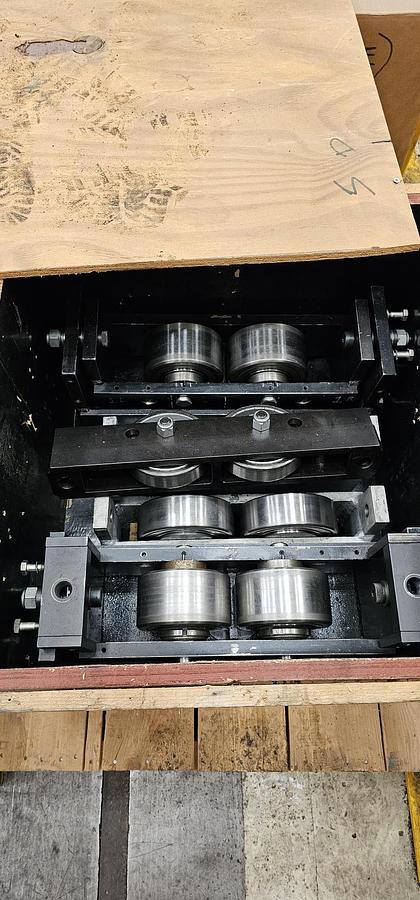

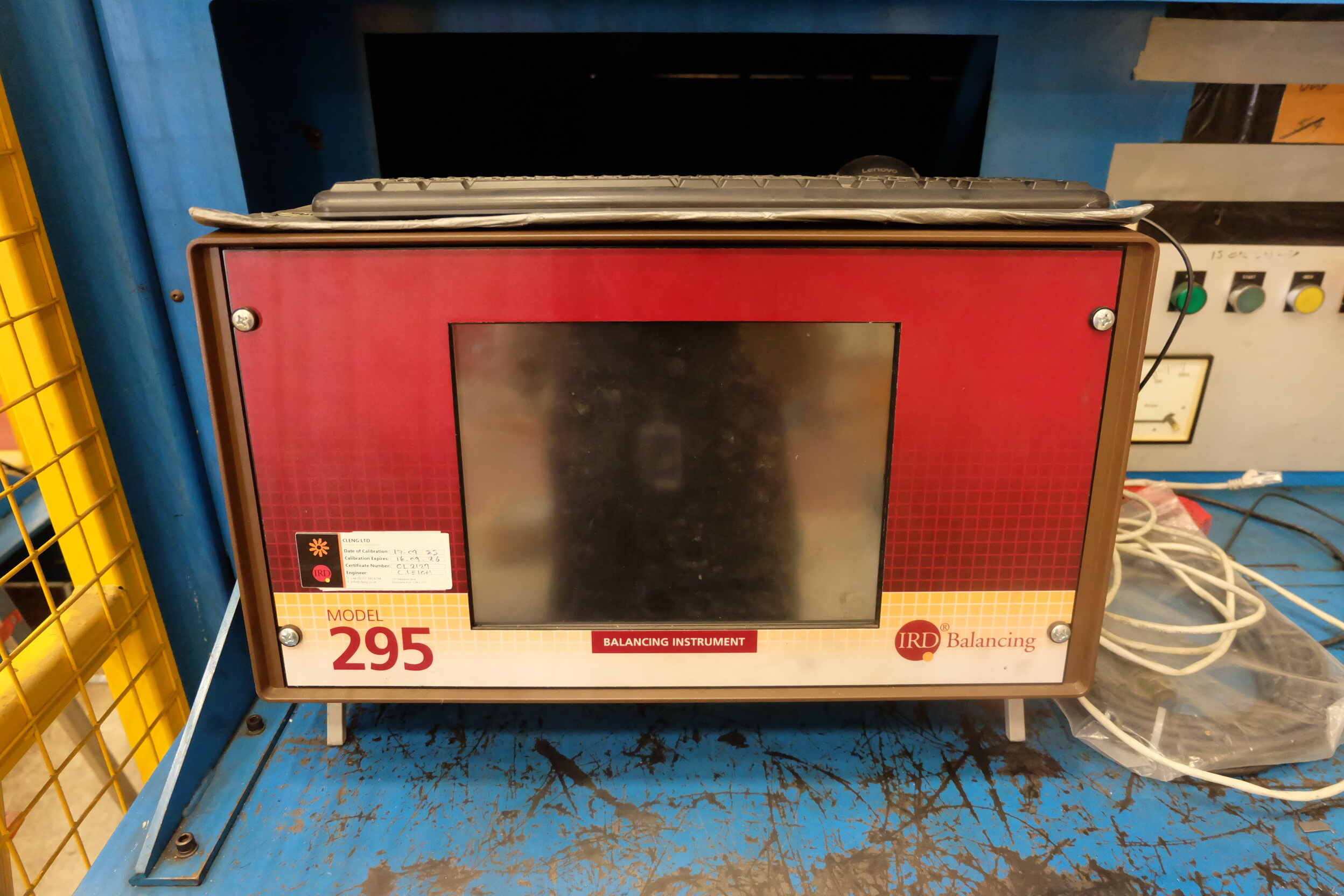

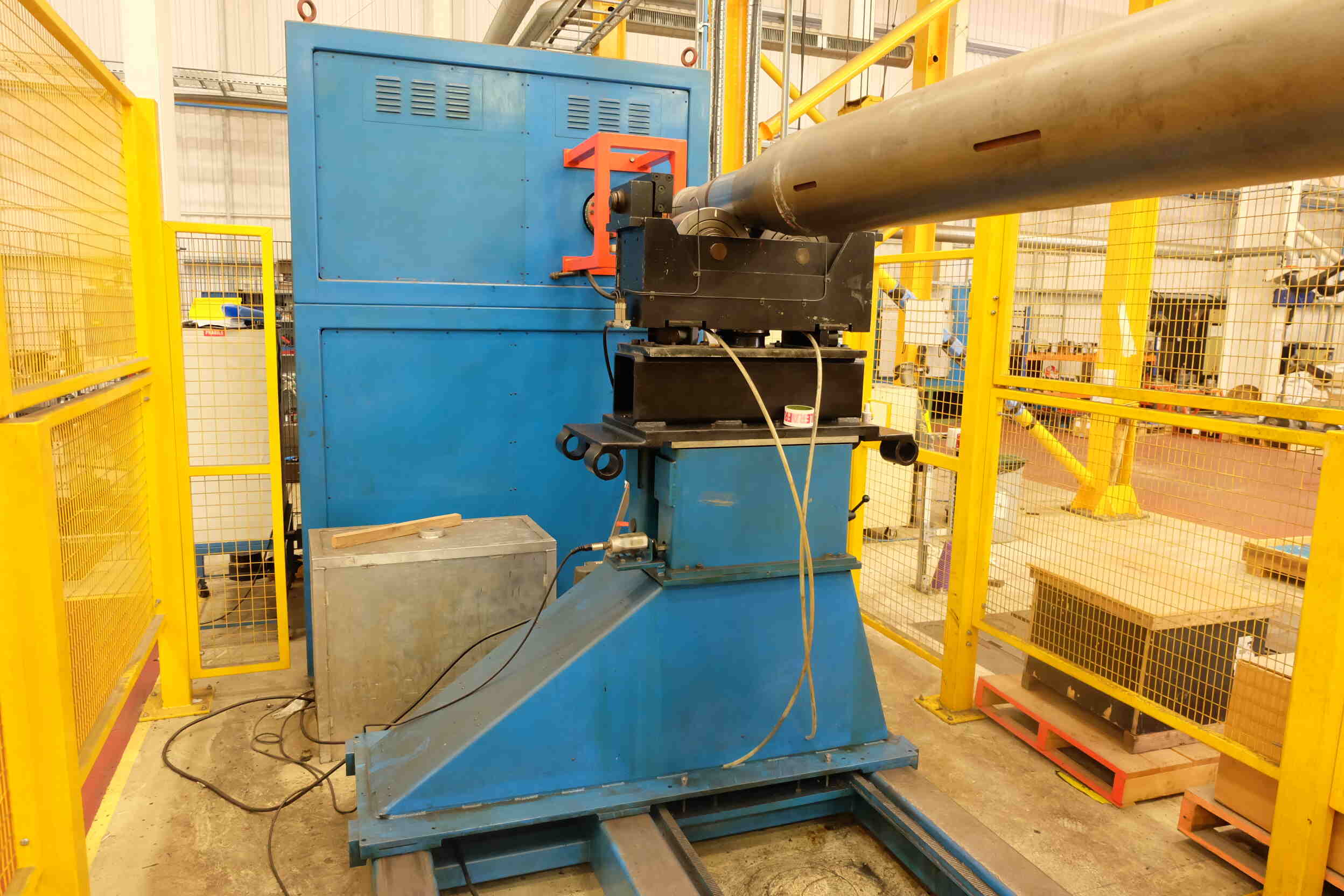

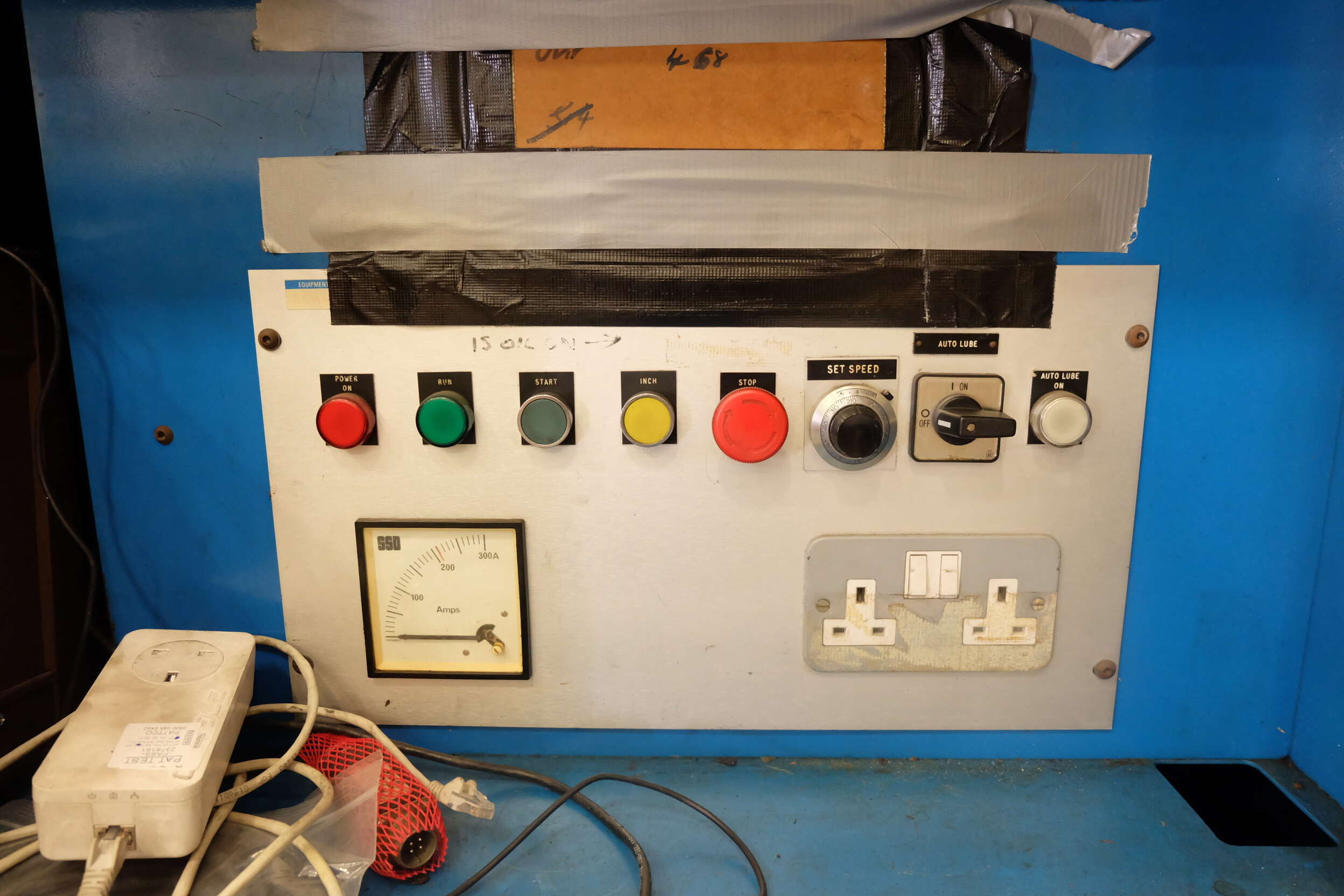

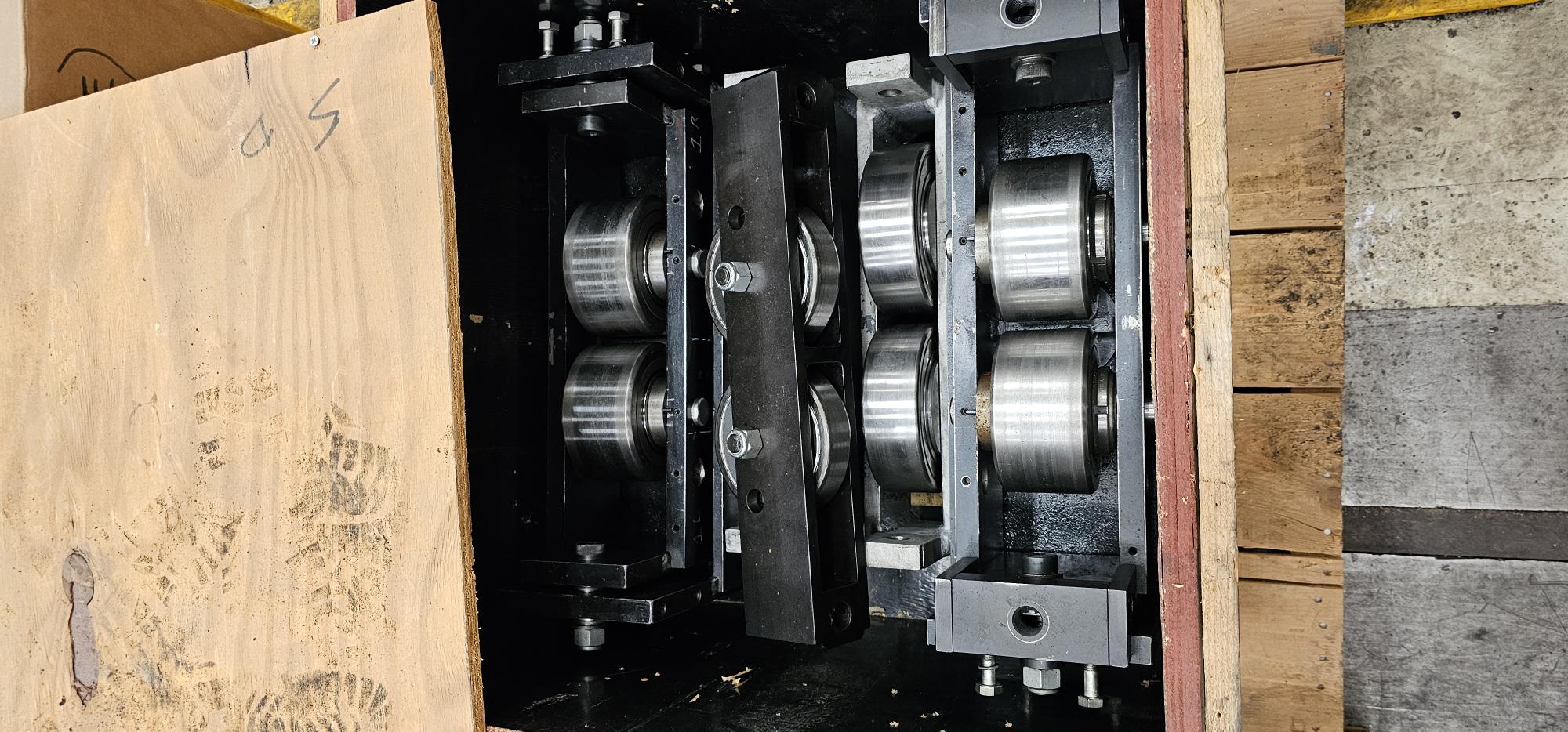

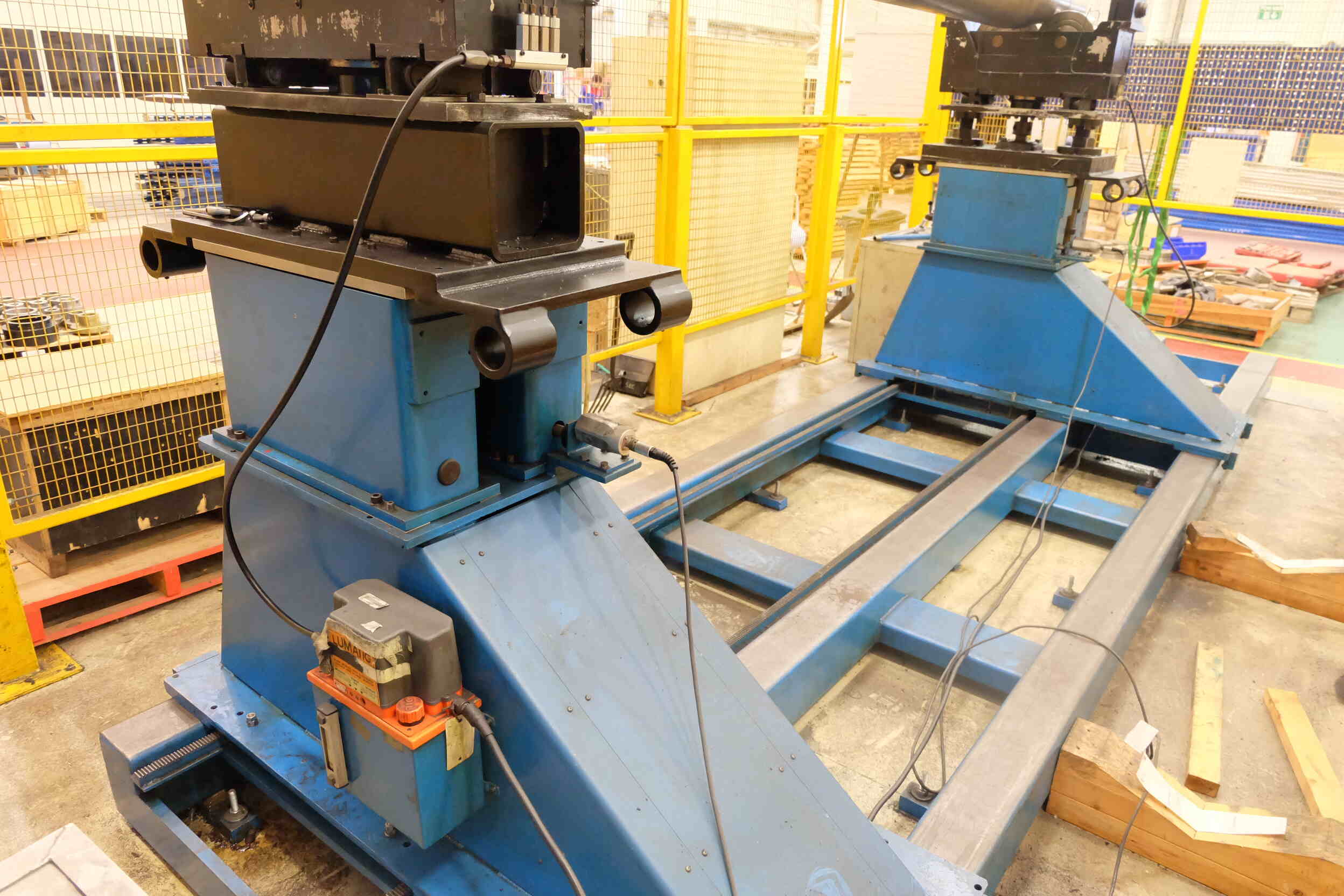

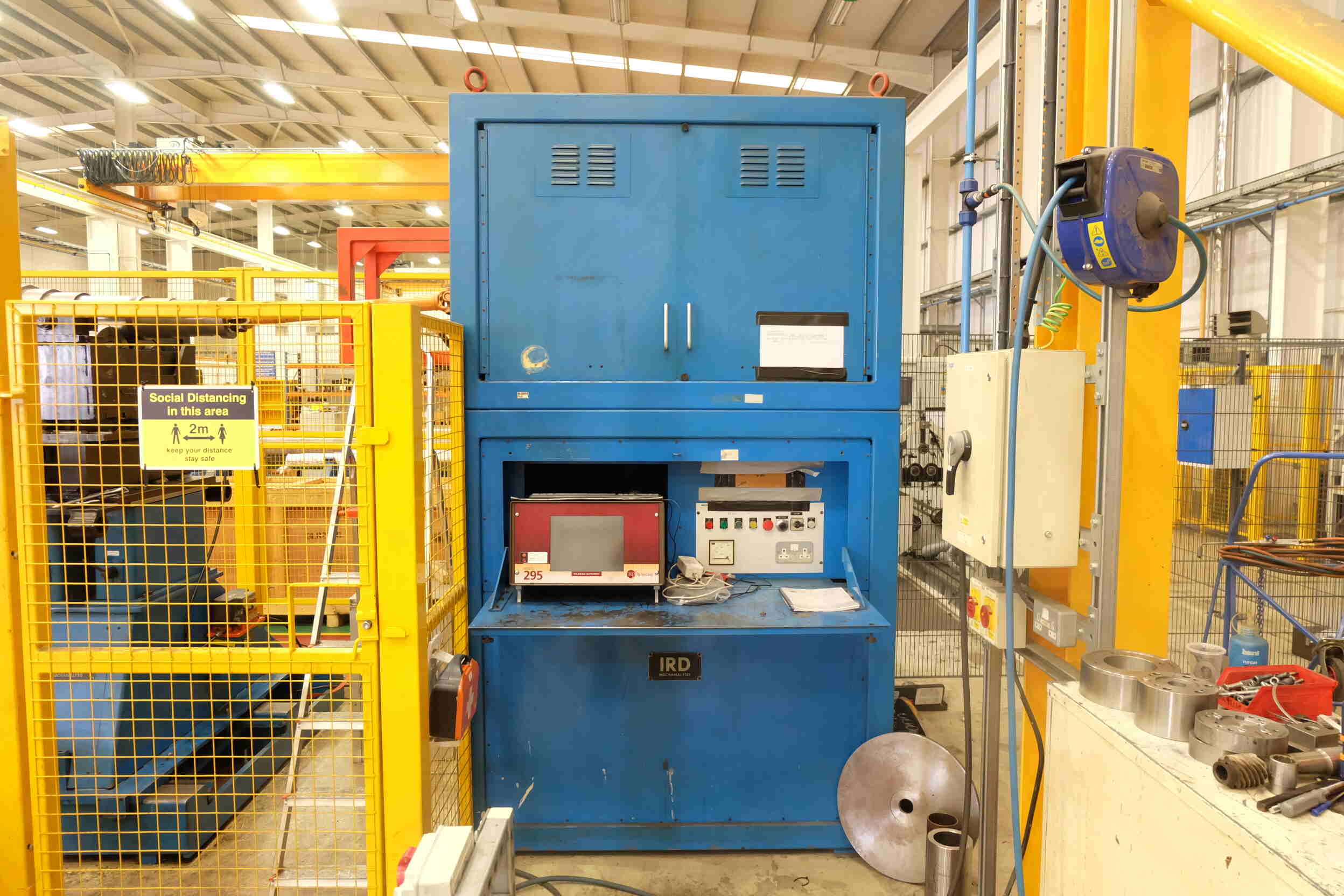

Instrumentation – IRD Model 295, Left and right pedestal adjustment along length of base, Additional roller sets for smaller diameters, 2 x Cardan driveshafts, Operator controls, Lubrication to rollers, Safety guard enclosure.
