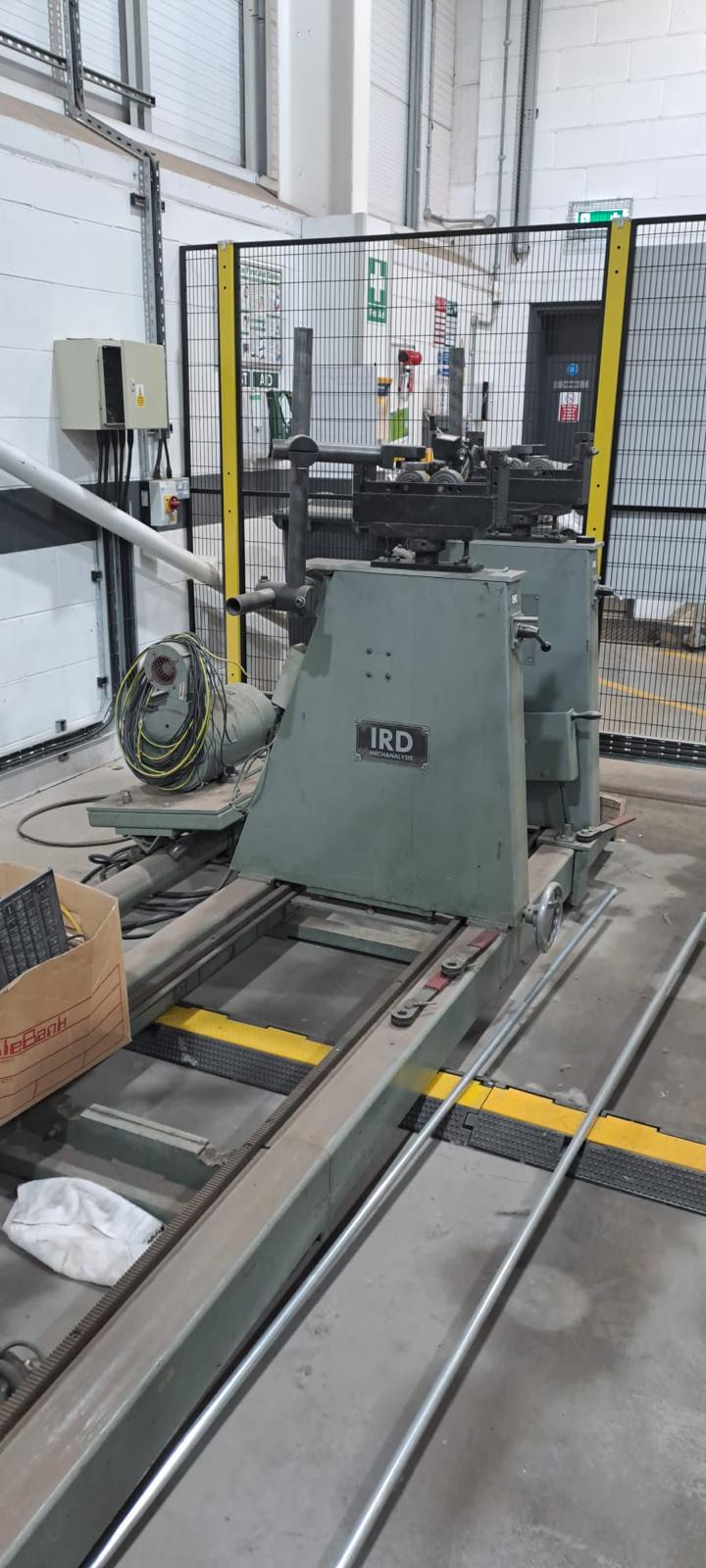

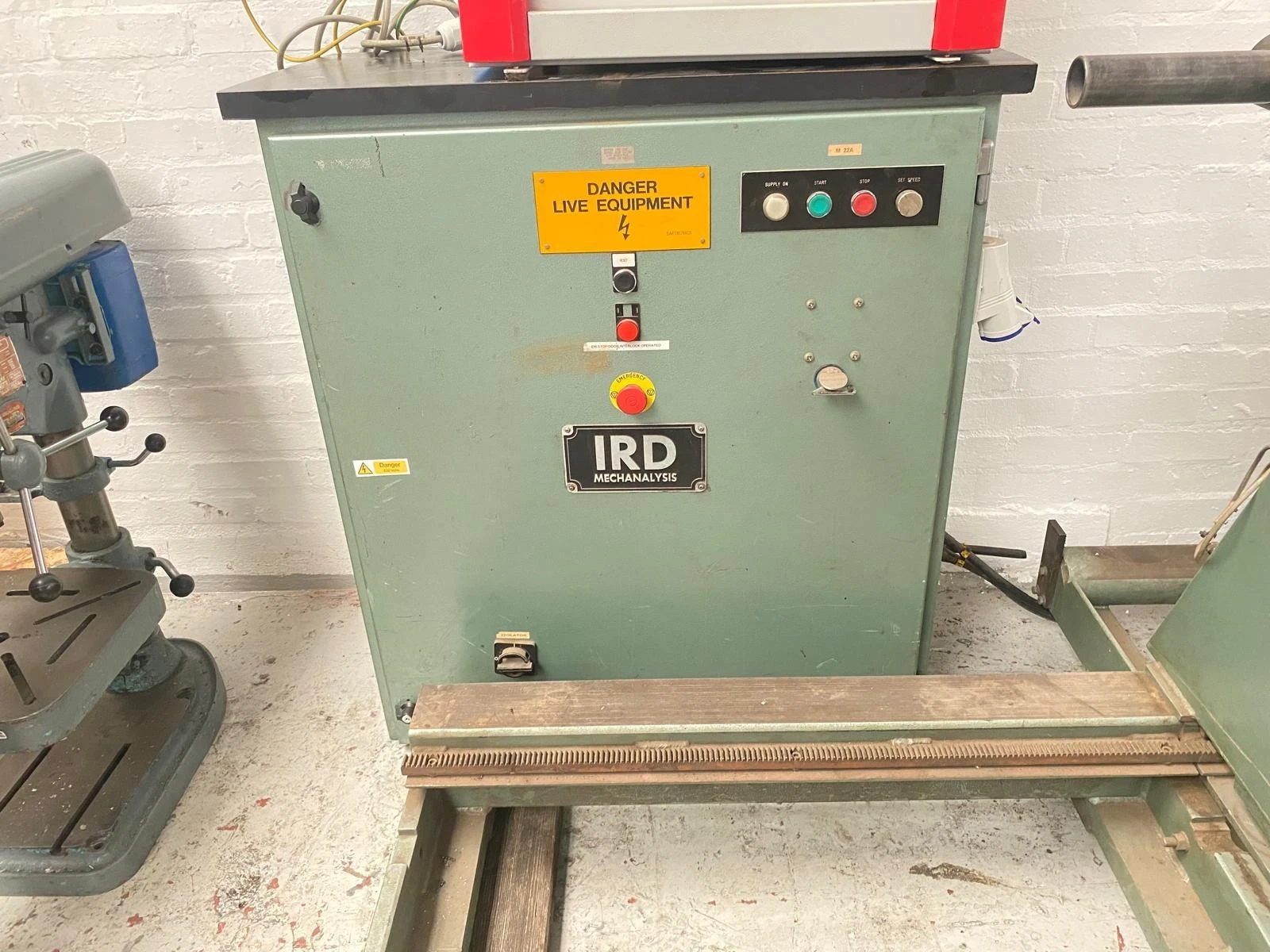

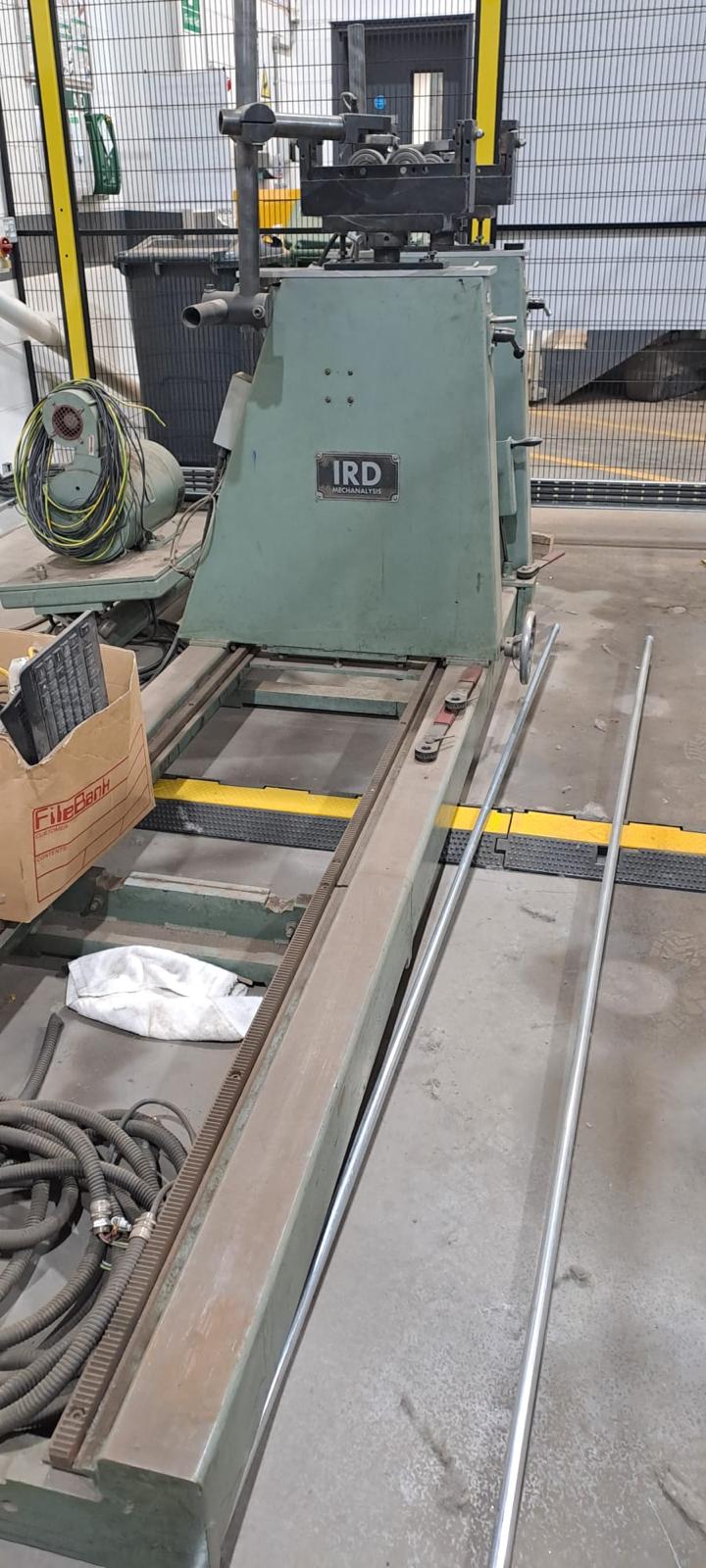

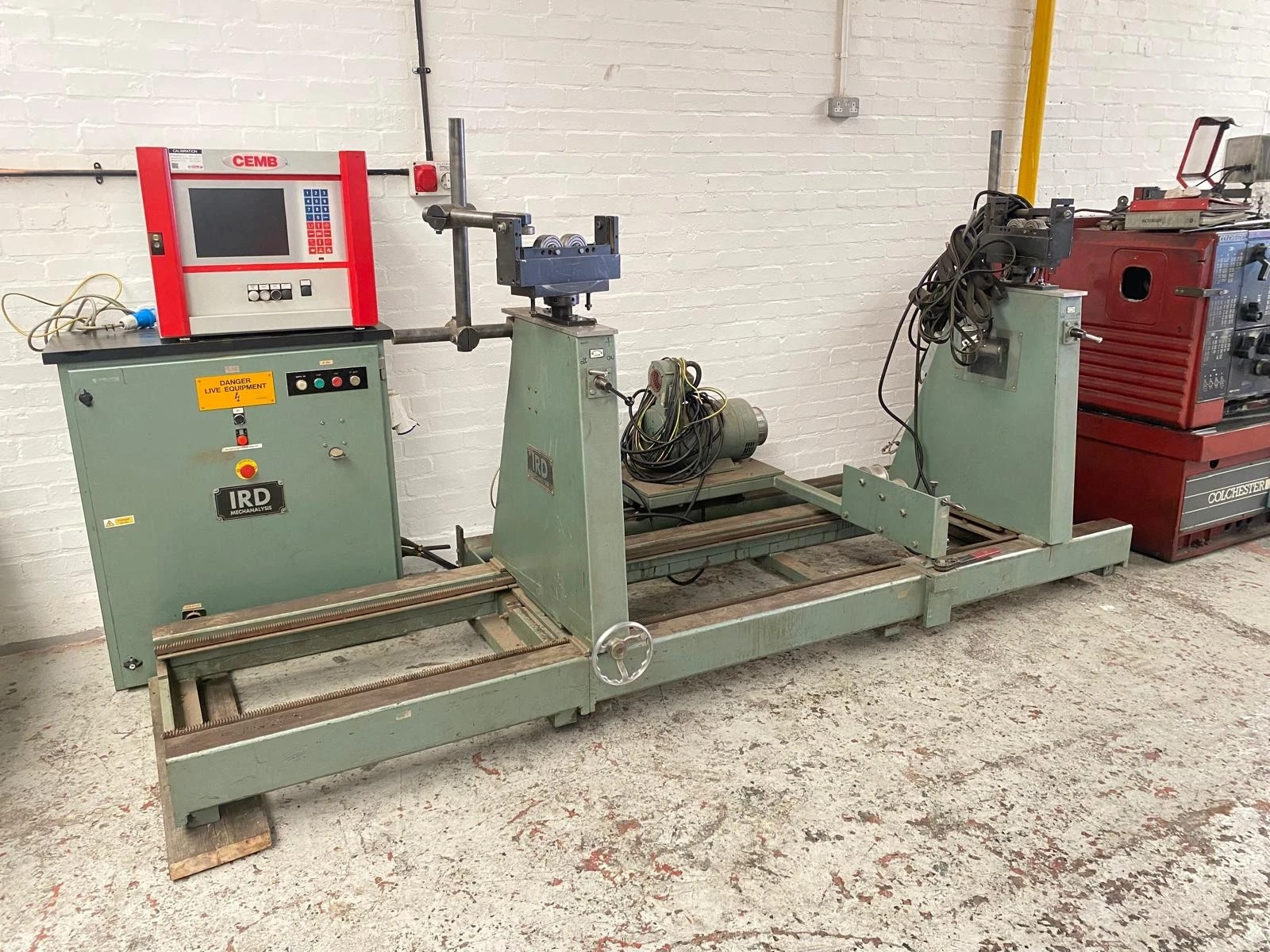

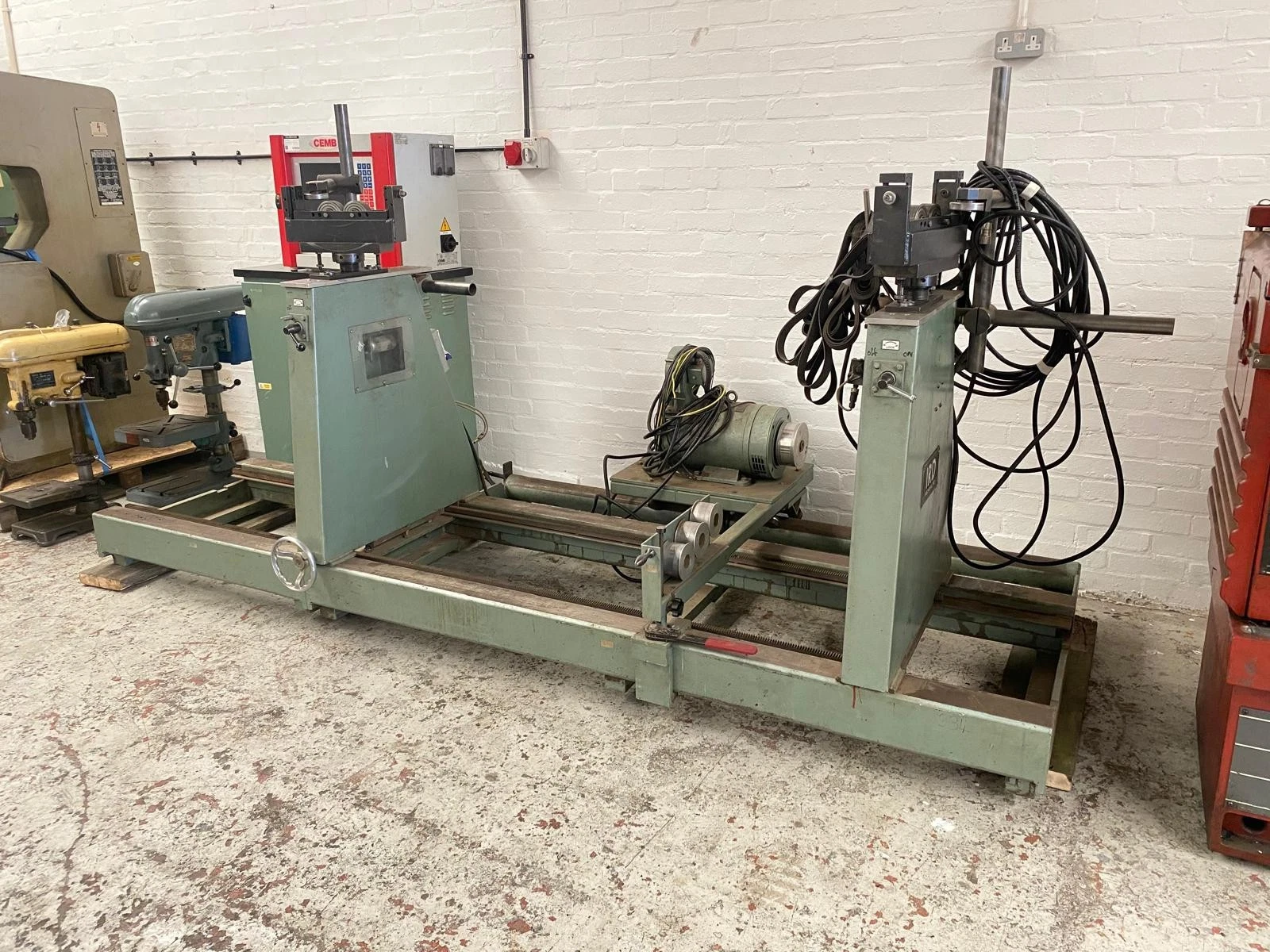

IRD B50 SOFT BEARING HORIZONTAL BALANCING MACHINE

Model                                                                                B 50

Weight capacity                                                                2300 kg

Maximum Rotor diameter                                                 2380 mm

Bed length                                                                         2170 mm

Journal diameter range                                                     19 – 330 mm

Journal to Journal separation                                            140 – 2030 mm

Drive type                                                                          Underslung Belt drive with manual belt tensioning

Drive motor                                                                        3.7 kW DC Variable speed motor with encoder.

Balancing speed range                                                      250 – 6000 rpm

Overall size approx.                                                           4850 x 1830 x 1525 mm

Machine weight approx..                                                   850 kg

Complete with :-

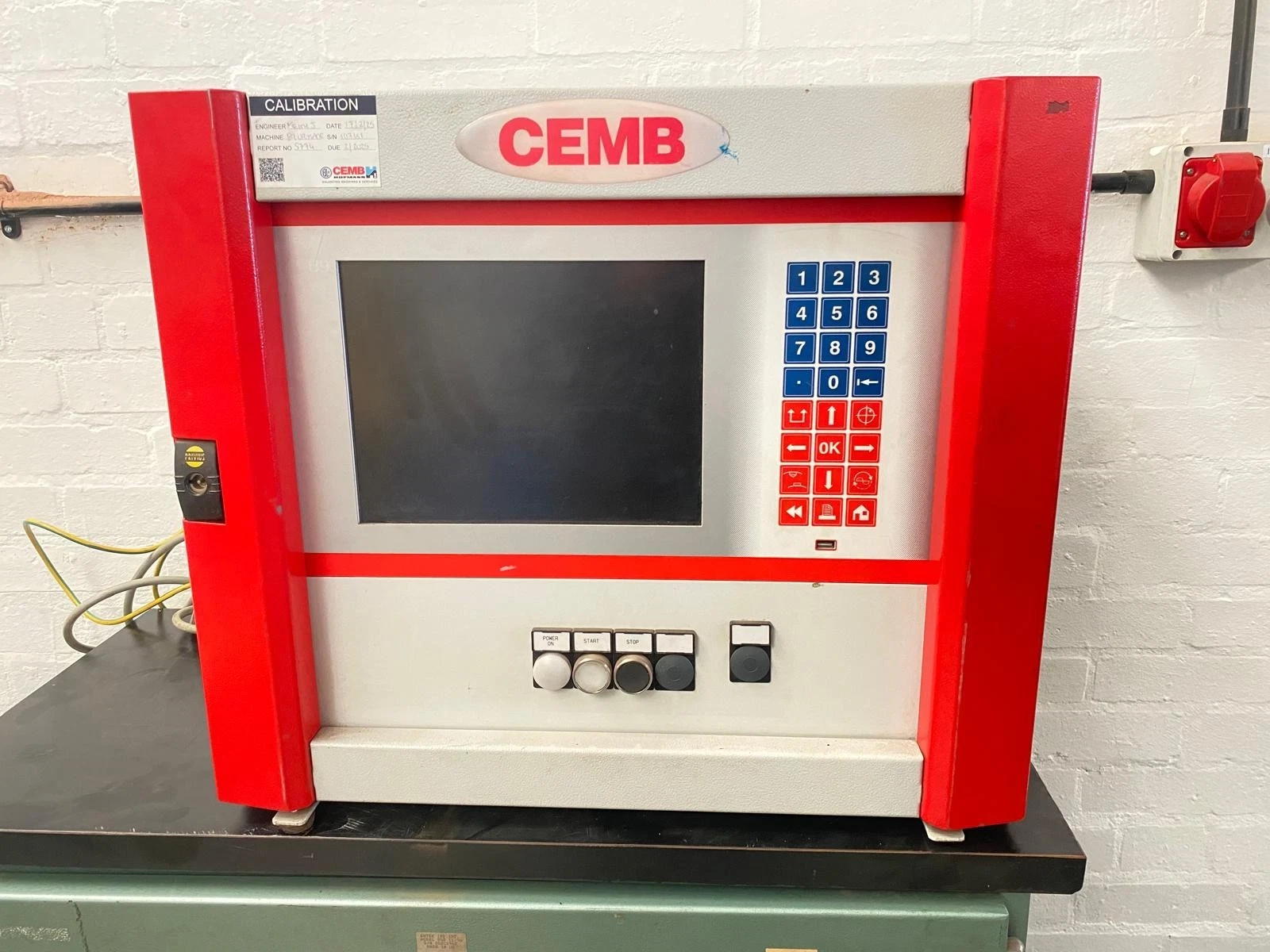

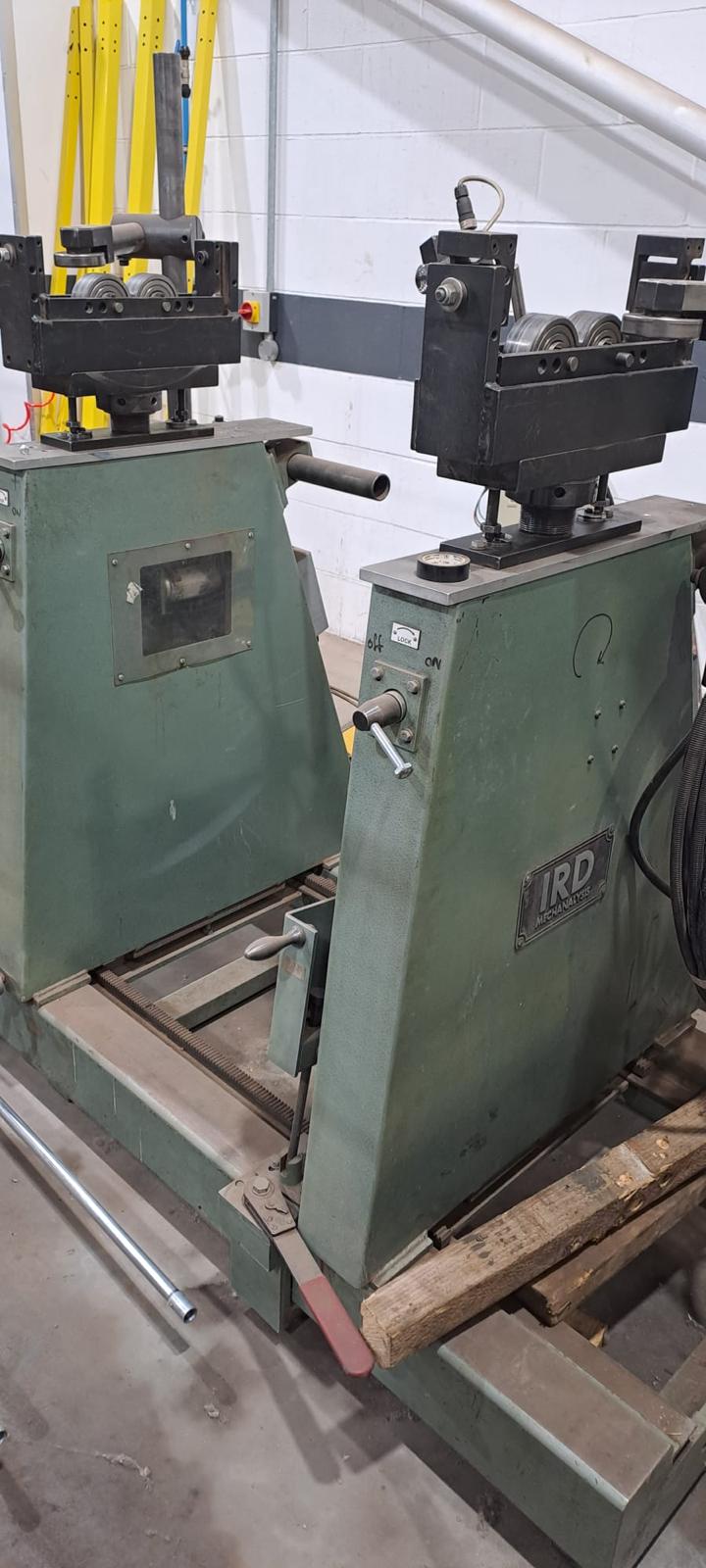

Instrumentation - CEMB Digital Balancing Control, Belt drive system, Height adjustment to each work support, Left and right pedestal adjustment along full length of base.
