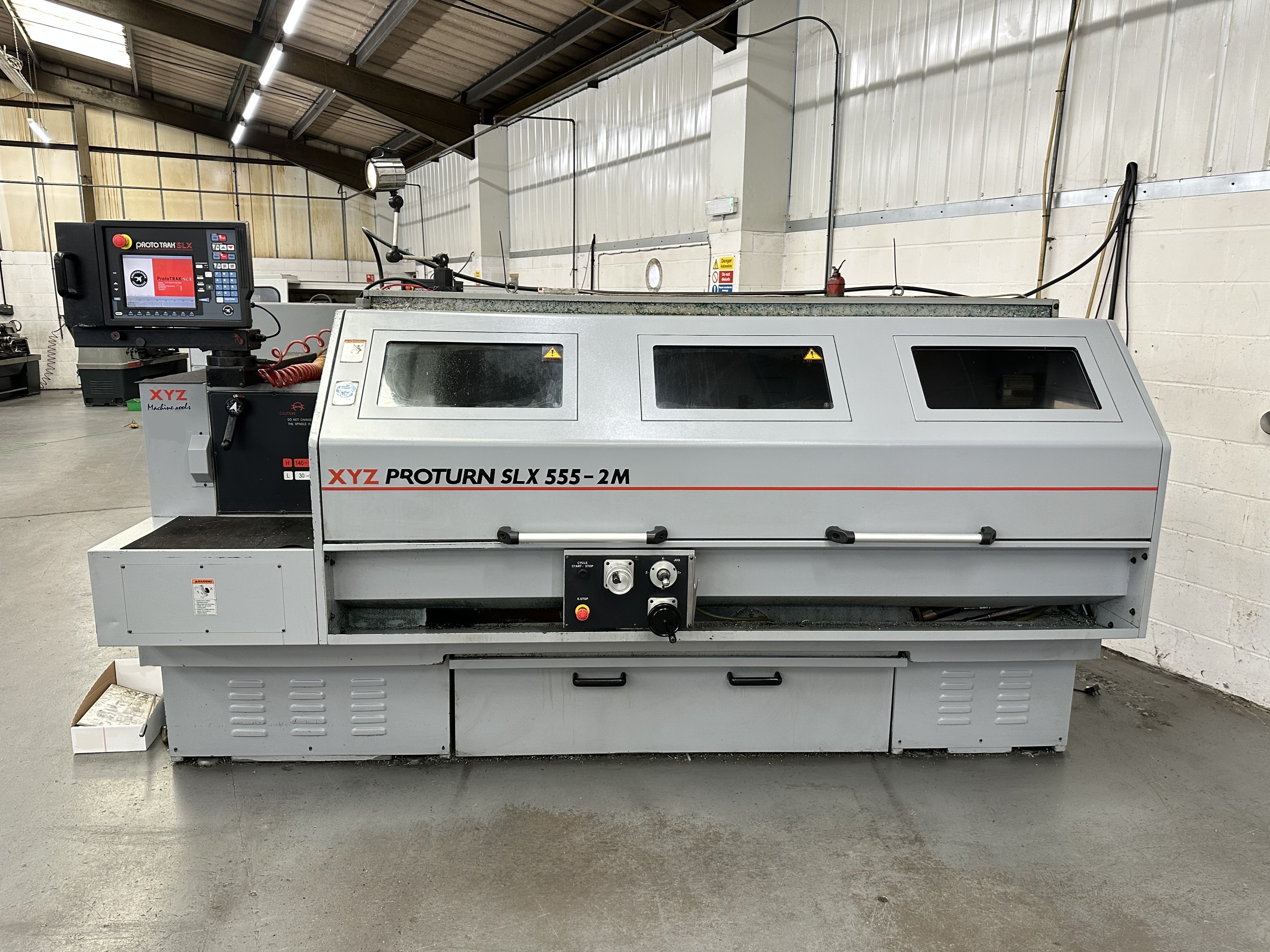

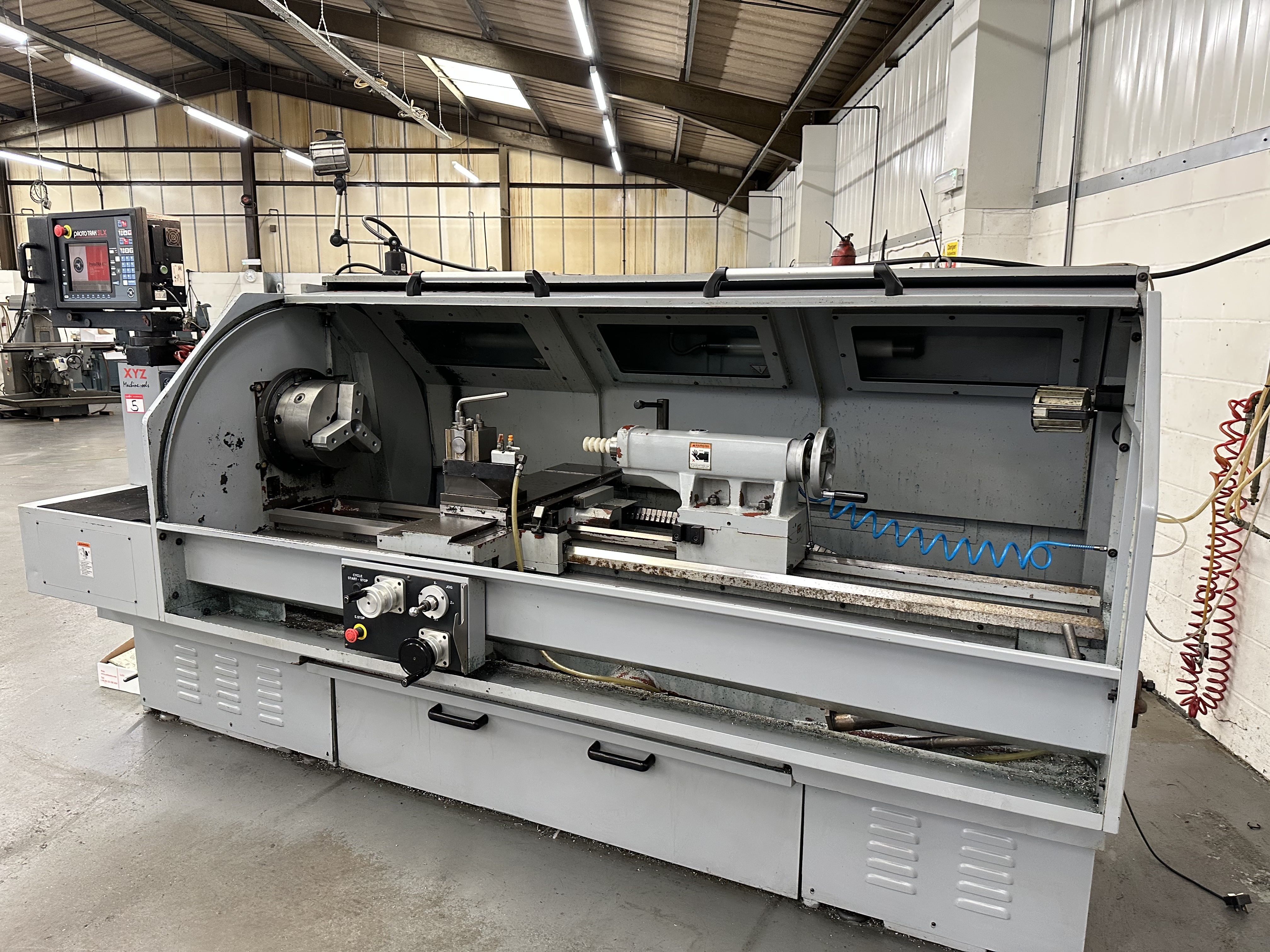

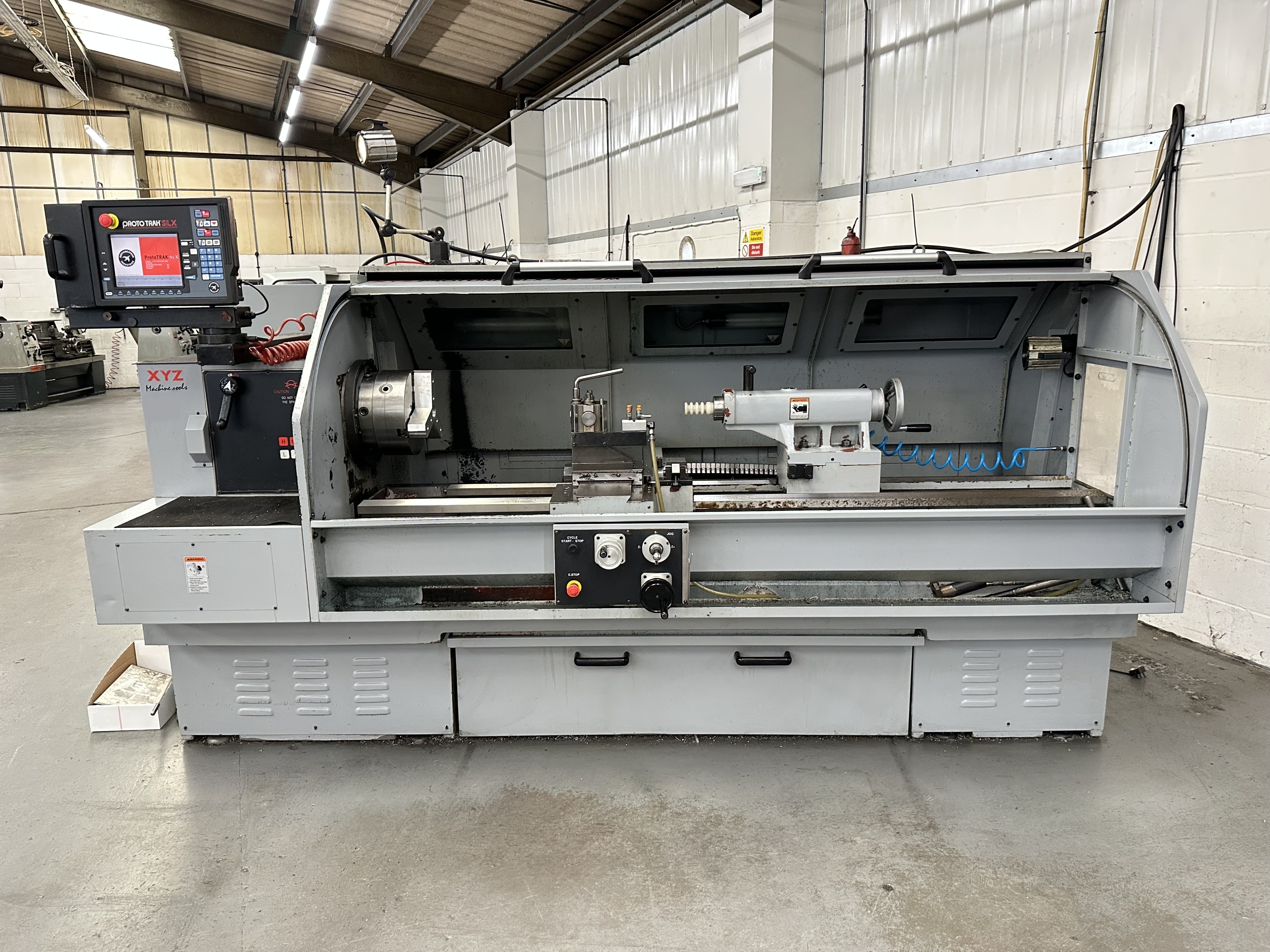

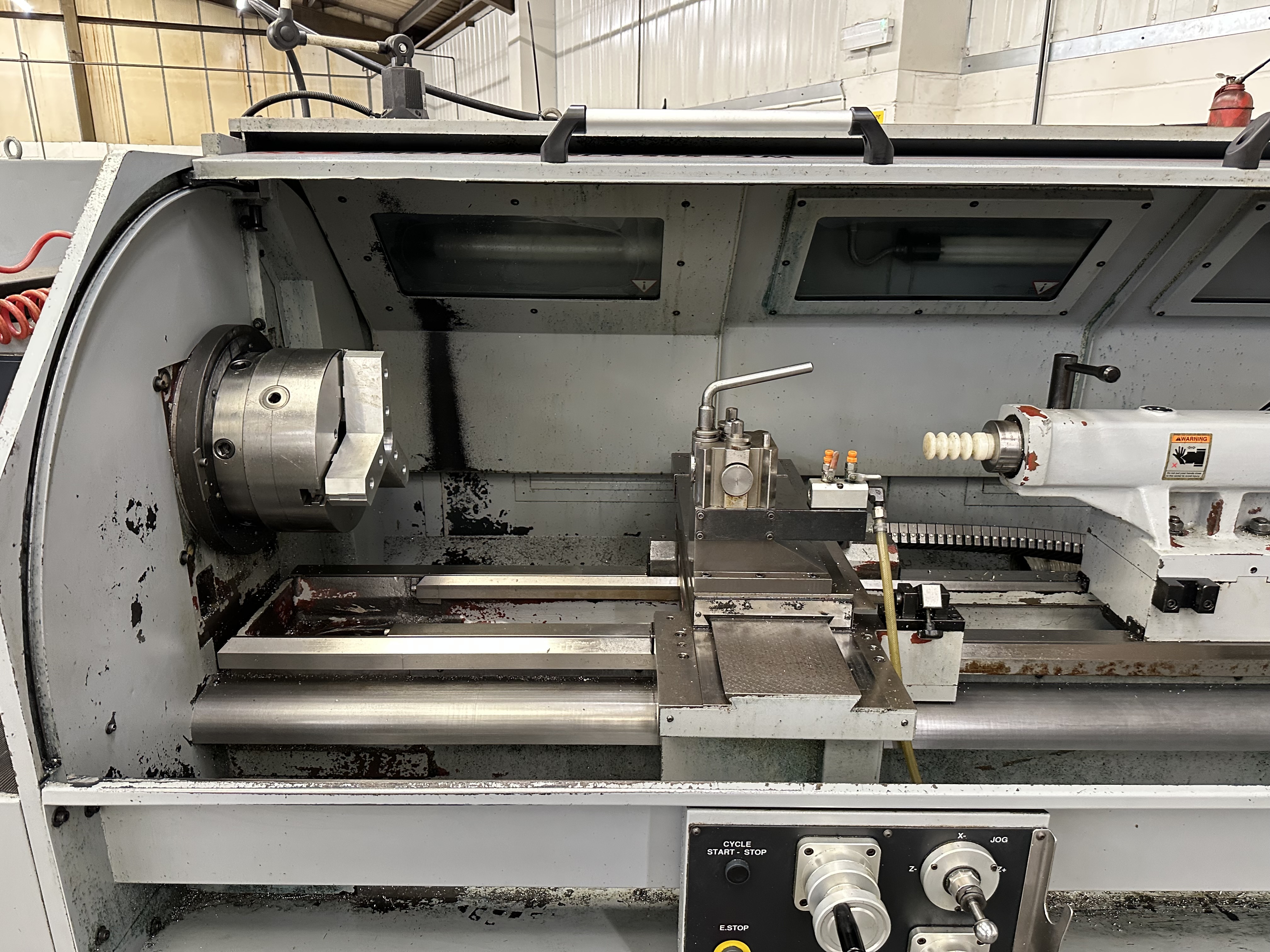

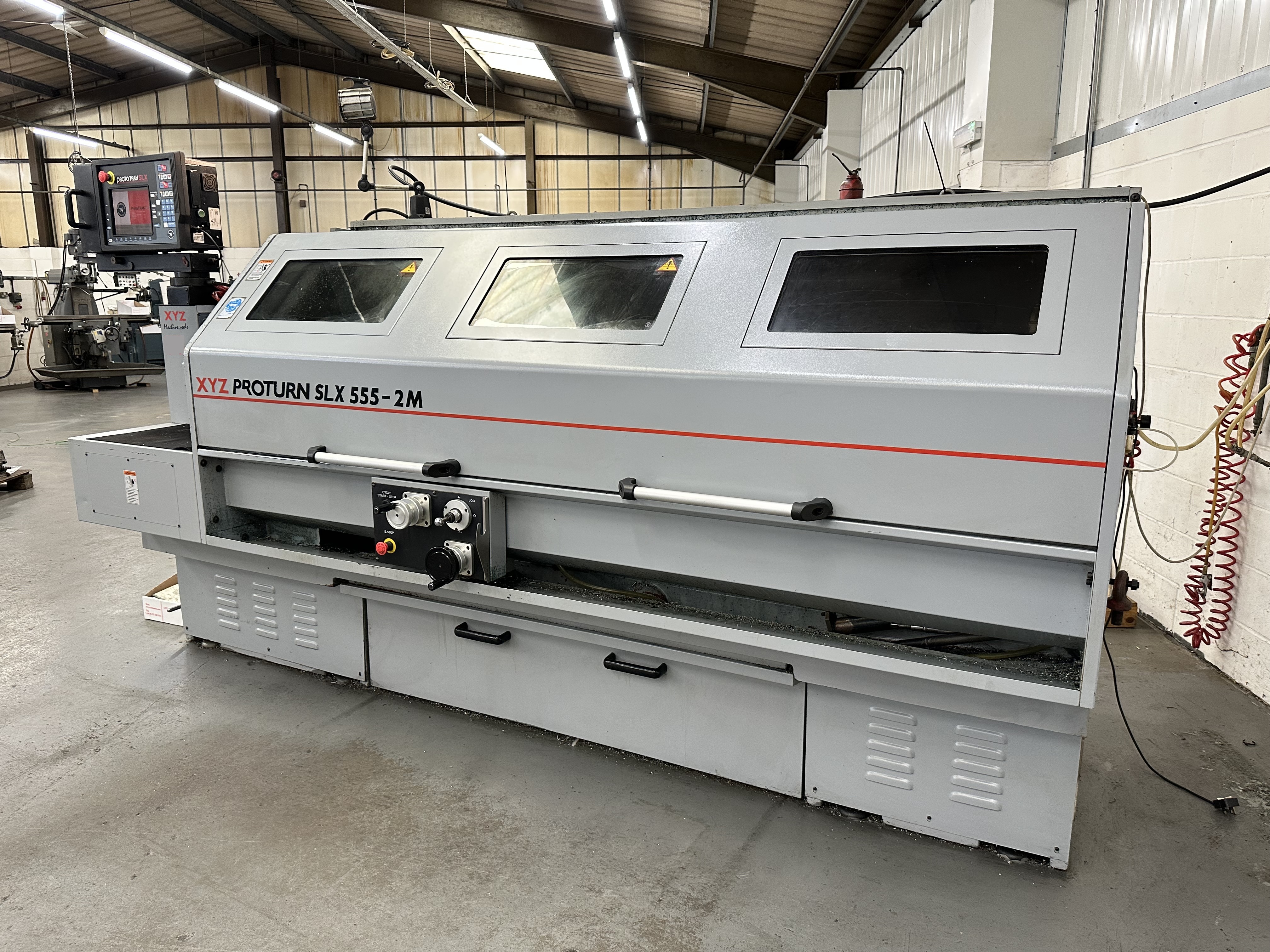

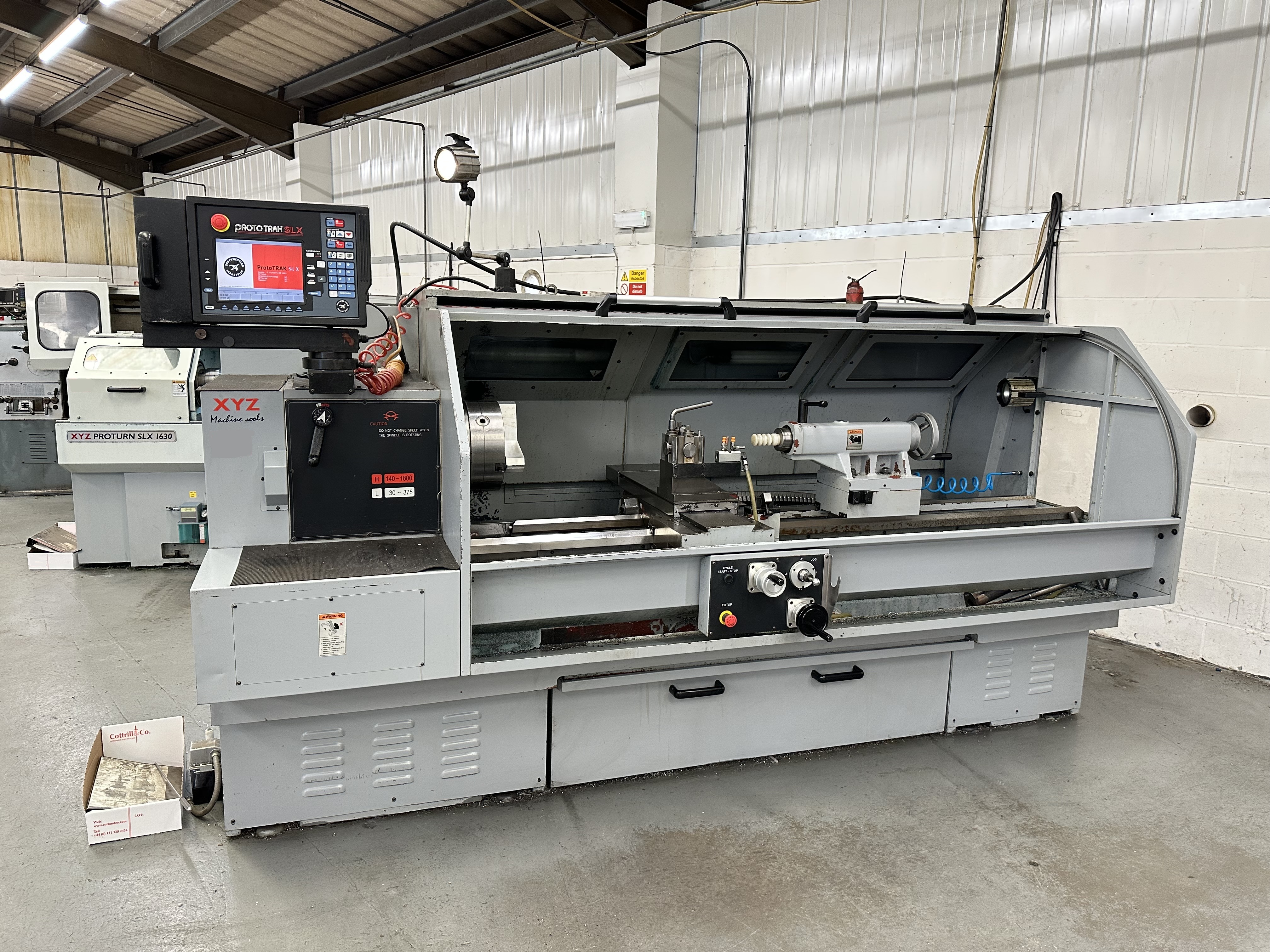

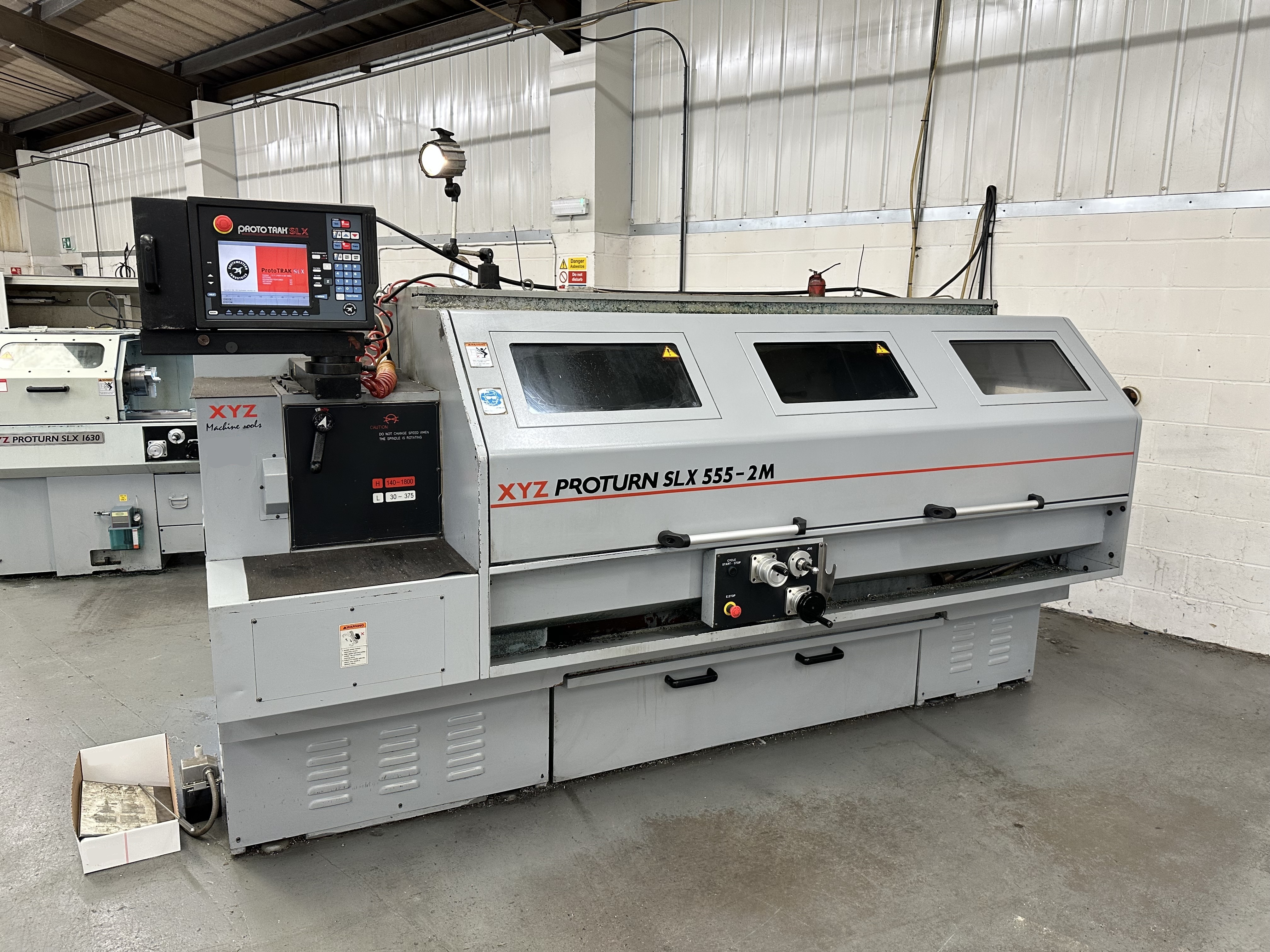

2005 XYZ PROTURN SLX 555 x 2000mm CNC LATHE
Description
Model PROTURN SLX 555 x 2000mm

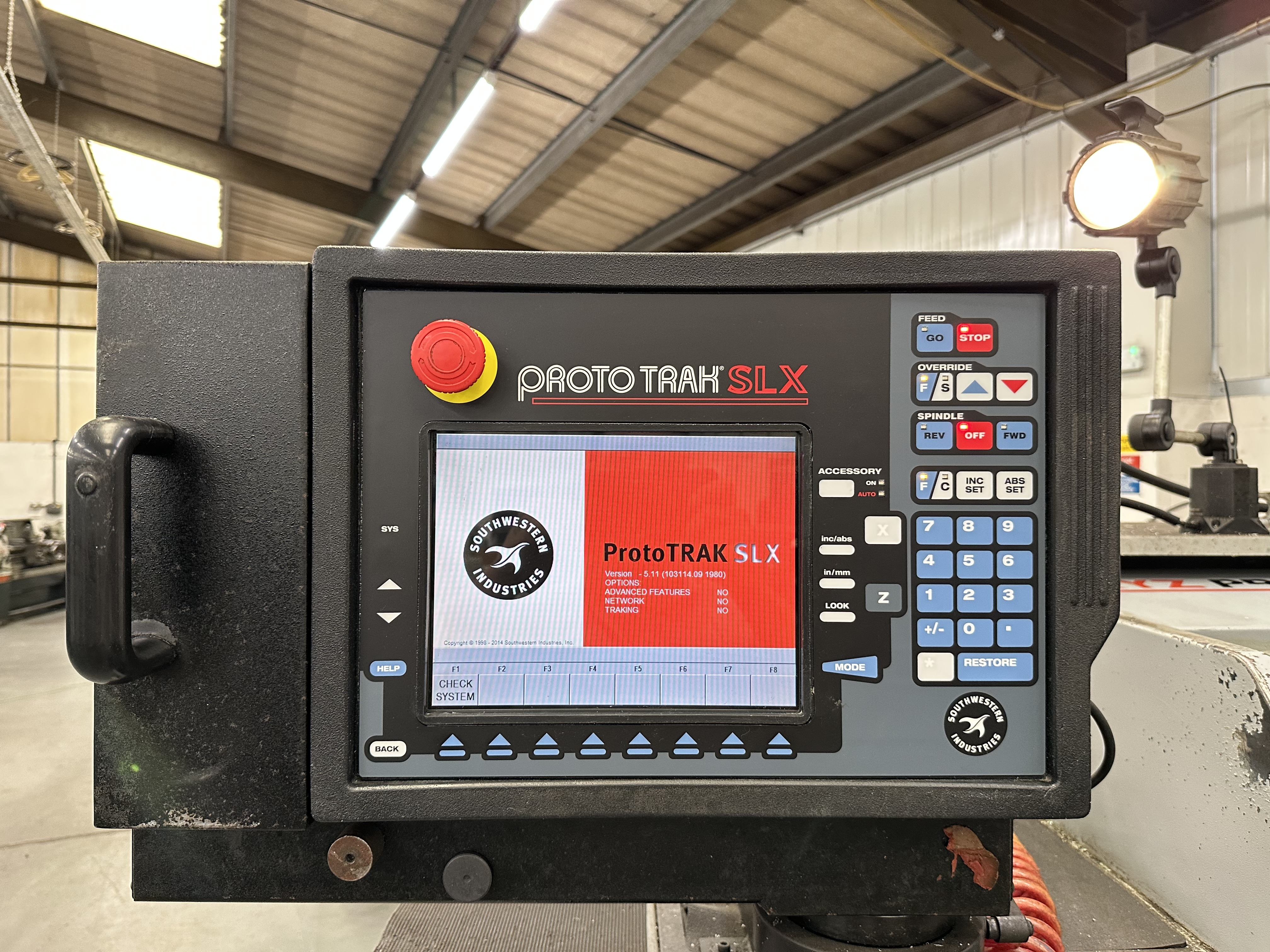

Control system PROTO TRAK SLX
Year 2005
Swing over bed 560 mm
Swing in gap 900 mm
Swing over cross slide 350 mm
Distance between centres 2000 mm
Bed width 500 mm
Cross slide travel 290 mm
Spindle bore 104 mm
Spindle nose D1-11 Camlock
Spindle speeds (2 range) 30 – 1800 rpm

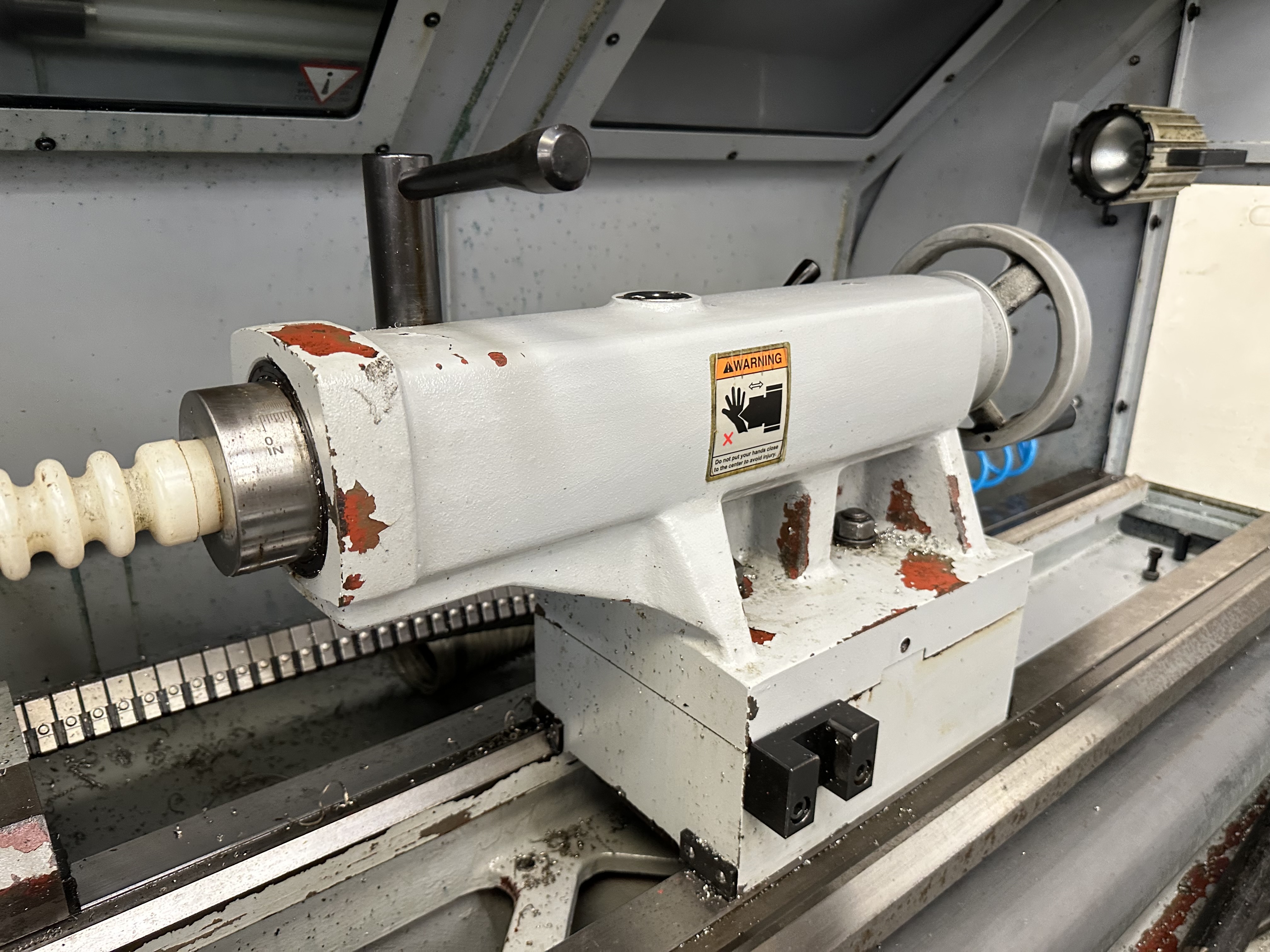

Tailstock quill diameter 105 mm
Tailstock quill travel 200 mm
Tailstock quill taper 6 MT
Main motor power 11 Kw 15 hp
Overall size 4620mm L x 2010 F to B x 1910mm H
Weight 4300 kg
Specifications
| Manufacturer | XYZ |
| Model | PROTURN SLX 555 x 2000mm CNC LATHE |
| Year | 2005 |
| Condition | Used |
| Stock Number | 8522 |

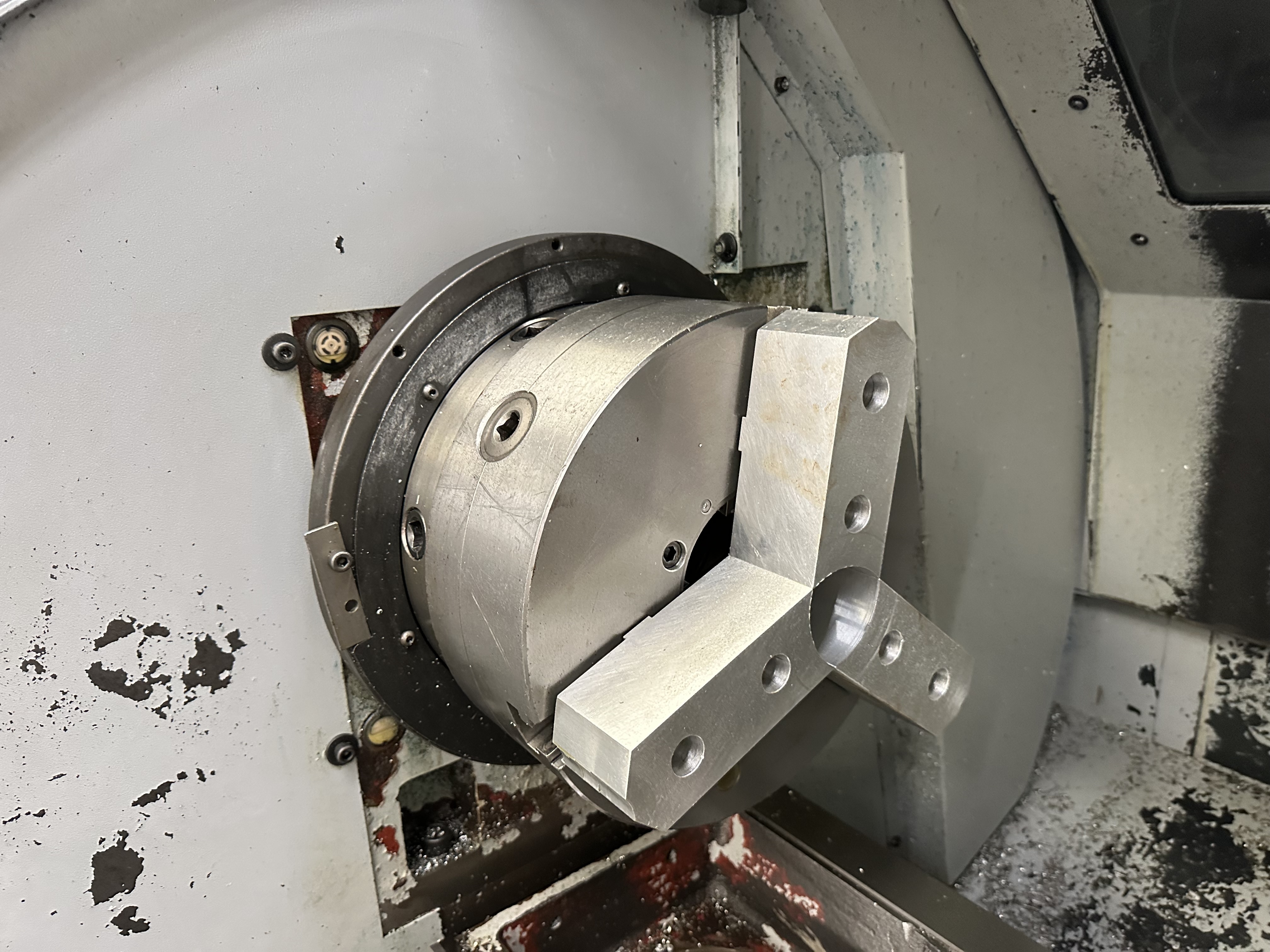

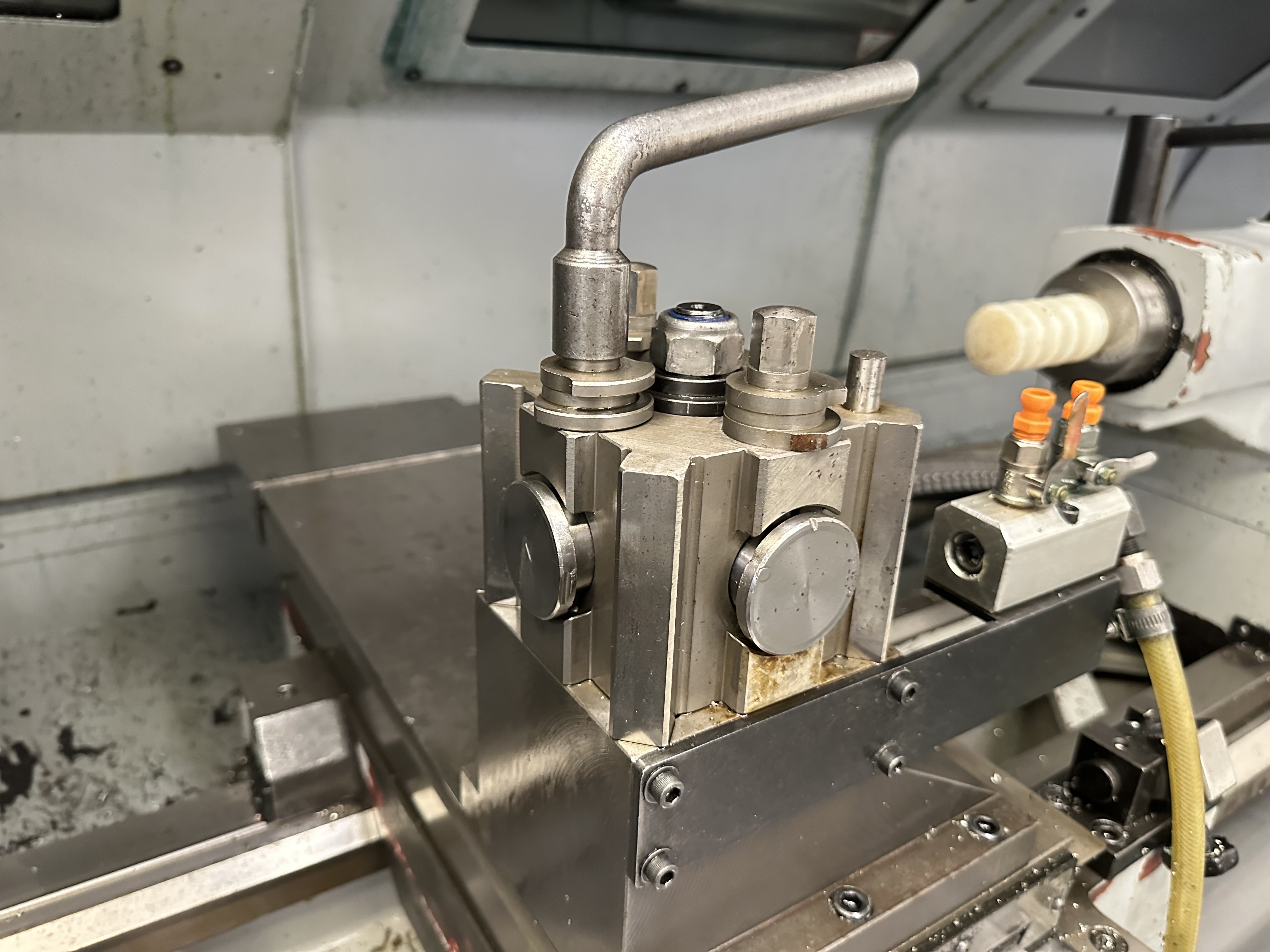

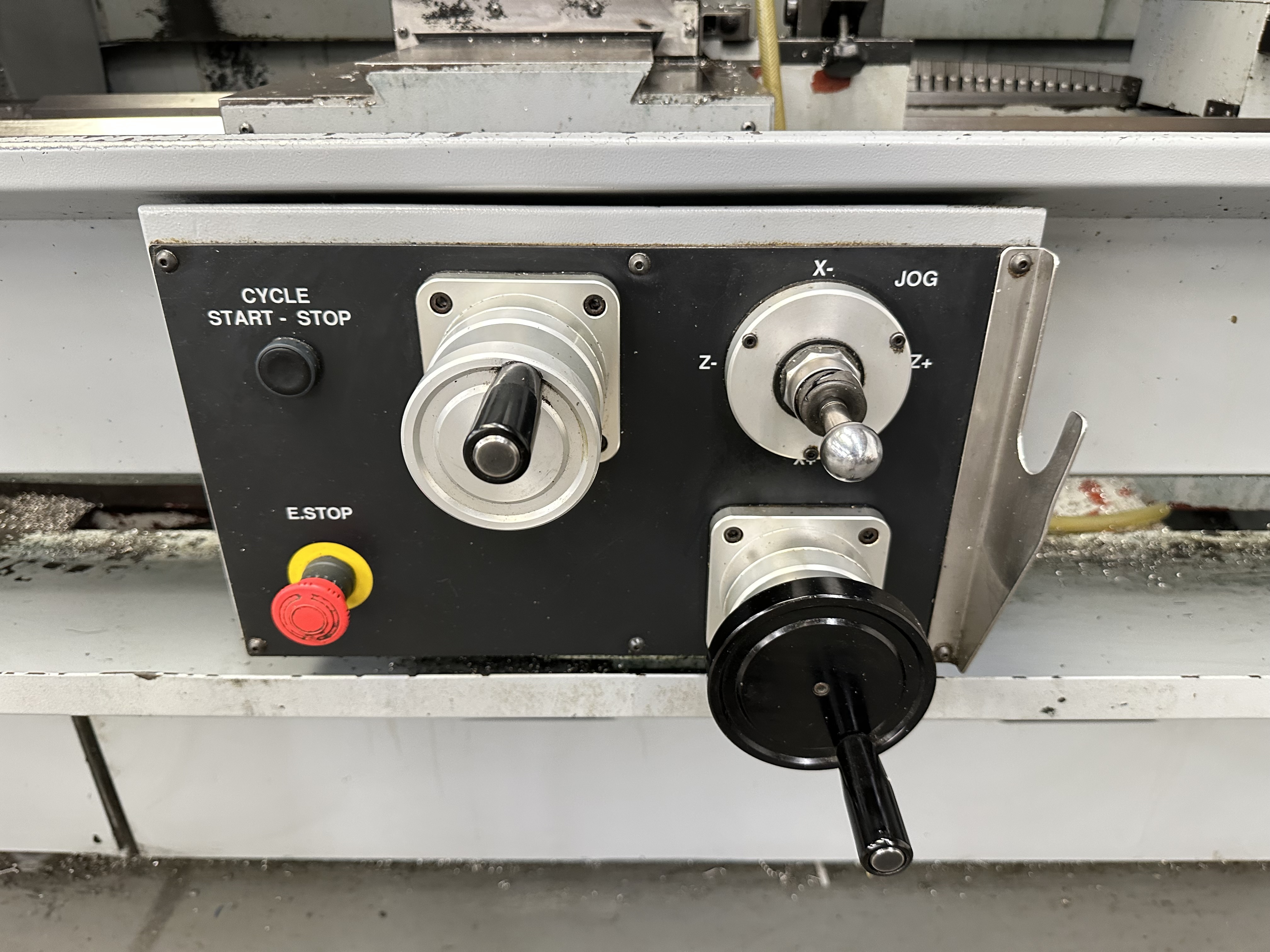

| Machine complete with | Two-axis CNC, Two-axis DRO. TRAKing, Constant surface speed. Electronic hand-wheels for X & Z Axes. Joystick for feed & rapids. Interlocked chuck guard and main guard. Quick change toolpost with holders. 315mm 3 Jaw chuck. Air assisted tailstock. Coolant. |
