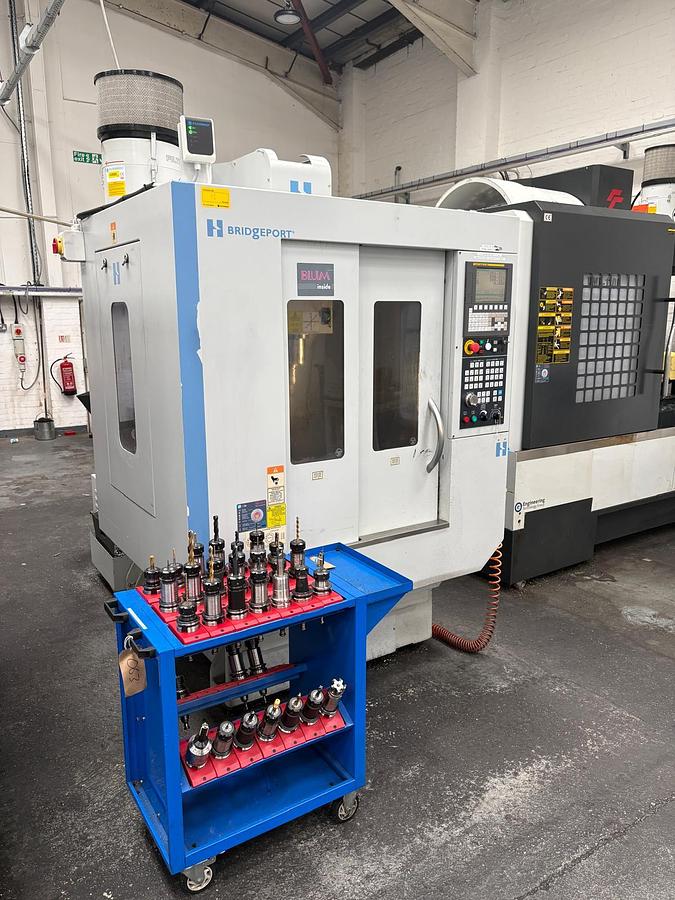

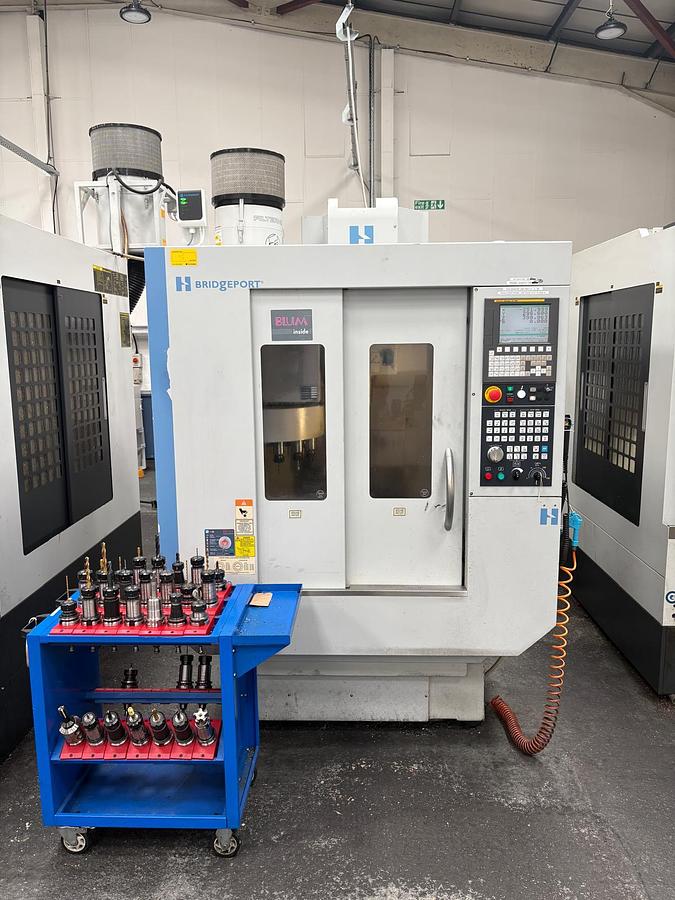

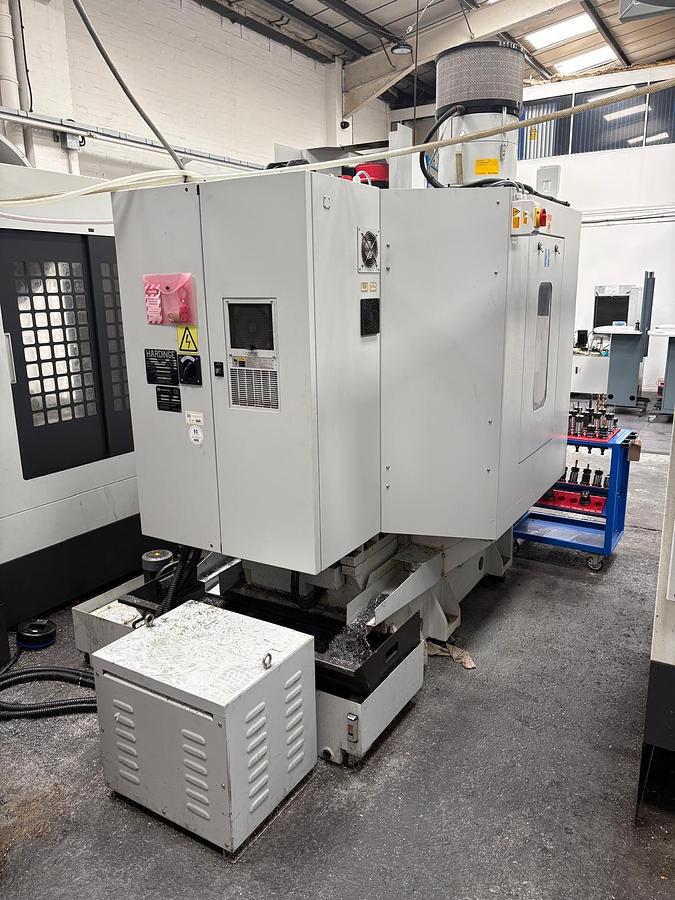

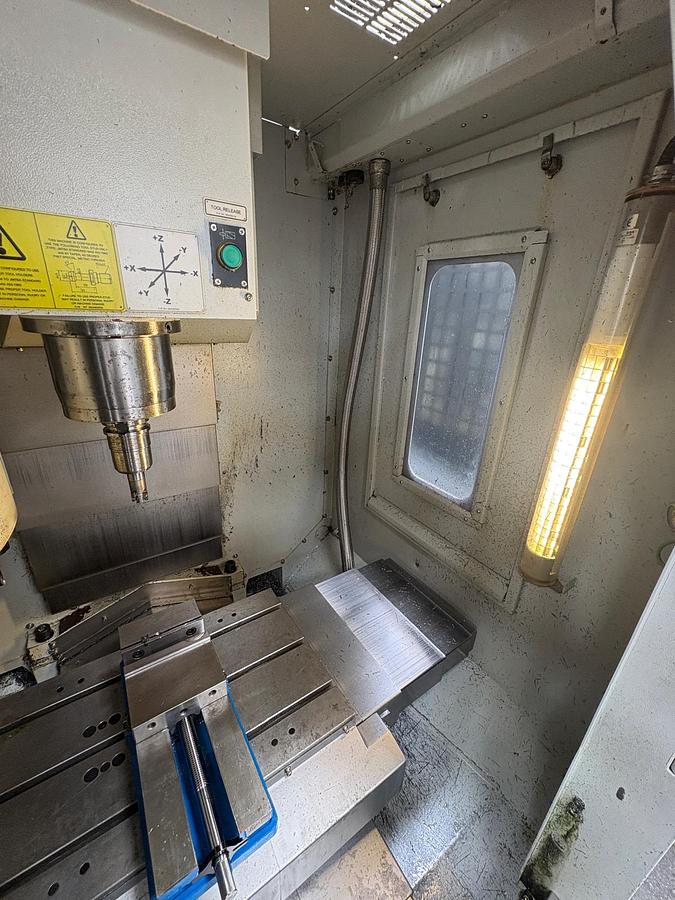

2015 HARDINGE BRIDGEPORT VERTICAL CNC MACHINING CENTRE GX 480

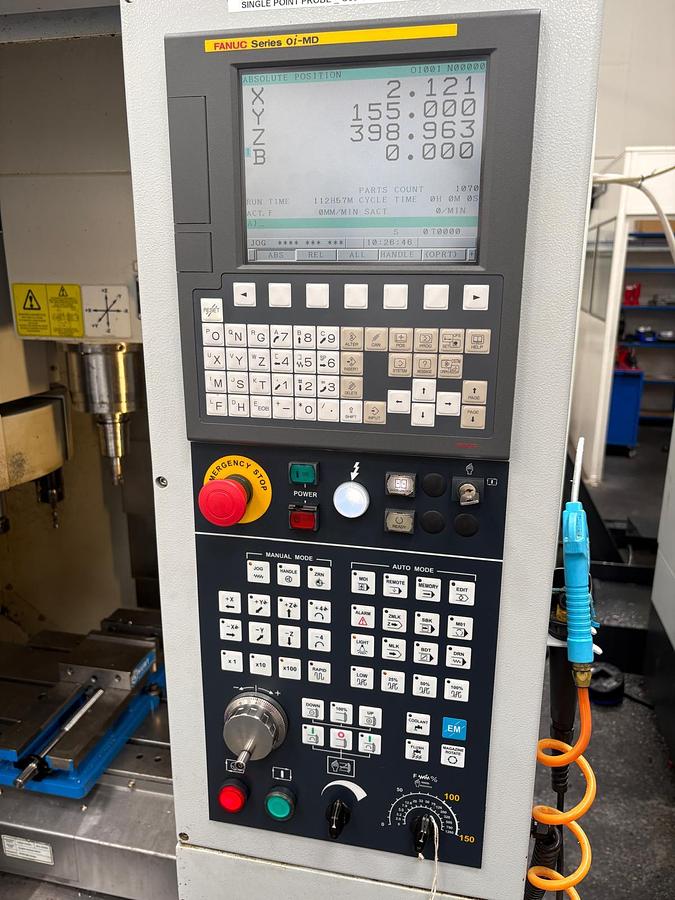

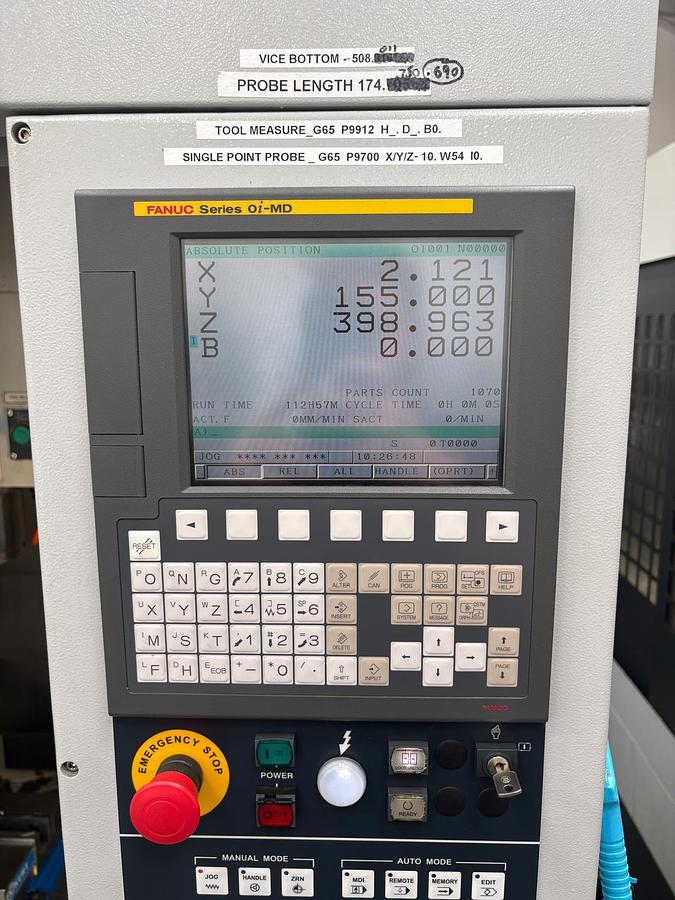

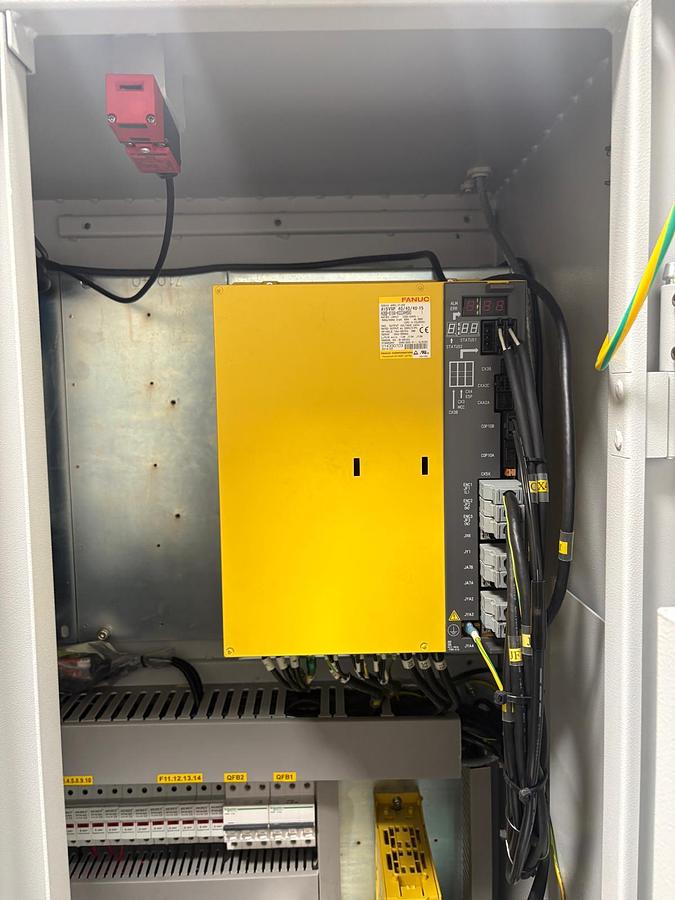

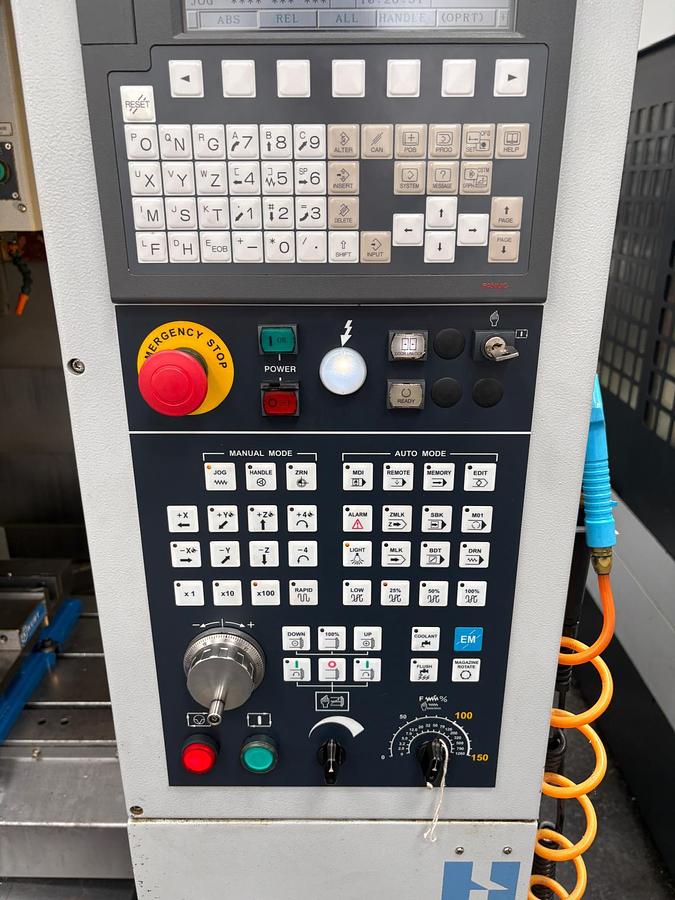

Control system FANUC 0i-MD

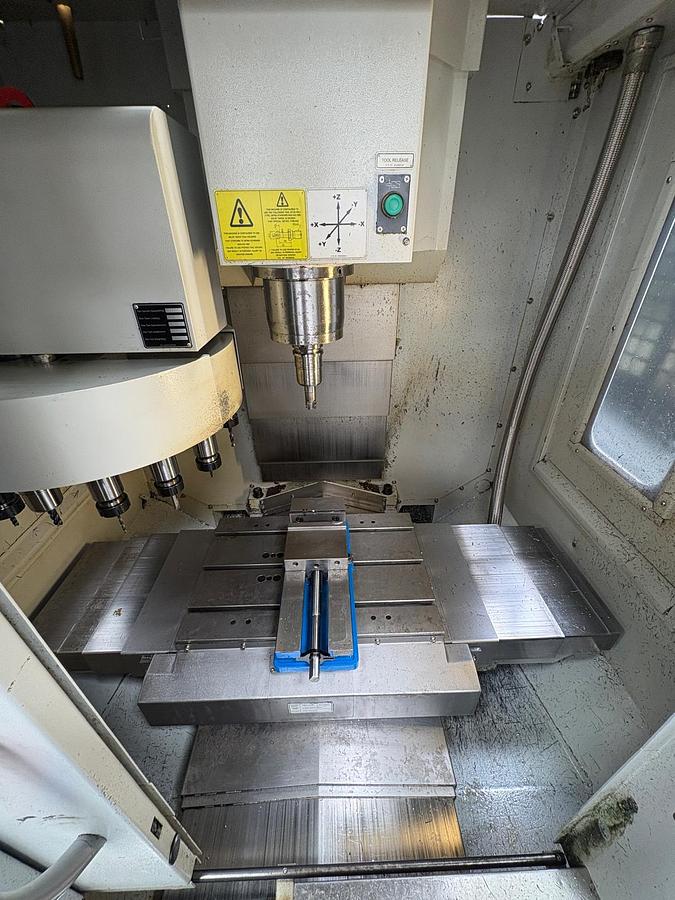

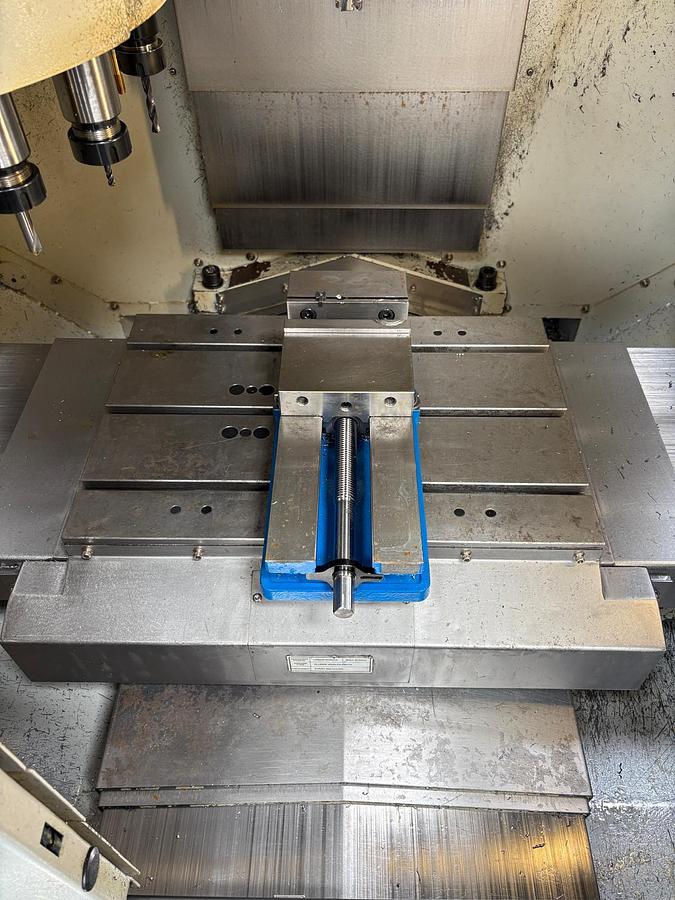

TABLE

Table size                                               600 x 400 mm

Table load capacity                                300 kg

MOVEMENT

Table positioning travel     (X x Y)          480 x 400 mm

Head vertical travel           (Z)               430 mm

Distance, table to spindle                      150 - 580 mm

Spindle centre to column face               429 mm

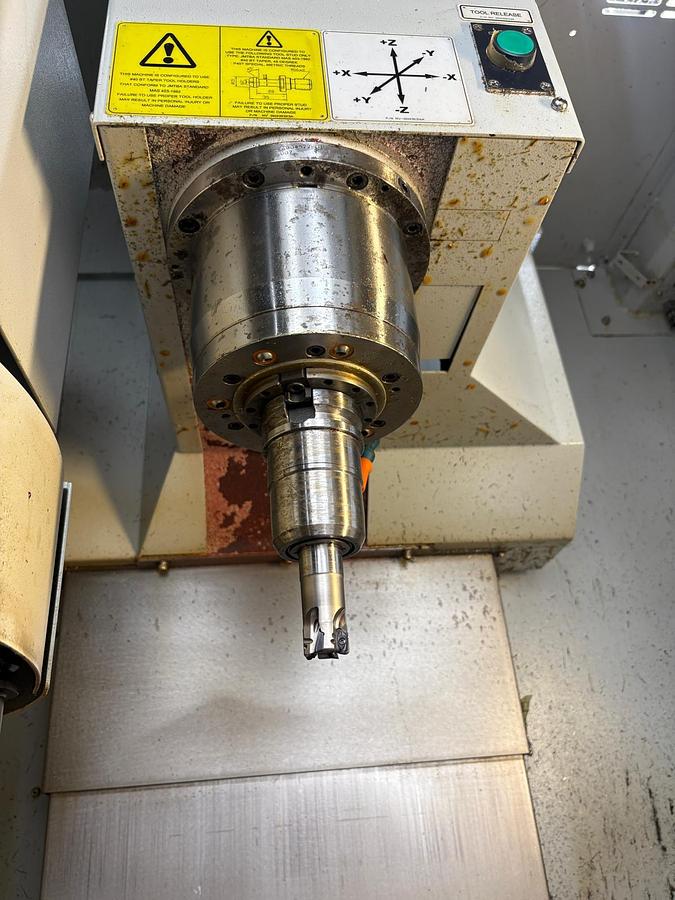

SPINDLE

Spindle taper                                         BT 40

Spindle speeds                                      0 - 10000 rpm

Spindle drive motor                               7.5 kW / 10 HP

FEED RATE

Feed rate                                               1 - 12,000 mm/min

Rapid traverse              (X, Y, Z)            36 m/min

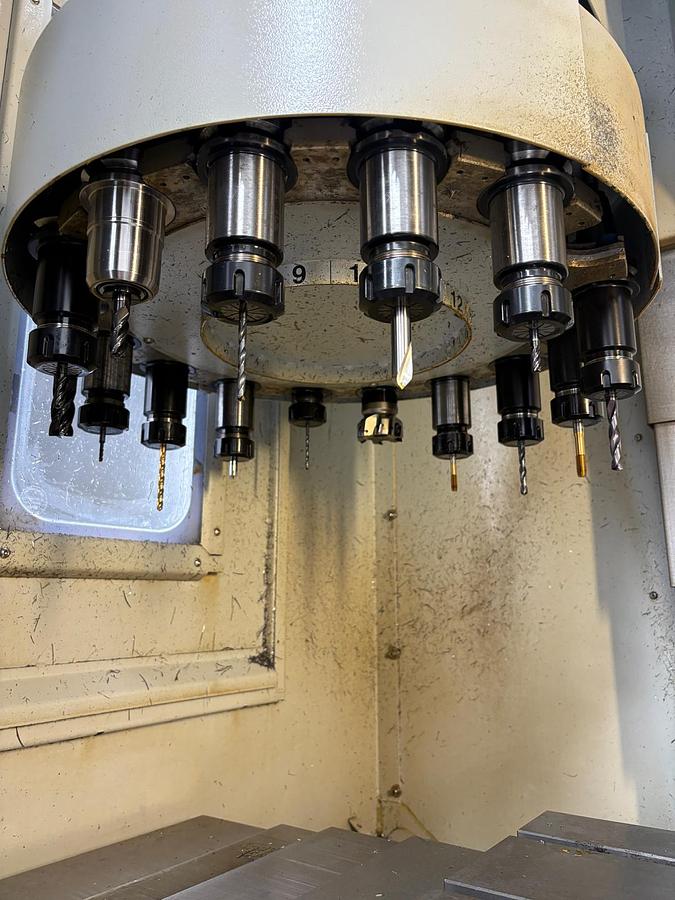

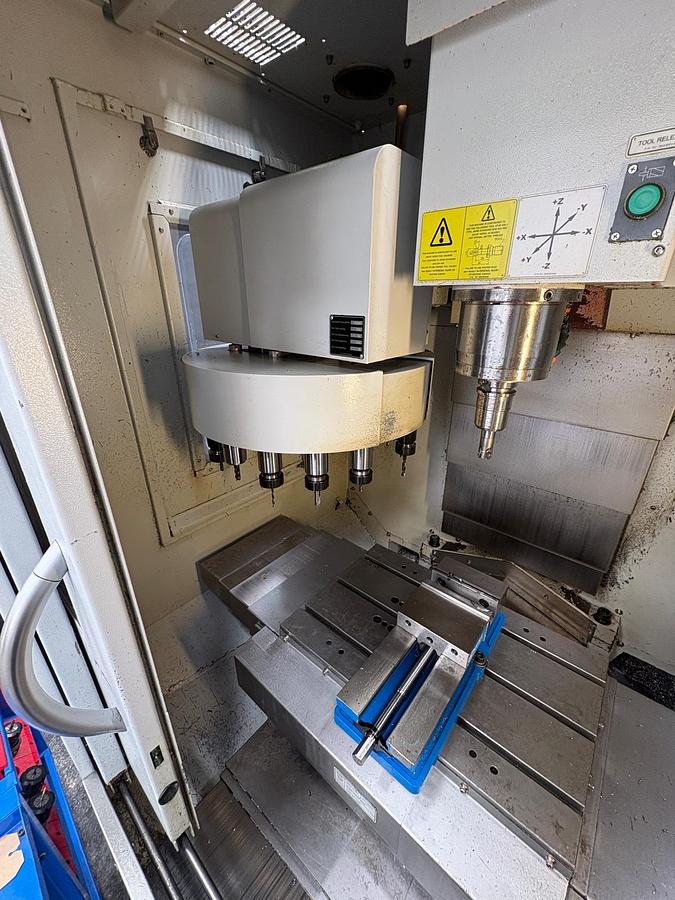

AUTOMATIC TOOLCHANGER

Magazine capacity      12 tools             Max. tool diameter              94 mm

Max. tool length 250 mm            Max. tool weight                  6 kg

Machine weight (approx.)                    2820 kg.

Complete with :-

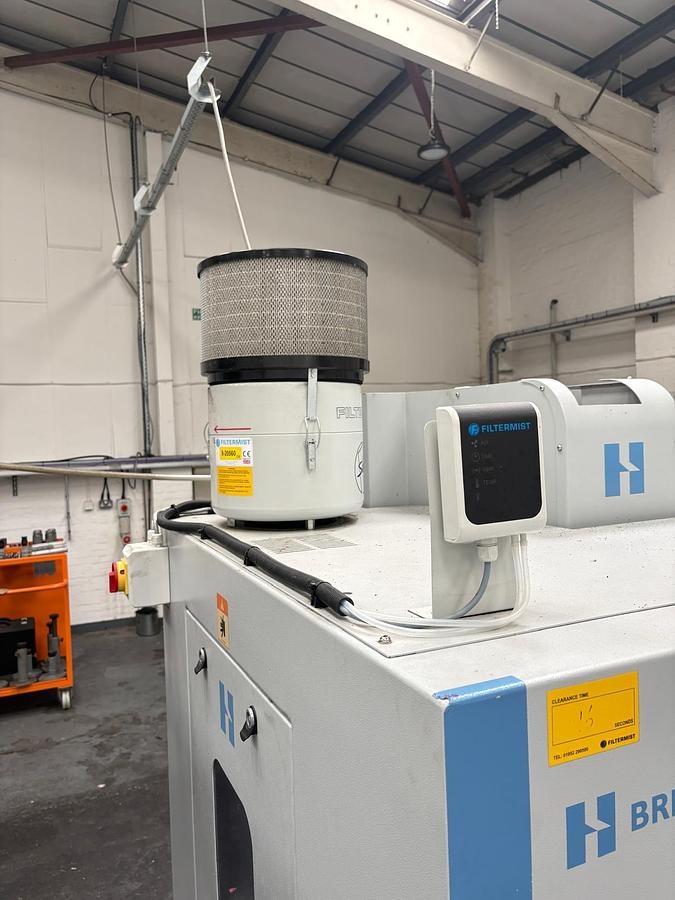

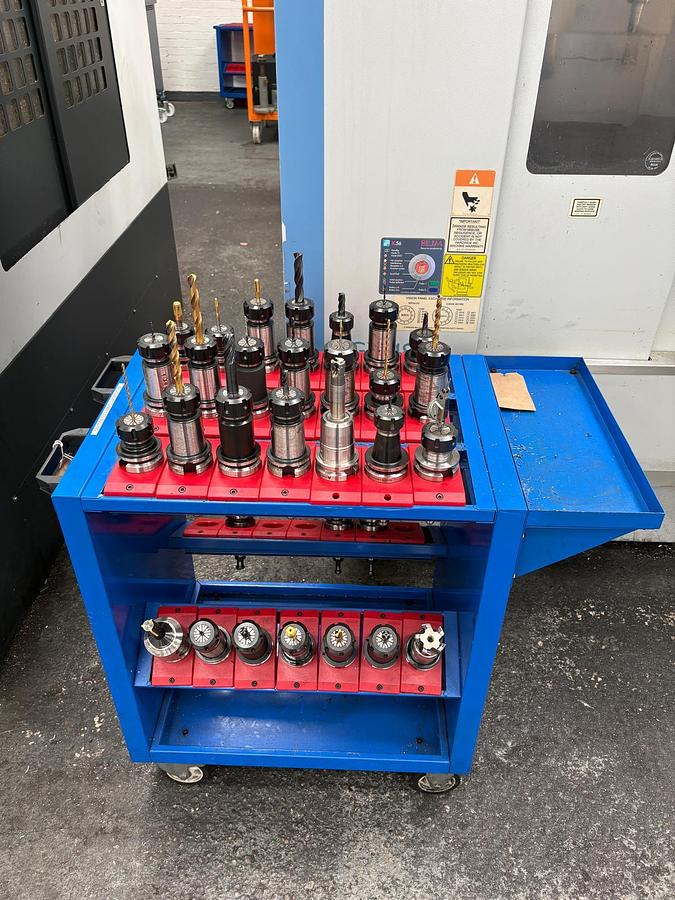

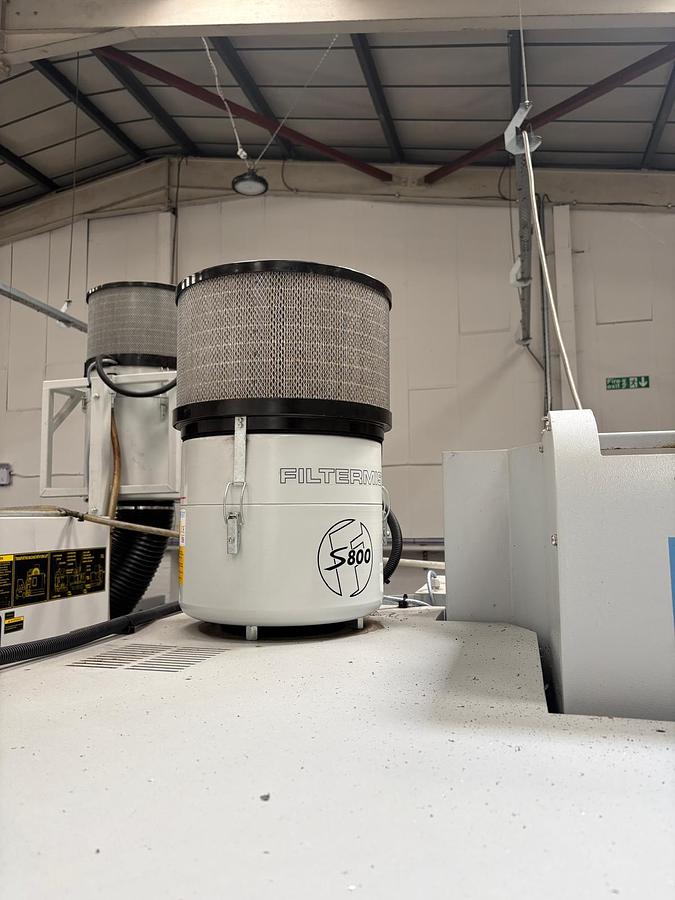

FILTERMIST Extraction Unit, Flood coolant system, Tooling package, Fully enclosed guarding, CE Mark.

CONDITION        :- EXCELLENT.
