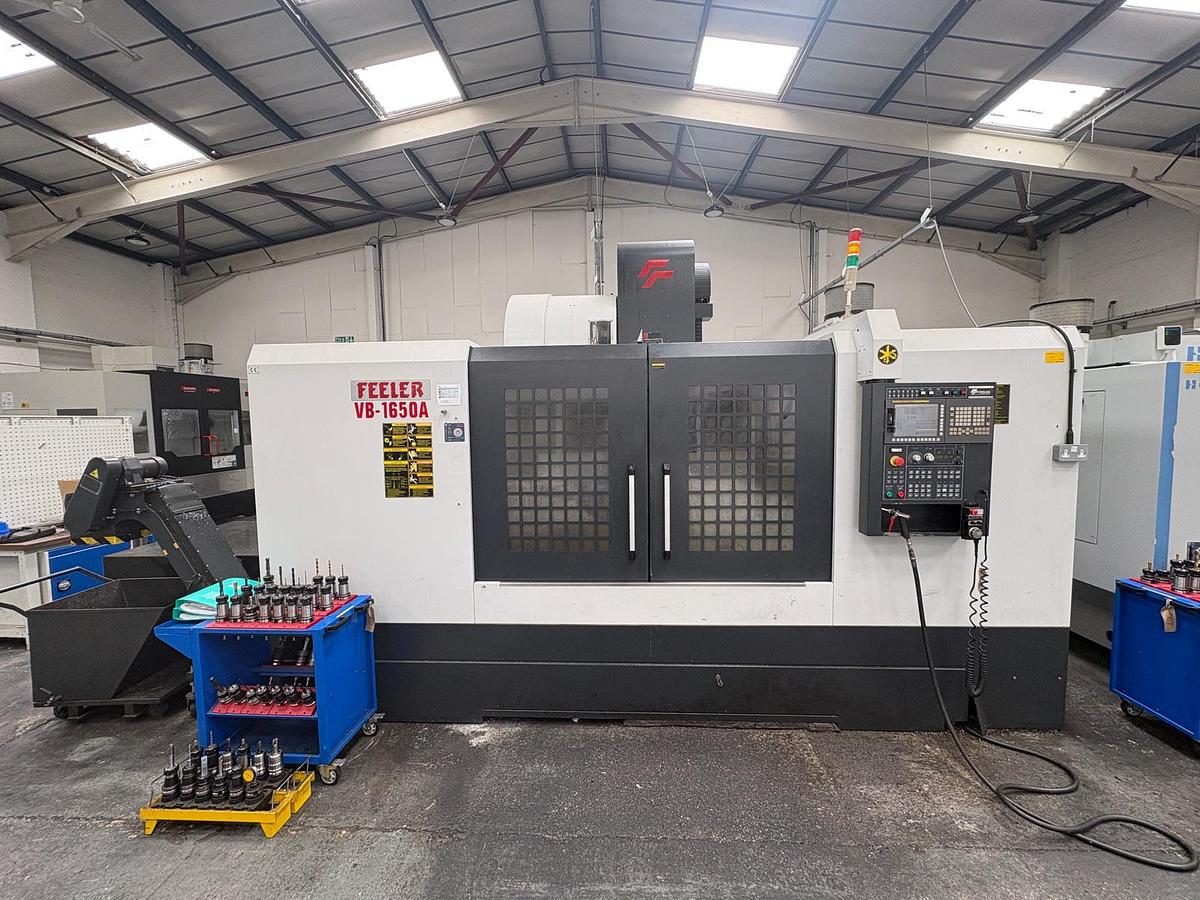

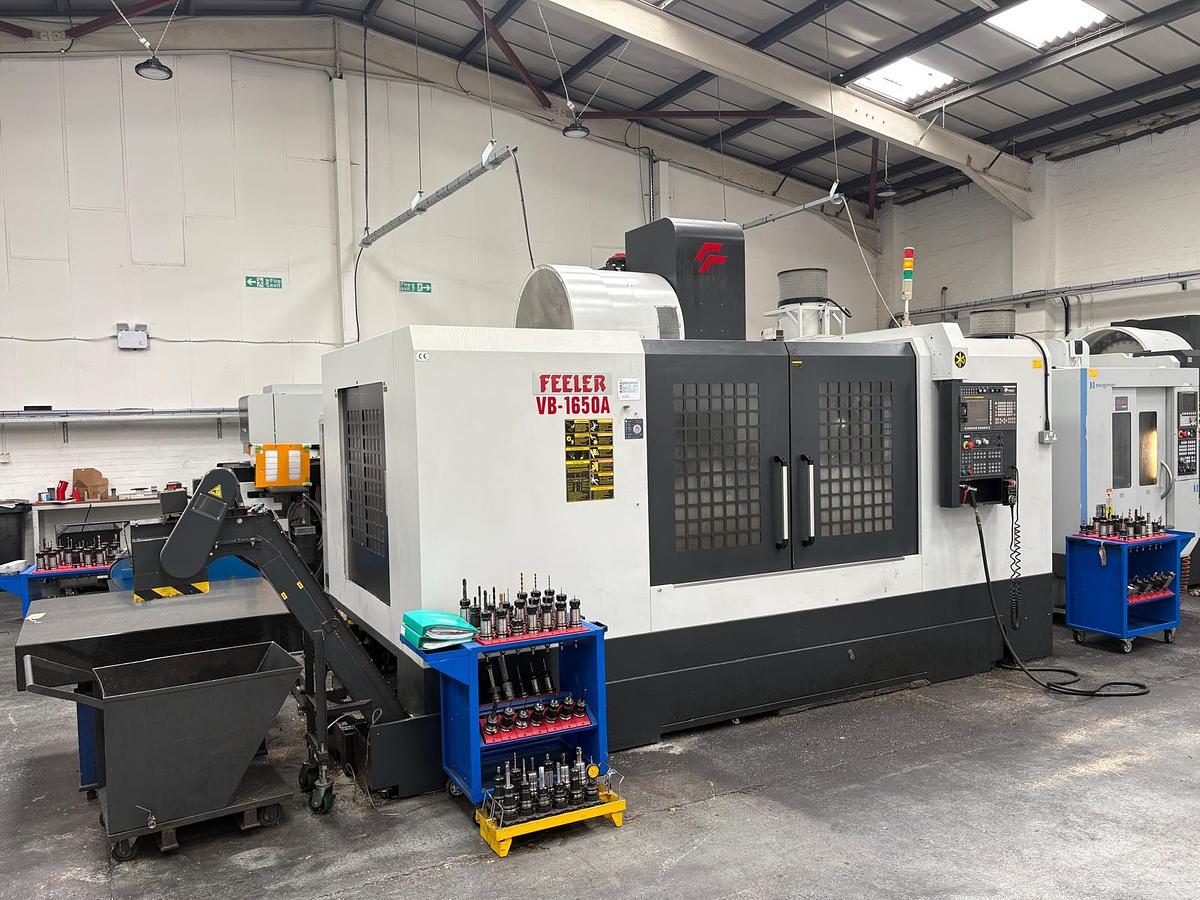

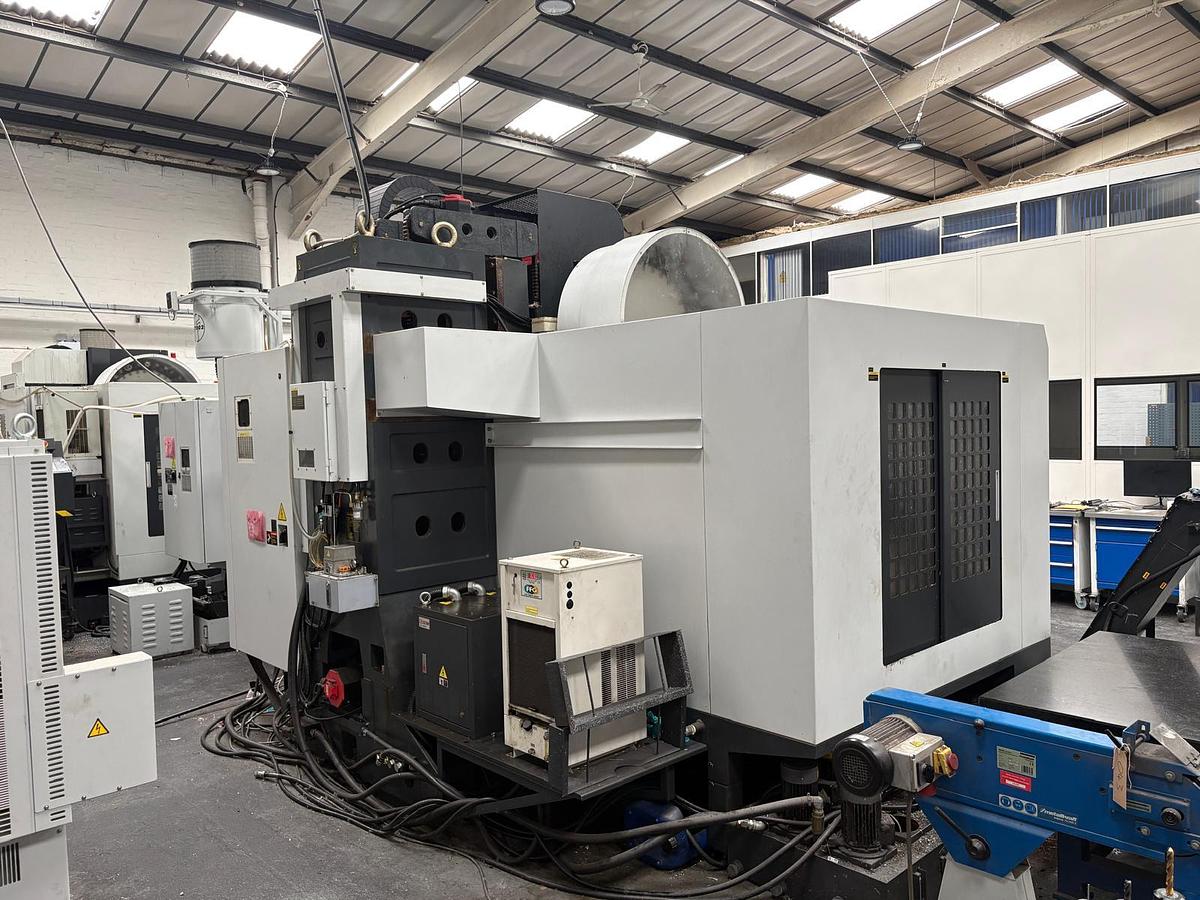

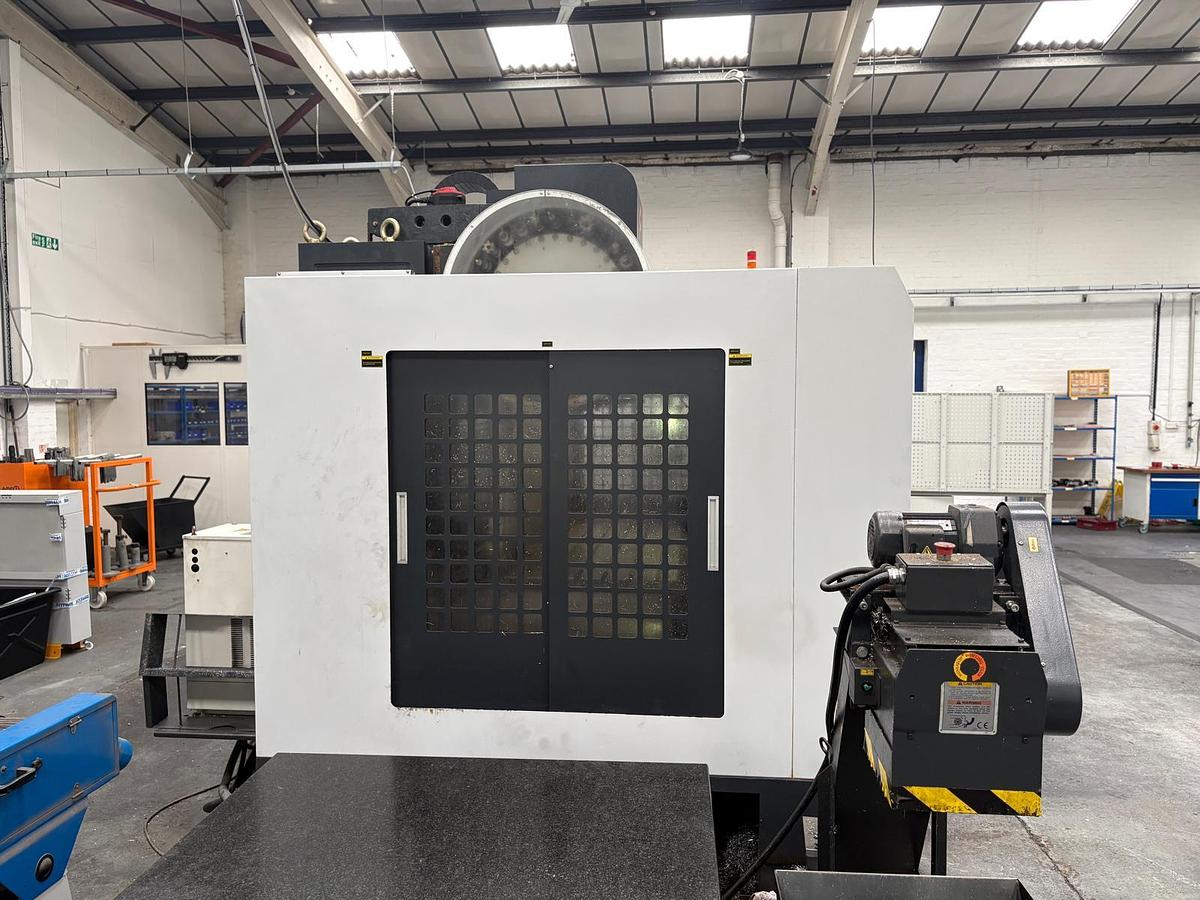

2013 FEELER LARGE CAPACITY VERTICAL CNC MACHINING CENTRE VB-1650A

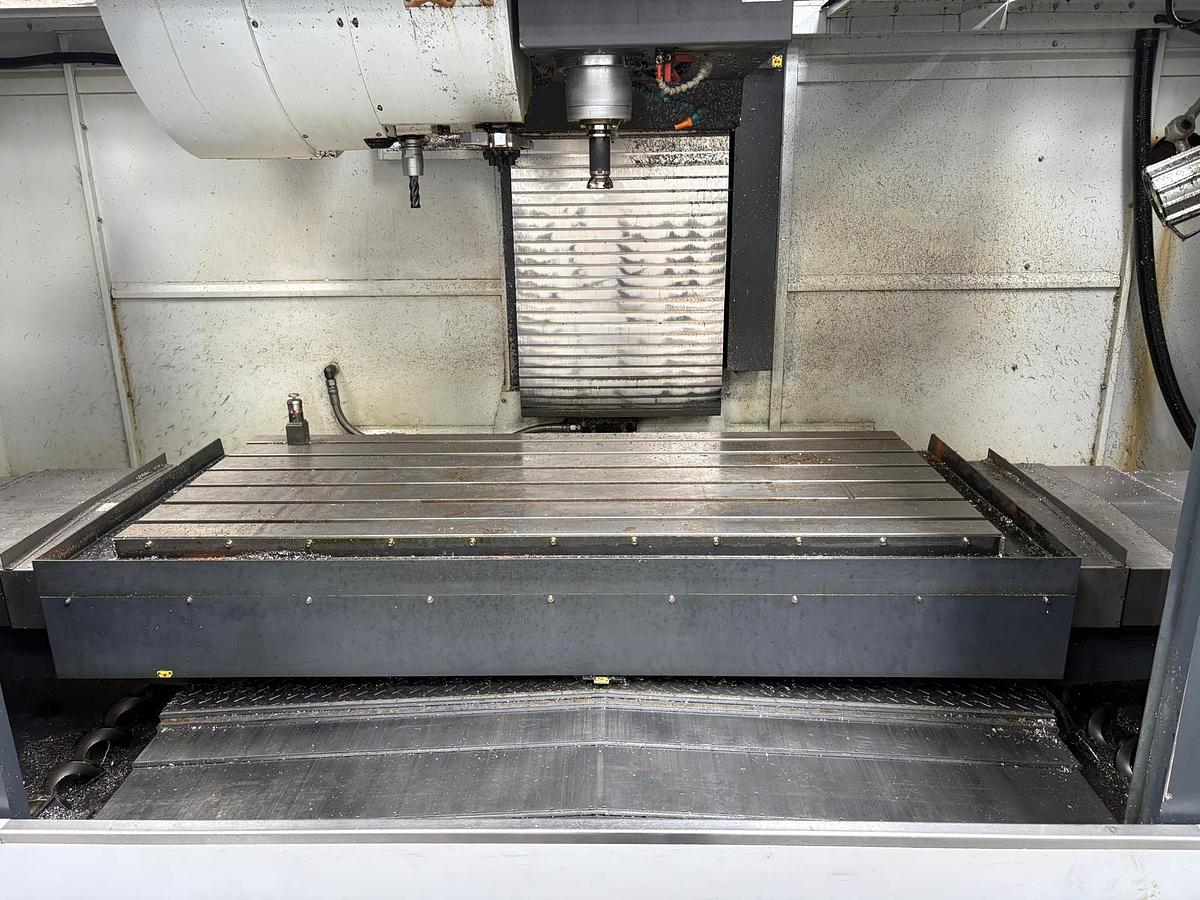

TABLE

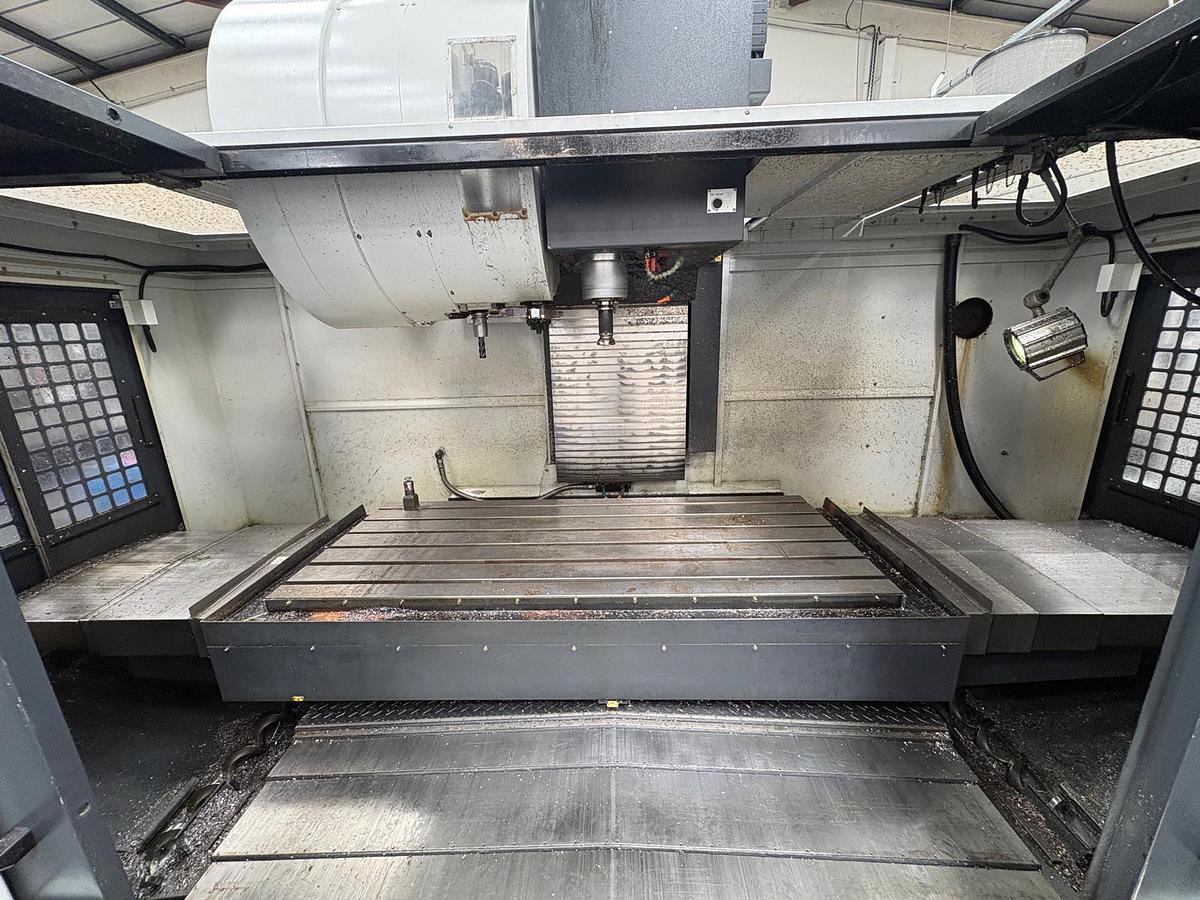

Table size 1900 x 800 mm

MOVEMENT

Table positioning travel (X x Y) 1650 x 800 mm

Head vertical travel (Z) 700 mm

Distance, table to spindle 145 - 845 mm

Spindle centre to column face 850 mm

SPINDLE

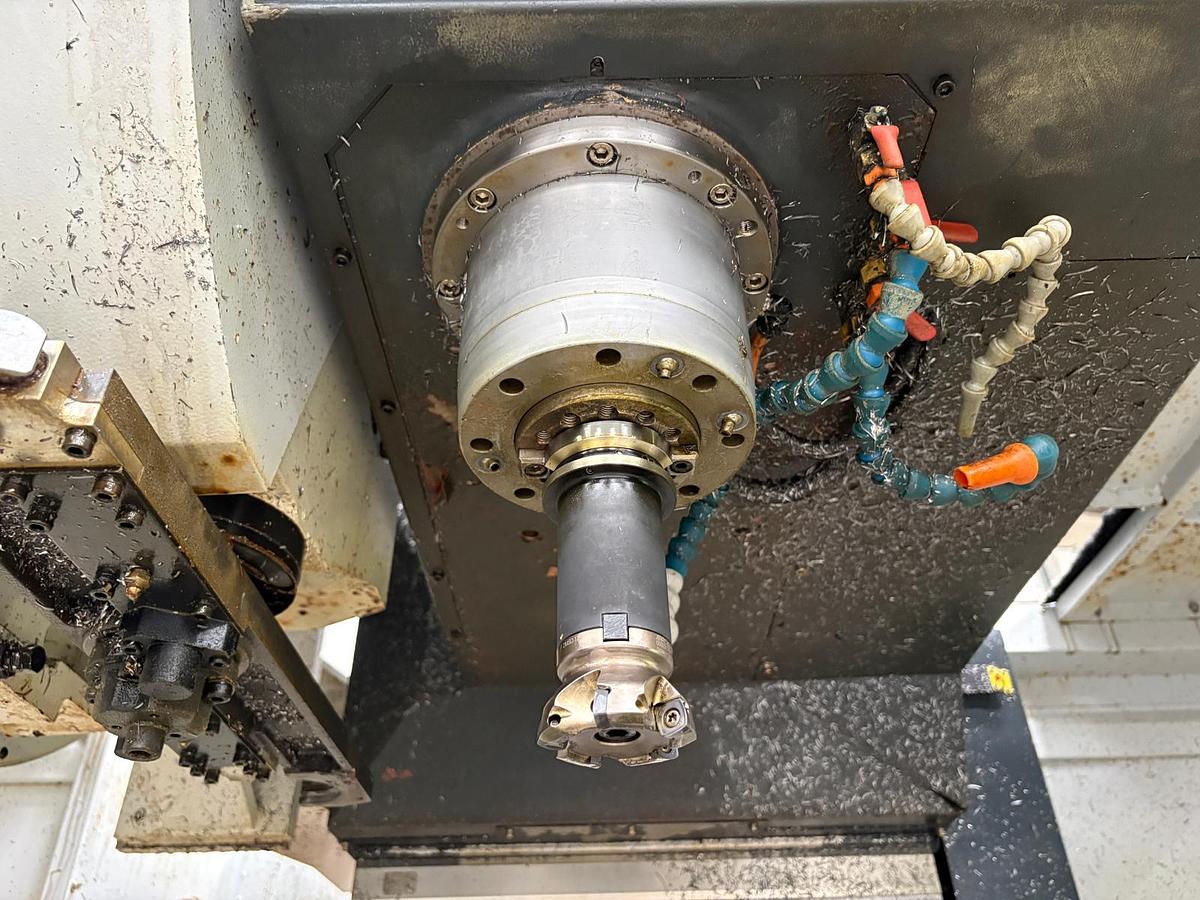

Spindle taper BT 40

Spindle speeds 8,000 rpm

Spindle drive motor 35 hp / 26 kW

FEED RATE

Feed rate 15,000 mm/min

Rapid traverse (X, Y, Z) X & Y 20 m/min, Z 18 m/min

AUTOMATIC TOOLCHANGER 30 tools

Overall size approx. 4500mm W x 3280mm F to B.

Machine weight 13,000 kg.

Complete with :-

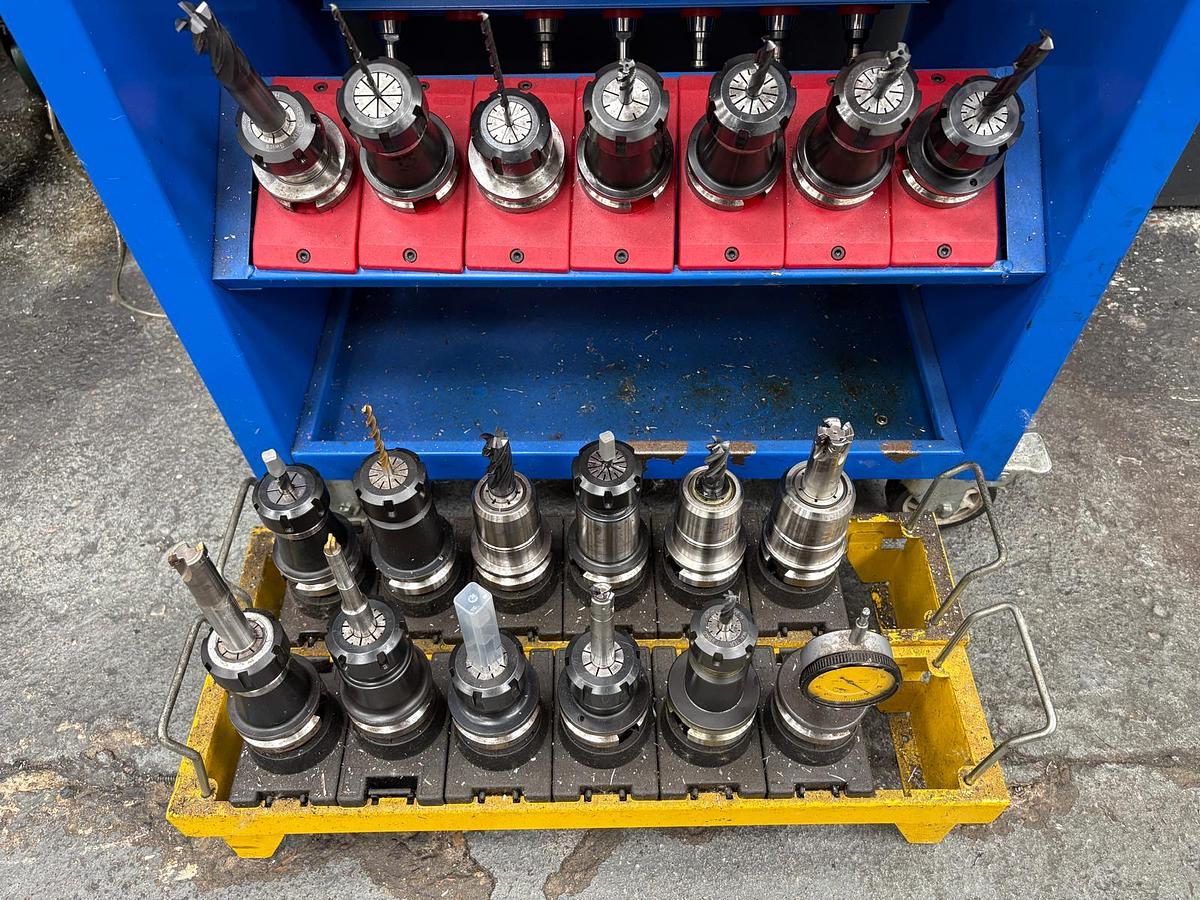

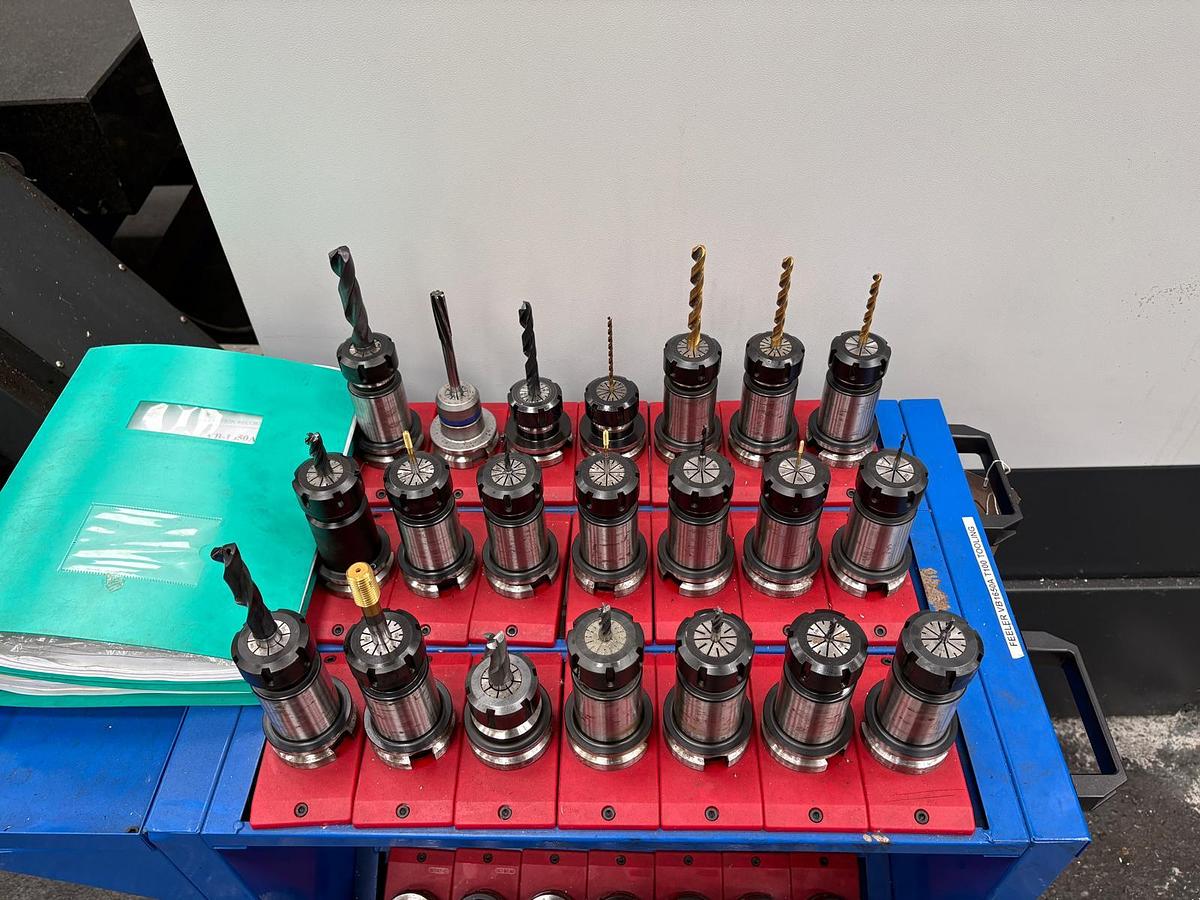

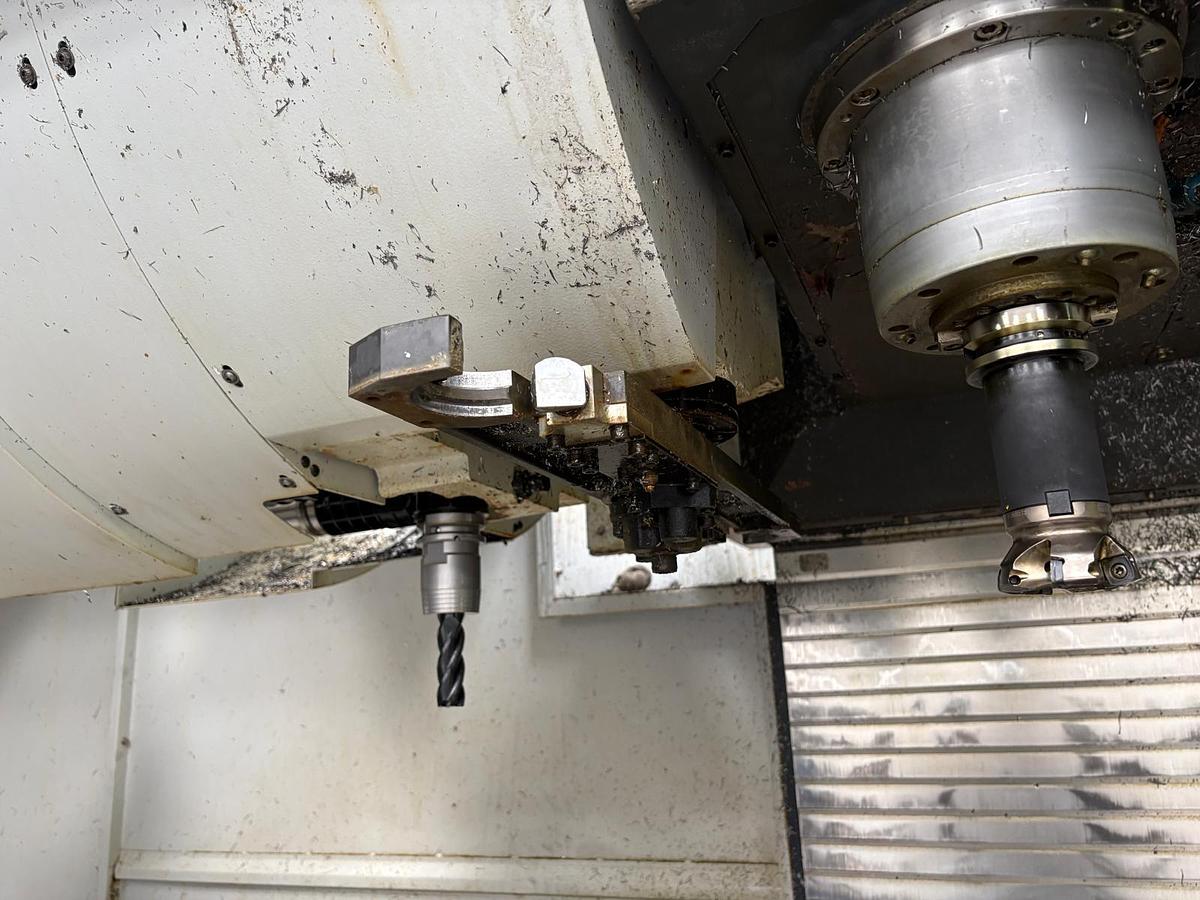

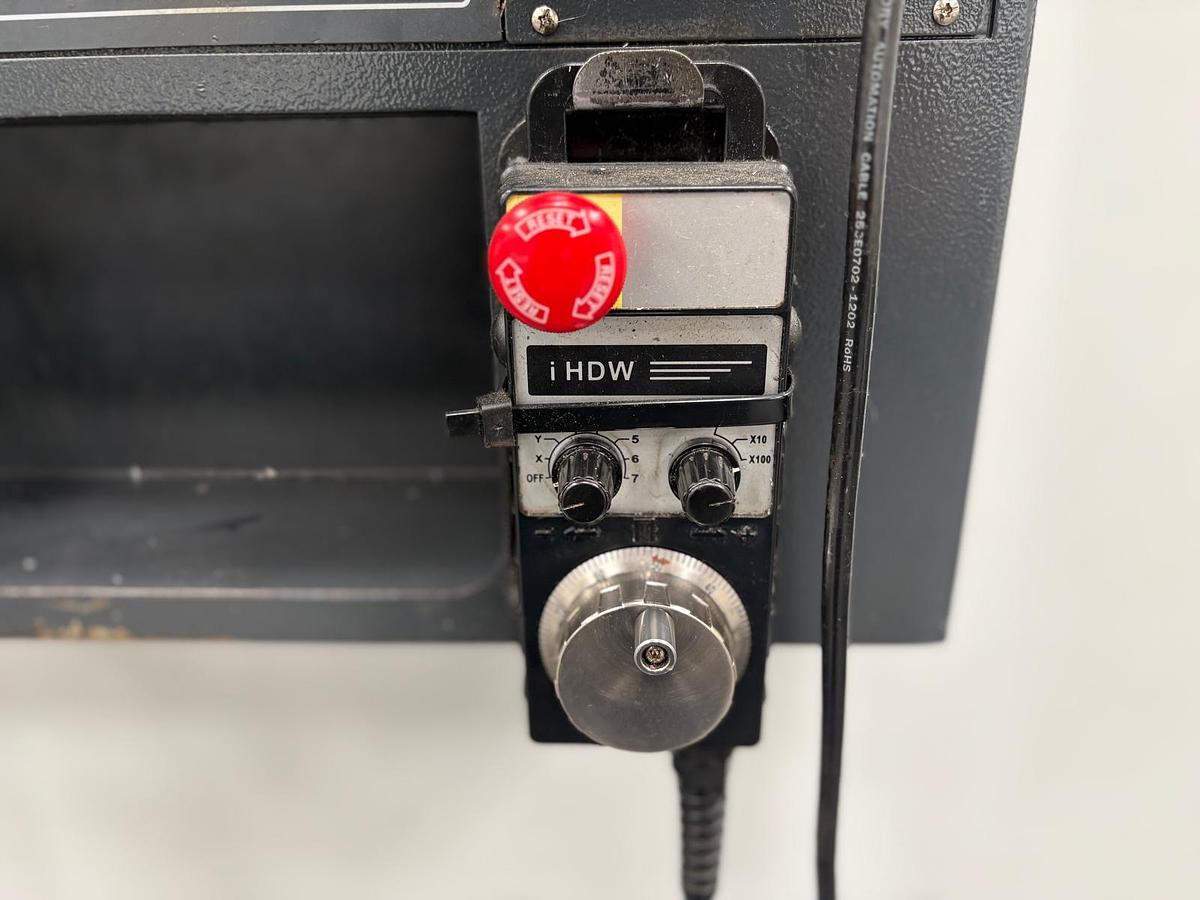

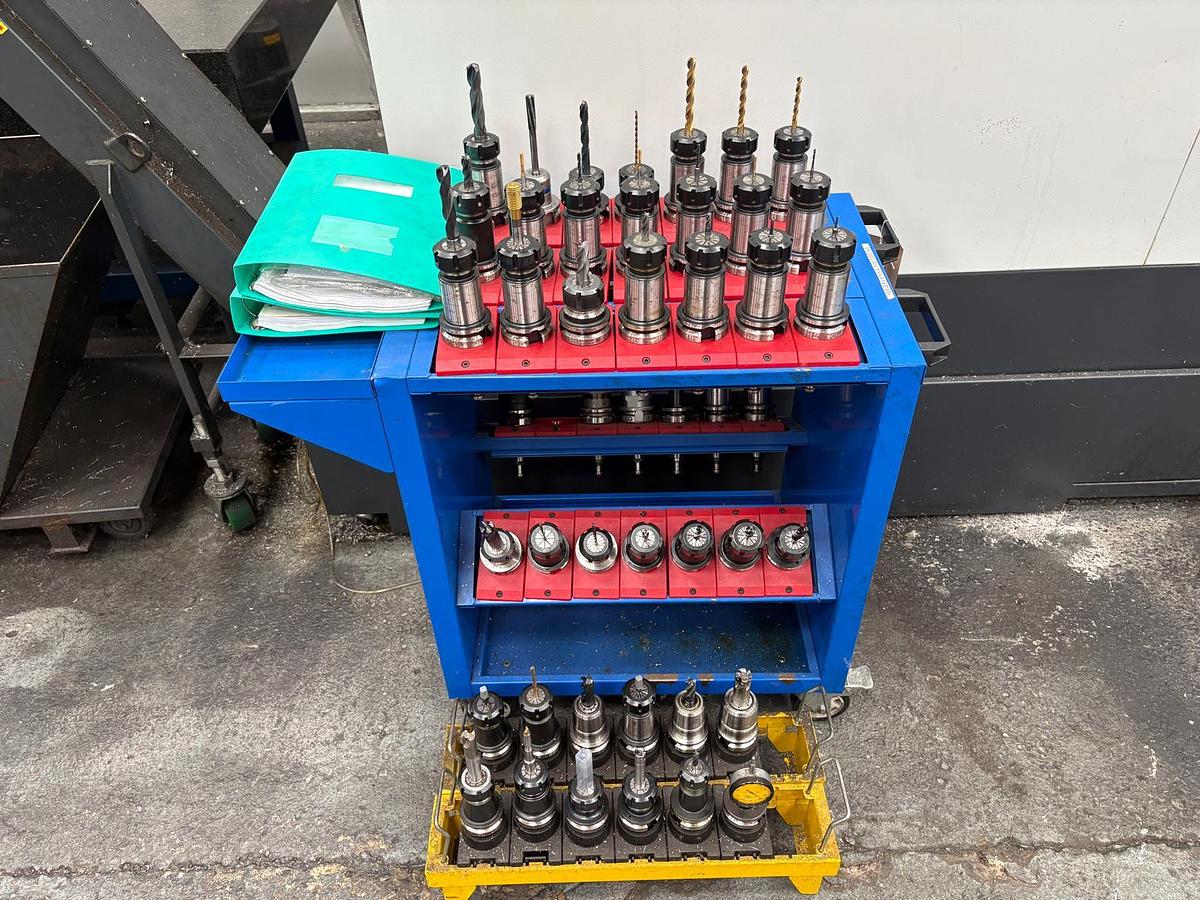

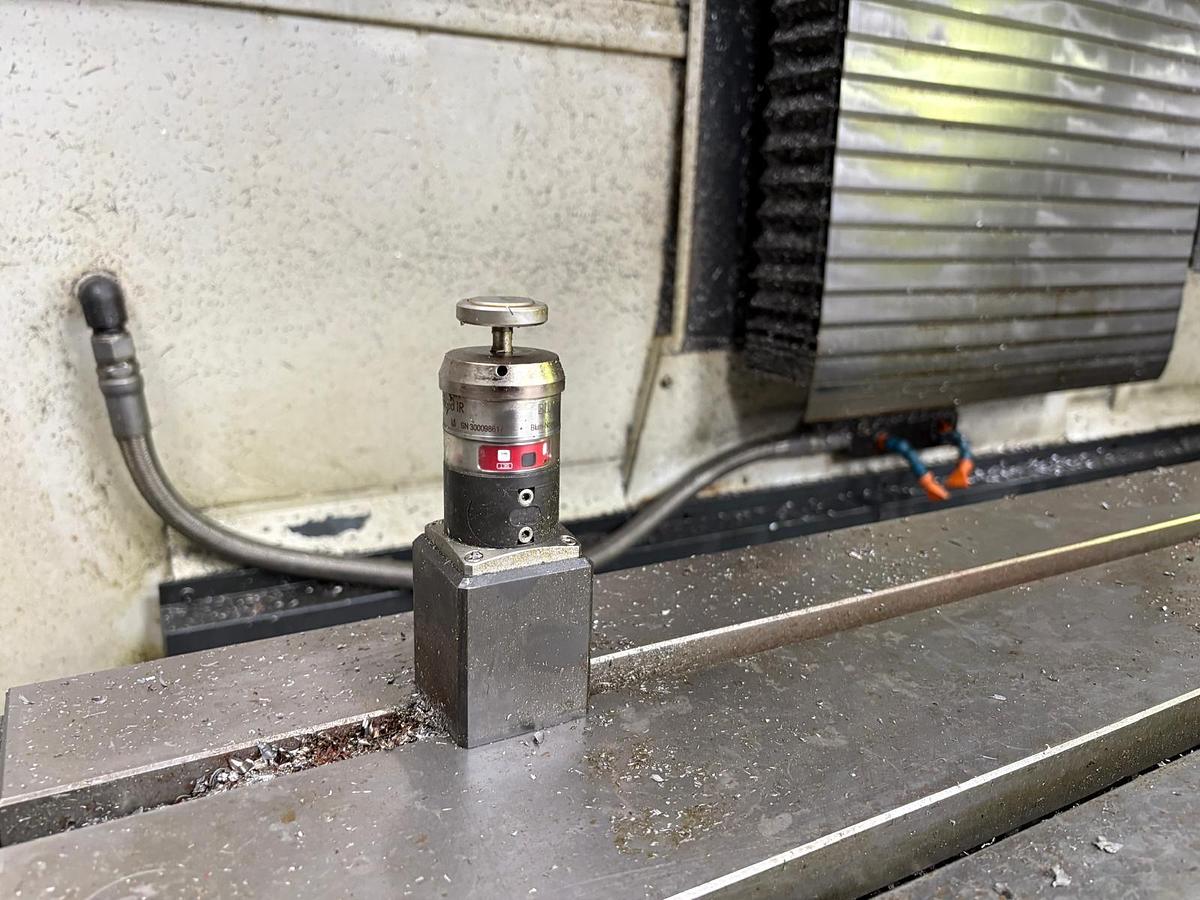

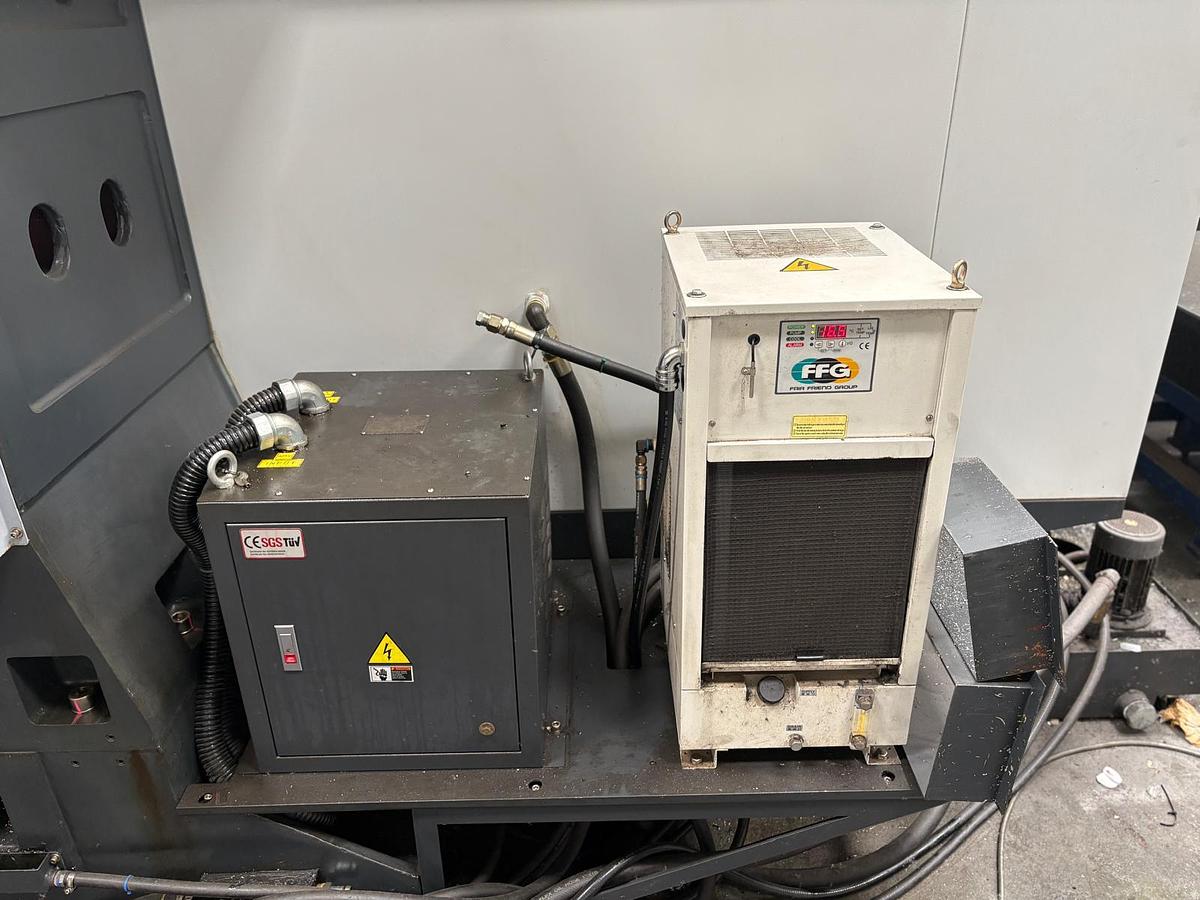

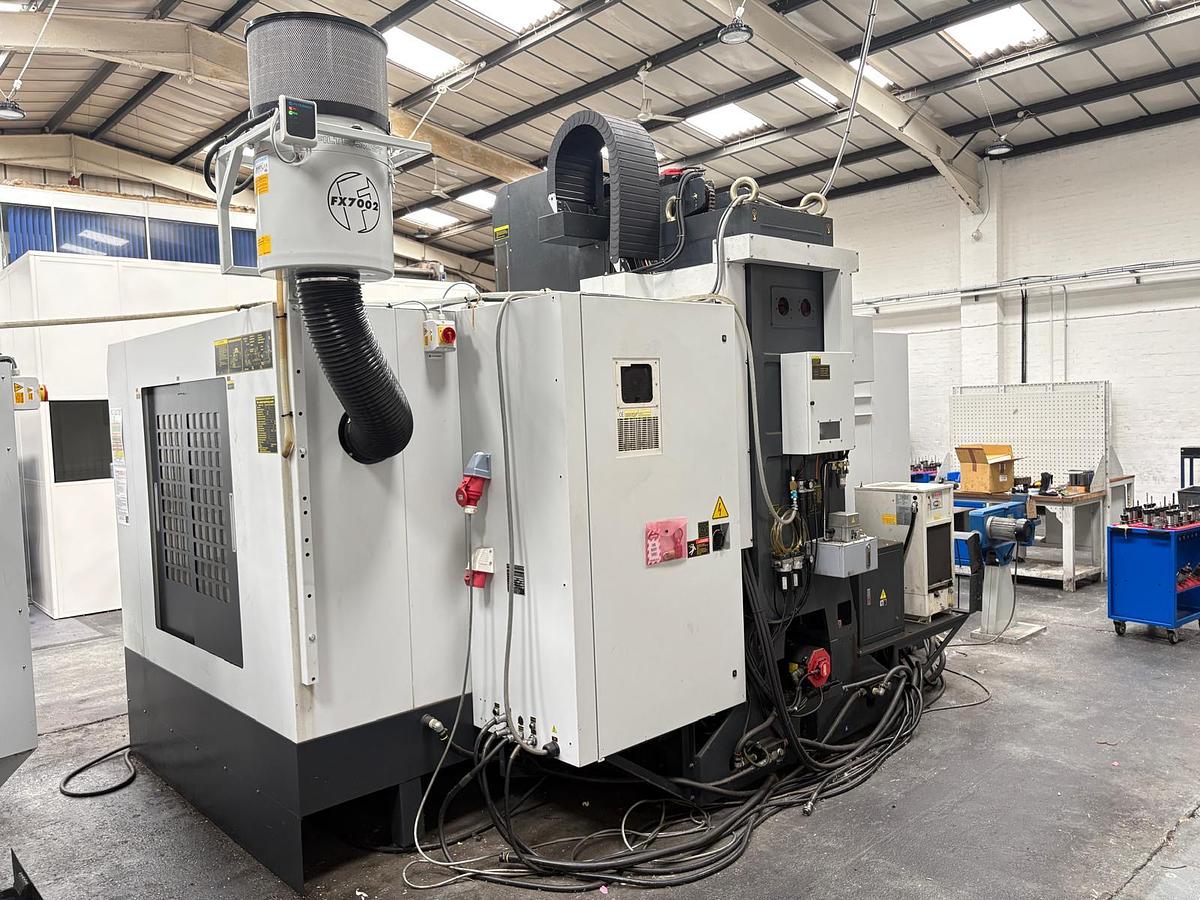

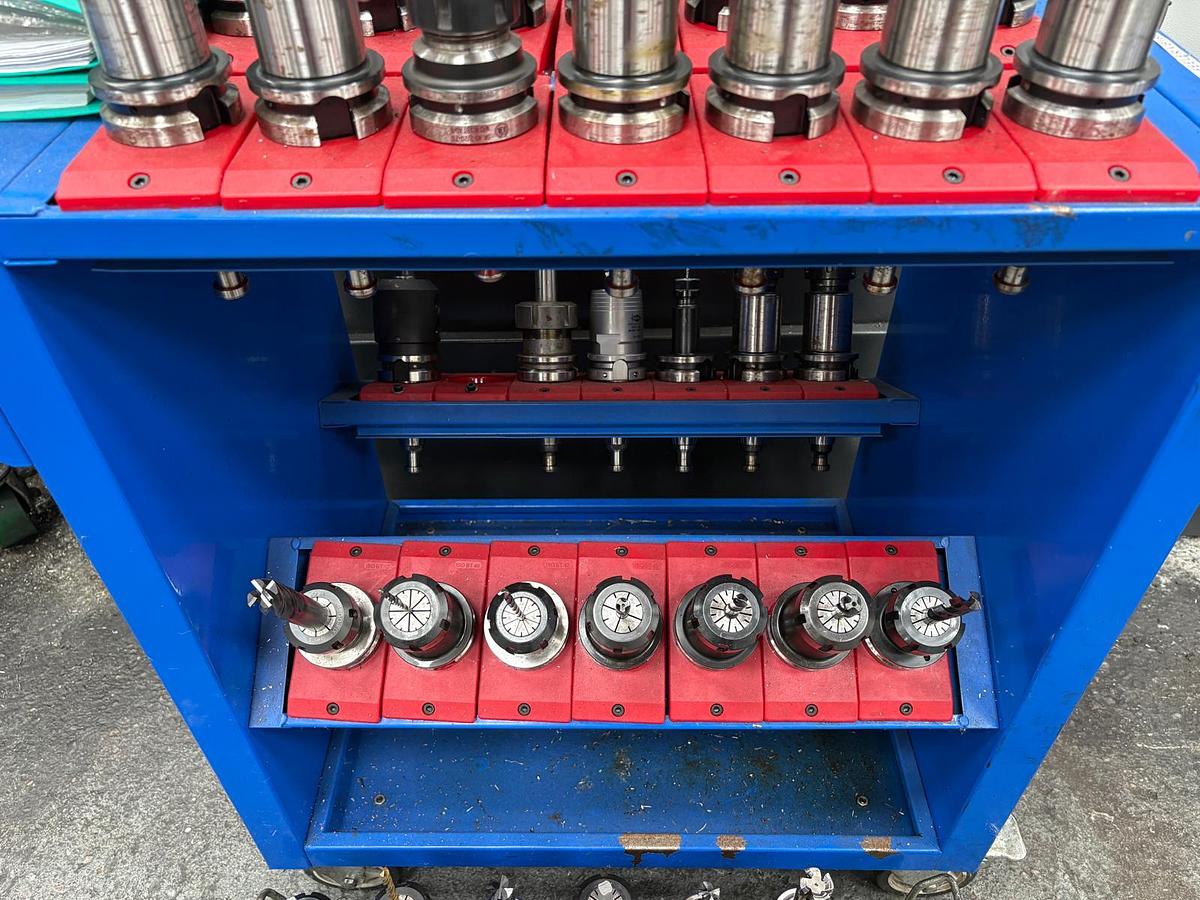

Part probe, BLUM Tool probe, Remote handwheel, Swarf augers, Swarf conveyor, Tooling package, Spindle chiller, Filtermist FX7002.

CONDITION :- EXCELLENT, LOW HOURS.

PRICE :- P.O.A.

EXTRAS :- AMF GmbH Electro Magnet 780 x 390mm with additional magnetic blocks.
