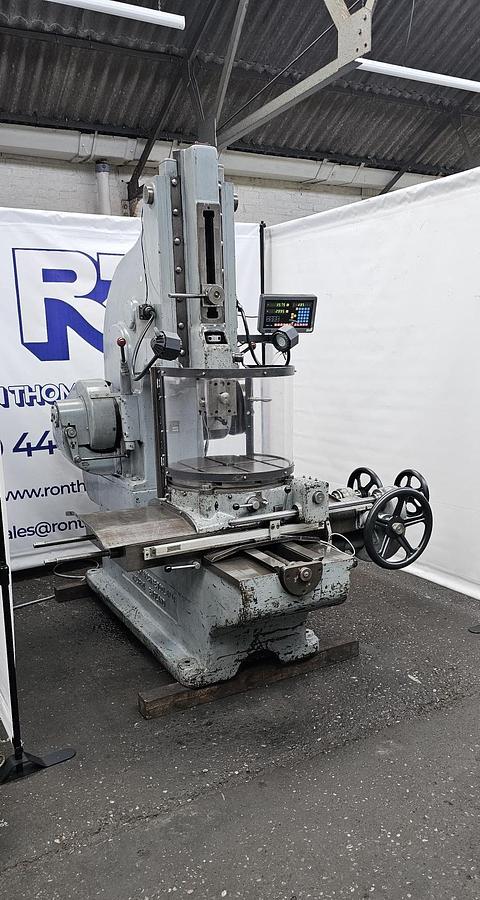

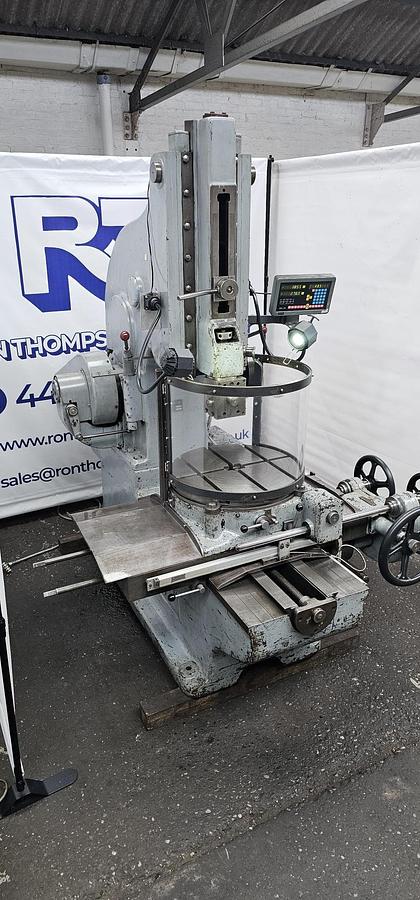

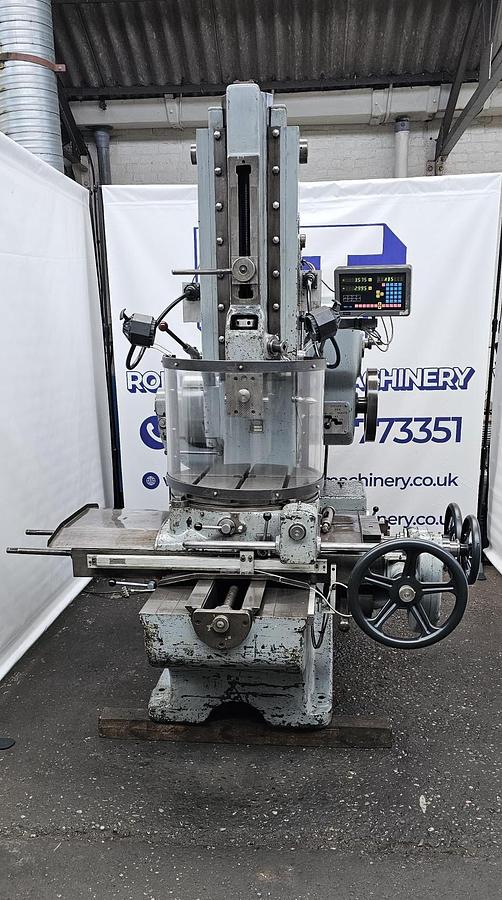

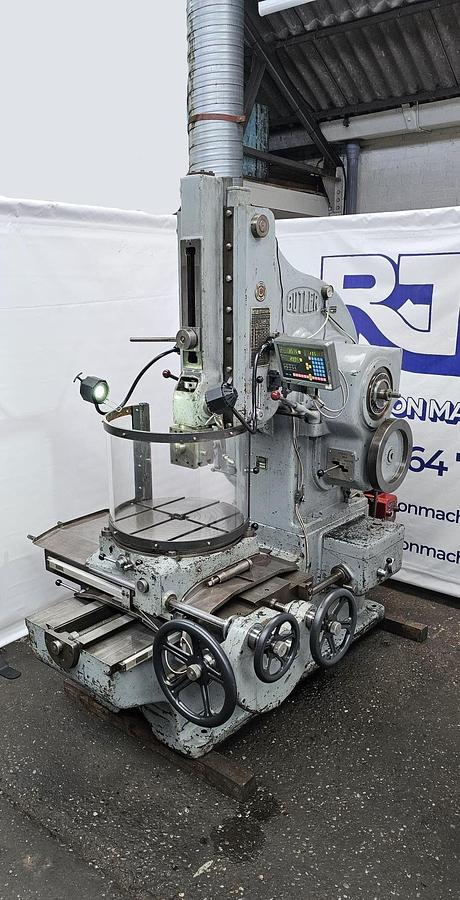

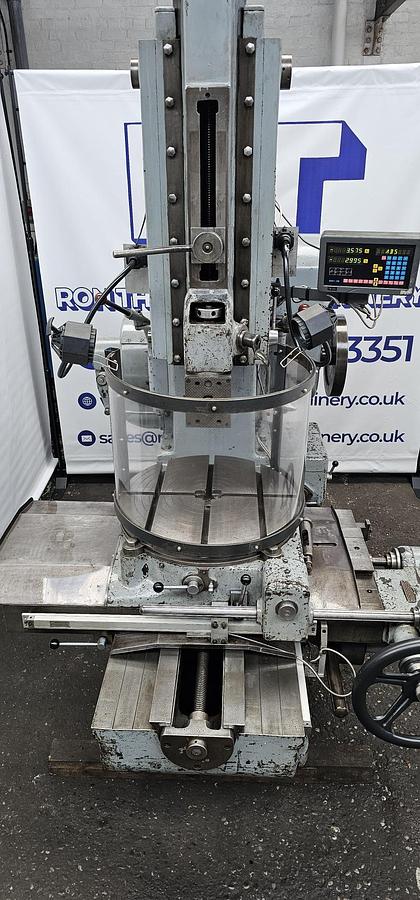

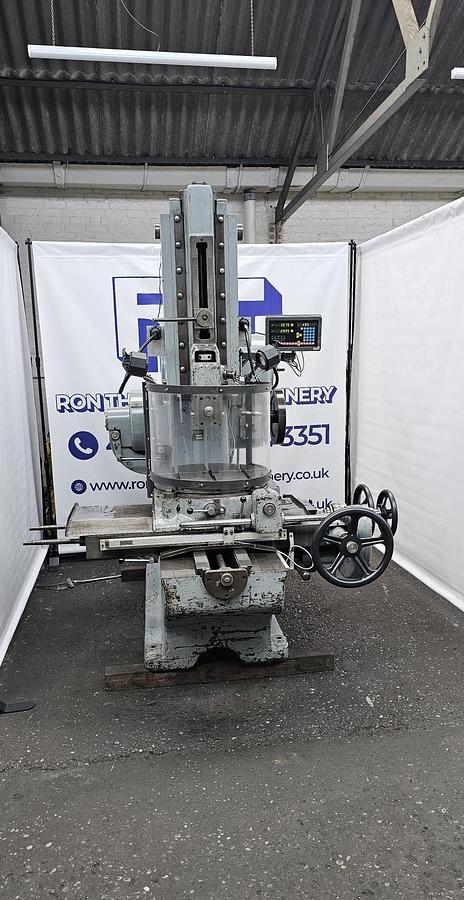

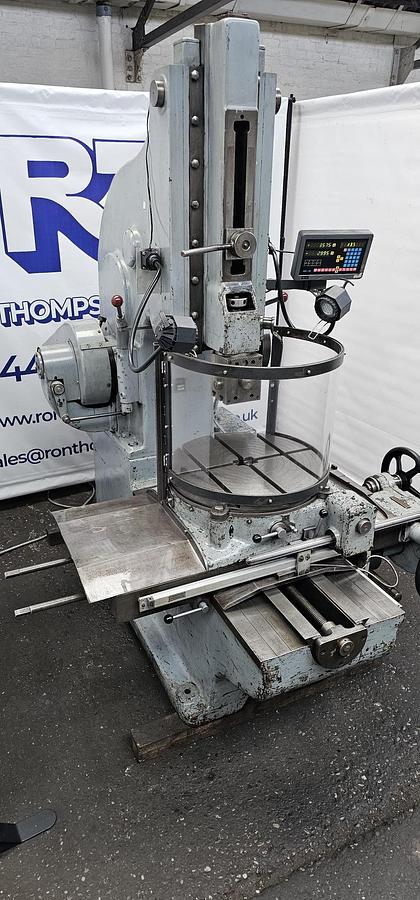

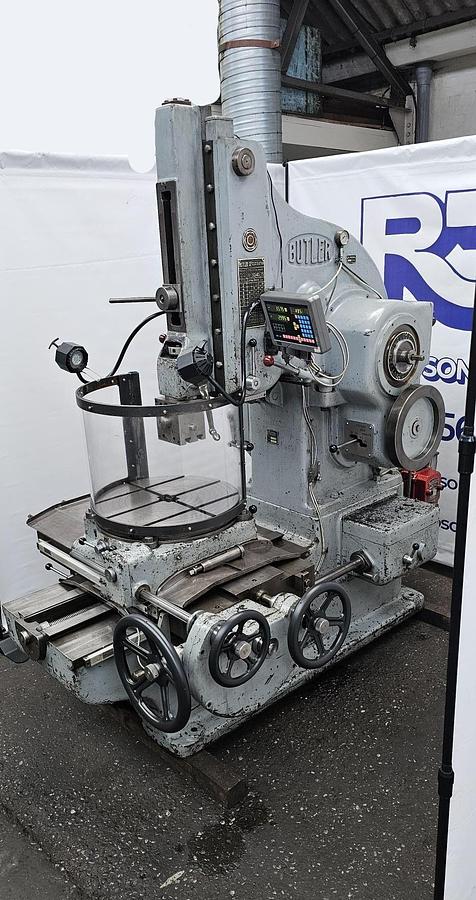

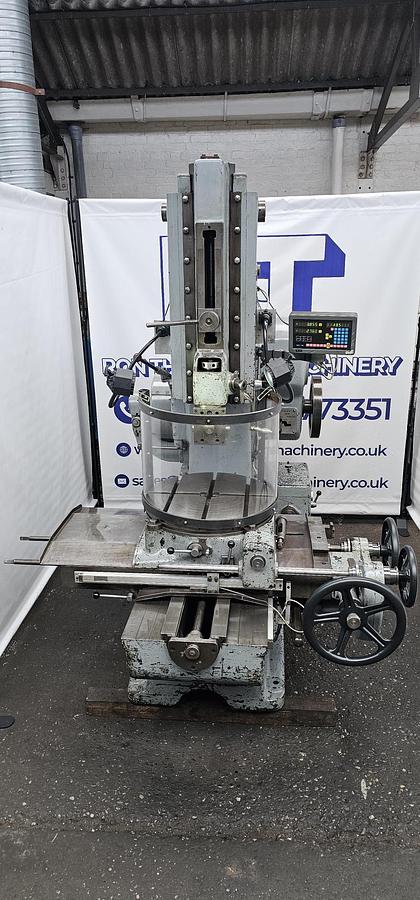

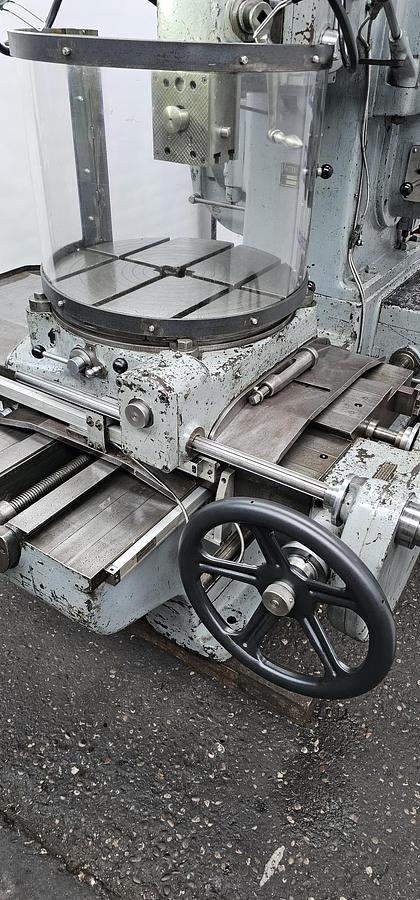

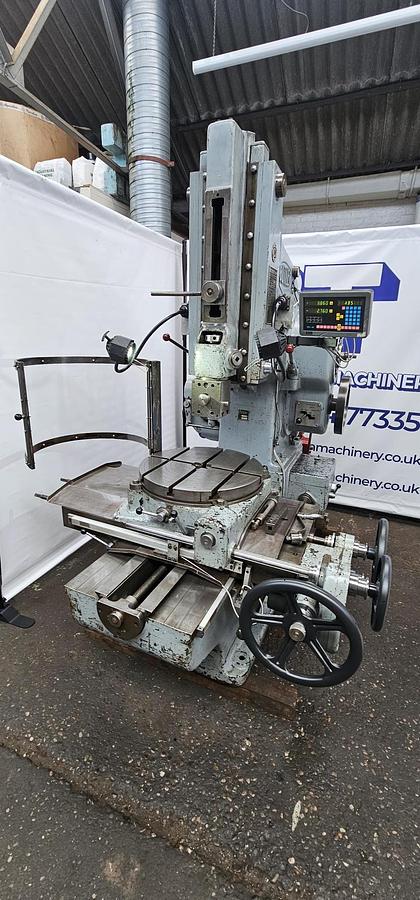

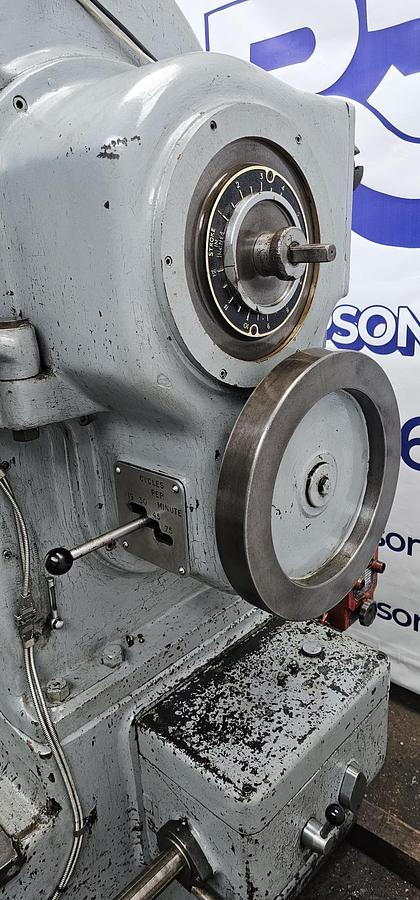

BUTLER 12 INCH PRECISION TOOLROOM SLOTTING MACHINE

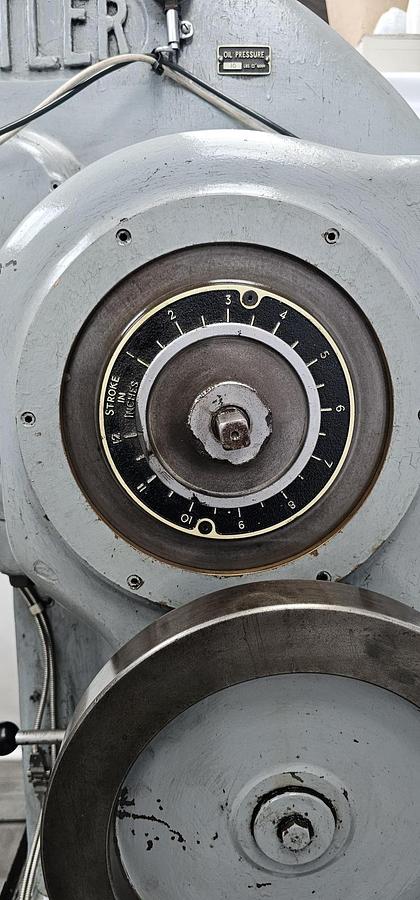

Ram stroke                                                                1” to 12”

Cutting speeds                                                           19, 30, 45, & 75 s.p.m.

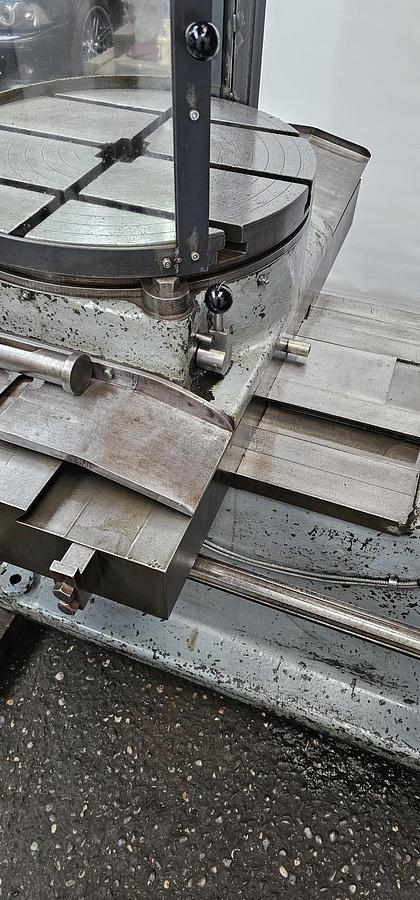

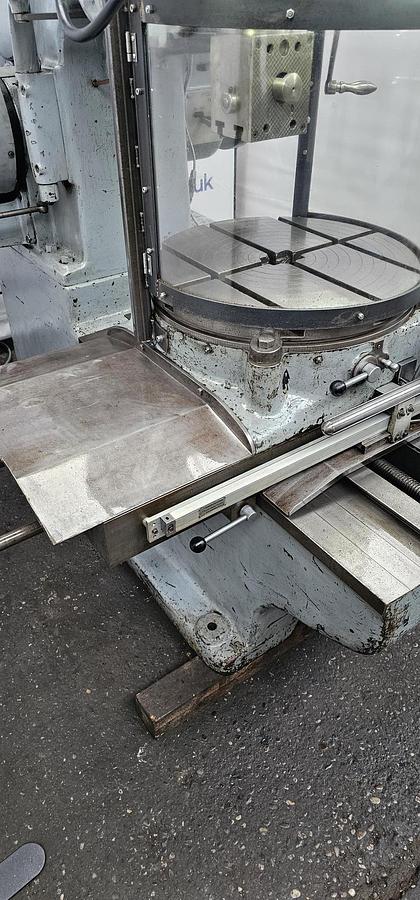

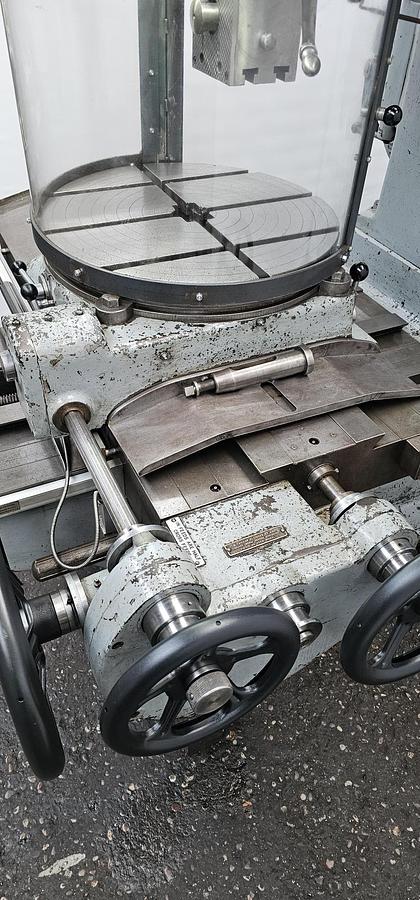

Work table size                                                           24”

Work admitted, max. dia. approx..                              48”

Throat depth                                                               24 ½ ”

Tool box to table at max. stroke      Min.                     0

                                                        Max.                    24”

Tool slide adjustment                                                  16”

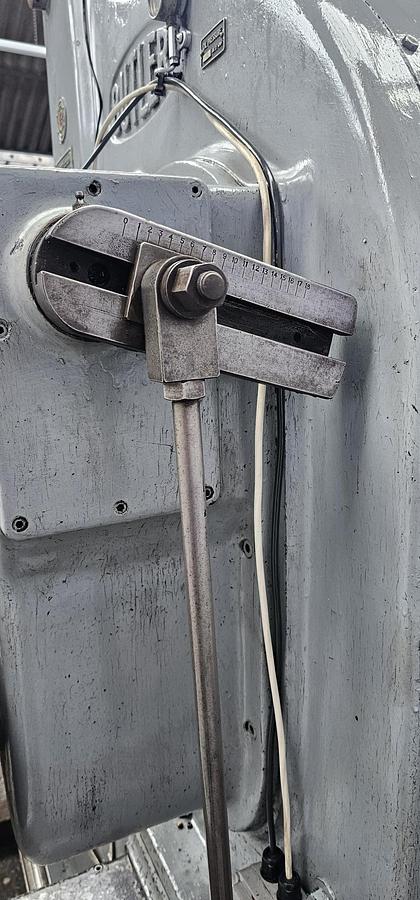

Tilt of ram                                                                    0 – 7.5 degrees

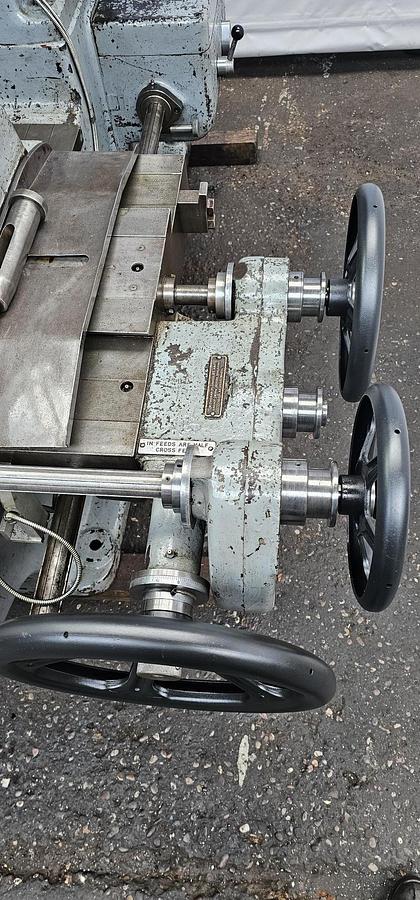

Work table traverse                          Cross                 25”

                                                          Front to back     25”

Cross traverse feeds                                                   (18) 0.004” – 0.072”

Front to back feeds                                                     (18) 0.002” – 0.036”

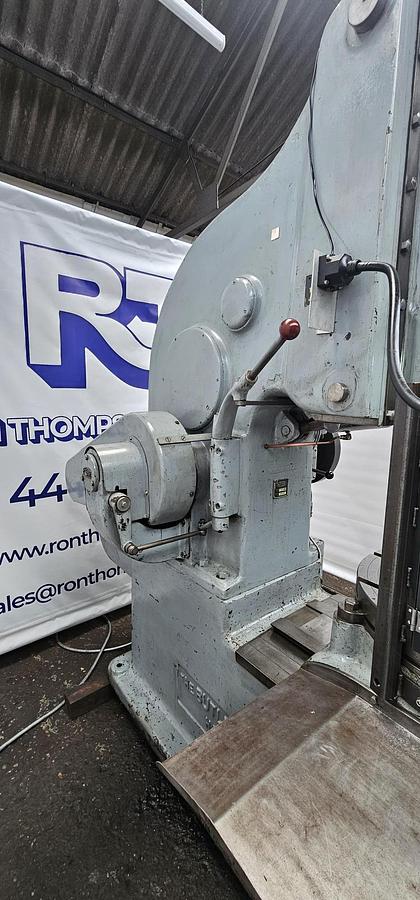

Main drive motor                                                         5 HP

Overall size                                                                 72” Wide x 102” Front to Back x 96” High.

Weight approx.                                                           4.2 tons

Machine complete with :-

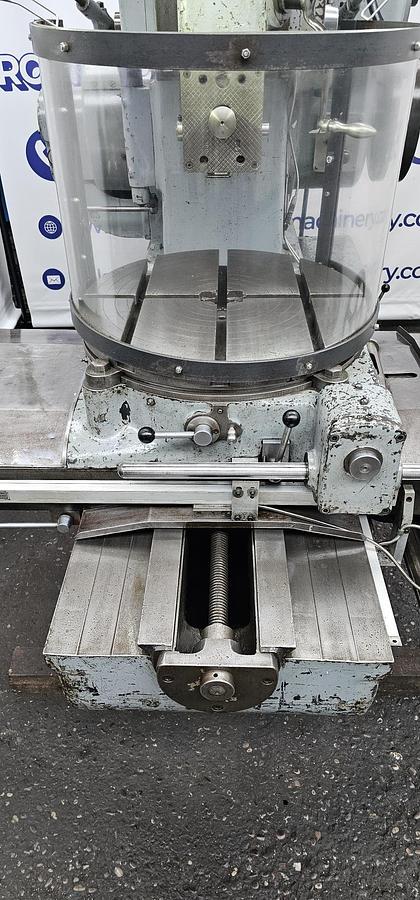

Tilting ram, 2 Axis digital readout, Hinged Ram/Cutter guard, Low volt lights.
