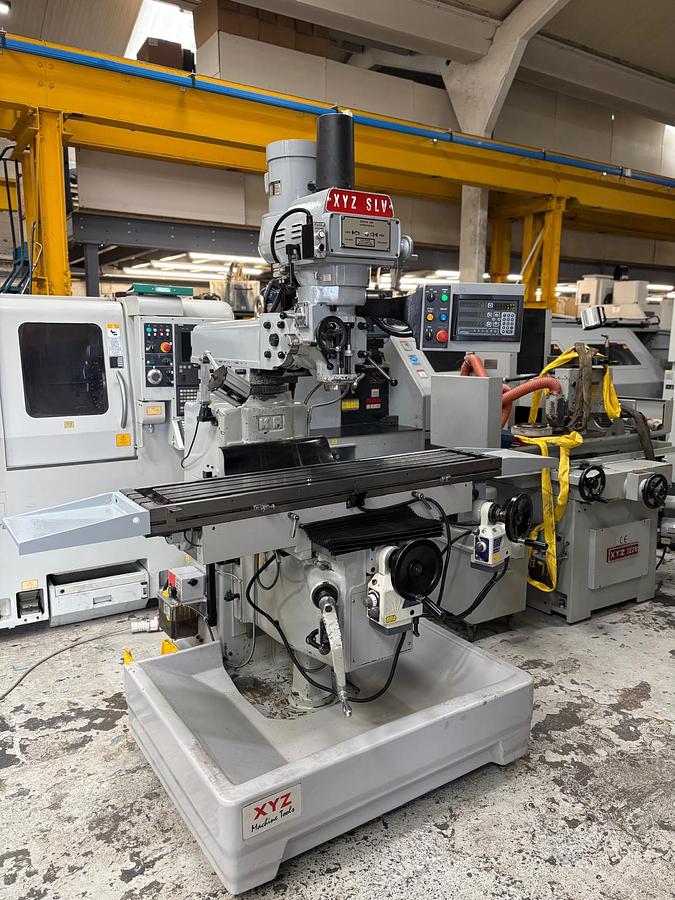

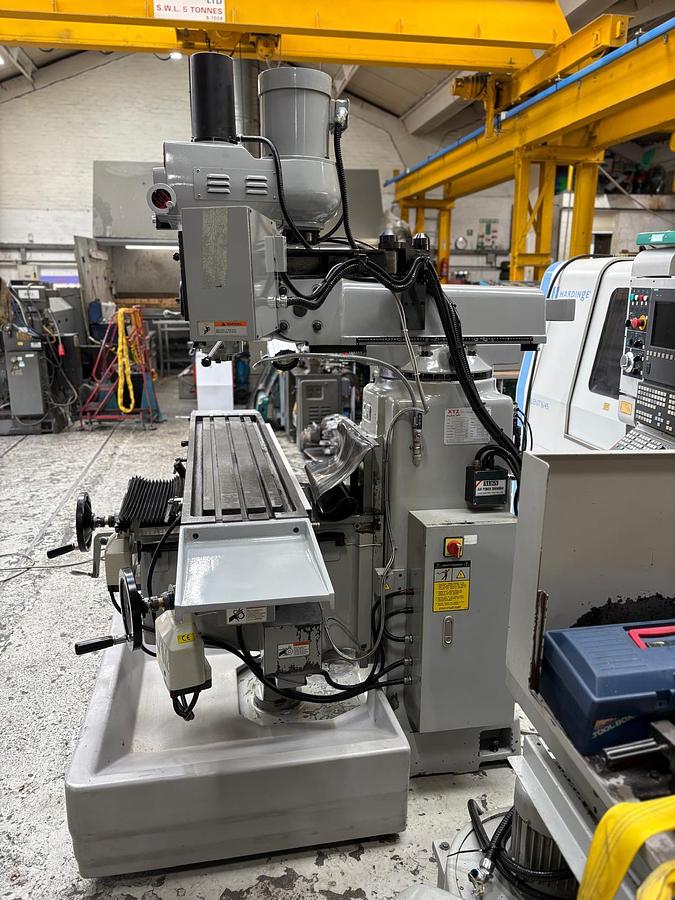

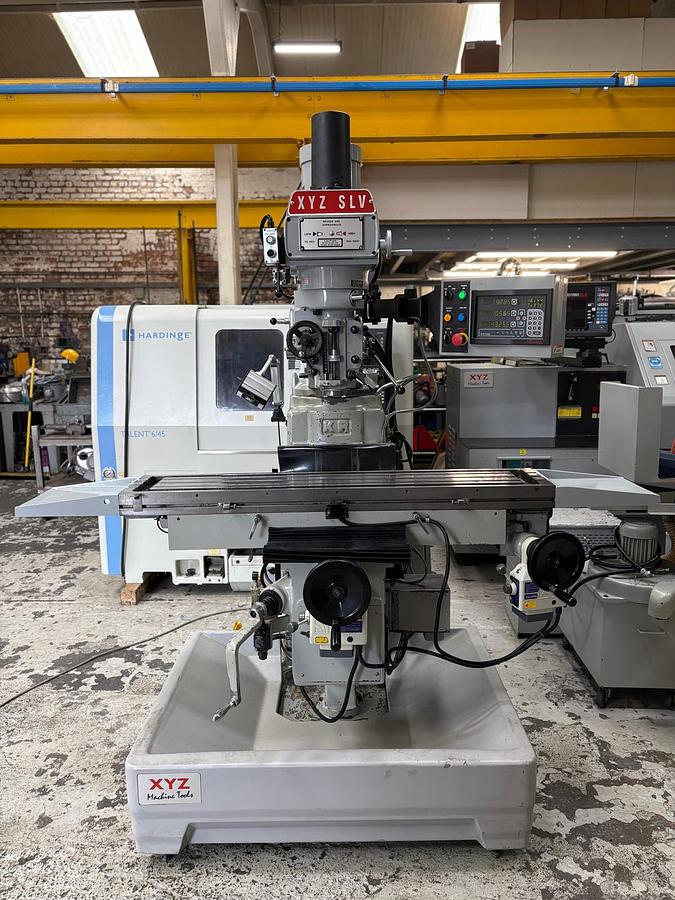

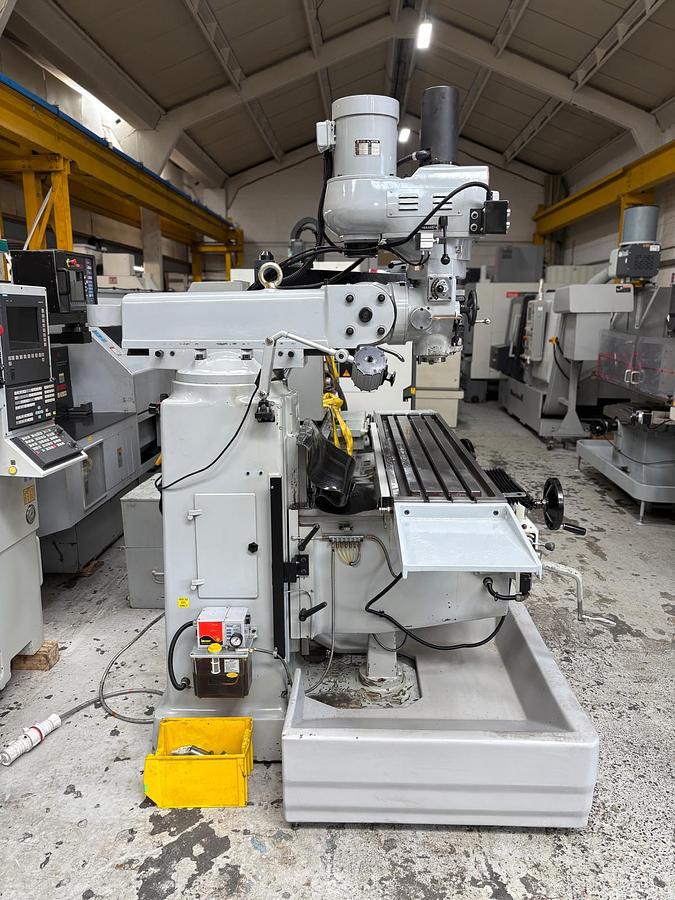

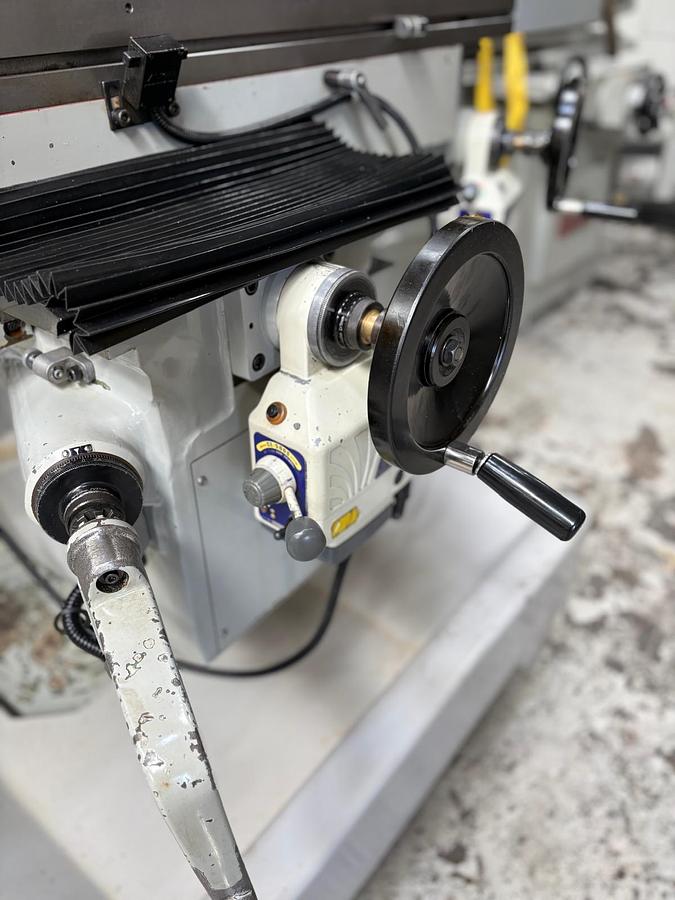

XYZ SLV HEAVY DUTY TURRET MILLING MACHINE

Model                                                                  SLV

Serial number                                                     11501

Year                                                                    2011

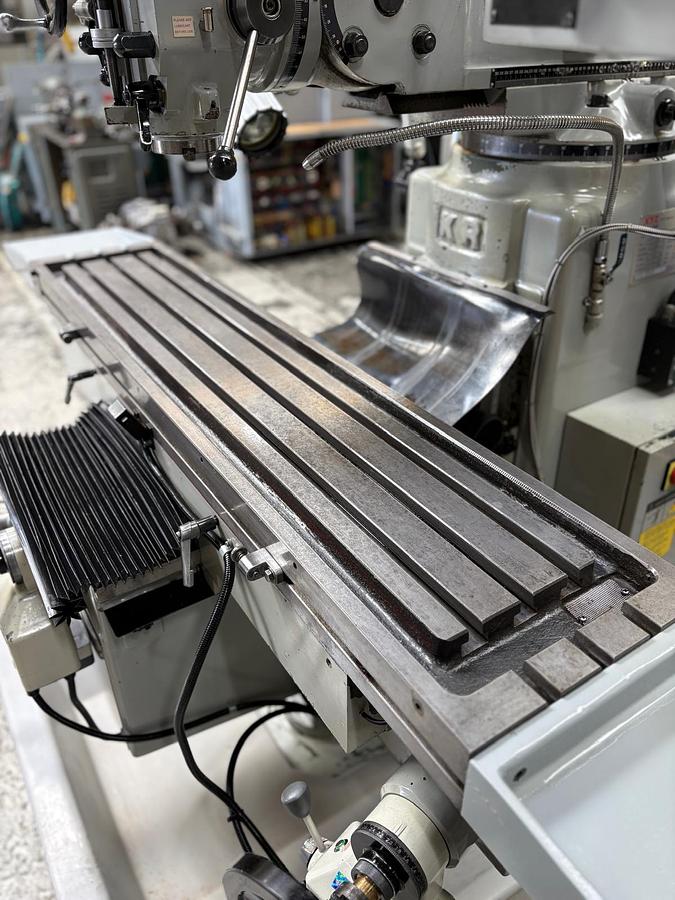

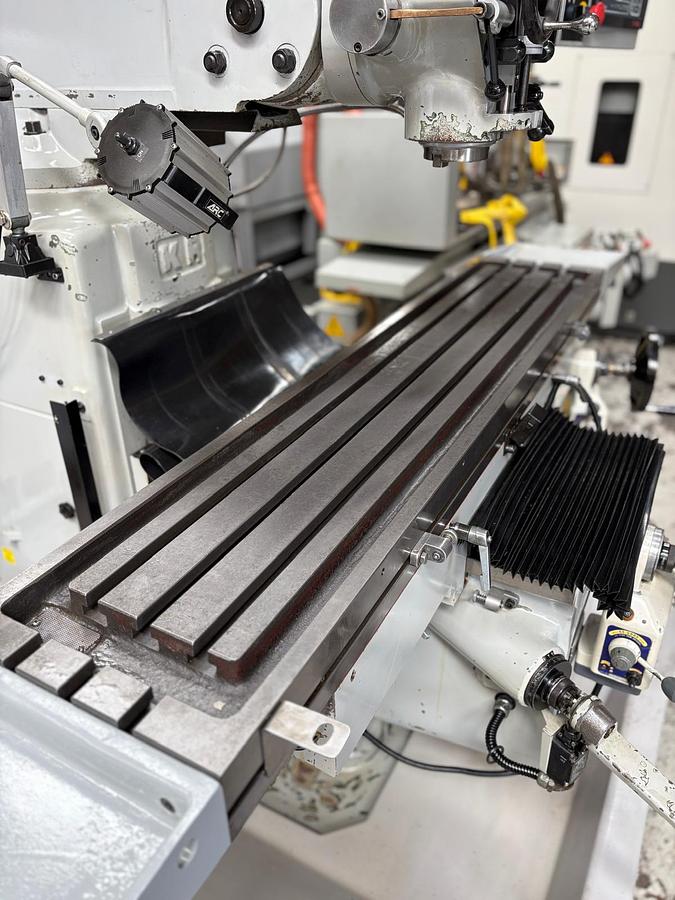

TABLE

Table size                                                           1473 x 305 mm

TRAVERSES

Longitudinal traverse          (X axis)                  1000 mm

Cross traverse                      (Y axis)                410 mm

Vertical traverse (knee)      (Z axis   )               406 mm

Ram adjustment                                               450 mm

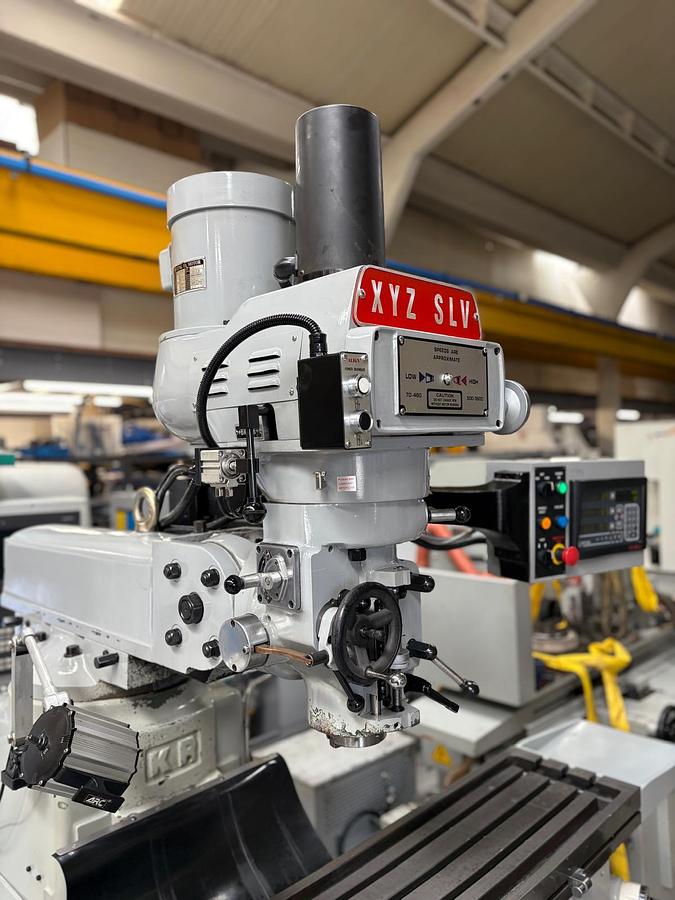

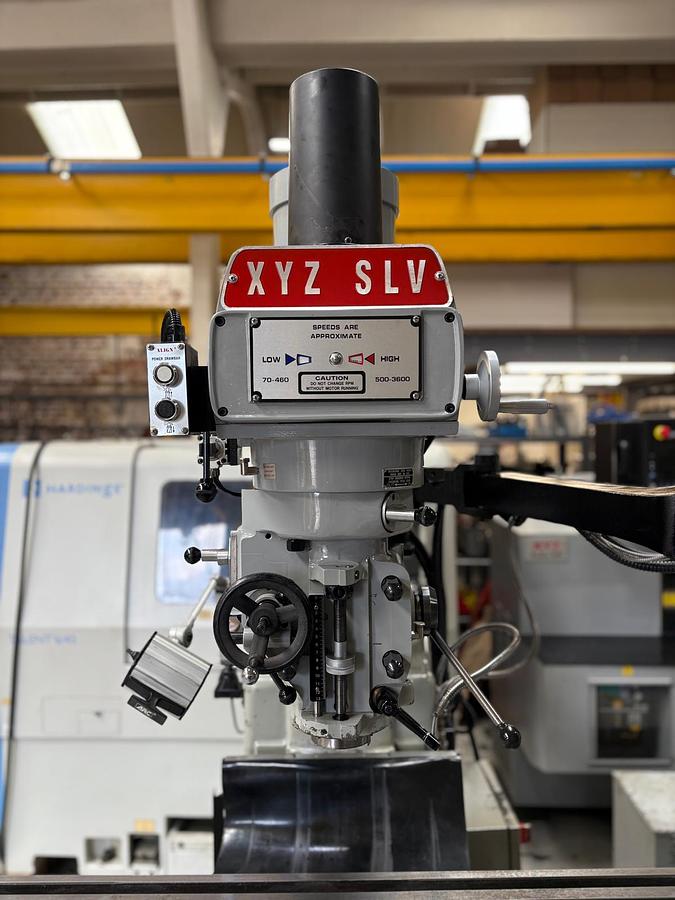

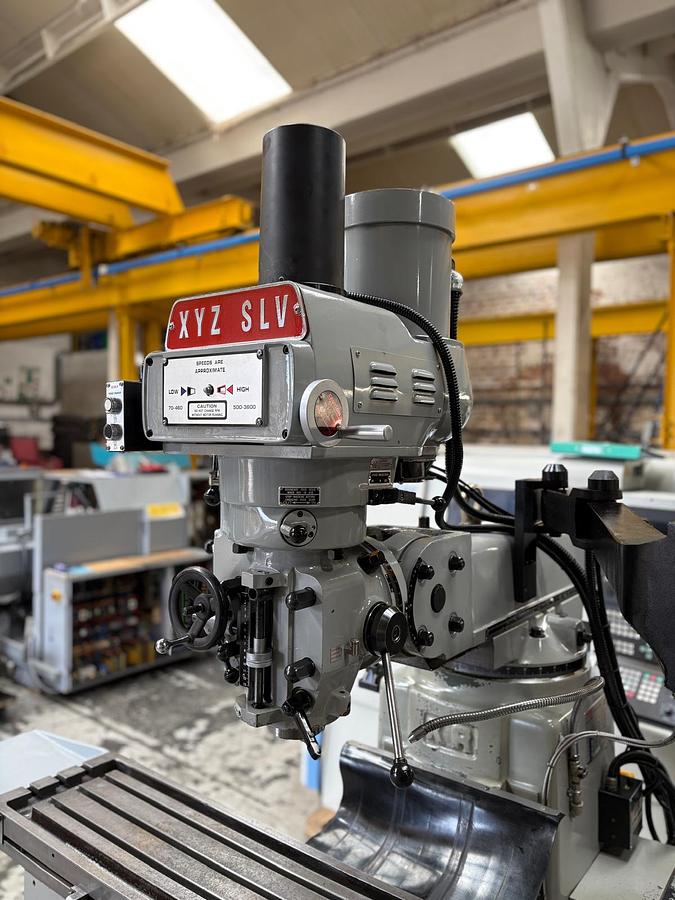

VARIABLE SPEED HEAD

Spindle speeds (Inf. Variable)                          Low range             70 – 460 rpm

                                                                         High range            500 – 3600 rpm

Head swivels to left and right                           90 degrees

Head tilts forwards and backwards                 45 degrees

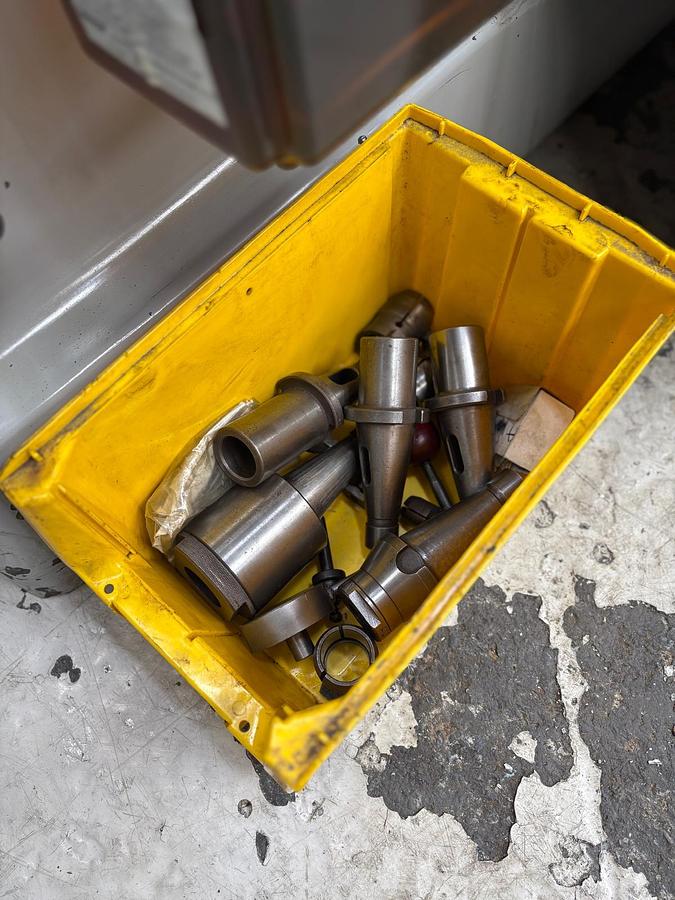

Spindle taper                                                    40 ISO

Quill vertical travel                                            127 mm

Spindle drive motor                                           3.75 kW  (5 HP)

Max. throat depth                                              686 mm

Weight                                                               1850 kg

Machine complete with :-

Slide type - Hardened Box Way

Power rise and fall to knee.

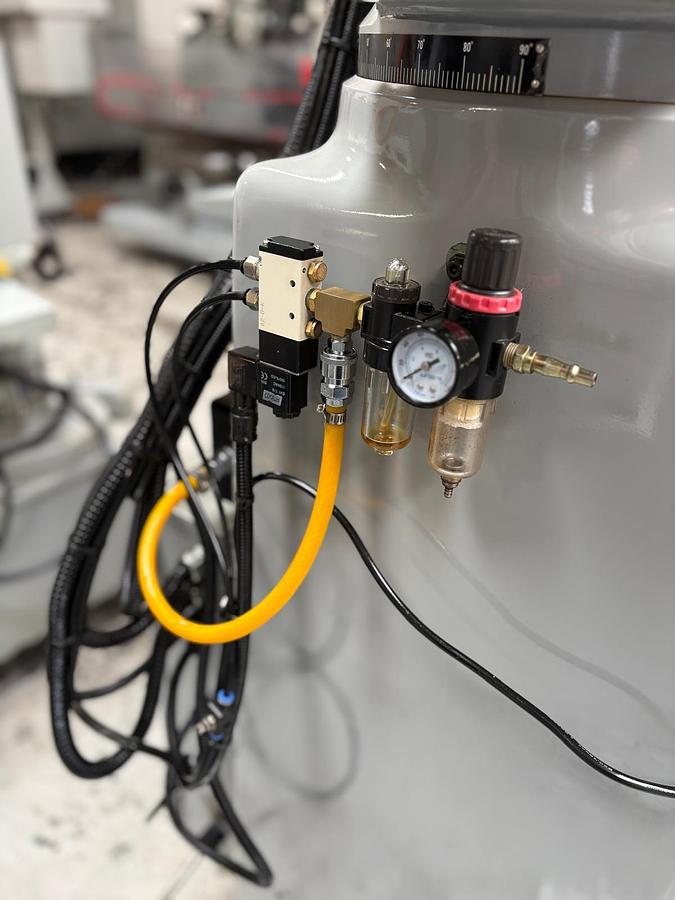

Air Draw Bar.

Automatic lubrication.

Low volt light.

Coolant.

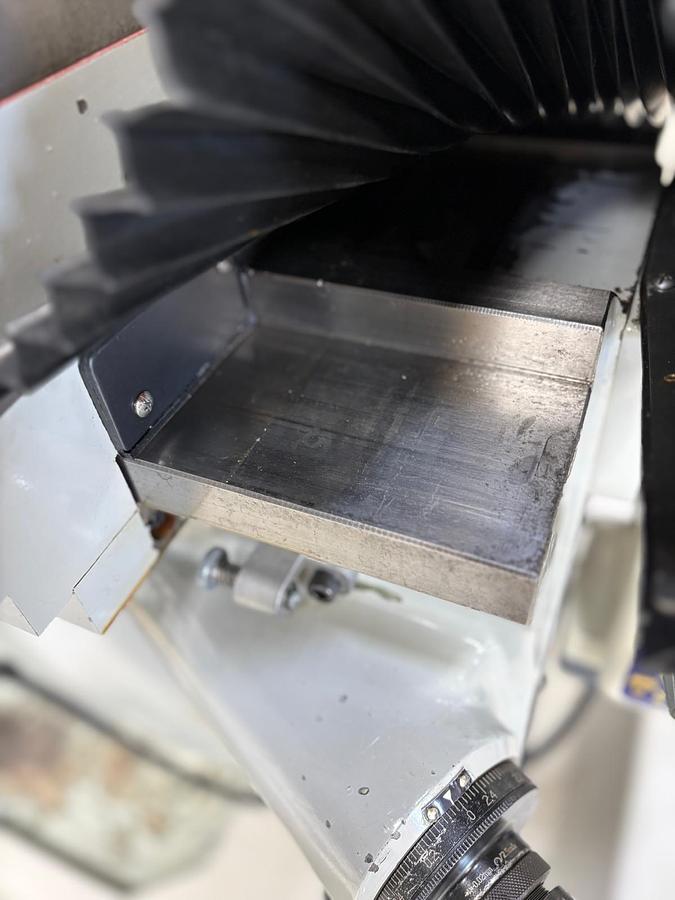

Swarf tray.
