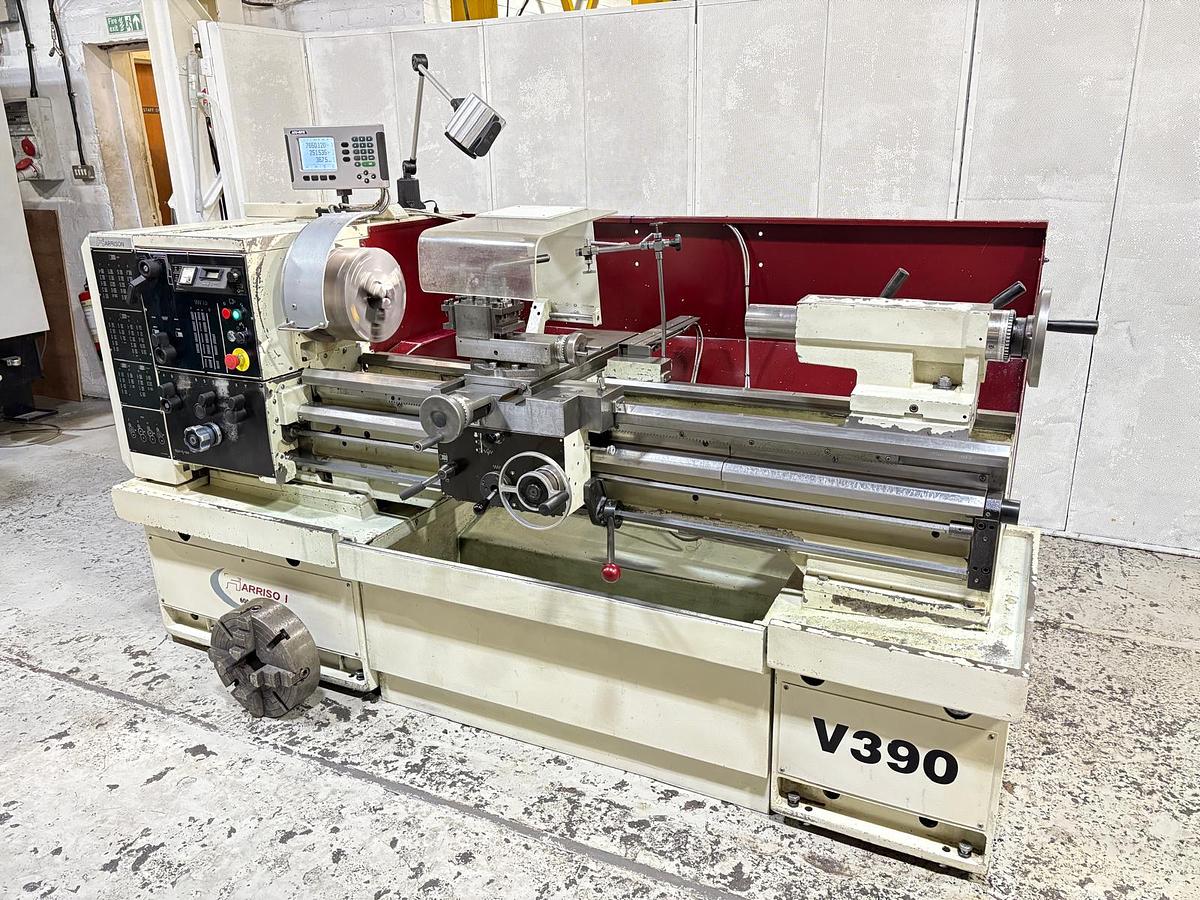

2011 HARRISON V390 x 1250 GAP BED CENTRE LATHE

HARRISON GAP BED CENTRE LATHE

Model                                                                                                                    V390 x 1250

Serial number                                                                                                      7V0355P

Year                                                                                                                       2011

CAPACITY

Distance between centres                                                                                   1250 mm

Swing over bed                                                                                                    400 mm

Swing over cross slide                                                                                        246 mm

Swing in gap                                                                                                        585 mm

UNIVERSAL GEARBOX

Longitudinal feeds per rev                                                                                 0.036 to 2.4 mm

Cross feeds                                                                                                           Half longitudinal

Whitworth threads                                                                                              (56) 2 - 72 tpi

Metric pitches                                                                                                      (51) 0.2 - 14 mm

Module pitches                                                                                                    0.2 – 3.5 MOD

Diametrical pitches                                                                                             8 – 56 D.P.

HEADSTOCK

Spindle speeds  (3 range)                                                                                   14 - 2500 rpm

Main motor                                                                                                          7.5 kW (10 hp)

Spindle nose                                                                                                         6” D.1 Camlock

Bore through spindle                                                                                           54 mm

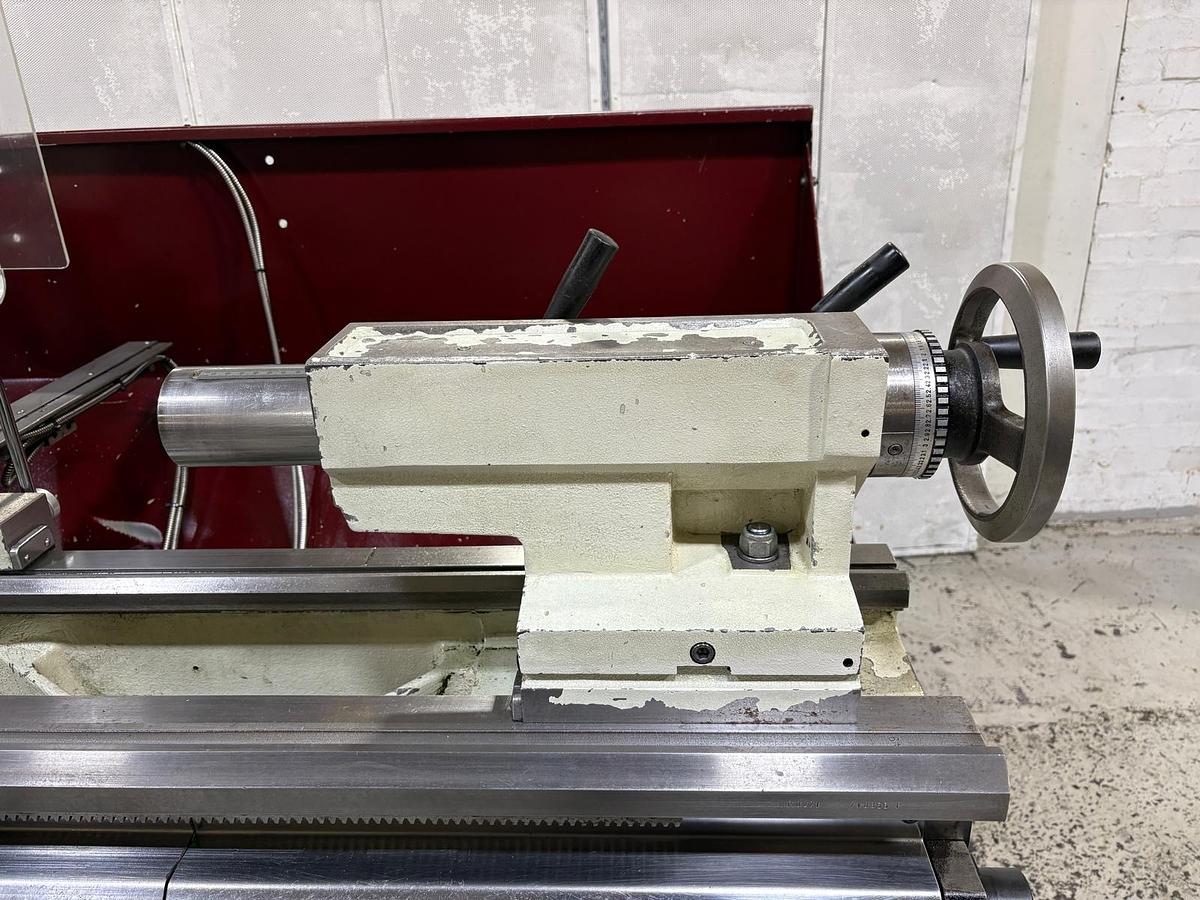

TAILSTOCK

Spindle diameter                                                                                                 73 mm

Spindle travel                                                                                                       140 mm

Taper of centre                                                                                                     No. 5 Morse
