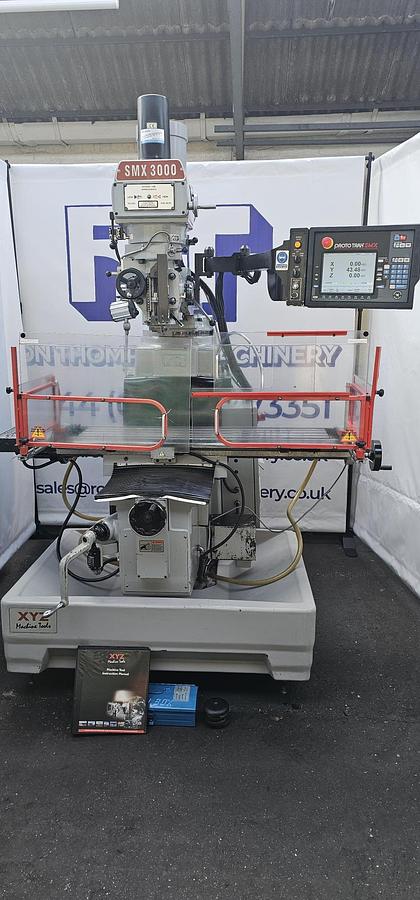

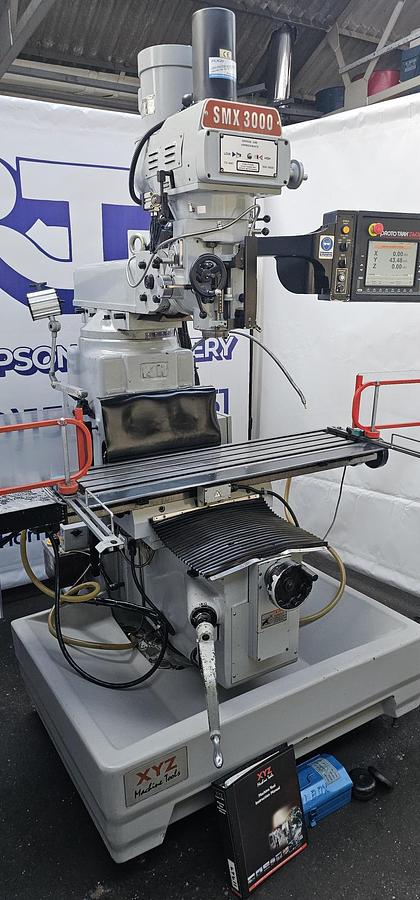

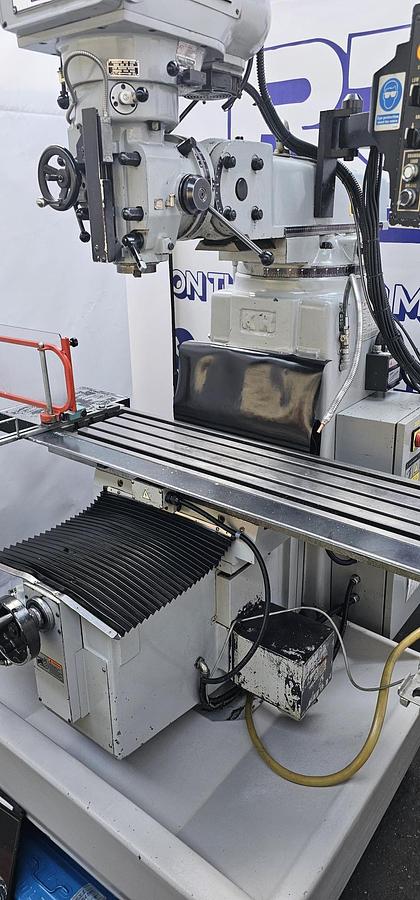

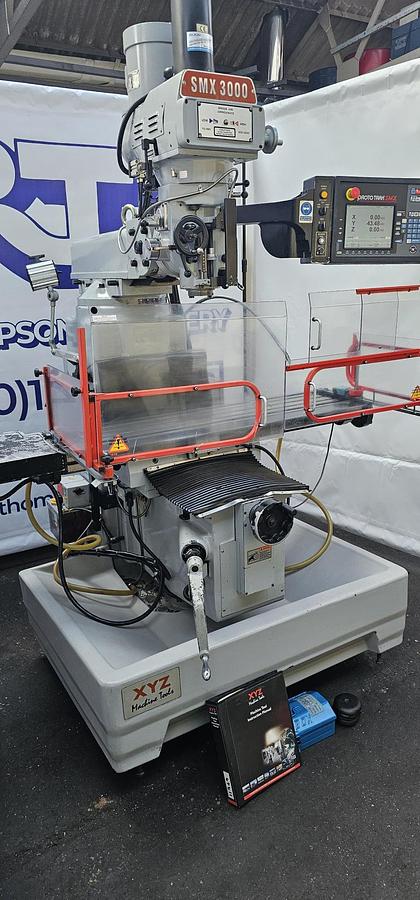

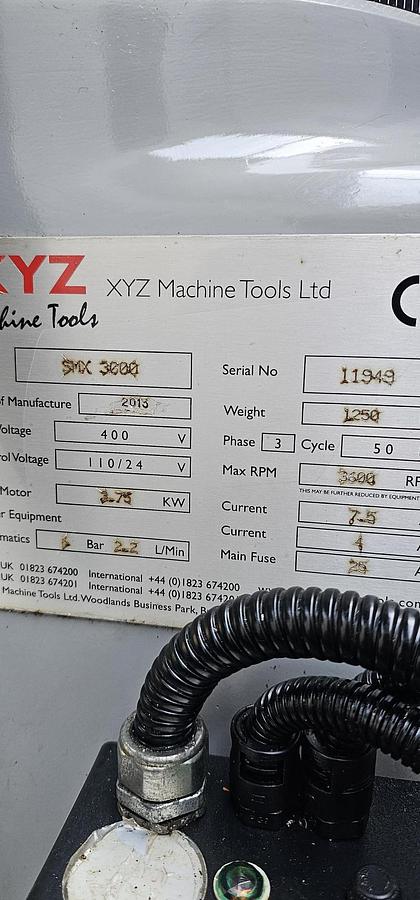

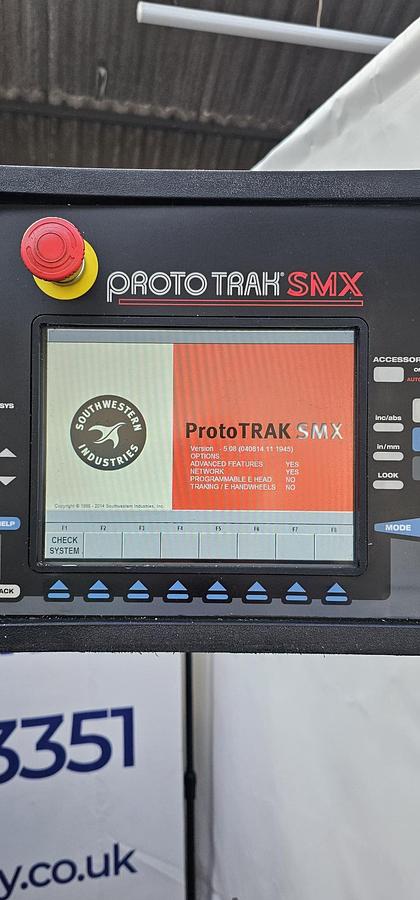

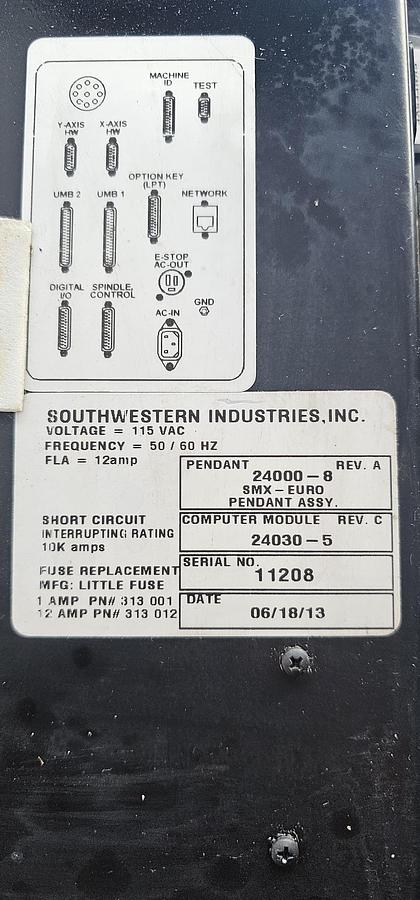

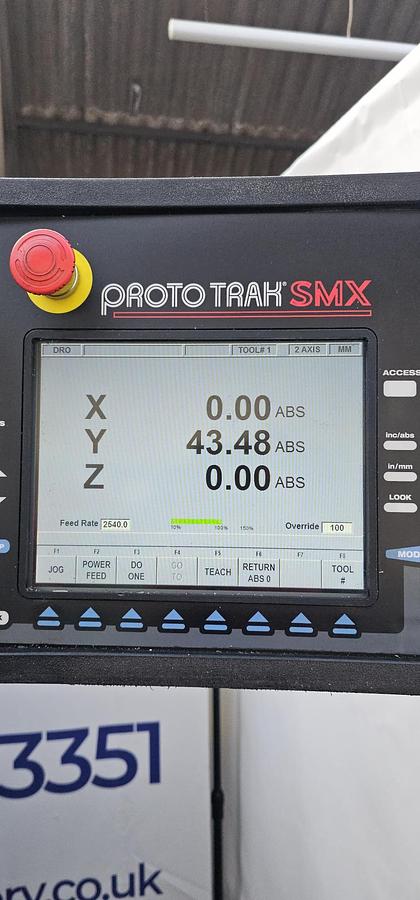

2013 XYZ PROTO TRAK SMX 3000 CNC TURRET MILLING MACHINE

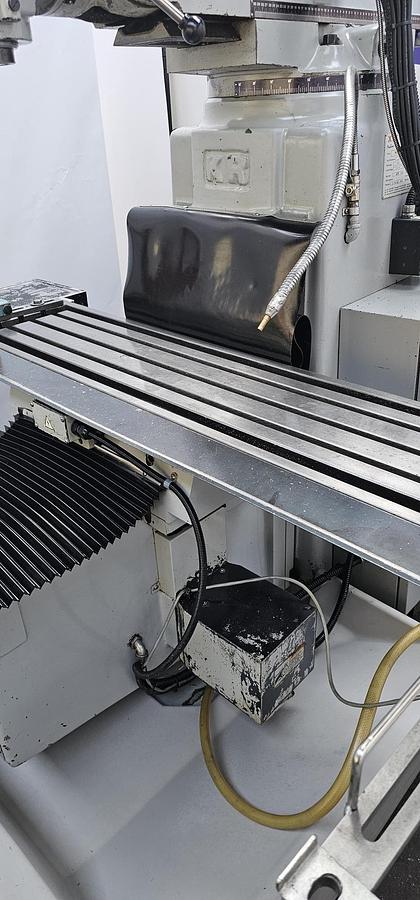

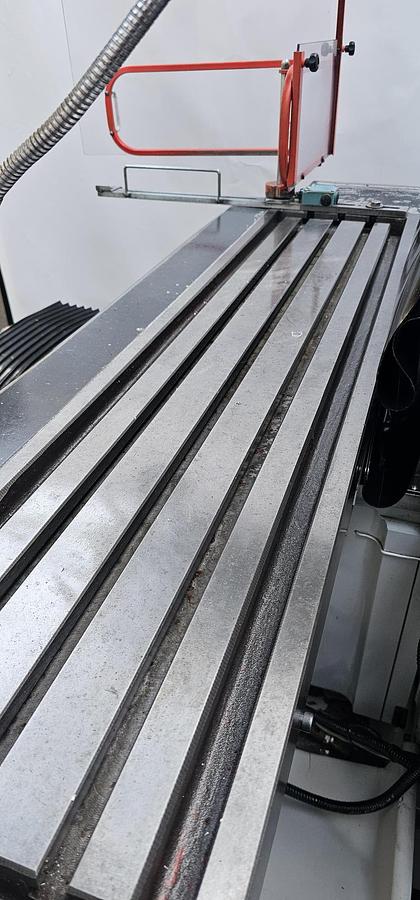

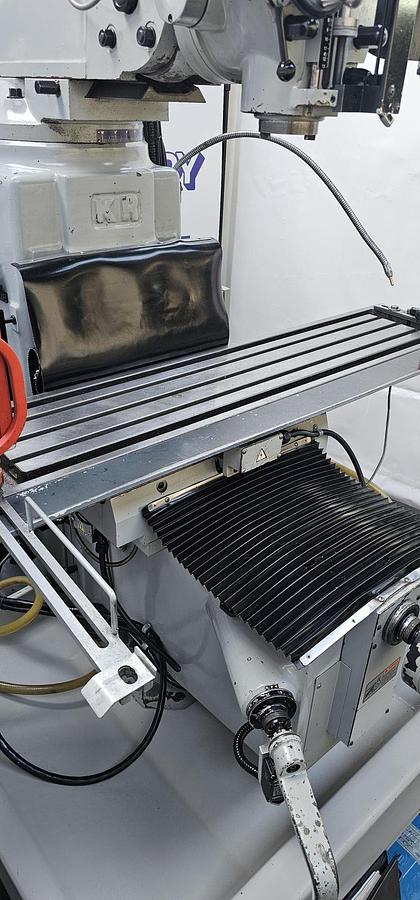

TABLE

Table size                                                       1371 x 305 mm

TRAVERSES

Longitudinal traverse          (X axis)                780 mm

Cross traverse                      (Y axis)              410 mm

Vertical traverse (knee)      (Manual)               400 mm

Ram adjustment                                              450 mm

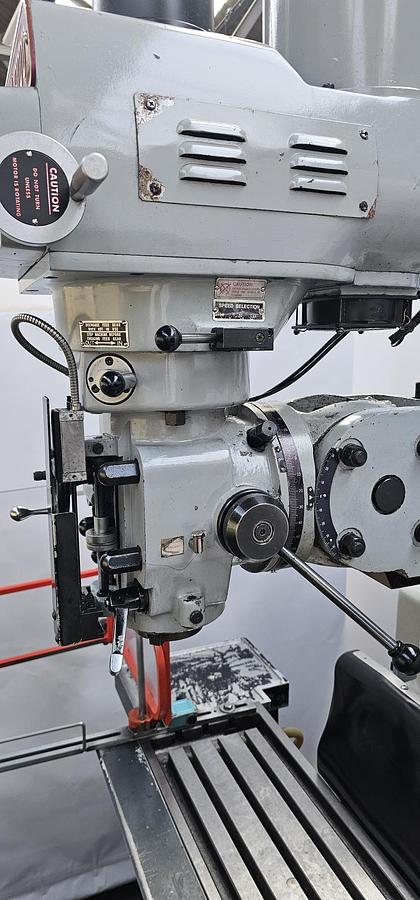

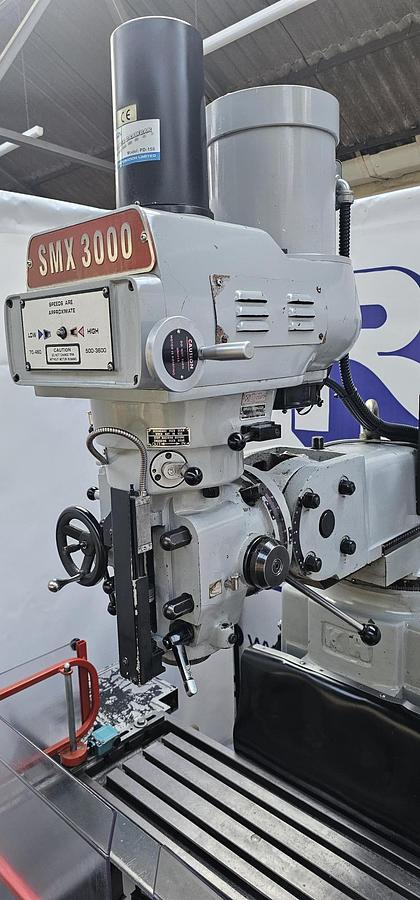

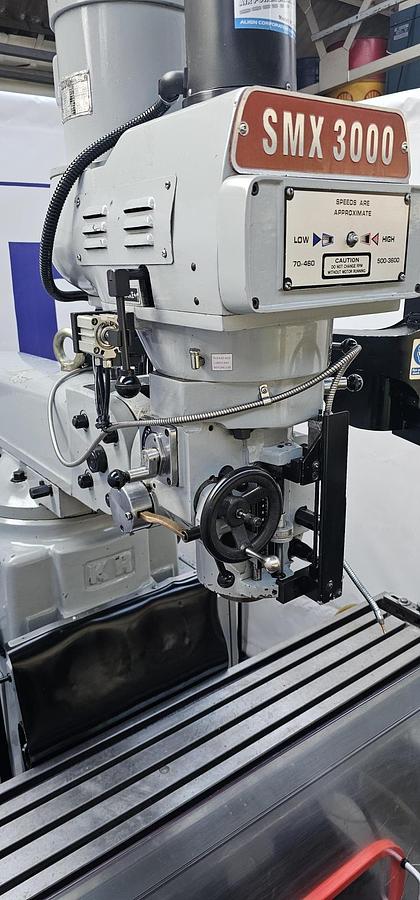

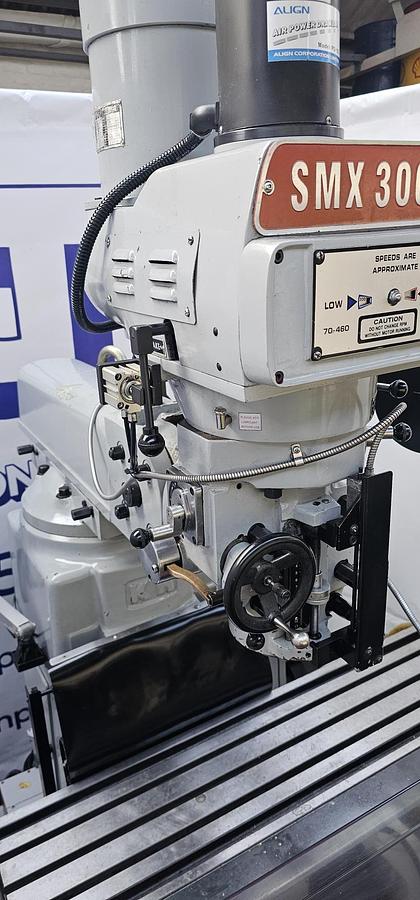

VARIABLE SPEED HEAD

Spindle speeds (Inf. Variable)                          Low range             70 – 460 rpm

                                                                         High range            500 – 3600 rpm

Head swivels to left and right                           90 degrees

Head tilts forwards and backwards                 45 degrees

Spindle taper                                                   40 ISO

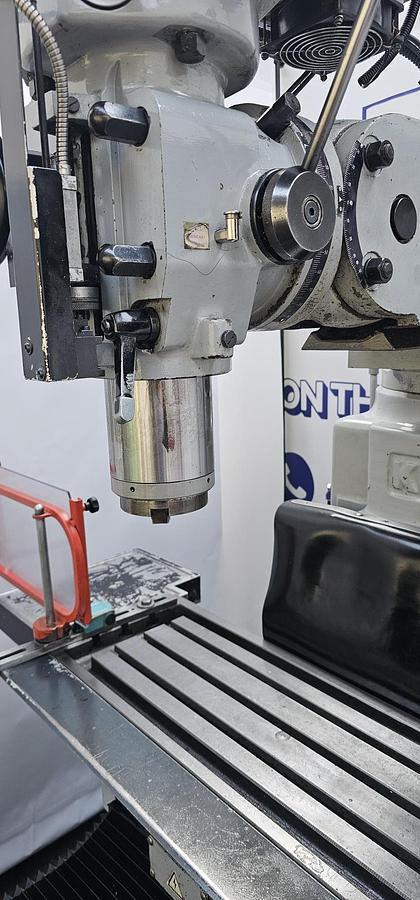

Quill vertical travel                                           127 mm

Quill feed per revolution                                   .038 / .076 / .15 mm

Spindle drive motor                                          3.75 kW  (5 HP)

Max. throat depth                                             700 mm

Weight                                                              1650 kg

Machine complete with :-

Slide type - Hardened Box Way

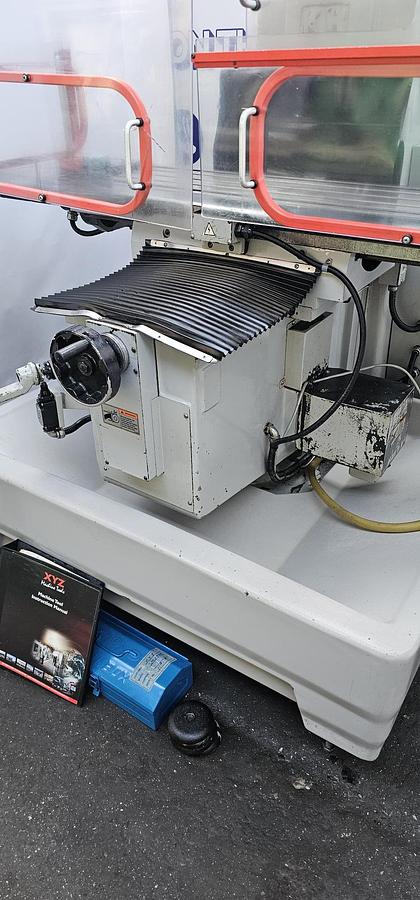

Interlocked table guards.

Power rise and fall to knee.

Air Draw Bar, Automatic lubrication.

Low volt light, Coolant, Swarf tray.
