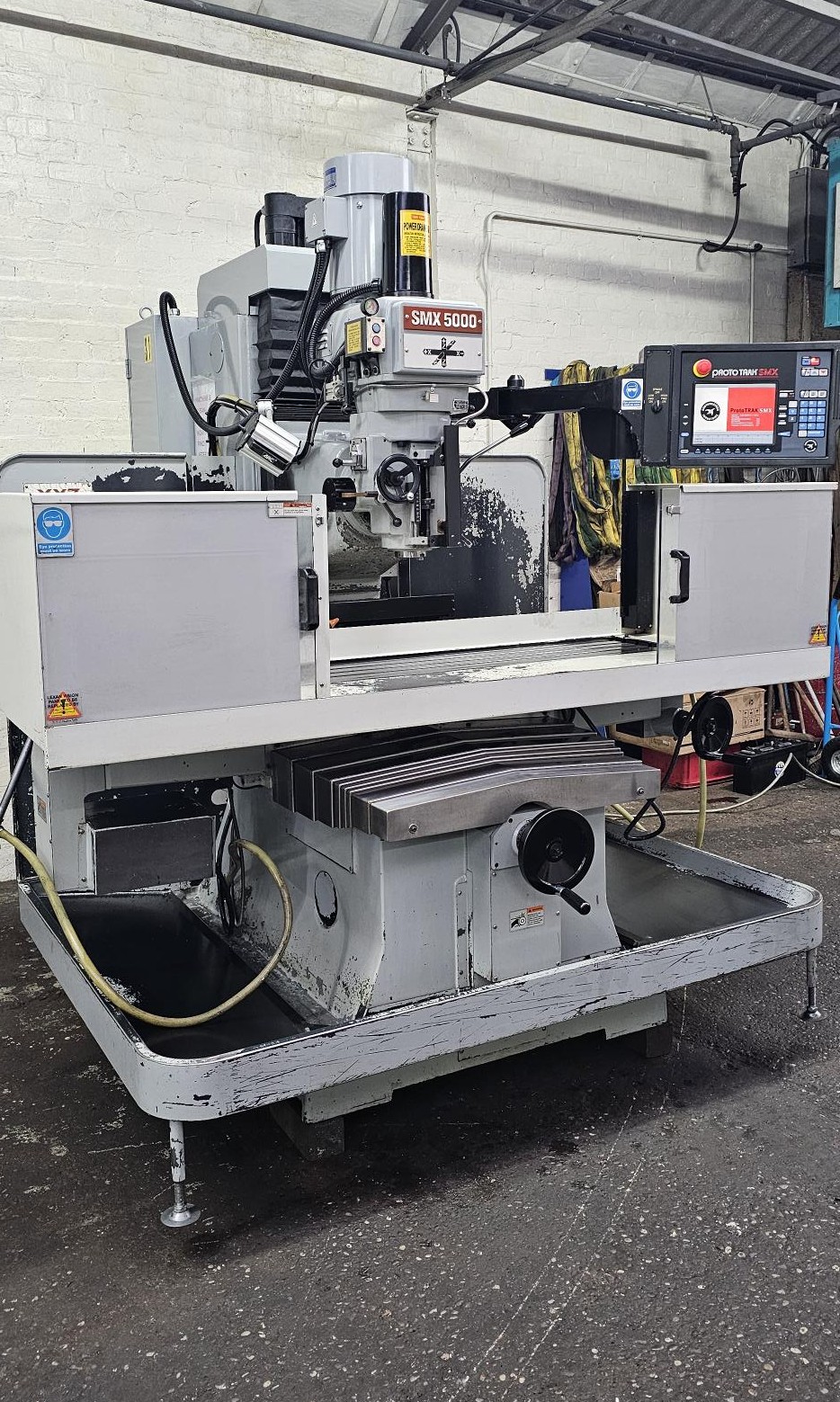

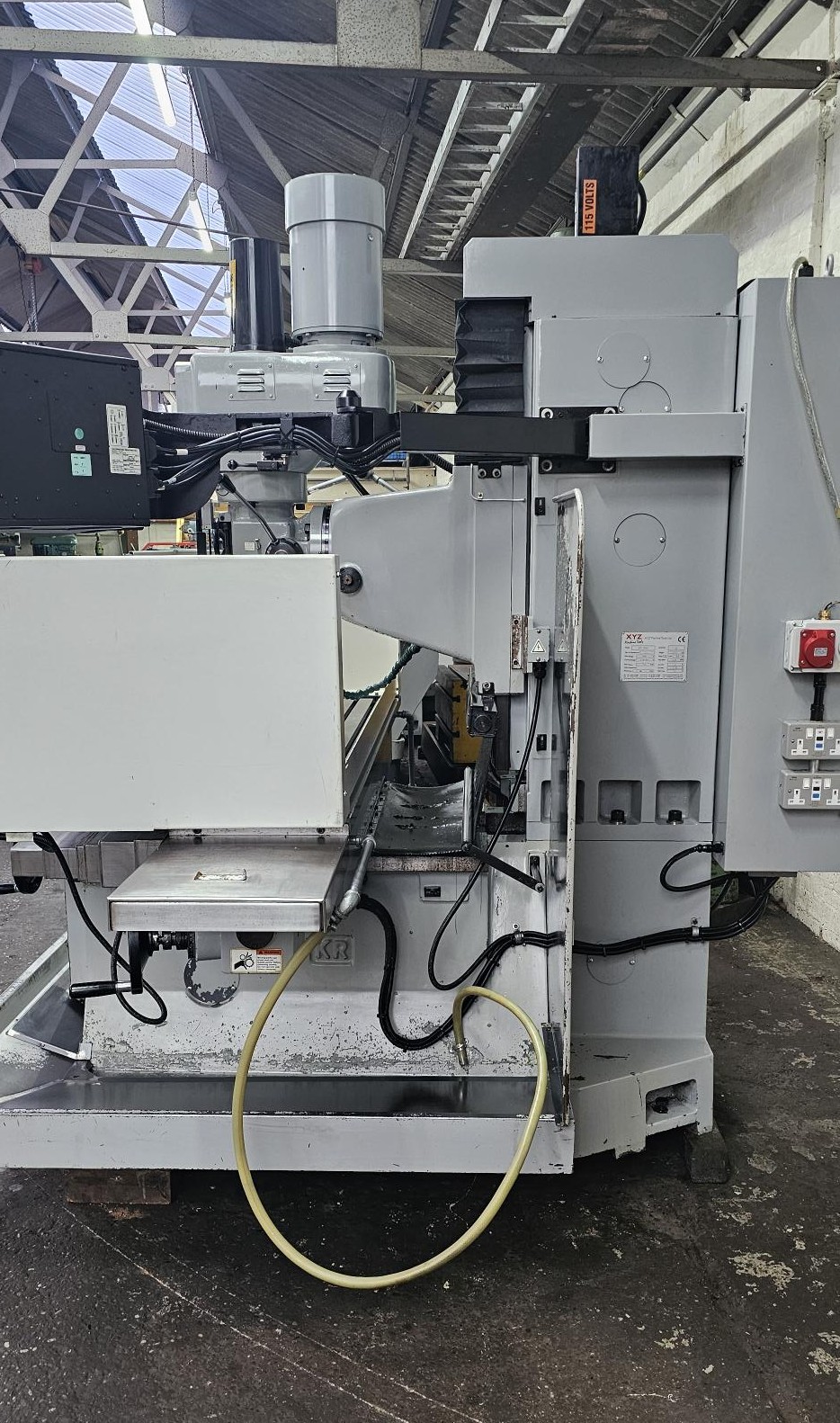

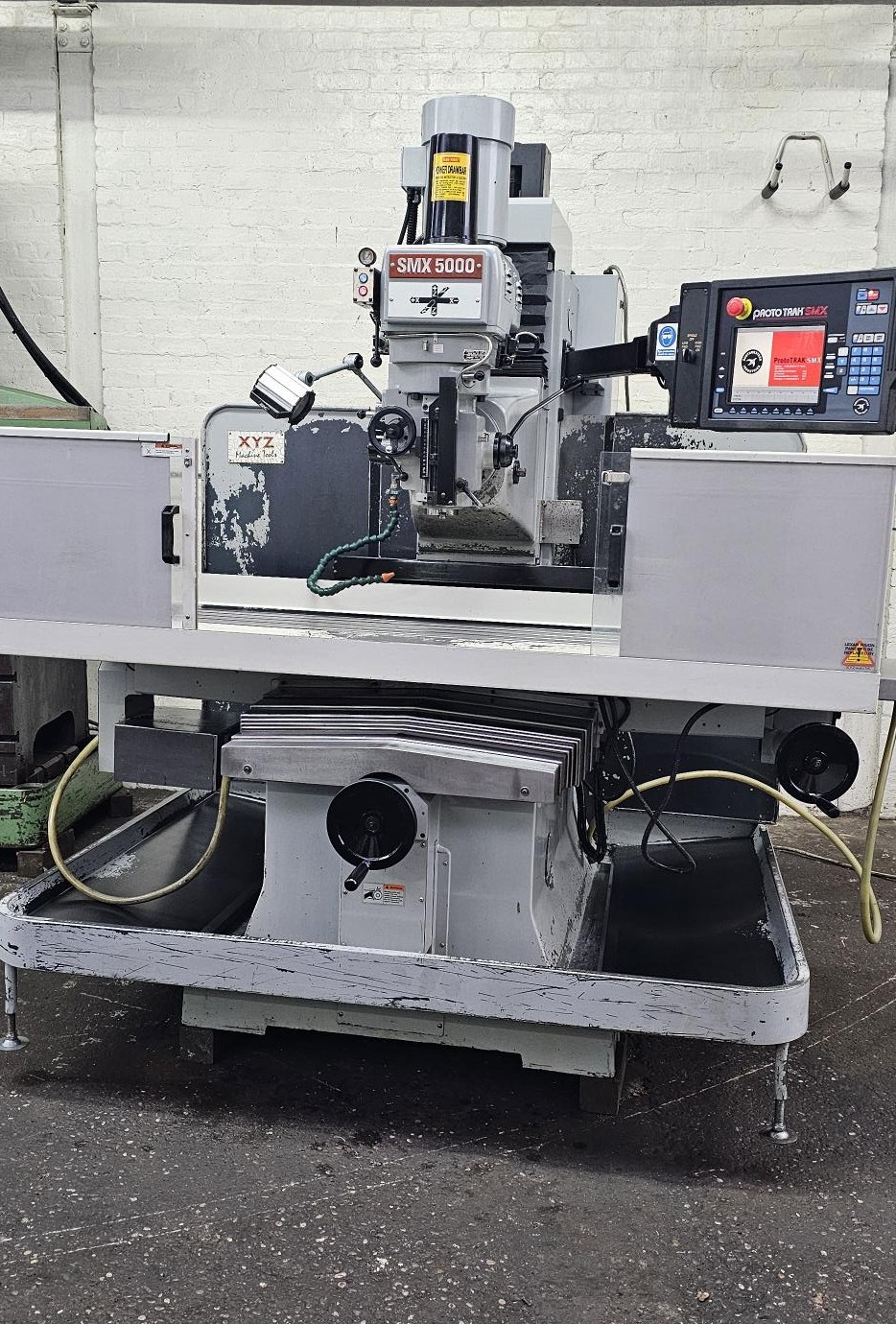

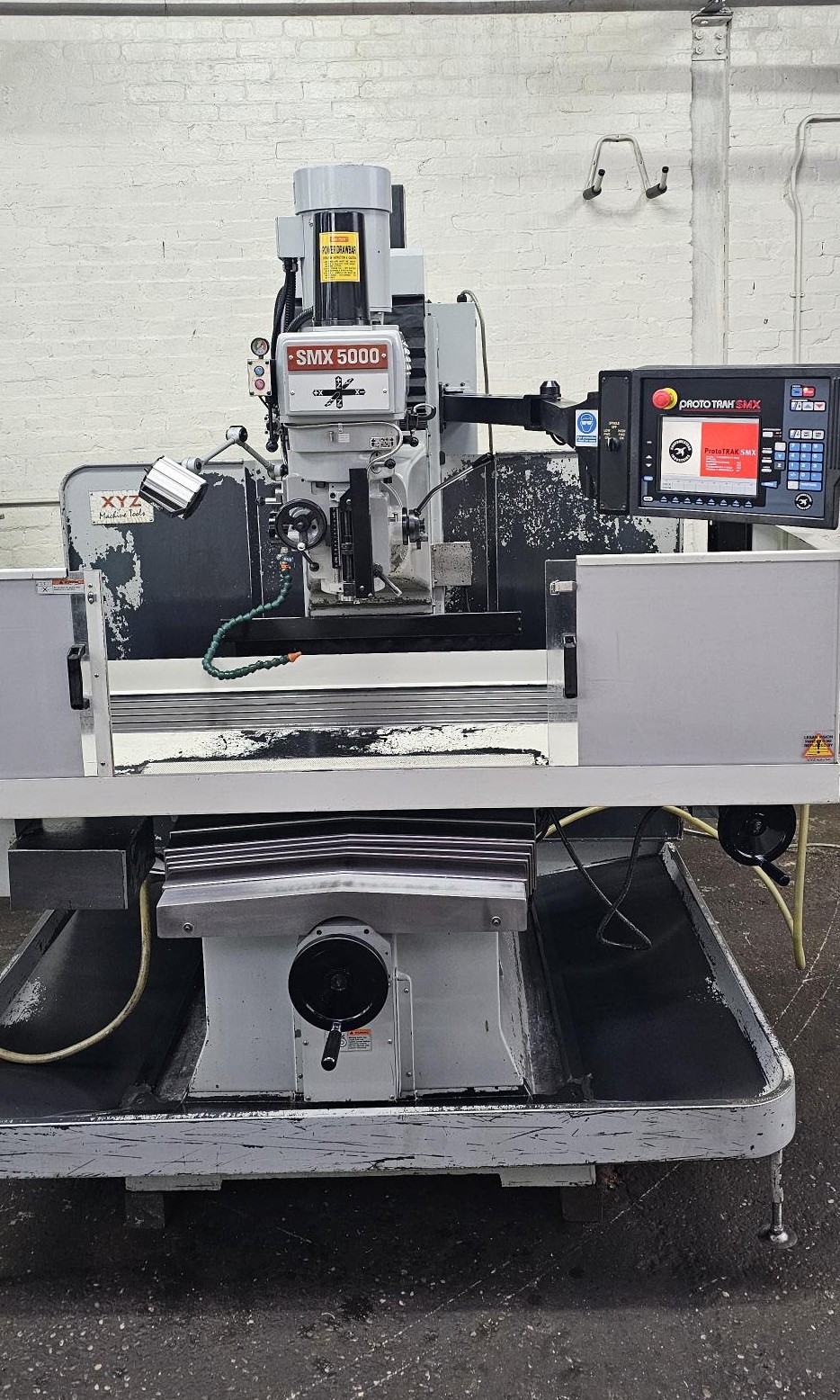

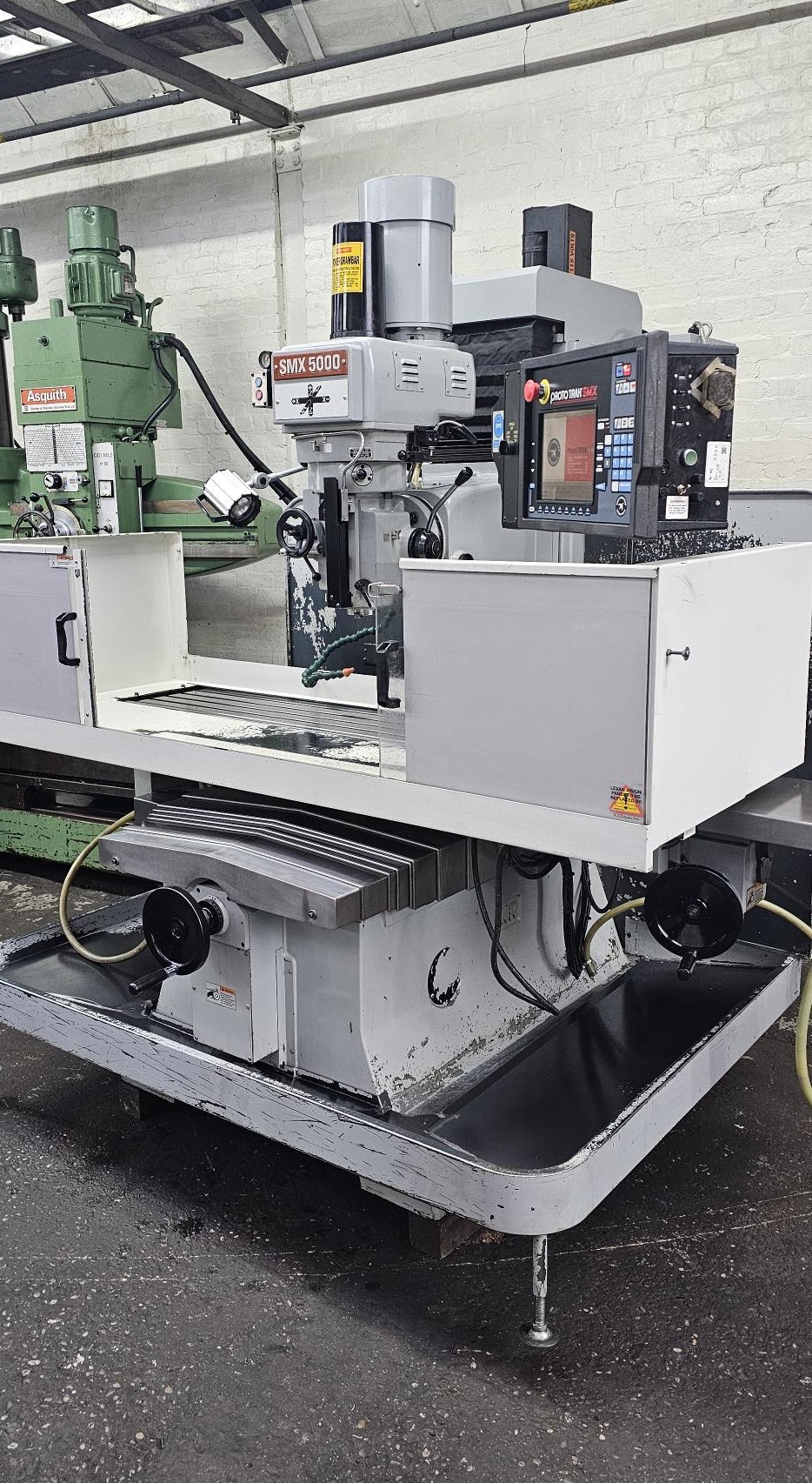

2012 XYZ SMX 5000 VERTICAL BED TYPE CNC MILLING MACHINE

Model                    SMX5000

Year of manufacture 2012

Serial number      11687

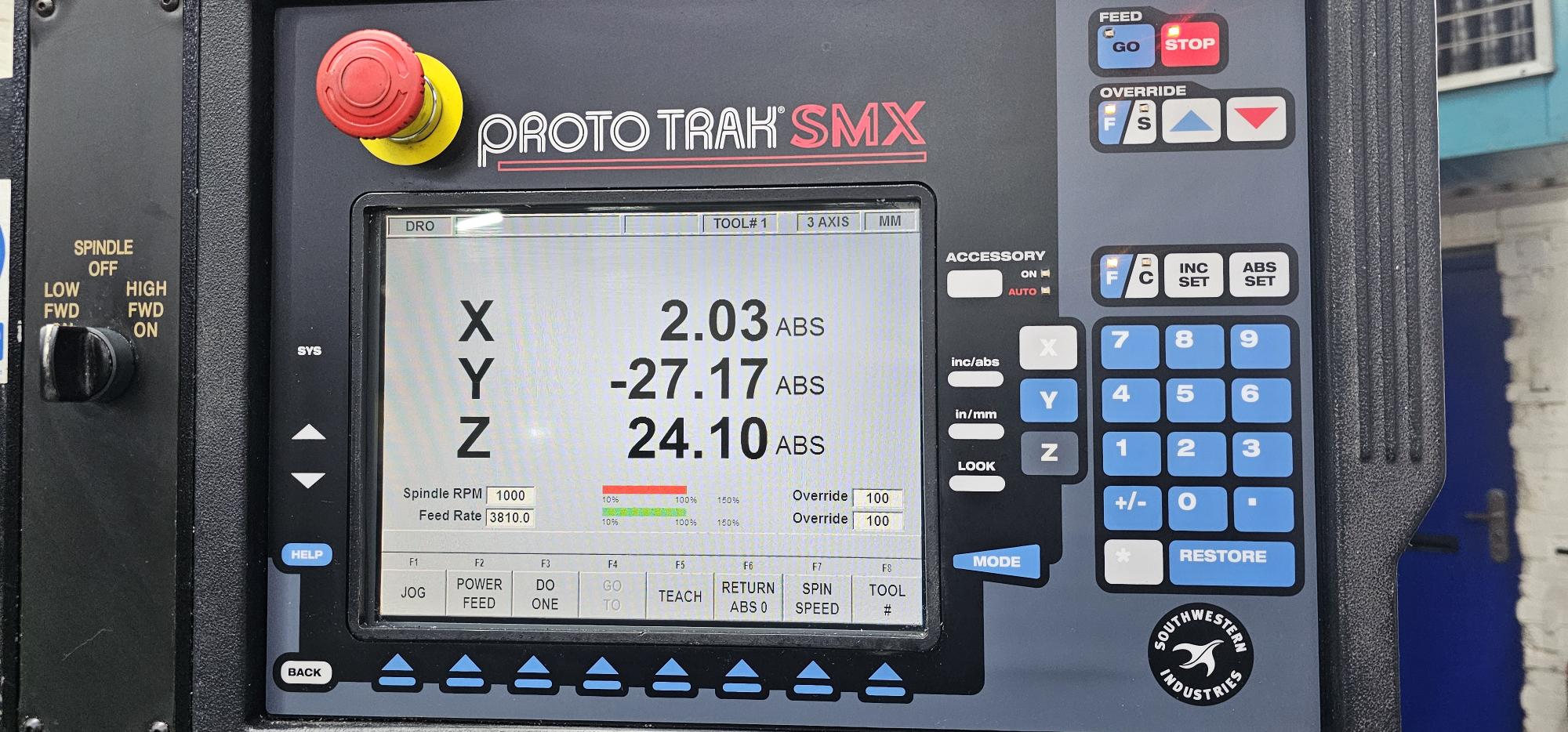

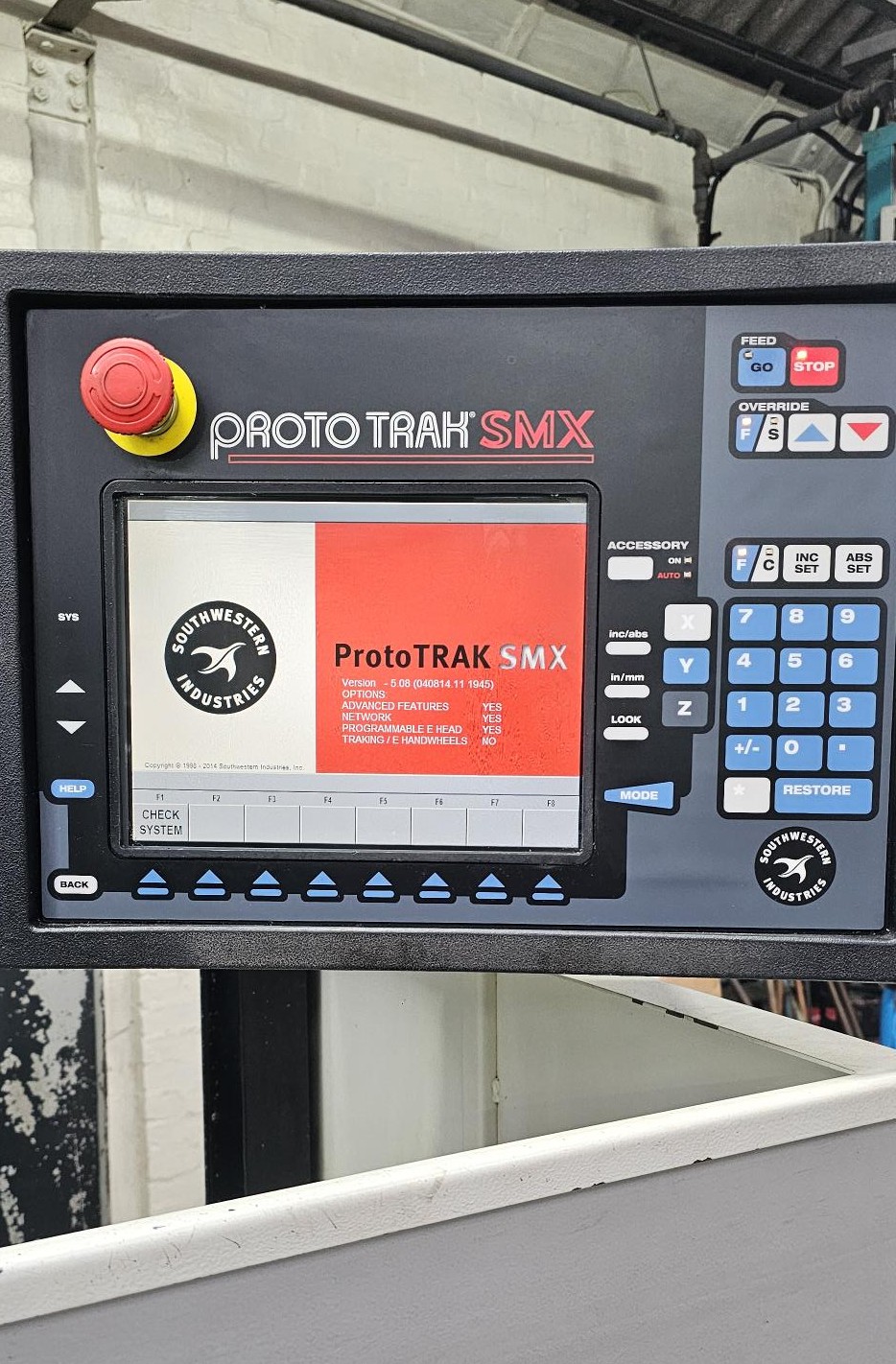

Control system         PROTO TRAK SMX

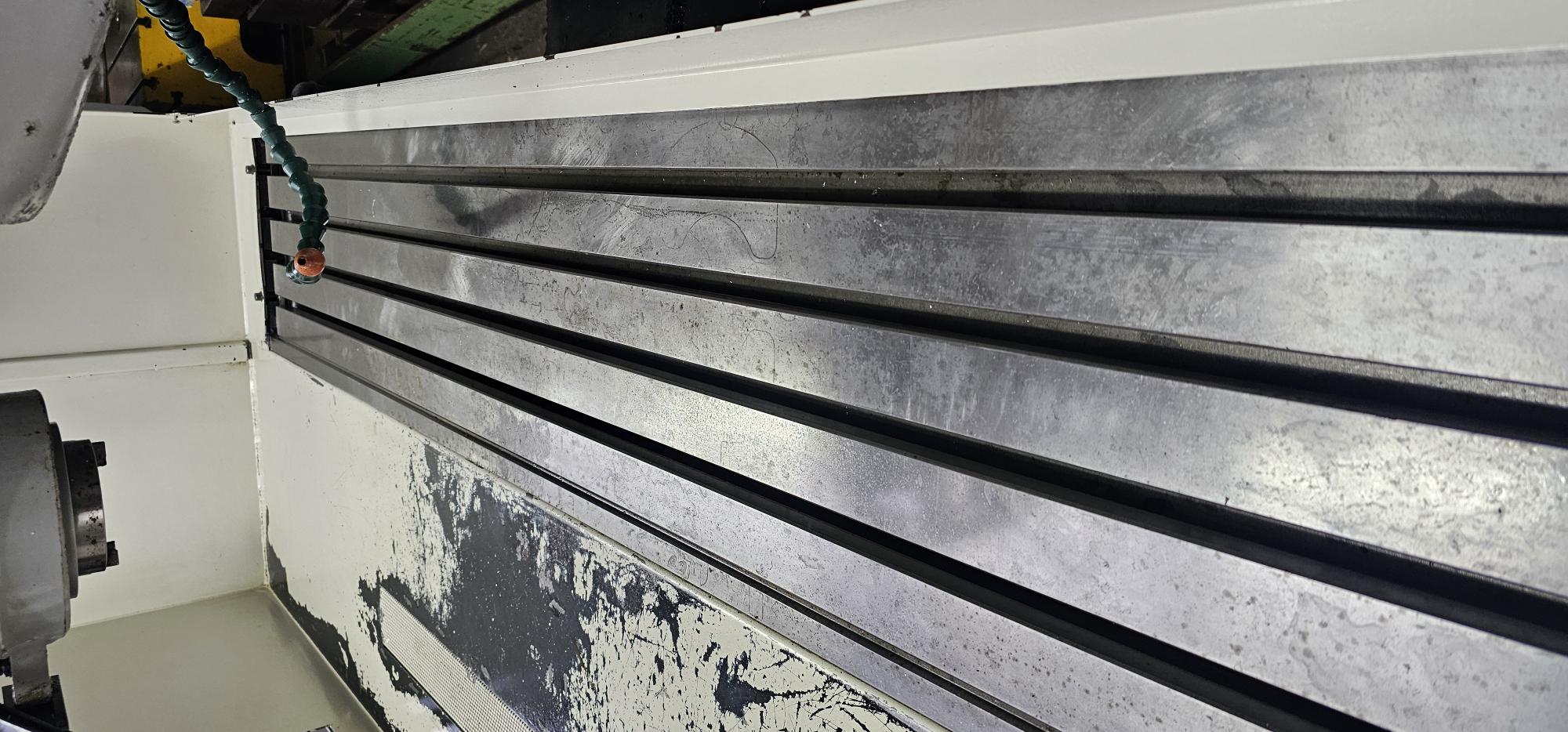

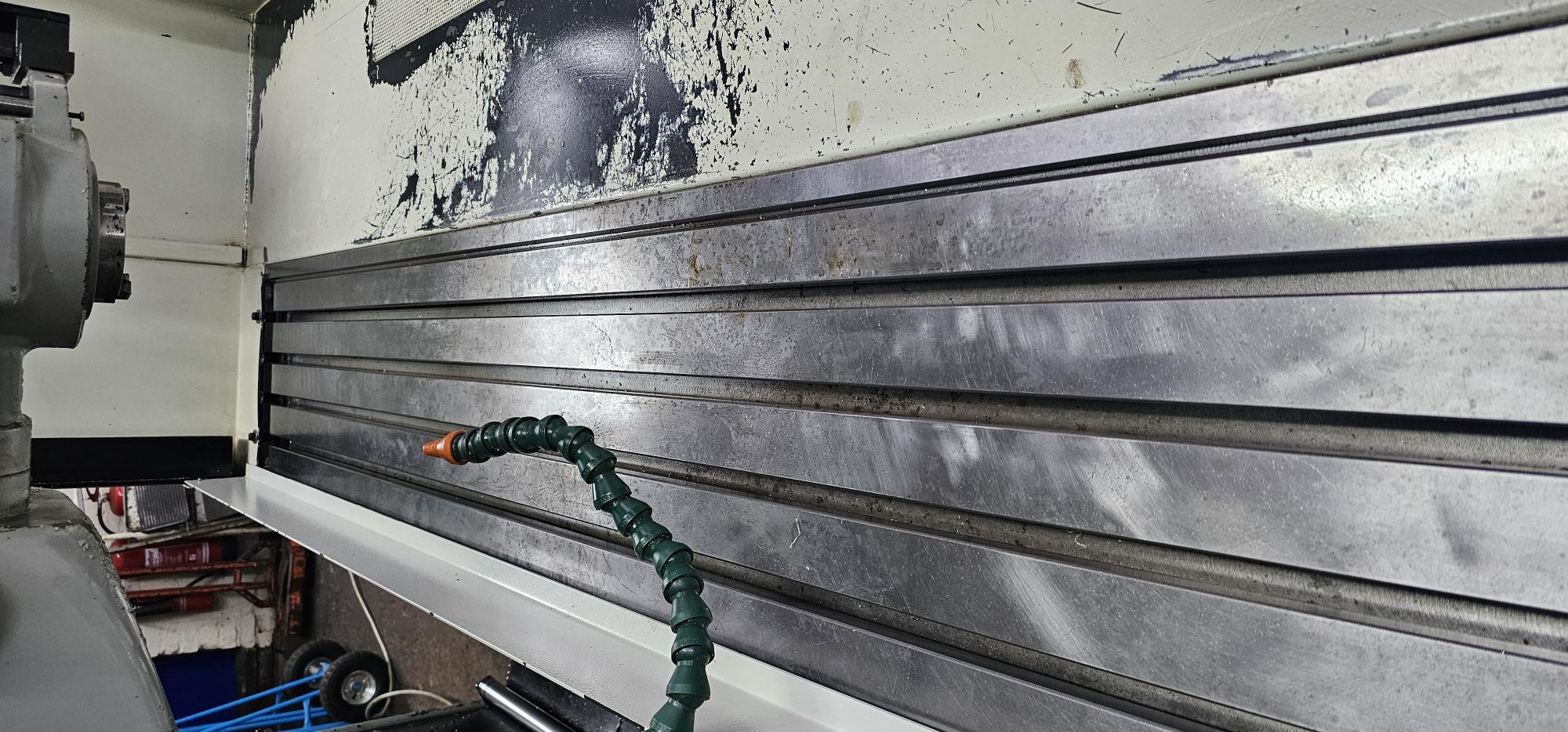

TABLE

Table size overall                        76” x 14”     1930 x 355  mm

Table load capacity                    1870 lb           850 kg

MOVEMENT

Table positioning travel (X x Y)  60” x 23.5”     1524 x 596 mm

Head vertical travel       (Z)        21”                  540 mm

Distance, table to spindle          3.75” – 26.5”   95 - 675 mm

Spindle centre to column face   24”                  610 mm

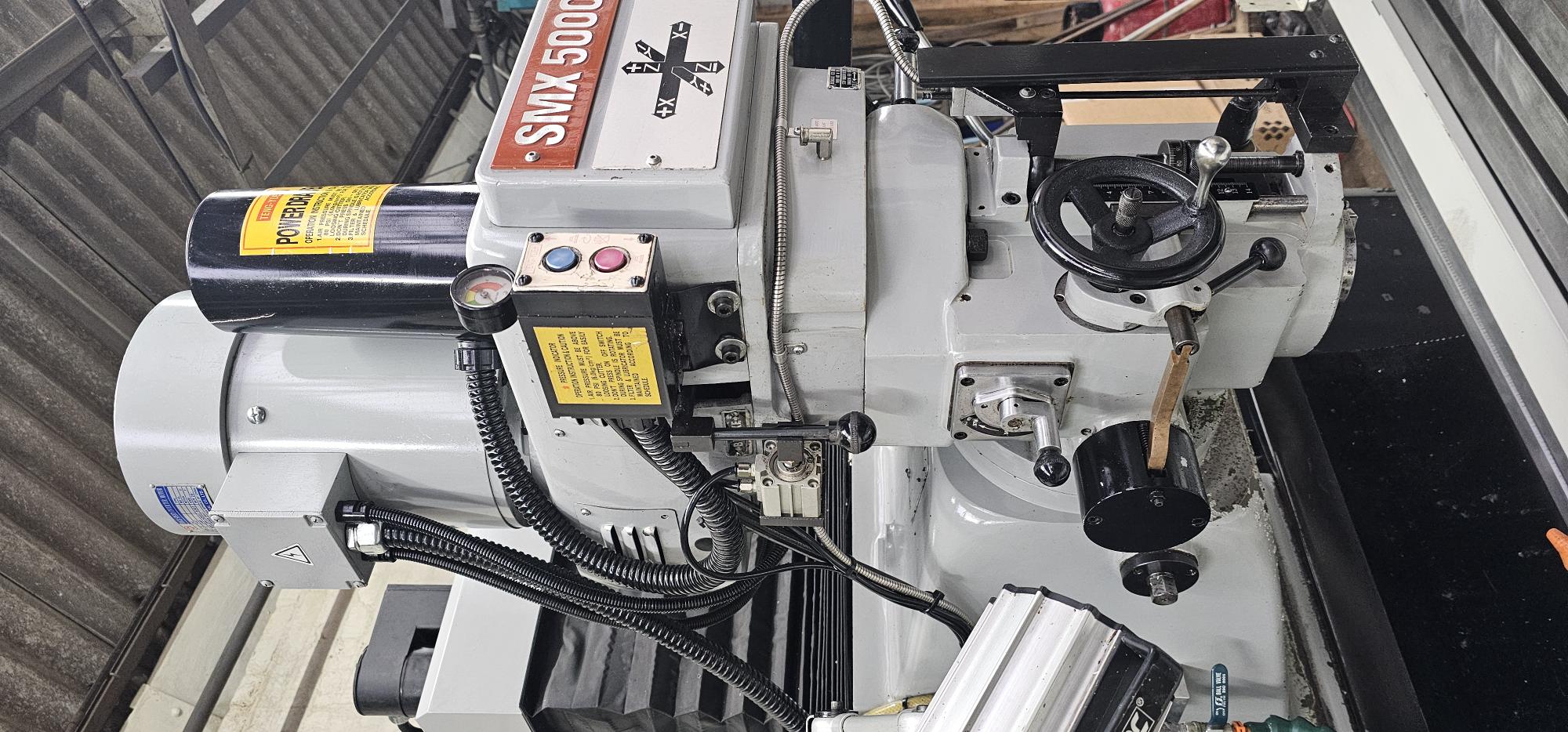

SPINDLE

Spindle taper                            ISO 40

Spindle speeds (Inf. Variable)  40 – 5000 rpm (Inverter)

Head swivels to left and right   90 degrees

Spindle feed per revolution     .0016” / .00309” / .00513” .0418 / .0786 / .1303 mm

Quill travel                                5.5”                  140 mm

Spindle drive motor                  7.5 HP              5.75 kW

Overall size approx.                2768mm W x 2286mm F to B x 2540mm H.

Machine weight (approx.)        3200 kg.

Complete with :-

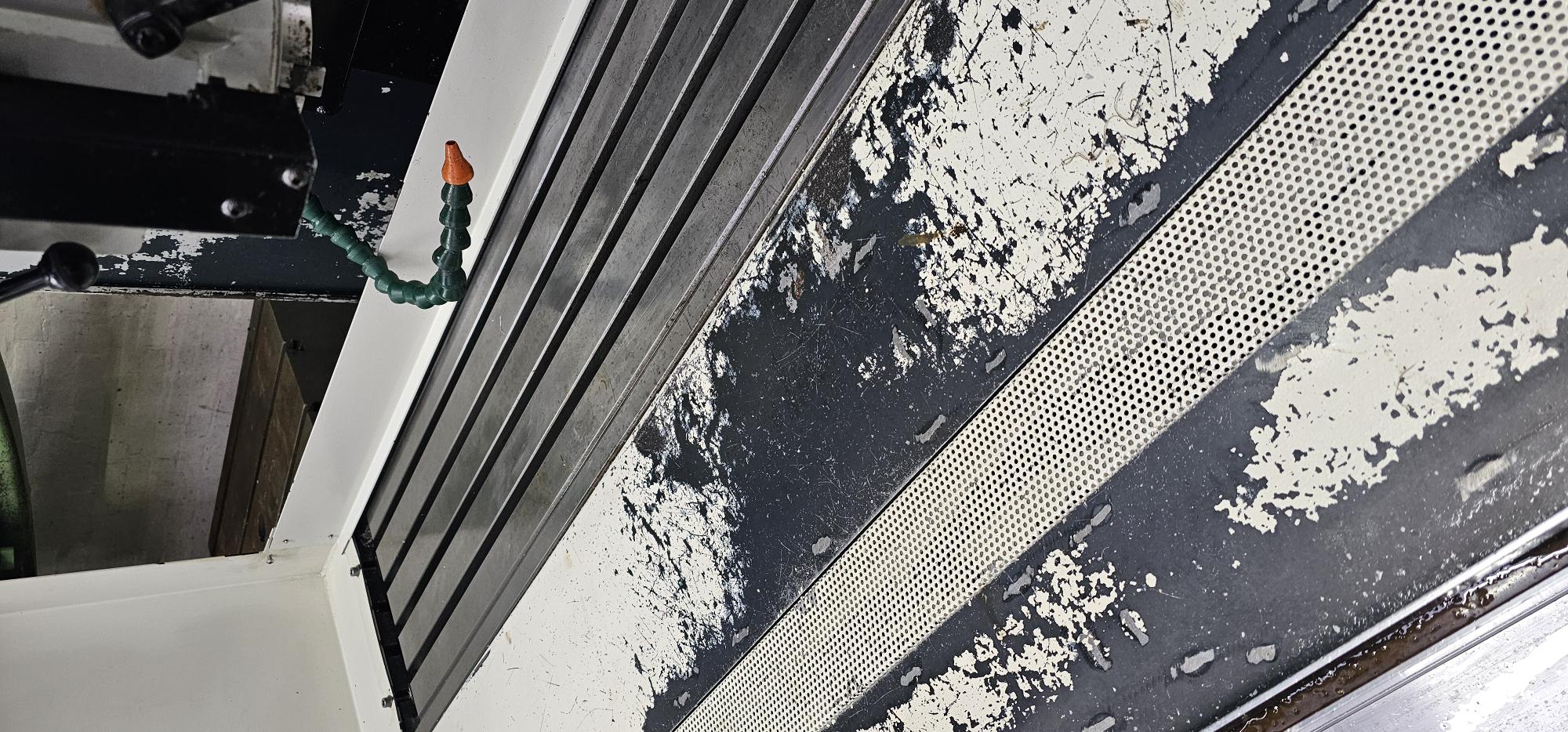

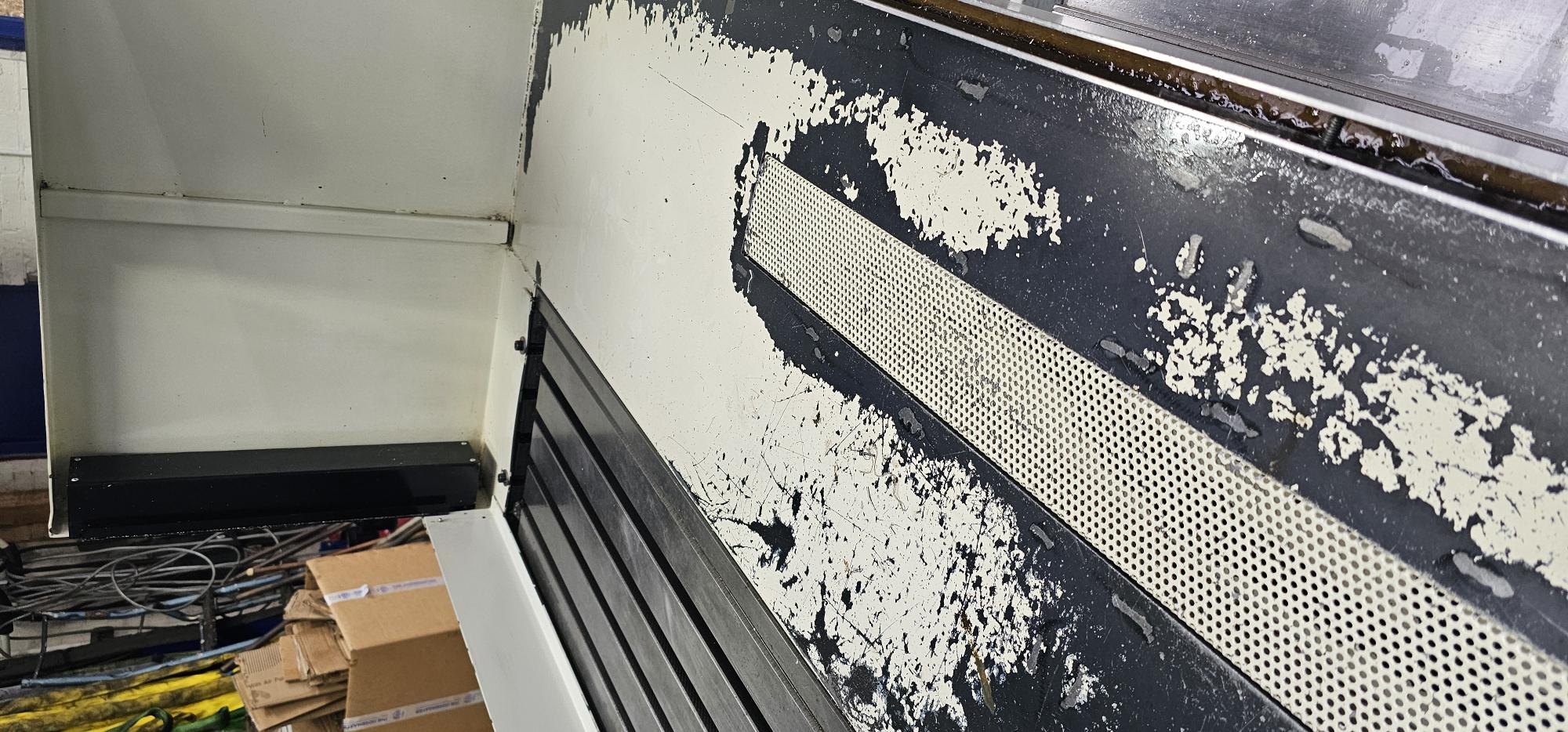

Table Guards.

D.R.O. to Quill.

Air Draw Bar.

Automatic lubrication.

Coolant & Halogen Worklight

CONDITION        :- EXCELLENT.
