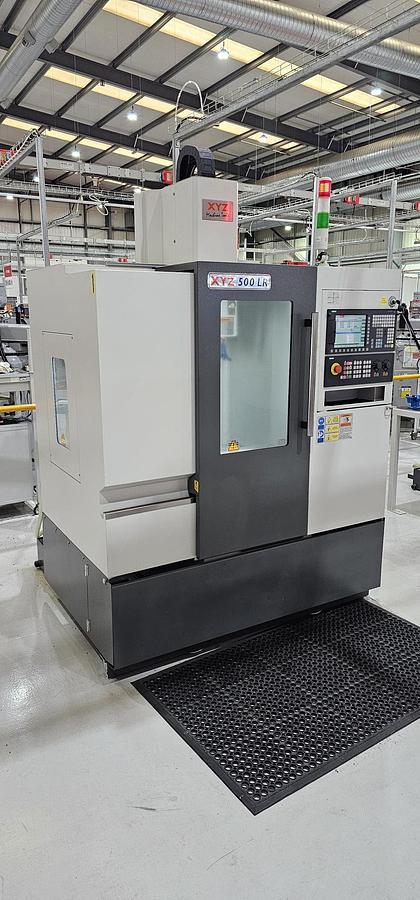

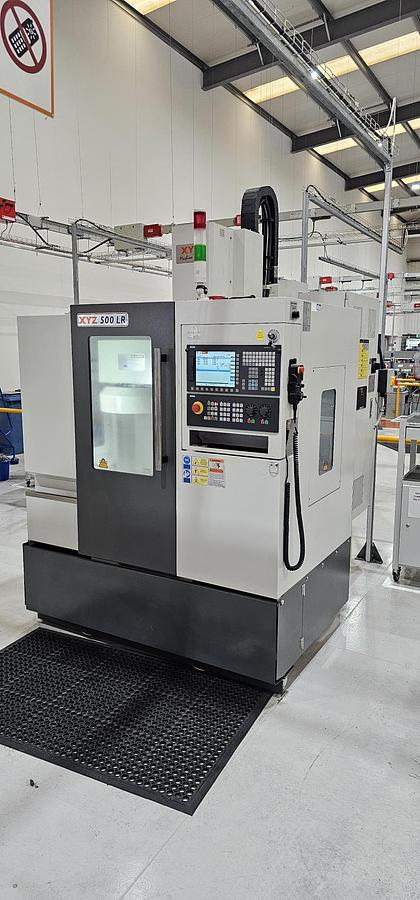

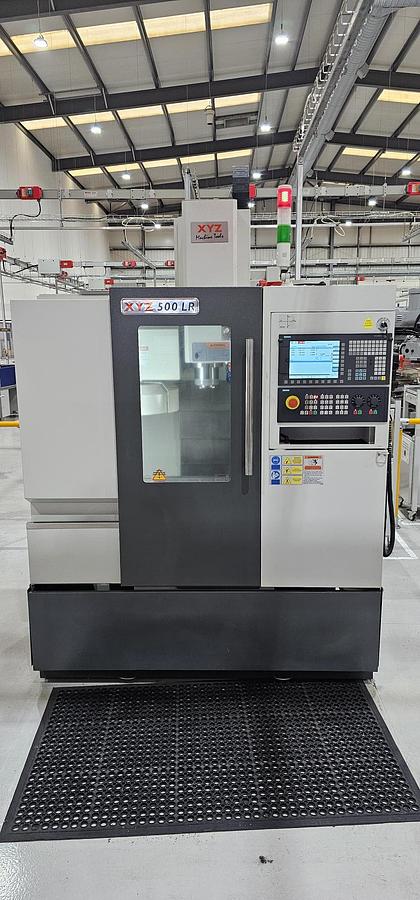

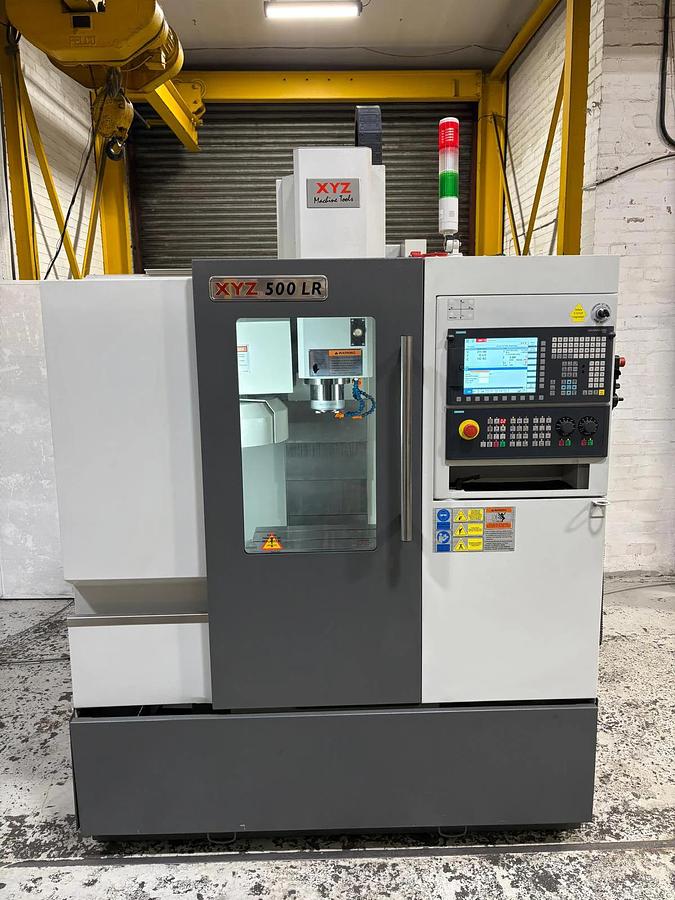

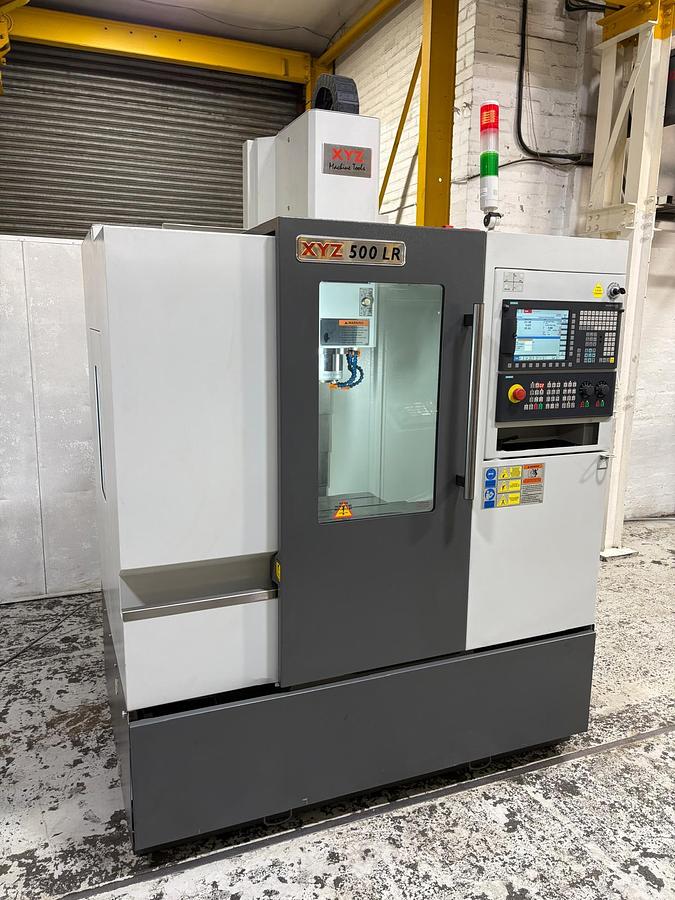

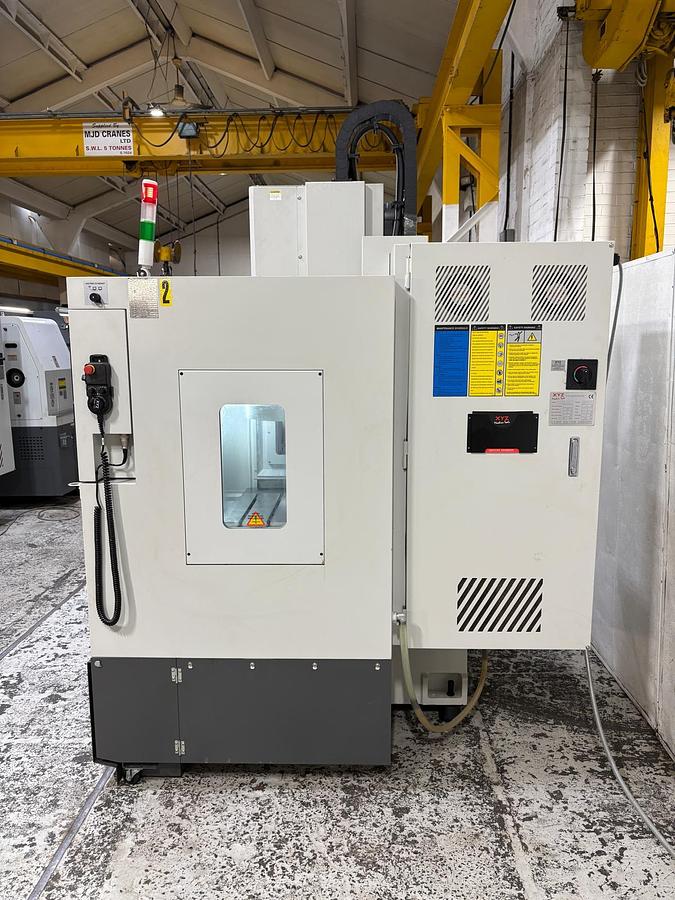

2018 XYZ 500 LR VERTICAL CNC MACHINING CENTRE

XYZ VERTICAL CNC MACHINING CENTRE

Model                  500 LR                               Year                     2018

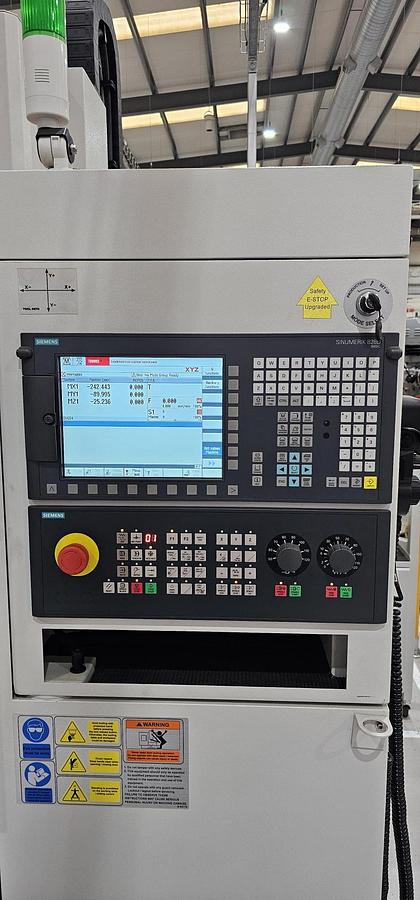

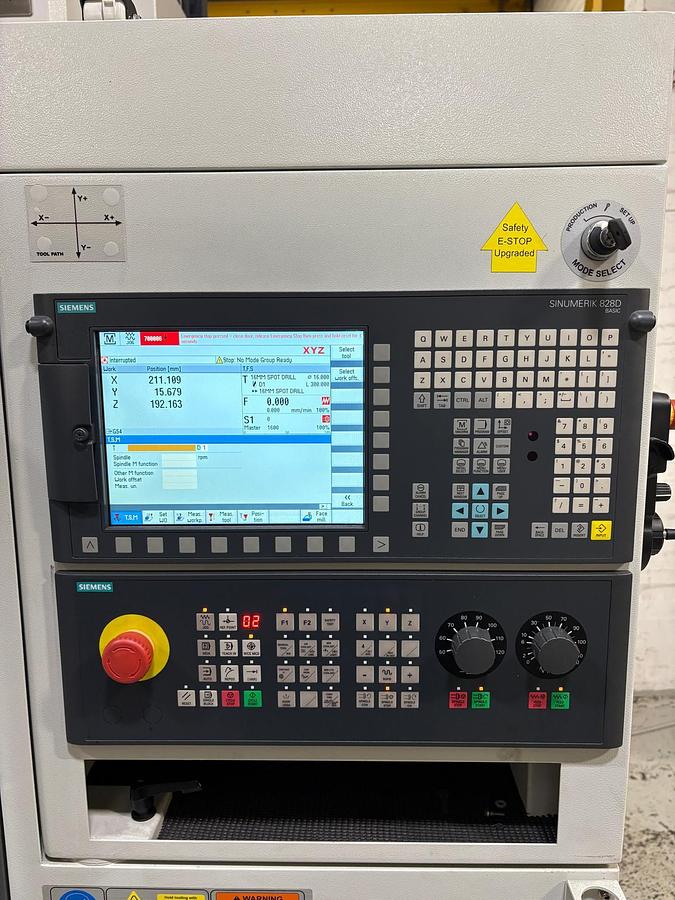

Serial number      SMA10190                        Control system    SIEMENS 828D with Shopmill.

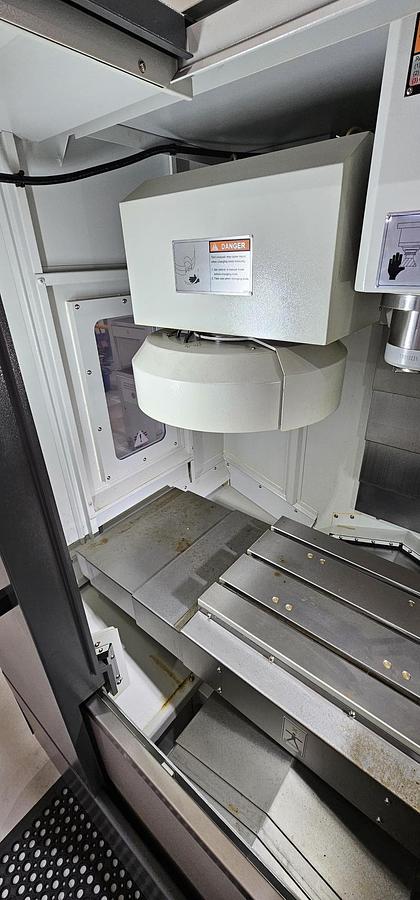

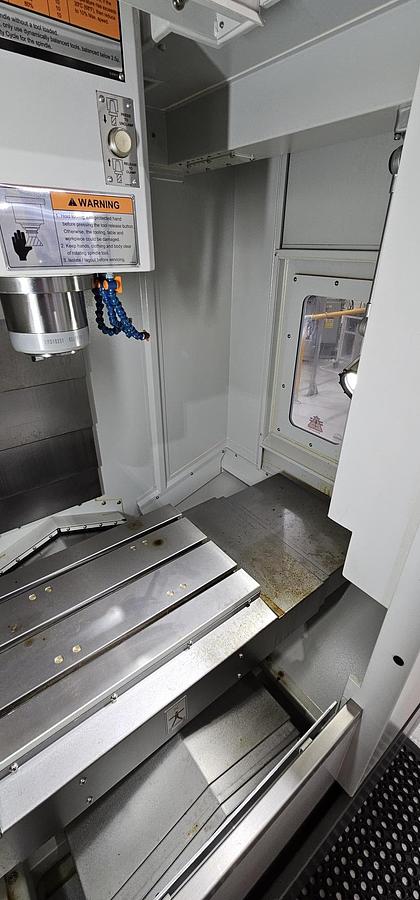

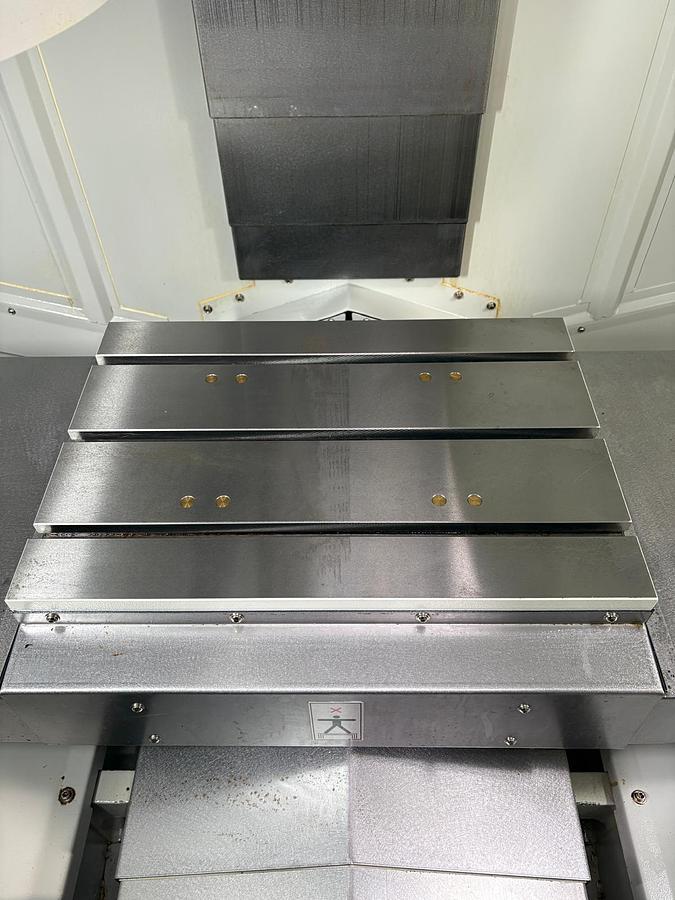

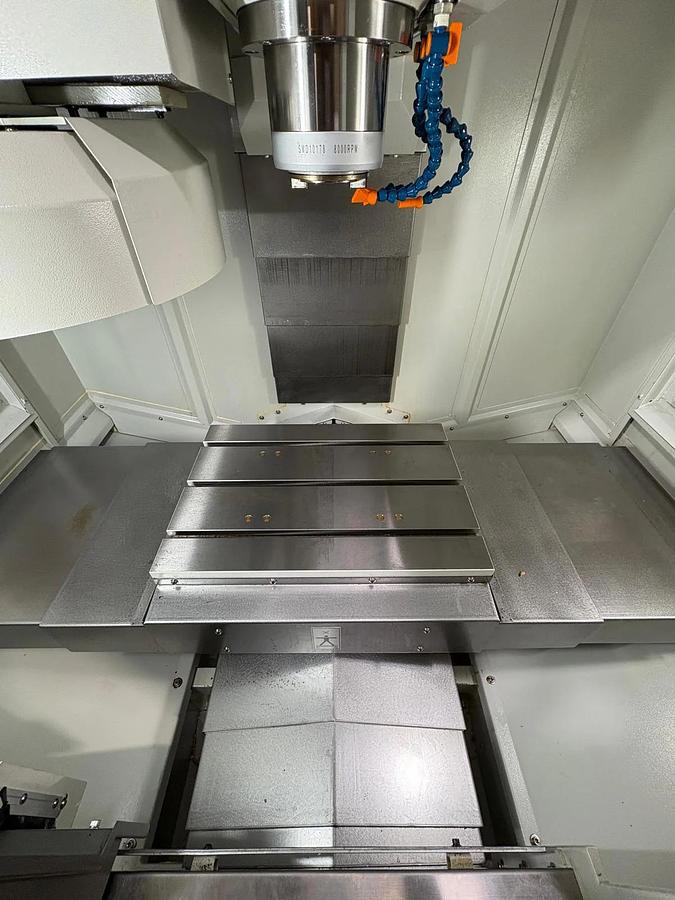

TABLE

Table size                                                        580 x 400 mm

Table load capacity                                         250 kg

MOVEMENT

Table positioning travel     (X x Y)                   500 x 400 mm

Head vertical travel           (Z)                         440 mm

Distance, table to spindle                               100 - 550 mm

Spindle centre to column face                        415 mm

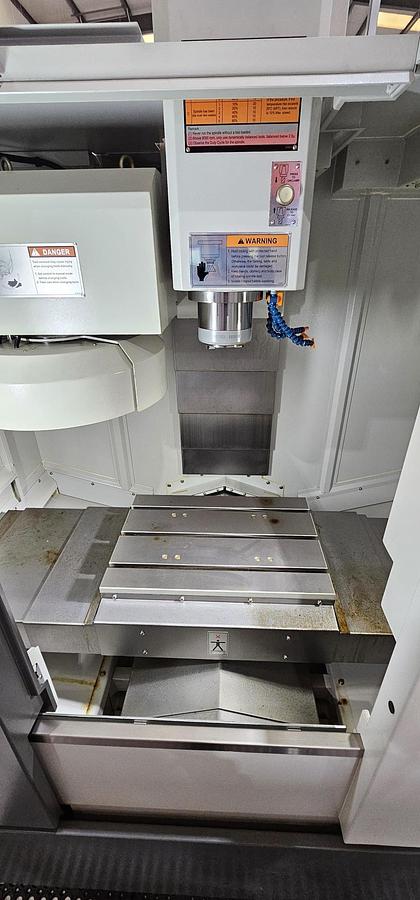

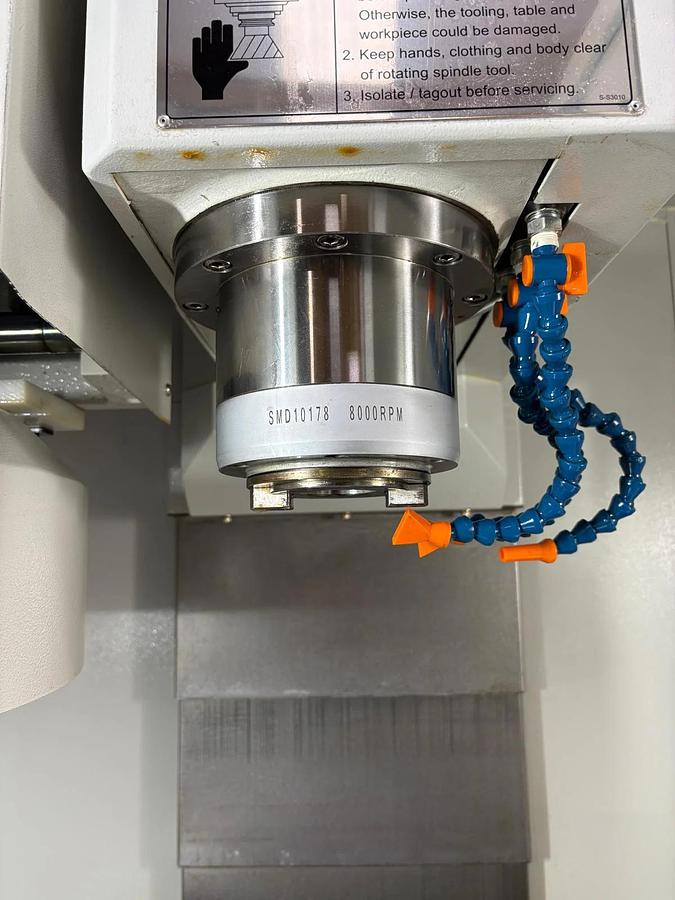

SPINDLE

Spindle taper                                                  BT 40

Spindle speeds                                               5 - 8,000 rpm

Spindle drive motor                                        20 hp / 15 kW

FEED RATE

Feed rate                                                         1 - 20,000 mm/min

Rapid traverse                    (X, Y, Z)                20 m/min

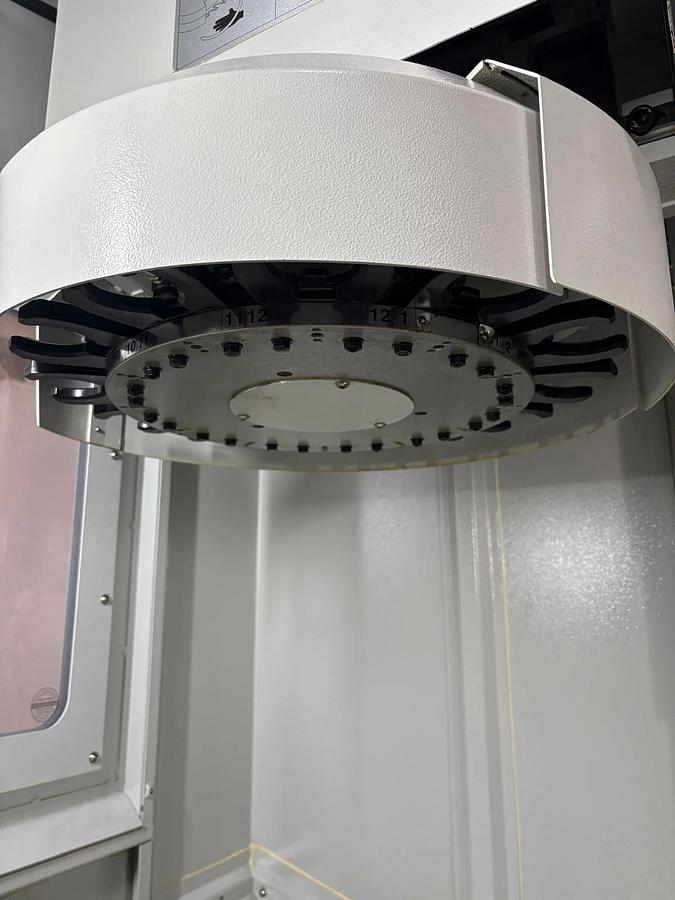

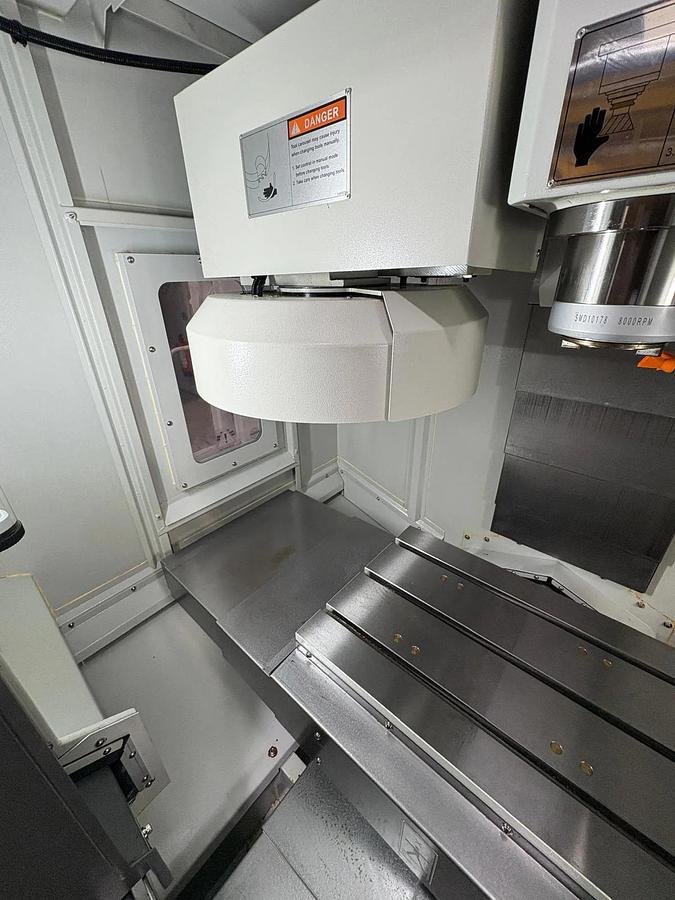

AUTOMATIC TOOLCHANGER

|Carousel type                      12 tools                Max. tool diameter            100 mm

Tool selection                       Random               Max. tool weight                7 kg

Overall size approx.                                         1890mm W x 1982mm F to B x 2700mm Min H

Machine weight (approx.)                                 2100 kg.

Complete with :-

Optimised Digital Servo Drives, Rigid Tapping, Flood Coolant, Worklight, 12 Station Carousel ATC, Easy Clean Swarf Tray, Steel Concertina Guards on all axes, Powder Coated Guarding, USB Port, Machine Manual.

CONDITION       :- EXCELLENT, VERY LITTLE USED.
