BROADBENT SERIES 3748 HEAVY DUTY GAP BED CENTRE LATHE
Description
Type SERIES 3748
Serial number N/A
CAPACITY
Distance between centres 9140 mm 30’
Swing over bed 1041 mm 41”
Swing over saddle 813 mm 32”
Swing in gap 1575 mm 62”

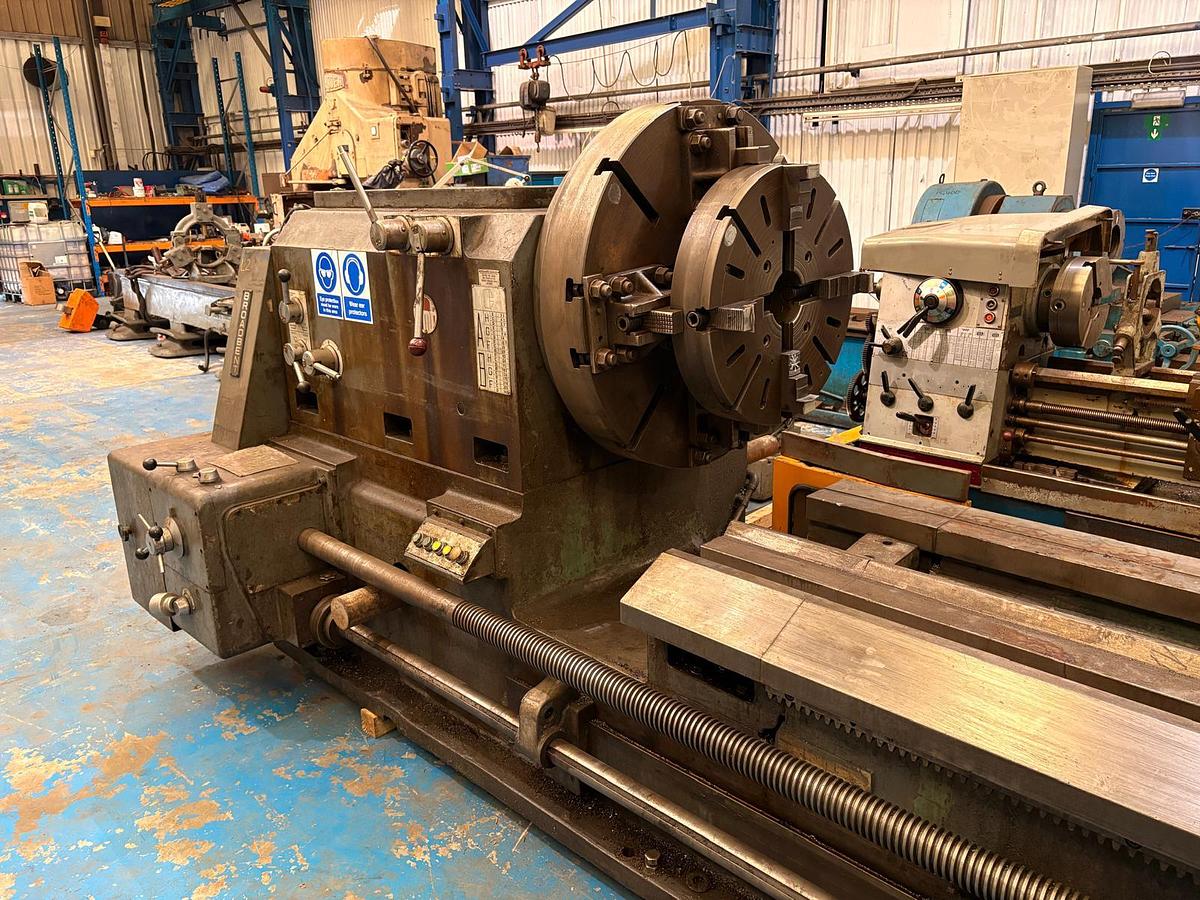

HEADSTOCK
Spindle speeds (18) 3.3 - 360 rpm
Spindle nose flange dia. 381 mm 15”
Spindle bore 115 mm 4 ½”
Main motor 30 kW 40 HP (To be confirmed)
FEEDS & THREADS
Sliding feeds per/rev. 0.1 – 1.5 mm 0.004” – 0.062”
Surfacing feeds per/rev. 0.05-0.8 mm 0.002” – 0.031”
Threads per inch (36) 1 - 28 tpi
DP (32) 4 to 56
Metric pitches (30) 1.5 – 18
Module (22) 0 1 - 9

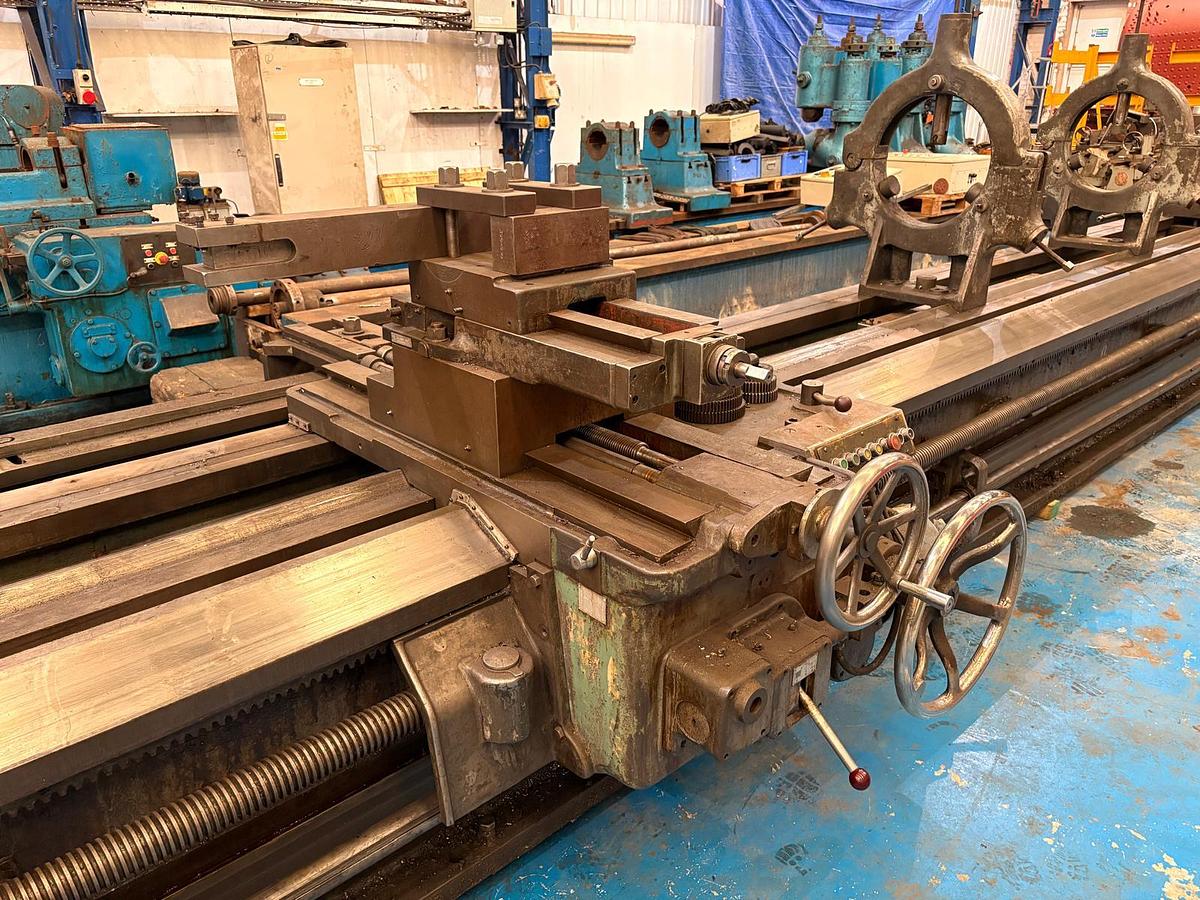

SADDLE & TOPSLIDE
Cross slide travel 863 mm 34”
Top slide travel 381 mm 15”
TAILSTOCK
Spindle diameter 133 mm 5 ¼”
Spindle travel 381 mm 15”
Spindle taper 6 MT
Specifications
| Manufacturer | BROADBENT |
| Model | SERIES 3748 |
| Year | 1985 |
| Condition | Used |
| Stock Number | 8518 |
| Complete with :- | 36” Faceplate with 4 adjustable jaws, 54” Faceplate, Taper turning attachment, Power feed to top slide, 2 x 18” 3 point steadies, 28” 3 point steady. |
