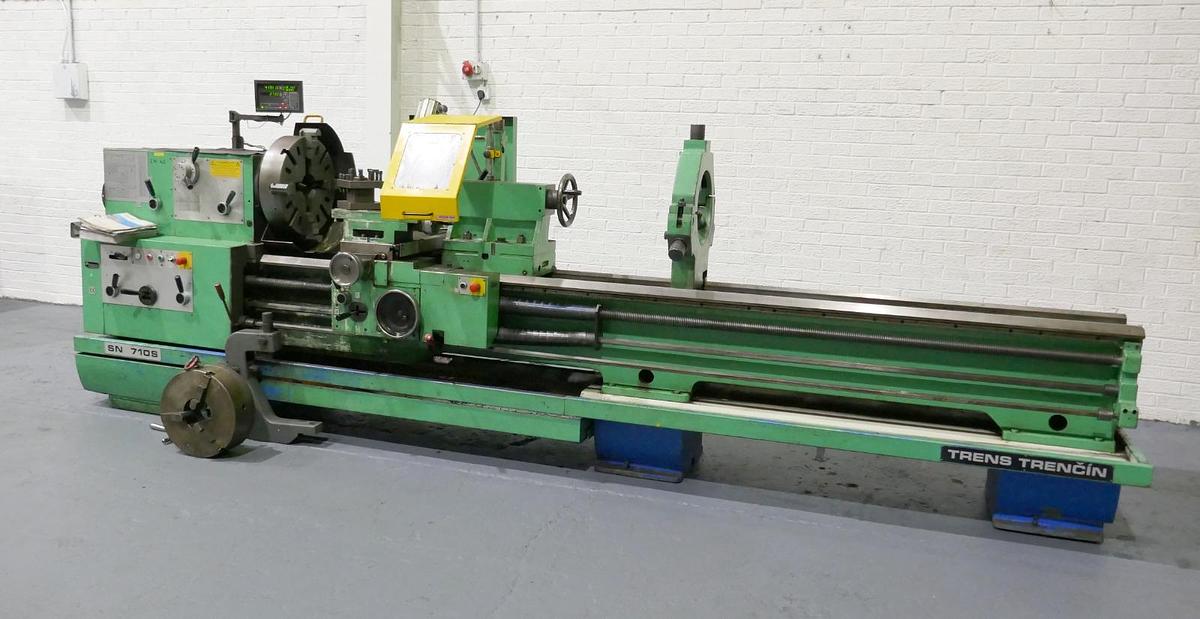

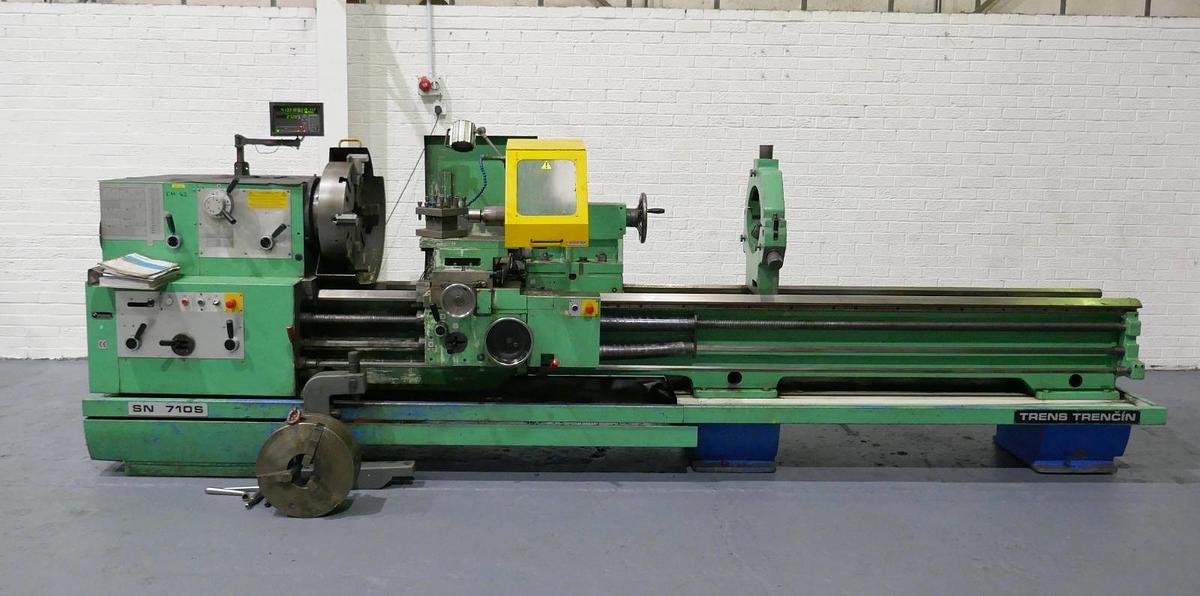

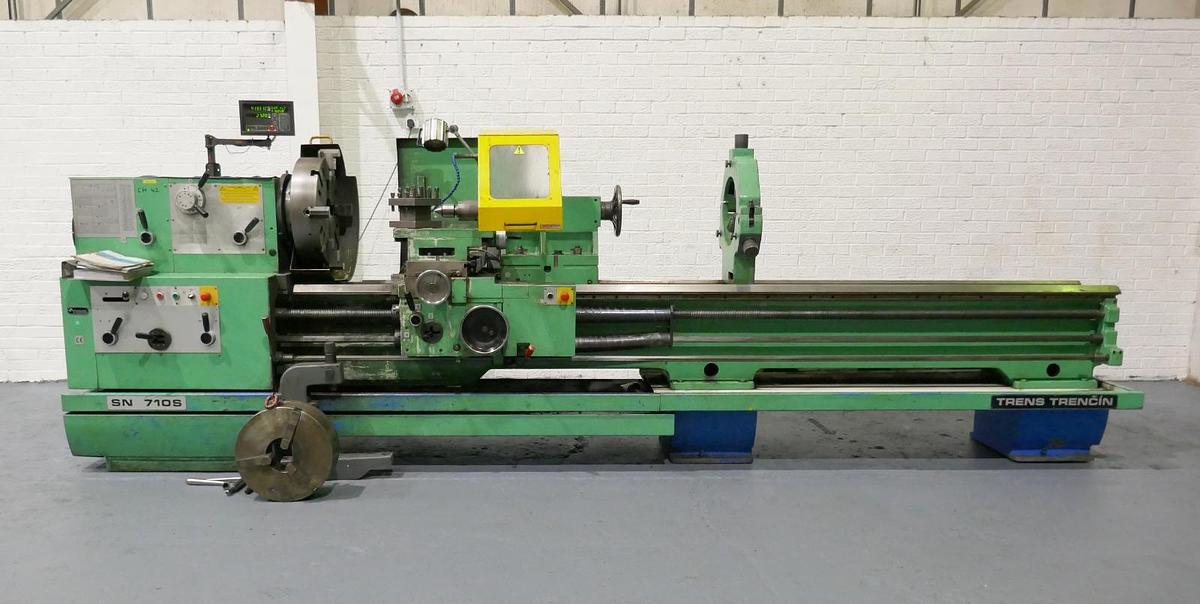

TRENS GAP BED UNIVERSAL CENTRE LATHE

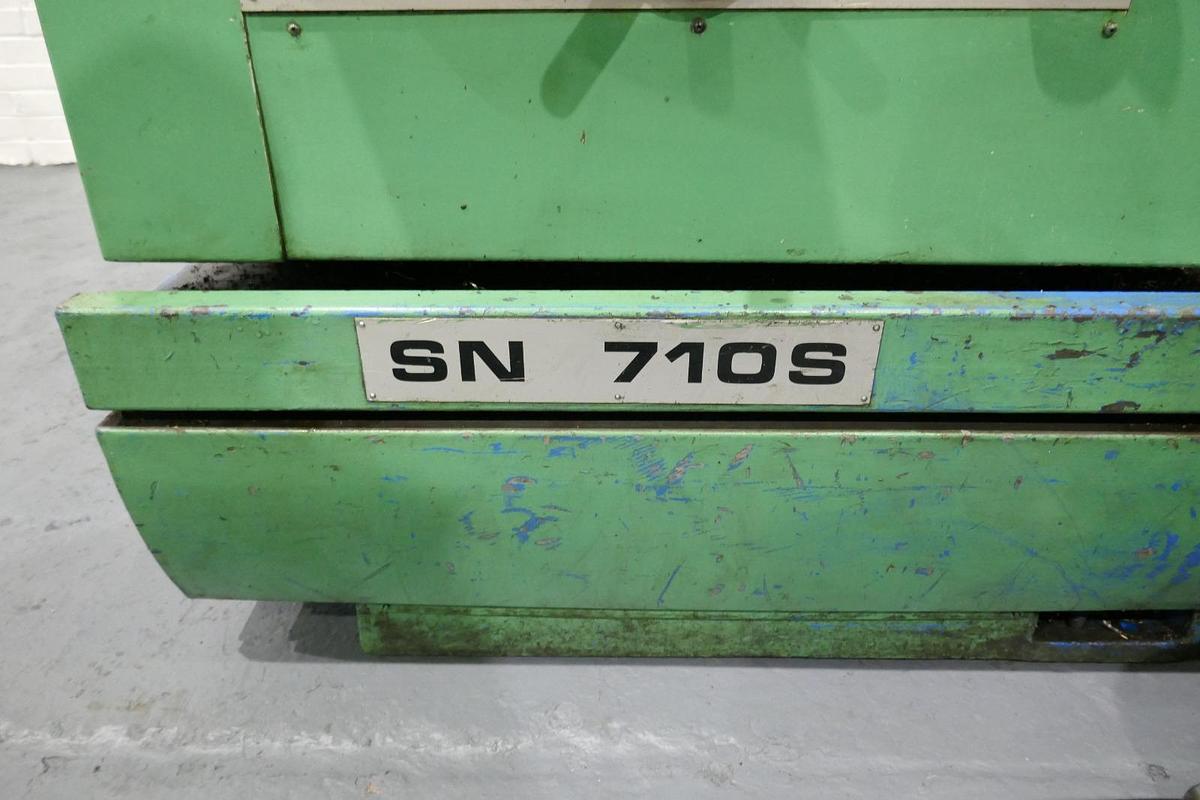

Model                                    SN710S x 3000

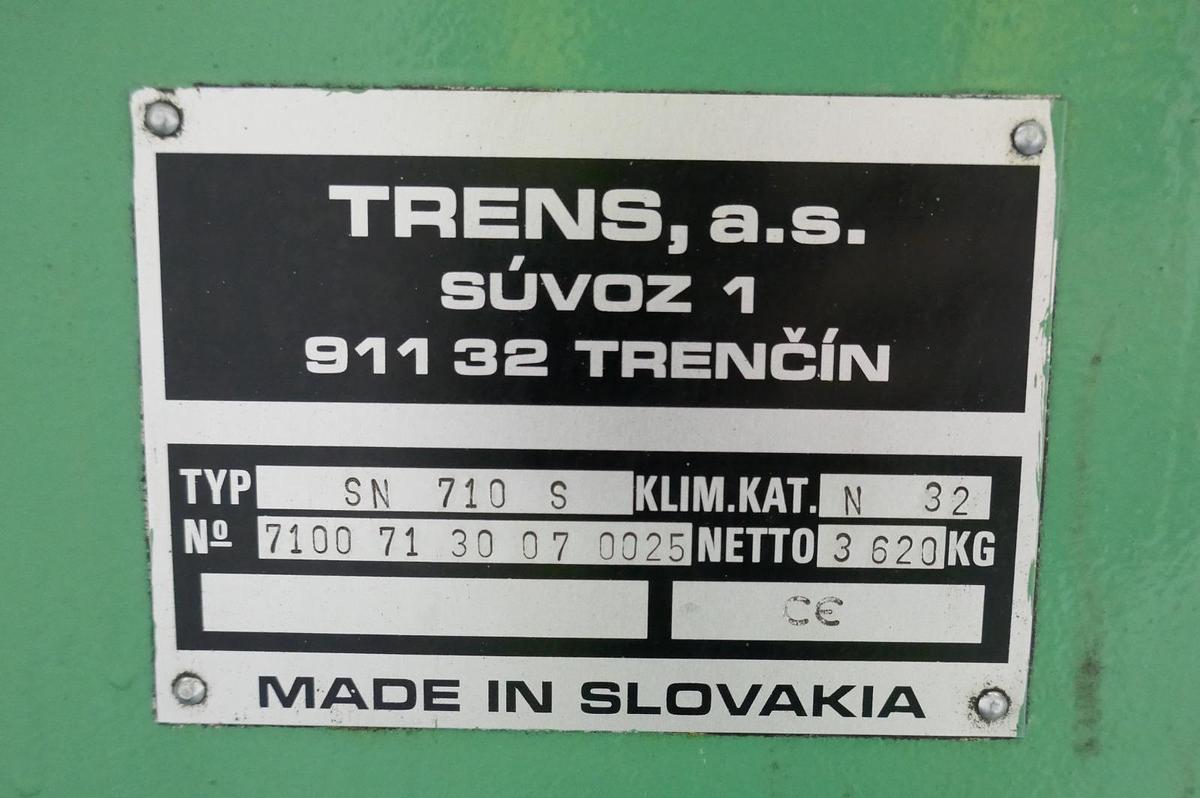

Serial number                       7100 71 30 07 0025

Year                                      2007

CAPACITY

Distance between centres   3000 mm

Swing over bed                    720   mm

Swing over cross slide         430   mm

Swing in gap                        960   mm

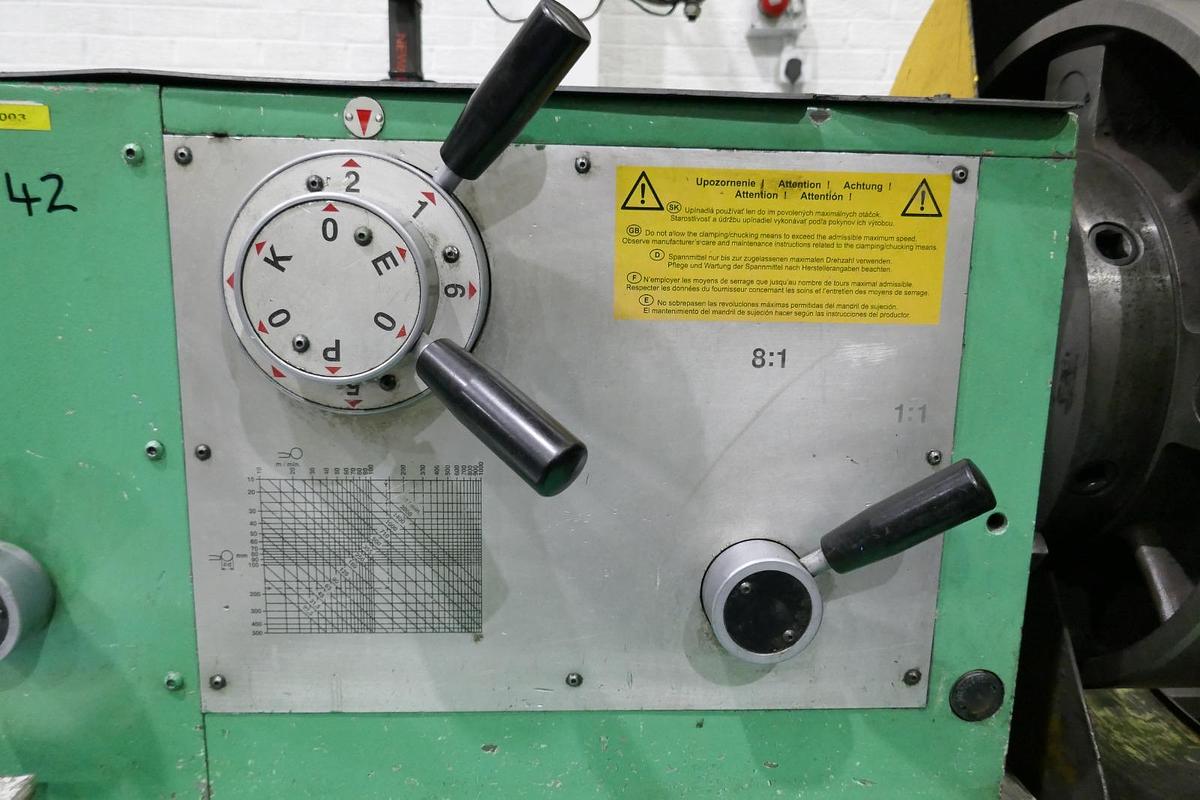

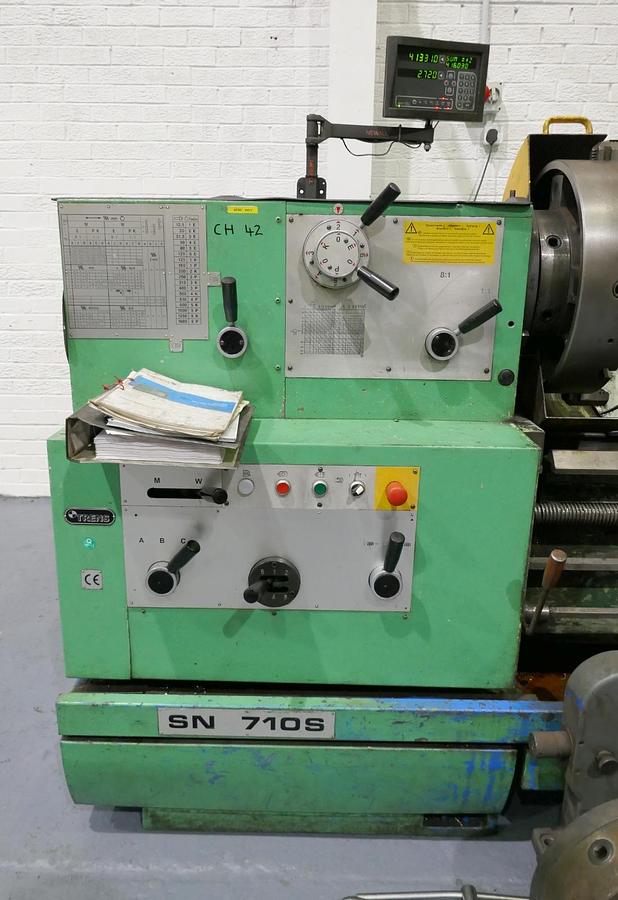

HEADSTOCK

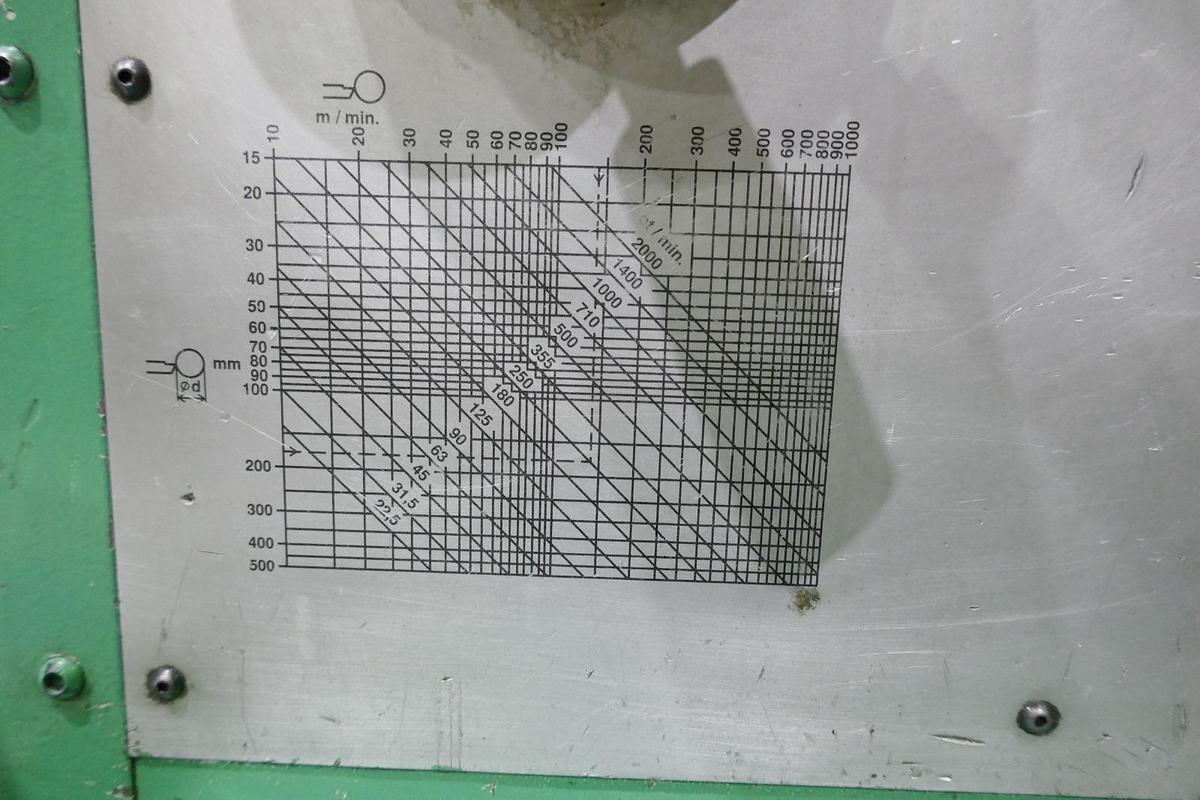

Spindle speeds                    (18) 10 - 1600 rpm

Main motor                           11 kW

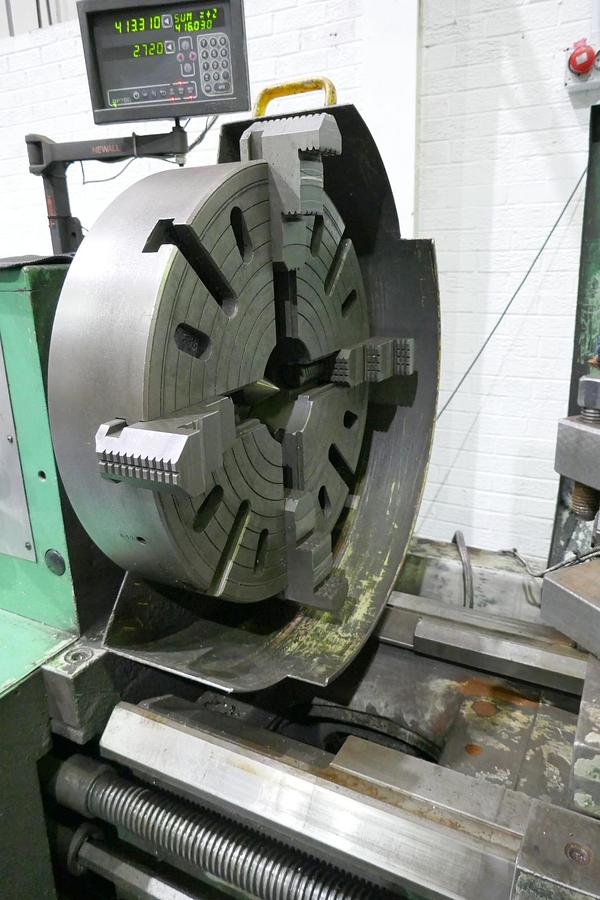

Spindle nose                         8” D.1

Bore through spindle            77 mm

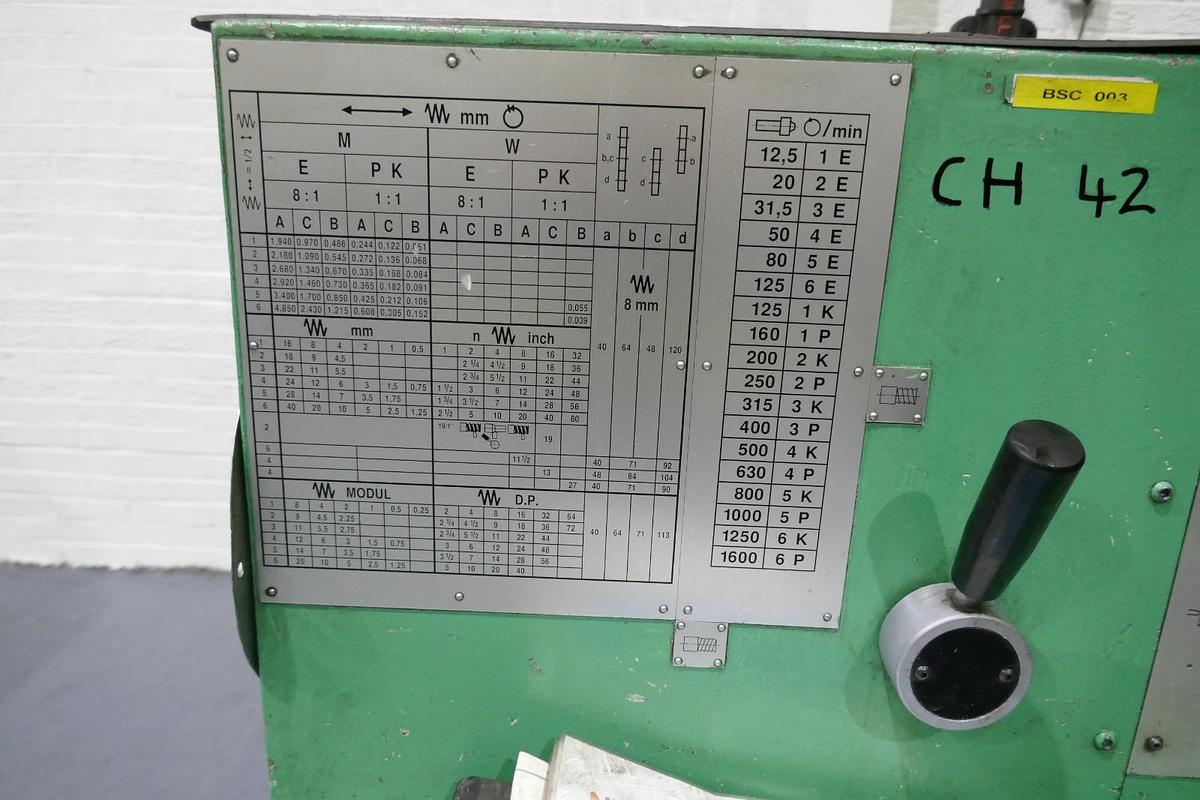

UNIVERSAL GEARBOX

Longitudinal feeds per rev   (38) 0.039 – 4.8 mm/rev.

Cross feeds                         (38) 0.0195 – 2.4 mm/rev.

Whitworth threads               (38) 80 – 1

Metric pitches                      (29) 0.5 - 40

Module threads                 (26) 0.25 – 20

Diametrical pitches              (31) 2 – 72

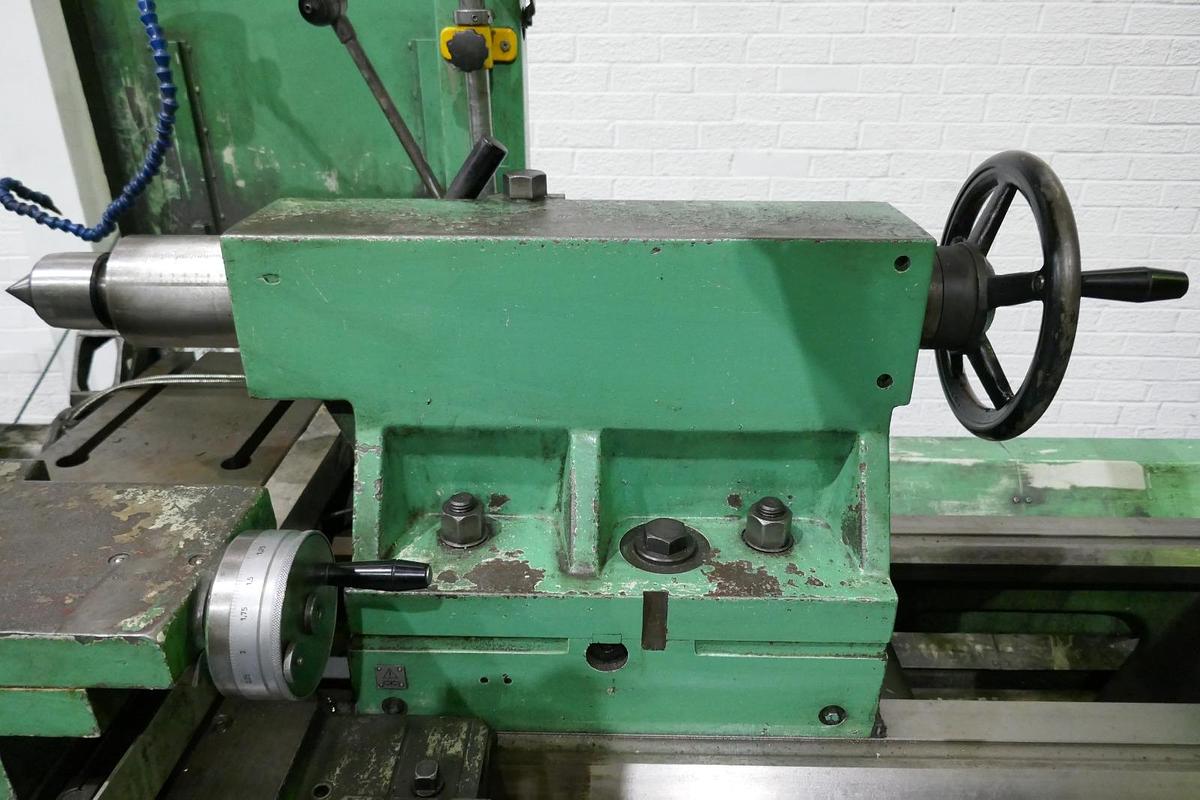

TAILSTOCK

Spindle diameter                  90 mm

Spindle travel                       240 mm

Taper of centre                     No. 5 Morse

Overall size approx.            1275 F to B x 5015 L x 1635mm H

Weight approx.                    3620 kg
