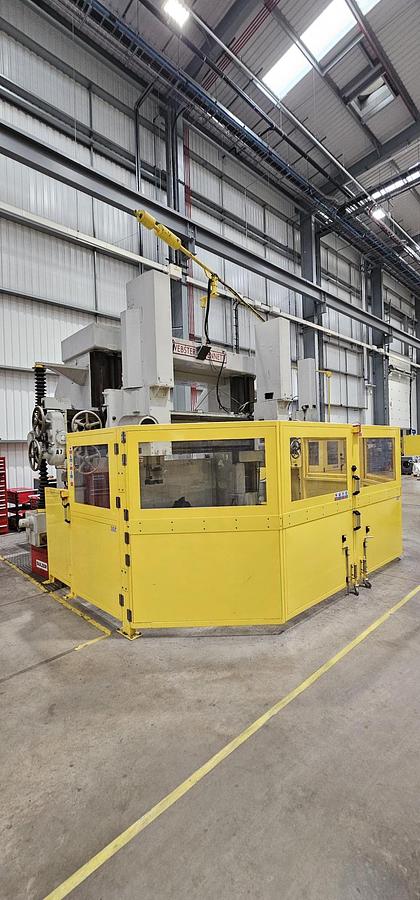

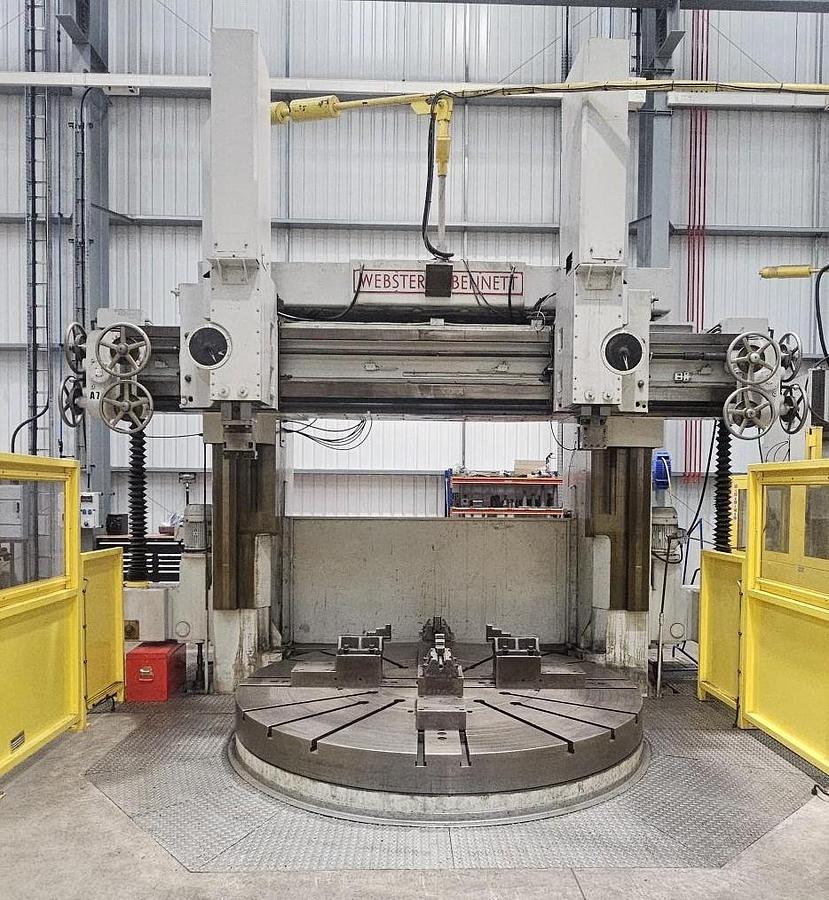

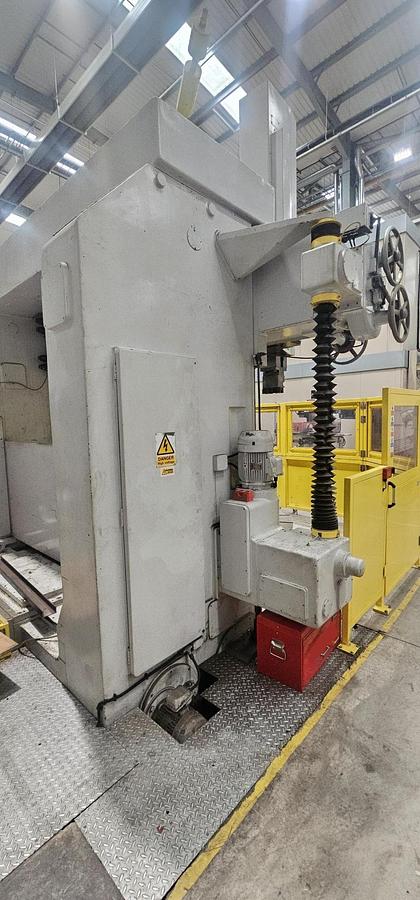

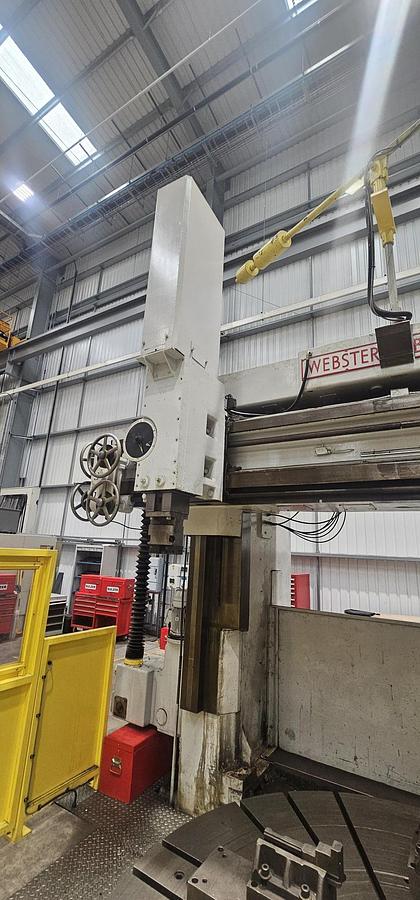

1977 WEBSTER & BENNETT 120" DCM DOUBLE COLUMN VERTICAL BORING MACHINE

WEBSTER & BENNETT DOUBLE COLUMN VERTICAL BORING MACHINE

Model                                                                           120” ‘DCM’

Year (approx.)                                                              1977

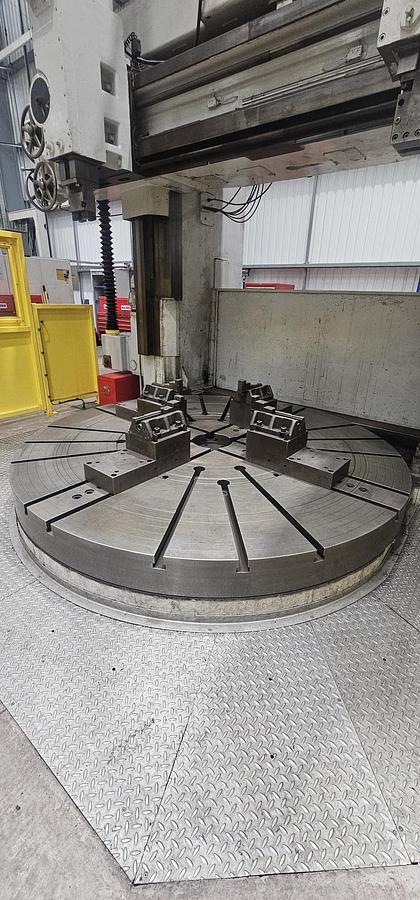

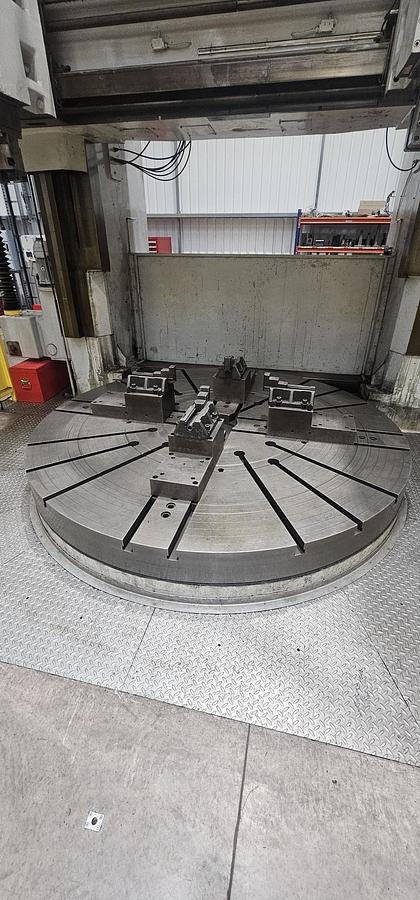

Diameter of table                                                         108”                       2743 mm

Diameter of work turned with ram                               120”                       3048 mm

Diameter of work admitted                                          122”                       3100 mm

Height from table to underside of cross-slide              78” max.                1981 mm

                                                                                    24” min.                   609 mm

Vertical travel of ram                                                   48”                         1219 mm

Horizontal travel of ram (Table centre outwards)        66”                         1676 mm

Centre to face of cross slide                                       17”                           432 mm

Maximum load on table                                              44800 lb               20320 kg

Range of feeds                                                           (12) .0025 - .125 ins/rev.

Range of speeds                                                        (12) 1.5 – 39.5 rpm

Main motor                                                                 37 kW 50 HP

Approximate total weight of machine                         100800 lb             45720 kg

Machine complete with :-

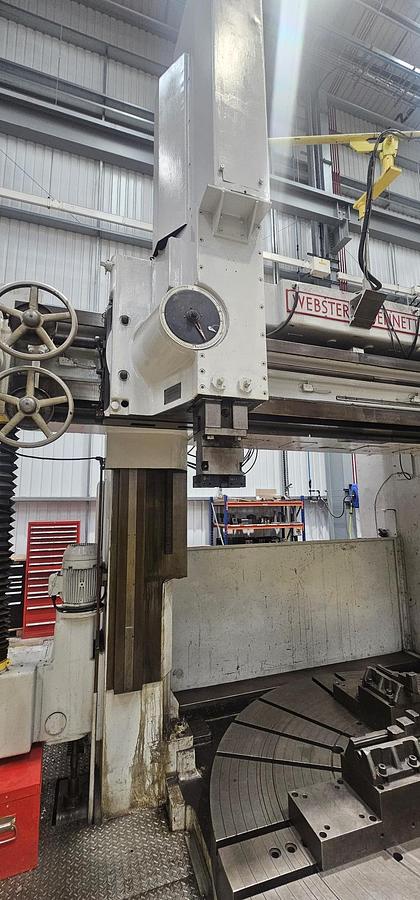

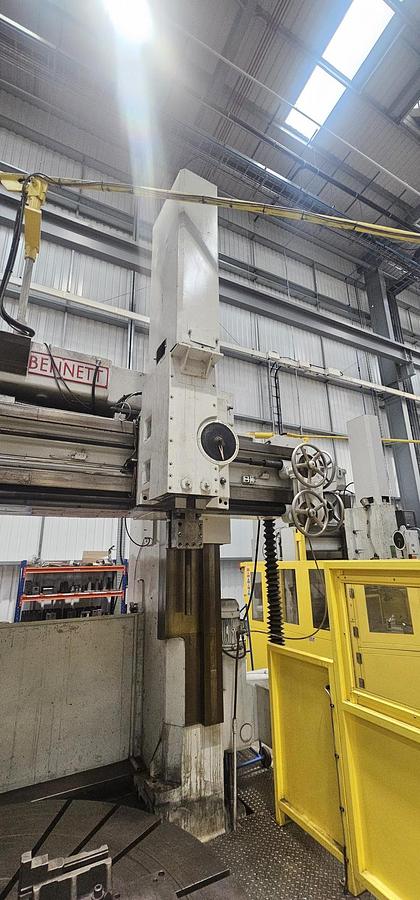

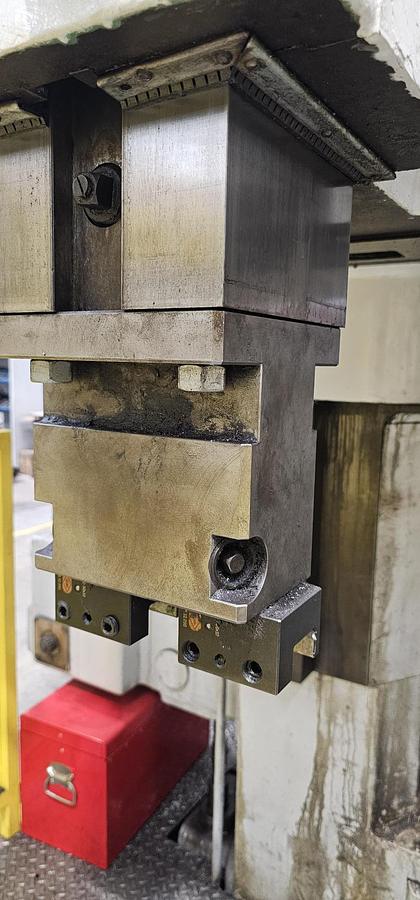

Left hand ram slide and Right hand ram slide.

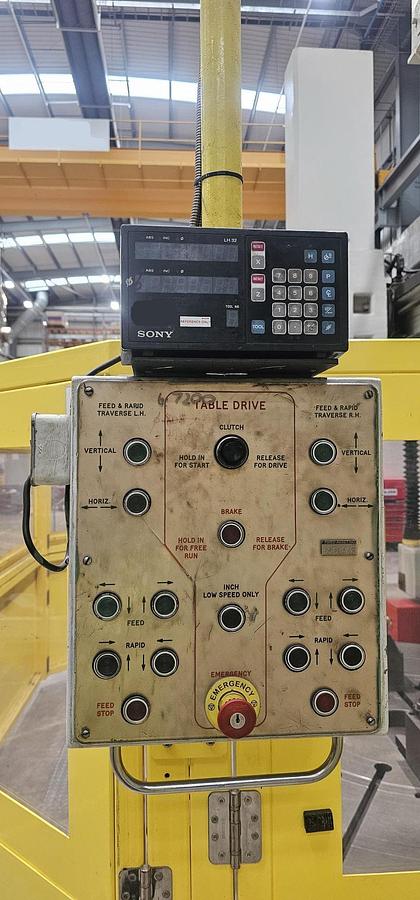

Pendant control.

2 Axis D.R.O. to right hand ram.

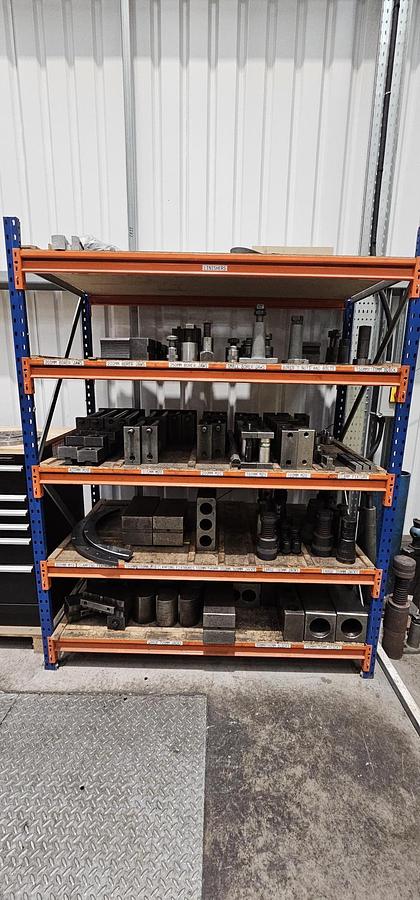

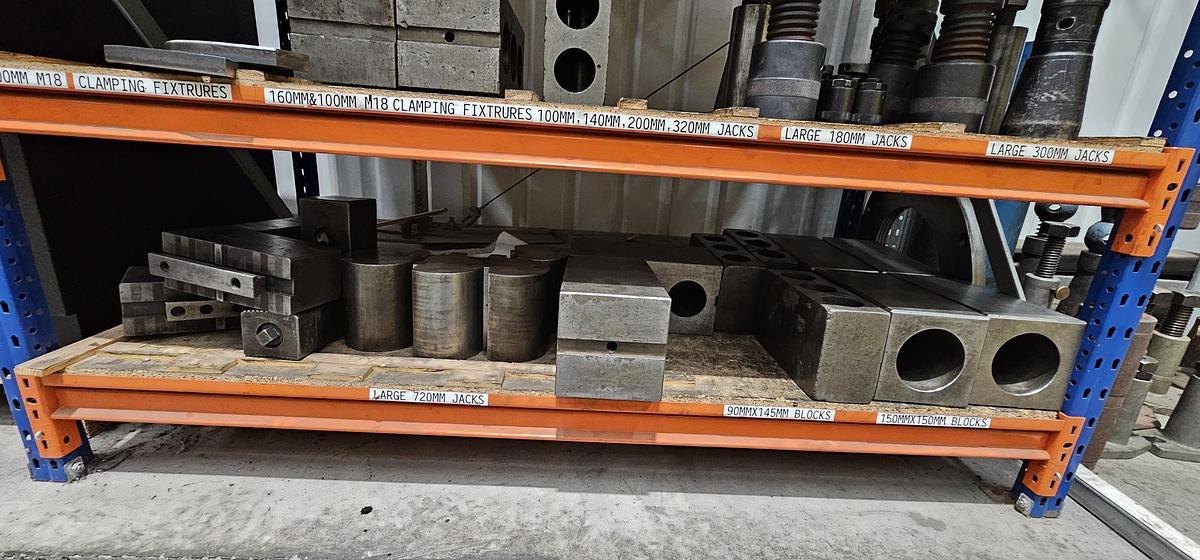

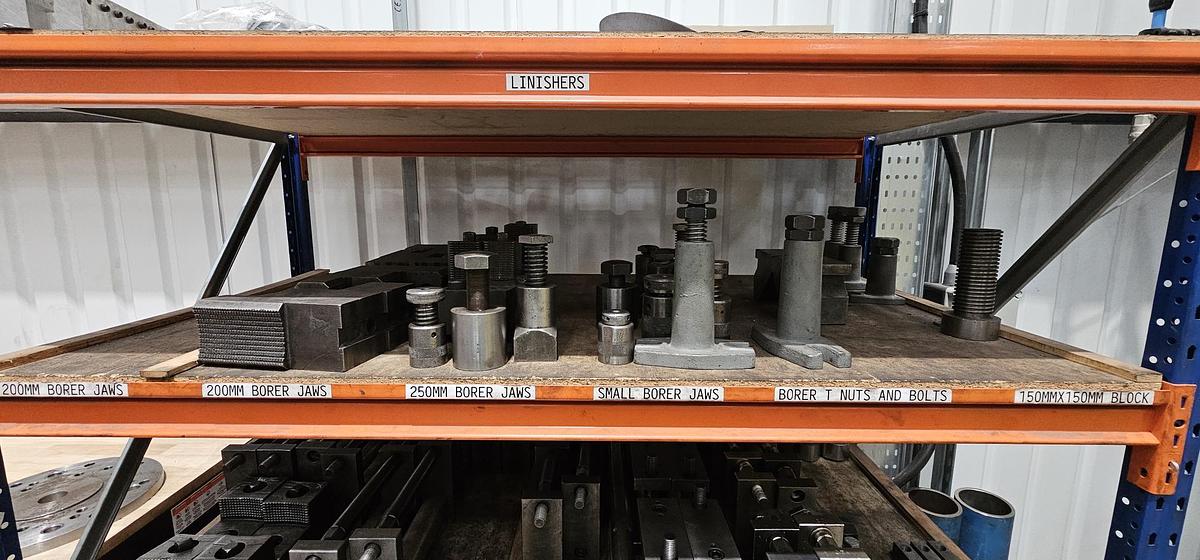

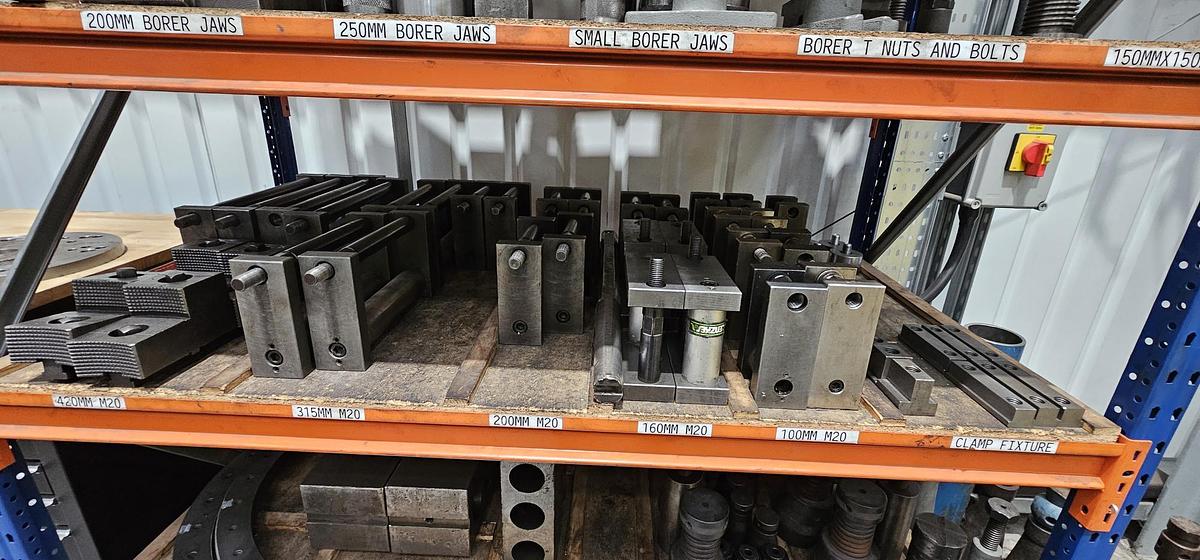

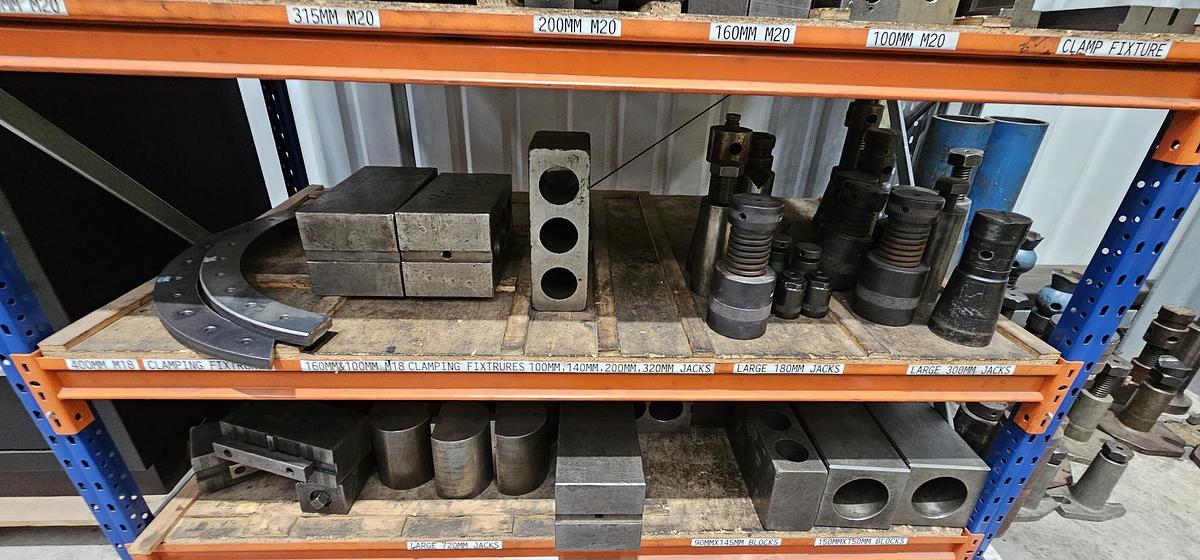

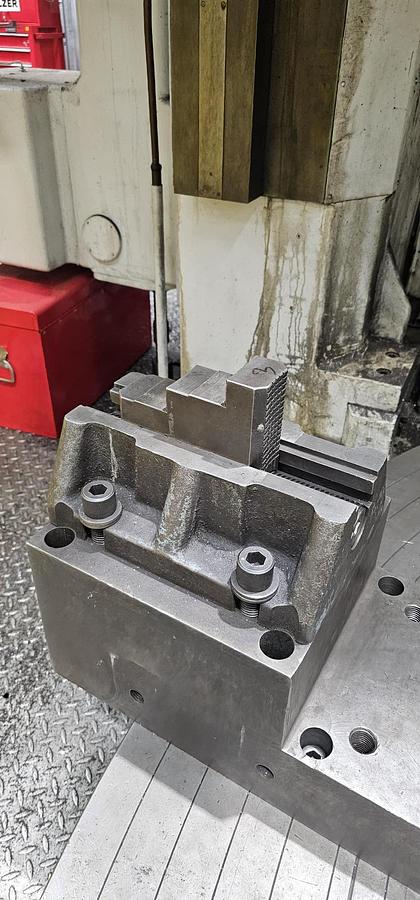

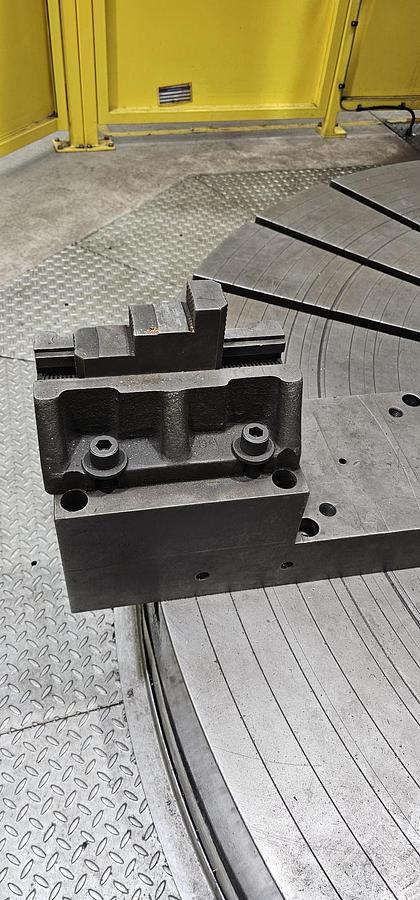

Toolholders and large selection of table jaws.

Coolant.

CONDITION       :- EXCELLENT.
