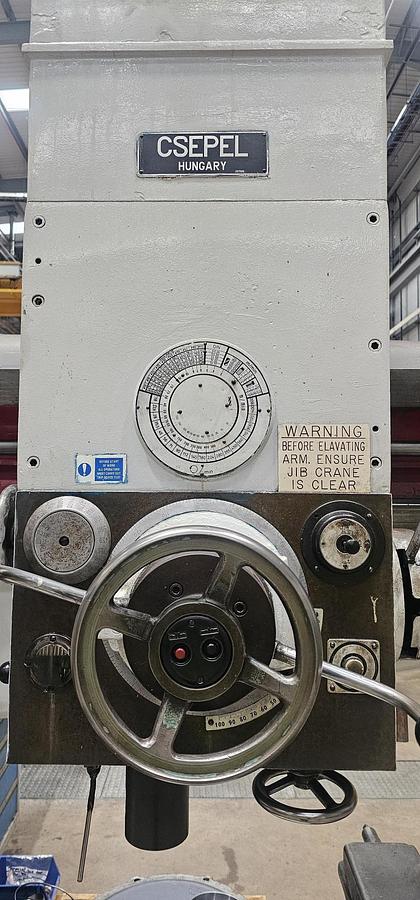

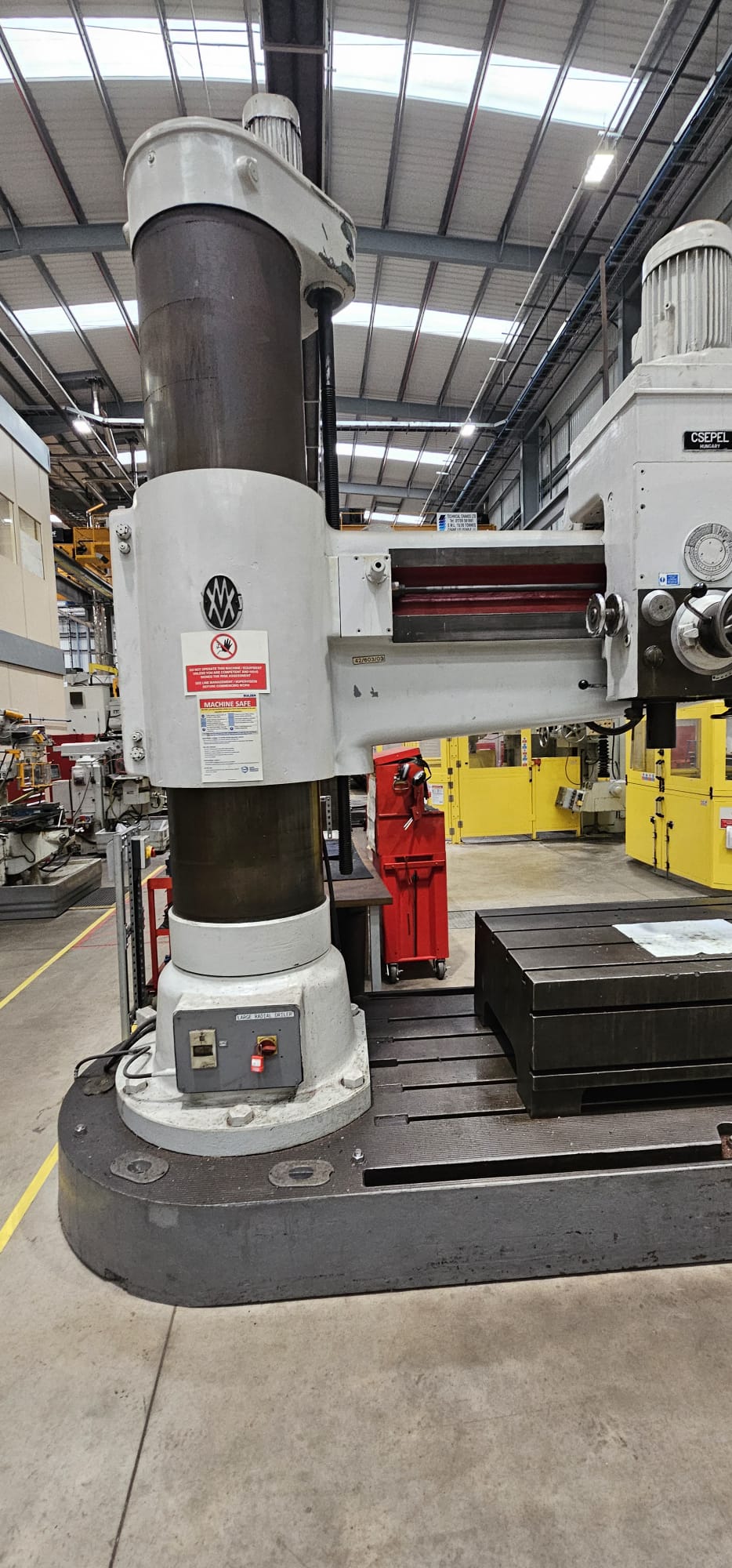

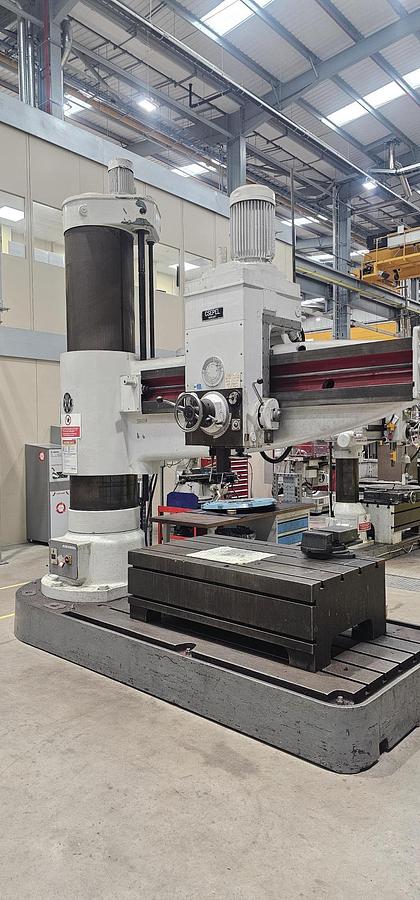

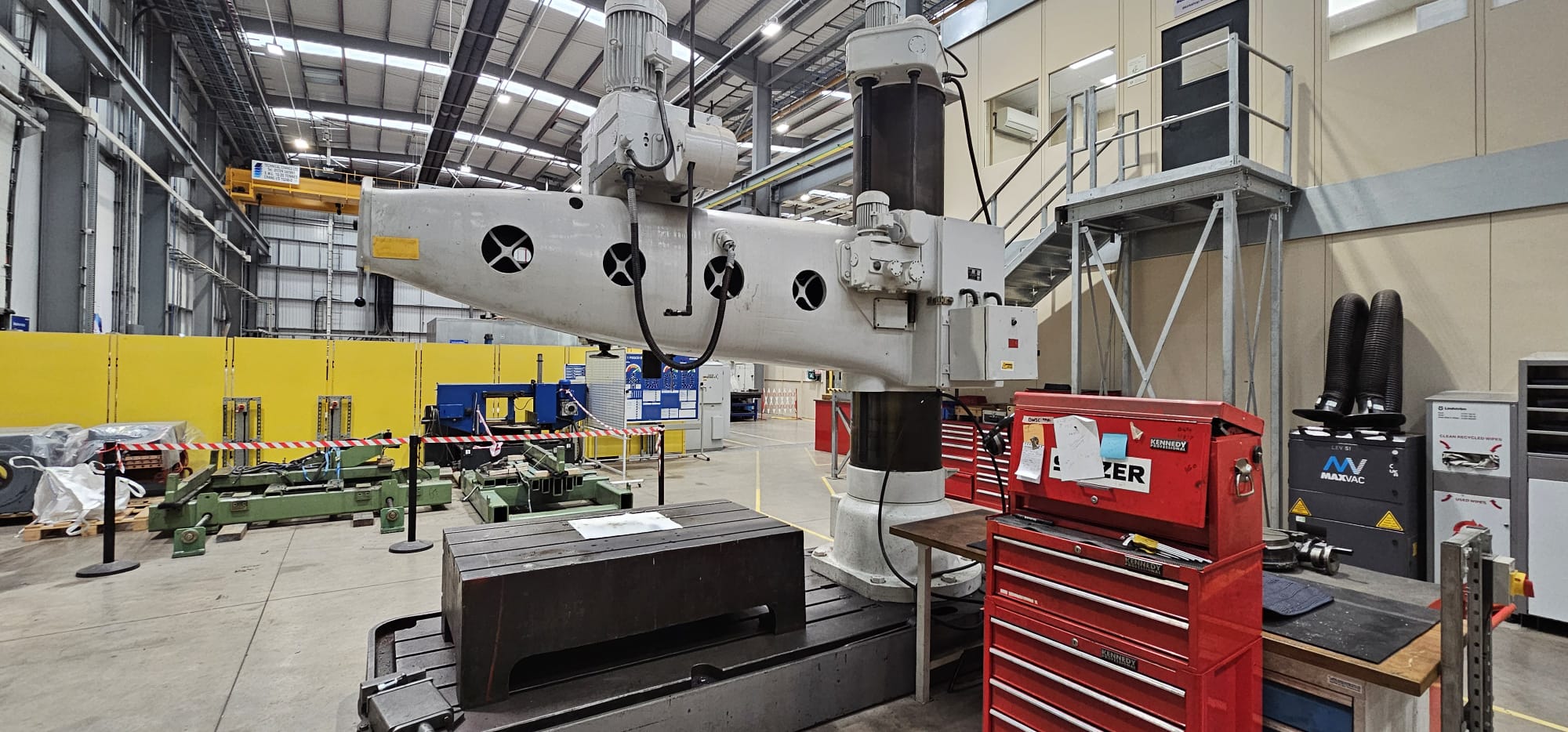

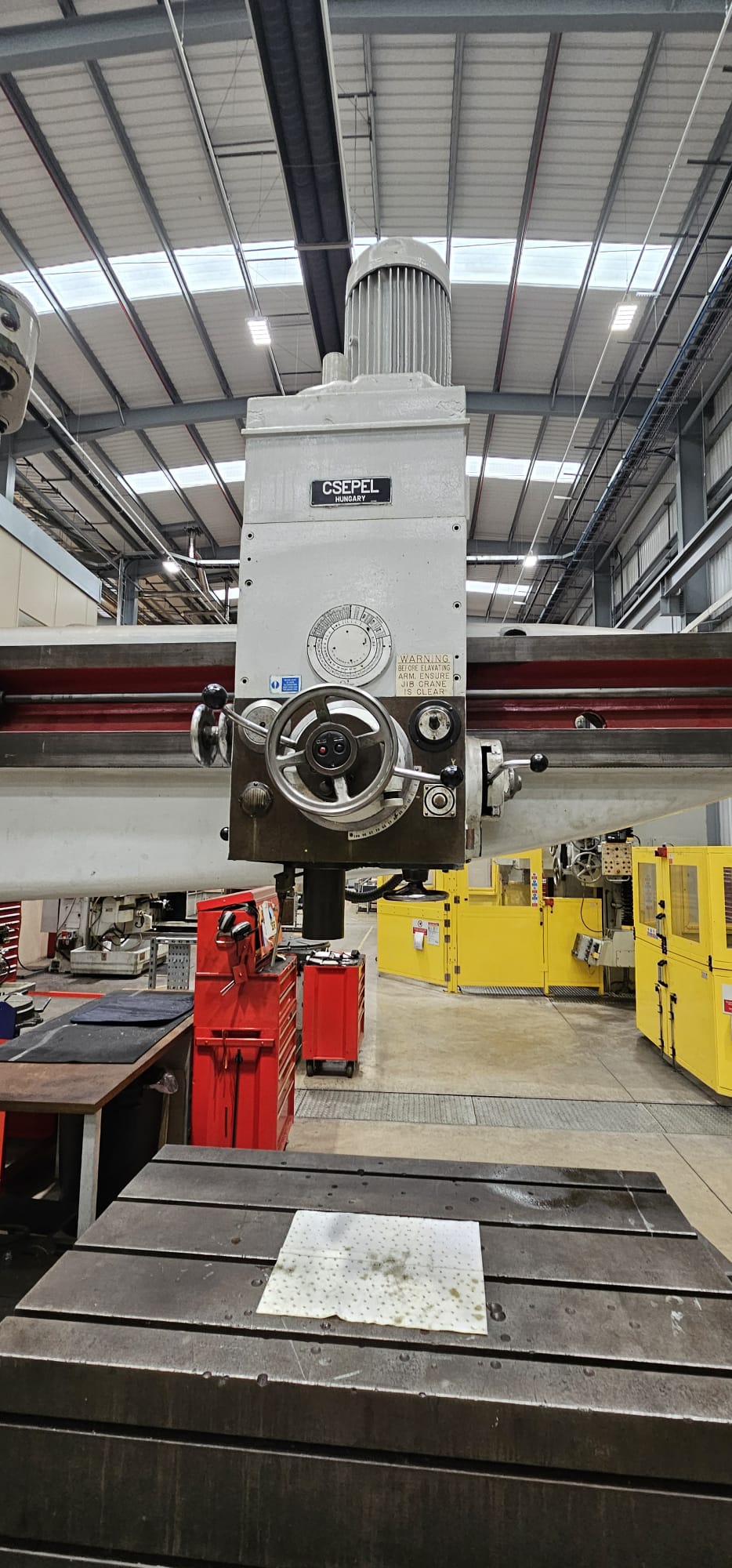

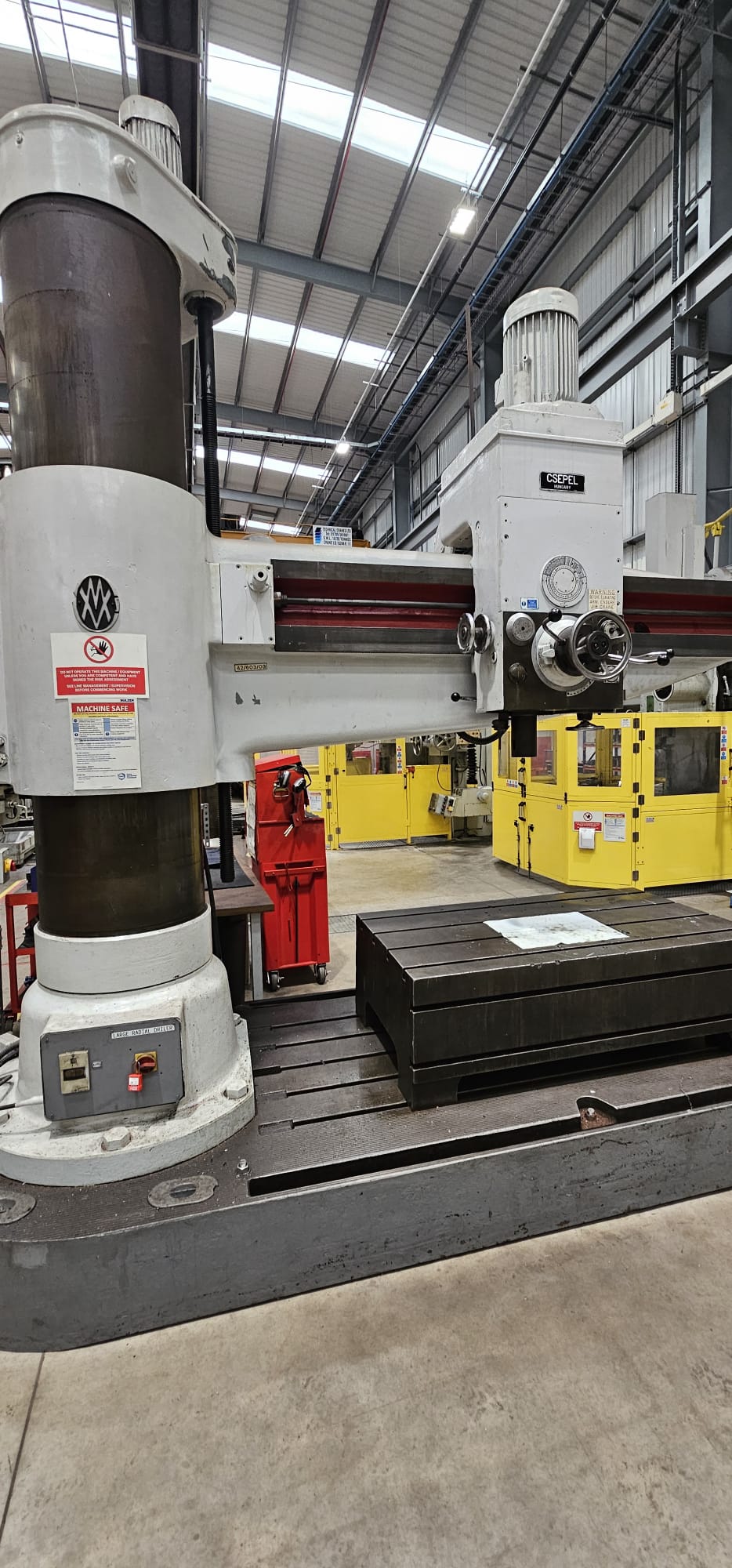

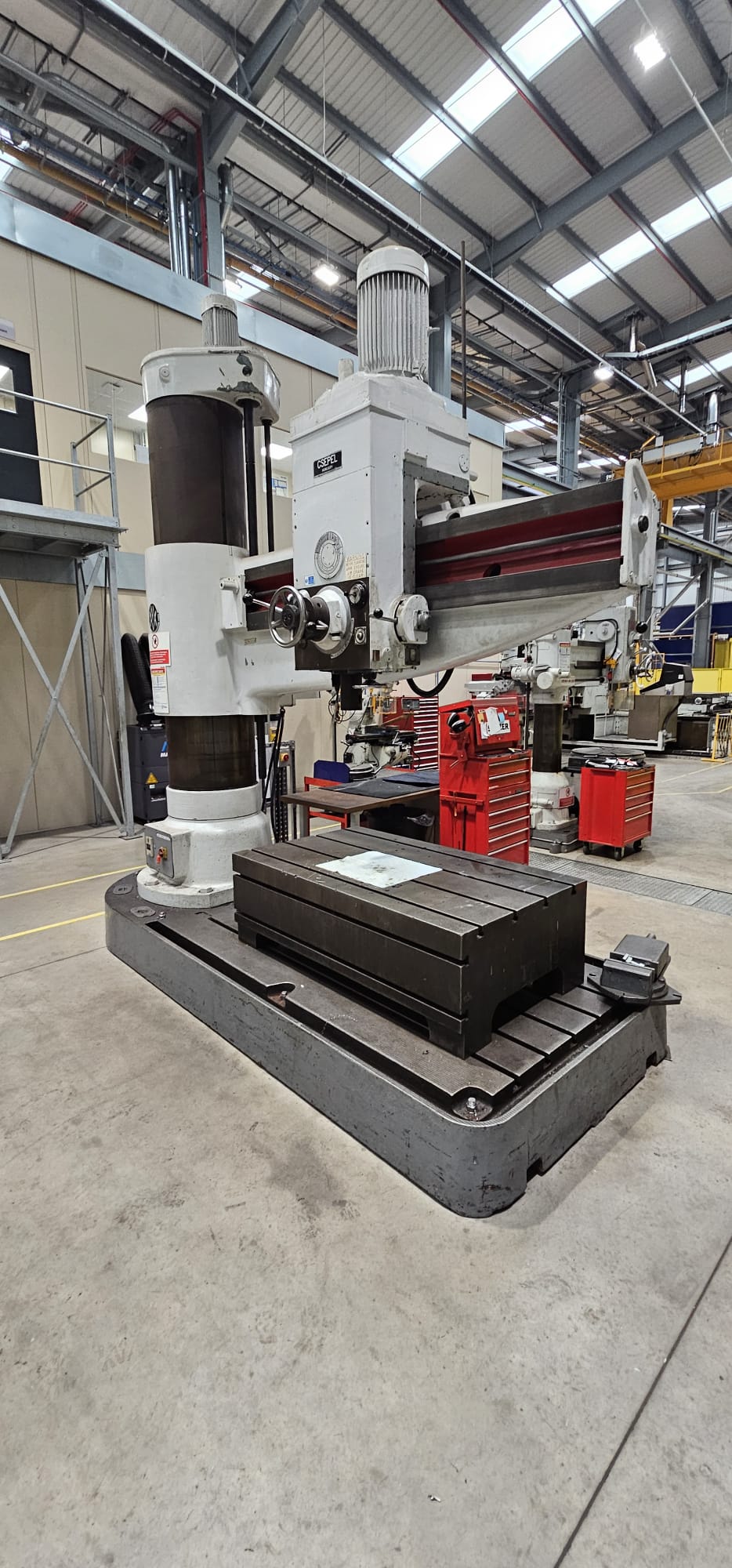

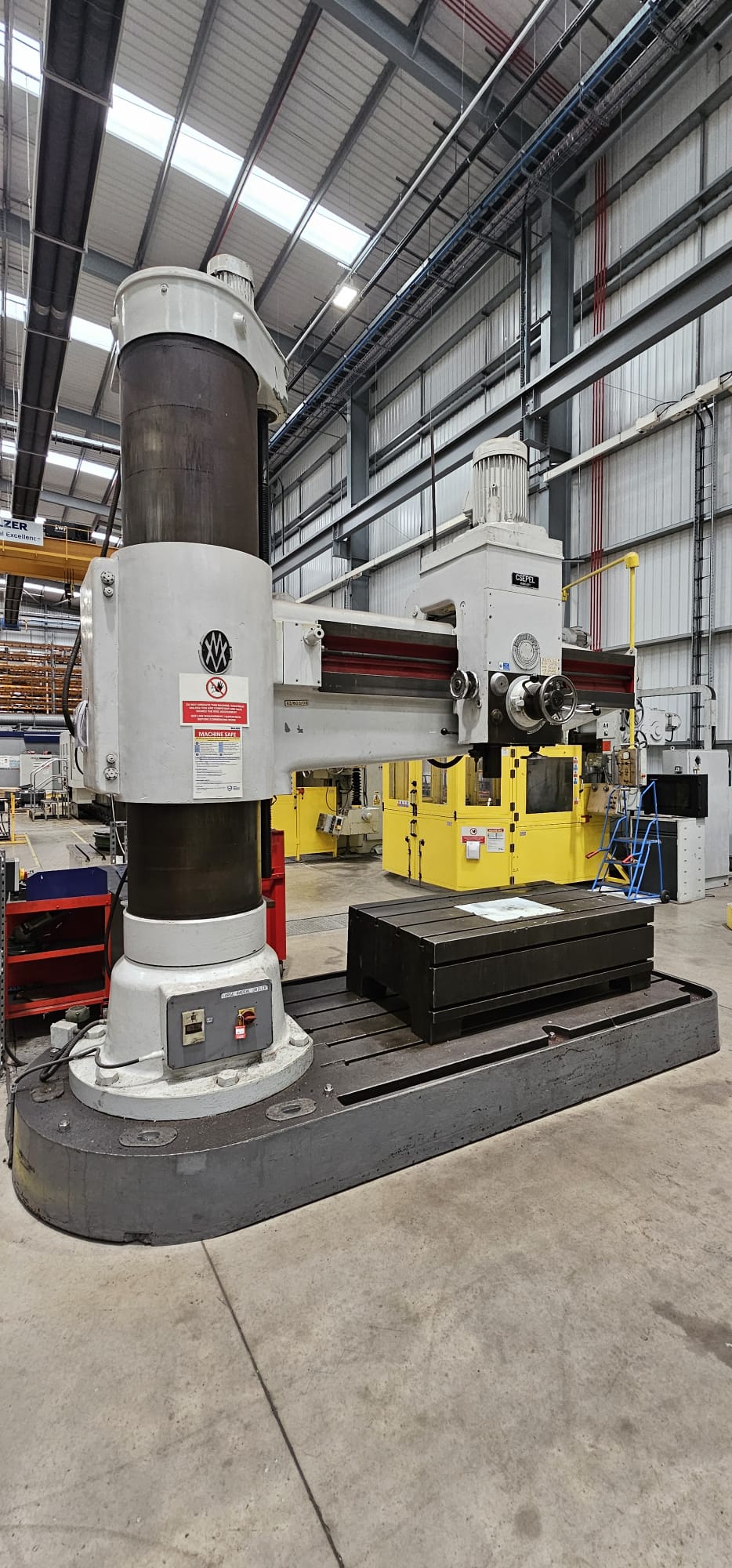

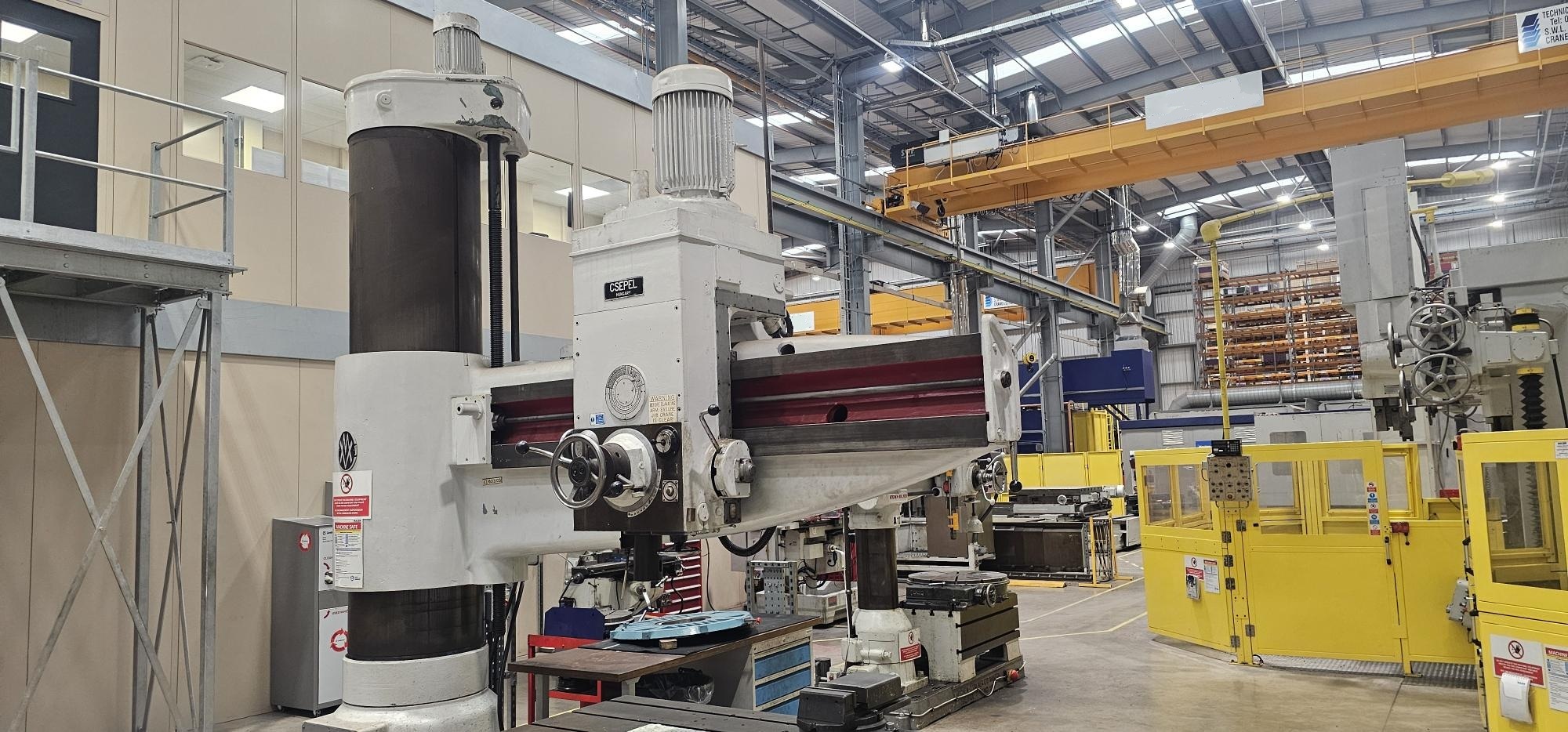

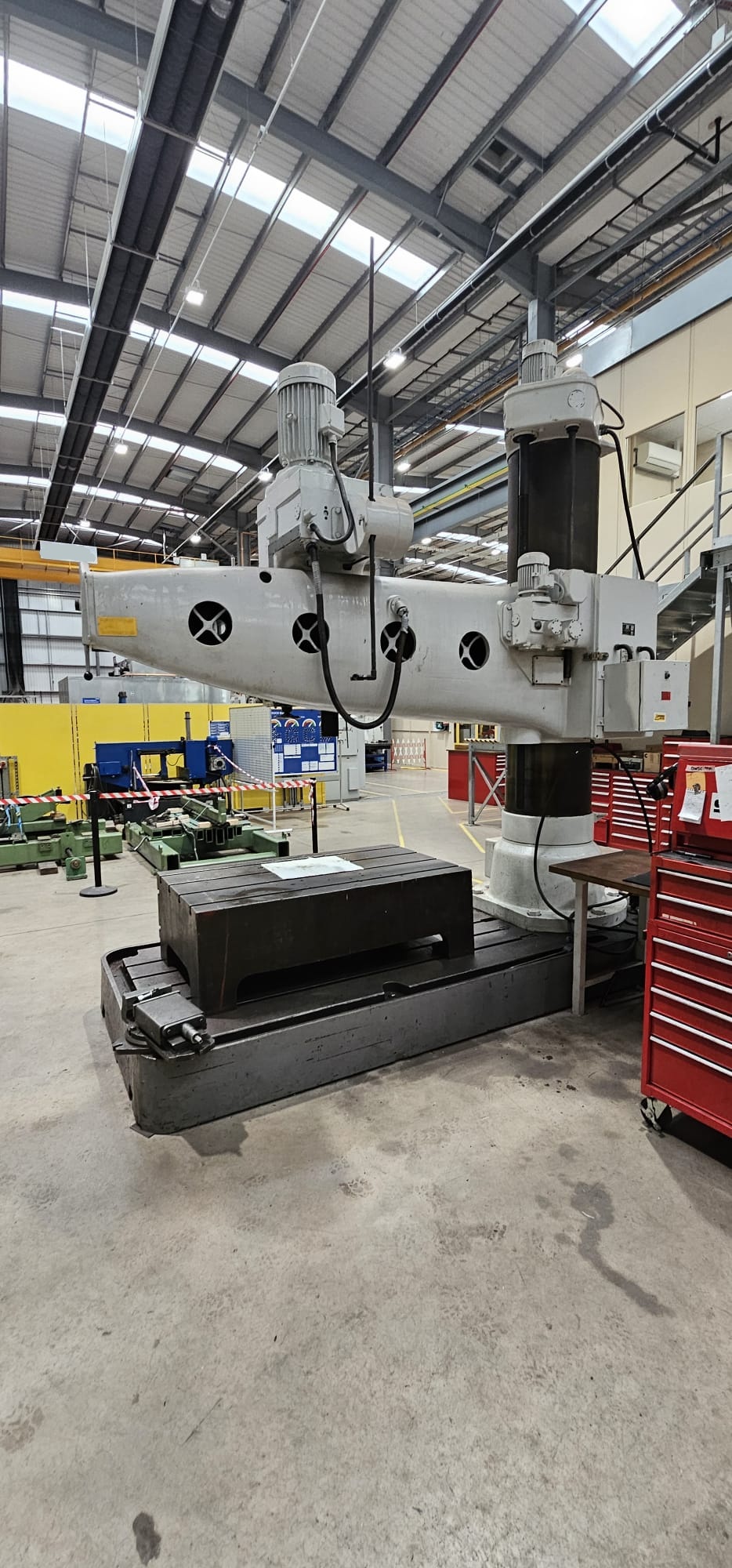

CSEPEL RFH 100 x 2250 HEAVY DUTY RADIAL ARM DRILLING MACHINE
Description
Model RFH 100 x 2250

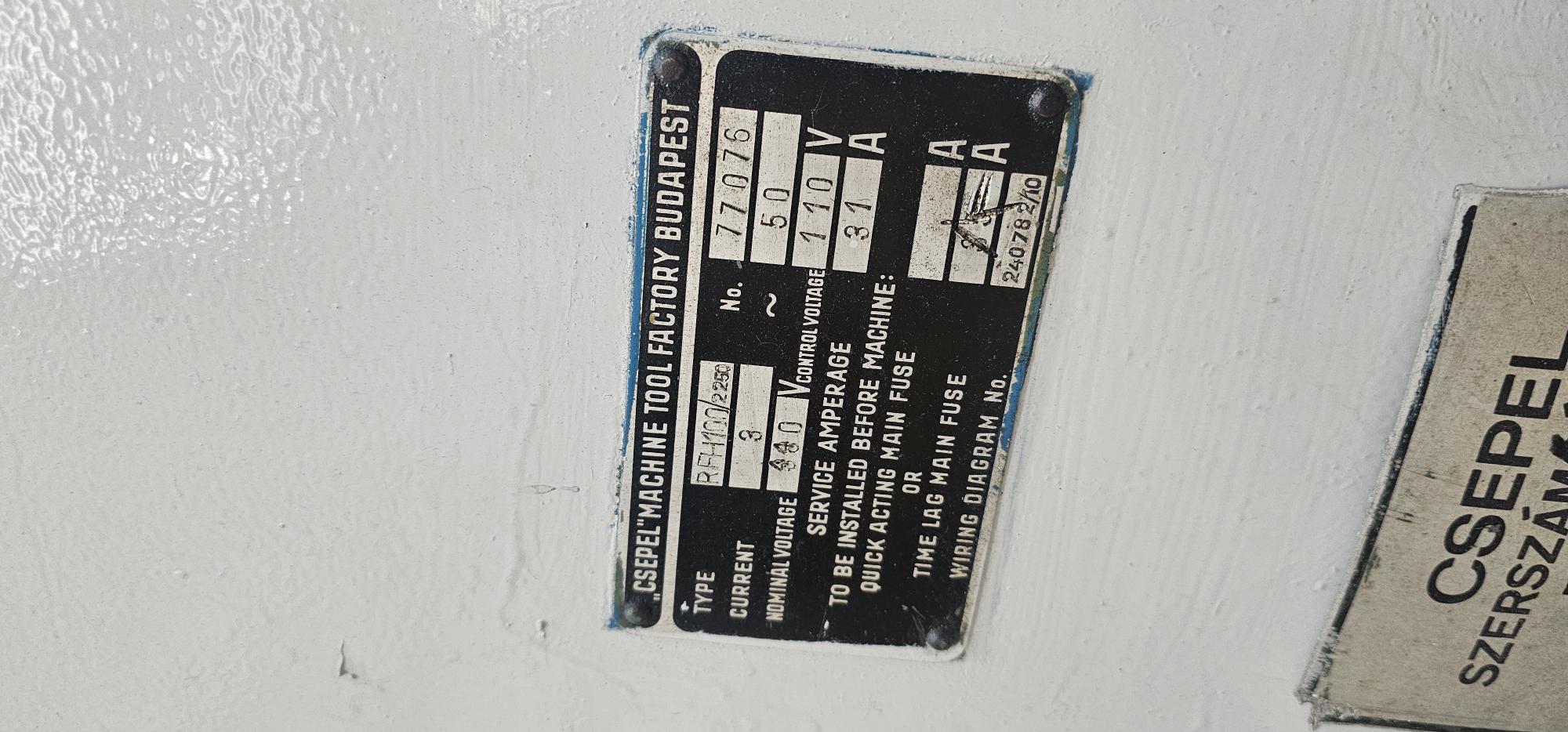

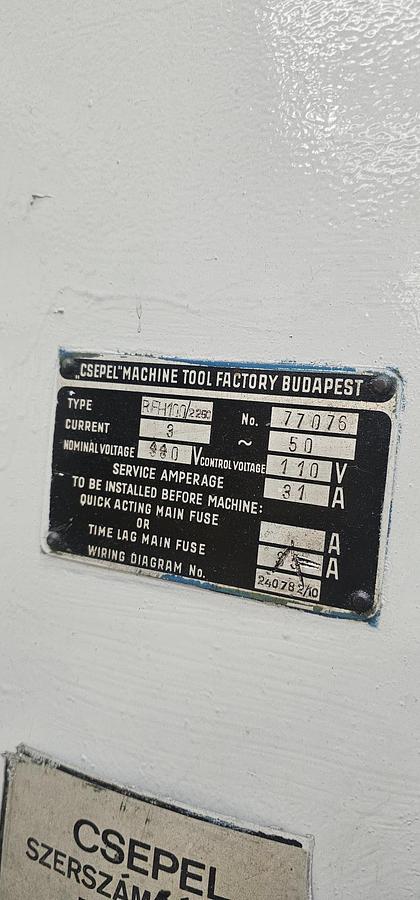

Serial number 77076
Drilling capacity in steel 100 mm
Distance between spindle centre & column centre 2550 mm
Distance between spindle centre & column face 2250 mm
Horizontal traverse of head along arm 1710 mm
Distance - Spindle to base max. 2100 mm
min. 470 mm
Vertical arm travel 1630 mm
Column diameter 600 mm
Bed-plate working area length 2500 mm
width 1550 mm
Morse taper 6
Spindle travel 400 mm
Spindle feed range (18) 0.037 – 2 mm/rev.
Spindle speeds (21) 18-1800 rpm
Spindle motor 15 kW
Overall weight approx. 12,100 kg
Overall height 4130 mm
Specifications
| Manufacturer | CSEPEL |
| Model | RFH 100 x 2250 HEAVY DUTY RADIAL ARM DRILLING MACHINE |
| Condition | Used |
| Serial Number | 77076 |
| Stock Number | 8523 |
| Machine complete with | -Spindle emergency brake. Power elevation of arm. Box table 1600 x 915mm Coolant. |
