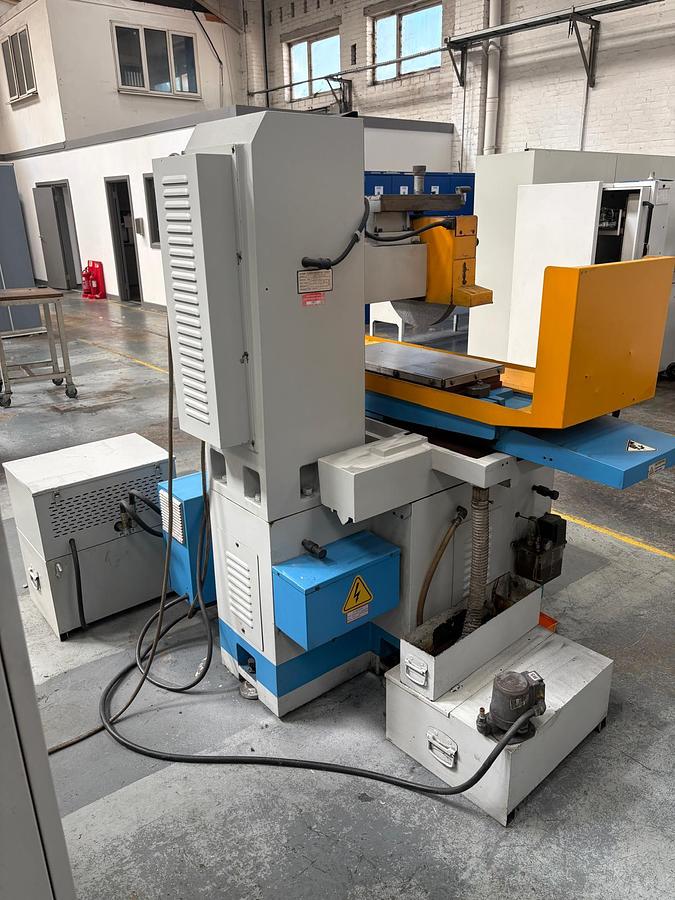

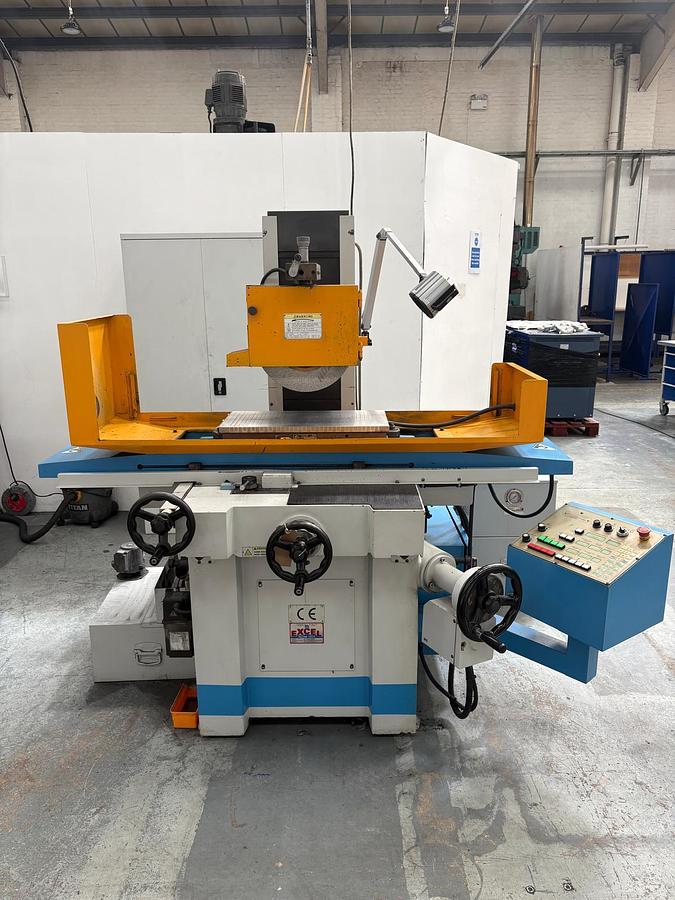

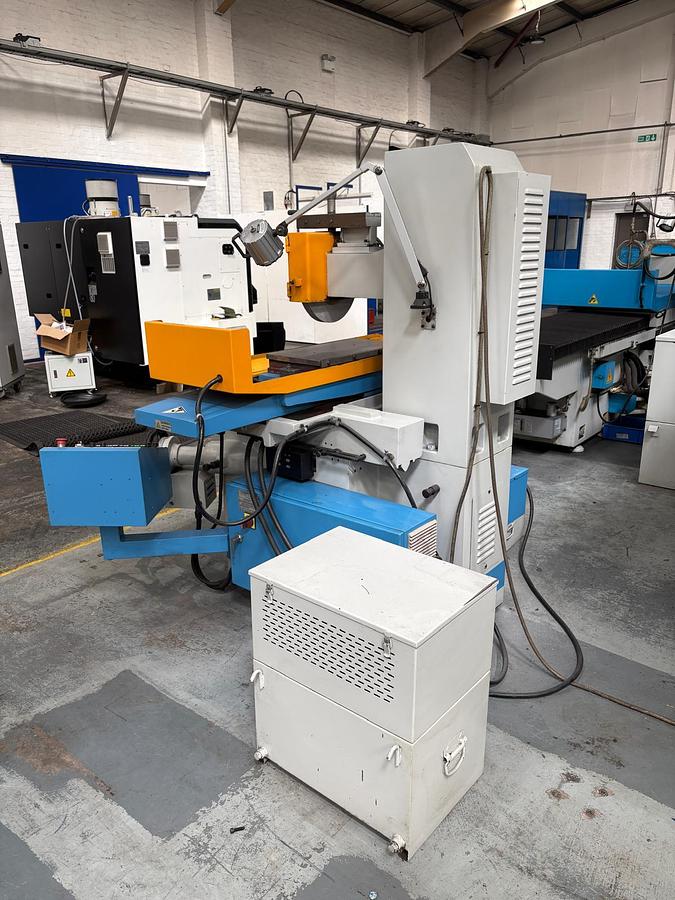

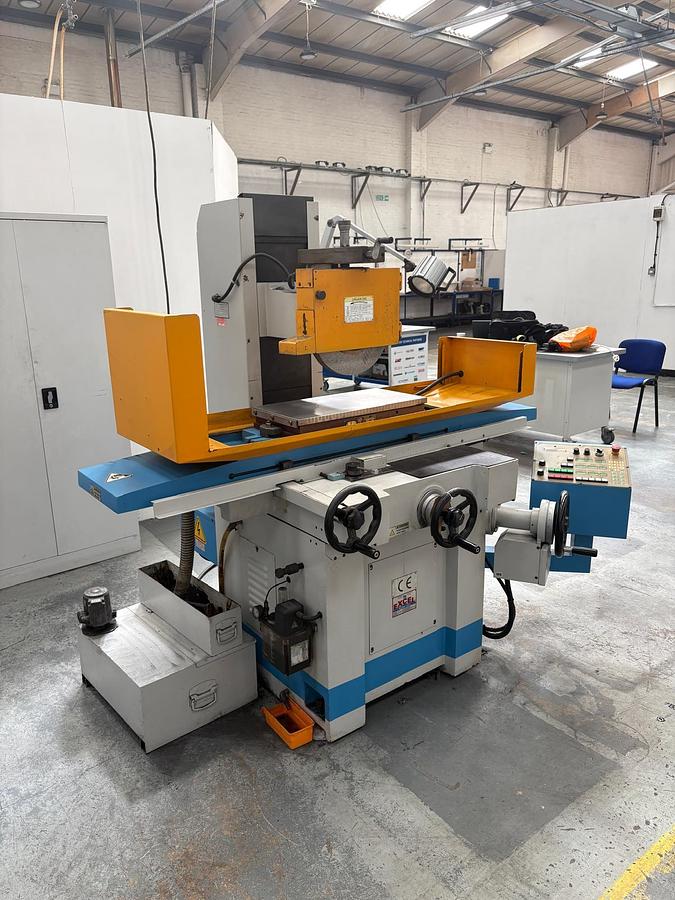

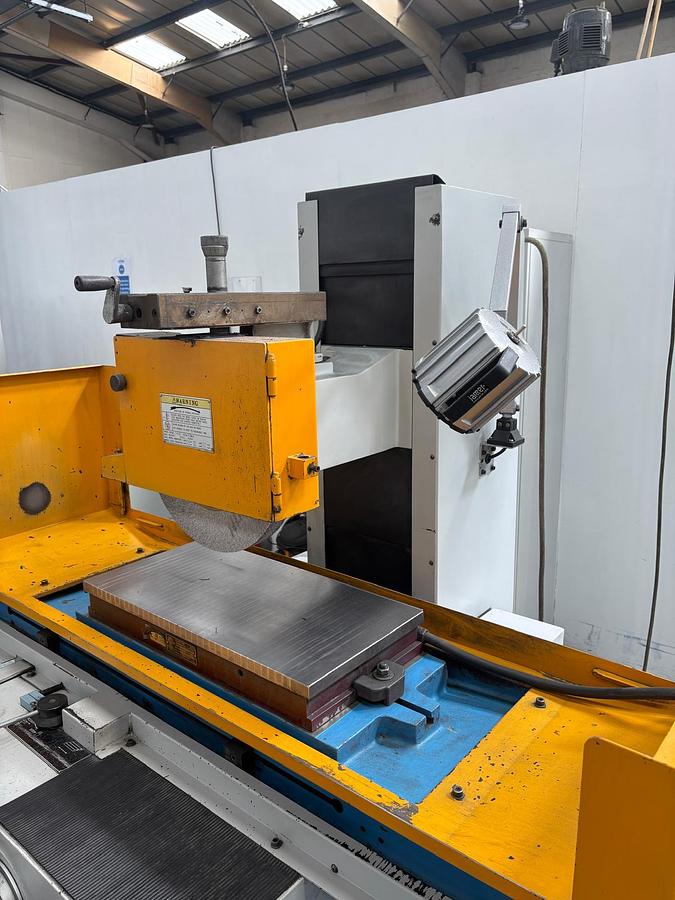

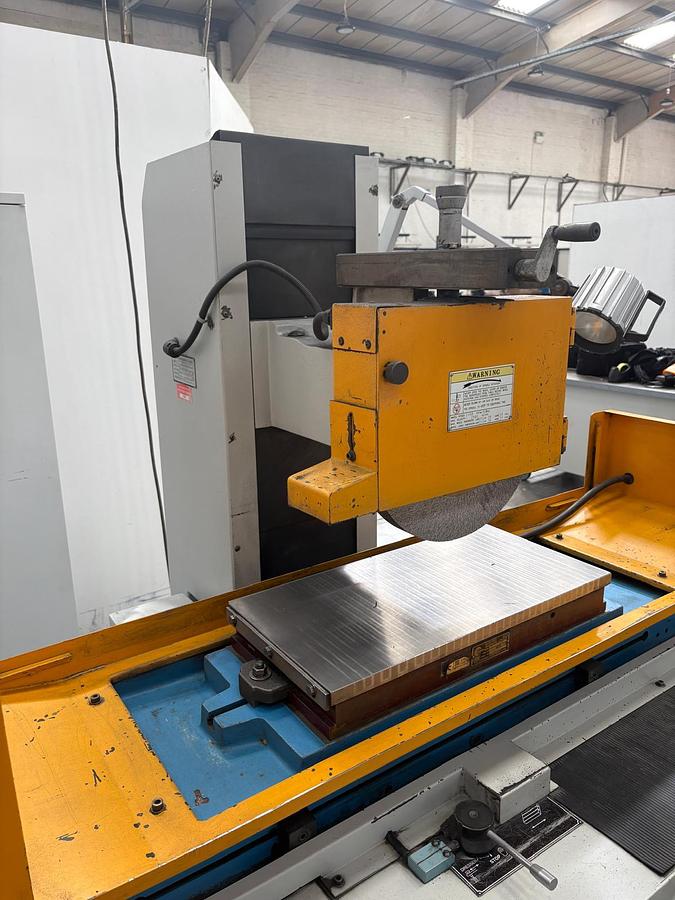

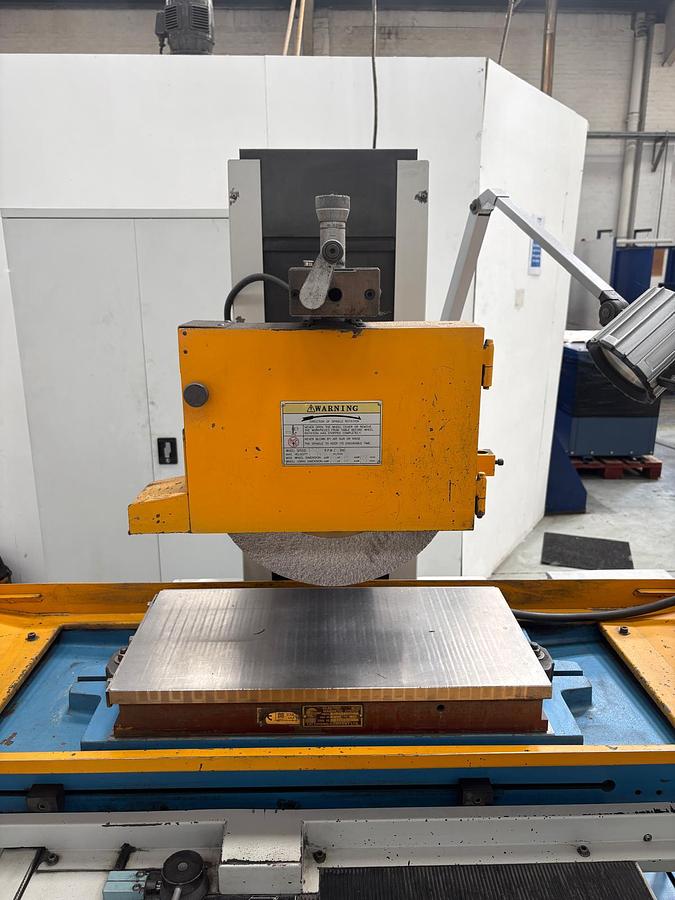

2011 EXCEL PERFECT PFG 3060AHRD SURFACE GRINDING MACHINE WITH AUTOMATIC DOWNFEED & CROSS FEEDS

Table size 305 x 635 mm

Maximum longitudinal travel 660 mm

Maximum cross travel 340 mm

Maximum distance table surface to spindle centre 540 mm

Table speed 7 – 23 m/min

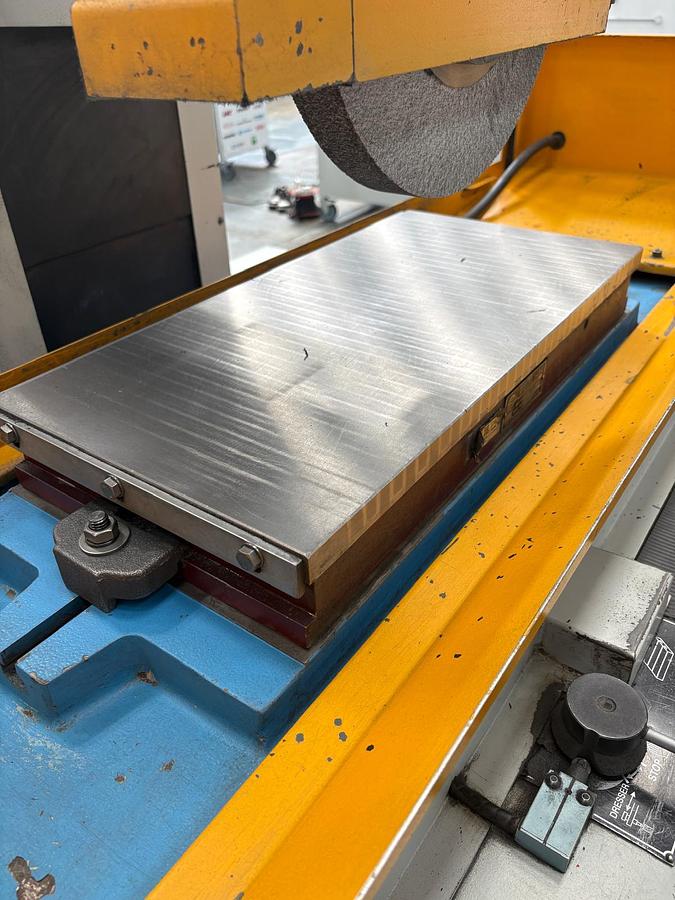

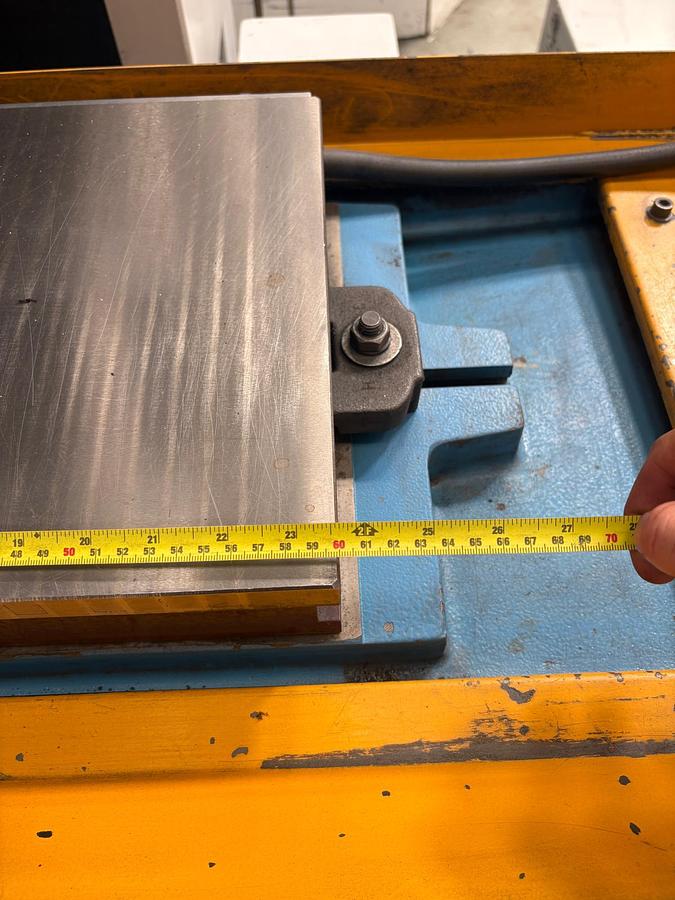

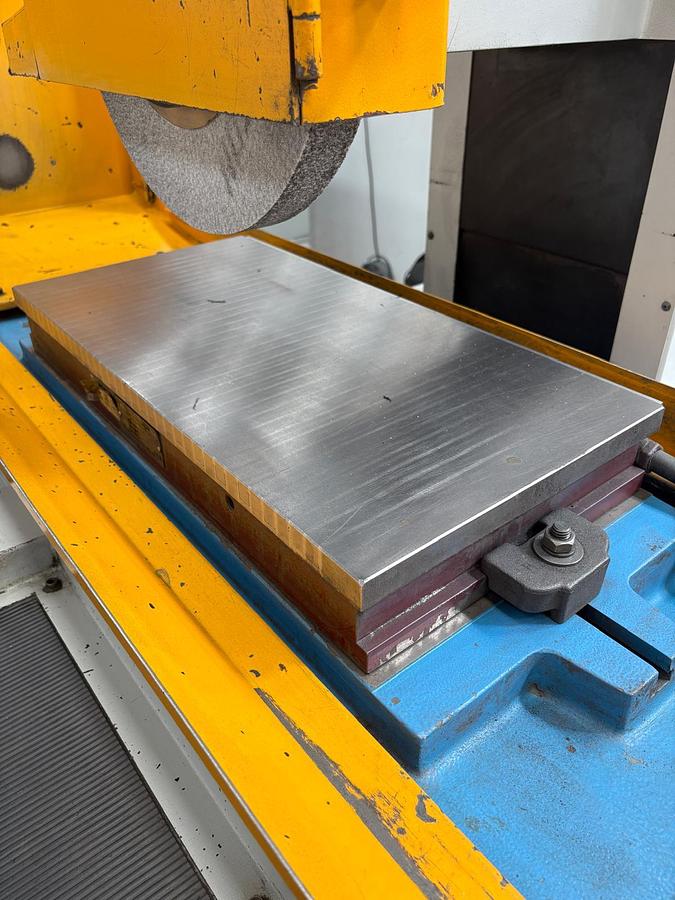

Magnetic chuck size 600 x 300 mm

Spindle speed 1450 rpm

Spindle motor 5.5 kW (7.5 HP)

Grinding wheel size 355 x 40 x 127 mm

Floor space required 2170 x 2100 mm

Weight 2800 kg

Supplied with:

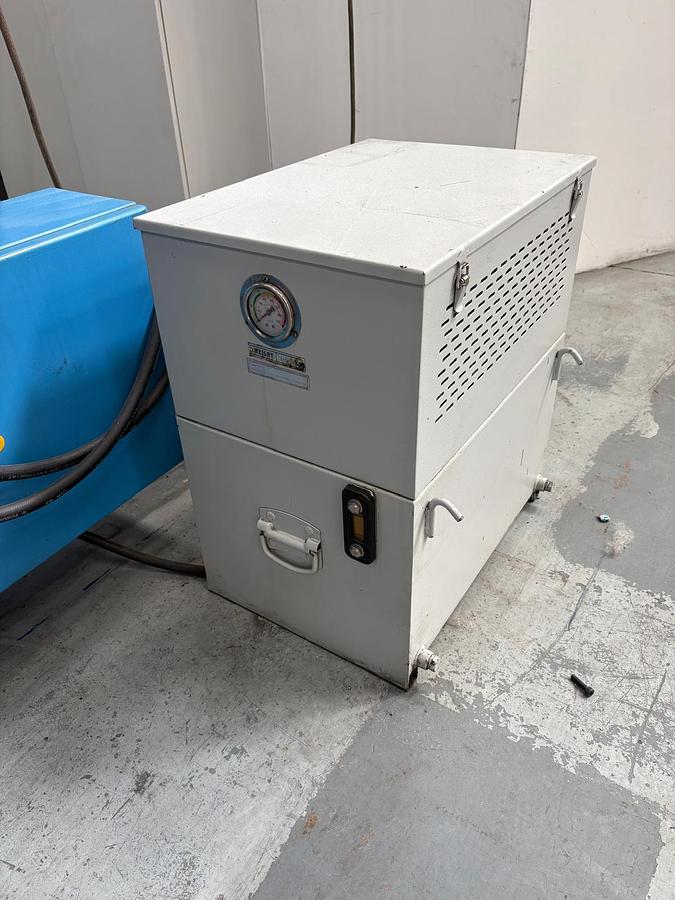

Automatic Downfeed System, Automatic cross feeds, 600 x 300 mm Electromagnetic Chuck, Demagnetising Unit, Coolant system, Machine Pads & Levelling Bolts, Low Voltage Work Light.
