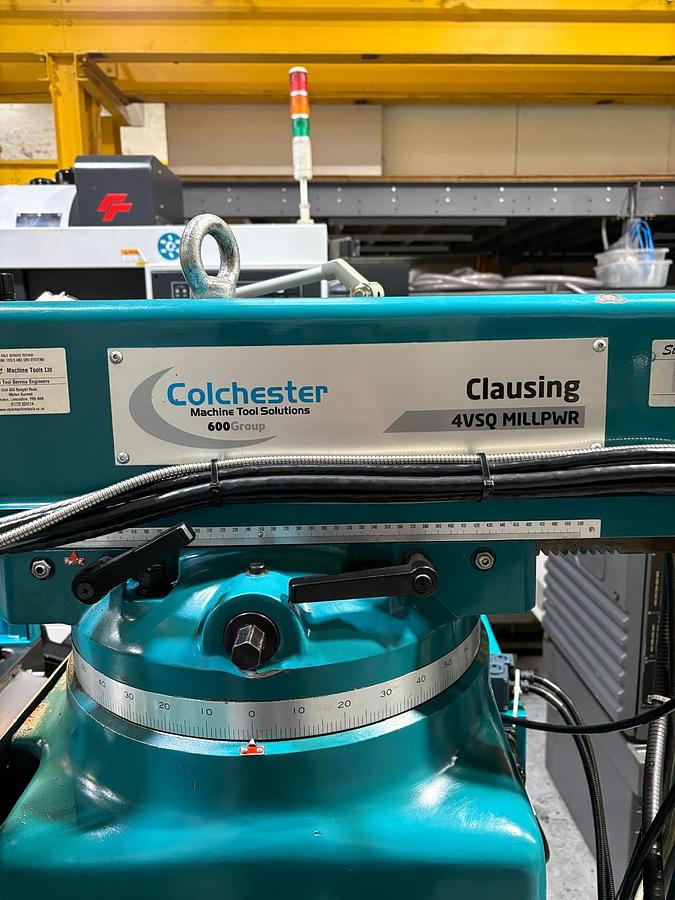

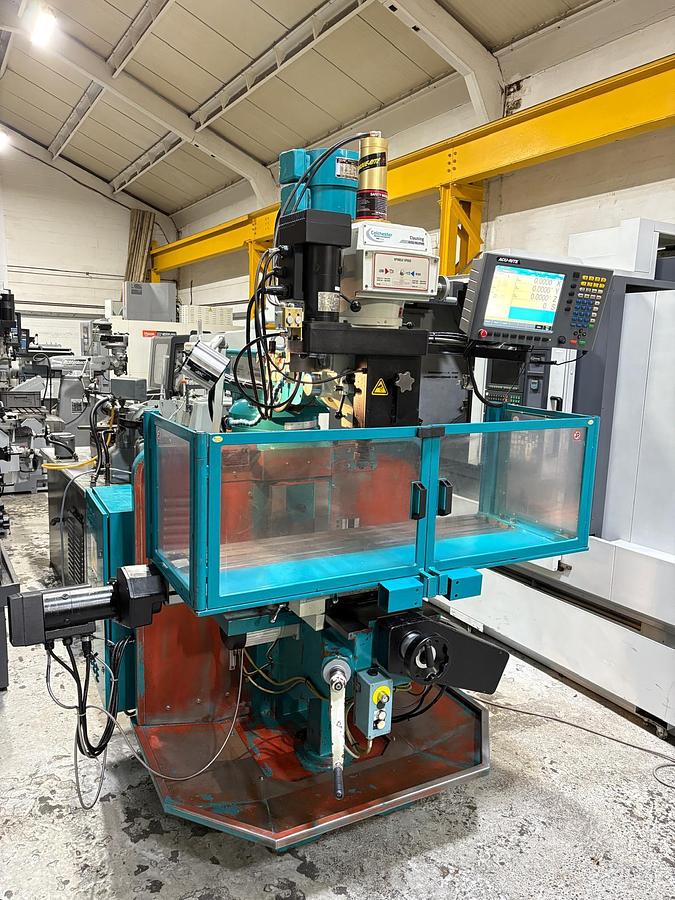

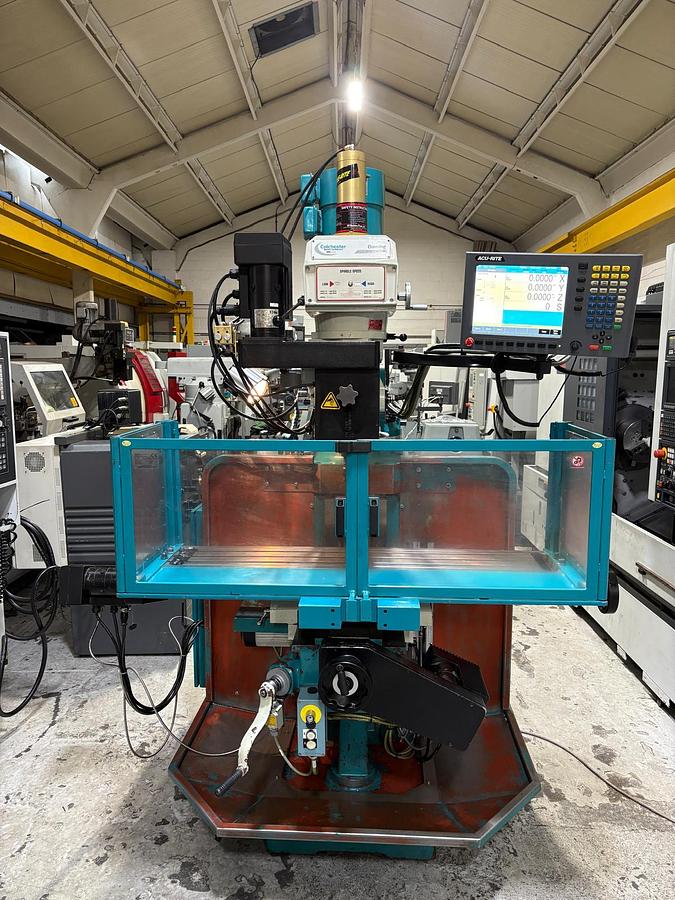

2018 CLAUSING COLCHESTER 4VSQ MILLPWRg2 3 Axis

£12,500
or
Call 01564 773351

Description

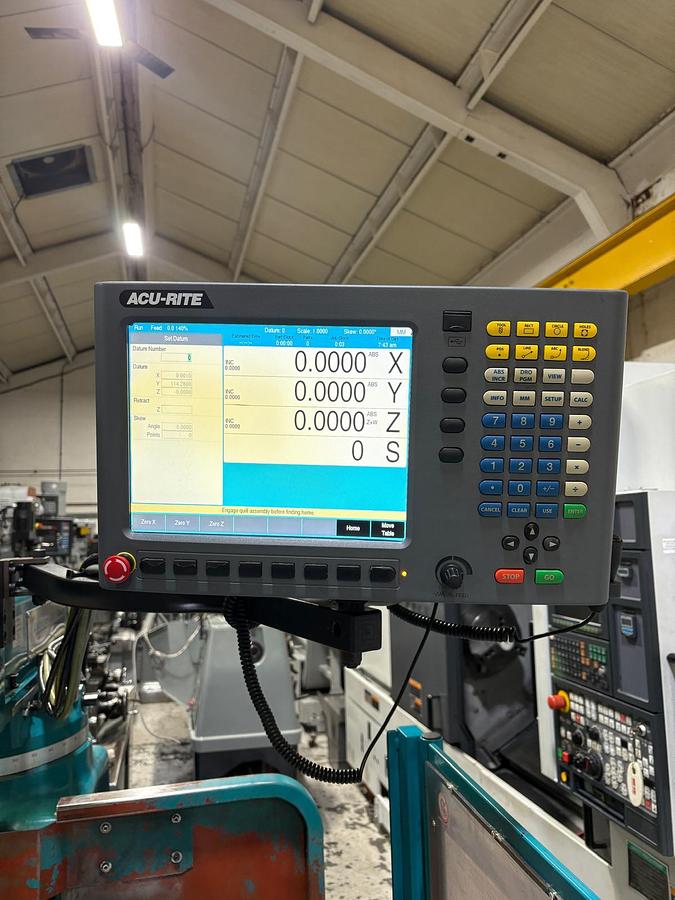

Control system ACU-RITE MILL POWER G2 3 Axis


TABLE

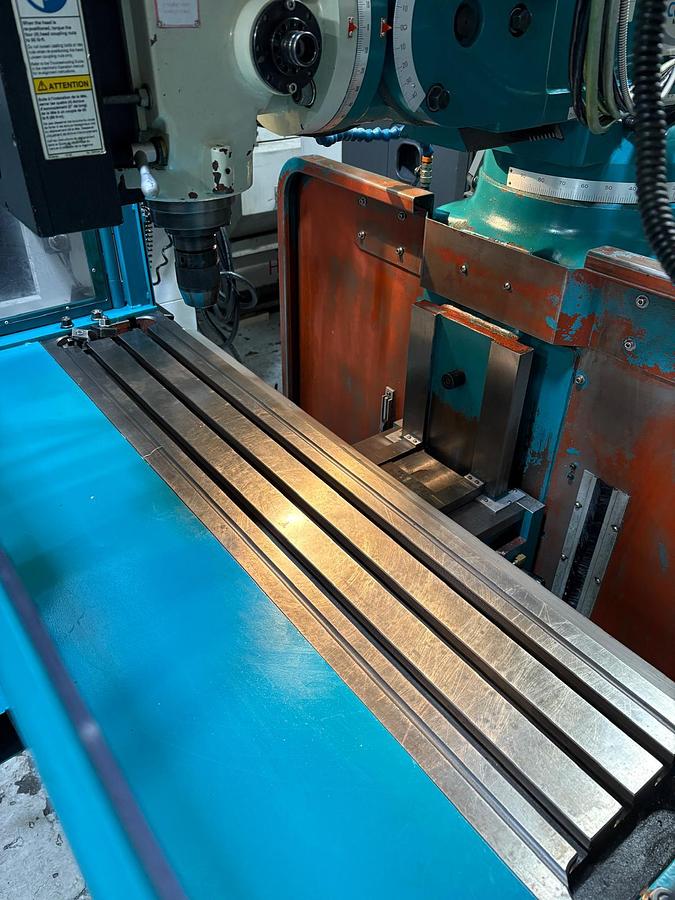

Table size                                                       1370 x 254 mm



TRAVERSES

Longitudinal traverse          (X axis)                1050 mm

Cross traverse                    (Y axis)               390 mm

Vertical traverse (knee)      (Manual)               355 mm

Ram adjustment                                              555 mm



VARIABLE SPEED HEAD

Spindle speeds (Inf. Variable)                          Low range             60 – 500 rpm

                                                                         High range            550 – 4300 rpm

Head swivels to left and right                           90 degrees

Head tilts forwards and backwards                 45 degrees

Spindle taper                                                   40 ISO

Quill diameter 100 mm

Quill vertical travel             (Z axis)                  115 mm

Quill feed per revolution                                   .038 / .076 / .15 mm

Spindle drive motor                                          3.75 kW  (5 HP)

Max. throat depth                                             660 mm



Weight                                                              1850 kg

Show All

Specifications

ManufacturerCLAUSING COLCHESTER
Model4VSQ MILLPWRg2 3 Axis
Year2018
ConditionUsed

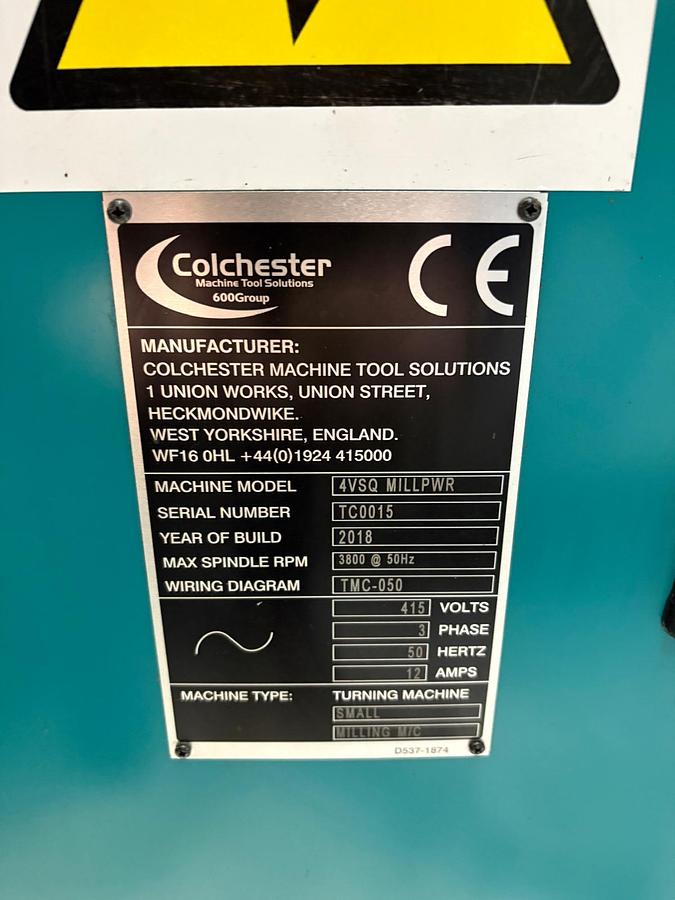

Serial NumberTC0015
Stock Number8520
Machine complete withSlide type - Hardened Box Way Interlocked table guards. Power rise and fall to knee. Air Draw Bar, Automatic lubrication. Low volt light, Coolant, Swarf tray.
