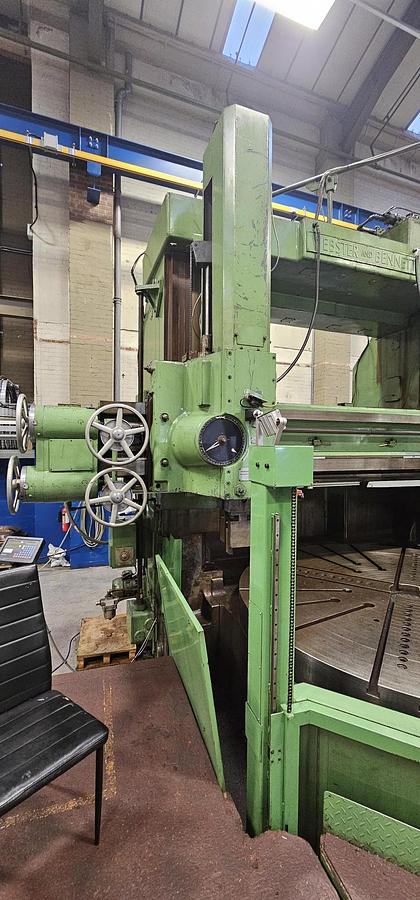

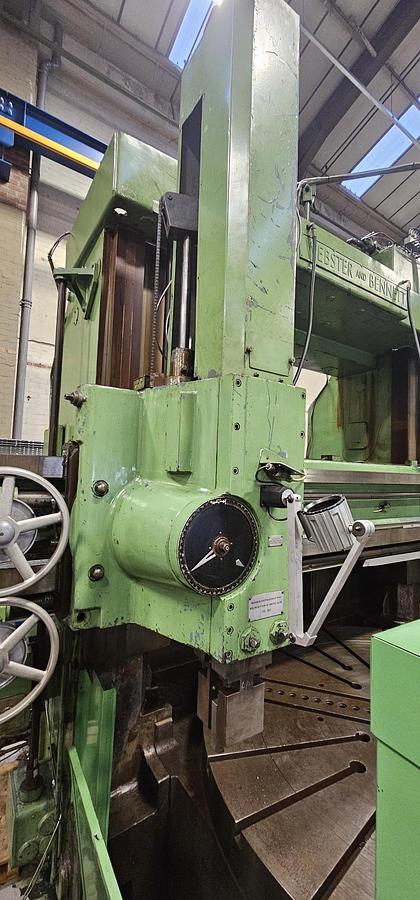

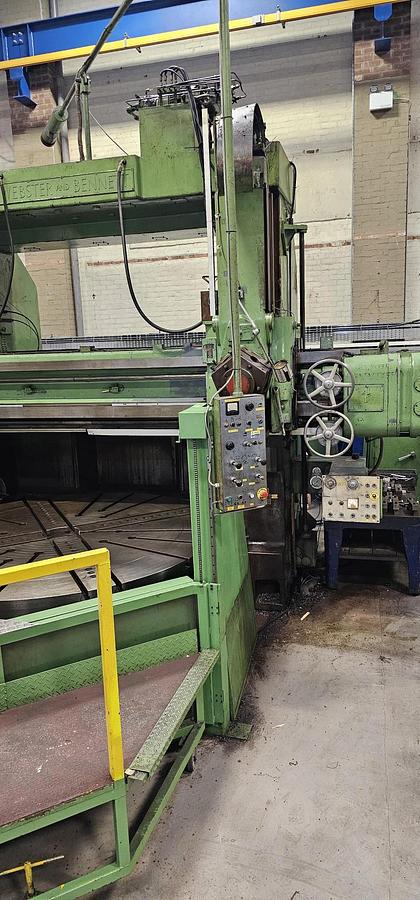

1970 WEBSTER & BENNETT 120" DCM DOUBLE COLUMN VERTICAL BORING AND TURNING MACHINE

Model 120” DCM

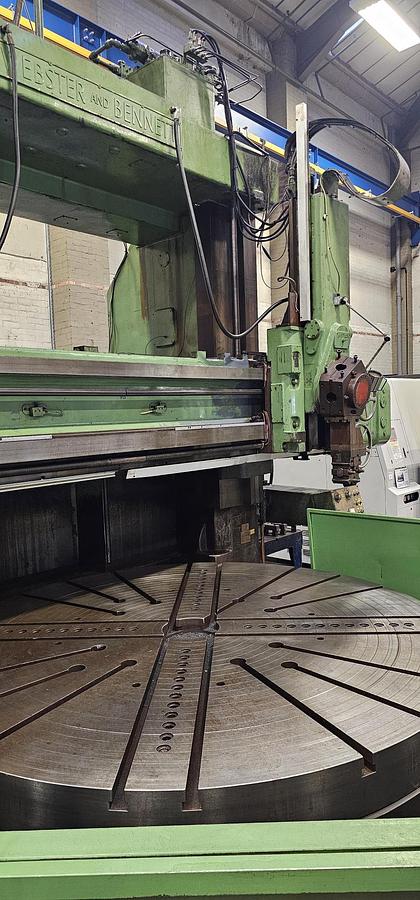

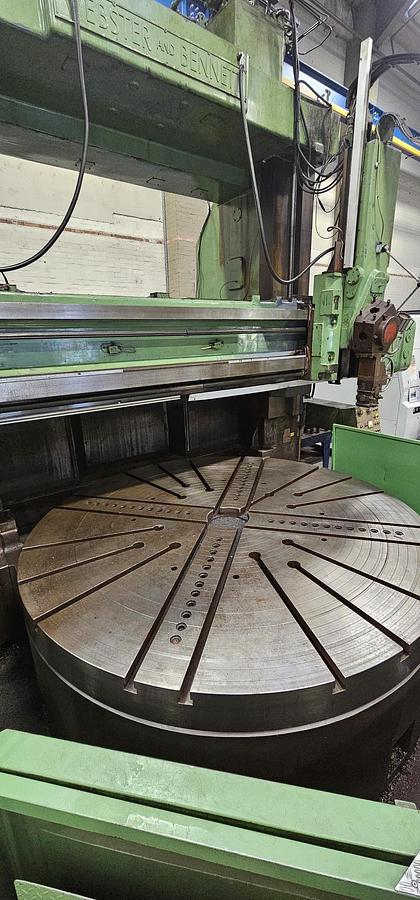

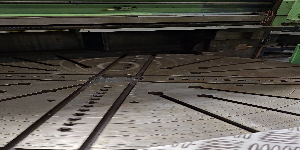

Diameter of faceplate 108” 2743 mm

Diameter of work turned with ram 120” 3048 mm

Diameter of work admitted 122” 3100 mm

Height from faceplate to underside of cross-slide 78” max. 1981 mm

Number of feeds 12

Range of feeds .025 - .125 ins/rev.

Number of speeds 12

Range of speeds 2 - 53 rpm

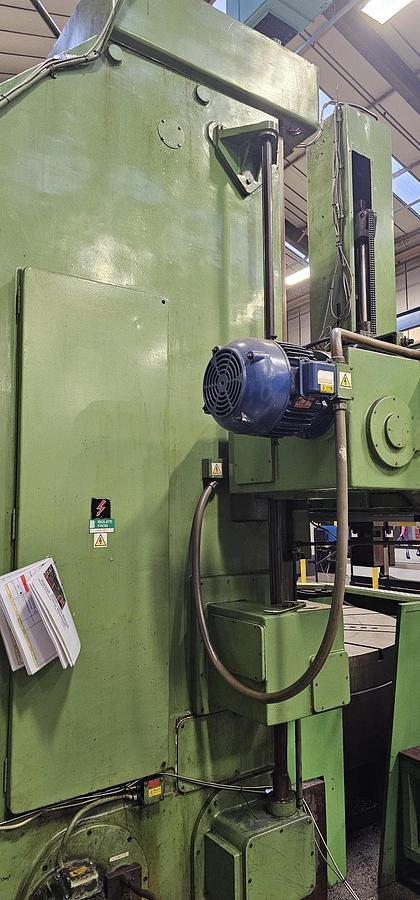

Main motor 50 HP 37 kW

Approximate total weight of machine 100800 lb 45720 kg

Machine complete with :-

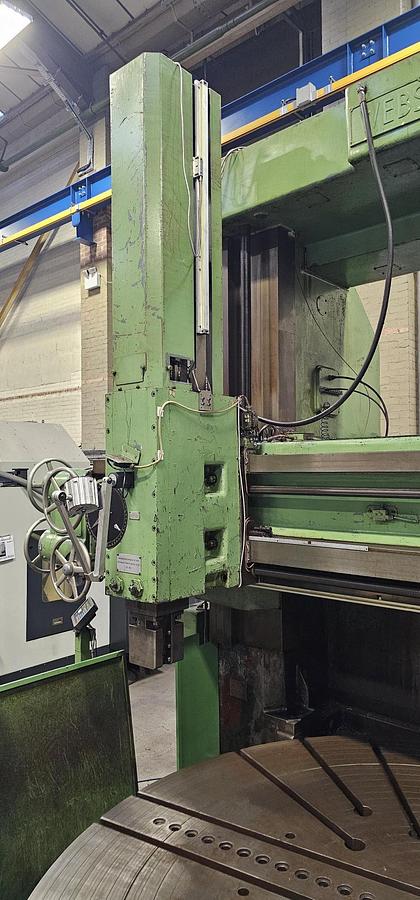

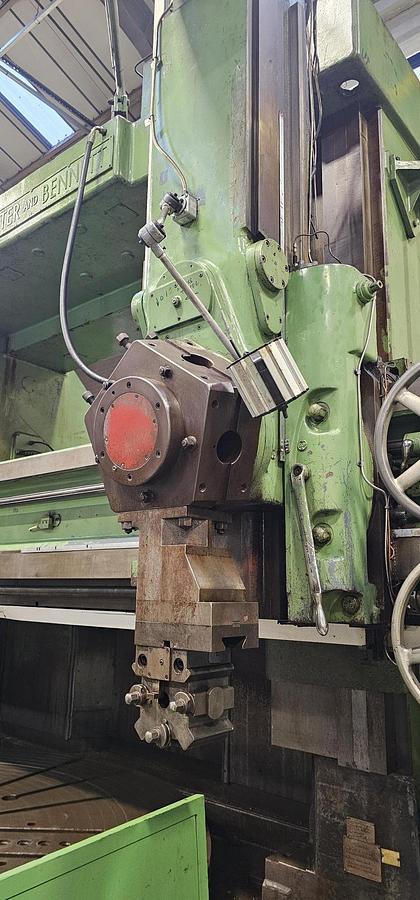

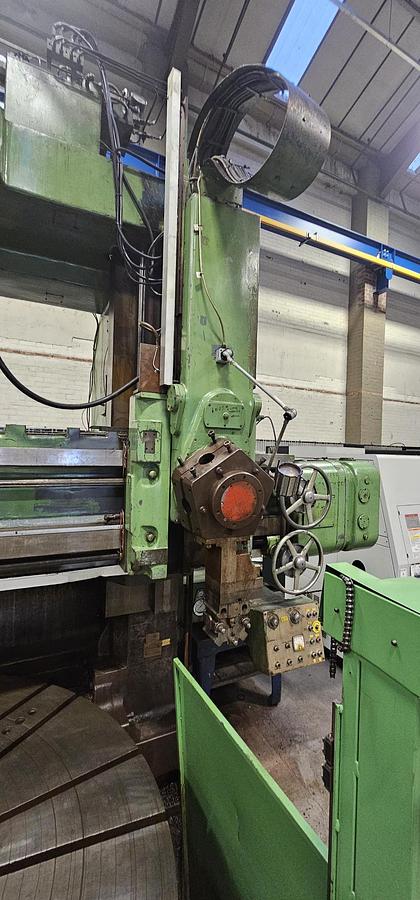

Left hand ram slide and Right hand turret slide.

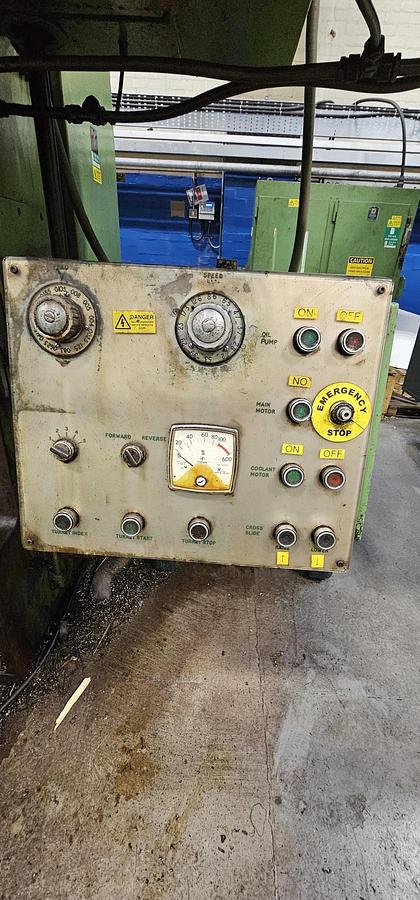

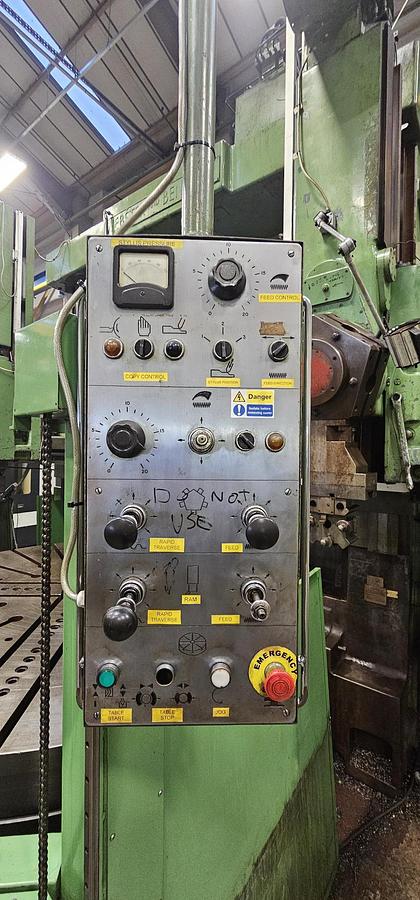

Pendant control.

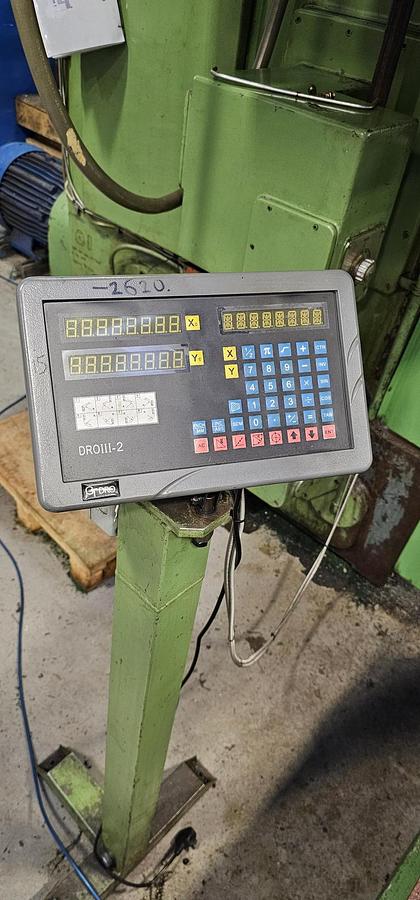

2 Axis D.R.O. to ram slide.

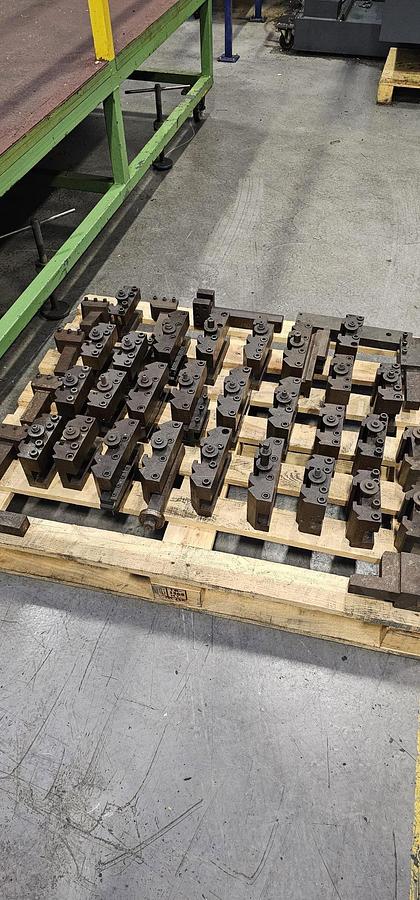

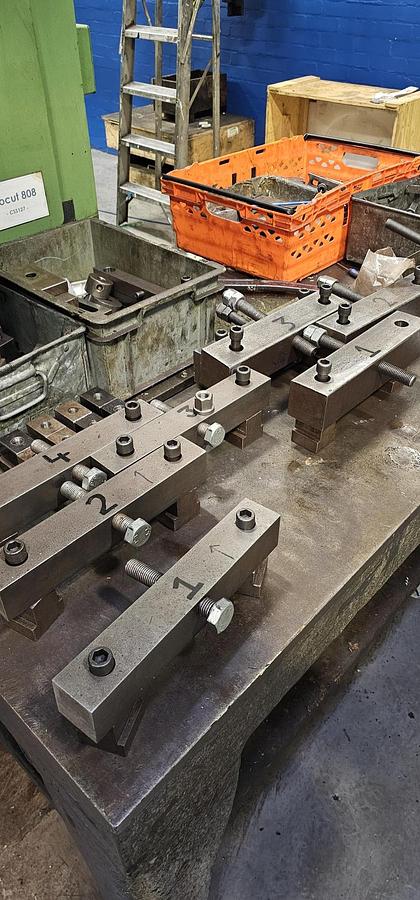

Dickson Quick Change Toolholder to Turret plus Standard Turning Toolholders and table clamps.

Coolant.

PRICE ON APPLICATION

N.B.

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed.

We advise prospective purchasers to check any vital details.

Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
