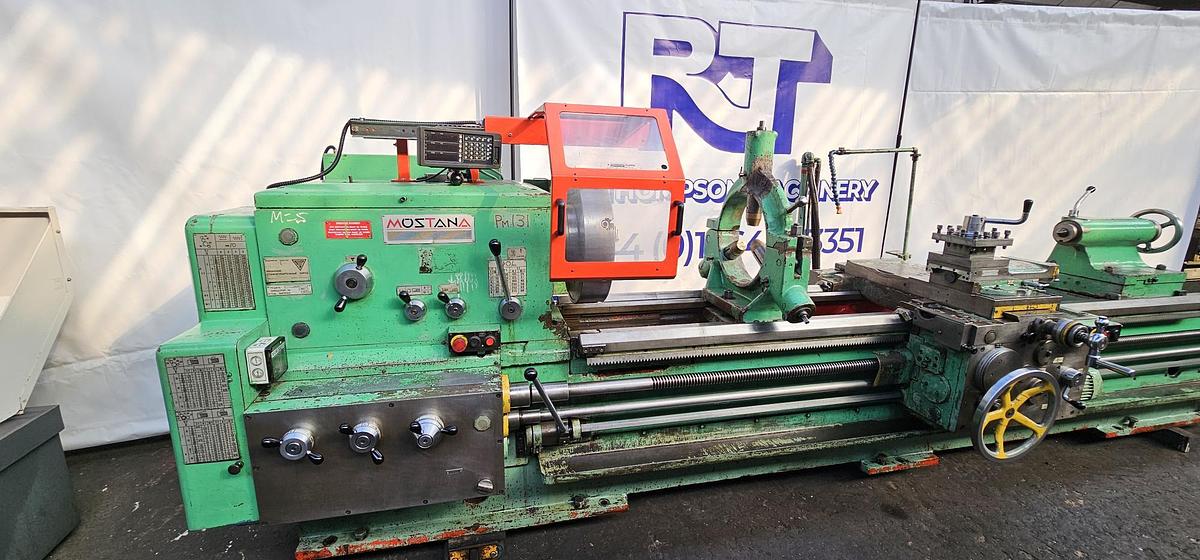

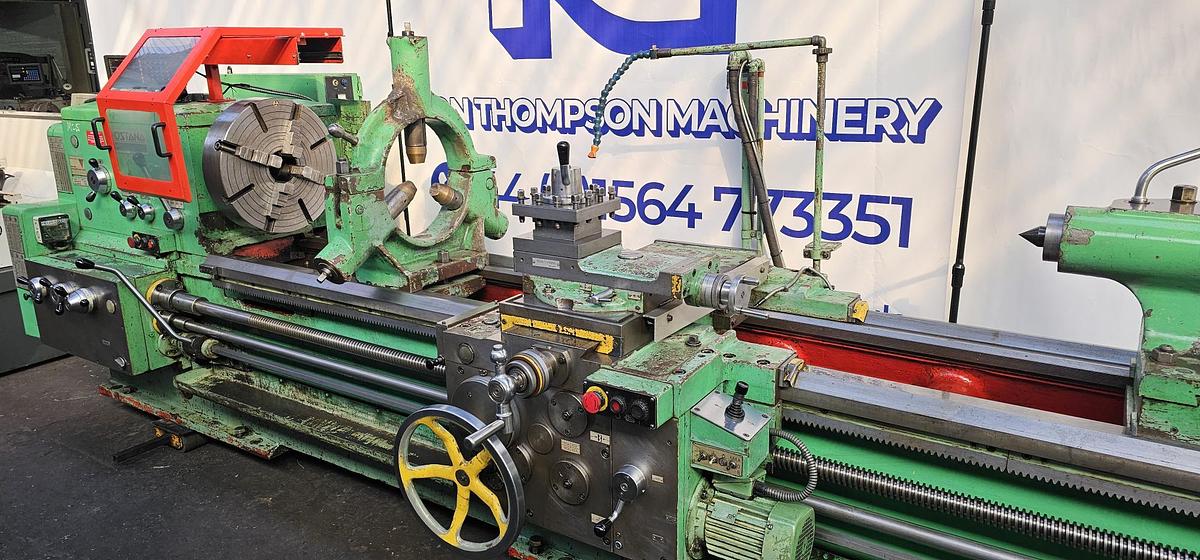

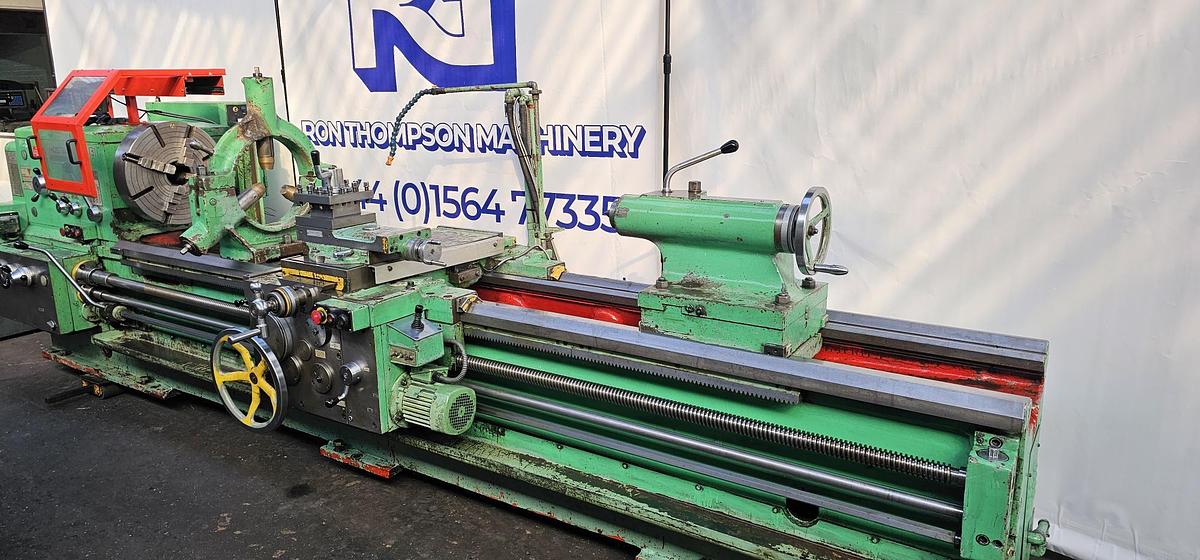

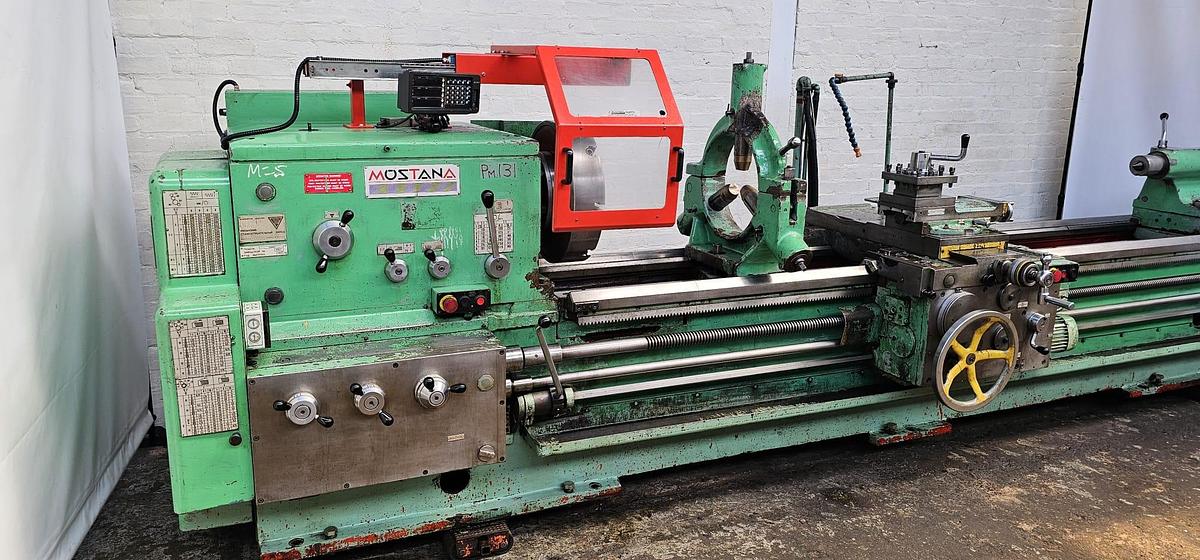

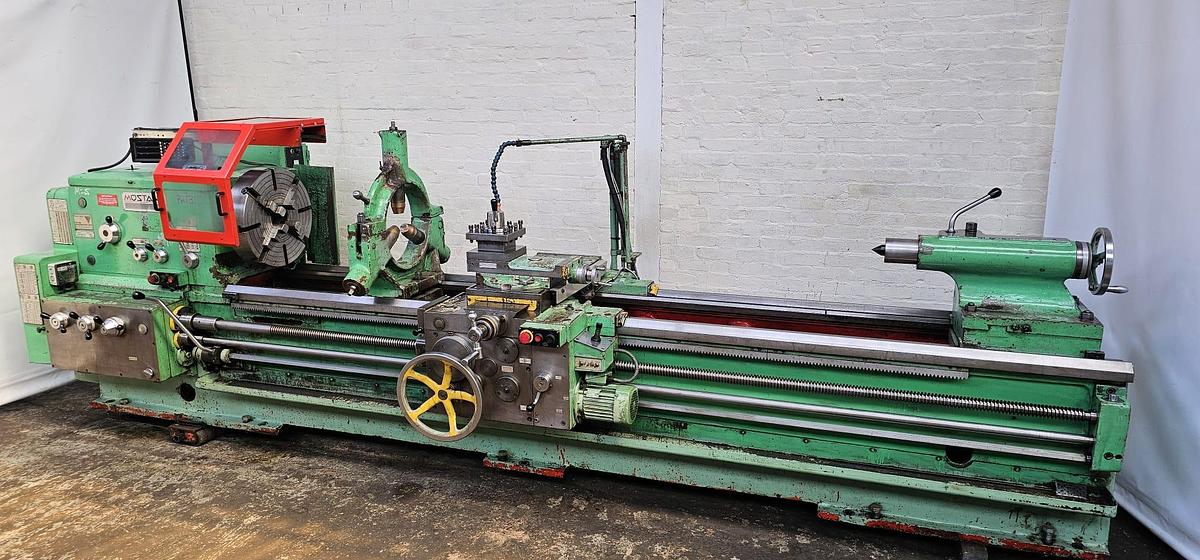

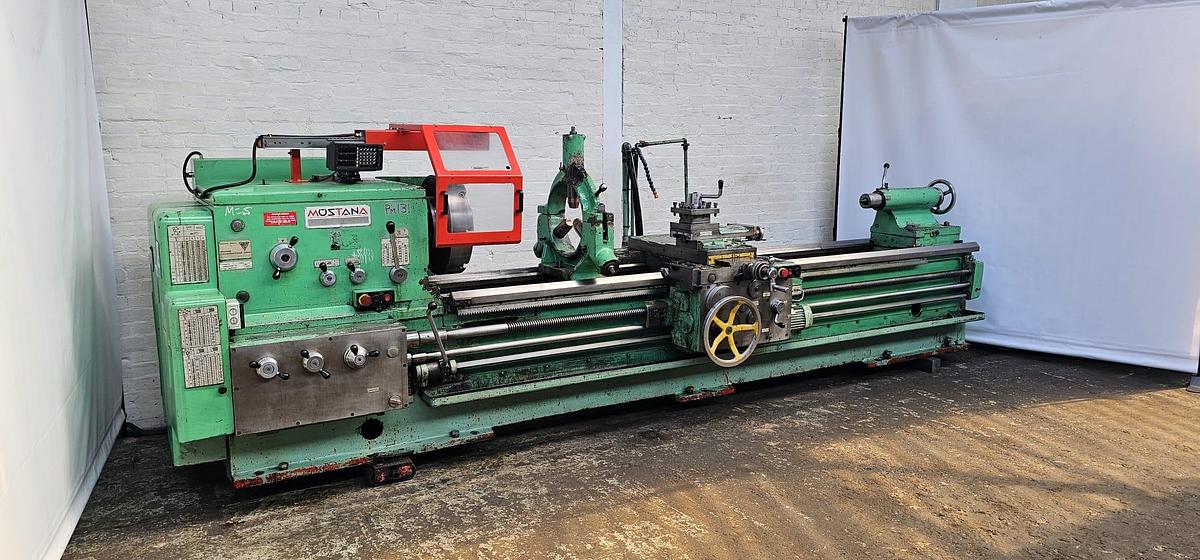

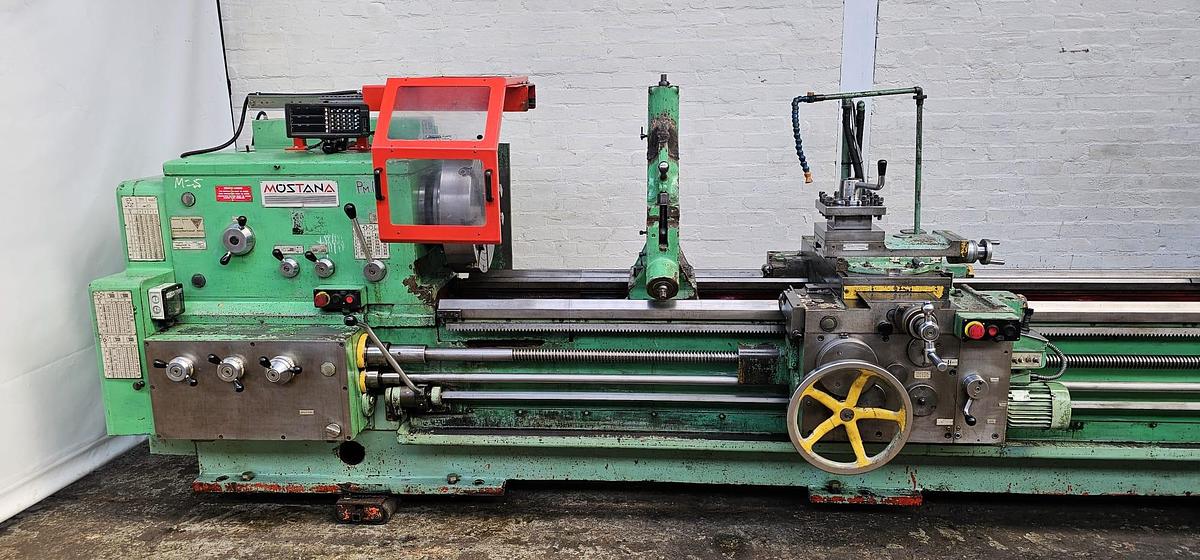

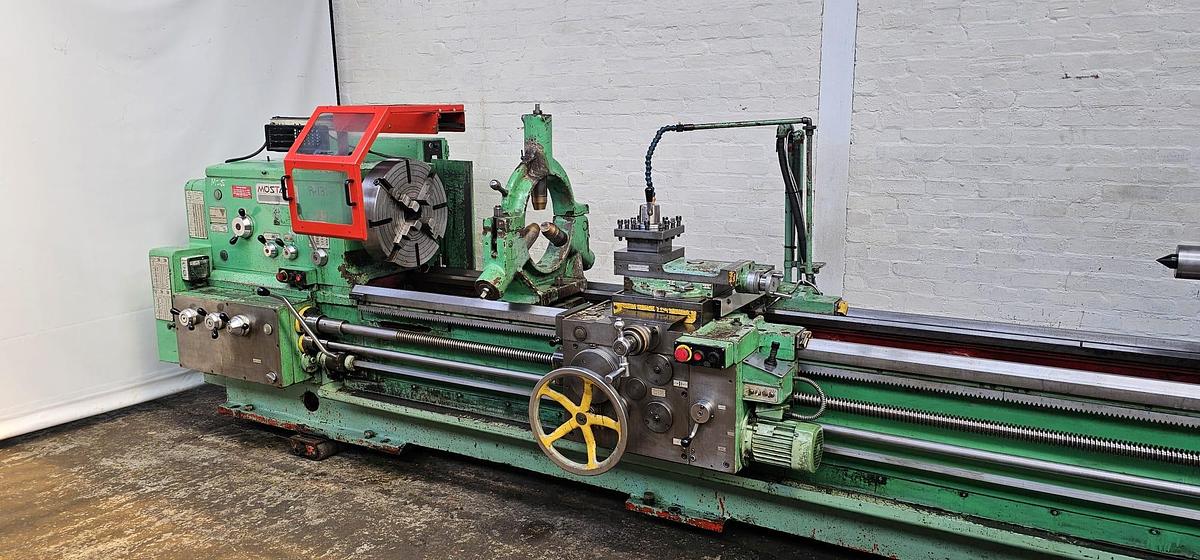

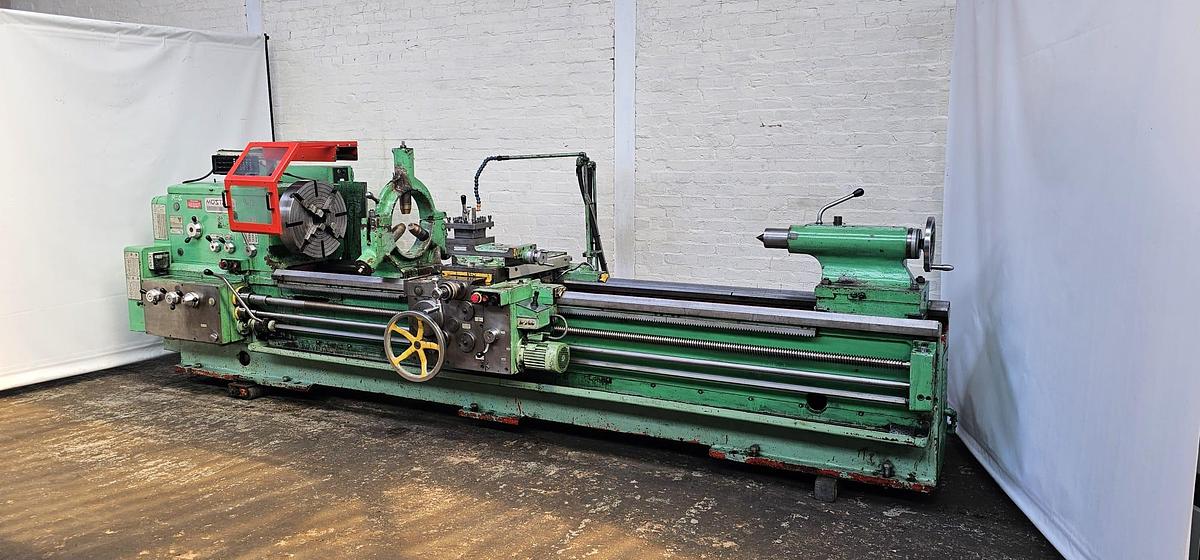

MOSTANA 1M63 x 3000 Gap Bed Centre Lathe

MOSTANA GAP BED CENTRE LATHE

Type 1M63 x 3000

Serial number 1688

Year 1995

CAPACITY

Distance between centres 3000 mm

Swing over bed 700 mm

Swing over cross slide 350 mm

Swing in gap 900 mm

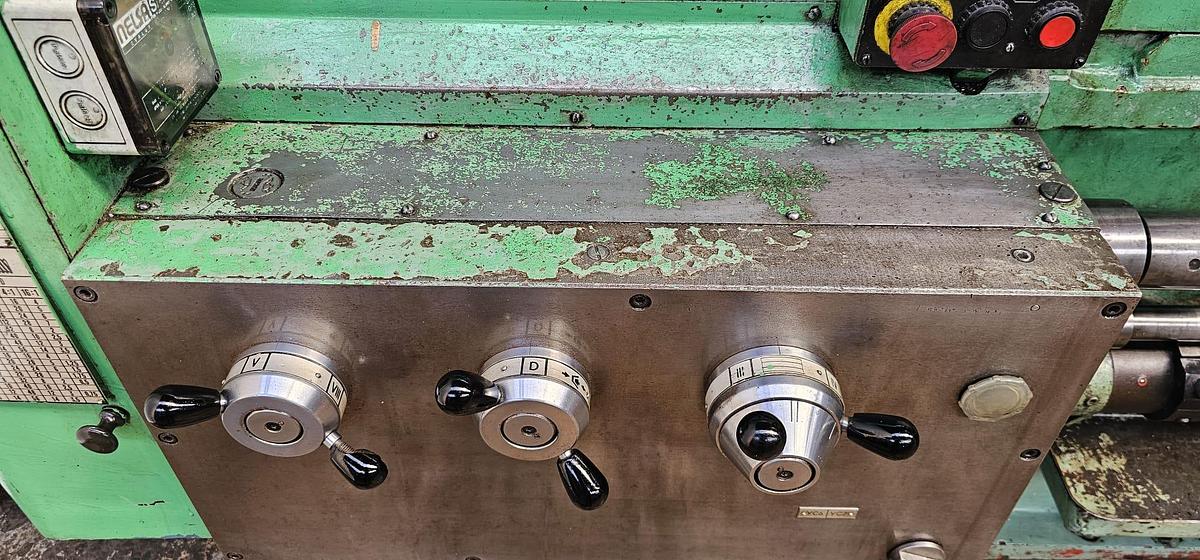

UNIVERSAL GEARBOX

Longitudinal feeds per rev (32) 0.005 – 1.4 mm/rev

Cross feeds half long. feeds

Threads per inch ¼  - 28 tpi

Inch pitches 112 to 0.5

Metric pitches 1 – 224

Module 0.25 - 56

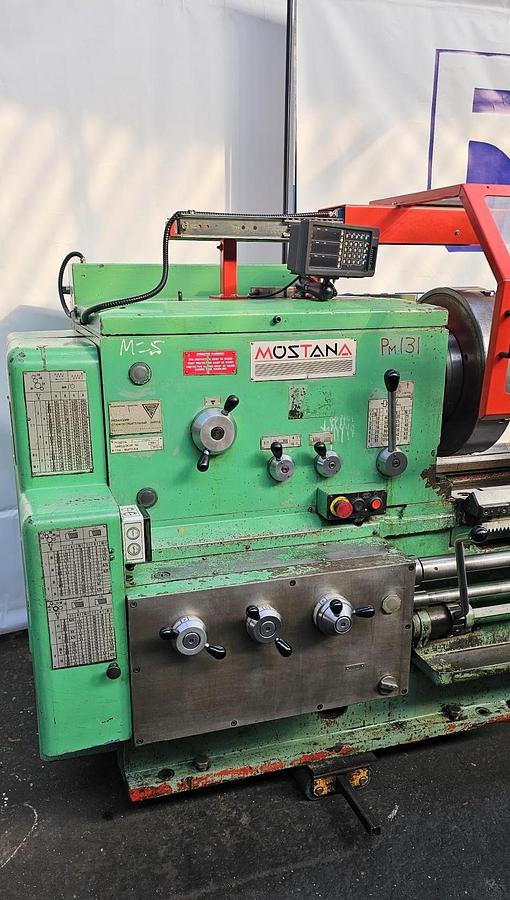

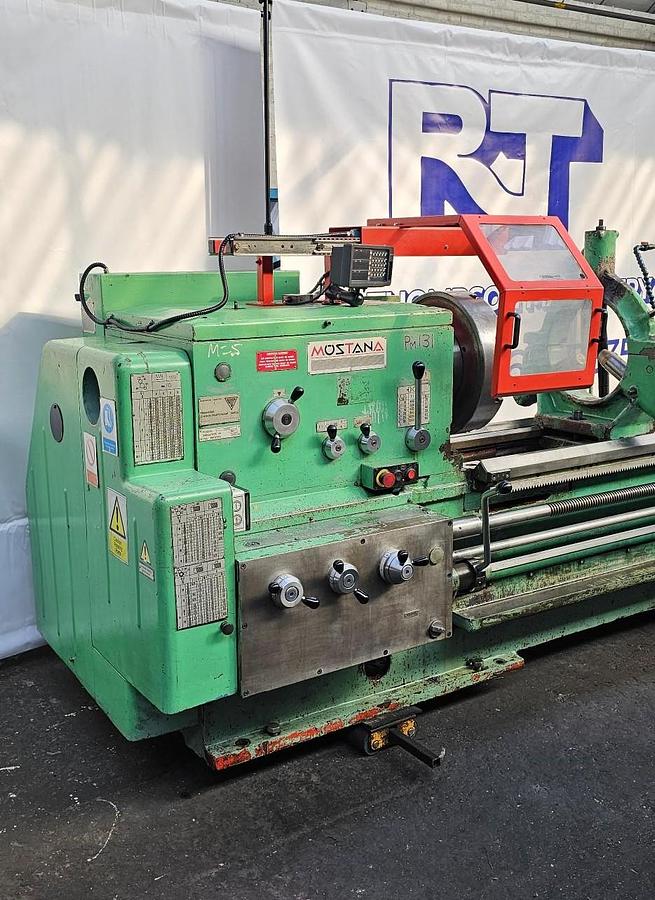

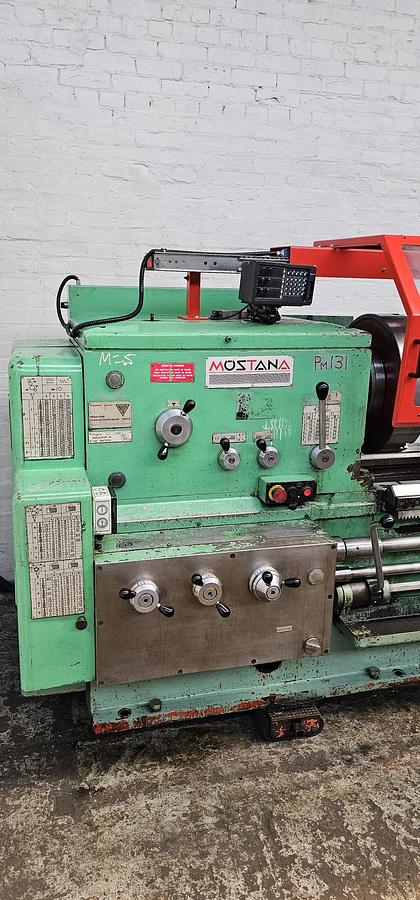

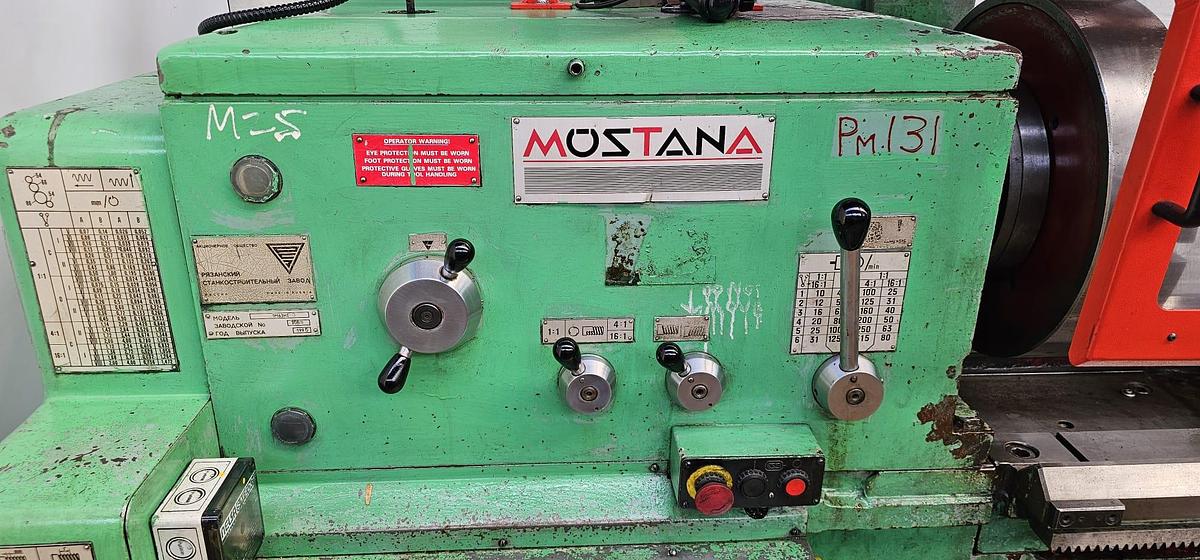

HEADSTOCK

Spindle speeds (22) 10 - 1250 rpm

Main motor 15 kW

Bore through spindle 105 mm

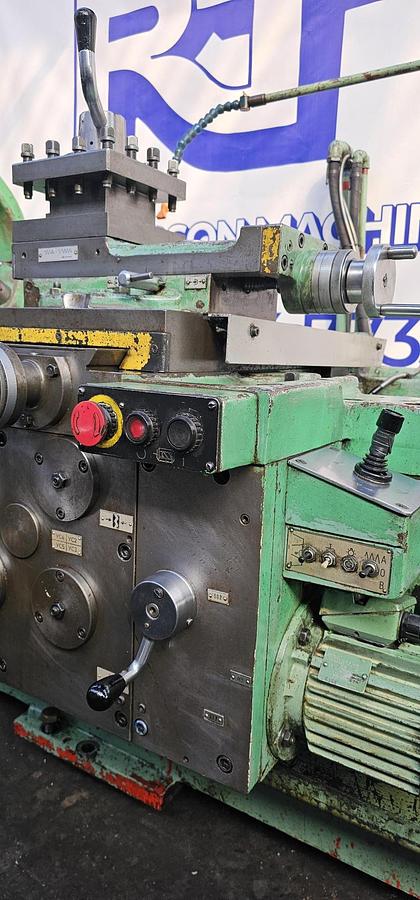

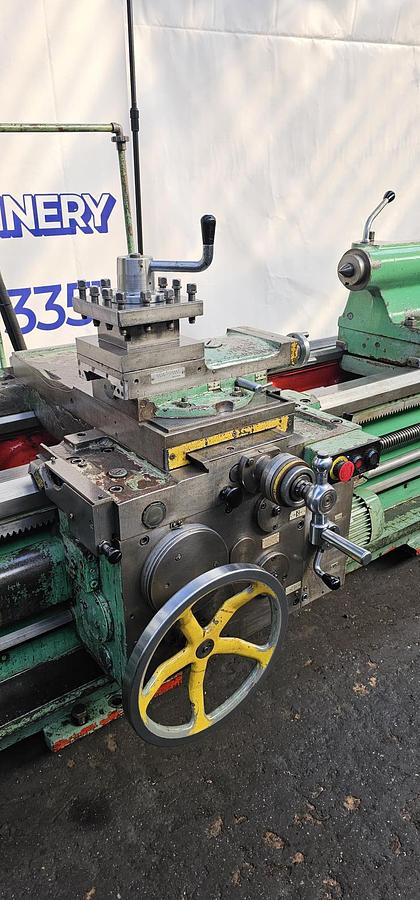

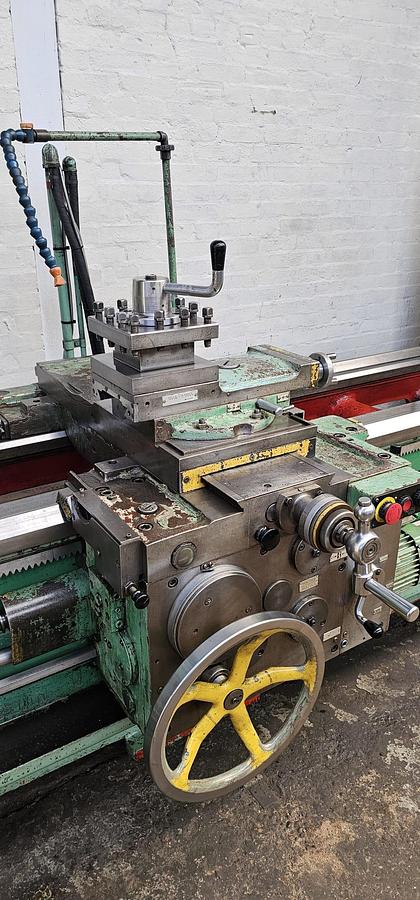

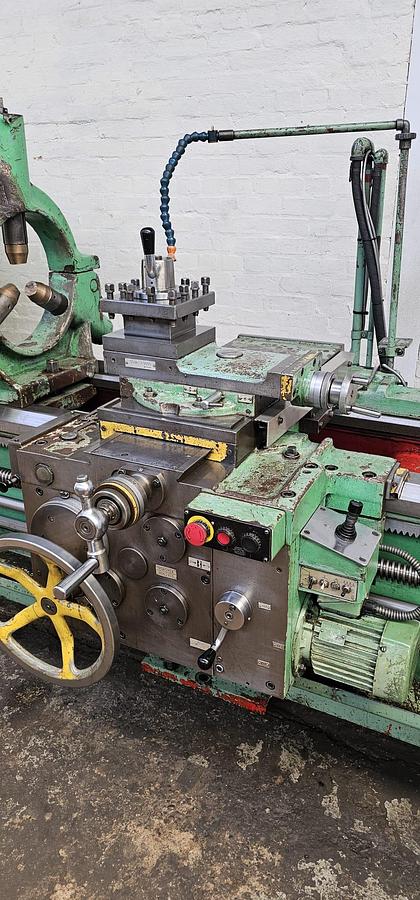

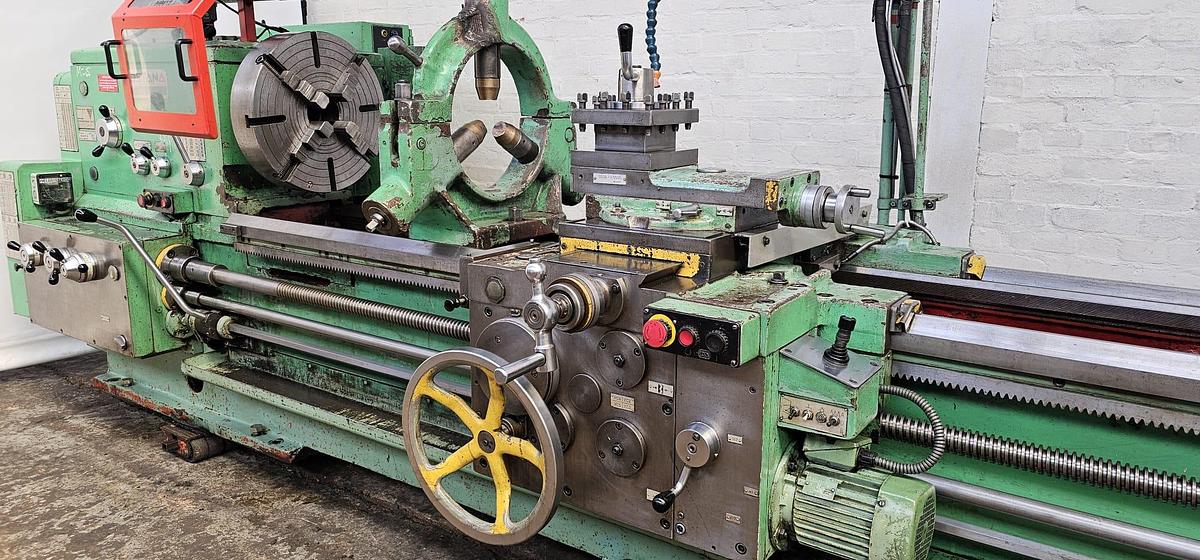

SADDLE & APRON

Cross slide travel 400 mm

Compound slide travel

Leadscrew diameter 45 mm

Leadscrew pitch 12 mm

Machine complete with :-

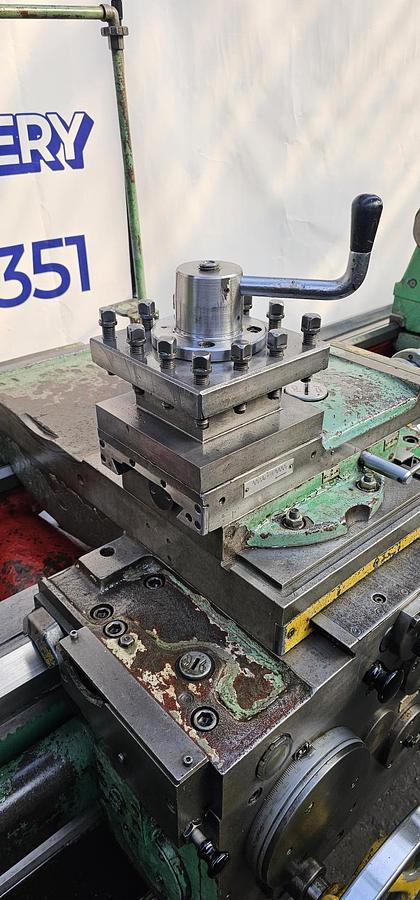

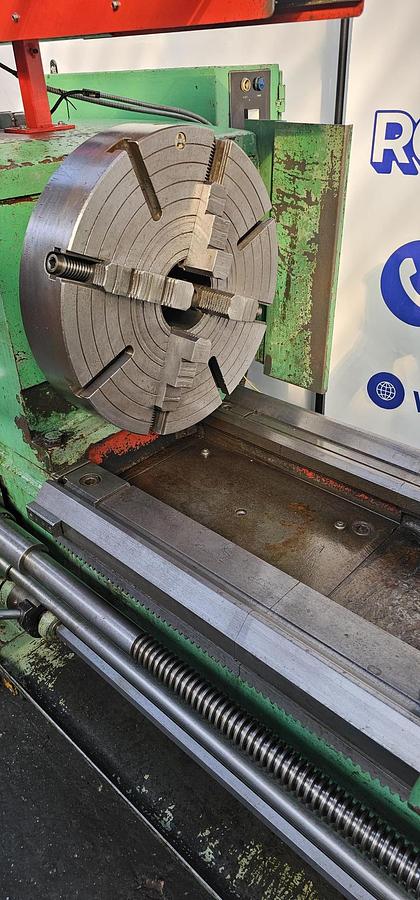

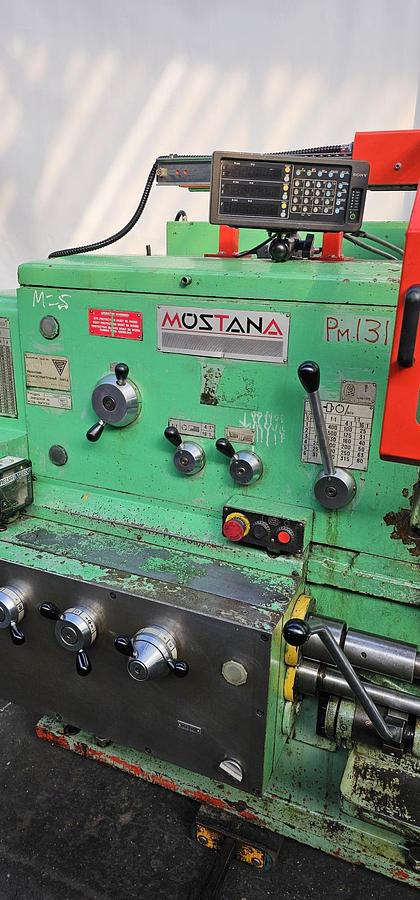

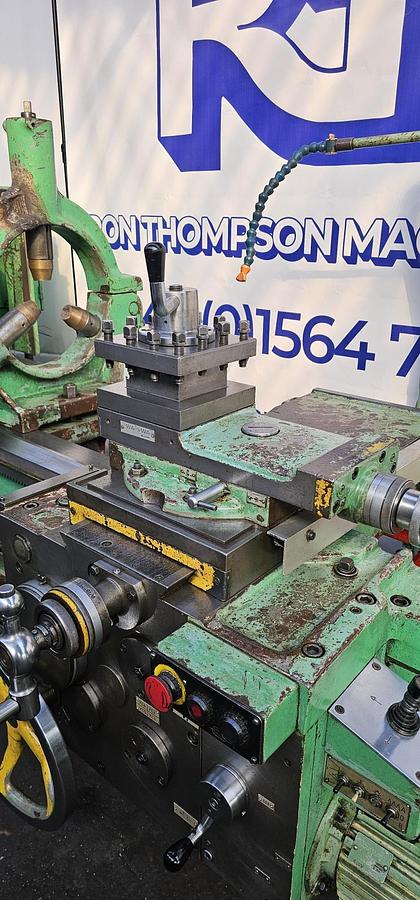

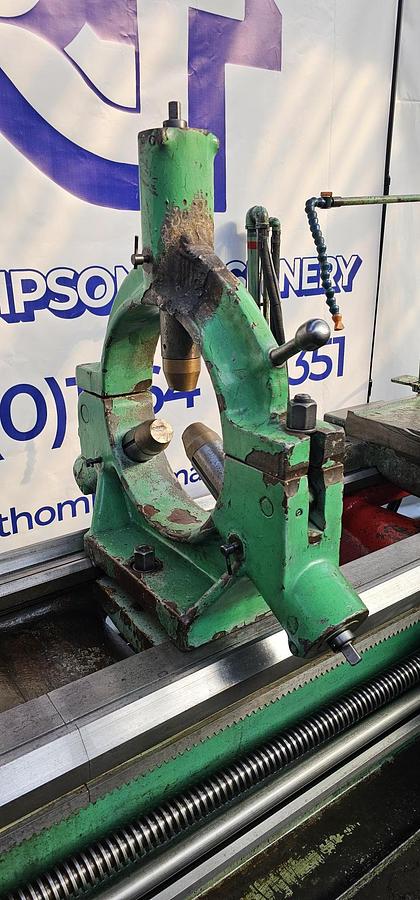

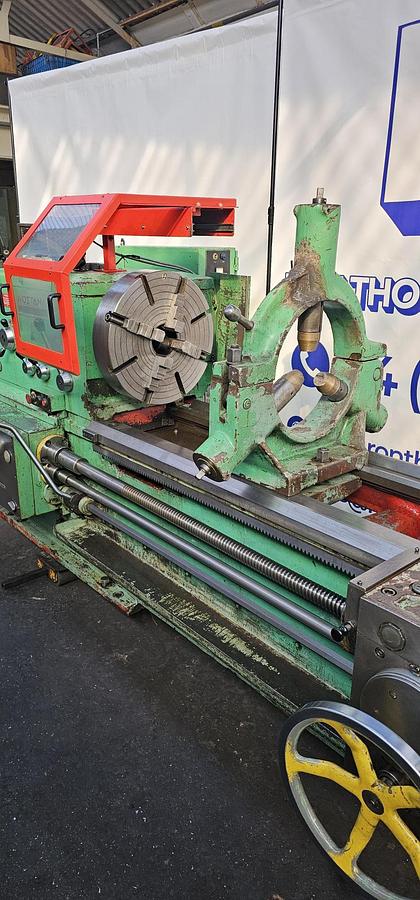

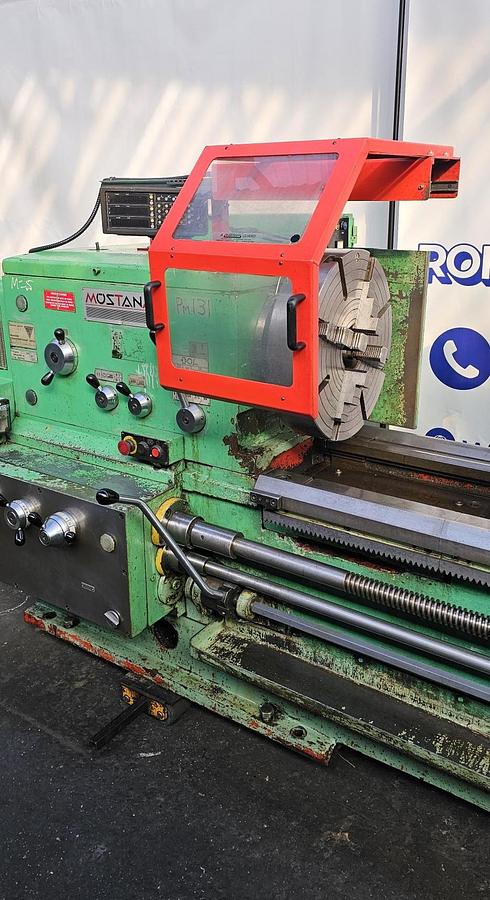

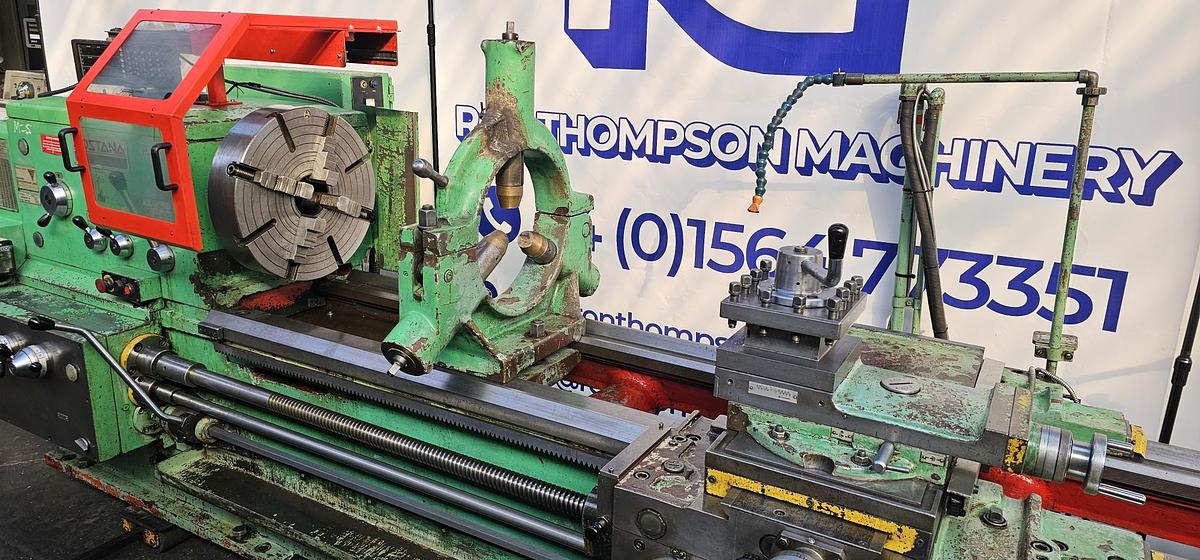

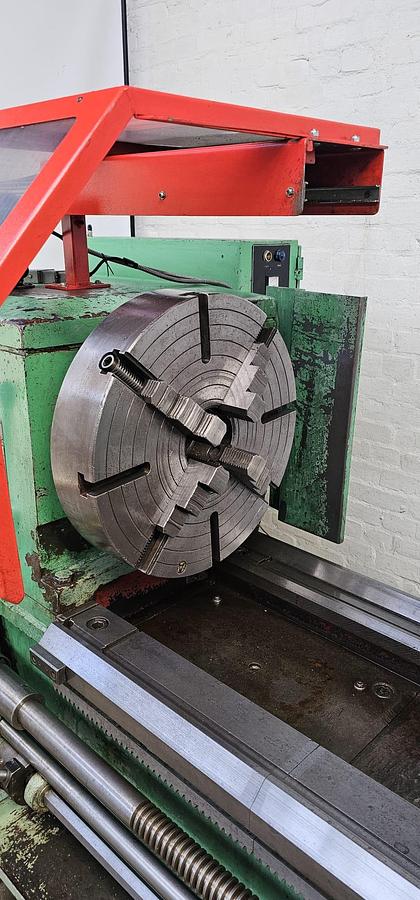

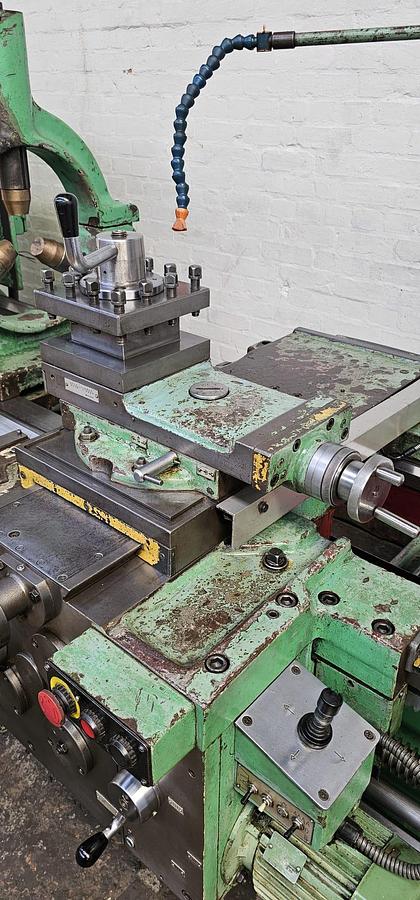

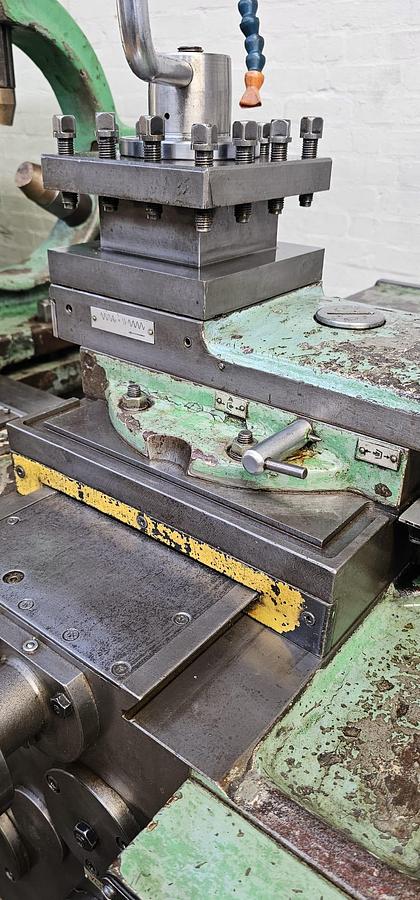

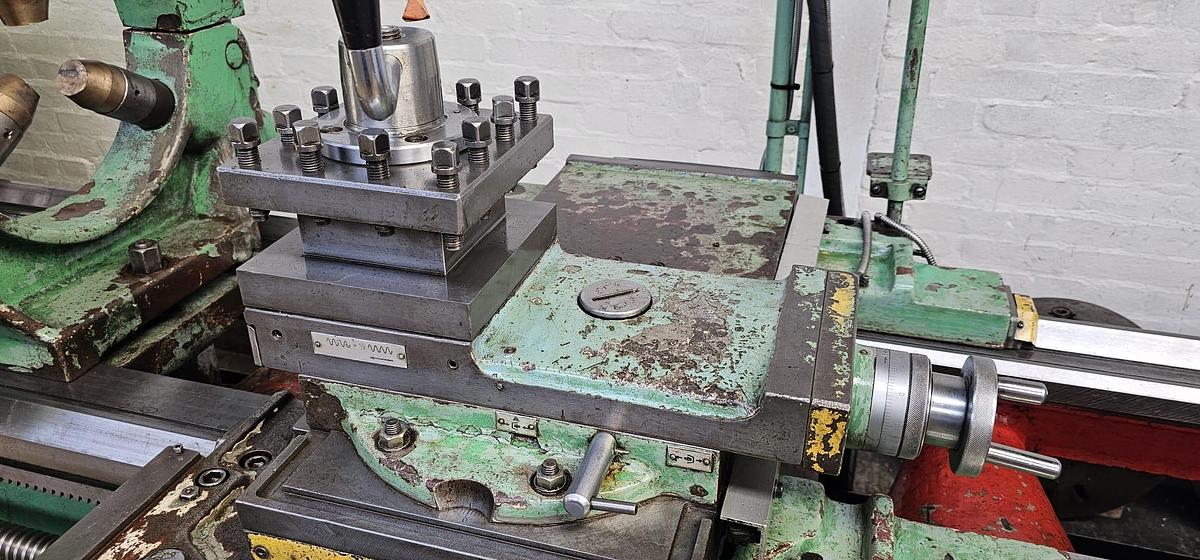

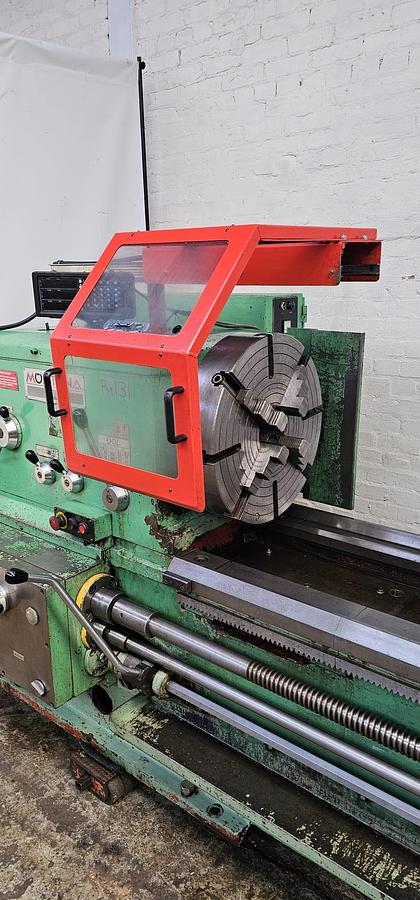

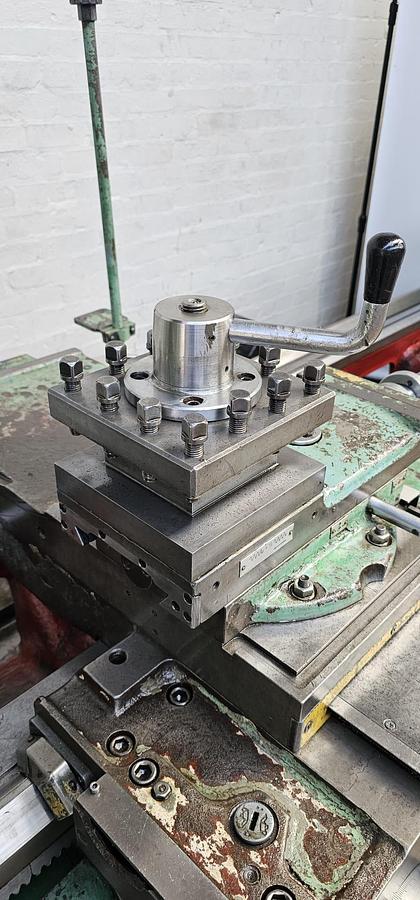

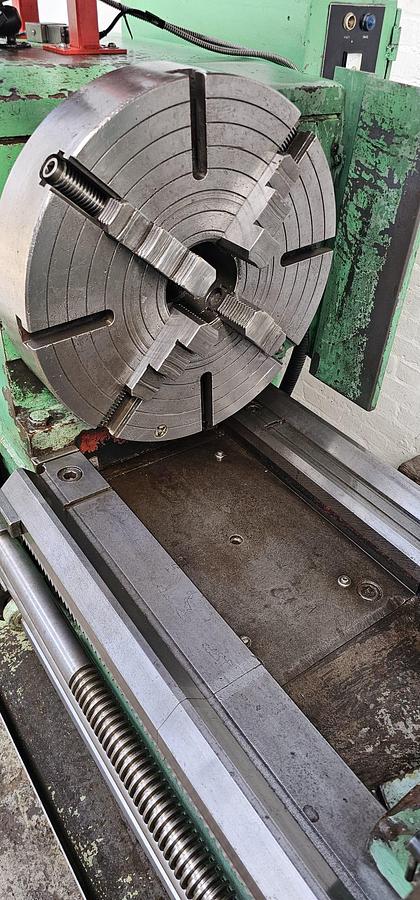

SONY LH70 2 Axis DRO, Interlocked chuck guard, Taper turning through power compound slide, 500mm 4-jaw chuck, 390mm 3 point steady, Rapid power traverse, 4 Way Toolpost, Change gears, Coolant.
