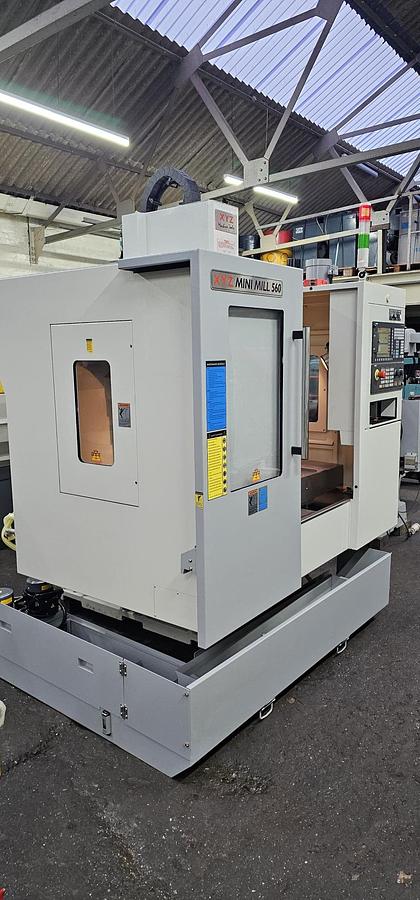

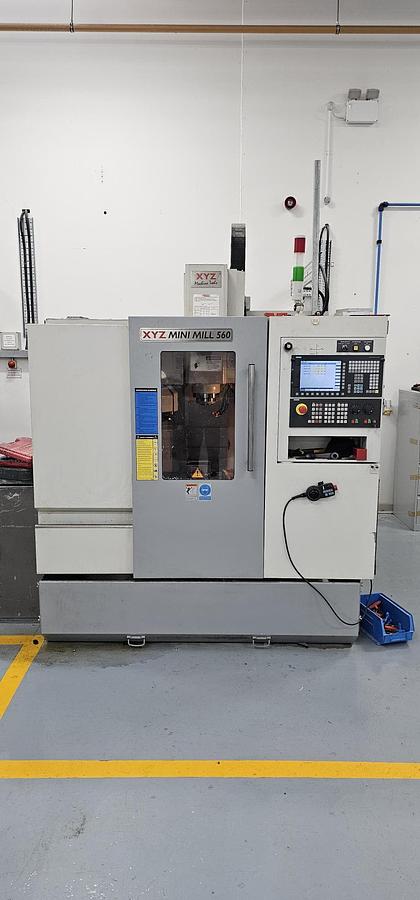

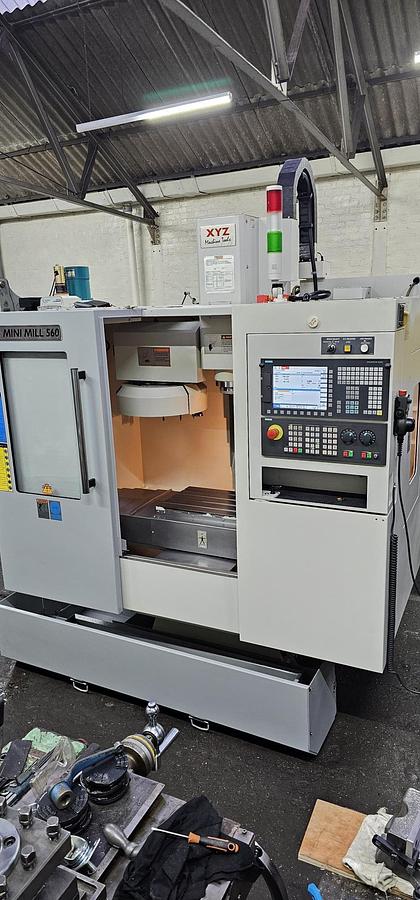

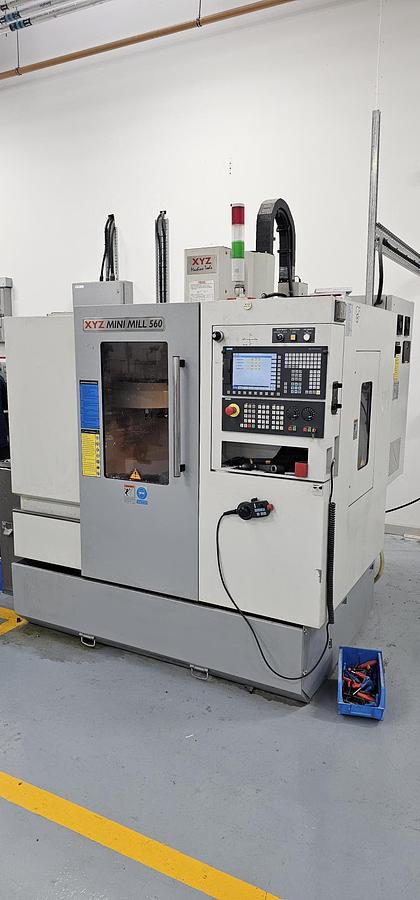

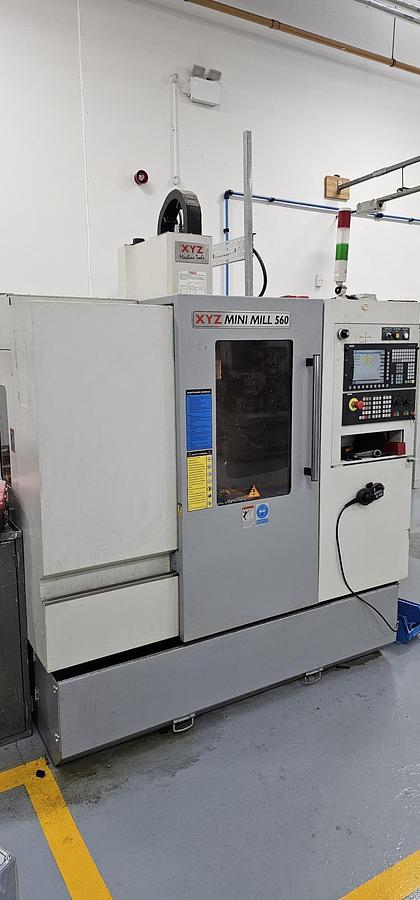

2015 XYZ MINI MILL 560 VERTICAL CNC MACHINING CENRE

Model                   MINI MILL 560

Year                     2015

Serial number      MF493

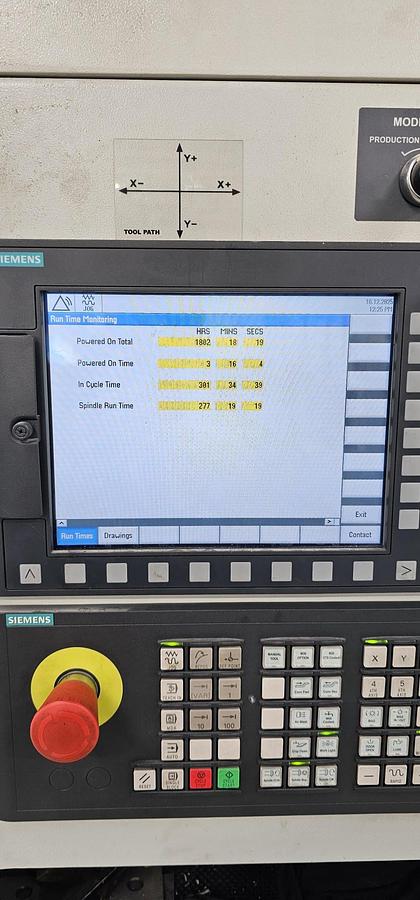

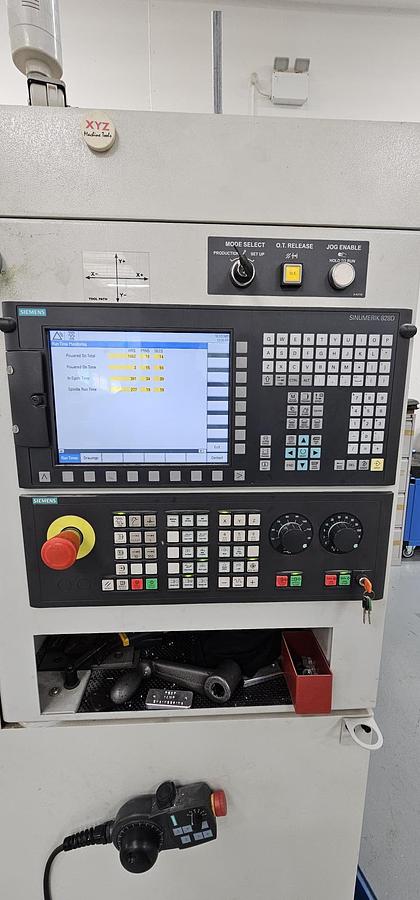

Control system    SIEMENS 828D

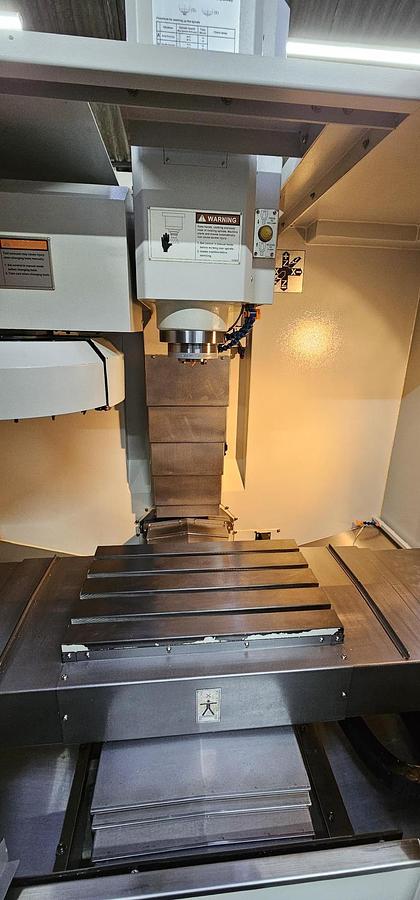

TABLE

Table size                                               610 x 370 mm

Table load capacity                                300 kg

MOVEMENT

Table positioning travel     (X x Y)          560 x 400 mm

Head vertical travel           (Z)               500 mm

Distance, table to spindle                      100 - 600 mm

Spindle centre to column face               455 mm

SPINDLE

Spindle taper                                         BT 40

Spindle speeds                                      5 - 8000 rpm

Spindle drive motor                               11.2 kW / 15 HP

FEED RATE

Feed rate                                               1 - 20,000 mm/min

Rapid traverse              (X, Y, Z)            20 m/min

AUTOMATIC TOOLCHANGER

Magazine capacity      12 tools             Max. tool diameter              100 mm

Tool selection              Random            Max. tool weight                  7 kg

Overall size approx.                             2000mm W x 2060mm F to B x 2530mm H

Machine weight (approx.)                    3100 kg.

Complete with :-

High pressure flood coolant, Rigid Tapping, Remote electronic handwheel, USB port.

CONDITION        :- EXCELLENT.
