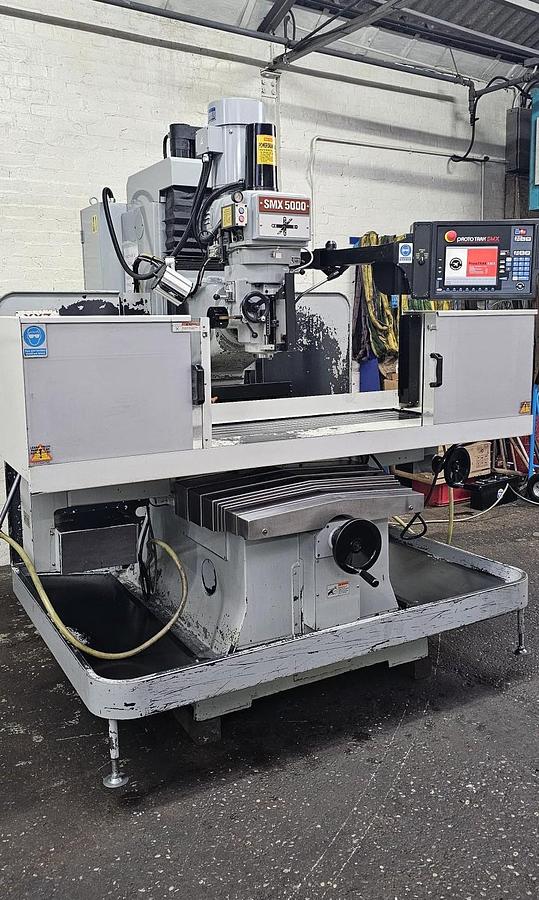

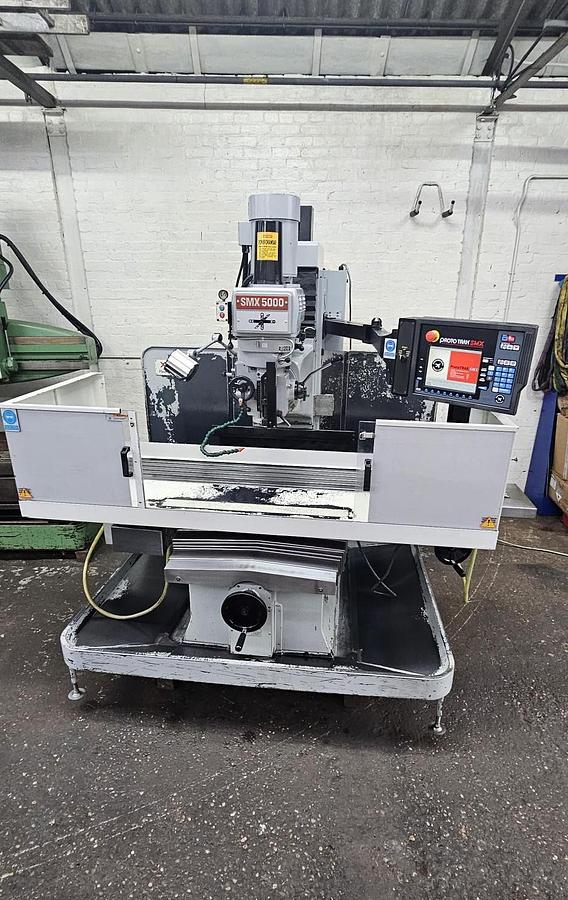

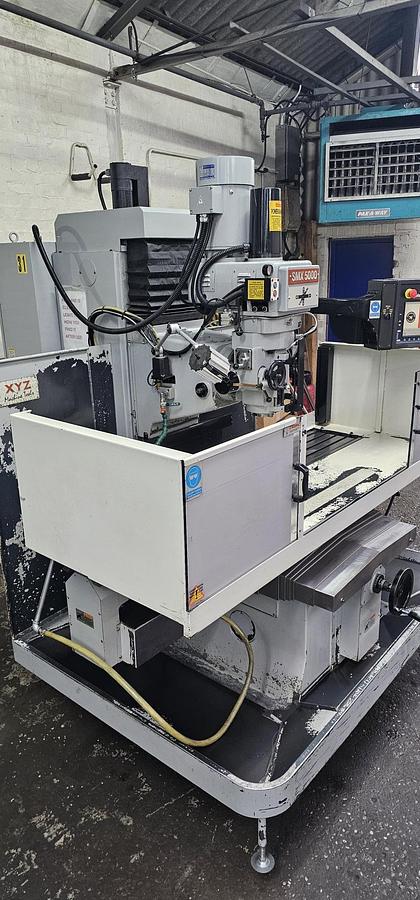

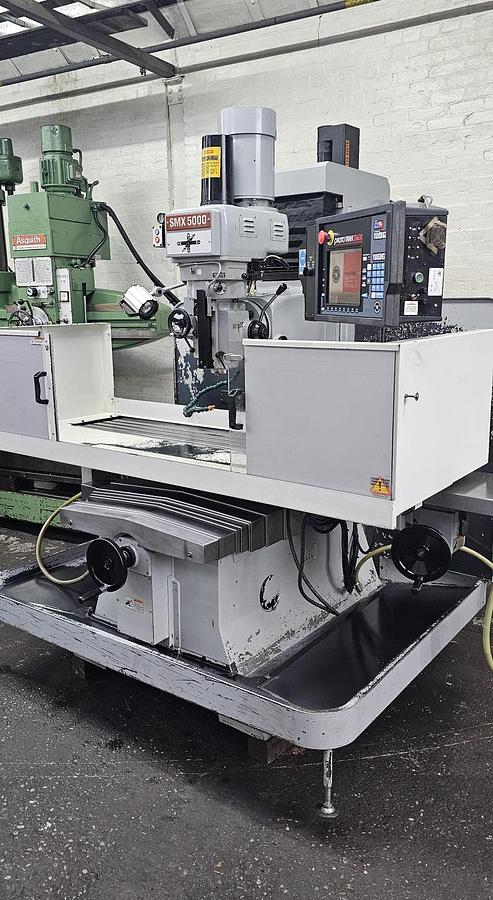

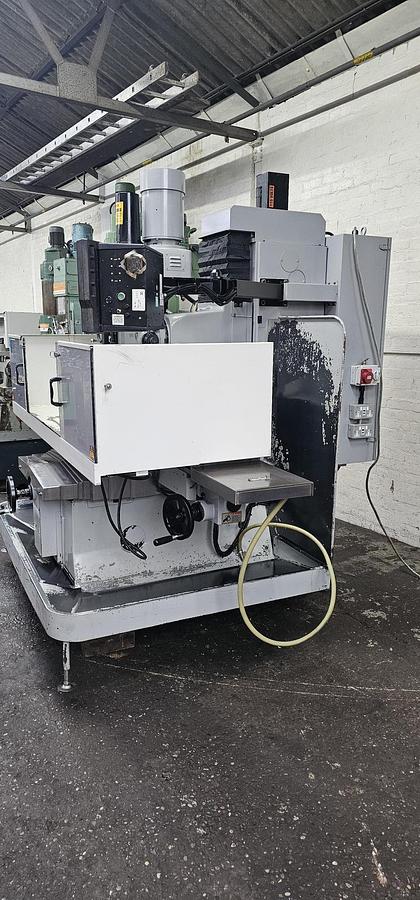

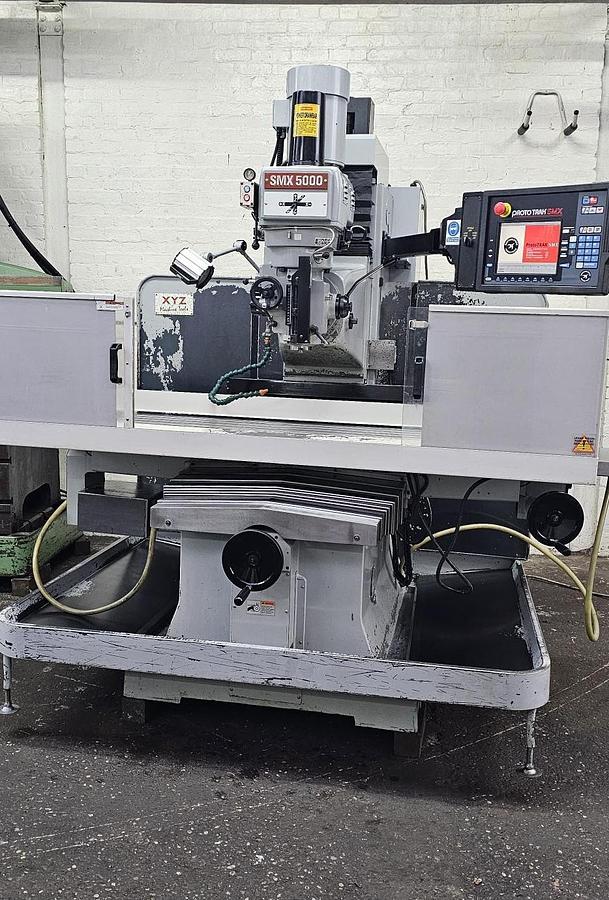

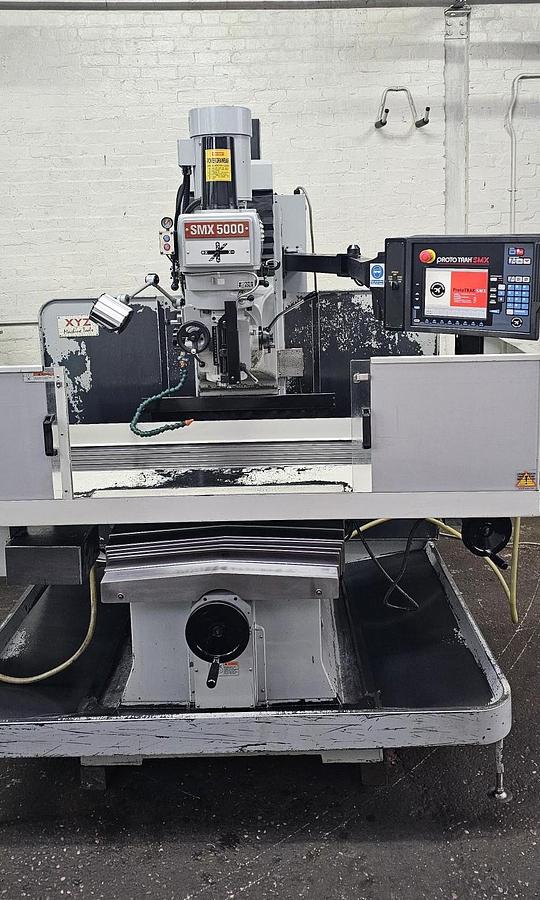

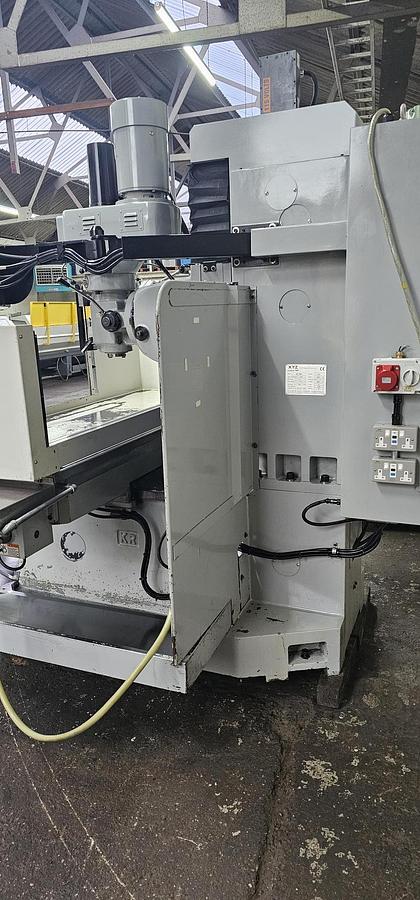

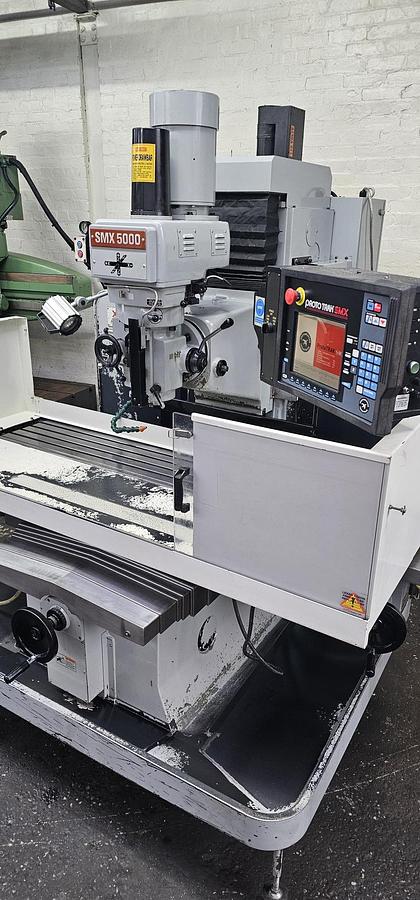

2012 XYZ SMX 5000 VERTICAL BED TYPE CNC MILLING MACHINE

Model                    SMX5000

Year of manufacture   2012

Serial number      11687

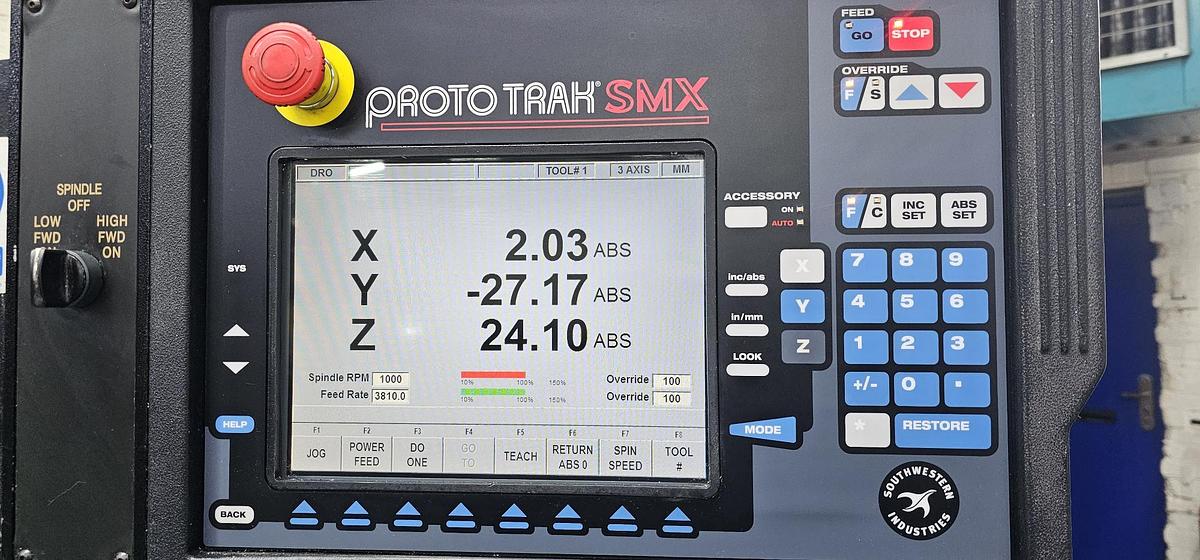

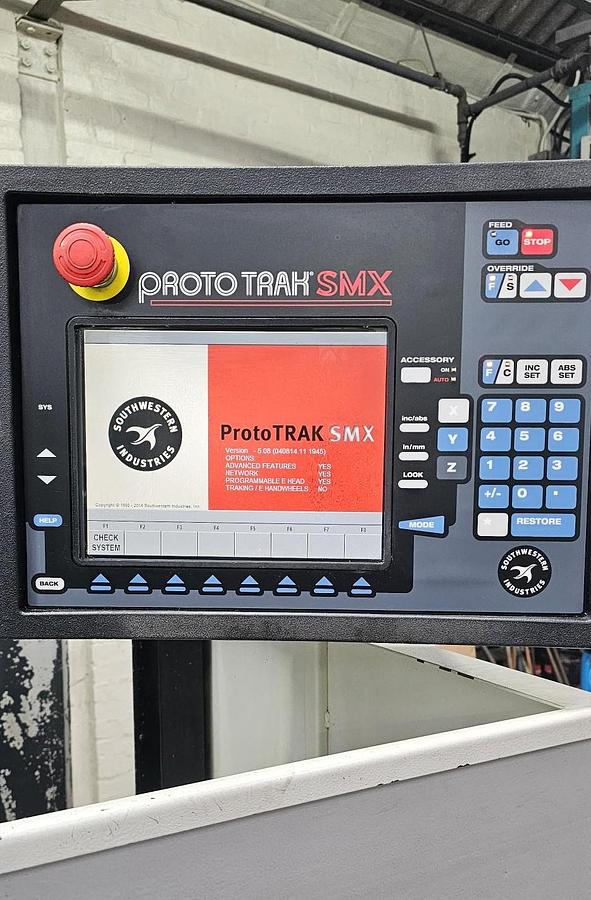

Control system           PROTO TRAK SMX

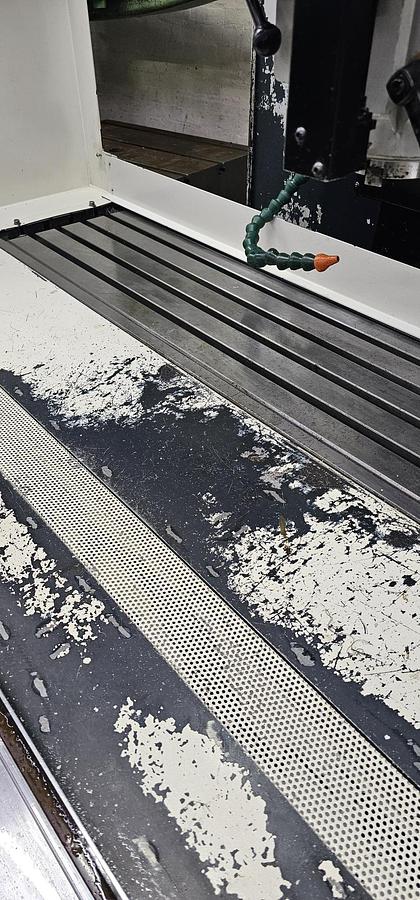

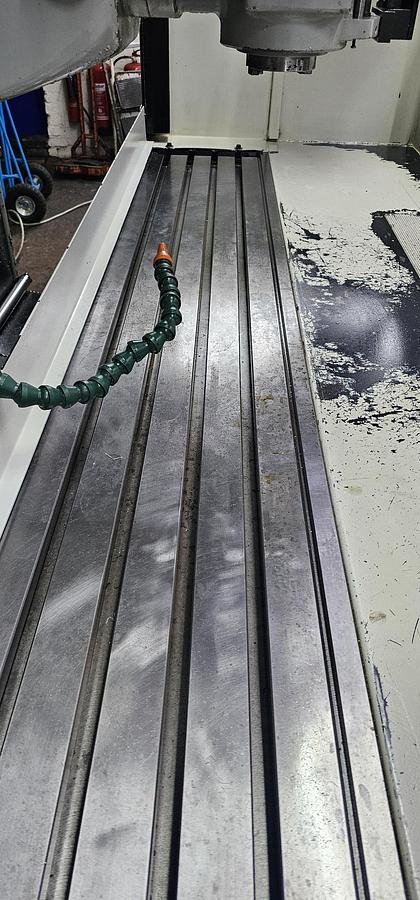

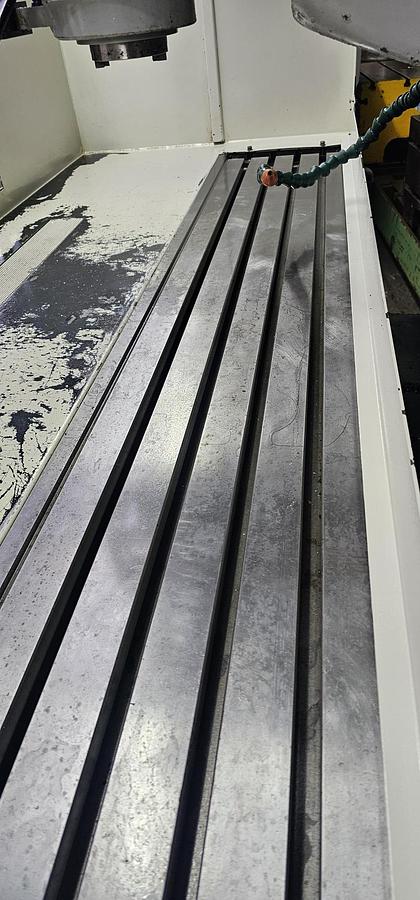

TABLE

Table size overall                       76” x 14”            1930 x 355  mm

Table load capacity                    1870 lb               850 kg

MOVEMENT

Table positioning travel  (X x Y) 60” x 23.5”         1524 x 596 mm

Head vertical travel        (Z)       21”                     540 mm

Distance, table to spindle          3.75” – 26.5”      95 - 675 mm

Spindle centre to column face   24”                     610 mm

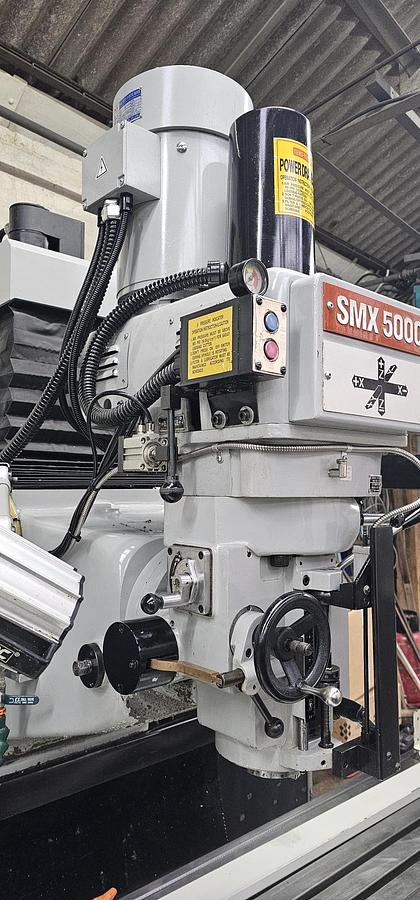

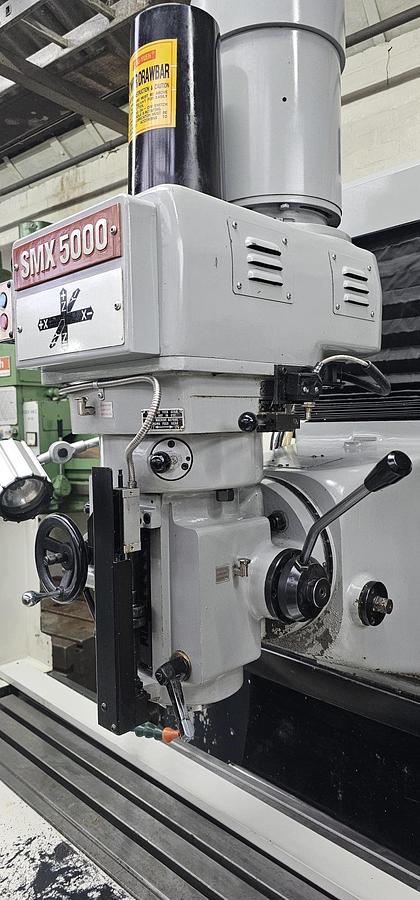

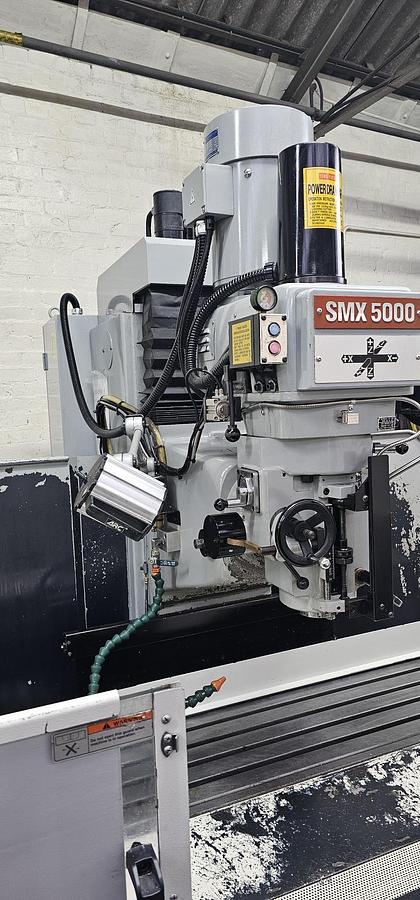

SPINDLE

Spindle taper                            ISO 40

Spindle speeds (Inf. Variable)  40 – 5000 rpm (Inverter)

Head swivels to left and right   90 degrees

Spindle feed per revolution      .0016” / .00309” / .00513” .0418 / .0786 / .1303 mm

Quill travel                                5.5”                    140 mm

Spindle drive motor                  7.5 HP                5.75 kW

Overall size approx.                 2768mm W x 2286mm F to B x 2540mm H.

Machine weight (approx.)        3200 kg.

Complete with :-

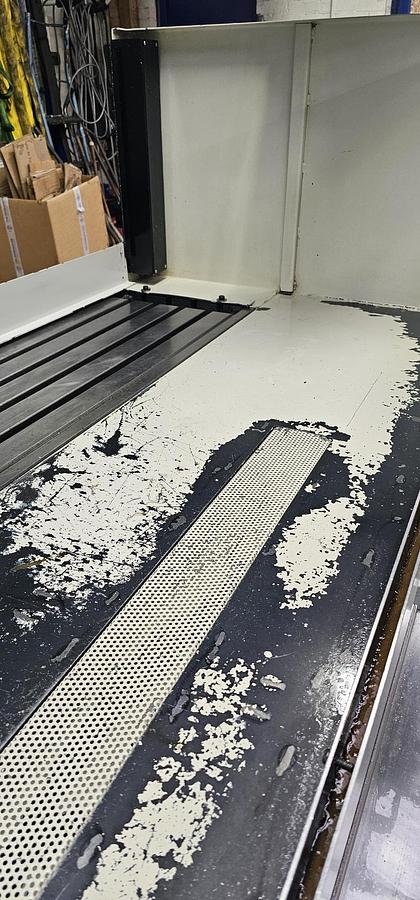

Table Guards.

D.R.O. to Quill.

Air Draw Bar.

Automatic lubrication.

Coolant & Halogen Worklight

CONDITION        :- EXCELLENT.
