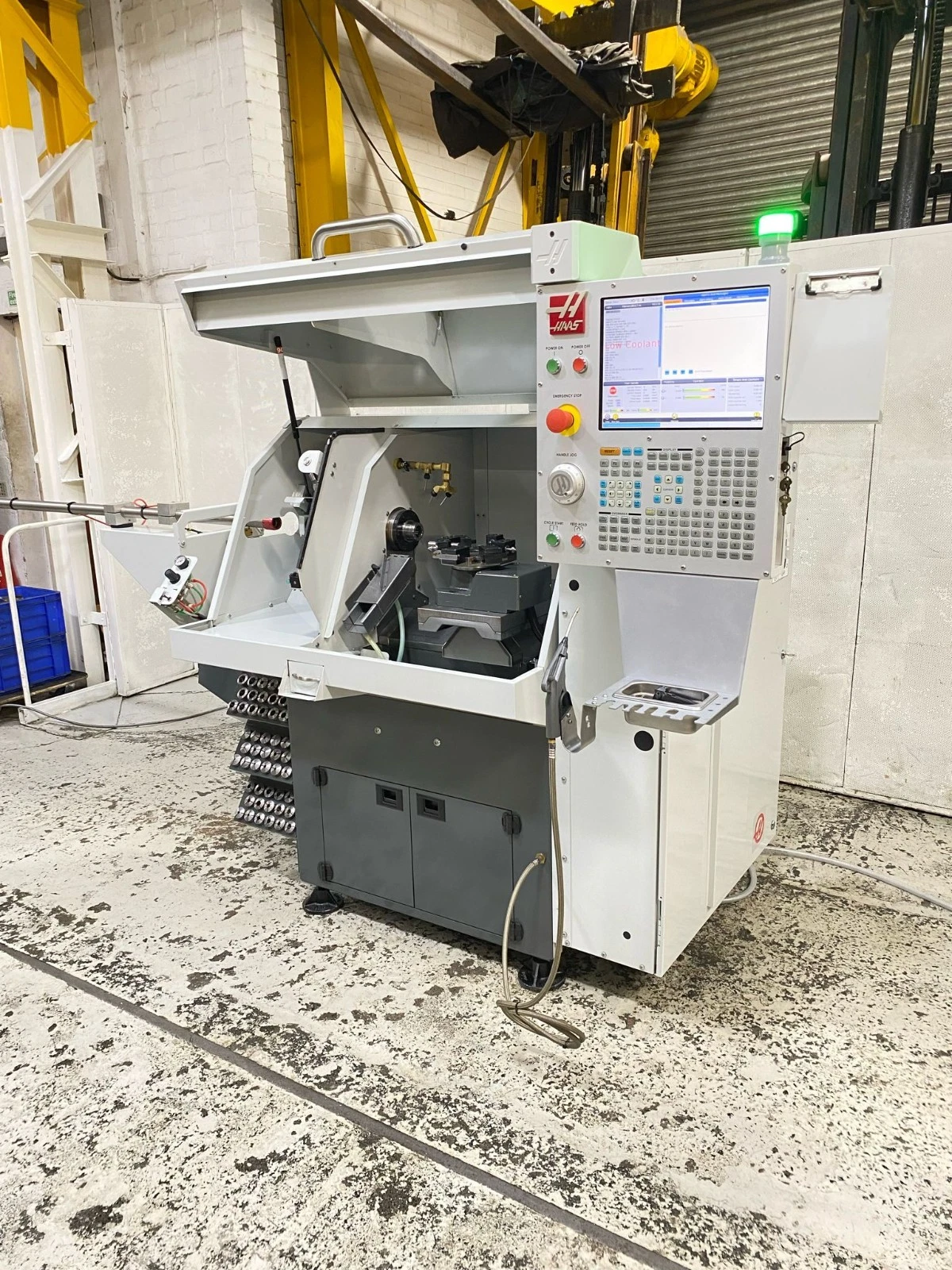

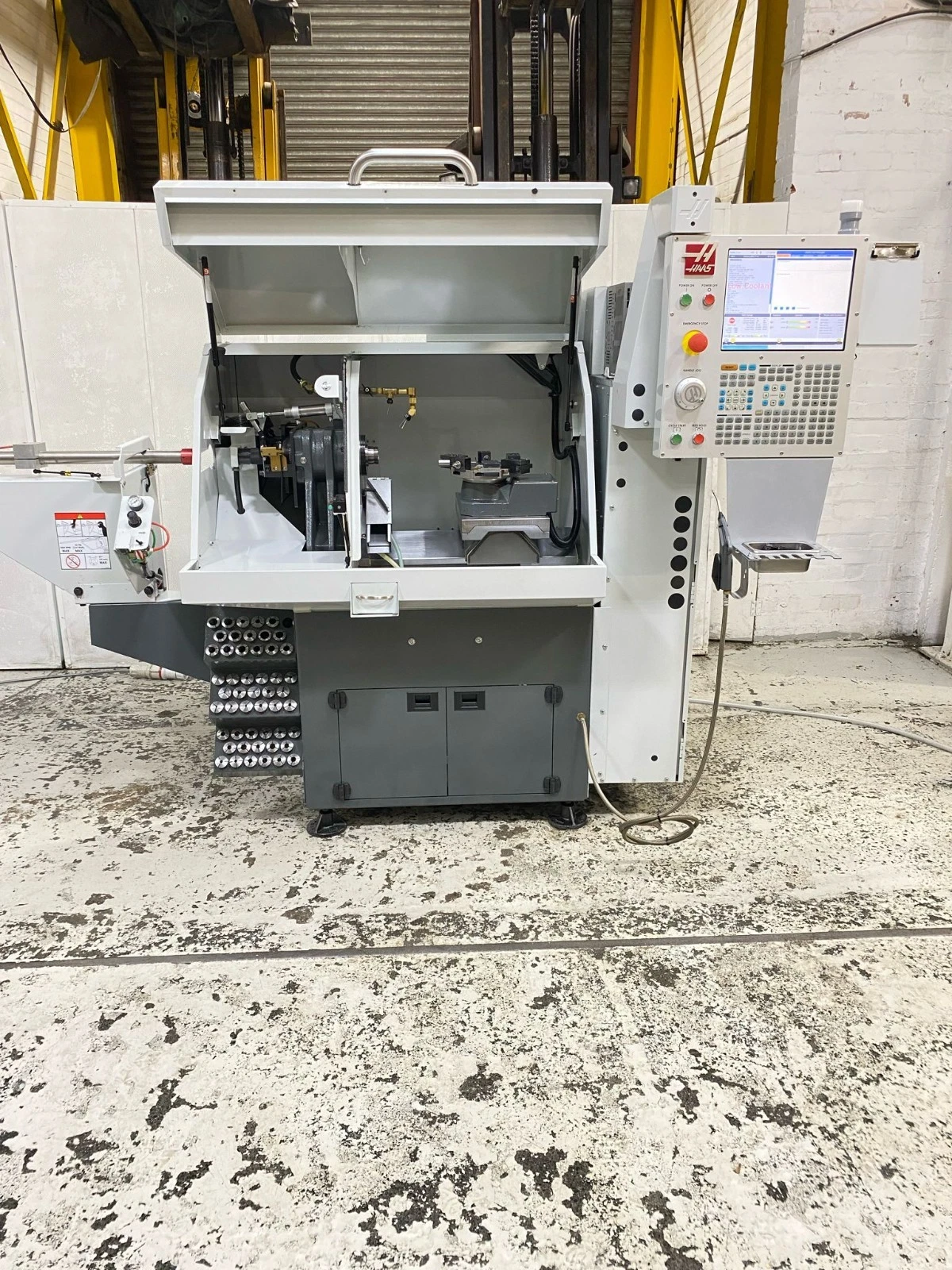

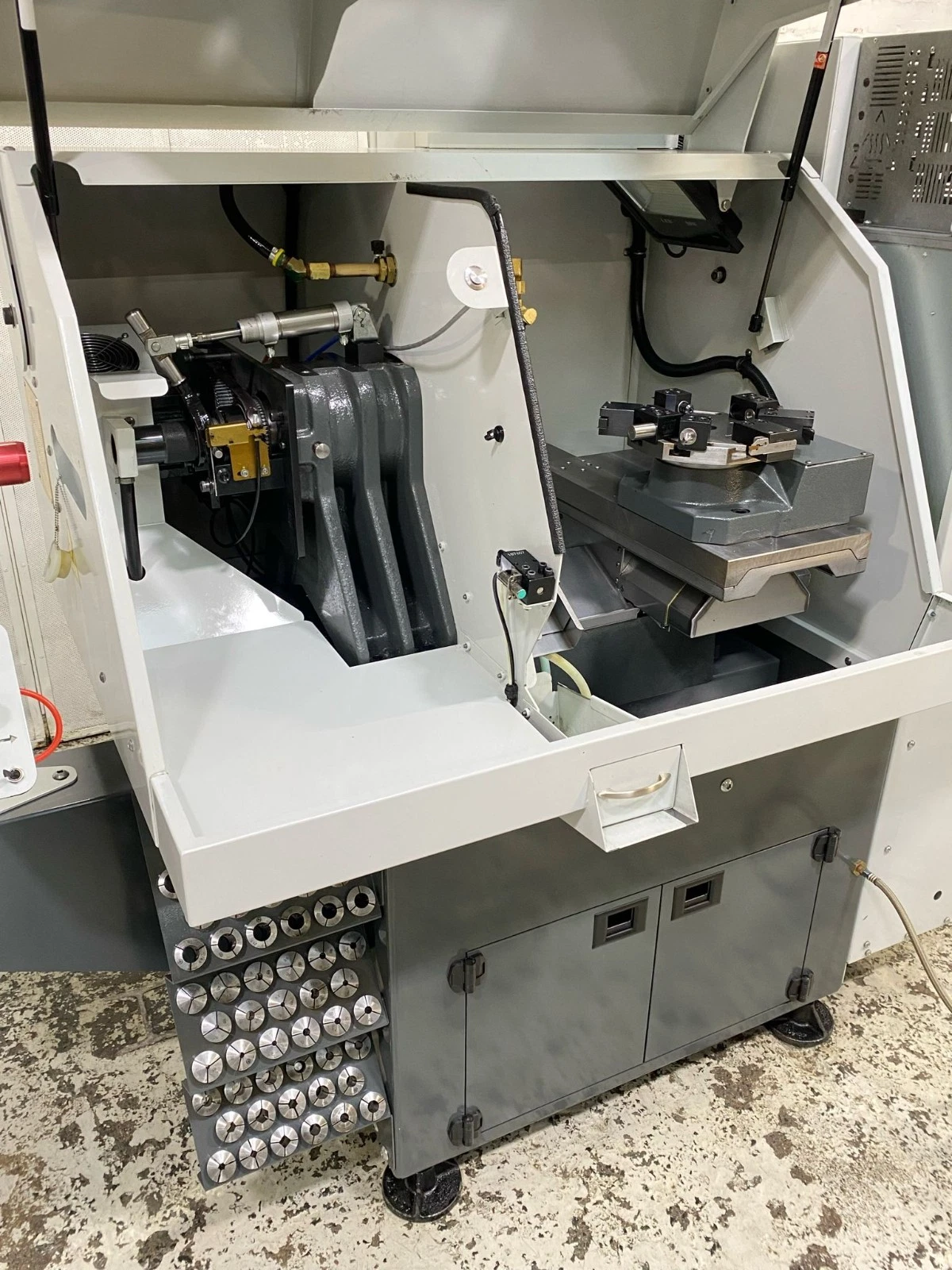

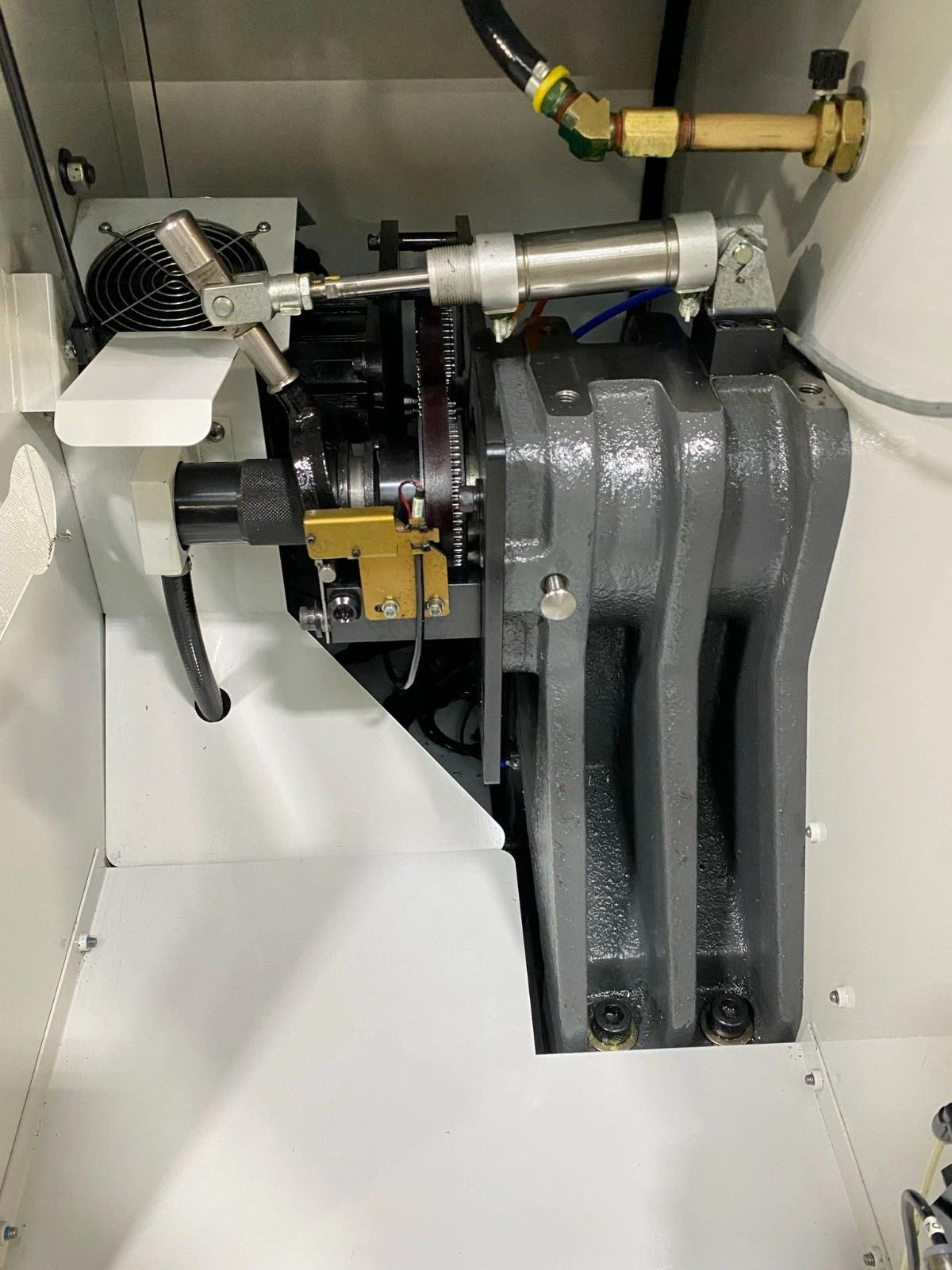

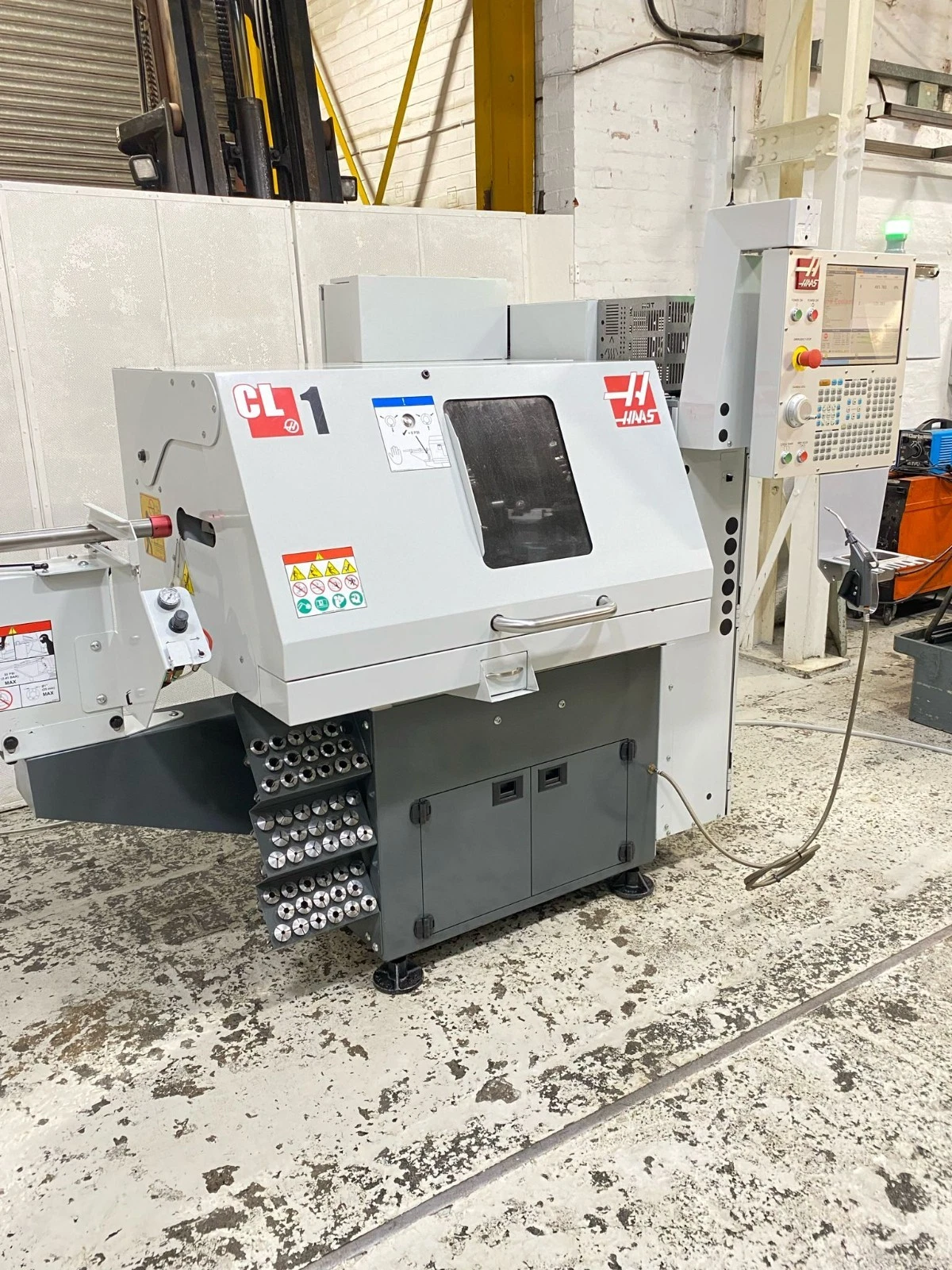

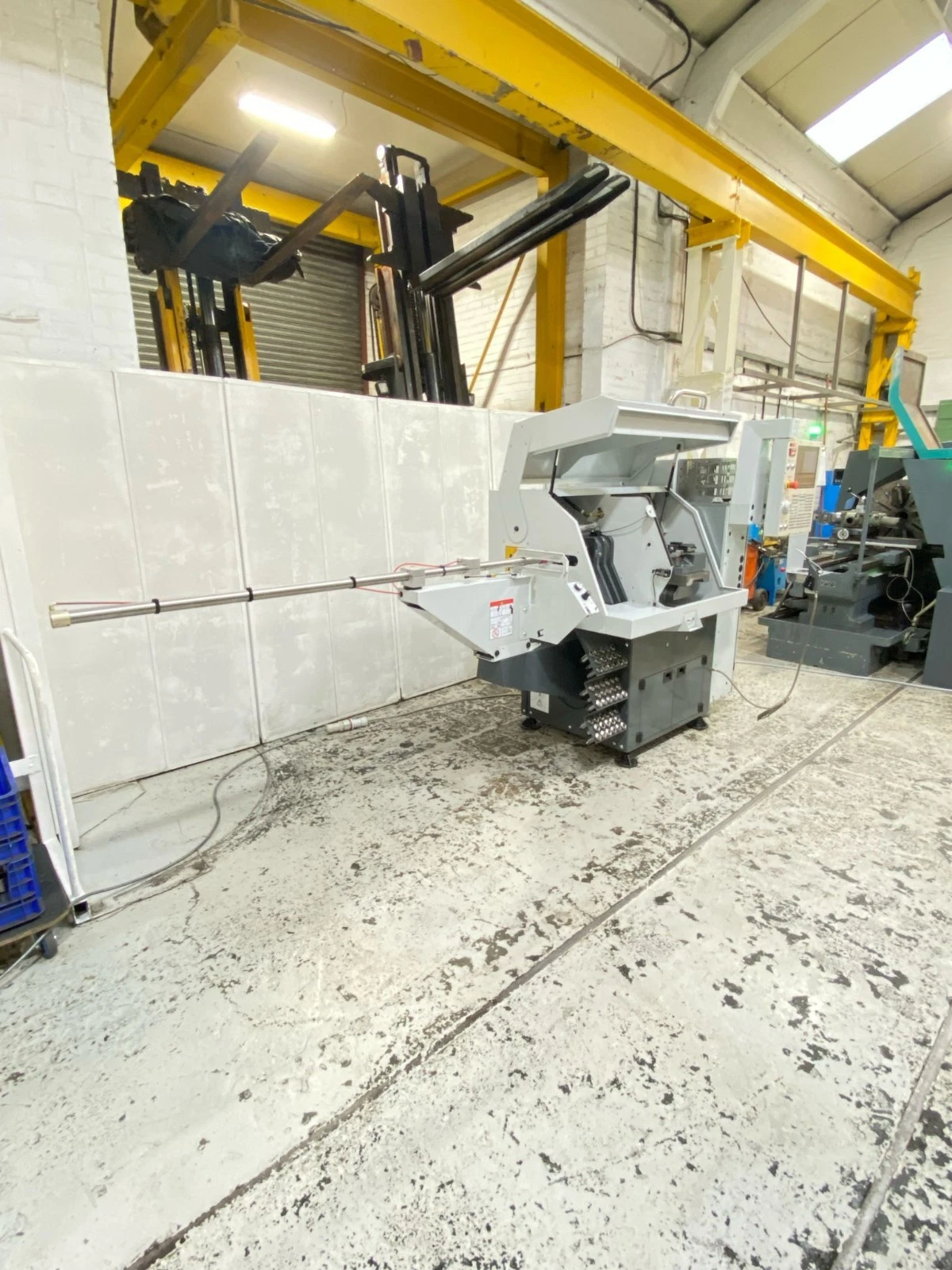

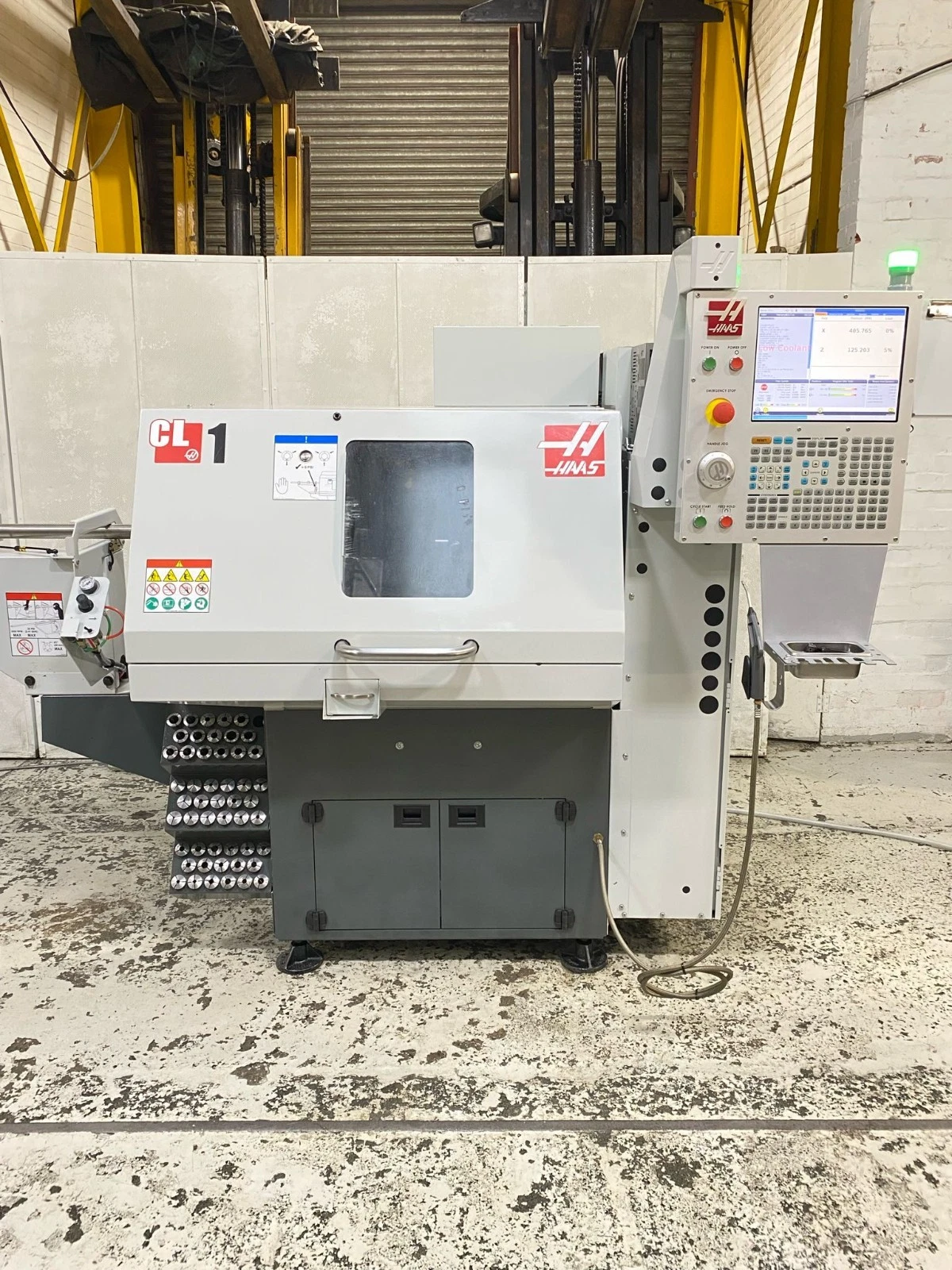

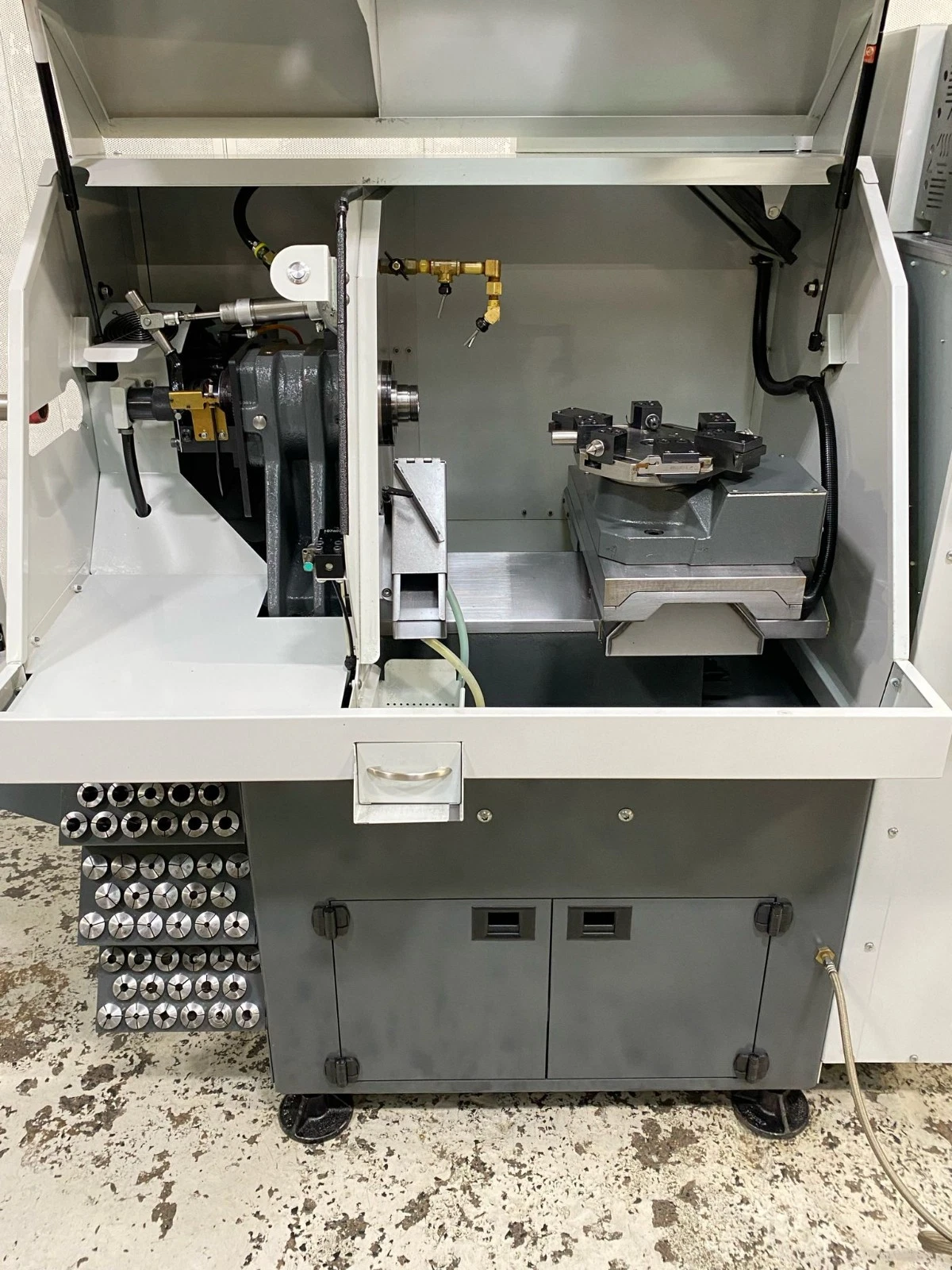

2021 HAAS CL-1 2 AXIS CNC CHUCKING LATHE WITH BARFEED

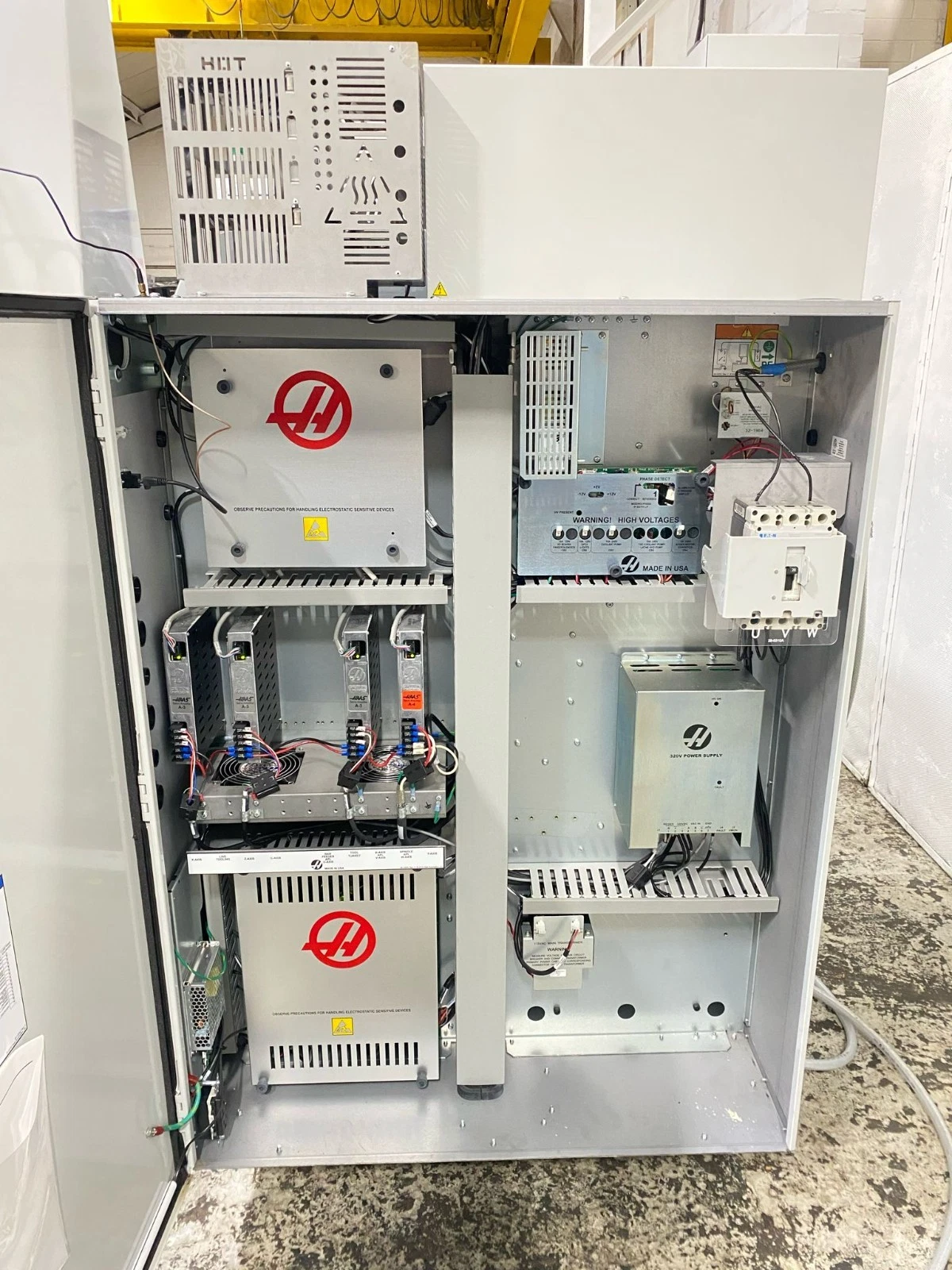

HAAS Control system

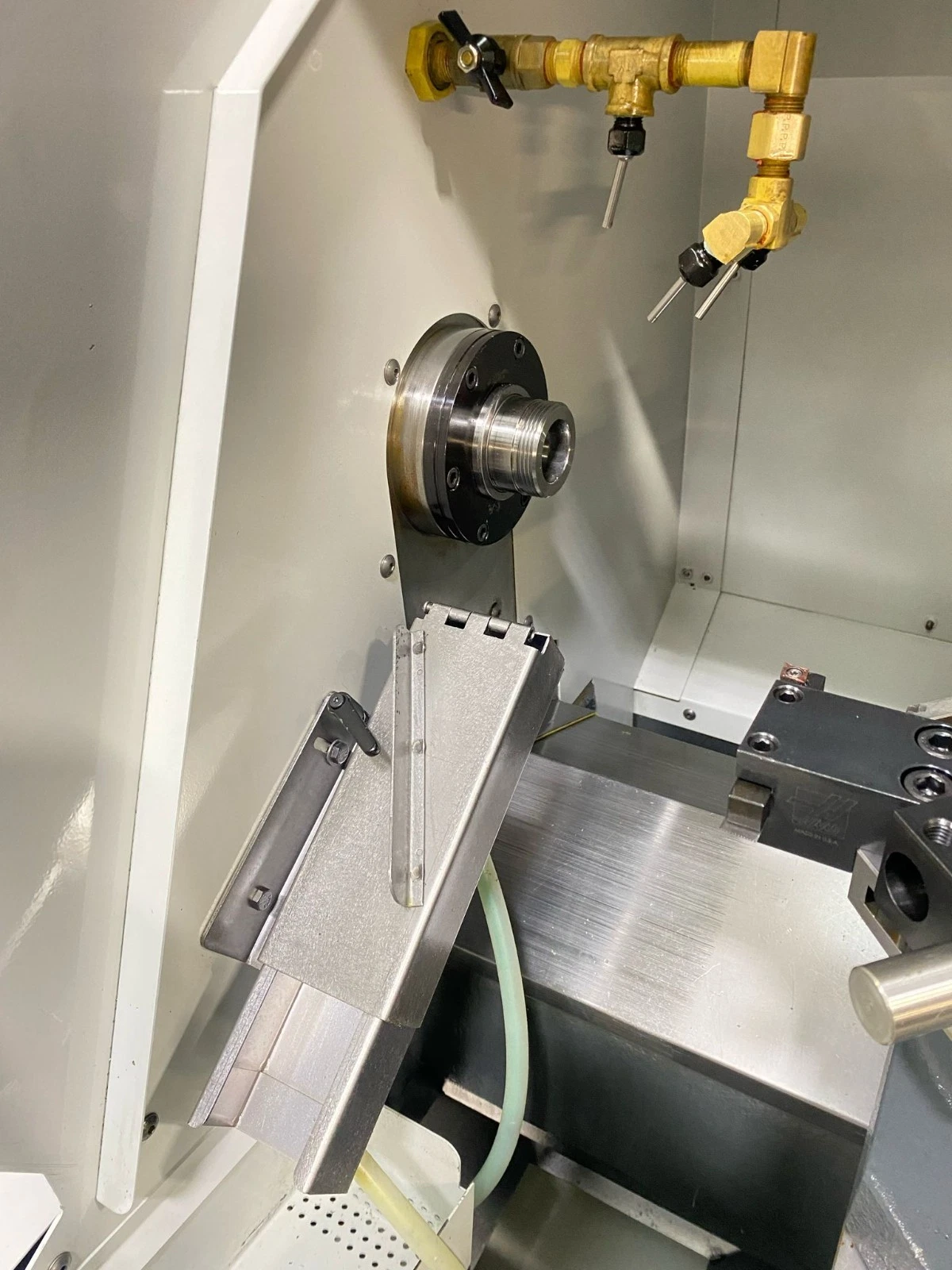

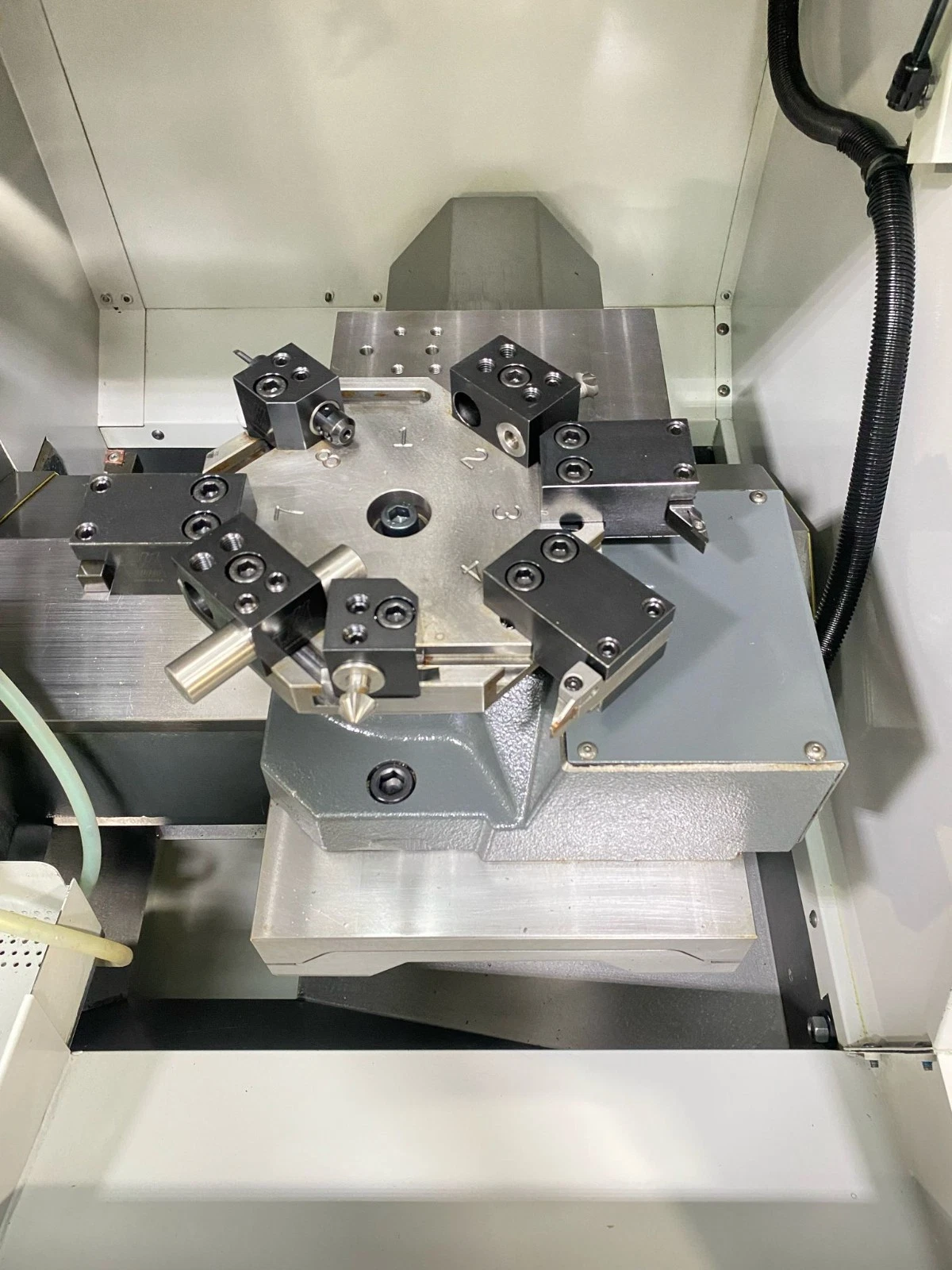

Swing over cross slide 279 mm, Sing over table 126 mm, Max chuck size 102 mm, Max. cutting dia. 126 mm, Bar capacity 25 mm, X-axis stroke 305 mm, Z-axis stroke 203 mm, Spindle nose 5C (Collet) Type Nose, Spindle speed 6000 rpm, Spindle drive motor 3.7 kW / 5 HP, Spindle bore 31.8 mm, Tool turret 8 station, accommodates gang style tooling, X & Z cutting rate 12.7 m/min, X & Z axis rapid traverse rate 19.2 m/min, Electrics 230V Single phase.

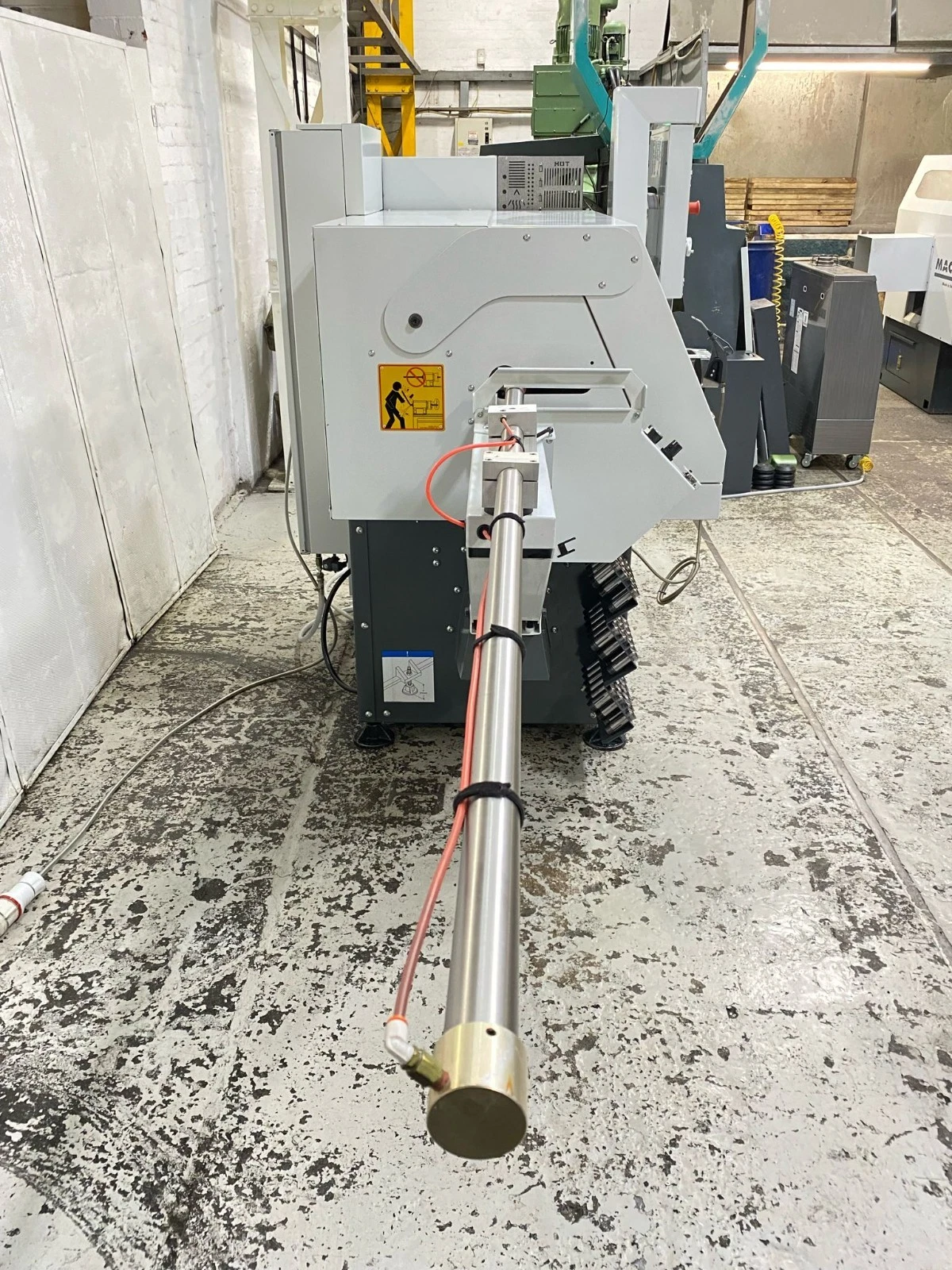

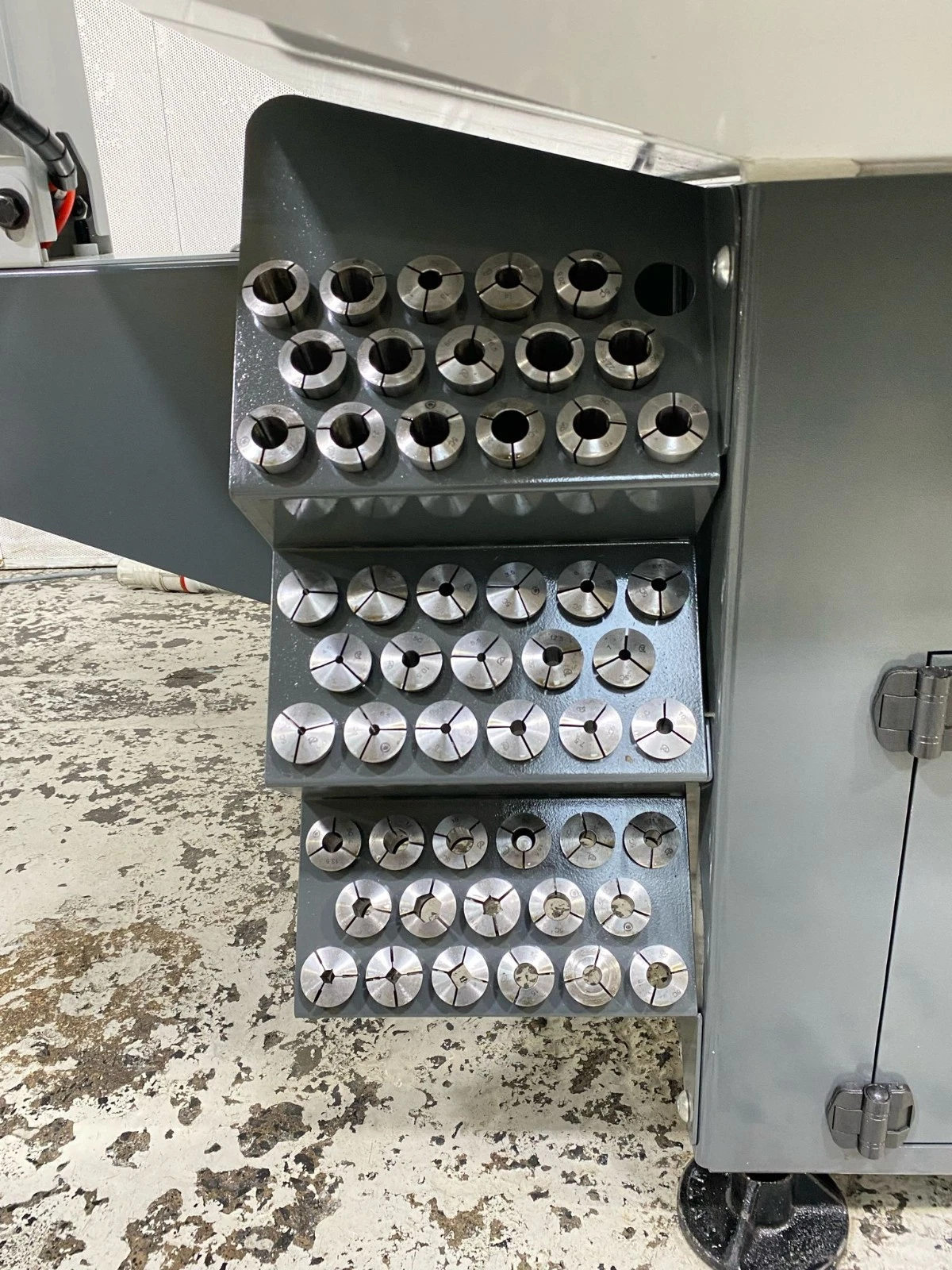

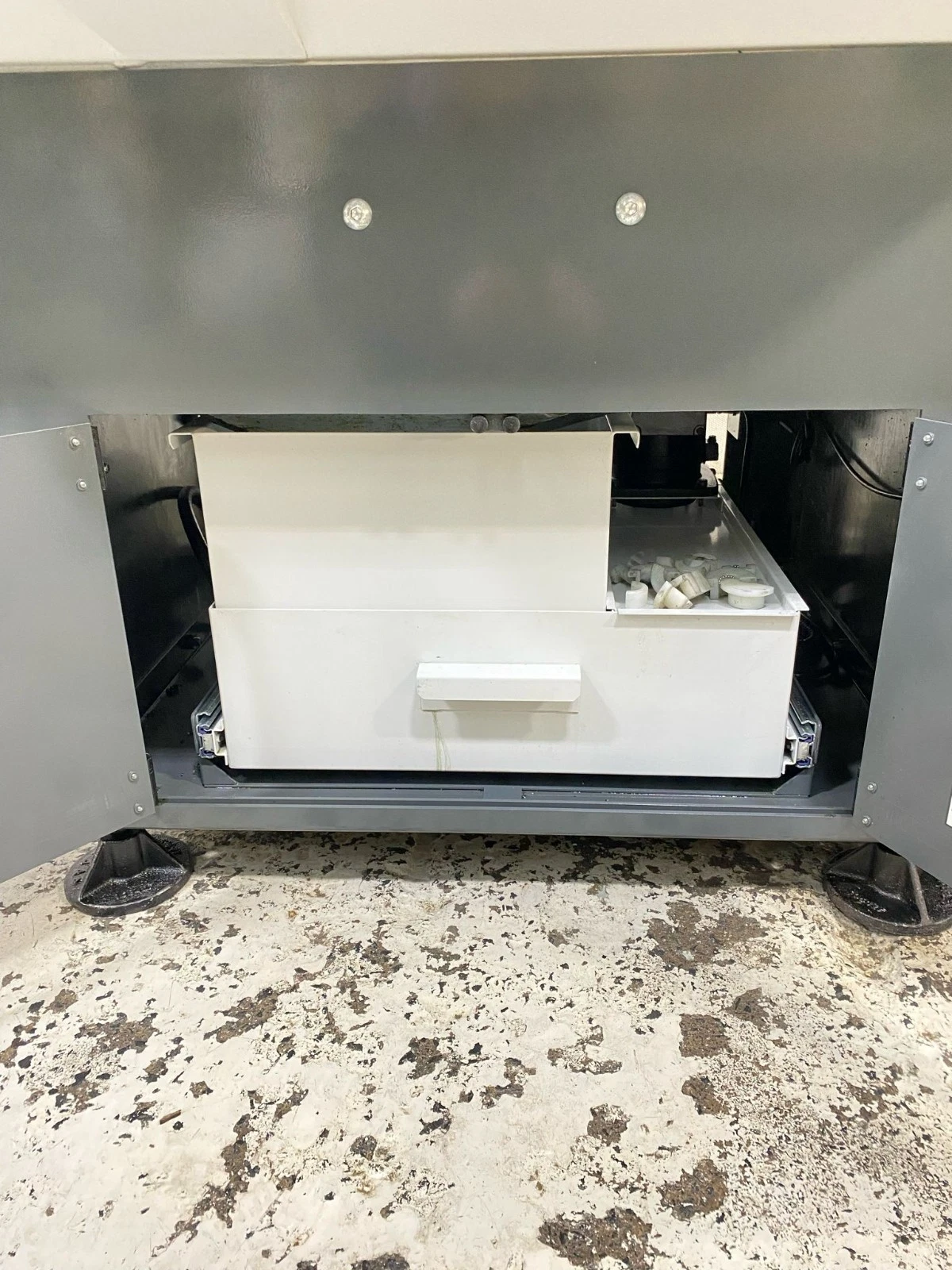

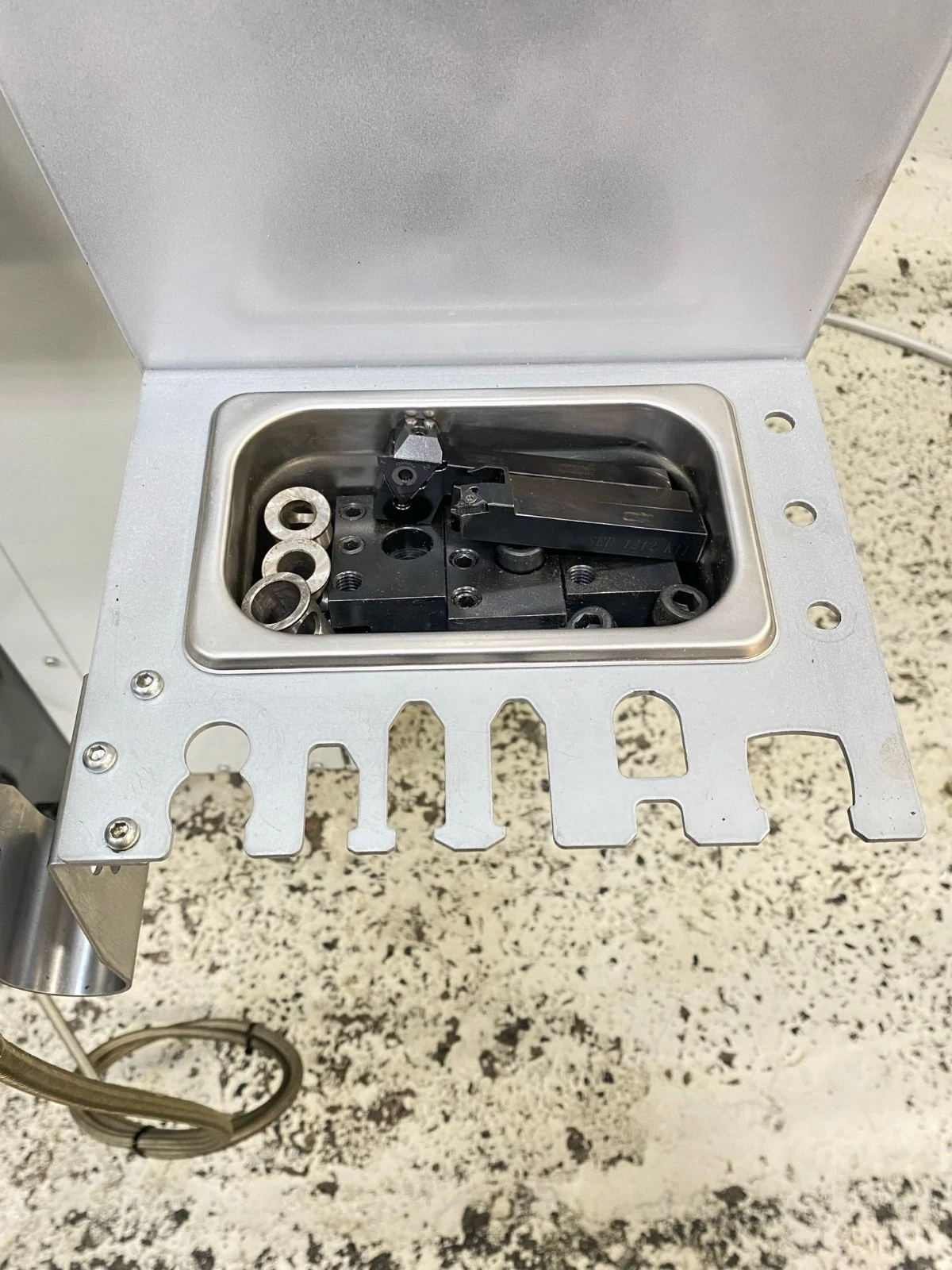

Equipped with :- Bar feed with sleeves, collet chuck with 17 collets, Coolant, Machine Manual.

Excellent condition.
