2022 XYZ COMPACT TURN 65 HD

Model                                                                            COMPACT TURN 52 LR

Year                                                                              2020

Serial number                                                               STA30115

Control system                                                             SIEMENS 828D Shop Turn

Maximum swing                                                           400 mm

Swing over carriage cover                                           260 mm

Max. turned dia.                                                           220 mm

Max. turned length                                                       510 mm

X-axis stroke                                                                175 mm

Z-axis stroke                                                                525 mm

Spindle speed                                                              4000 rpm

Spindle drive motor                                                      17 kW / 23 HP

Spindle bore                                                                         mm

Bar capacity                                                                  65   mm

Type of turret                                                                12 Station VDI

X & Z axis rapid traverse rate                                      20 m/min

Machine size including conveyor                                 3020 L x 2200 D x 2060 H mm

Machine weight                                                            3600 kg

Equipped with :-

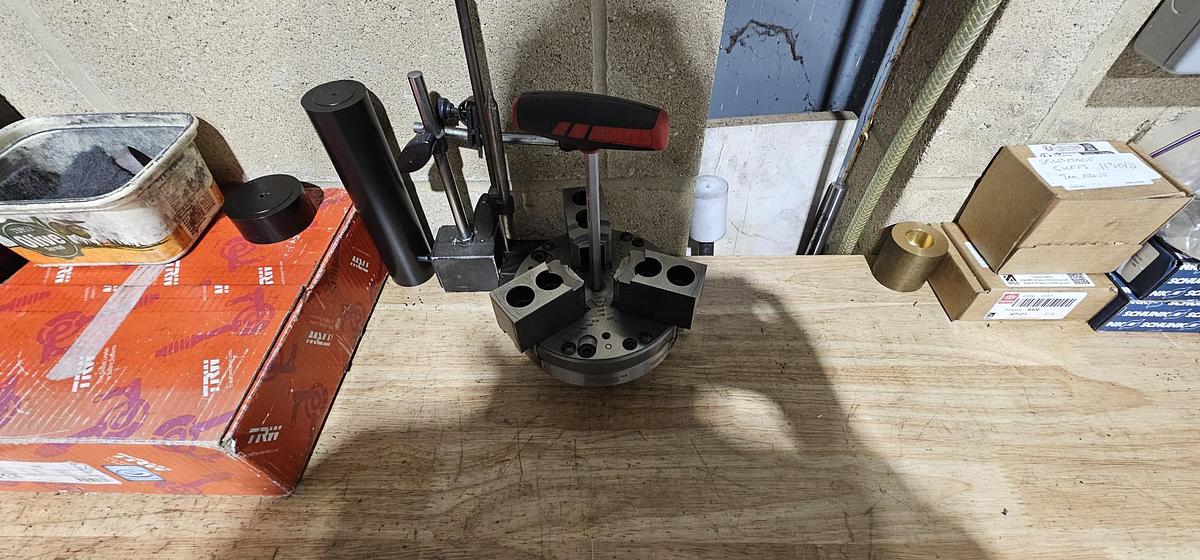

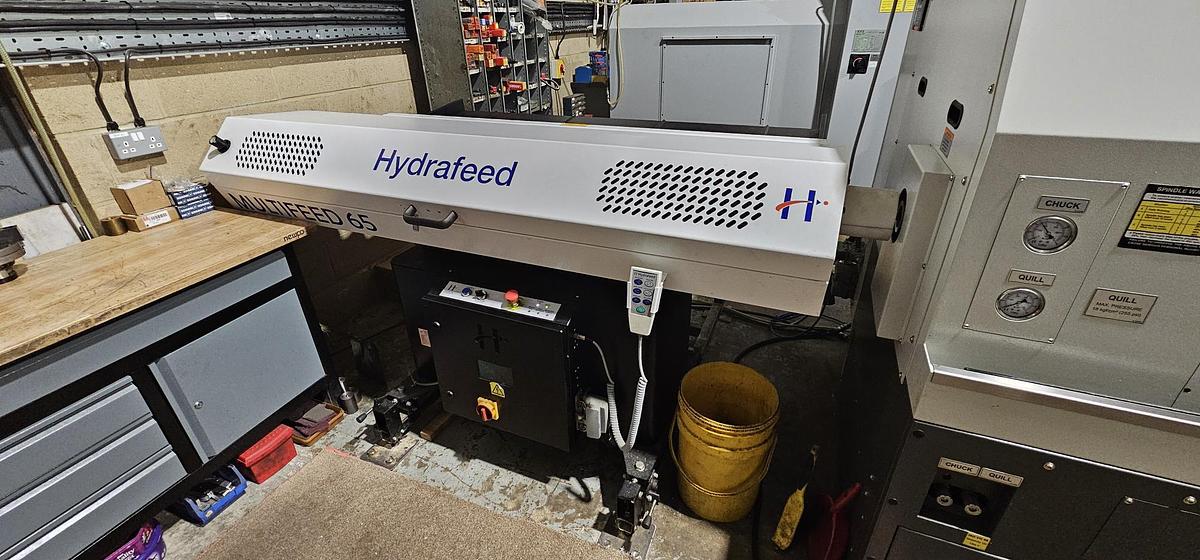

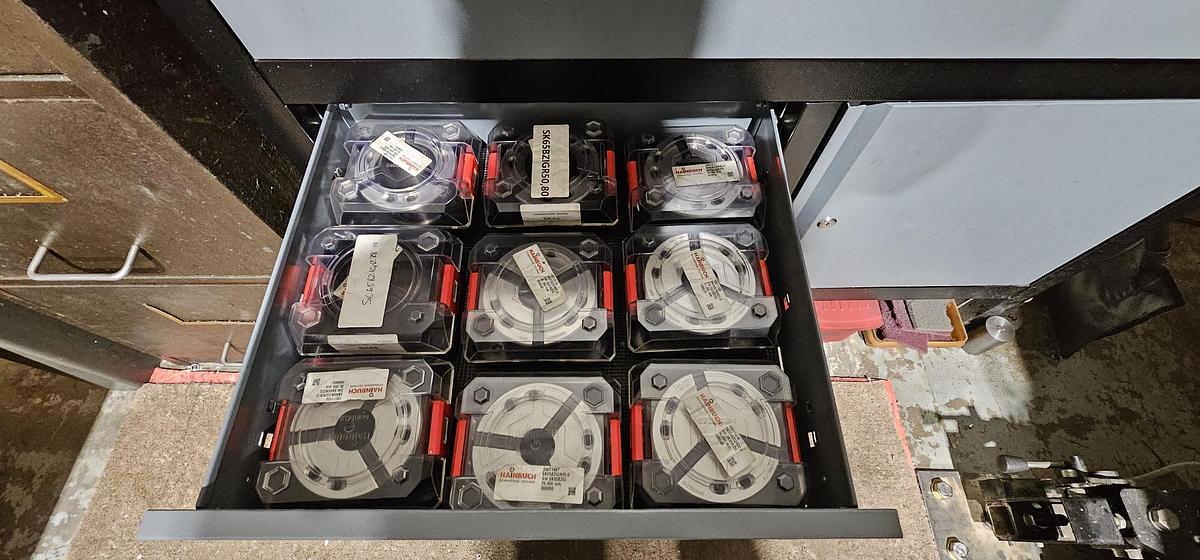

Hydrafeed Multifeed 65 Barfeed, Hard Box Way Slides, Automatic tool setting arm, 200mm Hydraulic 3 Jaw chuck, Hainbuch collet chuck with collets, Parts catcher, Through tool and Flood coolant, Remote electronic handwheel, USB port, Swarf conveyor & Bin, Machine Manual.
