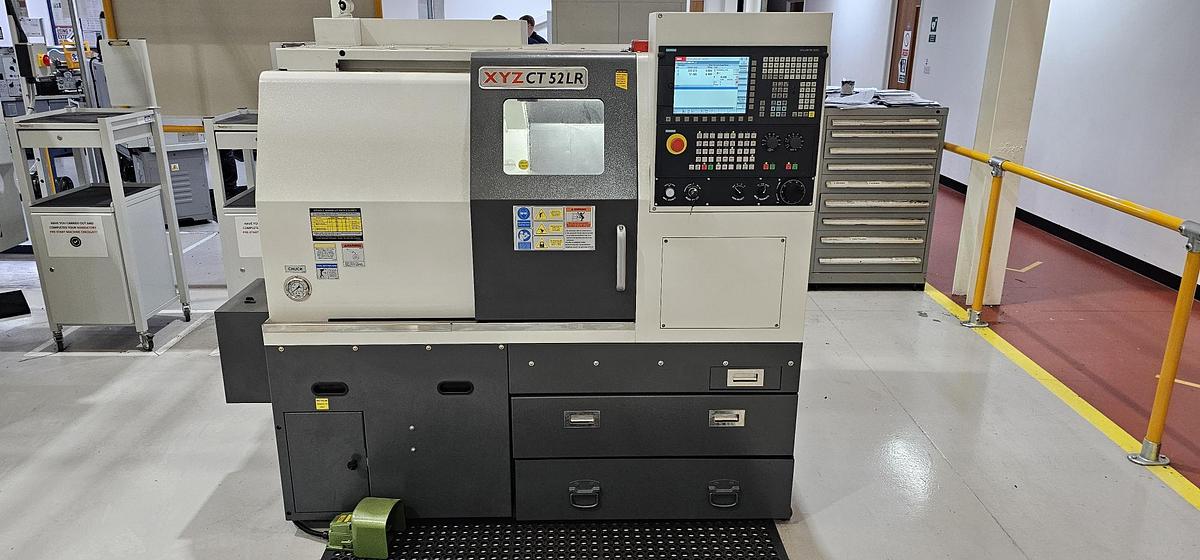

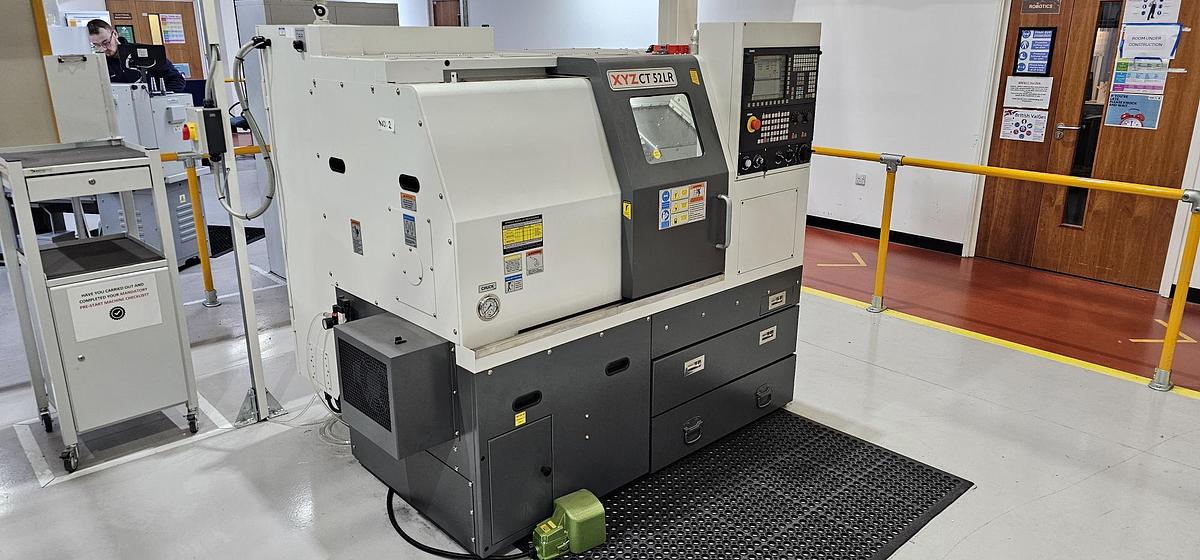

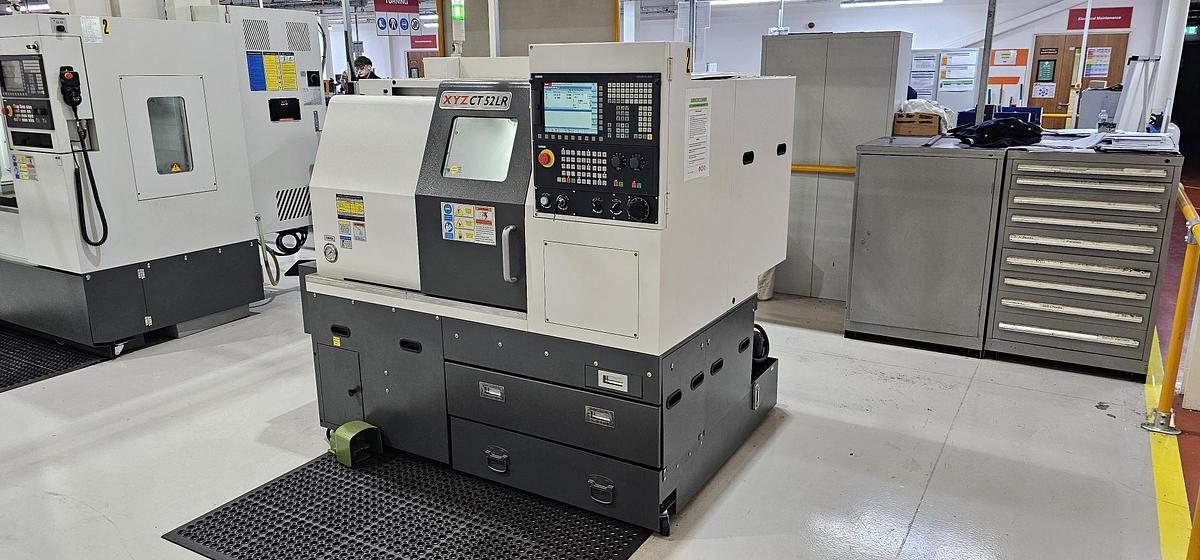

XYZ 2 AXIS CNC TURNING CENTRE

Model                                                                            COMPACT TURN 52 LR

Year                                                                               2020

Serial number

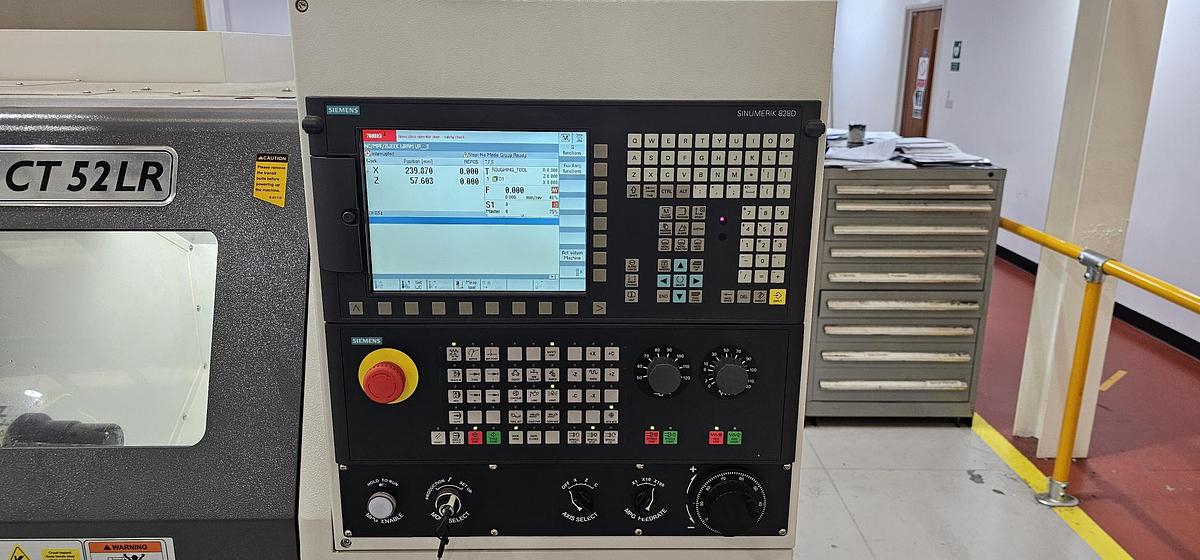

Control system                                                              SIEMENS 828D Shop Turn

Maximum swing                                                           300 mm

Swing over carriage cover                                            220 mm

Max. turned dia.                                                           180 mm

Max. turned length                                                        300 mm

X-axis stroke                                                                 165 mm

Z-axis stroke                                                                 315 mm

Spindle speed                                                                4500 rpm

Spindle drive motor                                                      11.2 kW / 15 HP

Spindle bore                                                                         mm

Bar capacity                                                                  52   mm

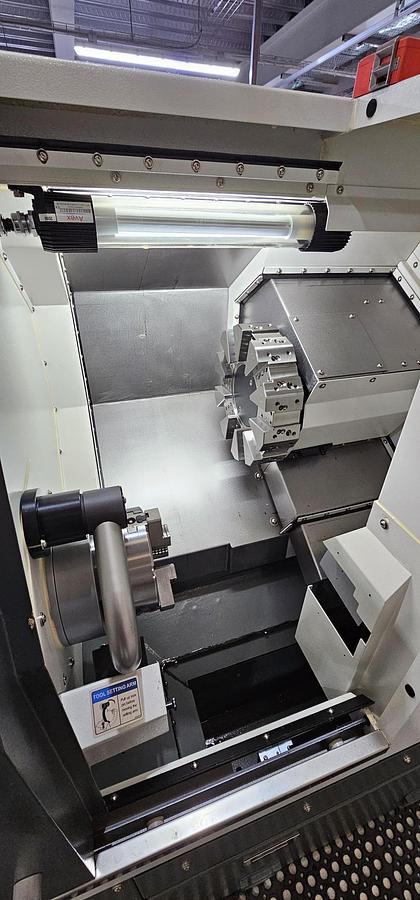

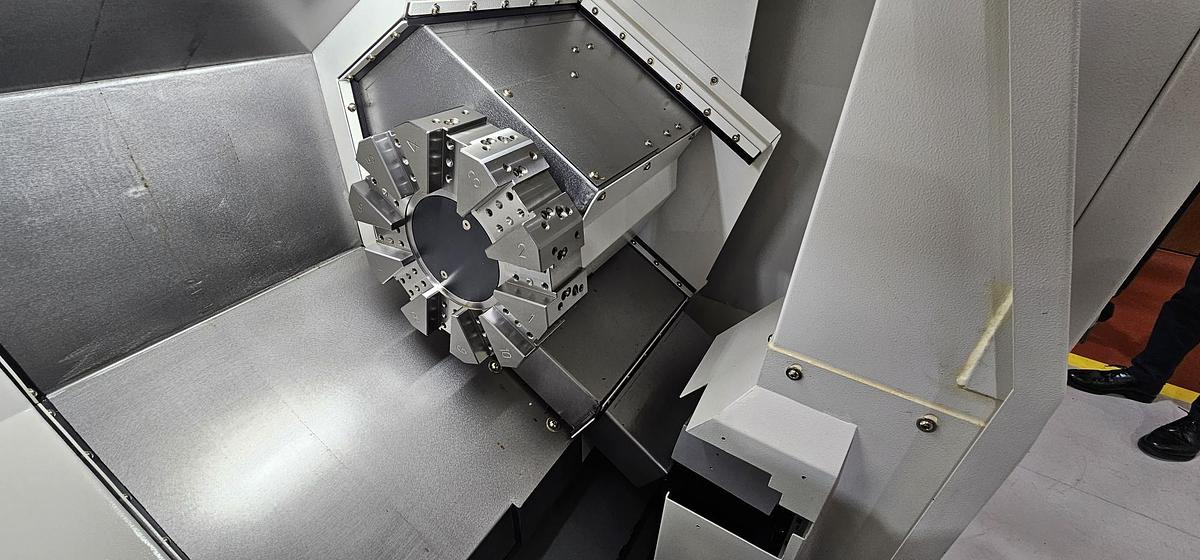

Type of turret                                                                10-position block.

X & Z axis rapid traverse rate                                      20 m/min

Machine size including conveyor                                 1920 L x 1500 D x 2080 H mm

Machine weight                                                            2000 kg

Equipped with :-

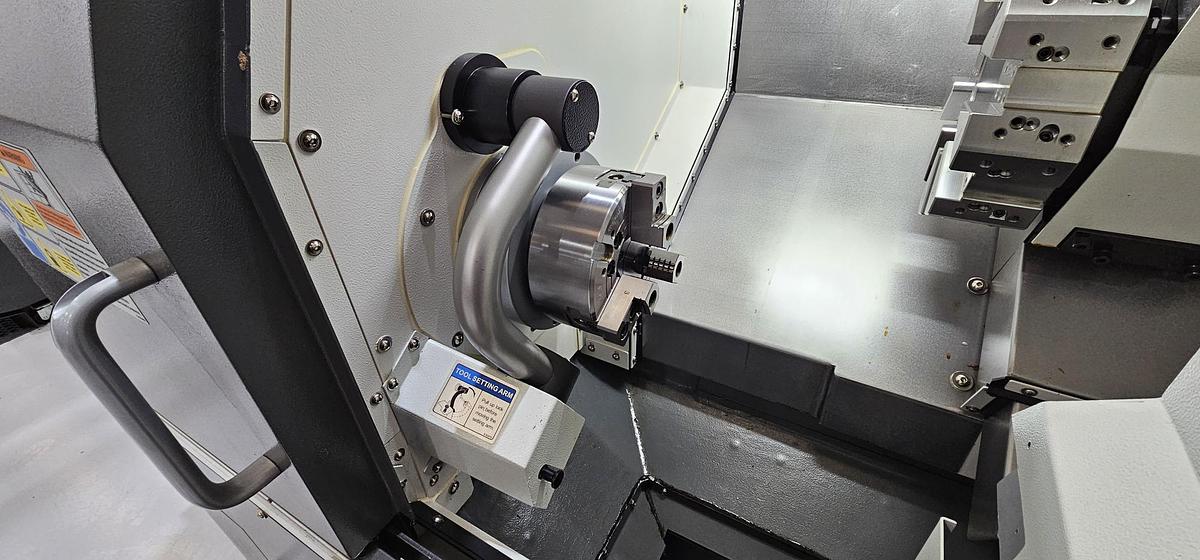

Latest high quality linear rails, Tool setting arm, Hydraulic 3 Jaw chuck,

Flood coolant, USB port, Machine Manual.

PRICE                  :- P.O.A.

N.B.

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed.

We advise prospective purchasers to check any vital details.

Health and Safety At Work Act 1974:  It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc.  Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
