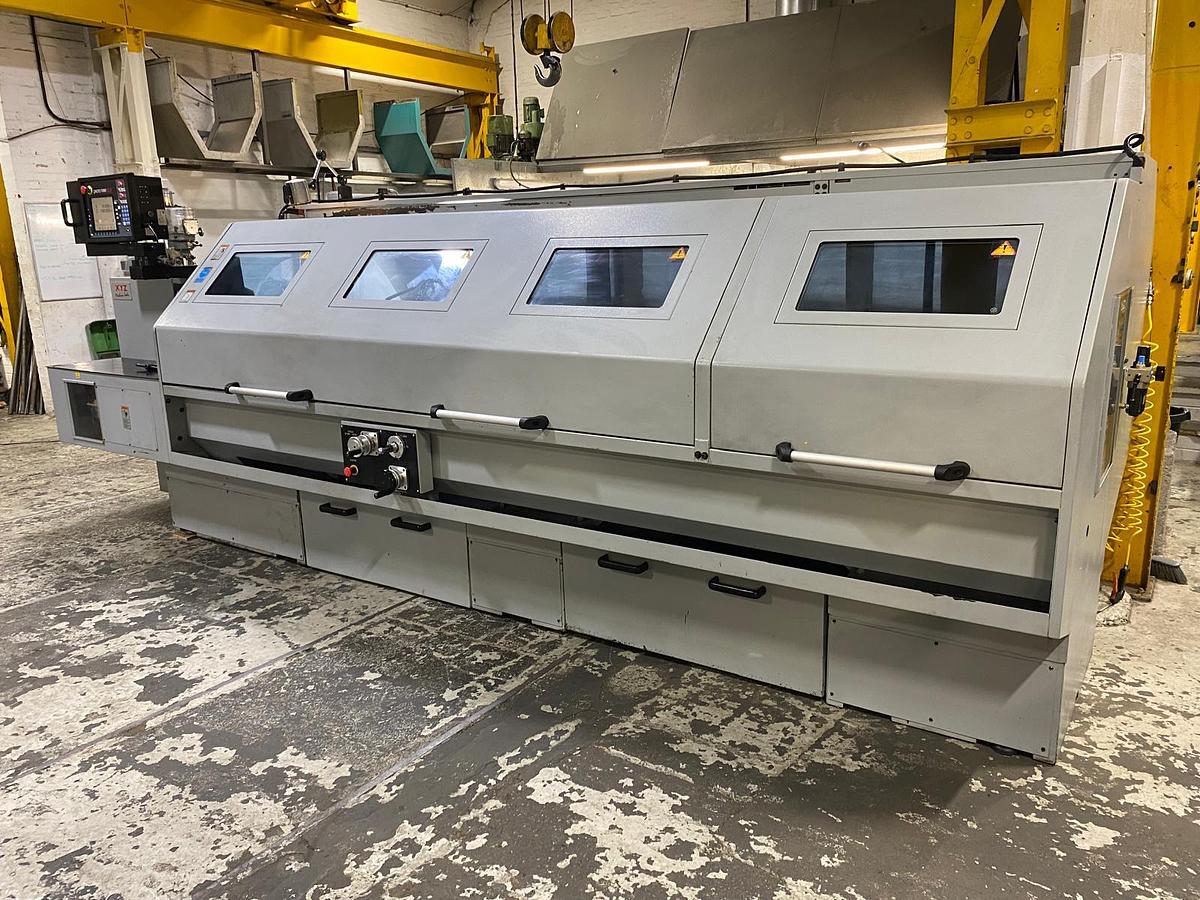

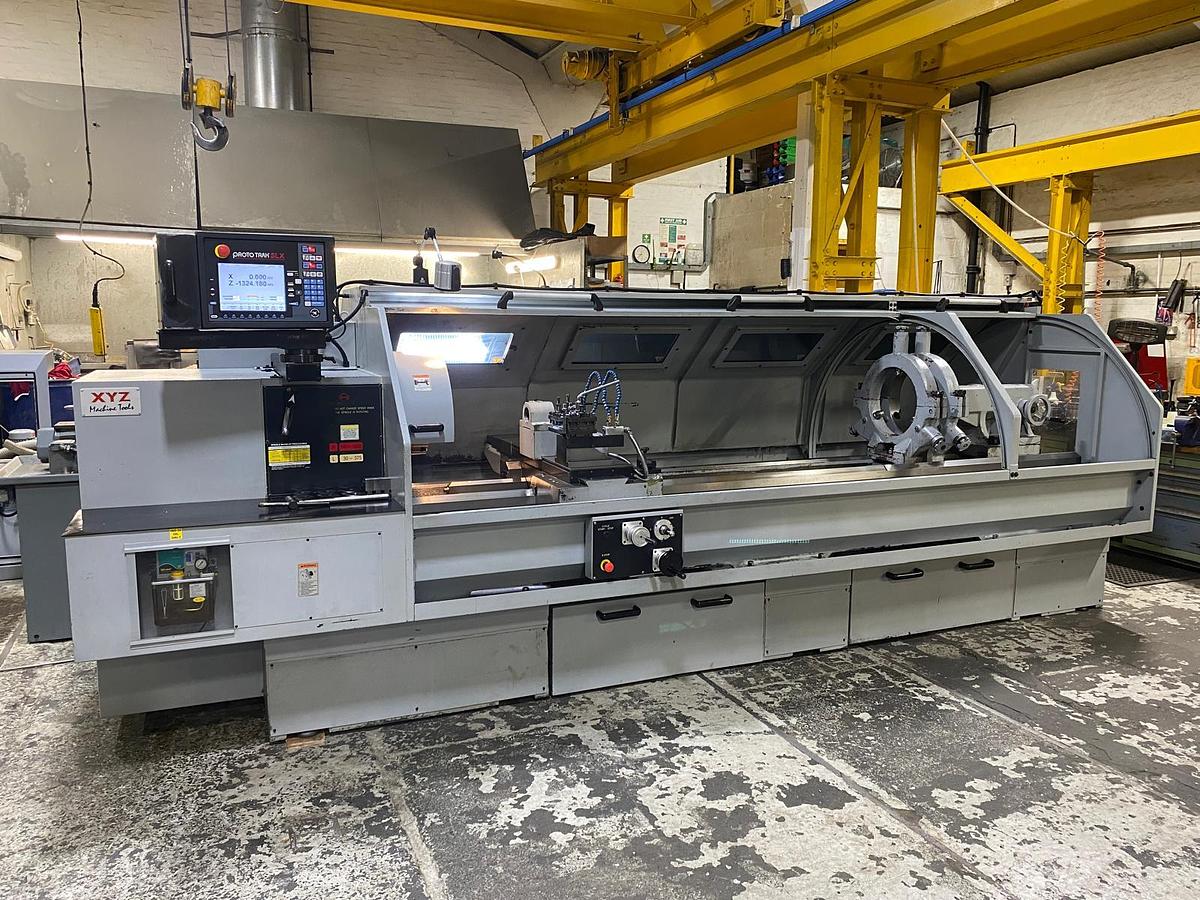

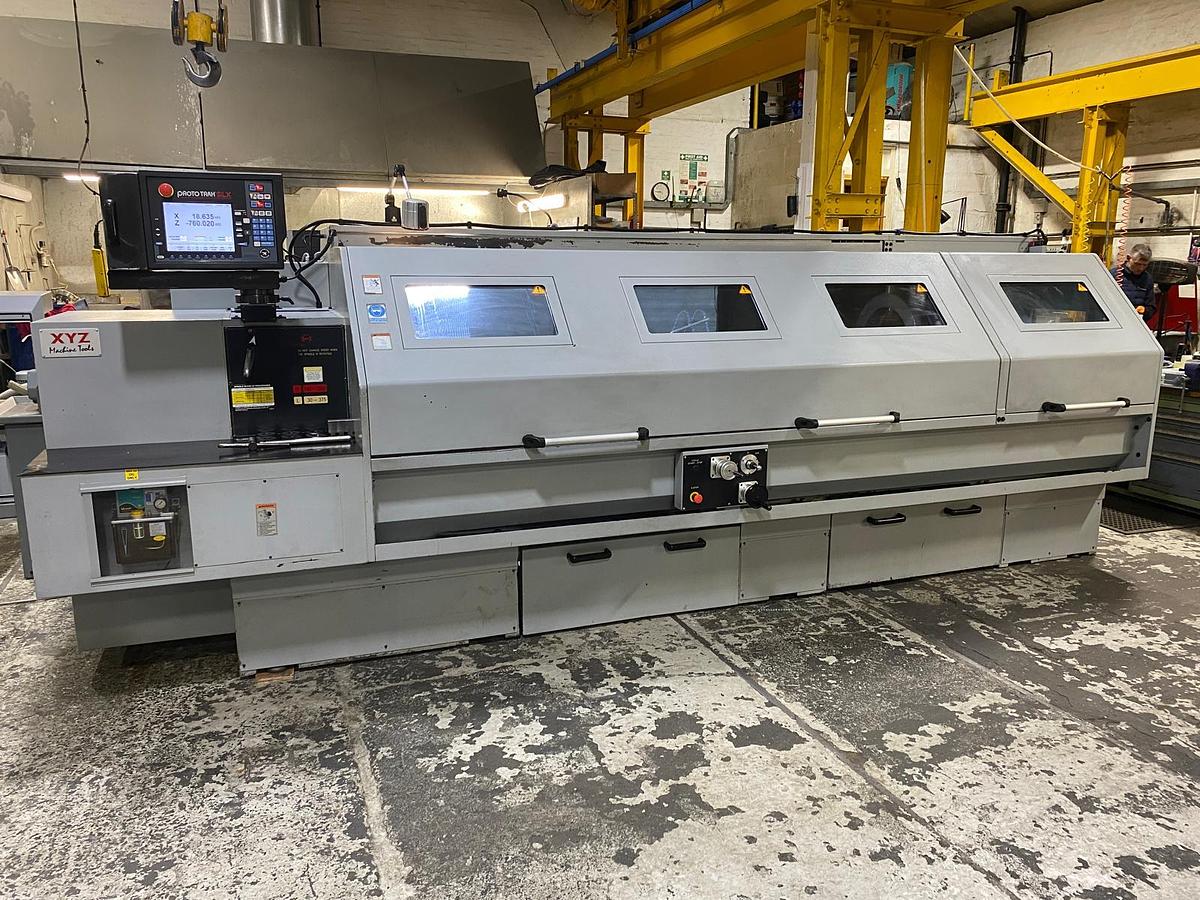

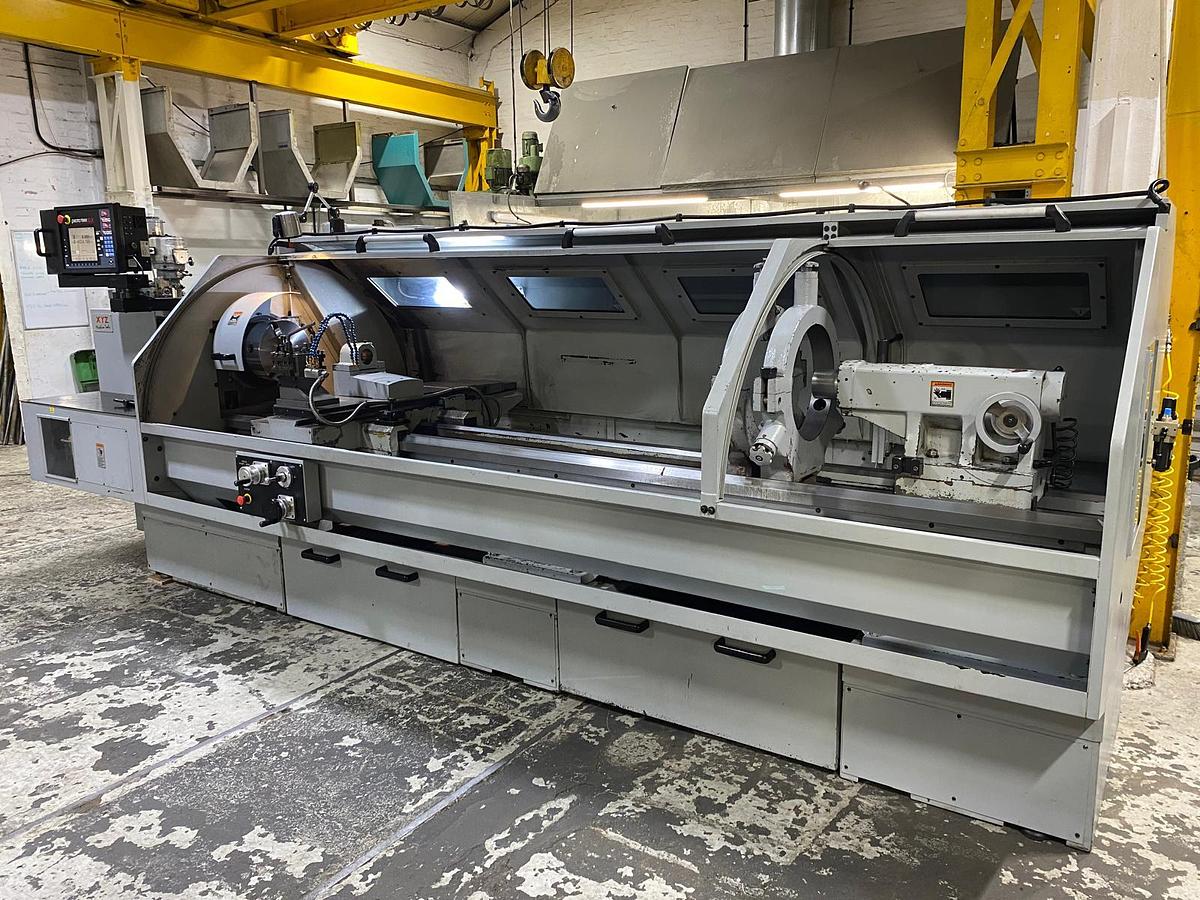

2012 XYZ PROTURN SLX 555 x 3000mm CNC LATHE
Description
Model PROTURN SLX 555 x 3000mm

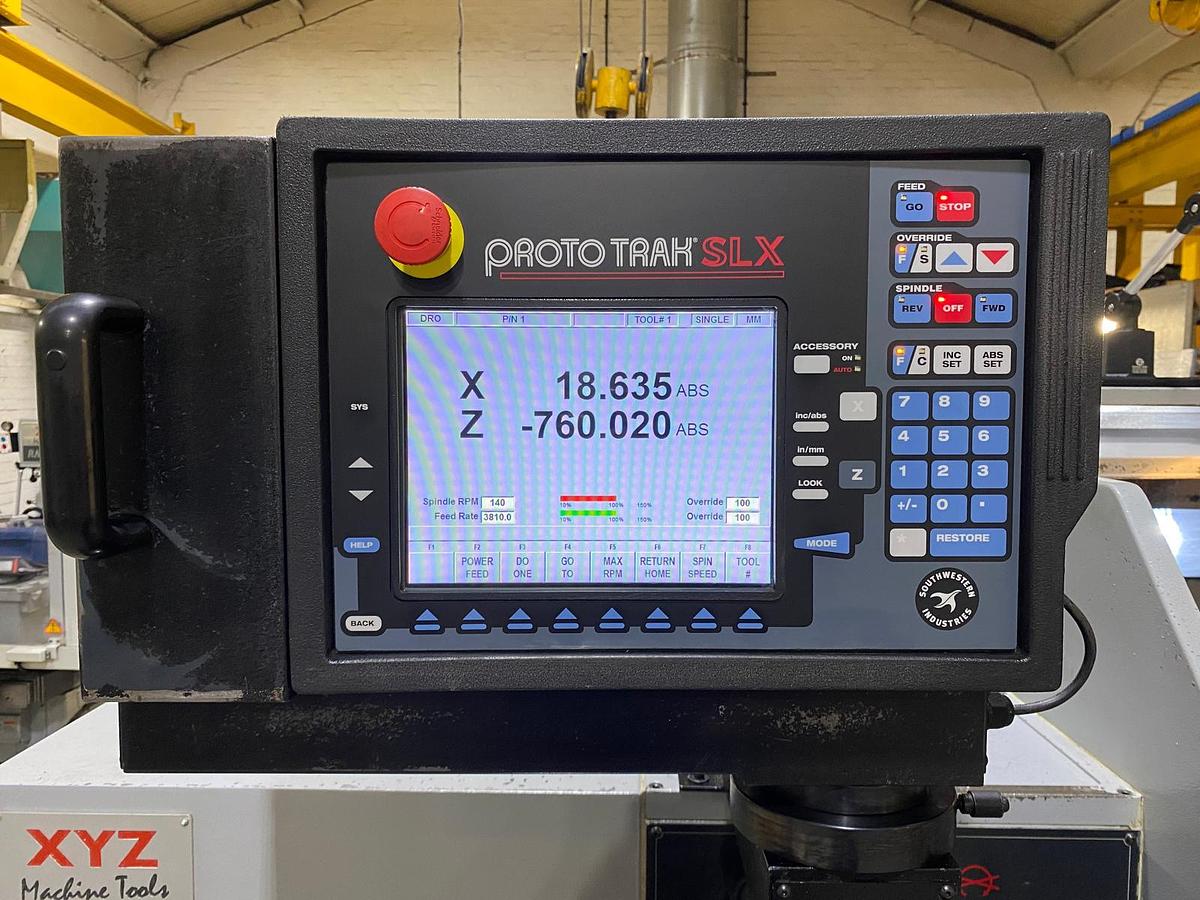

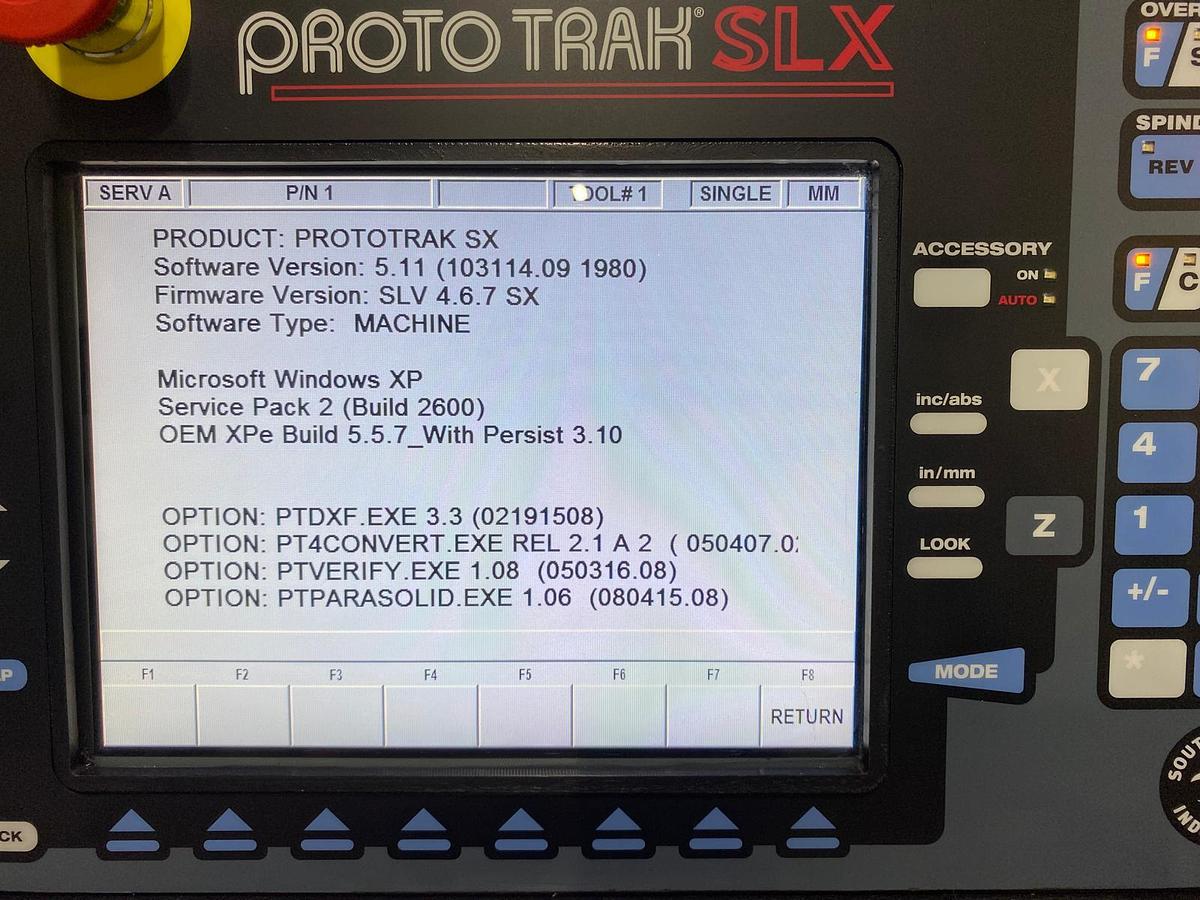

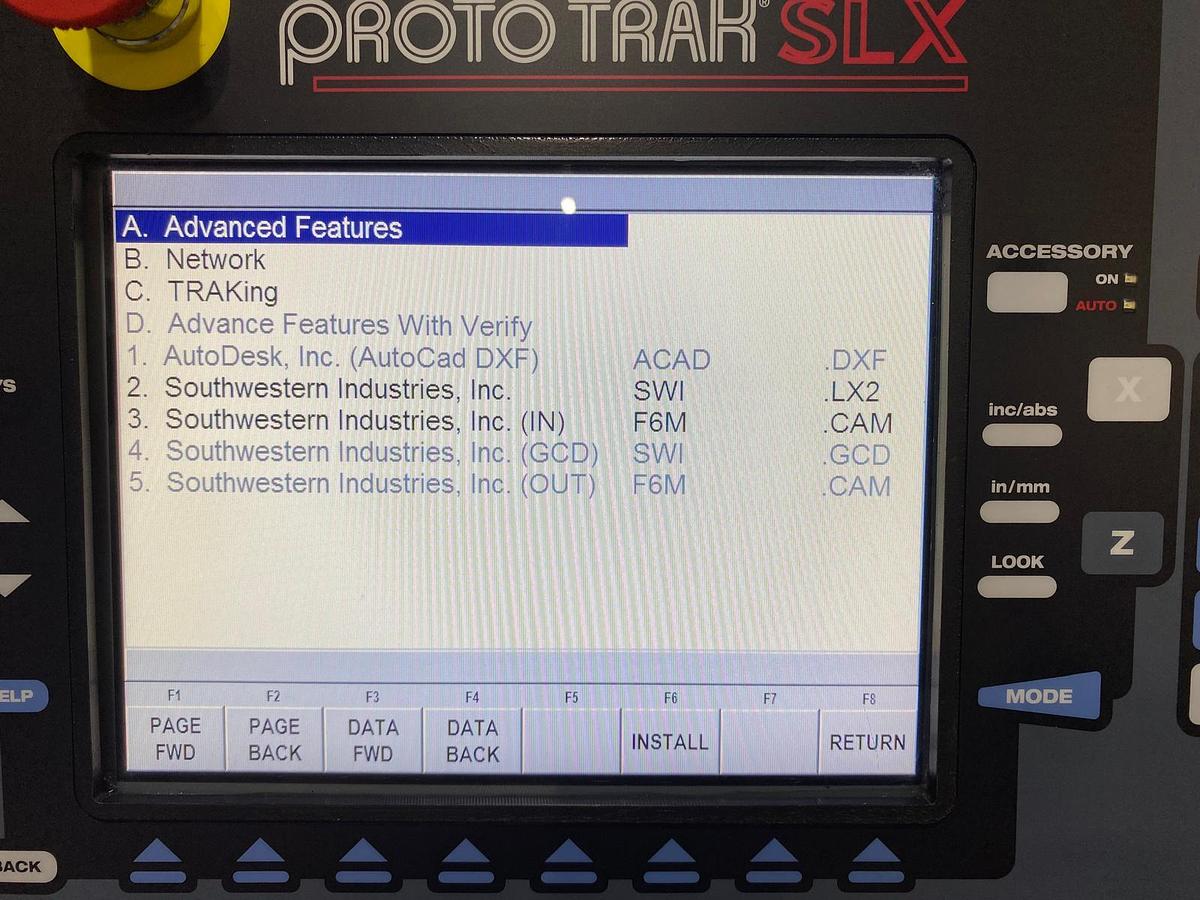

Control system PROTO TRAK SLX
Year 2012
Swing over bed 560 mm
Swing in gap 900 mm
Swing over cross slide 350 mm
Distance between centres 3000 mm
Bed width 500 mm
Cross slide travel 290 mm
Spindle bore 104 mm
Spindle nose D1-11 Camlock

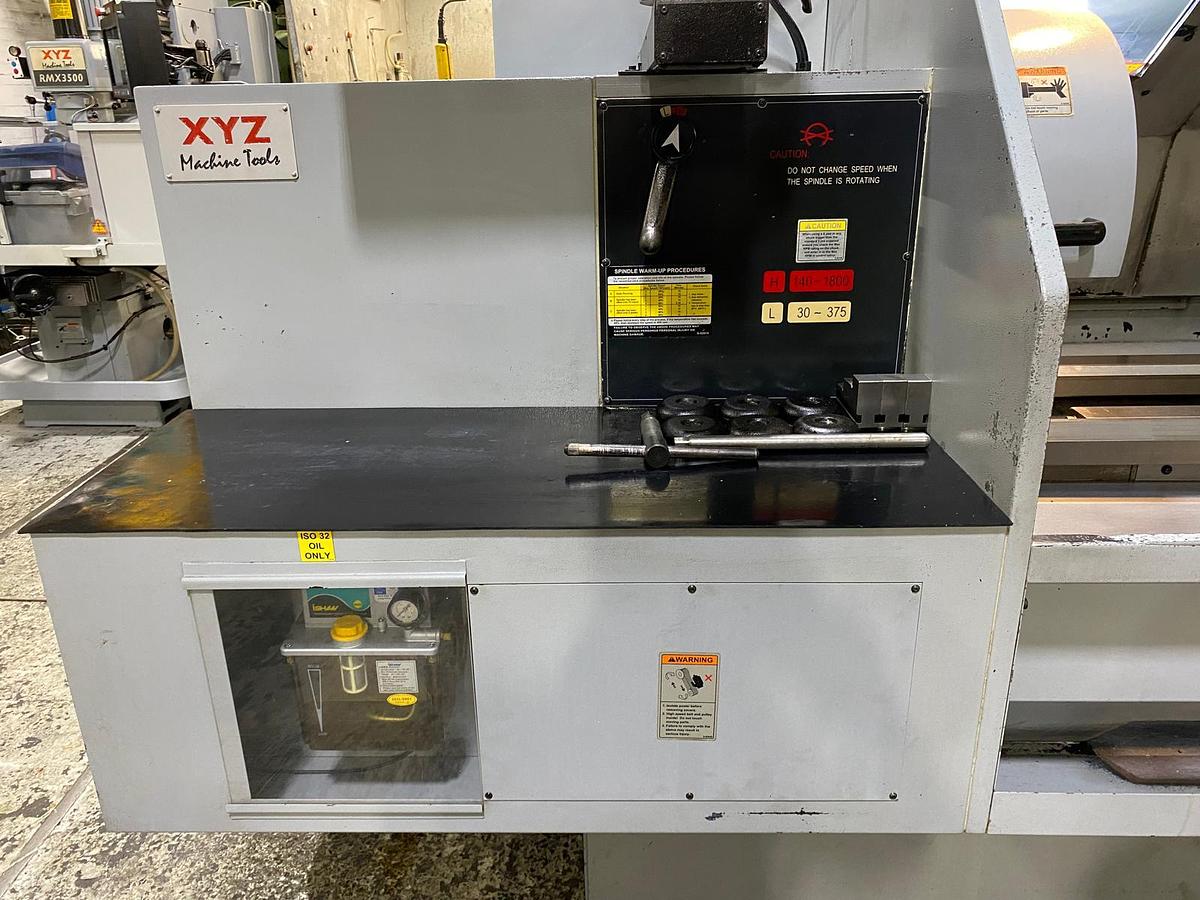

Spindle speeds (2 range) 30 – 1800 rpm

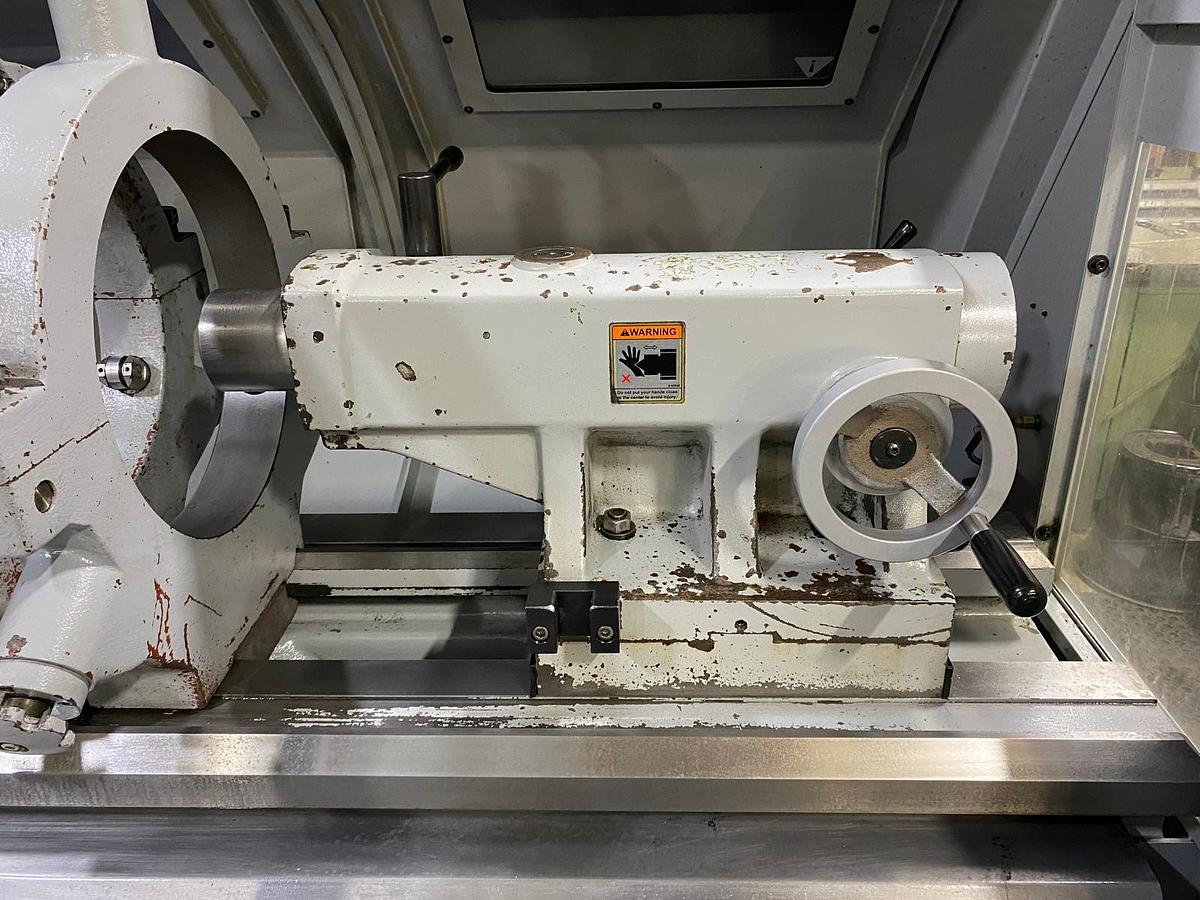

Tailstock quill diameter 105 mm
Tailstock quill travel 200 mm
Tailstock quill taper 6 MT
Main motor power 11 Kw 15 hp
Overall size 5620mm L x 2010 F to B x 1910mm H
Weight 6340 kg
Specifications
| Manufacturer | XYZ |
| Model | PROTURN SLX 555 x 3000mm CNC LATHE |
| Year | 2012 |
| Condition | Used |
| Stock Number | 8510 |

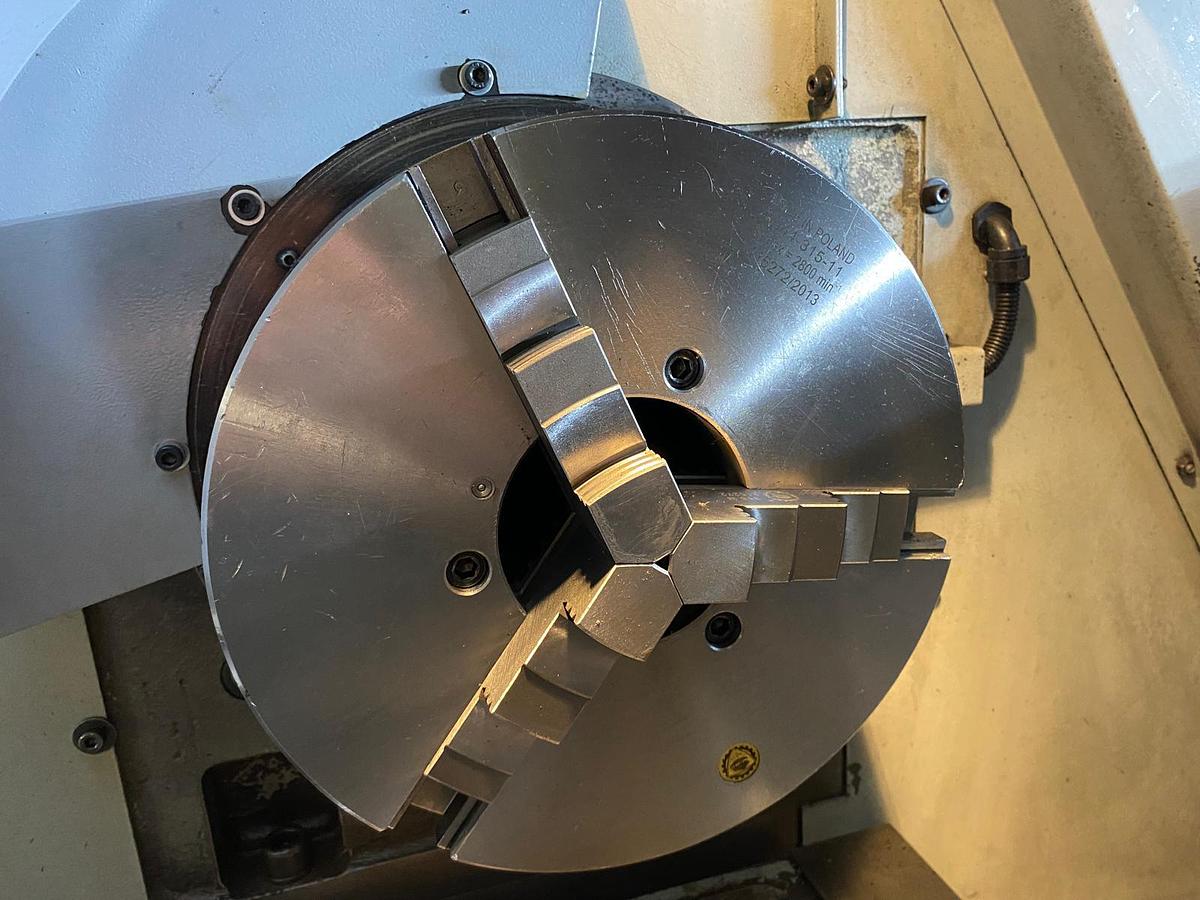

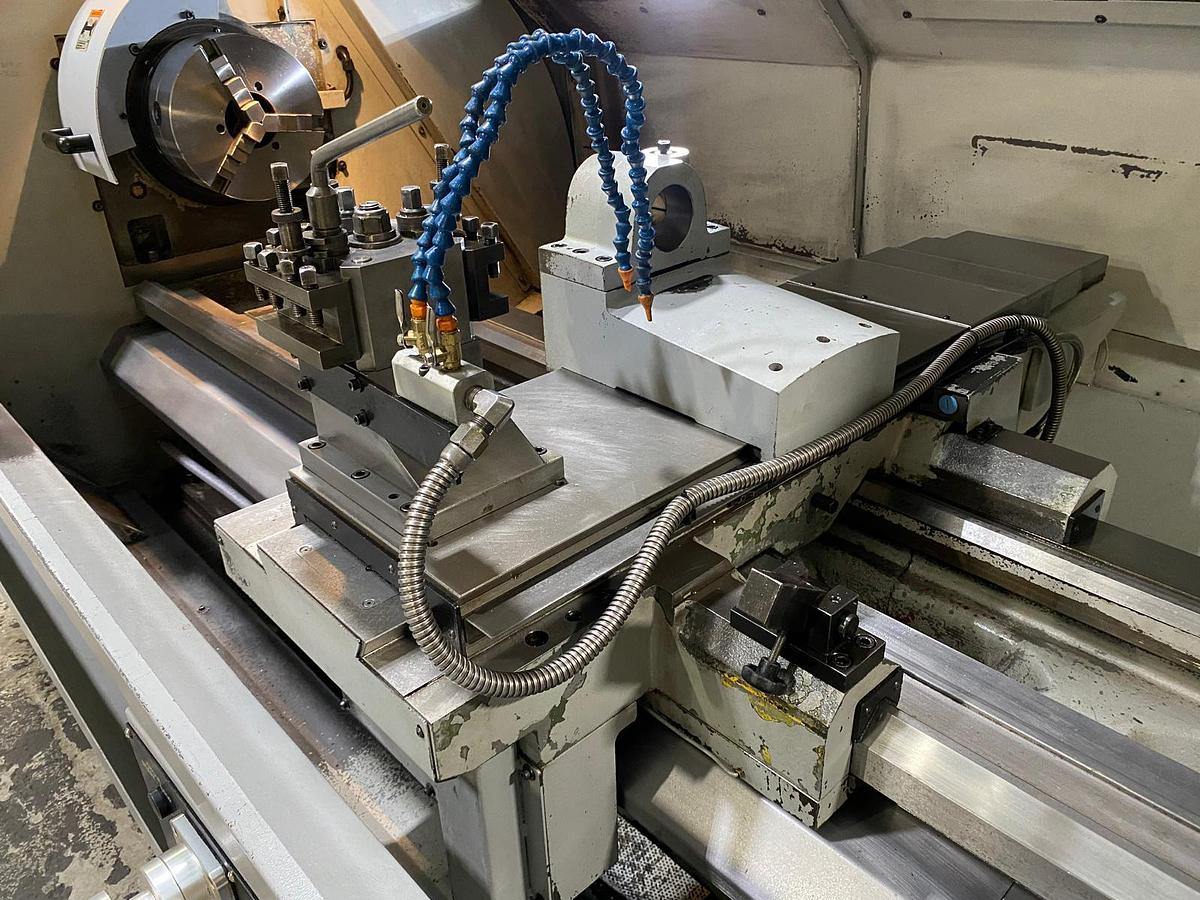

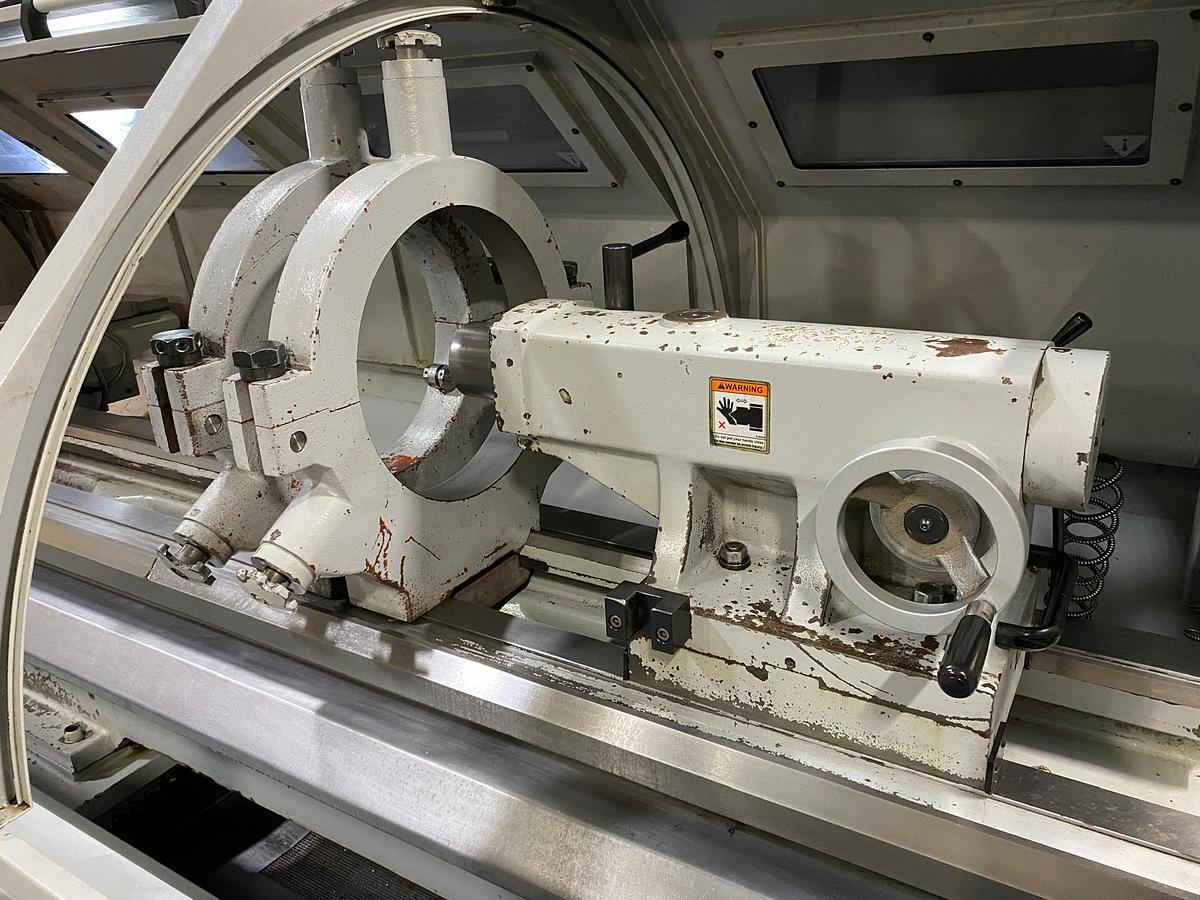

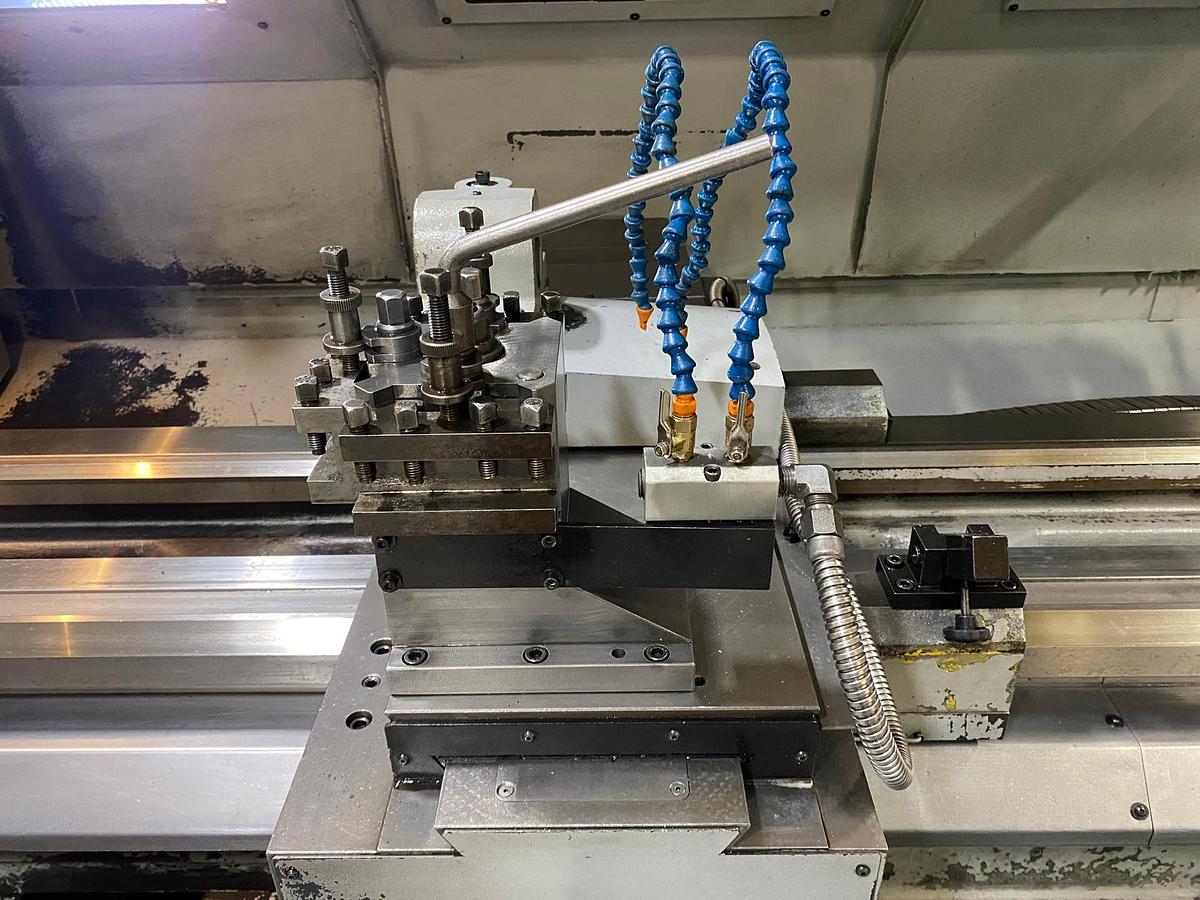

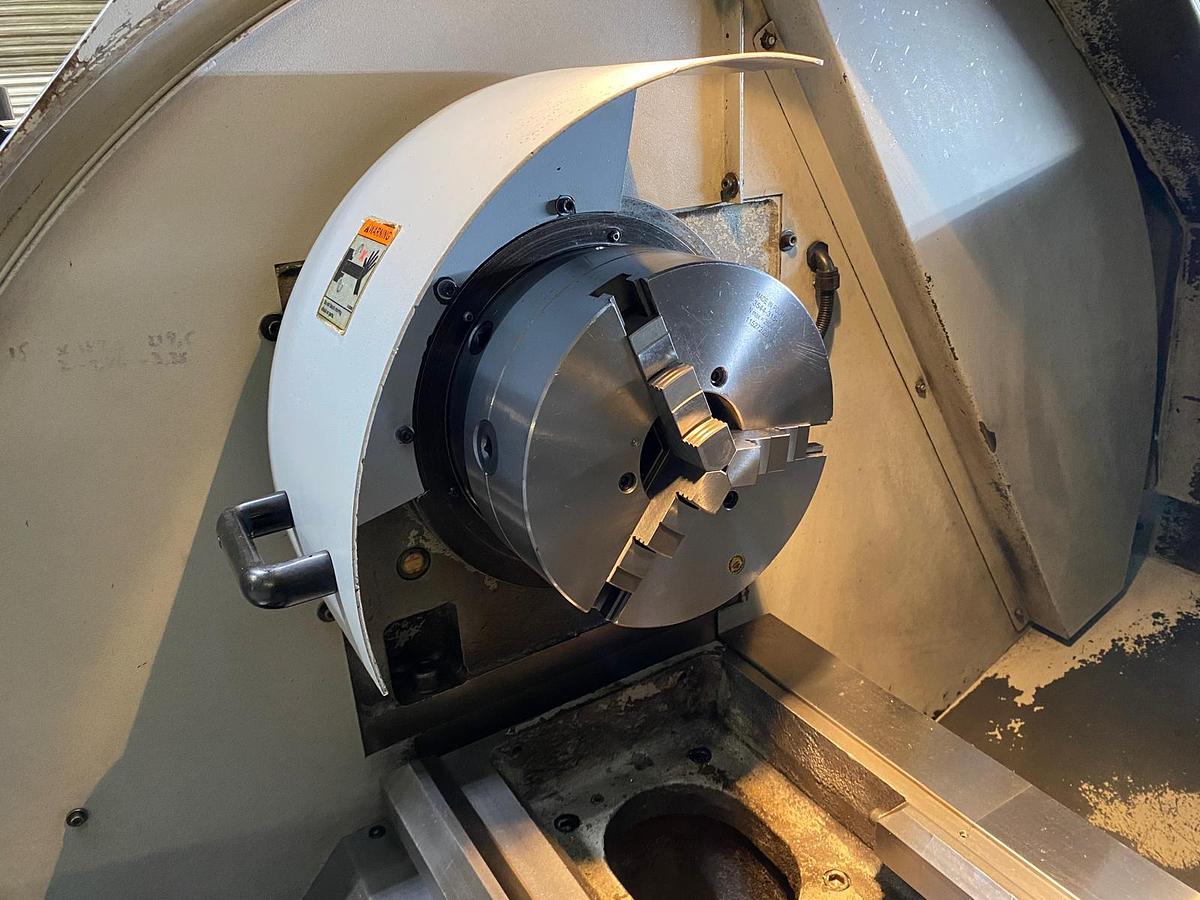

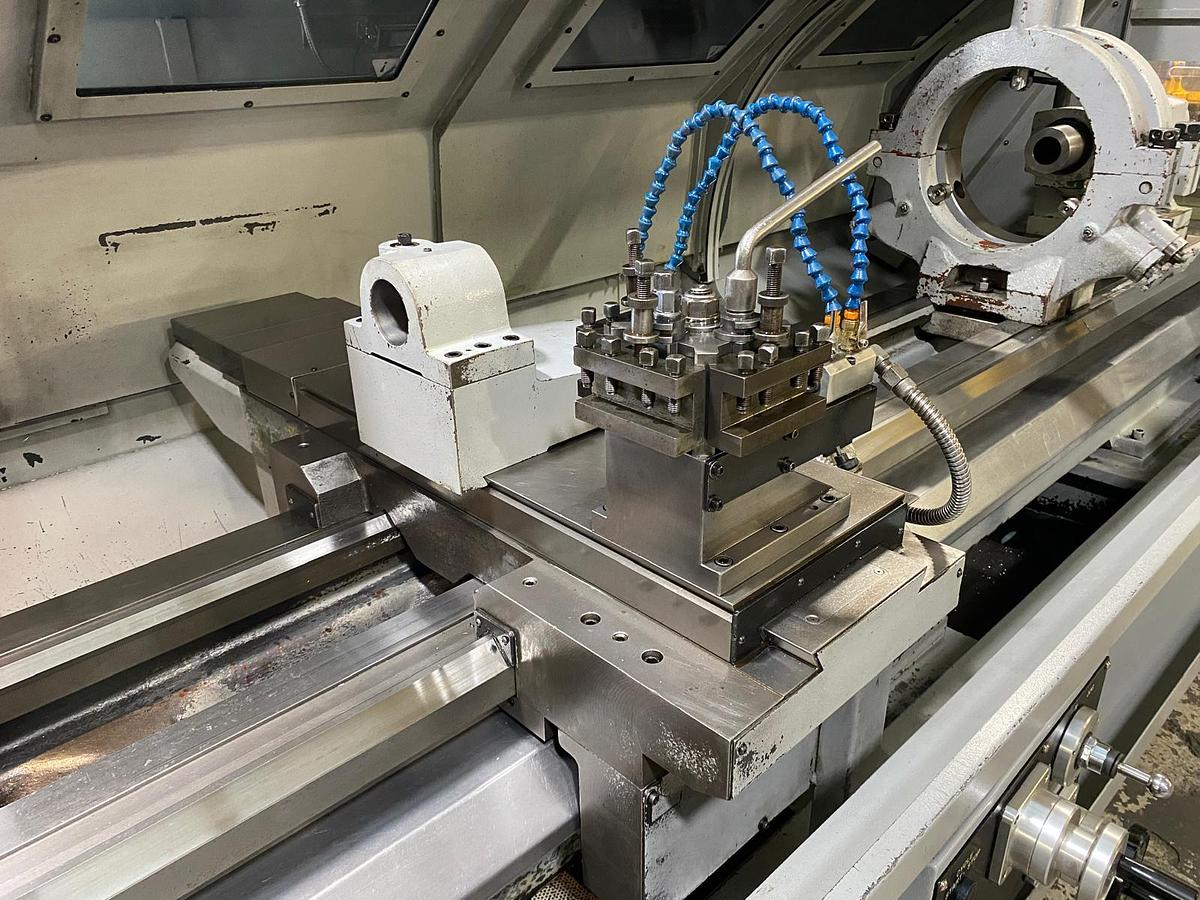

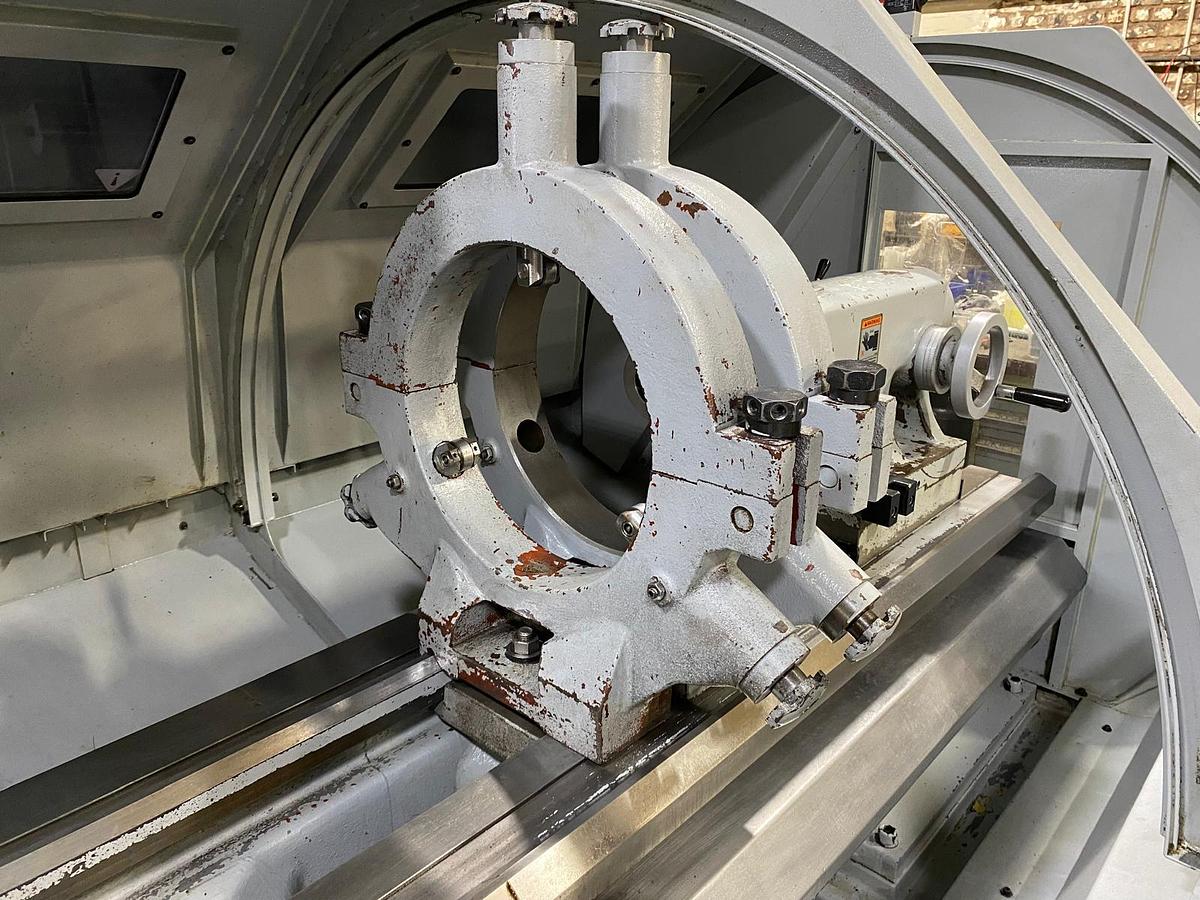

| Machine complete with | Two-axis CNC, Two-axis DRO. TRAKing, Constant surface speed. Electronic hand-wheels for X & Z Axes. Joystick for feed & rapids. Interlocked chuck guard and main guard. Quick change toolpost with holders. 315mm 3 Jaw chuck. 2 Off 220 – 370mm 3 Point steadies. Power drill attachment. Air assisted tailstock. Coolant. |
