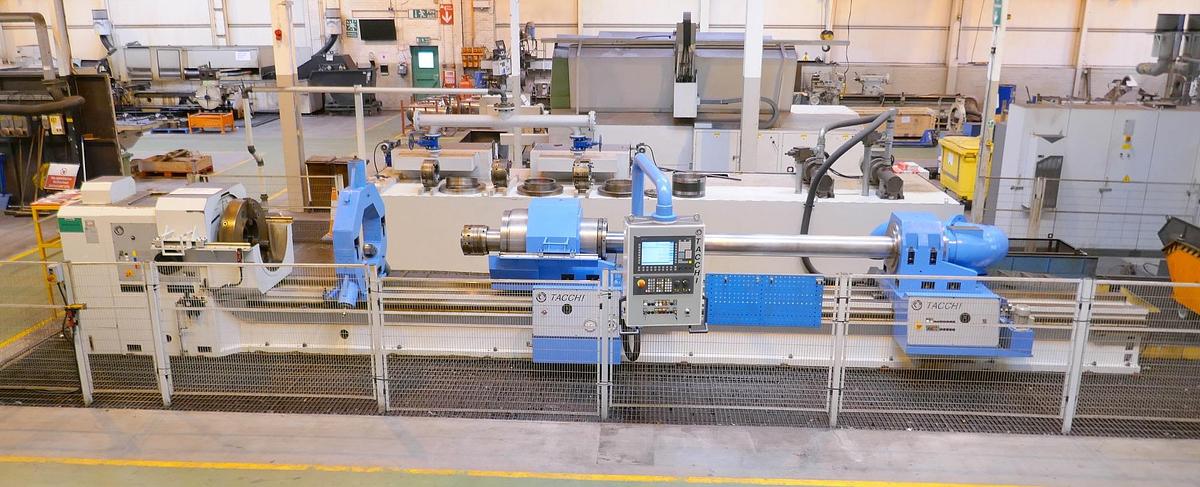

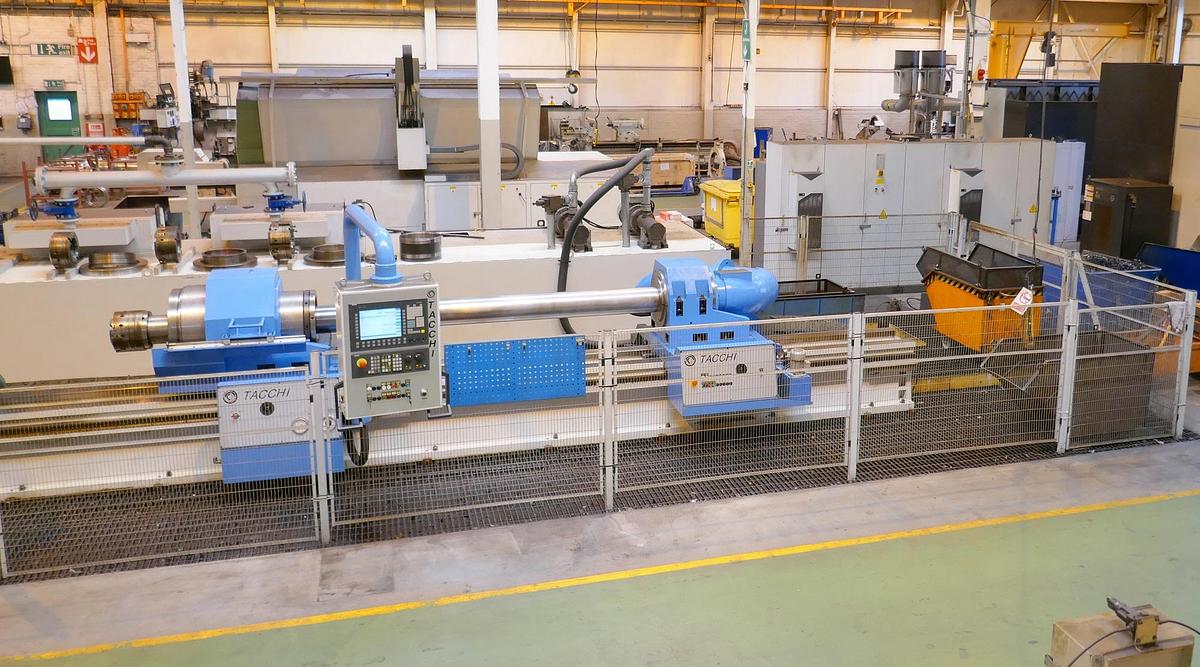

SOLD – TACCHI FT45 S CNC – 500 x 3000MM HORIZONTAL HIGH PERFORMANCE DEEP HOLE BORING MACHINE – SOLD

Description

Year 2011, Control system SIEMENS 840 DE Machine suitable for Rotating Workpiece and Stationary Tool.
Show All

Specifications

Year2011
ConditionUsed
Work headstockRange of spindle speeds (3 range) 4 – 600 rpm, Spindle nose 15 DIN 55026, Spindle bore 128 mm, Drive power (AC Brushless main motor) 100 kW, Maximum torque 25.000 Nm.
Boring carriageFeeds, infinitely variable 1 – 4000 mm/min, Rapid traverse 4000 mm/min, Feed force 50,000 N
Guide (Oil Pressure Head) carriageRapid traverse 4000 mm/min, Hydraulic approach stroke 150 mm, Hydraulic thrust, pressure head against workpiece 50,000N
Machine equipped with :-Coolant oil pumping station with 2 pumps, Flow rate 250-1600 lt/min., 10 bar. BTA Rotating Oil Pressure Head, Size 218 S. Max. boring bar 346 mm. Boring bushes, rings and seals, 3 off boring tubes (154mm and 226mm x 4500mm thread connection, 346mm x 4500mm flange connection). Solid boring heads 255, 300, 350, 370, 380, 400mm. 1 off 3 point roller work piece steady, 200 – 650 mm, capacity 6000 kg. 1 off boring tube steady, max. capacity 346 mm. 800mm ROHM 3 Jaw High Grip Geared Chuck. Coolant tank, 16,000 litre. Magnetic oil filtration 1600 lt/min.
