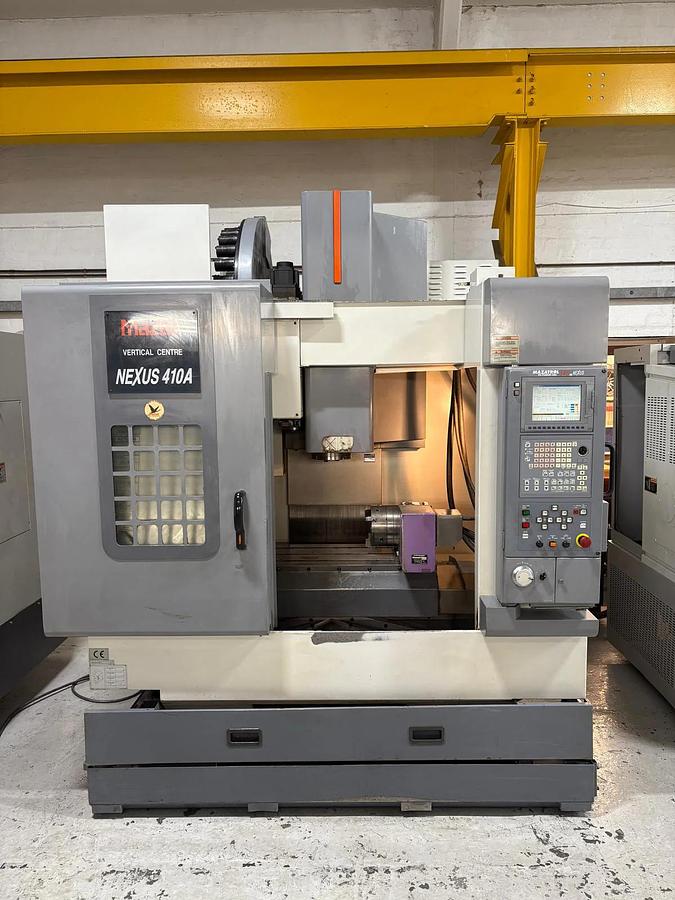

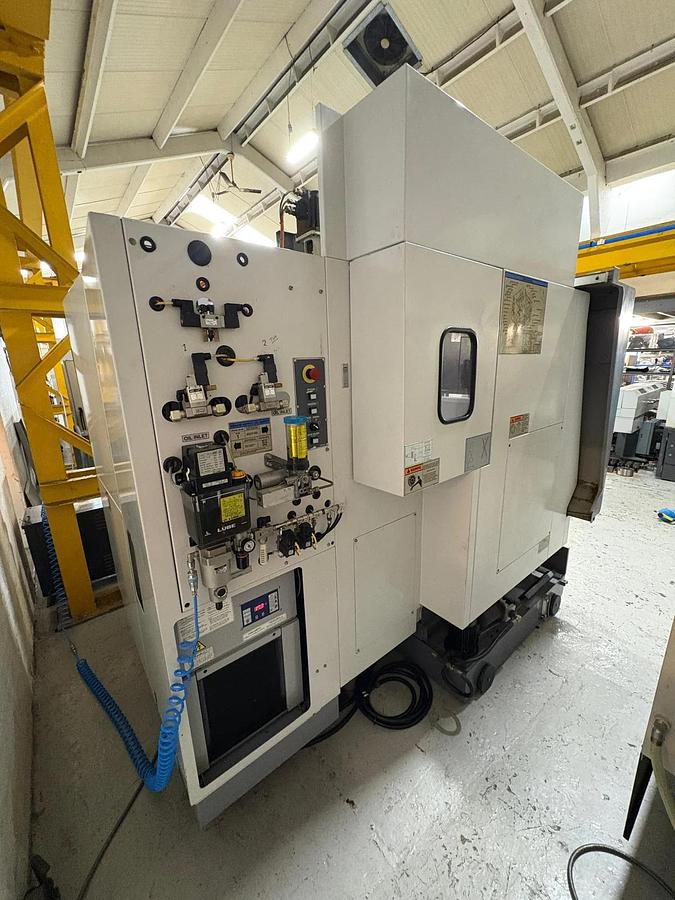

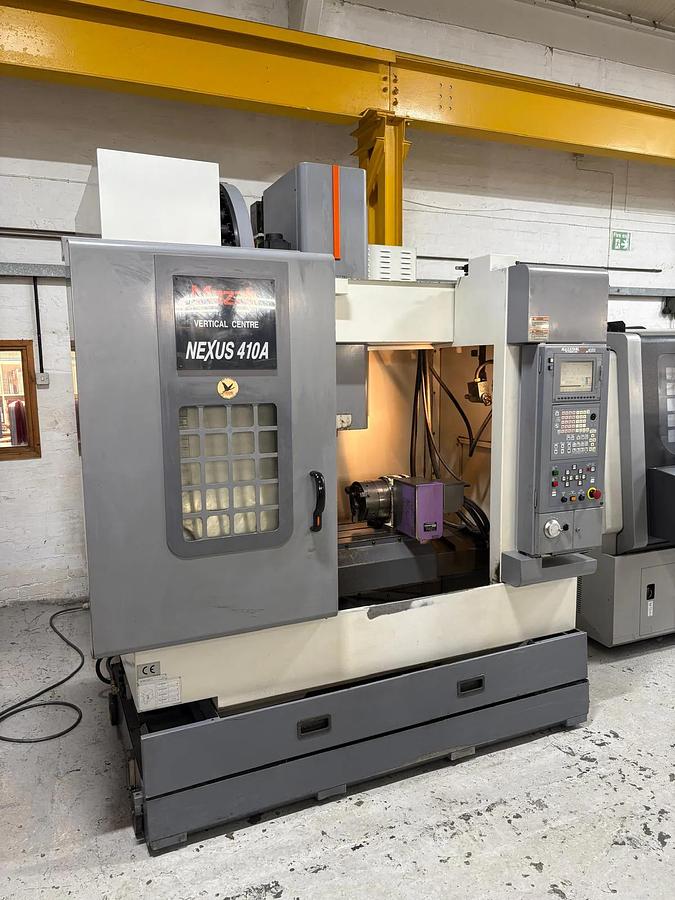

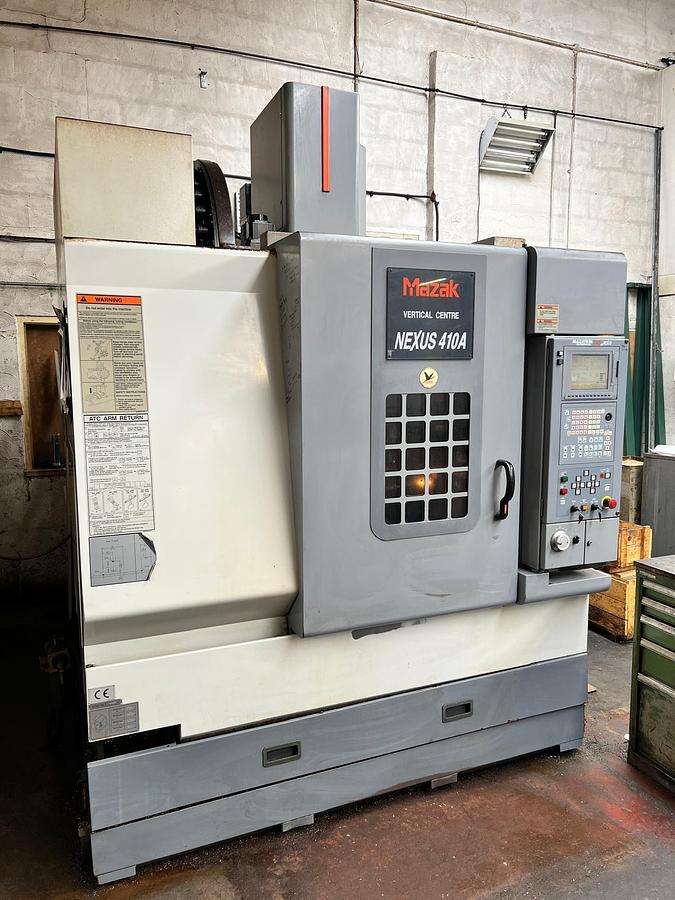

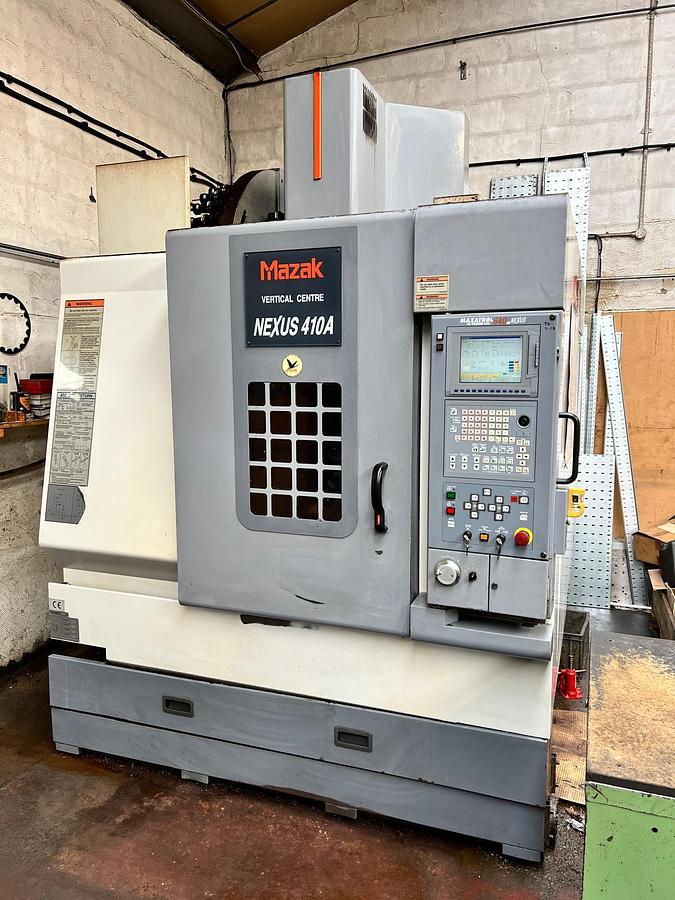

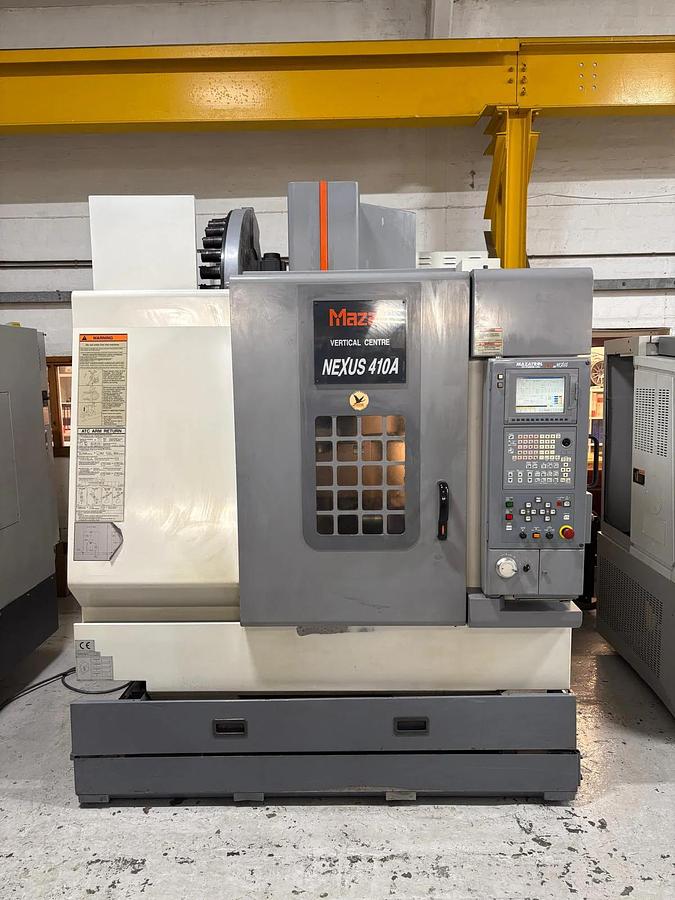

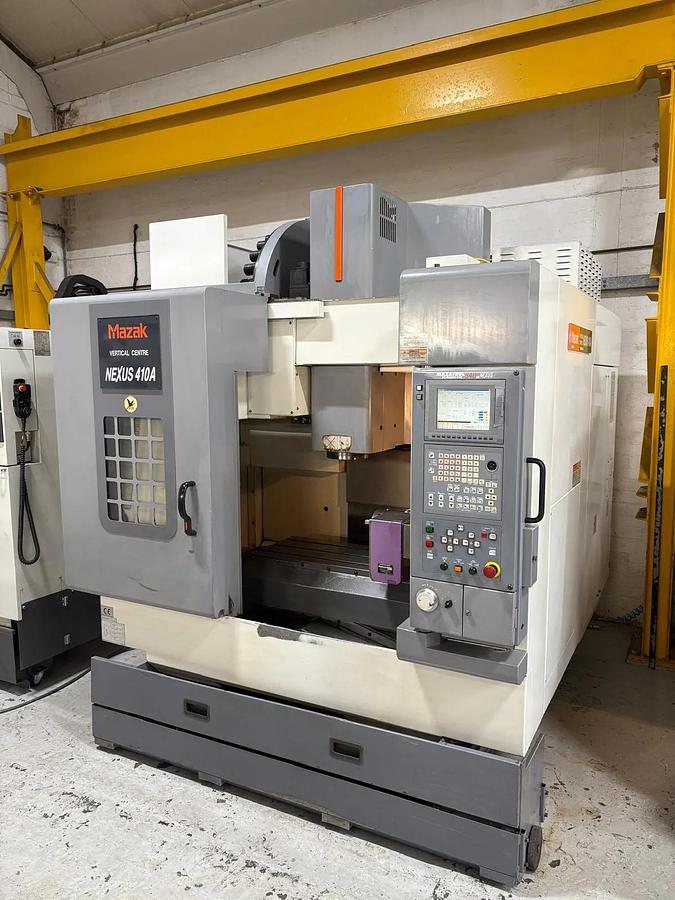

MAZAK VCN 410A VERTICAL MACHINING CENTRE

MAZAK VERTICAL CNC MACHINING CENTRE

Model                   VCN 410A

Year                      2003

Serial number      164742

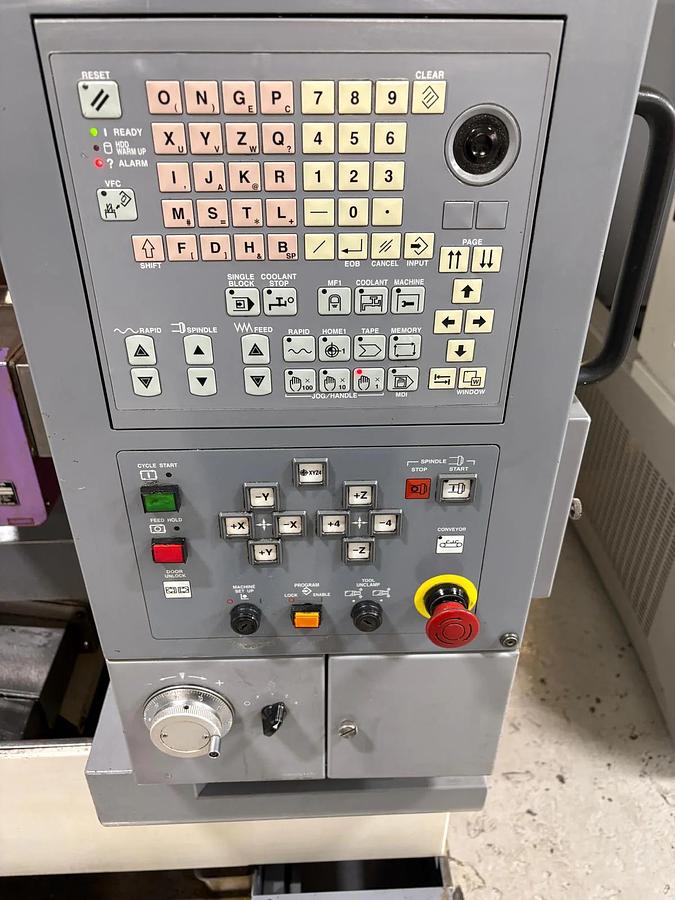

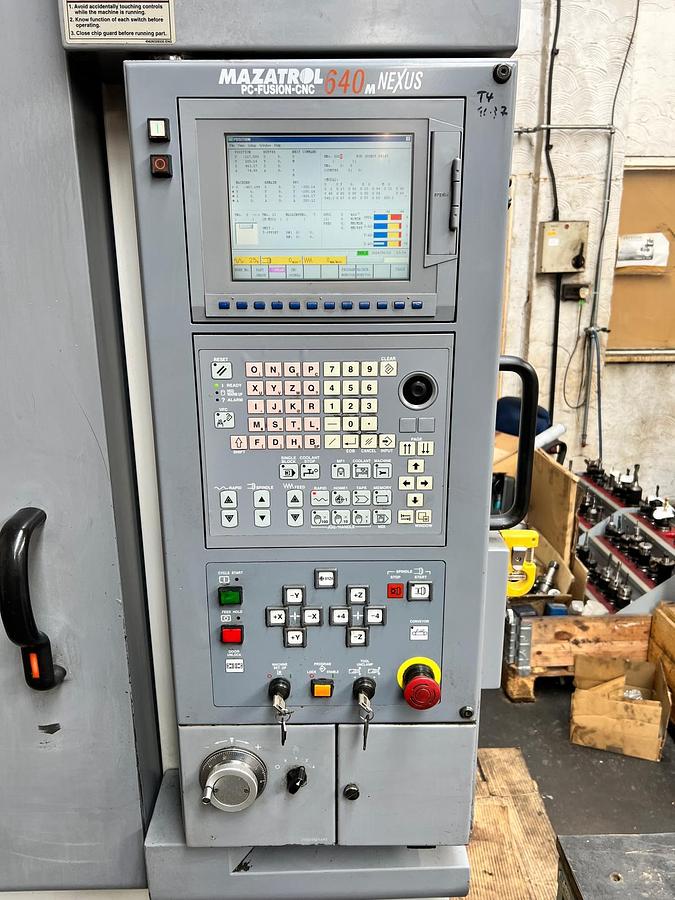

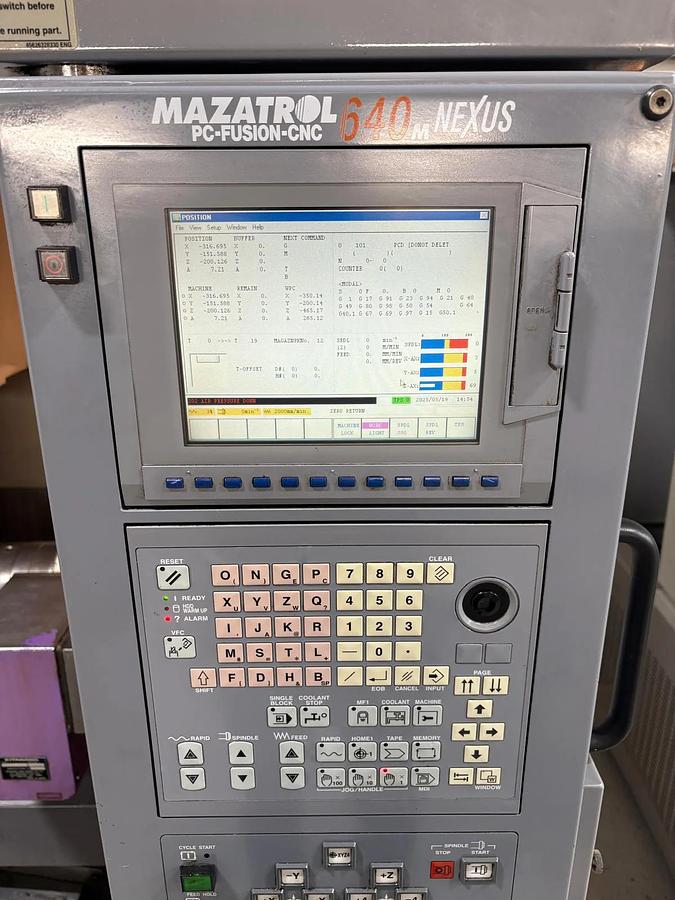

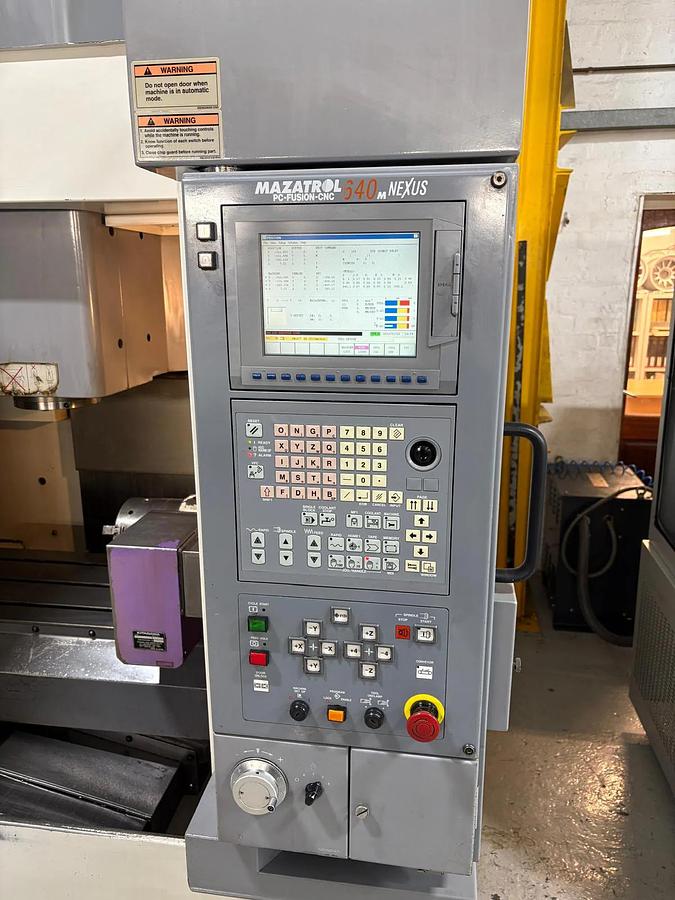

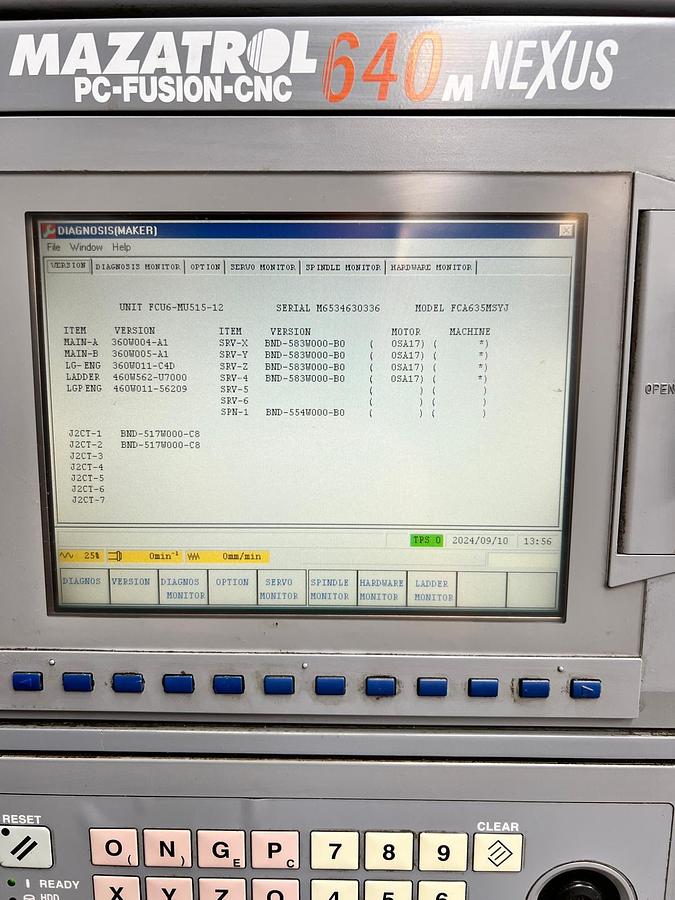

Control system     MAZATROL PC-Fusion 640M

TABLE

Table size                                           900 x 410 mm

Table load capacity                            500 kg

MOVEMENT

Table positioning travel     (X x Y)     500 x 410 mm

Head vertical travel             (Z)         510 mm

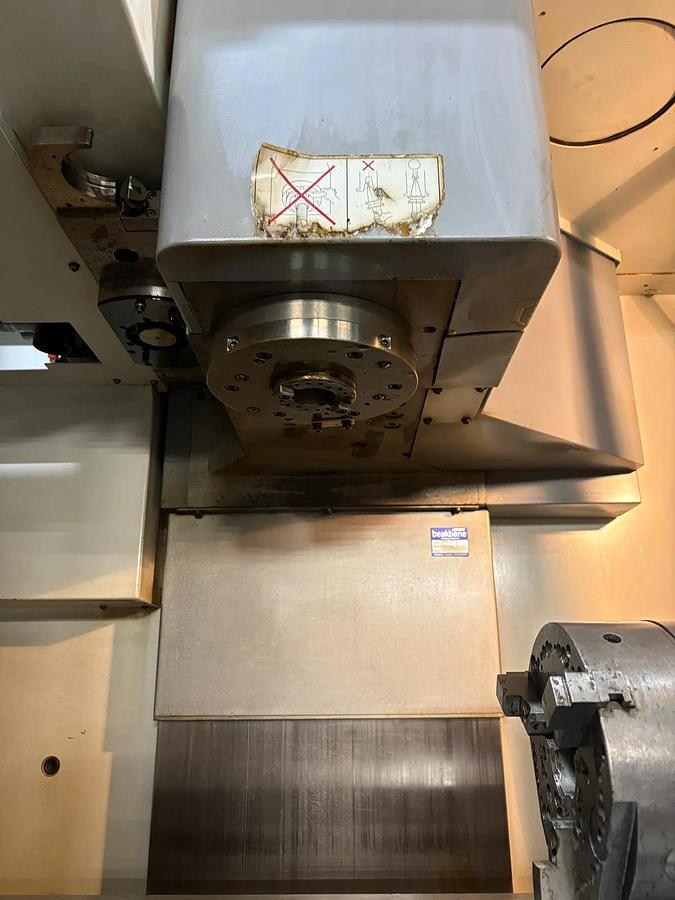

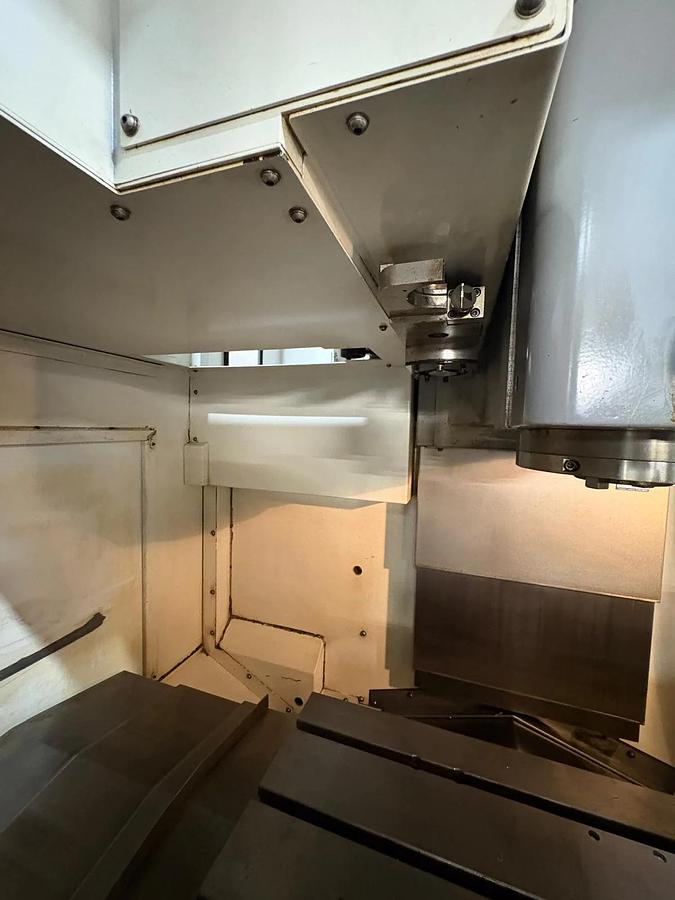

SPINDLE

Spindle taper                                   BT 40

Spindle speeds                                 12,000 rpm

Spindle drive motor                          18.5 kW

FEED RATE

Feed rate                                          1 - 36,000 mm/min

Rapid traverse             (X, Y, Z)        36 m/min

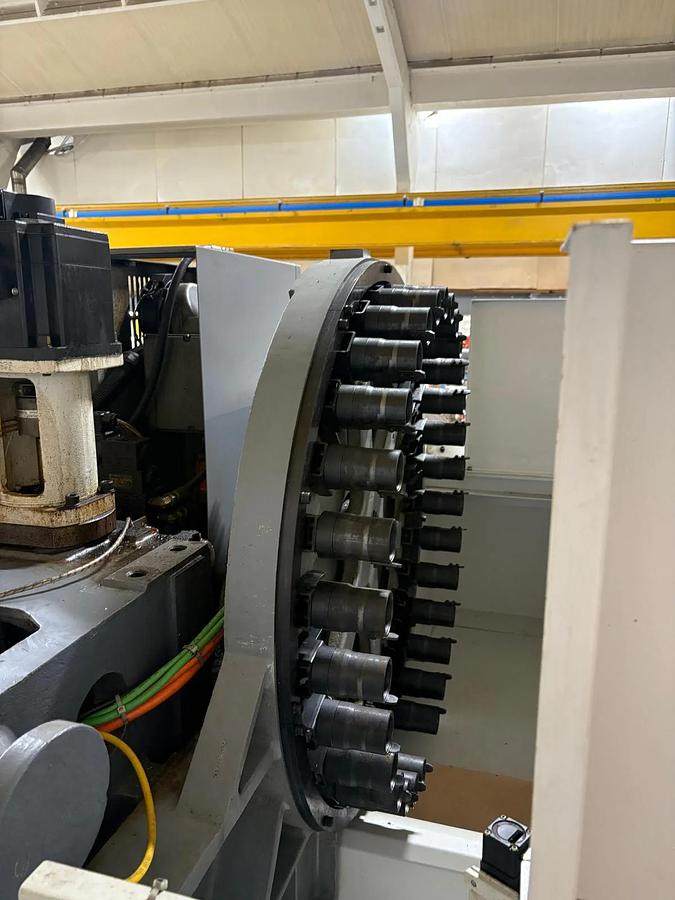

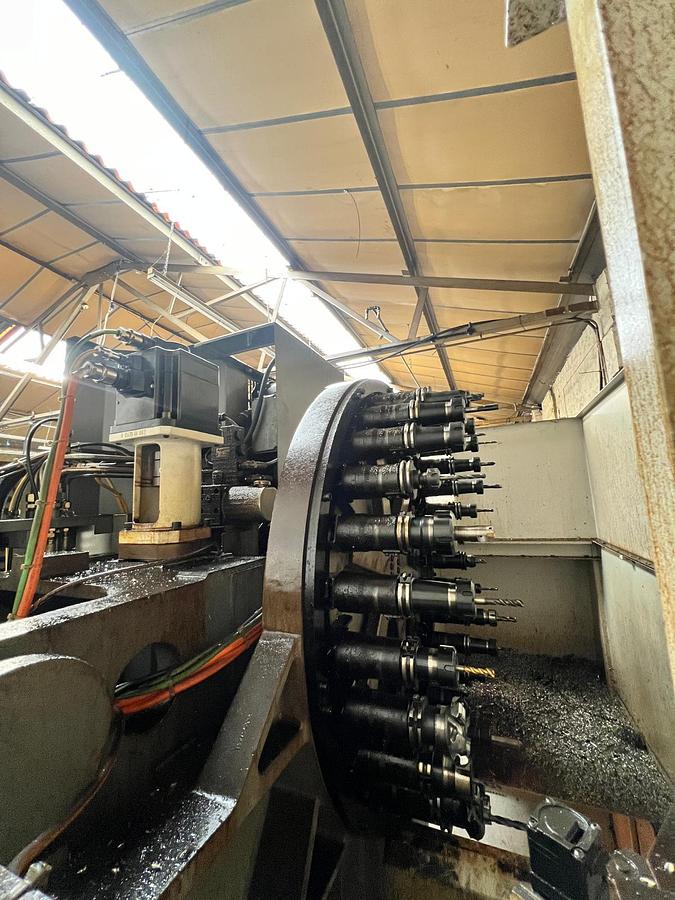

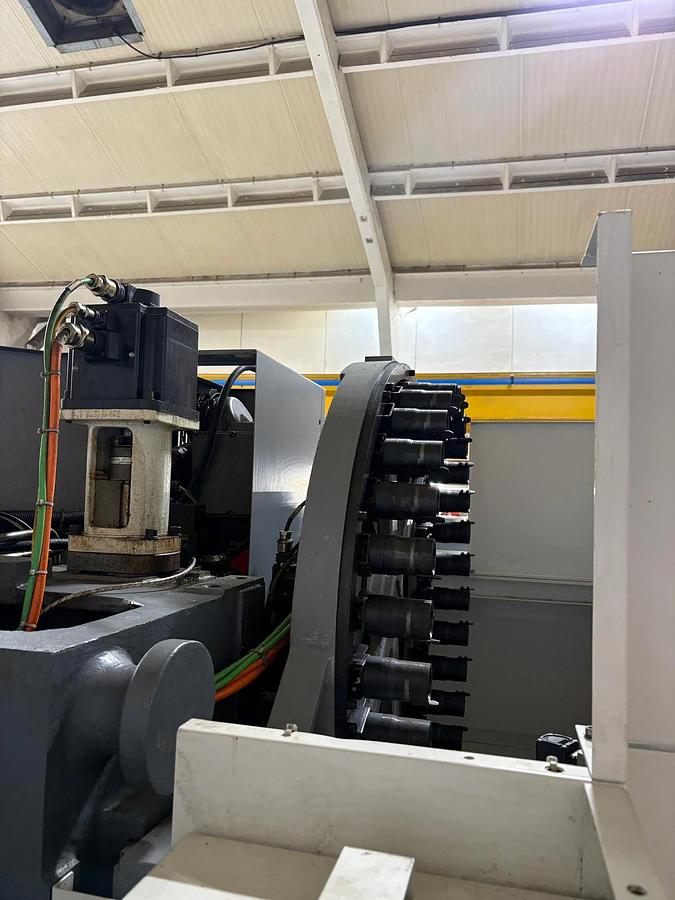

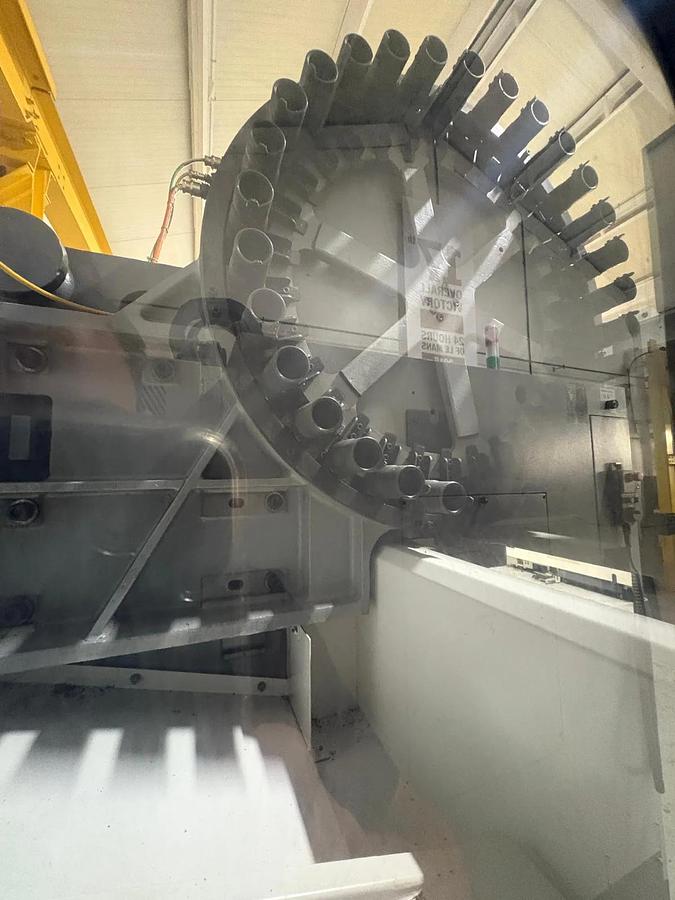

AUTOMATIC TOOLCHANGER

Magazine capacity, Arm type           30 tools

Max. tool diameter              125 mm

Max. tool length                              350 mm

Max. tool weight                  8 kg

Overall size approx.                        2000mm W x 26000mm F to B x 2800mm H

Machine weight                               5010 kg.

Complete with :-

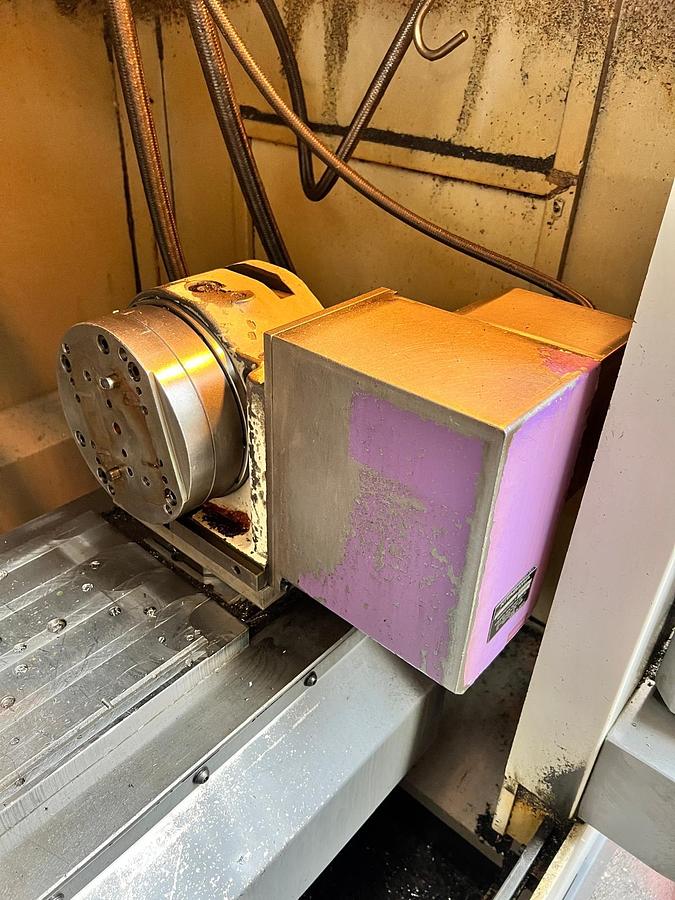

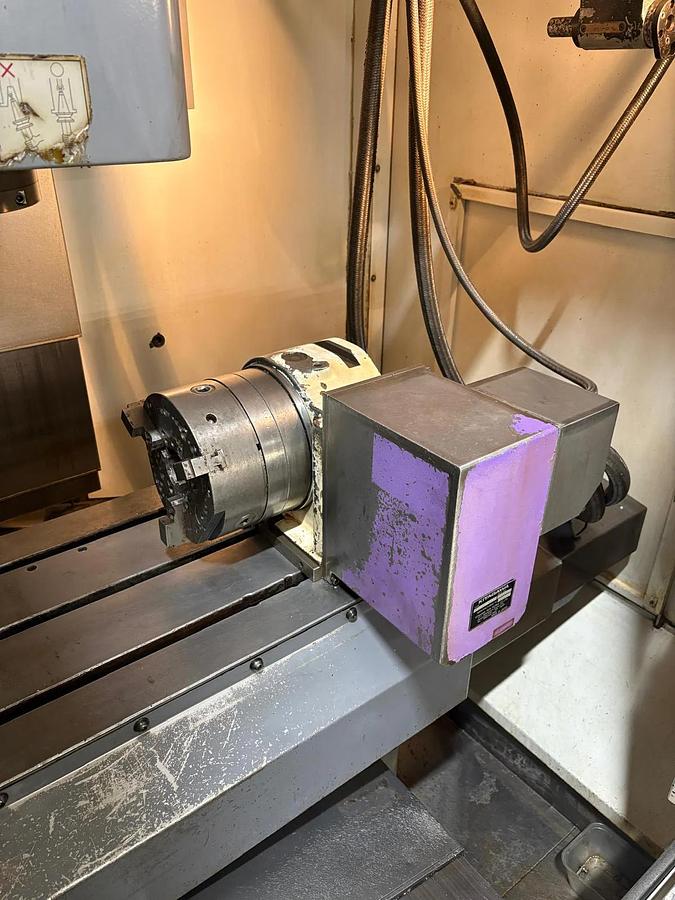

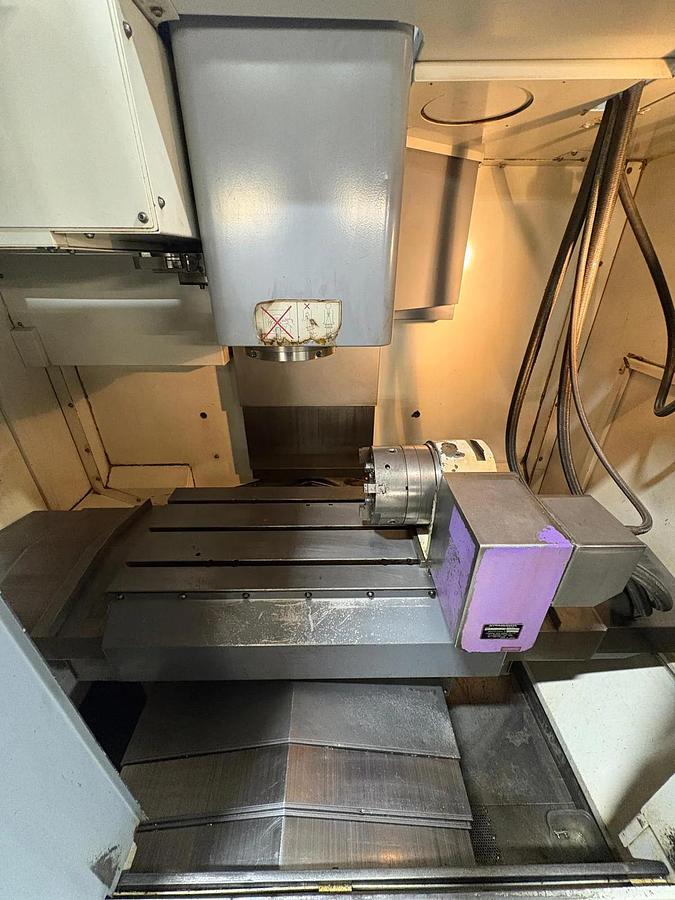

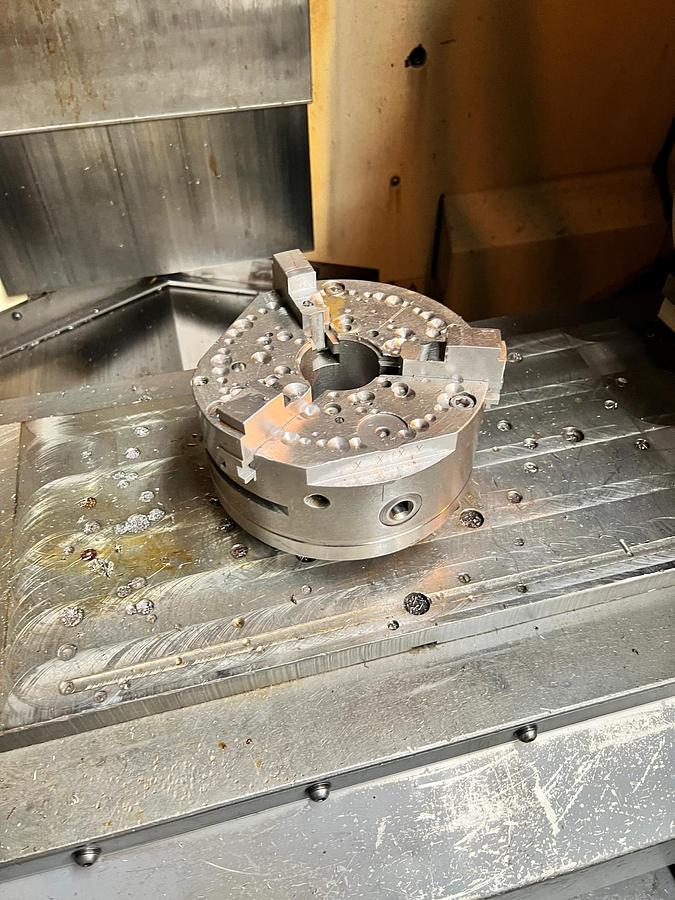

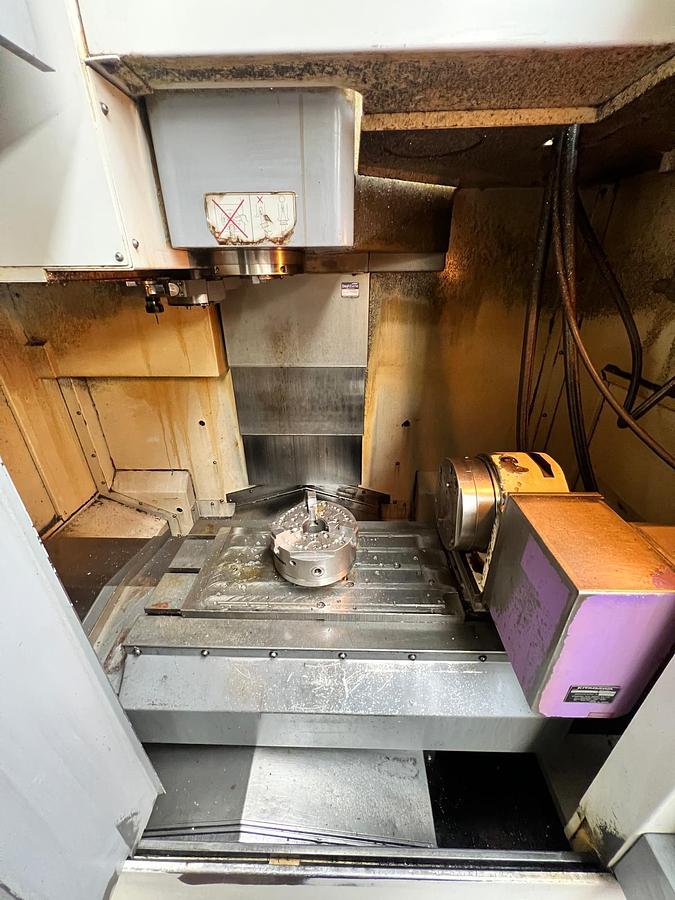

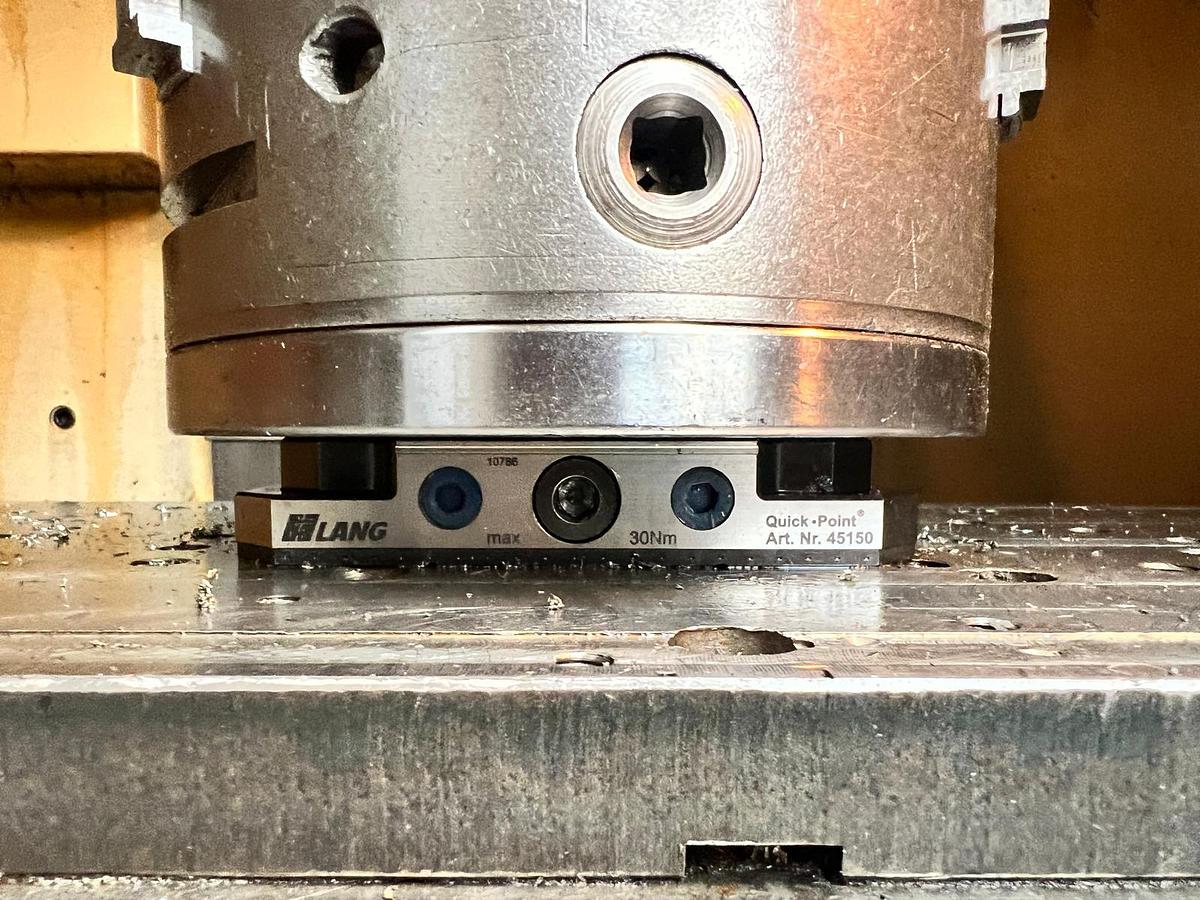

KITAGAWA MR200 4th Axis, Toolholders, LANG Quick Point Clamping System.
