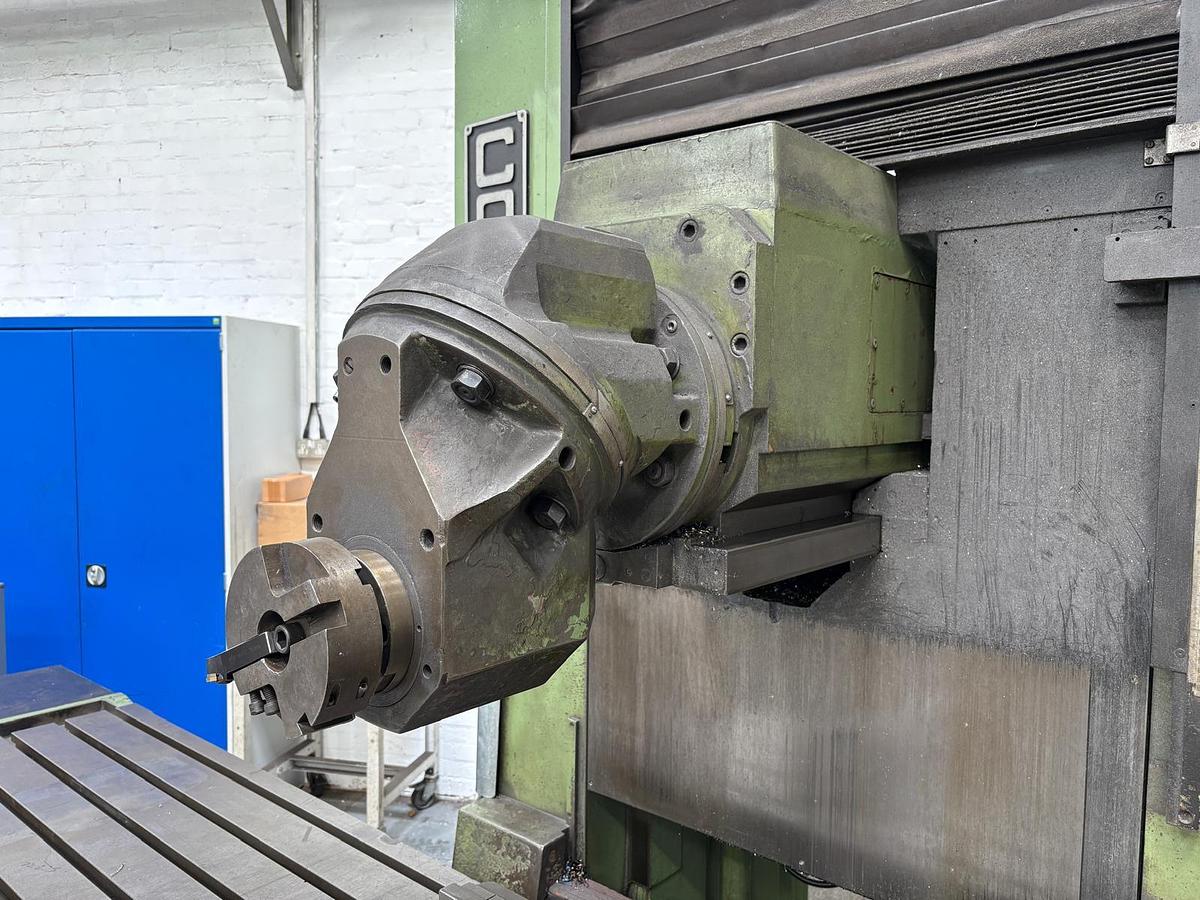

CORREA A-20-25 BED TYPE TRAVELLING TABLE UNIVERSAL MILLING MACHINE

Table size 2500 x 700mm, Longitudinal table travel X-axis 2200mm, Vertical travel Y-axis 1000mm, Cross ram travel Z axis 1000mm, Spindle nose to table 50-1050 mm, Height centreline of spindle to table 88-1389 mm, Spindle speeds 2 Range in (18) steps 40-2000 rpm, Taper in spindle nose 50 ISO., Range of feeds Inf. Var. 5– 1500 mm/min, Rapid traverse 3000 mm/min, Spindle motor 15 kW, Machine weight 9500 kg. Machine complete with :- Pendant control, D.R.O., Universal angular double swivel milling head, Hydraulic speed change, Longitudiunal, cross and vertical Ball Screws, Dual controls for manual machine operation, Tooling.
